Astra Wash7PixIP

ORDER CODE: ASTRAWASH7PIXIP

IP65 moving wash light with 7x40W RGBW LED and 4°-56° zoom

The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.
This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.
The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

Main features:

IP65 with a compact form factor and fast movements
Zoom from 4° to 56° with a high-optical efficiency
Pixel control, precise white CCT, multiple FXs and colour features

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

Source: 7x40W RGBW Osram Ostar LEDs
Luminous flux: (4°) 2'013 lm - (56°) 3'543 @full
Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
Source life expectancy: > 50.000 h

OPTICS

Zoom: 4° - 56° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan angle: 540°
Tilt angle: 233°
Pan/Tilt resolution: 16bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction
Body colour: RAL 9004

CONTROL

Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
DMX channels: main personality 24 / 27 / 39channel
Pixel control: OFF, ring and pixel2pixel selectable options
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display with autoflip
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 220W
Output (at 230V): 12 units on a single power line
Power factor: > 0,93
Inrush current: ＜30A @115VAC /＜50A @230VAC

PHYSICAL

IP rating: 65 (*)
Cooling: forced air with fan
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: Seetronic Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 300x424x213mm / 11.81''x16.69''x8.39''
Weight: 11,3kg / 24.91lbs

(*)

NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ASTRAWASH7PIXIP
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
2 x OSIP
1 x Antenna
User Manual

VIDEOS

Accessories & Related Products

RSR0630B

(optional)

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

C6002B

(optional)

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

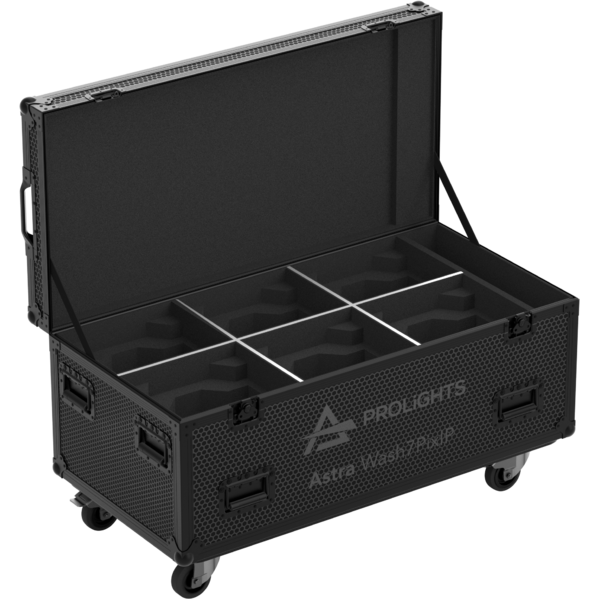

FCLASTRAW7PIXIP

(optional)

Flight case for 6 pcs of ASTRAWASH7PIXIP

LRLUNA

(optional)

Single Universe DMX transceiver with Bluetooth

ASTRAW7PSF

(optional)

Smooth filter for ASTRAWASH7PIX and ASTRAWASH7PIXIP

OSIPD13

(included)

IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole

OSIP

(included)

IP65 quick-lock omega bracket compatible with IP65 moving heads, M10 hole

IPTESTBOX

(optional)

Portable vacuum and pressure tester for ProLights IP fixtures

UPBOX2P5

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT

UPBOXPRO

(optional)

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
