ARCPOD48Q

ArcPod 48Q

NEW
5 YEARS WARRANTY

Order Code: ARCPOD48Q45DC5M

Source
48x10W RGBW / FC LEDs
IP rating
 IP66 for outdoor installations
Weight
14kg / 30.86lbs

Key Features

  • 48x10W RGBW / FC LEDs delivering 23'000 lumens
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless

ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 48Q is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48Q an incredibly flexible and versatile device for any outdoor install.

Read less
ArcPod 48Q is a compact high-power exterior wash light featuring an outstanding brightness of 23'000 lumens. It is equipped with 48x10W RGBW / FC LEDs, delivering a limitless reproduction of colours a...

Product Video

Discover the ArcPod 48Q in action

Photo Gallery

ARCPOD48Q45DC5M
ARCPOD48Q45DC5M
ARCPOD48Q45DC5M
ARCPOD48Q45DC5M

Specifications

LIGHT SOURCE
  • Source: 48x10W RGBW / FC LEDs
  • Luminous flux: (10°) 18'421 lm; (15°) 22'977 lm; (25°) 20'741 lm; (45°) 16'408 @Full
  • Lux: (10°) 37'370 lx; (15°) 30'888 lx; (25°) 12'884 lx; (45°) 2'739lx @3 m full
  • Lux: (10°) 13'453 lx; (15°) 11'120 lx; (25°) 4'638 lx; (45°) 986lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 15°
  • Field angle: 27°
  • Additional optics: 10° - 25° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 4 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 ~ 130° with manual regulation
  • Body: Sturdy die-cast aluminium body
  • Body colour: RAL 7012 - see available finishing
CONTROL
  • Supported Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10 / 17 / 22channel
  • Pixel control: up to 4 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 540W
  • Output (at 230V): 4 units on a single power line
  • Power factor: 0,95
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 08
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 584x304x93mm / 22.99''x11.97''x3.66''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ARCPOD48Q
  • 1 x 1,5 meters 3G2,5mmq power cable (BARE END - IP connection adapter)
  • 1 x 5p XLR - IP connection female adapter
  • 1 x 5p XLR - IP connection male adapter
  • User Manual

Accessories & Related Products

Optional AWEXAC12ADP

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

Order Code: AWEXAC12ADP

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

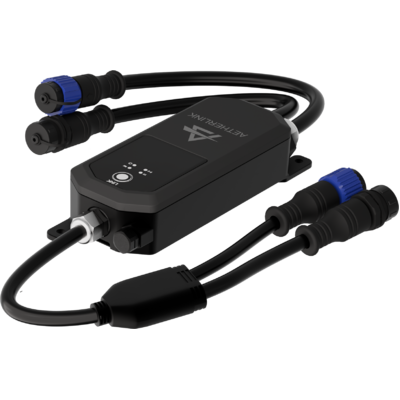

Optional <b>Æther</b> Link

IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation

Order Code: AETHERLINK

Optional AWEXDC1221ADP

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

Order Code: AWEXDC1221ADP

Optional A48QFILTER20

20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER20

Optional A48QFILTER30

30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER30

Optional A48QFILTER40

40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER40

Optional A48QFILTER60

60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER60

Optional A48QFILTER80

80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER80

Optional A48QFILTER1090

10°x90° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER1090

Optional A48QFILTER1060

10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER1060

Optional A48QFILTER3060

30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER3060

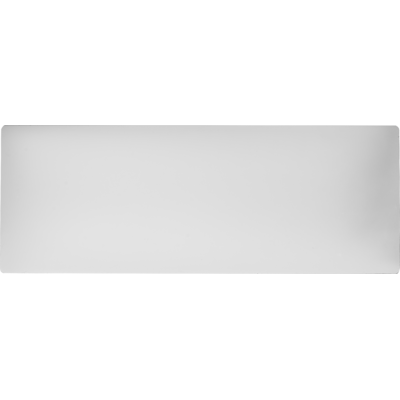

Optional A48QFILTER9010

90°x10° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER9010

Optional A48QFILTER6010

60°x10° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER6010

Optional A48QFILTER6030

60°x30° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm

Order Code: A48QFILTER6030

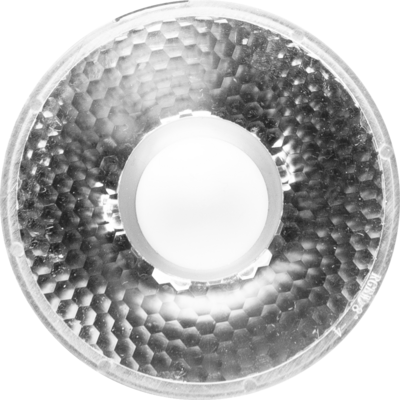

Optional S27QLENS10

10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS10

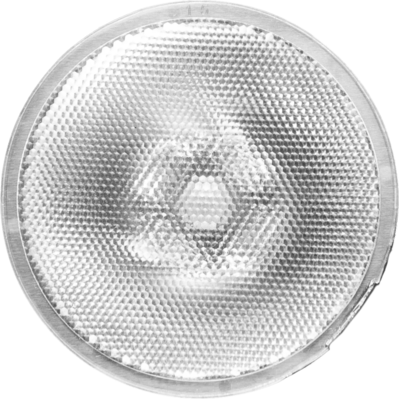

Included S27QLENS15

15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS15

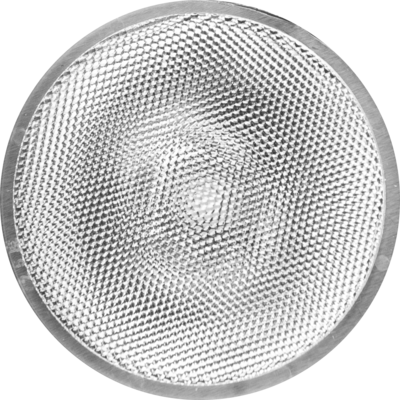

Optional S27QLENS25

25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS25

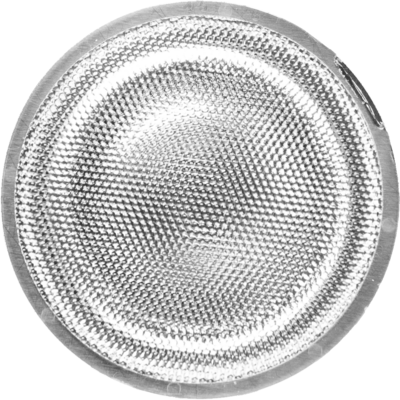

Optional S27QLENS45

45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series

Order Code: S27QLENS45

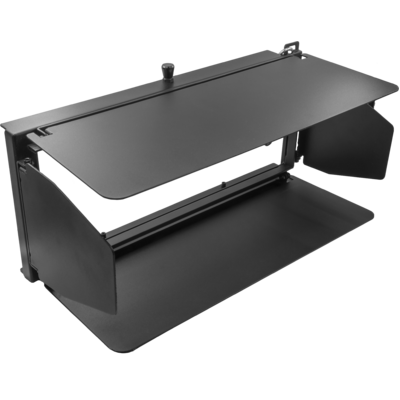

Optional S48QBD

Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q

Order Code: S48QBD

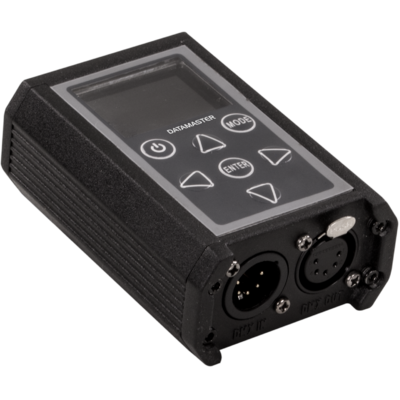

Optional <b>DataMaster</b>

RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters

Order Code: DATAMASTER

Optional AWEXAC1L03

IP67 power extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXAC1L03

Optional AWEXAC1L05

IP67 power extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXAC1L05

Optional AWEXAC1L10

IP67 power extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXAC1L10

Optional AWEXAC1L20

IP67 power extension cable for outdoor architectural projectors, L.2 0m

Order Code: AWEXAC1L20

Optional AWEXDC1L05

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXDC1L05

Optional AWEXDC1L10

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXDC1L10

Optional AWEXDC1L03

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXDC1L03

Optional AWEXDC1L20

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

Order Code: AWEXDC1L20

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetArcpod48q_LETTER_DATASHEET_(EN).pdf(13/06/2024)387KB
Letter datasheetArcpod48q_A4_DATASHEET_(IT).pdf(05/05/2021)354KB
Letter datasheetArcpod48q_A4_DATASHEET_(EN).pdf(13/06/2024)389KB
Tender SpecificationArcpod48q_TENDER_SPECIFICATION.pdf(22/08/2022)3MB

User manual User manual

File name File size Download
User manualArcpod48q_USER_MANUAL_EN.pdf(07/01/2025)8MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartArcpod48q_DMX_CHARTS.pdf(19/03/2019)54KB

Photometrics Photometrics

File name File size Download
IESarchwork_arcpod48q_ies files.zip(26/06/2020)51KB
LDTarchwork_arcpod48q_ldt files.zip(26/06/2020)36KB
PhotometricsArcpod48q_PHOTOMETRICS_REPORT.pdf(31/07/2020)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D RFAArcpod48q_3D.rfa(23/04/2021)448KB
3D SKPArcpod48q_3D.skp(09/08/2022)1MB
2DArcpod48q_CAD_2D.dwg(16/07/2021)1MB
3DArcpod48q_CAD_3D.dwg(09/08/2022)593KB
2D cad symbolsArcpod48q_CAD_2DSYMBOLS.dwg(09/03/2020)22KB
Technical drawingArcpod48q_TECHNICAL_DRAWING.pdf(26/02/2021)124KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(09/03/2020)204KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Software Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB .PRL No software needed see User Manual
NET CABLE .EHEX Professional Uploader Guide
NET CABLE .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product   accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.5 STABLE 23/12/2024 New Function:
  • Added "DMX Fault" section in Advanced menu. Now it is possible to choose the behavior of the device in case of DMX signal loss between Hold (default value), Blackout, Stand Alone, Emergency.
  • Added Dimmer Speed Off (settable via RDM).
Improvements:
  • "Dimmer Mode" changed to "Dimmer Speed". So:
    • Dimmer Mode "Off" changed to Dimmer Speed "Auto" (default value)
    • Dimmer Mode "Dimmer 1" changed to Dimmer Speed "Fast"
    • Dimmer Mode "Dimmer 2" changed to Dimmer Speed "Medium"
    • Dimmer Mode "Dimmer 3" changed to Dimmer Speed "Slow"
  • Improved RDM compliance.
Fixed Bugs:
  • In some DMX modes, changing the Dimmer DMX values when the strobe is active, the light source stops the strobe and the source always remains on.
  • Switching from Strobe@X% to Strobe@open, the light source turns on after a few moments.
  • Fixture produces jumps in light intensity when the Dimmer value is changed from 0 to 255 dmx value in a few seconds.
 Rev. 1.0
