Astra Profile1200IP

NEW

GOBOS

Custom GOBOS

Order Code: ASTRAPROF1200IP

Source

1'400W White LED (driven @1'200W)

Zoom range

5,4° - 51° motorised linear zoom

IP rating

IP65 for temporary outdoor use (*)

Weight

55kg / 121.25lbs

Key Features

1200W White LED source 7000K, 54.000 lumen output
185 mm front lens with a 5°-50° zoom
CMY+CTO Color mixing, one color wheel, 2 rotating gobo wheels, 4 framing shutters, 1 animation wheel, 2 frost, 2 prisms, iris
IP65 ratio

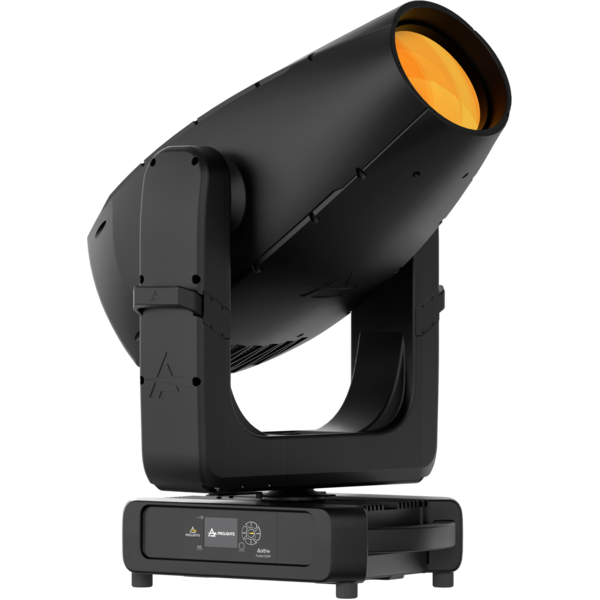

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions.

This unit boasts a stunning 54.000 lumen (fixture output with goniometer), ensuring exceptional brightness.

The large 185mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorized zoom system and precision internal optics being an ideal for use as key light.

The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential.

For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.

Read less

The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions. This unit boasts a stunning ... Read more

Product Video

Discover the Astra Profile1200IP in action

Photo Gallery

Specifications

LIGHT SOURCE

Source: 1'400W White LED (driven @1'200W)
Source CCT: 7.000K
Luminous flux: (5,4°) 21'906 lm - (50,9°) 54'599 lm @Full
Lux: (5,4°) 125'003 lx (50,9°) 4'008lx @5 m full
CRI: > 70 (CRI > 90 with High CRI filter on color wheel)
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range: 5,4° - 51° motorised linear zoom
Lens diameter: 185mm / 7.28''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised 16-bit

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 7.000 K
Colour wheel: High CRI filter + 5 colour filters + open

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer control
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
FX generator: prisms overlap for spectacular aerial effects
Circular prism: 4-f with bi-directional rotation, indexing
Linear prism: 6-f with bi-directional rotation, indexing
Frost: dual soft-edge and heavy with one interchangeable element
Iris: 5 - 100% motorised iris

GOBOS

Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm

CONTROL

Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 45ch
RDM: for remote addressing and parameter configuration
Display: Graphic User Interface

MOVEMENT

Pan: 540° - 16-bit resolution
Tilt: 270° - 16-bit resolution
Position feedback: automatic repositioning after external movement
Pan / tilt lock: for transport and maintenance

ELECTRONICS

Dimmer: linear 0 - 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: included, self-charging battery backup
Selectable PWM: 600 to 50000 Hz (selectable steps)
Firmware upgrade with: via DMX with UPBOXPRO/UPBOX2 (not included) or via USB pen drive

CONNECTIONS

Power connection: Seetronic powerCON TRUE IP65 IN
Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection: IP65 Art-Net RJ45 IN/OUT
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption (230V): 1843W
Output (at 230V): 1 units on a single power line
Standby power: 170 W
Power factor: > 0,96

PHYSICAL

IP rating: IP65 for temporary outdoor use (*)
Cooling: heat pipe with low-noise fan
Housing: Weatherproof IP65 construction
Finish: black
Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
Dimensions (WxHxD): 539x916x355mm / 21.22''x36.06''x13.98''
Weight: 55kg / 121.25lbs

INSTALLATION

Suspension and fixing: any position with quick-lock Omega brackets
Hardware on-board: ancor points on the front for accessory mounting
Transportation: retractable arm handles

CERTIFICATIONS / REPORTS

Compliance: CE, RCM

(*)

NOTE: Suitable for permanent outdoor use, provided that installation and periodic maintenance are carried out by qualified technicians.

BOX CONTENT

1 x ASTRAPROF1200IP
2 x OSIP30PLUS
1 x Antenna
1 x 1,5 meters 3G2,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)

Accessories & Related Products

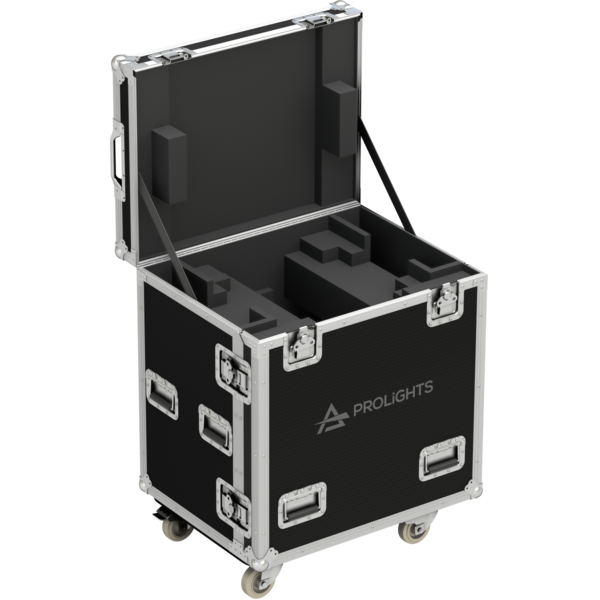

(Optional) FCLASTRAP1200IP

Flight case for 1 pc of ASTRAPROF1200IP

Order Code: FCLASTRAP1200IP

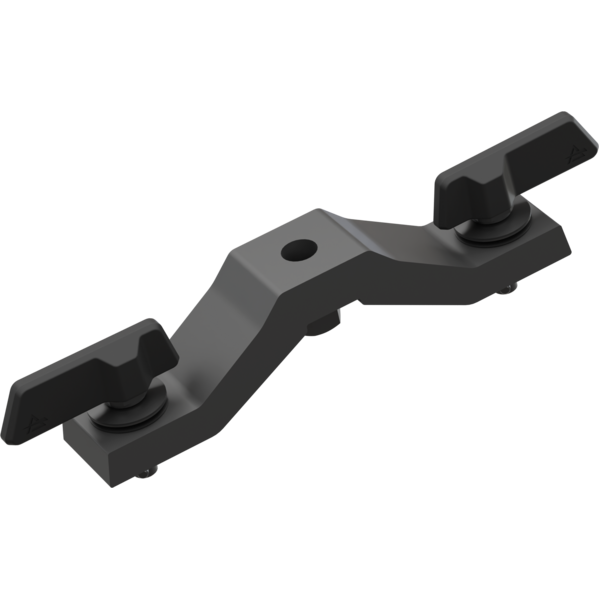

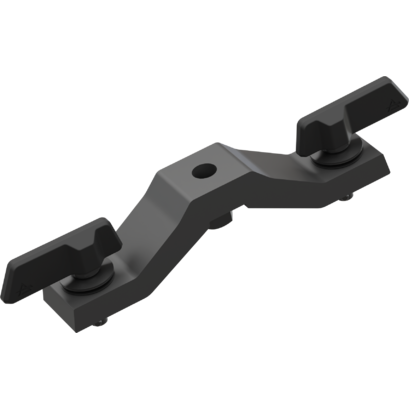

(Included) OSIP30PLUS
