Astra Wash7Pix

7x40W RGBW moving wash light with 4°-56° zoom and pixel control

Astra Wash7Pix is a compact and fast LED moving wash light. Despite its small size, it comes with an extensive feature set which can typically only be found on bigger luminaires.
Based on a 40W Osram RGBW LED light source, the unit features an extremely high-efficient optical system capable of zooming from 4° to 56°, making it extremely versatile for any application as beam or wash light.
Astra Wash7Pix is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, W-DMX, Art-Net, sACN, Kling-Net and RDM.

Main features:

  • Compact form factor and fast movements
  • Zoom from 4° to 56° with high optical efficiency
  • Pixel control, precise white CCT and multiple FXs and colour features

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 2'013 lm - (56°) 3'543 @full
  • Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 4° - 56° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan angle: 540°
  • Tilt angle: 233°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: see variants
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 24 / 27 / 39channel
  • Pixel control: OFF, ring and pixel2pixel selectable options
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX2) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 225W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,93
  • Inrush current: <30A @115VAC /<50A @230VAC
PHYSICAL
  • IP rating: 20
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Neutrik Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 279x391x205mm / 10.98''x15.39''x8.07''
  • Weight: 8,1kg / 17.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
RAL
ASTRAWASH7PIX
ASTRAWASH7PIX
Black
9004
ASTRAWASH7PIXWH
ASTRAWASH7PIXWH
White
9010

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
FCLASTRAW7PIX
FCLASTRAW7PIX
(optional)

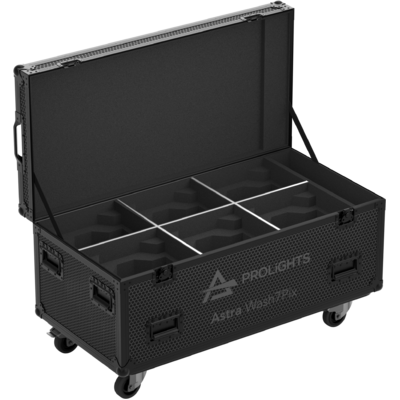

Flight case for 6 pcs of ASTRAWASH7PIX
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
ASTRAW7PEC
ASTRAW7PEC
(optional)

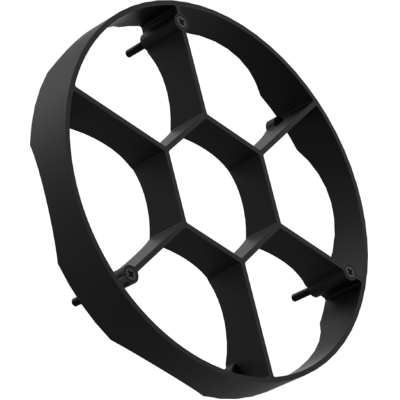

Egg Crate for ASTRAWASH7PIX
ASTRAW7PSF
ASTRAW7PSF
(optional)

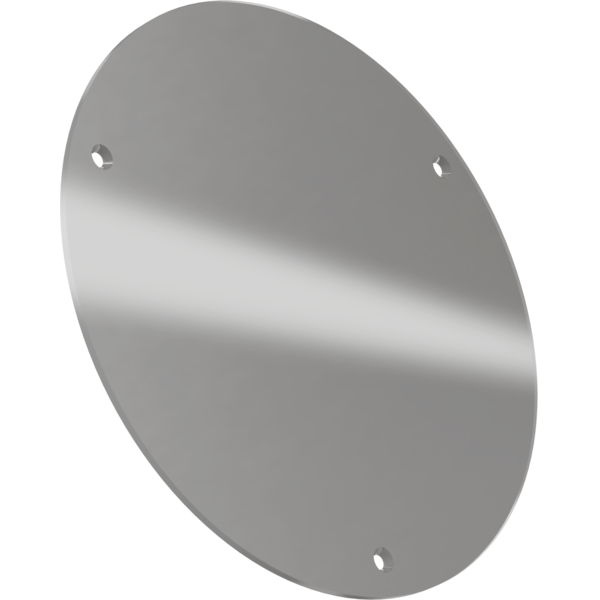

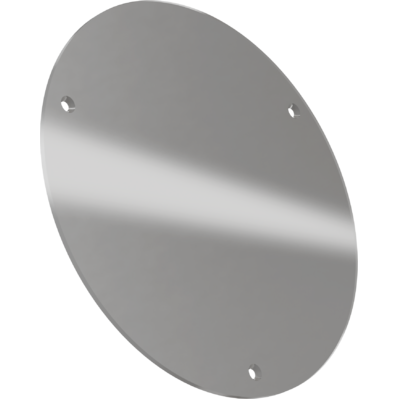

Smooth filter for ASTRAWASH7PIX and ASTRAWASH7PIXIP
OS24D13
OS24D13
(included)
Quick-lock omega bracket, M12 hole
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

DMX chart & personalities

ASTRAWASH7PIX Firmware rev. 1.0.25
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
astrawash7pix_std.fdfDownload
astrawash7pix_ext.fdfDownload
astrawash7pix_fx.fdfDownload
astrawash7pix_basic.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@astrawash_7@extended_no_px.xmlDownload
prolights@astrawash_7@fx_no_px.xmlDownload
prolights@astrawash_7@fx_ring.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Tech docs

File name File size Download
Pixel Numbering Document Astrawash7pi_PIXEL_NUMBERING.pdf 180KB
Noise Report Astrawash7pi_NOISE_REPORT.pdf 156KB

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX2P5 UPBOX2P5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.25 STABLE 17/11/2023 New Function:
  • Home Position has been added in Menu/Setup/Movement. It allows you to change the Home position of the Pan:
    • Standard : Pan is at 90° to the display when Pan@128dmx value like all Prolights fixtures.
    • Custom : Pan is at 0° to the display when Pan@128dmx value.
  • Add Home Position in Manufacturer Specific PID in RDM:
    • 0:STANDARD (default value)
    • 1:CUSTOM
