DIGISTRIP40

DigiStrip 40

Order Code: DIGISTRIP40

Source
40x0,25W RGB SMD5050 LEDs
IP rating
 IP20
Weight
2,2kg / 4.85lbs

Key Features

  • 40x0,25 W SMD5050 RGB / FC high-efficiency LED
  • Pixel pitch: 25 mm
  • Viewing angle: 120°
  • Black cover: 206,95 nit - white cover: 827,80 nit - transparent cover: 1'174 nit
  • Art-Net and Kling-Net control protocol supported

DigiStrip IP40 is a LED video strip for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). The external control unit DigiDriver is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 poles cable that provides greater stability and connection in a daisy chain (up to 24 DigiStrip).

Read less
DigiStrip IP40 is a LED video strip for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on dem...

Product Video

Discover the DigiStrip 40 in action

Photo Gallery

DIGISTRIP40
DIGISTRIP40
DIGISTRIP40
DIGISTRIP40
DIGISTRIP40

Specifications

LIGHT SOURCE
  • Source: 40x0,25W RGB SMD5050 LEDs
  • Luminous flux: black cover: 206,95 nit - milky cover: 827,80 nit - transparent cover: 1'174 nit
  • Source life expectancy: > 50.000 h
OPTICS
  • Field angle: 120°
  • Pixel pitch: 25mm / 0.98''
CONTROL
  • Supported Protocols: Art-Net, Kling-Net
  • Control units: DIGIDRIVER (optional)
  • Art-Net channels: 120ch
  • Pixel control: pixel2pixel control
CONNECTIONS
  • Signal connection: XLR 4p IN/OUT connectors
ELECTRICAL
  • Mains power supply: DC 36V
  • Max power consumption (230V): 14W
  • Output (at 230V): 24 units on a single DIGIDRIVER line
PHYSICAL
  • IP rating: IP20
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Dimensions (WxHxD): 1000x37x117mm / 39.37''x1.46''x4.61''
  • Weight: 2,2kg / 4.85lbs
INSTALLATION
  • Suspension and fixing: - bracket for truss rigging and hardware for connection of more units
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT
  • 1 x DIGISTRIP40
  • 1 x 1 meter XLR 4p cable

Accessories & Related Products

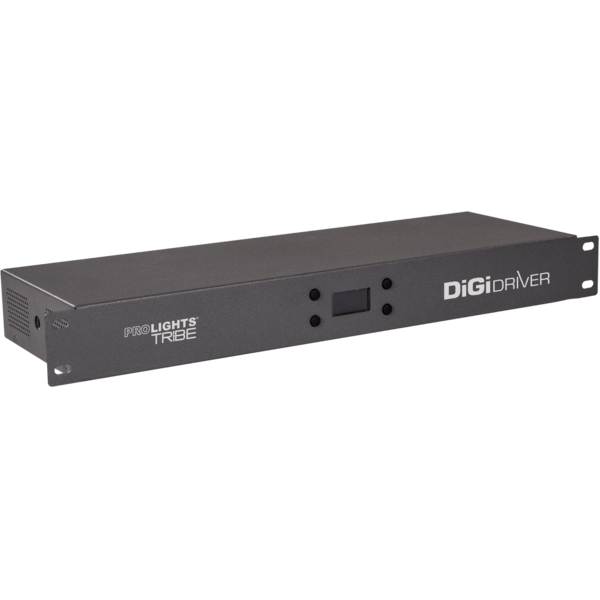

(Optional) DIGIDRIVER

Master driver for Digi series, 6 universes, IP20, max cons. 350W, 2.5 kg

Order Code: DIGIDRIVER

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Downloads

Technical documentation and support files

User manual User manual

File name File size Download
User manualDigistrip40_USER_MANUAL_ITEN.pdf(11/01/2019)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download

DIGISTRIP40 Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_digistrip40.d4Download
manufacturer fixture library (Link) Link
prolights_digistrip40_120ch.hedDownload
manufacturer fixture library (Link) Link
digistrip40_120ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
digistrip40.fix2Download
manufacturer fixture library (Link) Link

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DDigistrip40_CAD_2D.dwg(21/08/2018)982KB
3DDigistrip40_CAD_3D.dwg(22/01/2020)19MB
Technical drawingDigistrip40_TECHNICAL_DRAWING.pdf(09/05/2019)110KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 27/02/2016 Improved firmware functionality. Rev. 1
