DIGITILE144

Digitile144

Order Code: DIGITILE144

Source
12x12x0,25W RGB SMD5050 LEDs
IP rating
 IP20
Weight
2,6kg / 5.73lbs

Key Features

  • 12x12 (144 total) SMD5050 RGB/FC high-efficiency LED
  • Pixel pitch: 25 mm
  • Viewing angle: 120°
  • Luminous flux: black cover = 725 NIT, white cover = 2900 NIT, transparent cover = 3290 NIT
  • Art-Net and Kling-Net control protocol supported

DIGITILE144 is a LED video panel for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand). The external control unit DIGIDRIVER is compatible with Art-Net and Kling-Net protocol and runs both signal and power over a 4 poles cable that provides greater stability and connection in a daisy chain (up to 6 DIGITILE).

Read less
DIGITILE144 is a LED video panel for the rental market with 25 mm pixel pitch and an extensive range of optical accessories for a wide variety of looks (black and white included, transparent on demand...

Product Video

Discover the Digitile144 in action

Photo Gallery

DIGITILE144
DIGITILE144
DIGITILE144
DIGITILE144
DIGITILE144
DIGITILE144
DIGITILE144

Specifications

LIGHT SOURCE
  • Source: 12x12x0,25W RGB SMD5050 LEDs
  • Luminous flux: black cover = 725 NIT, milky cover = 2900 NIT, transparent cover = 3290
  • Source life expectancy: > 50.000 h
OPTICS
  • Field angle: 120°
  • Pixel pitch: 25mm / 0.98''
  • Additional optics: black cover (inc.), white cover (inc.), transparent (opt.)
CONTROL
  • Supported Protocols: Art-Net, Kling-Net
  • Control units: DIGIDRIVER (optional)
  • Art-Net channels: 432ch
  • Pixel control: pixel2pixel control
CONNECTIONS
  • Signal connection: XLR 4p IN/OUT connectors
ELECTRICAL
  • Mains power supply: DC 36V
  • Max power consumption (230V): 38W
  • Output (at 230V): 6 units on a single DIGIDRIVER line
PHYSICAL
  • IP rating: IP20
  • Housing: Sturdy aluminium profile
  • Finish: black
  • Dimensions (WxHxD): 300x300x118mm / 11.81''x11.81''x4.65''
  • Weight: 2,6kg / 5.73lbs
INSTALLATION
  • Suspension and fixing: - bracket for truss rigging and hardware for connection of more units
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA
BOX CONTENT
  • 1 x DIGITILE144
  • 1 x 1 meter XLR 4p cable

Accessories & Related Products

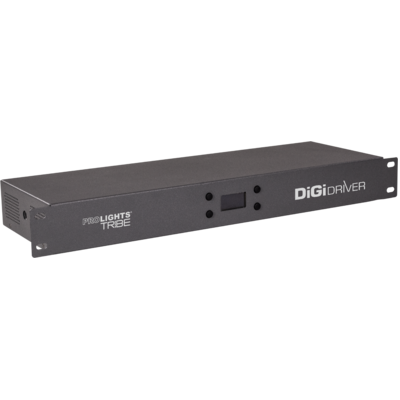

(Optional) DIGIDRIVER

Master driver for Digi series, 6 universes, IP20, max cons. 350W, 2.5 kg

Order Code: DIGIDRIVER

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Downloads

Technical documentation and support files

User manual User manual

File name File size Download
User manualDigitile144_USER_MANUAL_ITEN.pdf(11/01/2019)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download

DIGITILE144 Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_digitile144.d4Download
manufacturer fixture library (Link) Link
prolights_digitile144_432ch.hedDownload
manufacturer fixture library (Link) Link
digitile144_432ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
digitile144.fix2Download
manufacturer fixture library (Link) Link

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DDigitile144_CAD_2D.dwg(21/08/2018)1MB
3DDigitile144_CAD_3D.dwg(23/01/2020)8MB
Technical drawingDigitile144_TECHNICAL_DRAWING.pdf(09/05/2019)177KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 28/10/2015 Improved firmware functionality.
