EclCyclorama 100

ORDER CODE: ECLCYC100

330W linear soft CYC and flood light with RGB+Warm White colour mixing

EclCyclorama 100 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

SPEKTRAMain features:

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.
See variants

PHOTO GALLERY

EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100
EclCyclorama 100

Technical specifications

LIGHT SOURCE
  • Source: 330W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 22'649 @full
  • Lux: @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
  • CRI: 93 @3.200 K; 92,6 @5.600 K
  • R9: 88 @3.200 K; 93,7 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 90,9 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (VxH) 40°x80°
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: +/- 8° angle adjusting
CONTROL
  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
ELECTRONICS
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Standby power: 38,76 W
  • Power factor: >0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000x119x148mm / 39.37''x4.69''x5.83''
  • Weight: 9,6kg / 21.16lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
FCLECLCYC
FCLECLCYC
(optional)

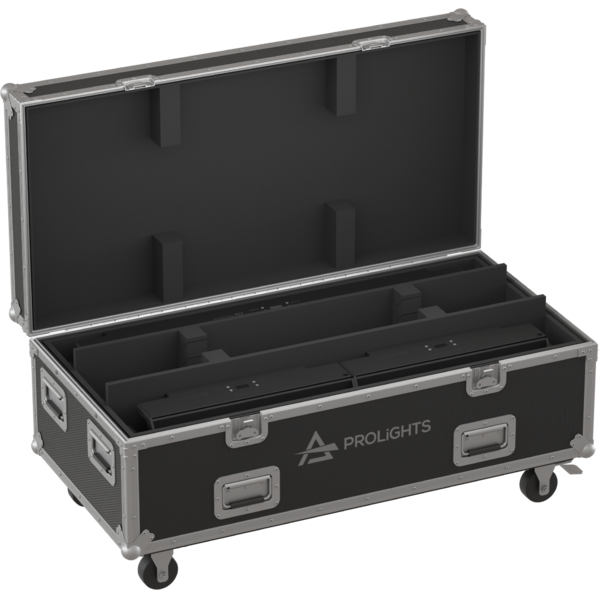

Flightcase for 4 pcs of ECLCYC100 or 8 pcs ECLCYC050 divided in two layers
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
ECLCYCBD100
ECLCYCBD100
(optional)

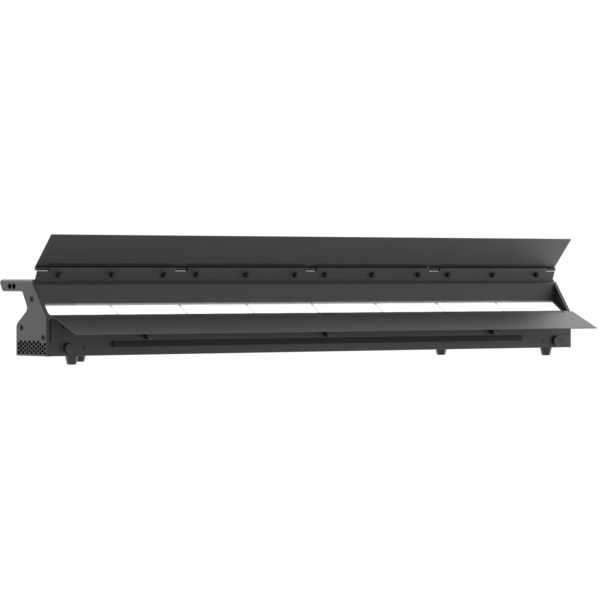

Upper and lower barndoors for adjust the light beam for ECLCYC100
ECLCYC100PO
ECLCYC100PO
(optional)

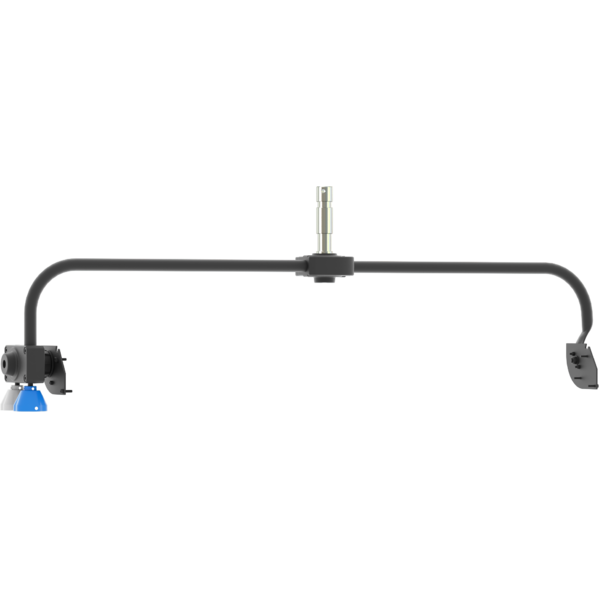

Pole operated aluminium yoke bracket for pan/tilt for ECLCYC100
ECLCYCF40L100
ECLCYCF40L100
(optional)

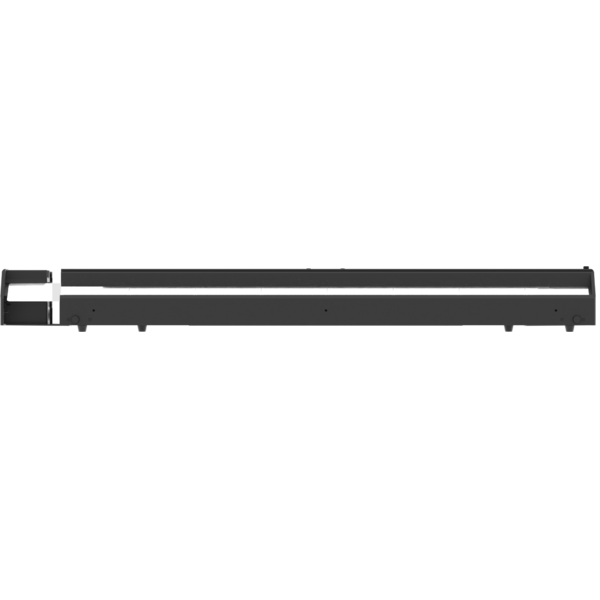

Light diffusion filter for ECLCYC series projectors, 40°, lenght 100 cm
ECLCYCF1060L100
ECLCYCF1060L100
(optional)

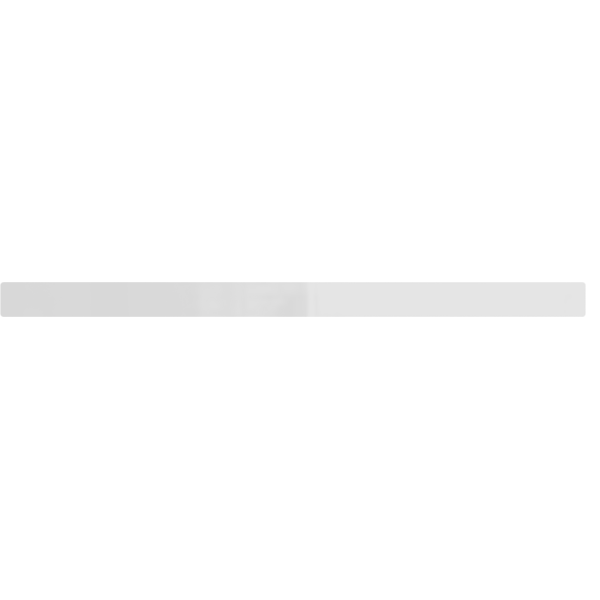

Light diffusion filter for ECLCYC series projectors, 10°x60°, lenght 100 cm
ECLCYCF3060L100
ECLCYCF3060L100
(optional)
Light diffusion filter for ECLCYC series projectors, 30°x60°, lenght 100 cm
ECLCYCOHB
ECLCYCOHB
(optional)
Orientable hanging bracket for ECLCYC series projectors
OS25D13
OS25D13
(included)
Quick-Lock omega bracket, M12 hole
