ECLJRG2

EclProfile JrProG2

Order Code: ECLJRG2PROTUBK

Source
100W high-power white LED
Zoom range
25° - 50° manual zoom lens
IP rating
 IP20
Weight
5,76kg / 12.7lbs

Key Features

  • Colour temperature: tungsten 3.000 K, daylight 5.000 K
  • High-efficiency optics maximising uniformity of projection, framing precision and colour temperature stability over the entire dimming curve
  • 25° - 50° manual zoom
  • Includes gobos holder and gel frame holder

EclProfile JrG2 is the new affordable LED profile by TRIBE, featuring a new level of performance in the field of ellipsoidal with LED technology with a high flux 100W COB LED and a uniform projection. The design of the EclProfile JrG2 makes it a flexible fixture to project from any distance thanks to the manual zoom.

Read less
EclProfile JrG2 is the new affordable LED profile by TRIBE, featuring a new level of performance in the field of ellipsoidal with LED technology with a high flux 100W COB LED and a uniform projection....

Photo Gallery

ECLJRG2PROTUBK
ECLJRG2PROTUBK
ECLJRG2PROTUBK
ECLJRG2PROTUBK

Specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • CCT: (TU) 3.100 K - (DY) 5.000
  • Luminous flux: (TU) 3'851 lm - (DY) 3'757
  • Lux: (25°) TU 3'990 lx - DY 3'243lx @3 m
  • Lux: (50°) TU 1'340 lx - DY 1'262lx @3 m
  • CRI: (TU) 83 - (DY) 81
  • TLCI: (TU) 71 - (DY) 66
  • TM30 Rf: (TU) 83 - (DY) 80
  • TM30 Rg: (TU) 96 - (DY) 97
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 25° - 50° manual zoom lens
  • Lens type: high-quality glass lens optics
  • Other: 25° - 50° zoom lens included
DYNAMIC EFFECTS
  • Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
  • Manual mode: manual adjustment of dimmer and strobe
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 1 / 3ch
  • Display: LED display user interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
BODY
  • Housing: Sturdy die-cast aluminium body
  • Finish: black or white finishing
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 105,5W
  • Max power consumption (at 120V): 105,2W
  • Output (at 230V): 35 units on a single power line
  • Output (at 120V): 19 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: DMX 5p IN/OUT
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 259x430x529mm / 10.2''x16.93''x20.83''
  • Weight: 5,76kg / 12.7lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT
  • 1 x ECLJRG2
  • 1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
  • 1 x ECLJRGH
  • 1 x ECLJRTPG
  • User Manual

Accessories & Related Products

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

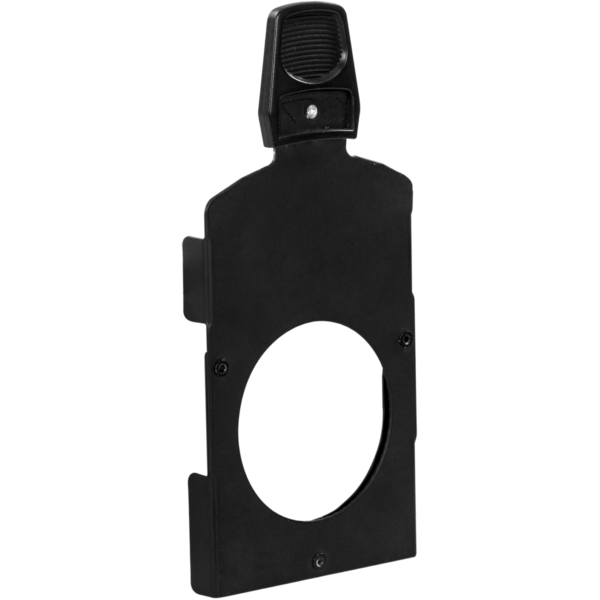

Included ECLJRGH

Gobo holder for ECLJR profilers

Order Code: ECLJRGH

Included ECLJRTPG

Filter frame for ECLJR profilers

Order Code: ECLJRTPG

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEcljrg2prodybk_A4_DATASHEET(EN).pdf(06/04/2021)229KB

User manual User manual

File name File size Download
User manualEcljrg2_USER_MANUAL.pdf(14/02/2020)6MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEcljrg2_DMX_CHARTS.pdf(24/04/2020)41KB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DEcljrg2_CAD_2D.dwg(24/07/2019)8MB
Technical drawingEcljrg2_TECHNICAL_DRAWING.pdf(24/07/2019)294KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 22/08/0008 Introduced "Silent Mode".
