EclPar

Source
177 W white LED / 108W UV LED
IP rating
 IP20
Weight
5,5kg / 12.13lbs

Key Features

  • 177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
  • Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
  • Silent operation and adjustable PWM

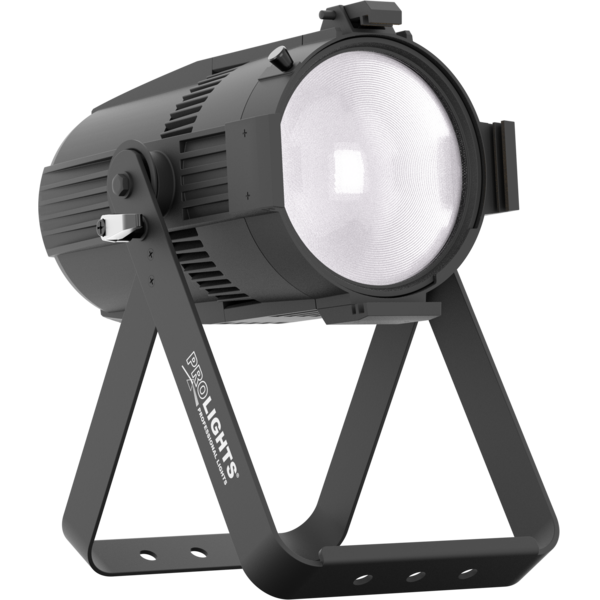

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

Read less
EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV an...

Versions

Code CT CRI R9 Lumen
ECLPARDY
ECLPARDY
5.600 K > 96 > 96 13'739
ECLPARTU
ECLPARTU
3.200 K > 97 > 97 12'454
ECLPARUV
ECLPARUV DISCONTINUED
- - - -

Product Video

Discover the EclPar in action

Photo Gallery

ECLPARDY
ECLPARDY
ECLPARDY
ECLPARDY
ECLPARDY
ECLPARDY

Specifications

LIGHT SOURCE
  • Source: 177 W white LED / 108W UV LED
  • CCT: (TU) 3.200K - (DY) 5.600
  • Luminous flux: (TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834 @Full
  • Luminous flux: (DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
  • Lux: (TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx @5 m full
  • Lux: (DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx @5 m full
  • CRI: > 97 for TU; > 96 for DY
  • R9: > 97 for TU; > 96 for DY
  • TLCI: > 98 for TU; > 95 for DY
  • TM30 Rf: > 93 for TU; > 90 for DY
  • TM30 Rg: < 102 for TU; < 101 for DY
  • Source life expectancy: > 70.000 h
OPTICS
  • Beam angle: with different lens included: 12° / 24° / 73°
  • Field angle: with different lens included: 28° / 41° / 104°
  • Lens diameter: 163mm / 6.42''
  • Lens type: fresnel lens
  • Additional optics: 24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
  • Other: 40° lens included on board in UV version; no other lenses availables
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: aluminium die-casting
  • Body colour: black
  • Other: gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 6channel
  • RDM: RDM for remote monitoring and settings
  • Display: OLED display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: (TU, DY) 207 W - (UV) 204W
  • Standby power: 110VAC/3.8W, 230VAC/4.5W
  • Output (at 230V): 15 units on a single power line
  • Power factor: > 0.95
PHYSICAL
  • IP rating: IP20
  • Cooling: active, silent operation
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 316x404x317mm / 12.44''x15.91''x12.48''
  • Weight: 5,5kg / 12.13lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT
  • 1 x ECLPAR
  • 1 x ECLPARLENS24
  • 1 x ECLPARLENS65
  • 1 x ECLPARTPG
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON power connector)
  • User Manual

Accessories & Related Products

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional 9513FCAL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

Order Code: 9513FCAL03

Optional 9533FCAL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

Order Code: 9533FCAL03

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional TOUR53413L03

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

Order Code: TOUR53413L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional FCLECLPAR

Flightcase for 6 pcs of ECLPAR

Order Code: FCLECLPAR

Optional 958025L03

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

Order Code: 958025L03

Optional ECLPARBD

Barn door with directional flaps to adjust the light beam for ECLPAR series

Order Code: ECLPARBD

Included ECLPARLENS24

24° lens for ECLPAR projectors series

Order Code: ECLPARLENS24

Included ECLPARLENS12

12° lens for ECLPAR projectors series

Order Code: ECLPARLENS12

Optional ECLPARLENS40

40° lens for ECLPAR projectors series

Order Code: ECLPARLENS40

Included ECLPARLENS65

73° lens for ECLPAR projectors series

Order Code: ECLPARLENS65

Optional ECLPAREC

Egg crate for ECLPAR projectors series

Order Code: ECLPAREC

Included ECLPARTPG

Gel filter frame for ECLPAR projectors

Order Code: ECLPARTPG

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO
