EclPar IPLVW

NEW

Order Code: ECLPARIPLVWBK

Source

300W Variable White LED

IP rating

IP65 for temporary outdoor application, not for fixed installations

Weight

8,35kg / 18.41lbs

Key Features

300W Variable White LED delivering high CRI, TLCI, TM30 values
Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
IP65 for exterior application

The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.

This robust fixture is powered by a 300W Variable White light source, capable of producing up to 20,000 fixture lumens with remarkable efficiency and advanced control.

EclPar IPLVW excels in delivering superior white light reproduction with variable CCT, boasting high output and high CRI and TM30 values.

Its compact and silent design renders the EclPar IPLVW an indispensable tool for both indoor and outdoor stages, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

Read less

The EclPar IPLVW stands as a high-performance, IP-rated single source LED spotlight, tailored for grand-scale events such big shows, large exhibitions, and high-ceiling studio applications.This robust... Read more

Product Video

Discover the EclPar IPLVW in action

Photo Gallery

Specifications

LIGHT SOURCE

Source: 300W Variable White LED
Luminous flux: (15°) 20'098, (30°) 20'803, (60°) 21'867 @Full
Lux: (15°) 5'032, (30°) 2'999, (60°) 1'286lx @5 m full
CRI: 97,1 @full; 97,6 @3.200K; 98,7 @5.600K
R9: 98,1 @3.200K; 99 @5.600K
TLCI: 99 @full; 98 @3.200K; 99 @5.600K
TM30 Rf: 95,5 @full; 96,3 @3.200K; 95,4 @5.600K
TM30 Rg: 101,9 @full; 102,3 @3.200K; 100,9 @5.600K
Source life expectancy: > 50.000 h

OPTICS

Beam angle: (on-board) 15° - (opt) 30°, 60°
Field angle: (on-board) 35°
Lens diameter: 172mm / 6.77''
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: (opt) 30°, 60°
Other: possible to mount lens both on the internal side and on the external side

COLOUR SYSTEM

Colour mixing: tunable white
CCT: CCT control through dedicated DMX channel
White presets: 2.700 K ~ 6.500K
Macros: built-in white presets

DYNAMIC EFFECTS

Static mode: selection of static dimmer and color temperature
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: Sturdy die-cast aluminium body
Body colour: black

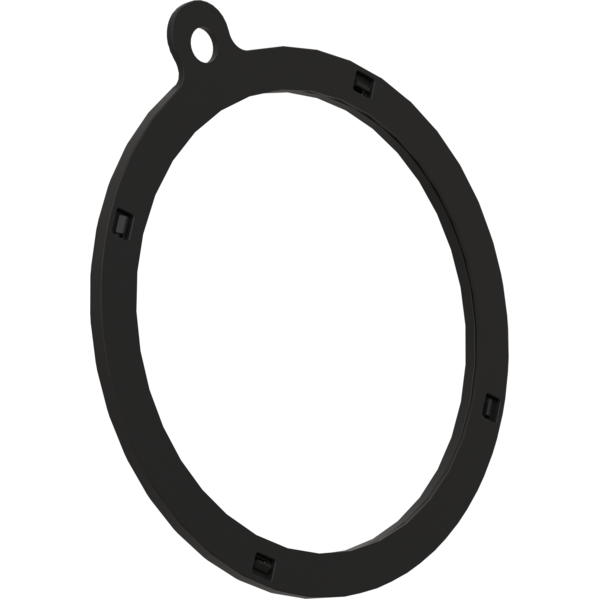

Other: Front mount holder for accessories as barn door, filter frame

CONTROL

Protocols: DMX512, RDM, CRMX (optional)
Stand Alone: 3 RGB backlight push-encoders
DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free operation
Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 340W
Standby power: 2,2 W
Output (at 230V): 6 units on a single power line
Power factor: > 0,94

PHYSICAL

IP rating: IP65 for temporary outdoor application, not for fixed installations
Cooling: active, with IP low noise fan
Suspension and fixing: hanging bracket with quick lock system designed for use with OMEGA bracket or floor stand (accessory), hanging system through eye bolt
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
Dimensions (WxHxD): 275x402x382mm / 10.83''x15.83''x15.04''
Weight: 8,35kg / 18.41lbs

(*)

NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM, FCC, cTUVus

BOX CONTENT

1 x ECLPARIPLVW
1 x EPIPLLENS15
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
User Manual

Accessories & Related Products

Included

ECLPARIPL series 15° lens

Order Code: EPIPLLENS15

Optional

ECLPARIPL series 30° lens

Order Code: EPIPLLENS30

Optional

ECLPARIPL series 60° lens

Order Code: EPIPLLENS60

Optional

Flight case for 6 pcs of ECLPARIPL series

Order Code: FCLECLPARIPL

Optional

Light diffusion filter for ECLPARIPL series, asymmetric 10°x20°

Order Code: EPIPLFILT1020

Optional

Light diffusion filter for ECLPARIPL series, asymmetric 10°x40°

Order Code: EPIPLFILT1040
