ECLPARIPMUV

EclPar IPMUV

NEW
Patented

Order Code: ECLPARIPMUVBK

Source
80W UV LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
4,1kg / 9.04lbs

Key Features

  • 80W UV LED source (365nm) without visible light spectrum
  • Flex-Lens optics: 40° lens fitted, 15° lens optional
  • DMX, RDM, optional CRMX signal

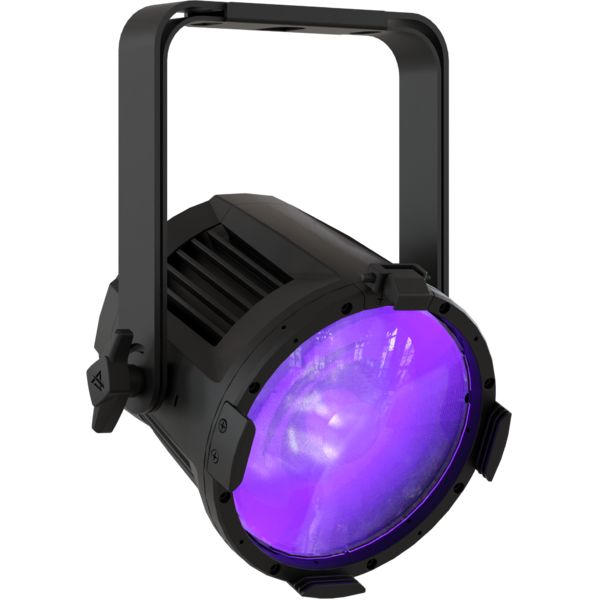

EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365 nm wavelength, delivering true UV output with no visible light spectrum.

Its rugged construction makes the EclPar IPMUV a reliable workhorse for outdoor and dusty environments, while the IP silent fan is ideal for indoor venues where quiet operation and true UV performance are required.

Its flexible optical system supports interchangeable lenses ranging from an optional 15° narrow beam to a 40° wide beam (included). These lenses can be quickly mounted on the front of the fixture for fast beam adjustments, or installed behind its tempered front glass for long-term outdoor use.

Read less
EclPar IPMUV is an all-weather, IP65-rated, single-source UV LED spotlight engineered for professional use. It features a 80W ultraviolet LED at a 365 nm wavelength, delivering true UV output with no ...

Photo Gallery

ECLPARIPMUVBK
ECLPARIPMUVBK
ECLPARIPMUVBK
ECLPARIPMUVBK
ECLPARIPMUVBK

Specifications

LIGHT SOURCE
  • Source: 80W UV LED
  • Other: Output: 4'637 mW with 40° lens; 22'862 mW with 15° lens; wavelength 365 nm with no visible light spectrum
  • Source life expectancy: 6.000 h
OPTICS
  • Beam angle: (on-board) 40° - (opt) 15°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 15°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: UV
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door and full snoot
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 3 / 4channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 80W
  • Standby power: 1.3 W
  • Output (at 230V): 20 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
  • Weight: 4,1kg / 9.04lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT
  • 1 x ECLPARIPMUV
  • 1 x EPIPMUVLENS40
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • 1 x User Manual

Accessories & Related Products

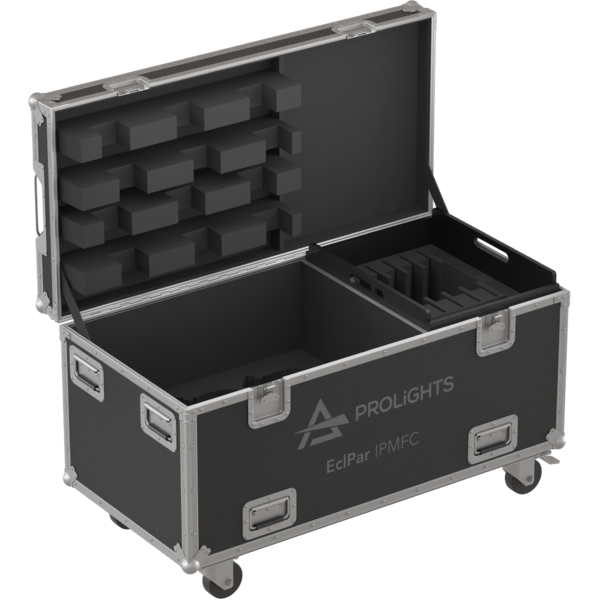

Optional FCLECLPARIPM

Flight case for 6 pcs of ECLPARIPM series

Order Code: FCLECLPARIPM

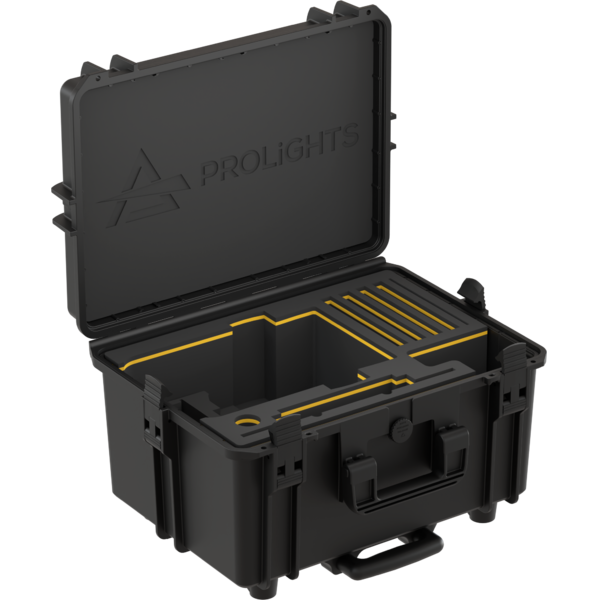

Optional EPIPMBAG1U

Empty ABS case for 1 pc of ECLPARIPM series

Order Code: EPIPMBAG1U

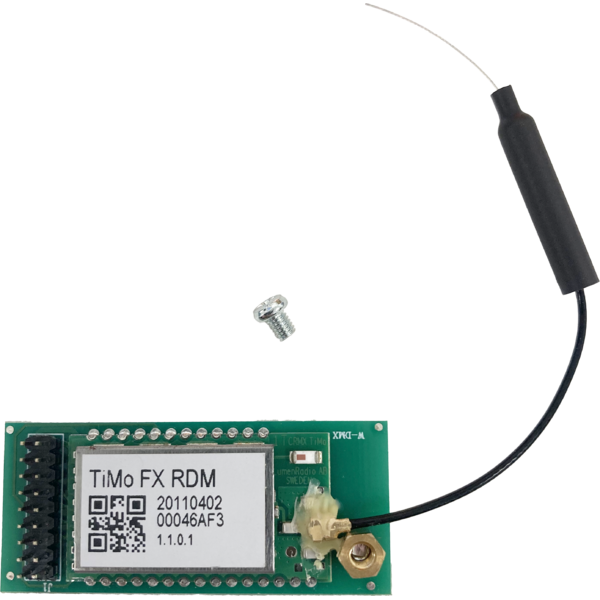

Optional ECLPARIPMWKBK

CRMX Timo Fx kit for ECLPARIP serie, black

Order Code: ECLPARIPMWKBK

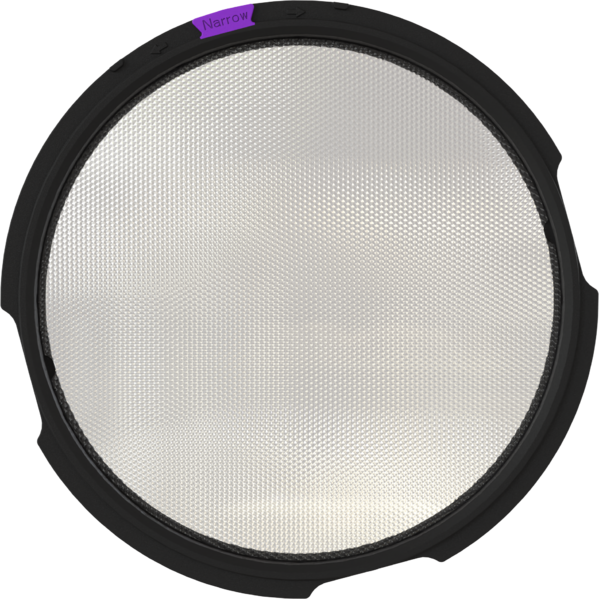

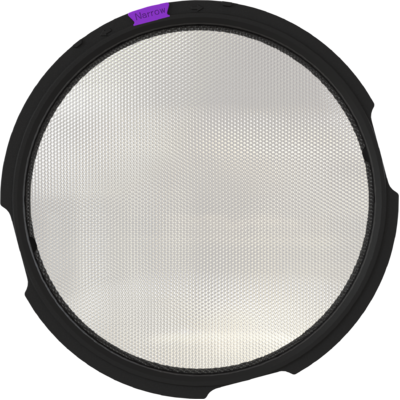

Optional EPIPMUVLENS15

15° Lens for ECLPARIPMUV

Order Code: EPIPMUVLENS15

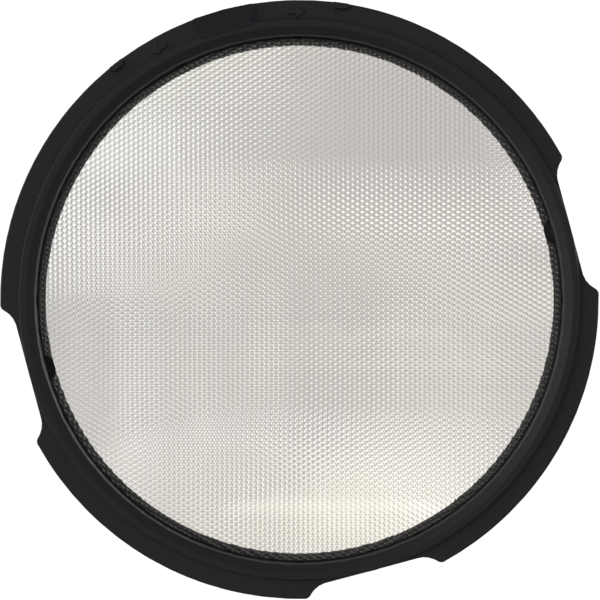

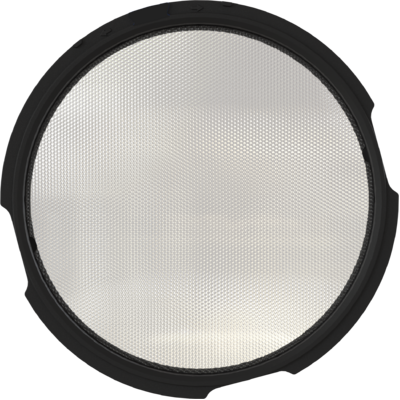

Included EPIPMUVLENS40

40° Lens for ECLPARIPMUV

Order Code: EPIPMUVLENS40

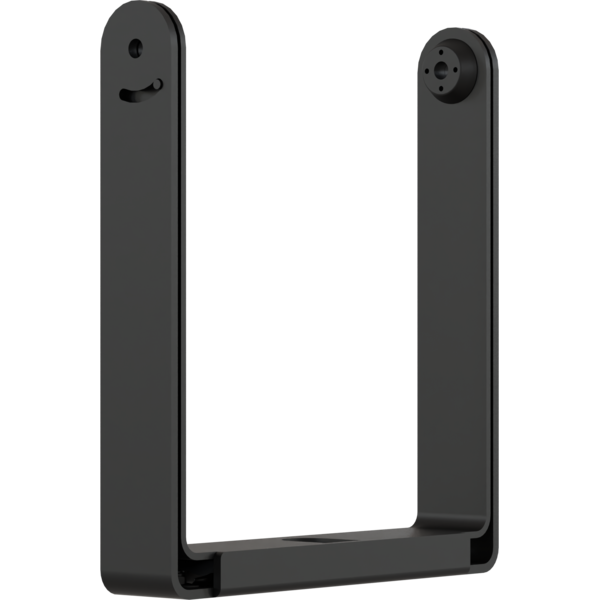

Optional EPIPMOS25BRK

Optional bracket kit, OS25PLUS compatible, for ECLPARIPM series

Order Code: EPIPMOS25BRK

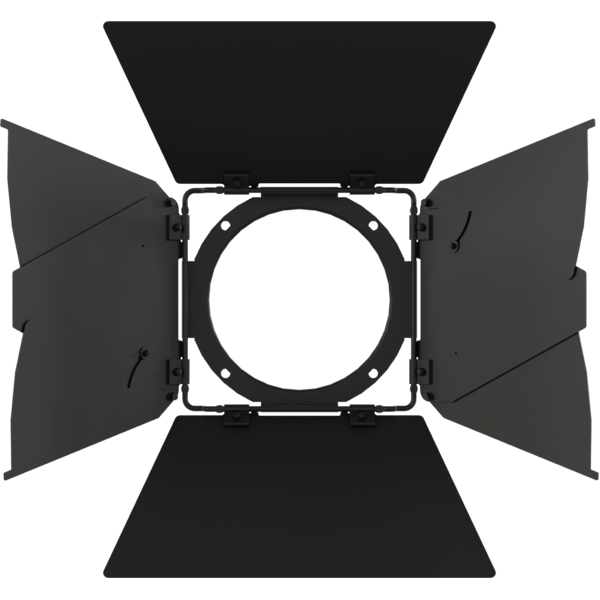

Optional ECLPARIPMBDBK

Barn door with 8 directional flaps to adjust the light beam, ECLPARIPM, black

Order Code: ECLPARIPMBDBK

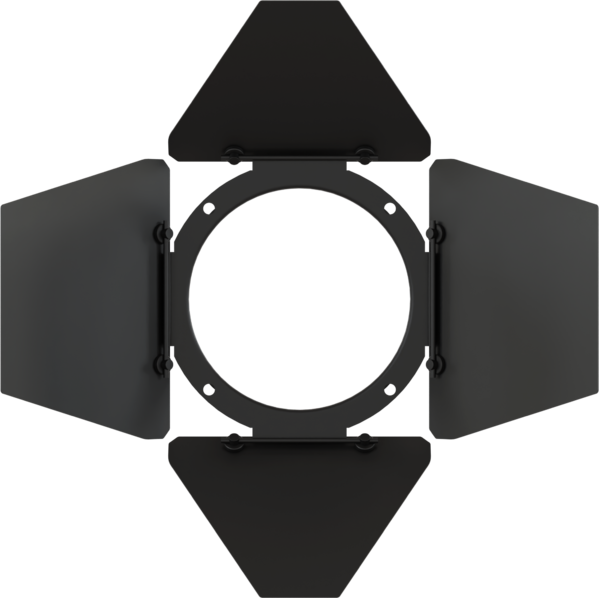

Optional ECLPARIPMB4DBK

Barn door with 4 directional flaps to adjust the light beam for ECLPARIPM, black

Order Code: ECLPARIPMB4DBK

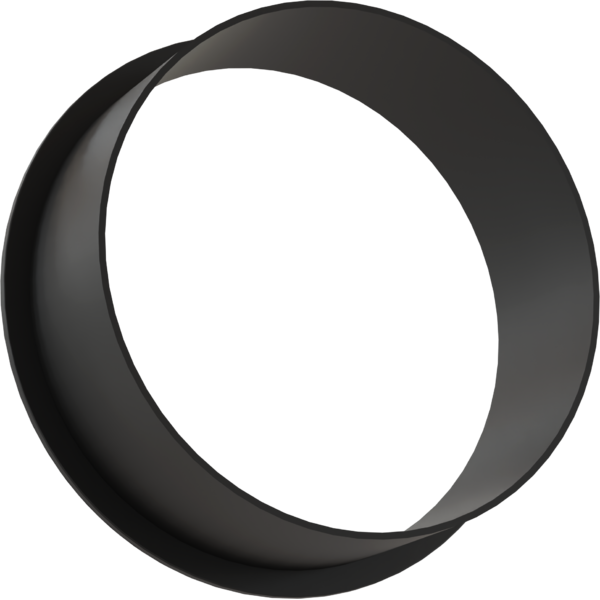

Optional EPIPMFSNOOTBK

Full snoot for ECLPARIPM series, black

Order Code: EPIPMFSNOOTBK

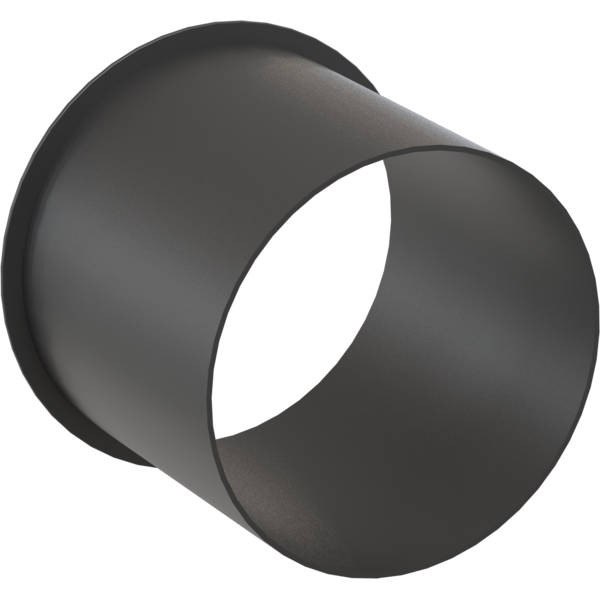

Optional EPIPMFSNOOTL16BK

16cm lenght full snoot for ECLPARIPM series, black

Order Code: EPIPMFSNOOTL16BK

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

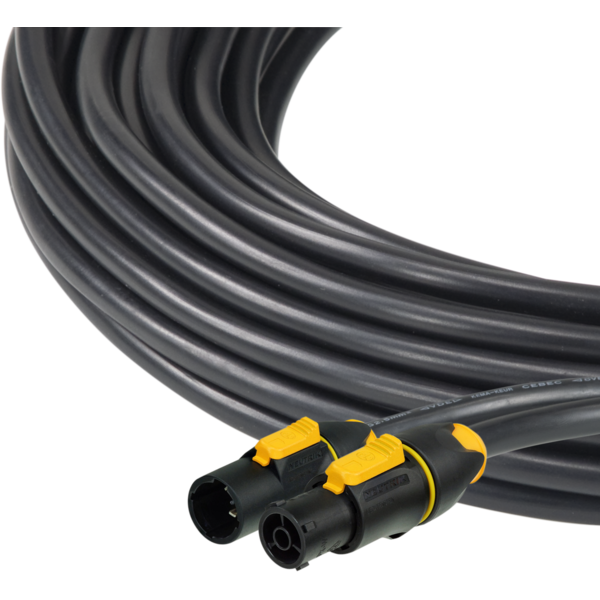

Optional 958215L03

3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958215L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

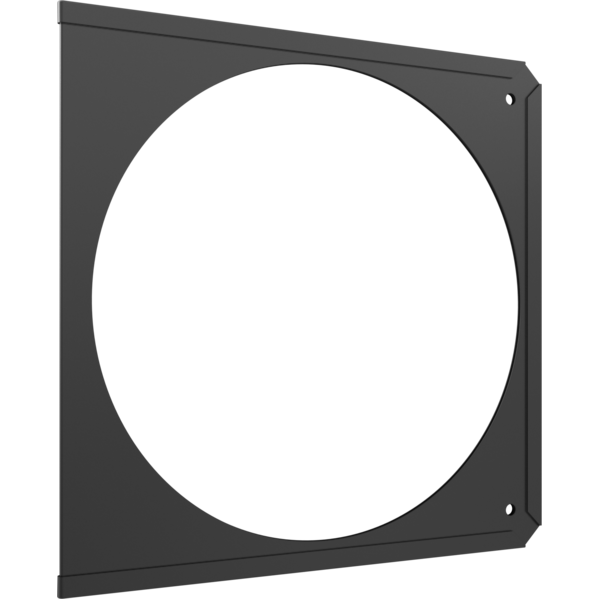

Optional ECLPARTPG
