ECLPARIPMVW

EclPar IPMVW

Patented

Order Code: ECLPARIPMVWBK

Source
100W Variable White LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
4,1kg / 9.04lbs

Key Features

  • 100W Variable White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° and 60° optional
  • IP65 for exterior application, fan free

EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control.
Its LED source delivers a high-quality white reproduction with high CRI and TM30 with an advanced control over colours, ensuring consistency across fixtures.
The unit is compact and completely fan free, making the EclPar IPMVW a workhorse for any outdoor and dusty environment, but as well as for corporate and studio whereas  silent operations are required.
The flexible optical system allow a wide selection of lenses from narrow 15° (on board), flood 30°, and ultra wide 60°, which can be quickly mounted in front of the luminaire or inside the front tempered glass for lasting exterior installation.

Read less
EclPar IPMVW is a flexible IP rated single source LED spotlight, featuring an 100W Variable White light source with high efficiency and advanced colour control. Its LED source delivers a high-quality ...

Photo Gallery

ECLPARIPMVWBK
ECLPARIPMVWBK
ECLPARIPMVWBK
ECLPARIPMVWBK
ECLPARIPMVWBK

Specifications

LIGHT SOURCE
  • Source: 100W Variable White LED
  • Luminous flux: (15°) 4'571 lm; (30°) 4'329 lm; (60°) 4'414 @Full
  • Lux: (15°) 3'072 lx; (30°) 451 lx; (60°) 163lx @5 m full
  • CRI: 97,6 @full; 97,1 @2'700K; 96,4 @6'500K
  • R9: 95 @full; 83,7 @2'700K; 94,1 @6'500K
  • TLCI: 99 @full; 97 @2'700K; 98 @6'500K
  • TM30 Rf: 93,3 @full; 93,7 @2'700K; 91,5 @6'500K
  • TM30 Rg: 100,5 @full; 97,1 @2'700K; 98,1 @6'500K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 24°
  • Lens diameter: 172mm / 6.77''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 4 / 5 / 9 / 11channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 117W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 262x327x213mm / 10.31''x12.87''x8.39''
  • Weight: 4,1kg / 9.04lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLPARIPMVW
  • 1 x EPIPMLENS15
  • 1 x ECLPARTPG
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • 1 x User Manual

Accessories & Related Products

Optional FCLECLPARIPM

Flight case for 6 pcs of ECLPARIPM series

Order Code: FCLECLPARIPM

Optional EPIPMBAG1U

Empty ABS case for 1 pc of ECLPARIPM series

Order Code: EPIPMBAG1U

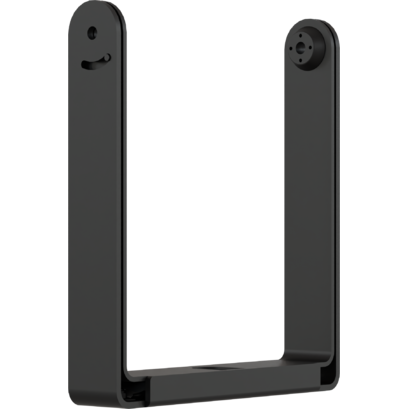

Optional EPIPMOS25BRK

Optional bracket kit, OS25PLUS compatible, for ECLPARIPM series

Order Code: EPIPMOS25BRK

Optional ECLPARIPMB4DBK

Barn door with 4 directional flaps to adjust the light beam for ECLPARIPM, black

Order Code: ECLPARIPMB4DBK

Optional ECLPARIPMBDBK

Barn door with 8 directional flaps to adjust the light beam, ECLPARIPM, black

Order Code: ECLPARIPMBDBK

Included ECLPARTPG

Gel filter frame for ECLPAR projectors

Order Code: ECLPARTPG

Optional ECLPARIPMWKBK

CRMX Timo Fx kit for ECLPARIP serie, black

Order Code: ECLPARIPMWKBK

Included EPIPMLENS15

ECLPARIPM series 15° lens

Order Code: EPIPMLENS15

Optional EPIPMLENS30

ECLPARIPM series 30° lens

Order Code: EPIPMLENS30

Optional EPIPMLENS60

ECLPARIPM series 60° lens

Order Code: EPIPMLENS60

Optional EPIPMFHBK

Filter holder for ECLPARIPM series, black

Order Code: EPIPMFHBK

Optional EPIPMFILT1020

Light diffusion filter for ECLPARIPM series, asymmetric 10°x20°

Order Code: EPIPMFILT1020

Optional EPIPMFILT1040

Light diffusion filter for ECLPARIPM series, asymmetric 10°x40°

Order Code: EPIPMFILT1040

Optional EPIPMFILT1060

Light diffusion filter for ECLPARIPM series, asymmetric 10°x60°

Order Code: EPIPMFILT1060

Optional EPIPMFILT3060

Light diffusion filter for ECLPARIPM series, asymmetric 30°x60°

Order Code: EPIPMFILT3060

Optional EPIPMFSNOOTBK

Full snoot for ECLPARIPM series, black

Order Code: EPIPMFSNOOTBK

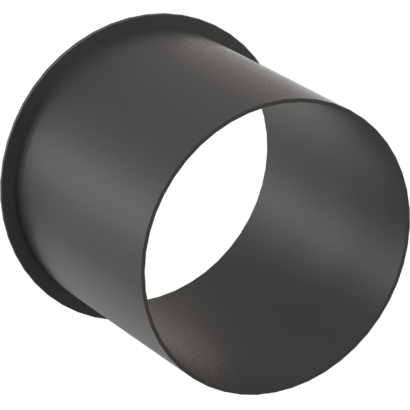

Optional EPIPMFSNOOTL16BK

16cm lenght full snoot for ECLPARIPM series, black

Order Code: EPIPMFSNOOTL16BK

Optional EPIPMHLOUVREBK

Honeycomb louvre for ECLPARIPM series, black

Order Code: EPIPMHLOUVREBK

Optional EPIPMCLOUVREBK

Concentric louvre for ECLPARIPM series, black

Order Code: EPIPMCLOUVREBK

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional 958215L03

3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958215L03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03
