HALUSTRIPDUO

HaluStrip Duo

NEW

Order Code: HALUSTRIPDUO

IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
8kg / 17.64lbs

Key Features

  • 200W: 14x2700K 4° Beam + 3x42 RGBWW Pixels
  • Equipped with built-in retractable feet for floor positioning
  • Seamless modular frame for flat, hanging / ground, on yoke configurations
  • DMX, RDM, sACN, Art-net and RDMnet protocols supported
  • Available optional optics for beam LEDs - 12°, 24°

The HaluStrip DUO is a dual layer LED strip that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside high-brightness video and strobe features, with full pixel-level control. This integration facilitates diverse and dynamic lighting setups, suitable for a variety of professional stages and TV applications.

Each unit of HaluStrip DUO comprises two distinct layers of light sources: 126 (3x42) RGB+WW pixels with a 120° beam spread, and 14 (1x14) WarmWhite 4° beam sources. The total power draw is 170W, which can be distributed between either or both groups of light sources according to user preference. Additionally, each emitter is individually pixel controllable, enabling the display of video content on either one or both sources. This offers exceptional brightness and unmatched colors.

The modular frame of HaluStrip DUO, akin to LED tile structures, allows seamless interlocking of multiple units. This maintains a consistent pixel pitch across both source groups when using several devices. The frame is designed for versatility, supporting various configurations such as flat or curved, hanging or ground stacking.

HaluStrip DUO also excels as an all-weather lighting solution. Its IP65-rated design ensures reliability and durability in both indoor and outdoor applications, protecting against water and dust.

In terms of connectivity, HaluStrip DUO comes with an integrated power supply and user interface. It supports a variety of lighting protocols including DMX, RDM, sACN, Art-Net and RDMnet, offering unparalleled flexibility for any setup.

Read less
The HaluStrip DUO is a dual layer LED strip that seamlessly integrates lighting and video capabilities into a modular design. This twin-source unit offers high-power, long-throw white beams alongside ...

Product Video

Discover the HaluStrip Duo in action

Photo Gallery

HALUSTRIPDUO
HALUSTRIPDUO
HALUSTRIPDUO
HALUSTRIPDUO
HALUSTRIPDUO
HALUSTRIPDUO

Specifications

LIGHT SOURCE
  • Light source: 1 x 14 4° 2700K LEDs + 3 x 42 120° RGB+WW LEDs
  • Luminous flux: 4'044 lm (total) @Full
  • Luminous flux: 3'871 lm (beam layer) | 3'114 lm (pixel layer) @Full
  • Lux: 7'673lx @5 m full
  • Lux: (beam layer) 14'519 lx | (pixel layer) 46lx @5 m full
  • CRI: (beam layer) > 81,6 @2700K; (pixel layer) 92,2 @3200K; 90 @5600K
  • R9: (pixel layer) 94,4 @3200K; 95,4 @5600K
  • Source life expectancy: > 30.000 h
OPTICS
  • Beam angle: (Beams) 4,9°; (Pixels) 111,5°
  • Field angle: (Beams) 7,4°; (Pixels) 151,3°
  • Additional optics: available optional optics for beam LEDs 12°, 24°
  • Other: Pixel pitch (BEAMs) 72 mm | (PIXELs) 24 mm
COLOUR SYSTEM
  • Colour mixing: (beam layer) Warm White (2700K), (pixel layer) RGB + Warm White
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Static mode: selection of static dimmer, colors and color temperature
BODY
  • Bracket system: spigot for tripod use and bracket for truss rigging
  • Hardware on-board: on board mechanics for modular assembly of multiple fixtures
  • Body: weatherproof IP65 construction with magnesium alloy
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, ArtNet, RDMnet, sACN, CRMX (optional)
  • DMX channels: from 12 channels to 518channel
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via Ethernet (Art-Net with DMX-Workshop)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: up to 6 independent selectable dimmer curves per source
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 170W
  • Standby power: 7,8 W
  • Output (at 230V): 14 units on a single power line
  • Output (at 120V): 7 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: spigot for tripod use, bracket for truss rigging and hardware for connection of more units
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Ethernet IP in/out connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000 x 71 x 183mm / 39.37''x2.8''x7.2''
  • Weight: 8kg / 17.64lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x HALUSTRIPDUO
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC IP65 power connector)
  • 1 x User Manual

Accessories & Related Products

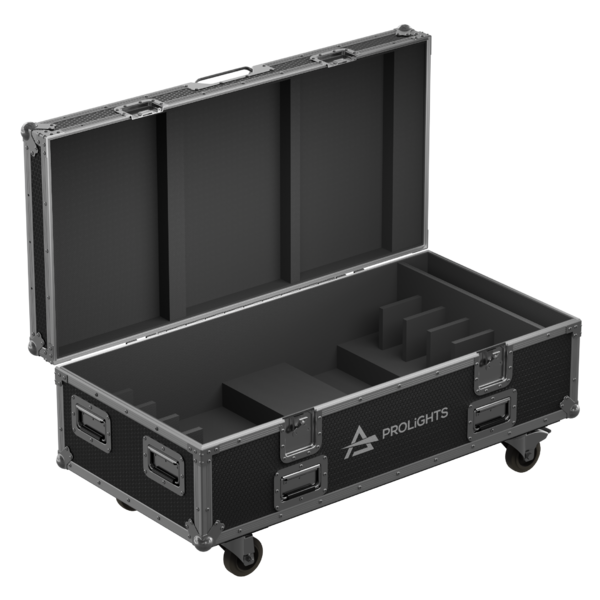

Optional FCLHALUSTRIPDUO

Flight case for 6 pcs of HALUSTRIPDUO

Order Code: FCLHALUSTRIPDUO

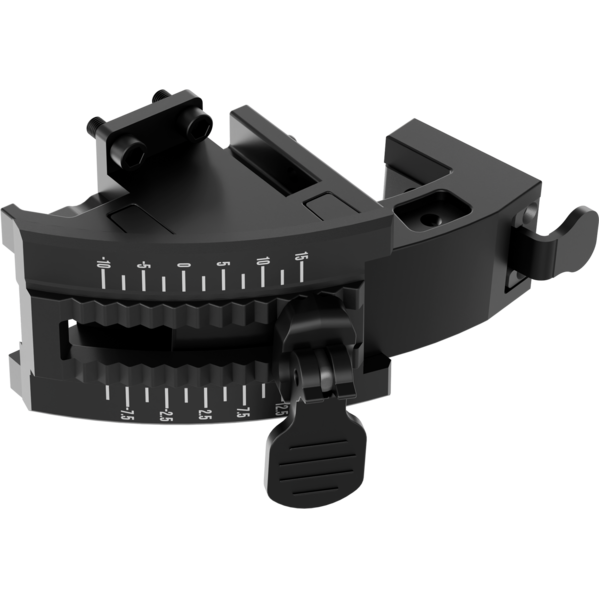

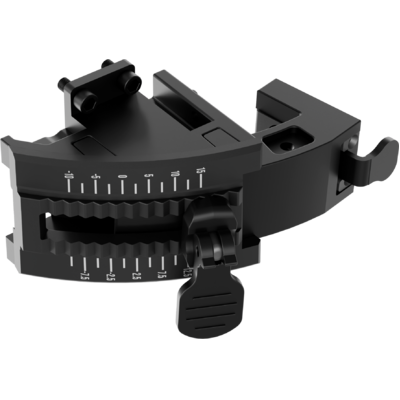

Optional HSDUOCLS

Locking system designed for HALUSTRIPDUO, ideal for curvable installations

Order Code: HSDUOCLS

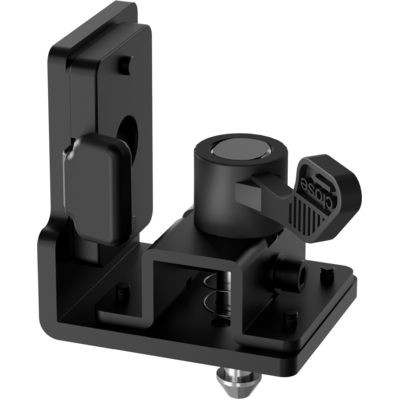

Optional HSDUO90LS

Locking system designed for HALUSTRIPDUO for 90° installations (angles and squares)

Order Code: HSDUO90LS

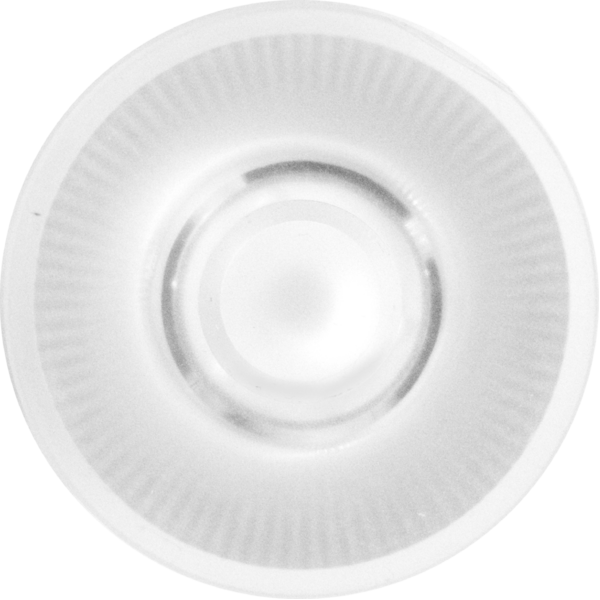

Optional HDL12

Optional Beam Lenses 12° for HALUPIXDUO

Order Code: HDL12

Optional HDL24

Optional Beam Lenses 24° for HALUPIXDUO

Order Code: HDL24

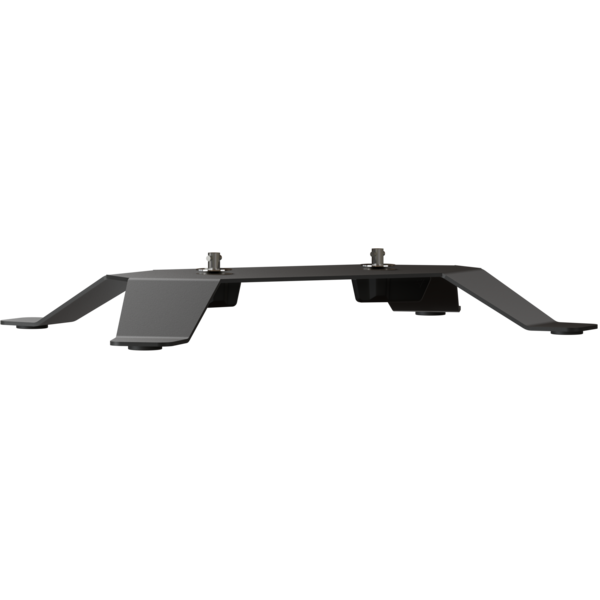

Optional SBLFLXFLR

Floor bracket for SUNBLASTFLX

Order Code: SBLFLXFLR

Optional ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

Optional OS25PLUS

Quick-lock omega bracket, M12 hole

Order Code: OS25PLUS

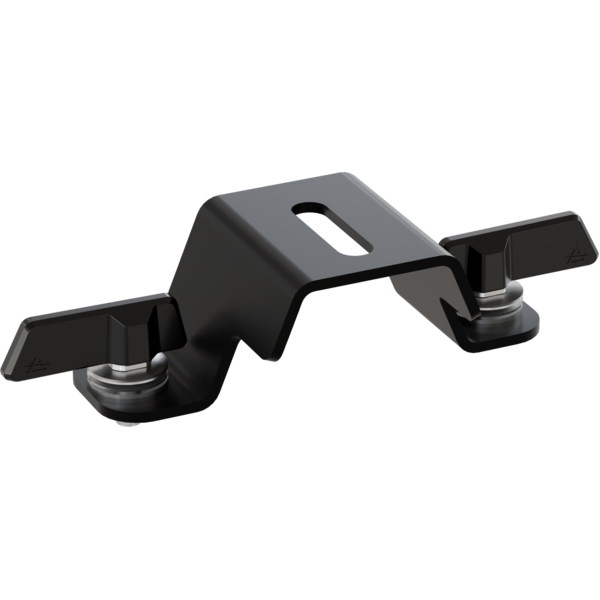

Optional OS25H3PLUS

Quick-lock omega bracket, 6 cm height, M12 hole

Order Code: OS25H3PLUS

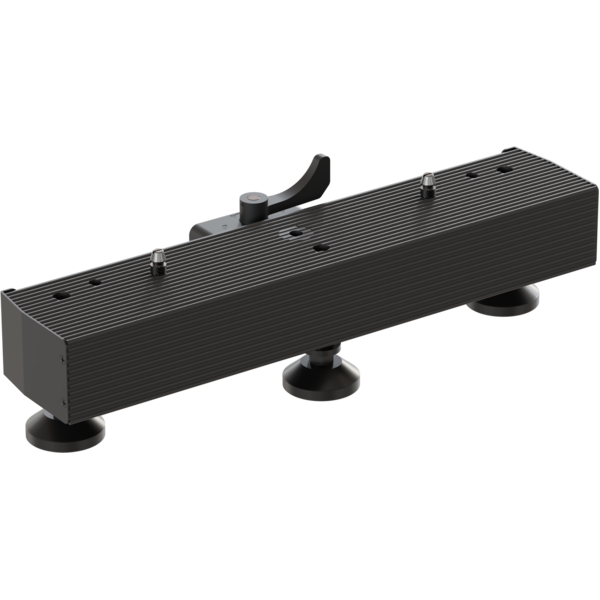

Optional VBHGB01

Fly bar / ground bar for HALUPIXDUO, 1 column

Order Code: VBHGB01

Optional VBHGB02

Fly bar / ground bar for HALUPIXDUO, 2 column

Order Code: VBHGB02

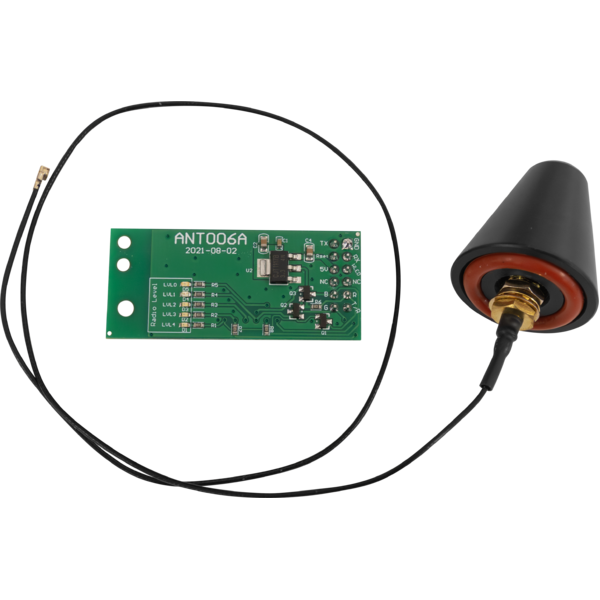

Optional HDWK

Wireless kit, compatible with multiple Prolights products

Order Code: HDWK

Optional IPTESTBOX

Portable vacuum and pressure tester for ProLights IP fixtures

Order Code: IPTESTBOX

Optional RSR1235B

Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black

Order Code: RSR1235B

Optional C6016B

Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White

Order Code: C6016B

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetHalustripduo_A4_DATASHEET_(EN).pdf(03/12/2025)299KB

User manual User manual

File name File size Download
User manualHalustripduo_General_Safety_Information.pdf(14/11/2025)3MB

Photometrics Photometrics

File name File size Download
IESprolights_halustripduo_ies_files.zip(04/12/2025)23KB
LDTprolights_halustripduo_ldt_files.zip(04/12/2025)22KB
PhotometricsHalustripduo_PHOTOMETRICS_REPORT.pdf(04/12/2025)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPHalustripduo_3D.skp(24/11/2025)223KB
2DHalustripduo_CAD_2D.dwg(21/11/2025)4MB
3DHalustripduo_CAD_3D.dwg(24/11/2025)137KB
Technical drawingHalustripduo_TECHNICAL_DRAWING.pdf(21/11/2025)373KB
