MOSAICOC5M

Mosaico C5M

NEW
5 YEARS WARRANTY

Order Code: MOSAICOC5M

Source
250W high-power white LED
Zoom range
12,9° - 46,5° motorised linear zoom
IP rating
 IP66 for outdoor installations
Weight
19,3kg / 42.55lbs

Key Features

  • IP66 allowing long-lasting installation with minimal maintenance
  • C5-M treatment for permanent exterior installation also in marine environment
  • Beam angle zooming from 12.9° to 46.5° allows for flexible use and opens up a new level of effects
  • Extremely bright with over 11'667 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations

Mosaico is a powerful exterior LED image projector with C5-M treatment for use in in challenging saline environments or near the sea, for projection of textures, images and logos onto buildings and landscapes. The outstanding 11'667 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.

Read less
Mosaico is a powerful exterior LED image projector with C5-M treatment for use in in challenging saline environments or near the sea, for projection of textures, images and logos onto buildings and la...

Product Video

Discover the Mosaico C5M in action

Photo Gallery

MOSAICOC5M
MOSAICOC5M
MOSAICOC5M
MOSAICOC5M

Specifications

LIGHT SOURCE
  • Source: 250W high-power white LED
  • CCT: 8.500
  • Luminous flux: (12.9°) 10'740 lm - (46.5°) 11'667 @Full
  • Lux: (12.9°) 10'512 lx - (46.5°) 1'409lx @5 m full
  • Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 12,9° - 46,5° motorised linear zoom
  • Lens diameter: 109mm / 4.29''
  • Lens type: high-quality glass lens optics
  • Focus: motorised
COLOUR SYSTEM
  • Colour wheel: 14 colour filters on two colour wheels
DYNAMIC EFFECTS
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size (BW): outer: 26,9 mm - image: 23 mm
  • Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
  • Special features: interchangeable animation wheel through magnets and record scenes and create chases and shows throughout these scenes
BODY
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 9006
  • Other: Inspectable cover window for gobos replacement and maintenance
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: Stand Alone programmer and playback
  • DMX channels: 12 / 14 / 16 / 19channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: black OLED touch display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1~30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 320W
  • Standby power: 56 W
  • Output (at 230V): 6 units on a single power line
  • Power factor: >0,95
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 09
  • Cooling: active, with IP low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN/OUT connectors
  • Data connection: W-DMX transreceiver
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 332x425x453mm / 13.07''x16.73''x17.83''
  • Weight: 19,3kg / 42.55lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x MOSAICOC5M
  • 1 x 0,28 meters 3G1mmq power cable (BARE END - IP connection adapter)
  • 1 x 5p XLR - IP connection female adapter
  • 1 x 5p XLR - IP connection male adapter
  • User Manual

Accessories & Related Products

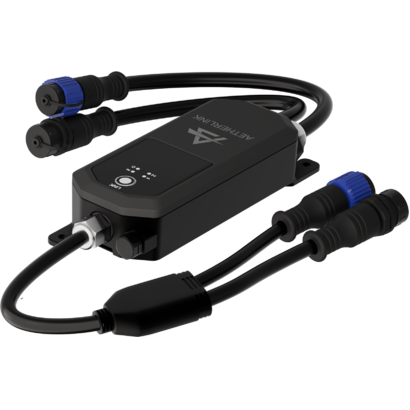

Optional <b>Æther</b> Link
