OMEGAX39T

OmegaPix 39T

Order Code: OMEGAX39T

IP rating
 IP65 for temporary outdoor application, not for fixed installations

Key Features

  • 3,9 mm pixel pitch outdoor rental LED screen
  • Seamless 90° angles
  • Curve configurations, concave and convex
  • Fly bar hanging/stacking
  • New Novastar A8s with 18bit+, Clearview and image rotation

OmegaPix 39T is a revolutionary outdoor 3,9 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.

Mechanical / assembly features:

  • Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)
  • Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
  • Climbable, designed for a quick maintenance access
  • Hot swapping of the back panel to replace PSU & electronics
  • Assisted mounting magnets allowing for a 1 man quick setup
  • Ground Stacking accessories available
  • Fly bar for both hanging and ground stacking
  • Corner protection for safe transport in case
  • Velcroed edges to avoid any gaps
  • Fly bars are suitable for both hanging or ground stacking application


Components/Electronic features:

  • Premium components
  • Module with memory to store calibration database
  • MBI 5151 ICs
  • Black&White& White mask for superior contrast and rentability
  • 18 bit+ greyscale (4x high than market average)
  • Rotation function enabled
  • New Novastar A8s receiver
  • IP powerCon in/out
  • IP dataCon in/out
  • CE, EMC, UL approved


Image Quality:

  • New Novastar A8s receiving card
  • 18 bit+ Greyscale, 4x higher than market average. Effectively improves greyscale performance under low-brightness, showing more exquisite and expressive images.
  • Clearview technology adjusts the texture, size and contrast of images in different areas to further enhance the image details.
  • Smart gamma correction: gamma correction is automatically applied according to the display brightness thus achieving a better greyscale performance and providing clearer pictures.
  • Rotation enabled: rotation of panels recognized by software @ 360°
  • RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
Read less
OmegaPix 39T is a revolutionary outdoor 3,9 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.  Mechan...

Product Video

Discover the OmegaPix 39T in action

Photo Gallery

OMEGAX39T
OMEGAX39T
OMEGAX39T
OMEGAX39T

Specifications

VIDEO
  • Driver chip type: MBI 5151
  • LED source: Nationstar SMD1921 black frame and white face
  • Pixel pitch: 3.9mm / 0.15''
  • Panel resolution: 128x128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 5.000nit
  • Contrast: 3.000:1
  • Grayscale: 18 bit
  • Refresh rate ≥: 3.840Hz
  • Drive Mode: 1/8 scan, constan current
  • Vertical viewing angle: 120°
  • Horizontal viewing angle: 140°
  • LED density: 65.536LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: IPKON Seetronic IN/OUT
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 210W
  • Avg power consumption (panel): 70W
  • Max power consumption (sqm): 840W
  • Avg power consumption (sqm): 280W
  • Standby power consumption (pannello): 16W
  • Max rated current/panel:: AC 220 V / 0,91 A
  • Working temperature: -20°C / +50°C
  • Working humidity: 10~90 RH%
CONTROL
  • Receiving card type: A8S
  • Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
  • Control protocol: Novastar
  • Signal input: IP data Seetronic IN
  • Signal output: IP data Seetronic OUT
MECHANICS
  • Magnetic LED modules: not available
  • Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500×500×90.6mm / 19.69''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 9kg / 19.84lbs
  • Weight per square meter: 36kg / 79.37lbs
  • Hanging Panel Quantity ≤: 20
BODY
  • Body: die-cast aluminium housing
  • Curve configurations: concave 2°, 5°, 10° - convex 2°, 5°
  • Body colour: black
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, EMC, UL

Accessories & Related Products

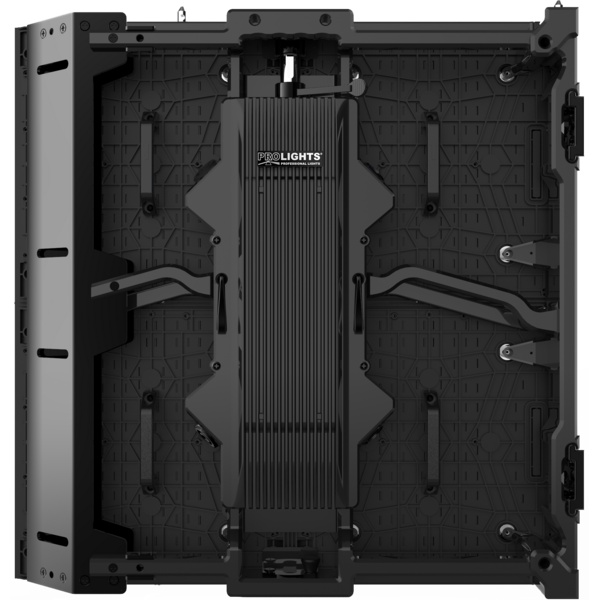

Optional <b>OmegaPix</b> 39C45LT

45° L outdoor LED mod, SMD1921 BB, p.3,9mm, 50x50cm, 128x128pix, 5.000 nit, 9 kg

Order Code: OMEGAX39C45LT

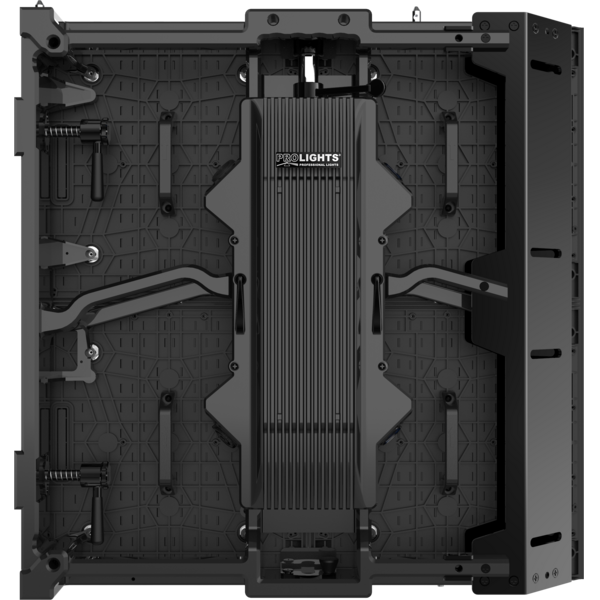

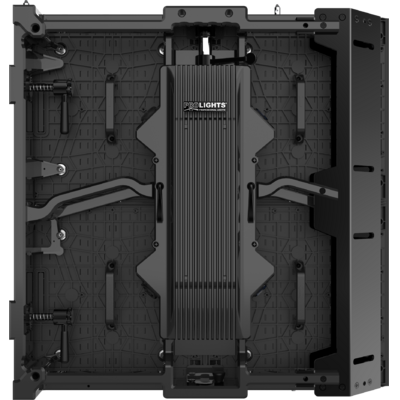

Optional <b>OmegaPix</b> 39C45RT

45° R outdoor LED mod, SMD1921 BB, p.3,9mm, 50x50cm, 128x128pix, 5.000 nit, 9 kg

Order Code: OMEGAX39C45RT

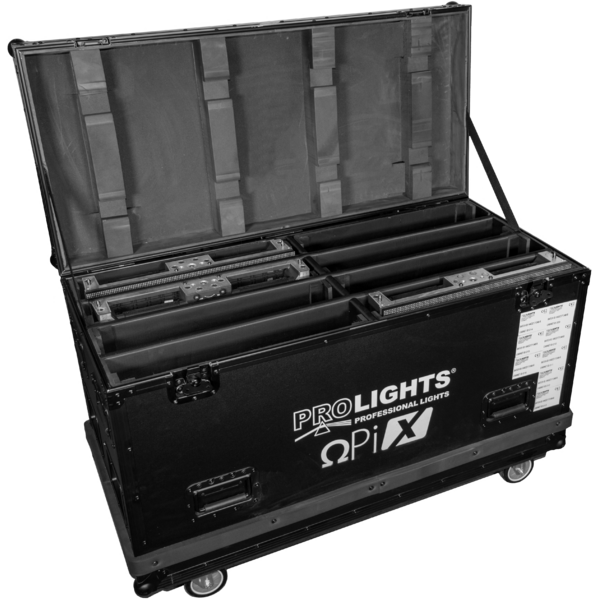

Optional OXFCM8039

Flightcase for 8 pcs OMEGAX39T LED-display, 1.200x600x806 mm

Order Code: OXFCM8039

Optional OXDCL01

Data cable for OMEGAX LED display series assembled with RJ45, Seetronic, IP65, L.1,4 m

Order Code: OXDCL01

Optional OXACL01

Power cable for LED display series, Seetronic, L.140 cm

Order Code: OXACL01

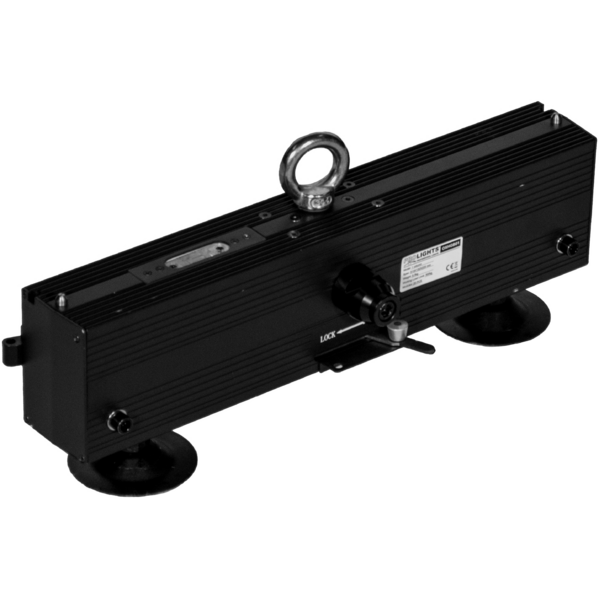

Optional OXHGB01

Fly bar and GroundBar for OMEGAX26B and OMEGAX39T systems, 1 column

Order Code: OXHGB01

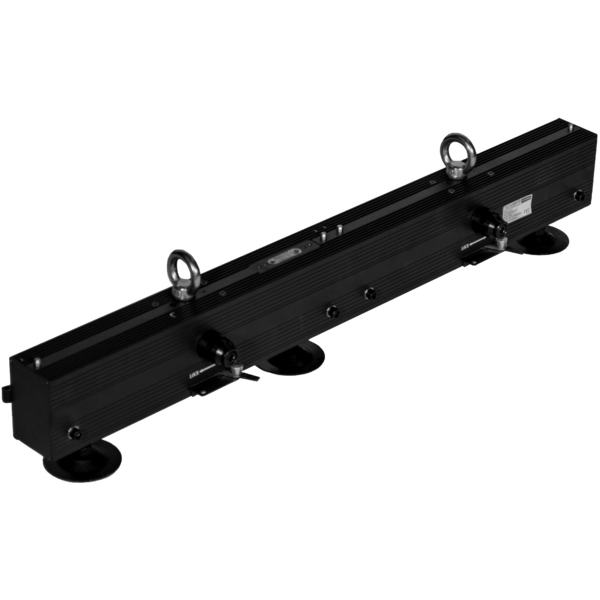

Optional OXHGB02

Fly bar and GroundBar for OMEGAX26B and OMEGAX39T systems, 2 column

Order Code: OXHGB02

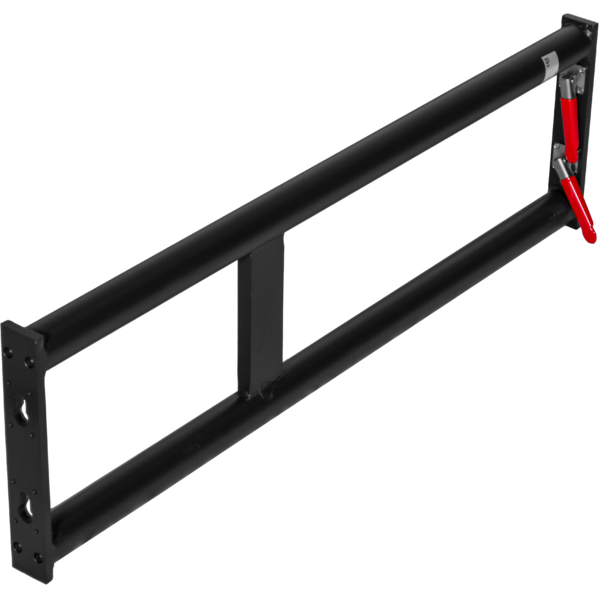

Optional OXBS21

Back narrow vertical support 2 in 1

Order Code: OXBS21

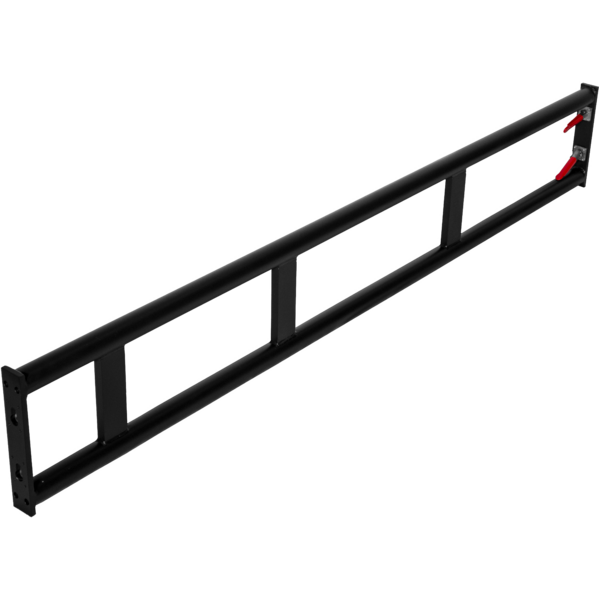

Optional OXBS41

Back narrow vertical support 4 in 1

Order Code: OXBS41

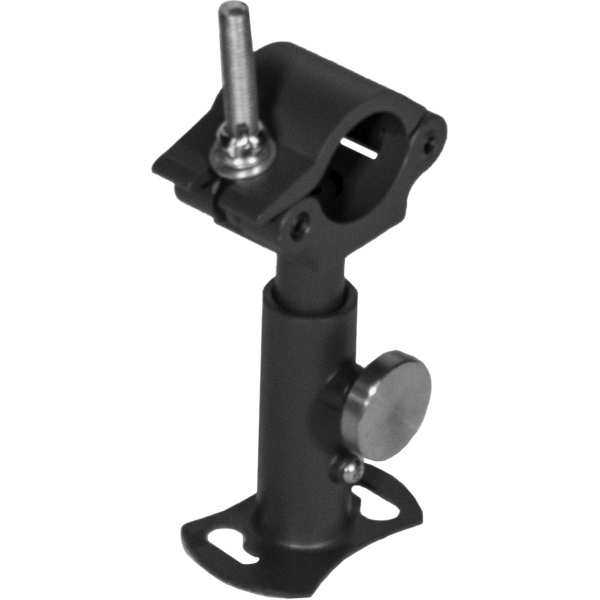

Optional OXBSC

Back support connectors

Order Code: OXBSC

Optional OXCJ88

Cabinet curve plate concave, 2°

Order Code: OXCJ88

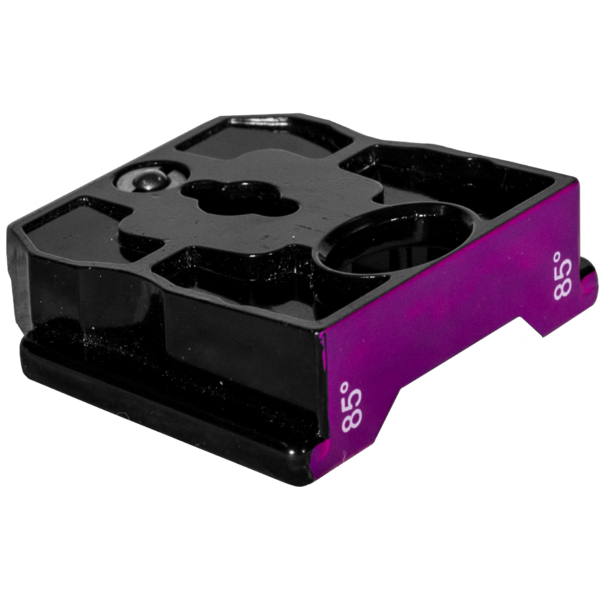

Optional OXCJ85

Cabinet curve plate concave, 5°

Order Code: OXCJ85

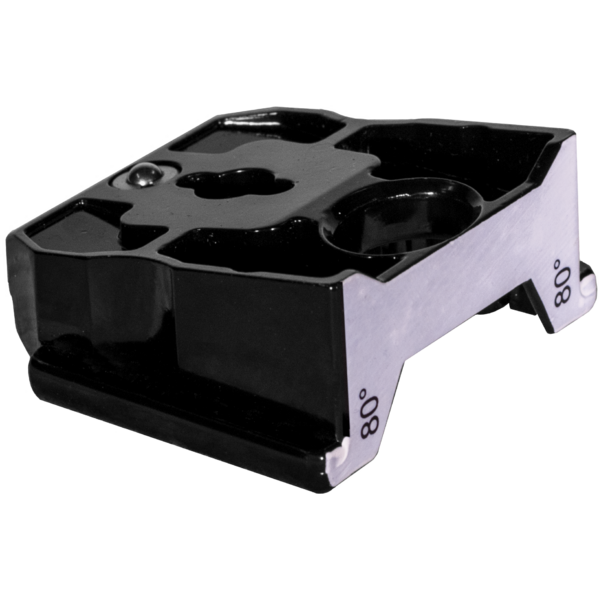

Optional OXCJ80

Cabinet curve plate concave, 10°

Order Code: OXCJ80

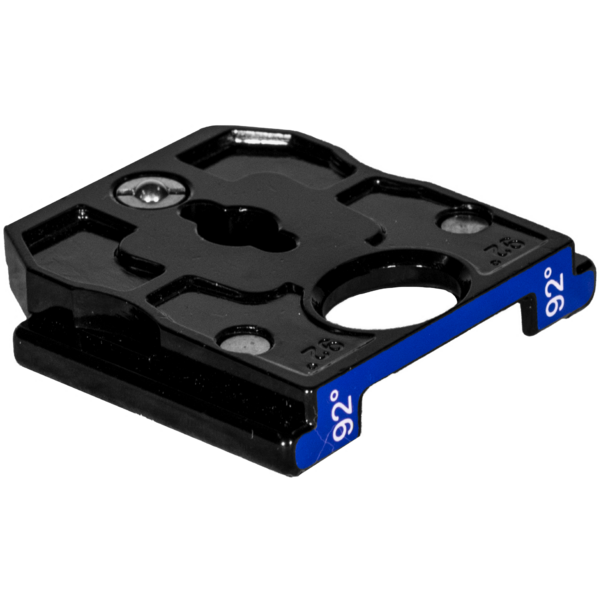

Optional OXCJ92

Cabinet curve plate convex, 2°

Order Code: OXCJ92

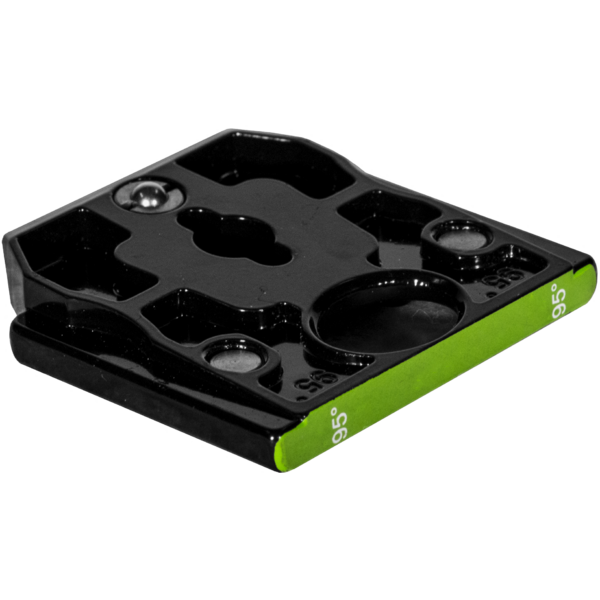

Optional OXCJ95

Cabinet curve plate convex, 5°

Order Code: OXCJ95

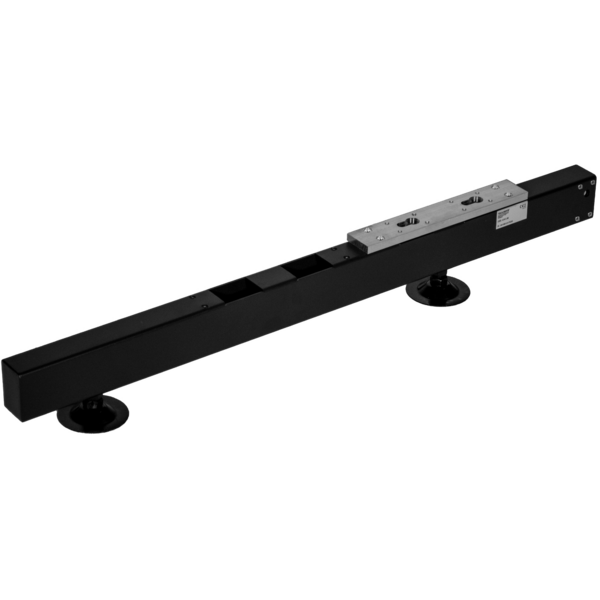

Optional OXCJB

Ground system back horizontal support for OMEGAPIX series LED wall

Order Code: OXCJB

Optional OXFCIS100

Rigging/ground-stack structure flightcase for all LEDScreen, 100cm

Order Code: OXFCIS100

Optional OXFCIS200

Rigging/ground-stack structure flightcase for all LEDScreen series, 200cm

Order Code: OXFCIS200

Optional OXFCSP

Spare part flightcase for OMEGAX-DELTAX series LED-display

Order Code: OXFCSP

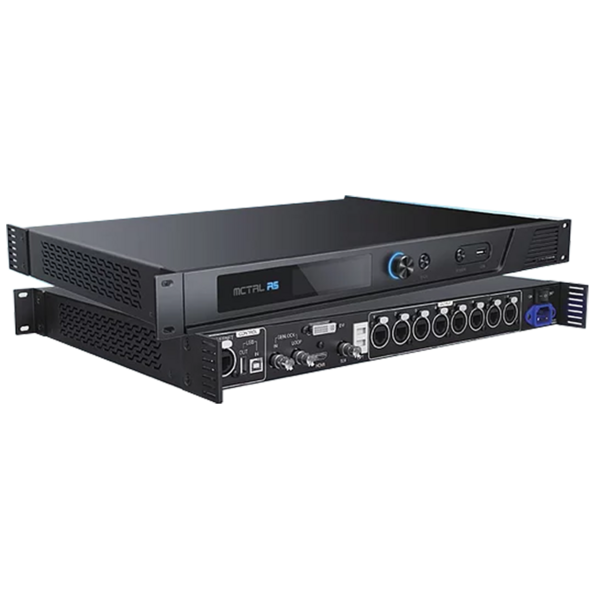

Optional NOVAMCTRLR5

Video processor sender, res. 3840x1080, 8xRJ45 out, 4.6 kg

Order Code: NOVAMCTRLR5

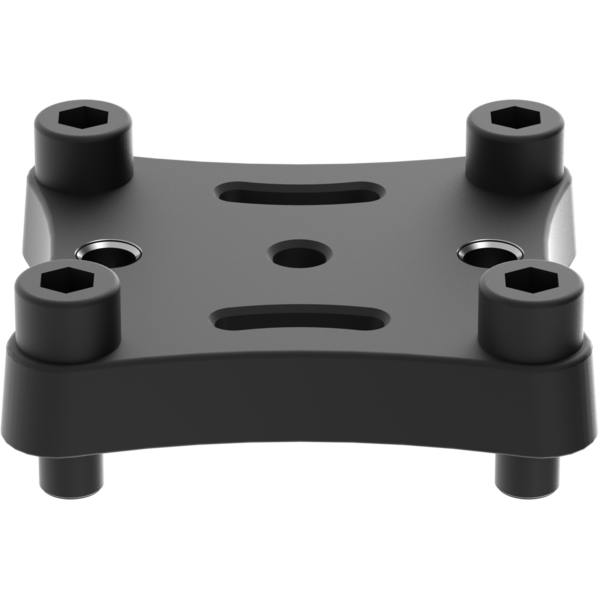

Optional OXXJ

Metal joint used to connect 4 pcs OMEGAX or SIGMAX cabinets, M10 hole

Order Code: OXXJ

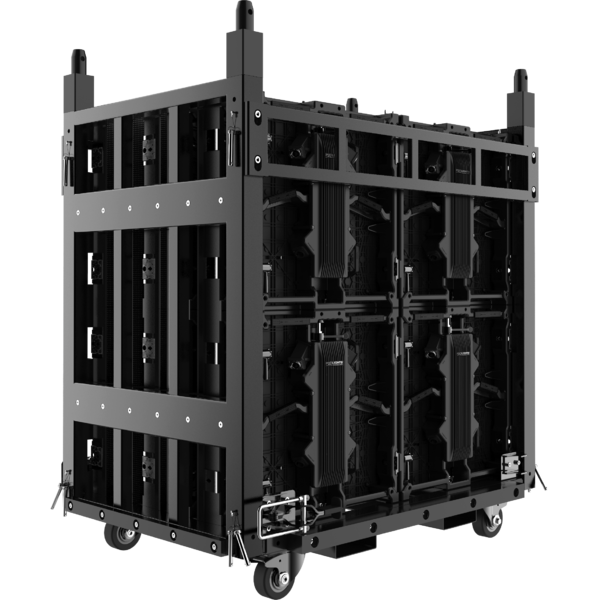

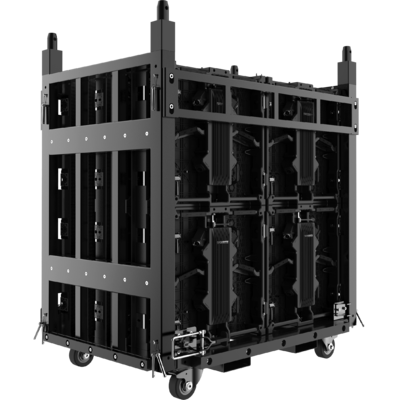

Optional OMEGAXDOLLY

Dolly for transport 24 cabinets OMEGAX39T (6 layers by 4 cabinets)

Order Code: OMEGAXDOLLY
