PHYRO1000D

Phyro1000d

DISCONTINUO

Order Code: PHYRO1000D

Weight
3,5kg / 7.72lbs

Key Features

  • Plug and play technology: PHYRO1000D is ready to work when connected with no need of additional settings or connection
  • Wireless controller included
  • Electronic thermal sensor against over-heating failures
  • Security system against clogging or pump failures
  • Functioning based on an internal heater for high pressure and voluminous fog emission

PHYRO1000D is a professional fog machine, suitable for small size environments where a powerful ambient effect with great fogging volume is required.

Read less
PHYRO1000D is a professional fog machine, suitable for small size environments where a powerful ambient effect with great fogging volume is required.

Photo Gallery

Specifications

ELECTRICAL
  • Power Supply: AC 220 - 240 V 50 / 60 Hz
  • Heather: 1.000 W
FLUID
  • Temperature range: 160° C - 200° C
  • First Heat-up Time: 3 min
  • Output: 10.000 cu. ft / min
  • Tank Capacity: 1L
  • Fluid Consumption Rate: 77ml/min
  • Liquid Used: compatibile con i tradizionali liquidi per fumo a base di acqua per un'emissione di fumo secco ed omogeneo
CONTROL
  • Protocols: DMX512
  • Display: 4 digit display
  • Remotes: DIN 5p remote controller / remote timer
CONNECTIONS
  • Power connection: IEC 10 A IN
  • Signal connection: XLR - 3p IN/OUT
PHYSICAL
  • Dimensions (WxHxD): 350x170x155mm / 13.78''x6.69''x6.1''
  • Weight: 3,5kg / 7.72lbs

Accessories & Related Products

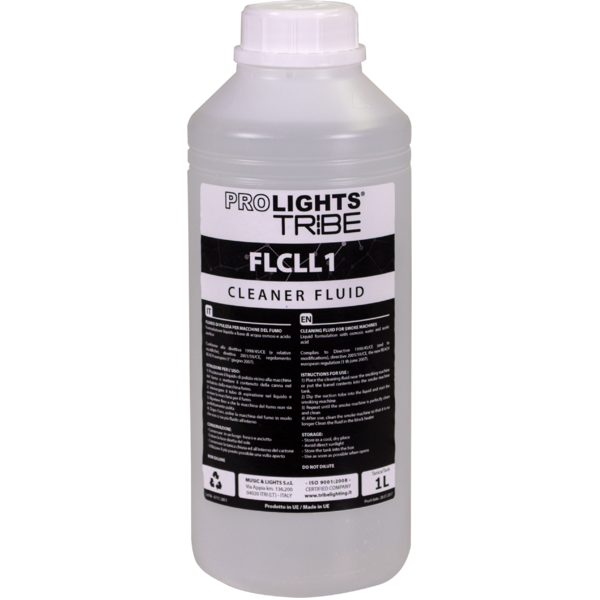

(Optional) FLCL

Order Code: FLCL

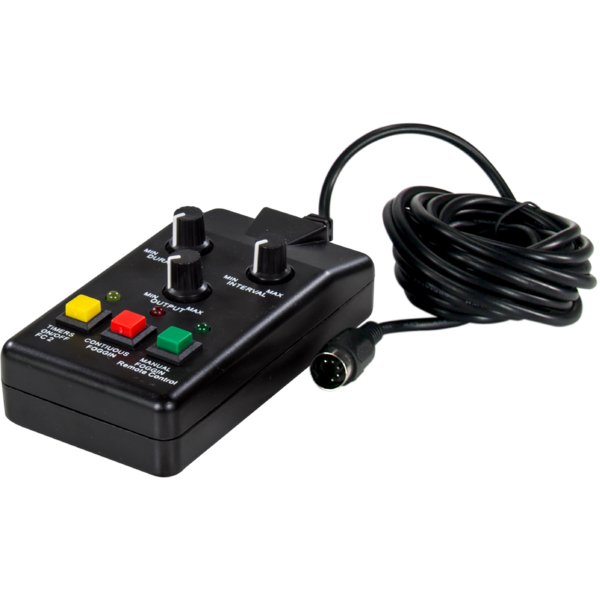

(Included) PHYRORC1

Wired remote controller for PHYRO fogger machines

Order Code: PHYRORC1

Downloads

Technical documentation and support files

User manual User manual

File name File size Download
User manualPhyro1000d_USER_MANUAL_ITEN.pdf(18/09/2017)610KB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DPhyro1000d_CAD_2D.dwg(10/08/2018)1MB
Technical drawingPhyro1000d_TECHNICAL_DRAWING.pdf(09/05/2019)158KB
