PIXBELT

Pixbelt

DISCONTINUO

Order Code: PIXBELT

Source
20x1W RGB LED
IP rating
 IP43
Weight
2,75/beltkg / 6.06lbs

Key Features

  • 20x1 W RGB LEDs
  • Pixel control of every individual LED
  • External control unit PIXBELTDRIVER
  • Strings and bulbs are IP44 rated for outdoor use
  • Eyelets on each lamp holder for quick and easy mounting

PIXBELT is a dynamic outdoor-rated party decor light, completely pixel-mappable for ultimate show and programming creativity. PIXBELT comes with a 15 meter strand of 20 LED bulbs and is expandable up to 3 strands per controller (PIXBELTDRIVER). Eyelets are on every lamp holder to increase deign flexibility.
Can be used both inside and outdoors for temporary installations, they are the perfect addition to any event or venue.



Read less
PIXBELT is a dynamic outdoor-rated party decor light, completely pixel-mappable for ultimate show and programming creativity. PIXBELT comes with a 15 meter strand of 20 LED bulbs and is expandable up ...

Photo Gallery

PIXBELT
PIXBELT
PIXBELT

Specifications

LIGHT SOURCE
  • Source: 20x1W RGB LED
COLOUR SYSTEM
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 3 / 9 / 60 / 120 / 180ch
  • Control units: PixBelt Driver
  • Pixel control: pixel2pixel control
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
PHYSICAL
  • IP rating: IP43
  • Housing: Sturdy polycarbonate body
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Weight: 2,75/kg / 6.06lbs
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA

Accessories & Related Products

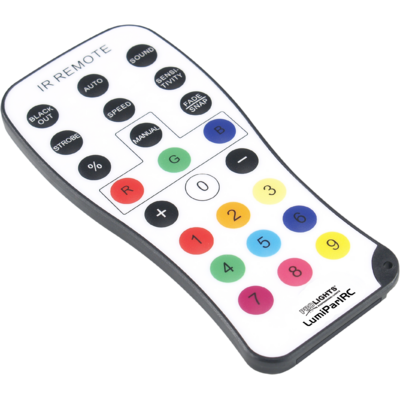

(Optional) LUMIPARIRC

RGB IR remote controller, manual/auto modes, for LUMI IR series

Order Code: LUMIPARIRC

Downloads

Technical documentation and support files

User manual User manual

File name File size Download
User manualPixbelt_USER_MANUAL_ITEN.pdf(13/07/2017)3MB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DPixbelt_CAD_2D.dwg(22/08/2018)4MB
Technical drawingPixbelt_TECHNICAL_DRAWING.pdf(09/05/2019)237KB
