SMARTBATPNEOPAC

Smart BatPlusNEOPack

NEW

Source
7x10W RGB + Warm White LED
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
3,4kg / 7.5lbs

Key Features

  • Maximum power consumption during charging is 570W
  • Pack Weight: 50,5 kg

The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat DNA with state-of-the-art technologies and upgrades.

Equipped with 7x RGB+WW emitters, the Smart BatPlus Neo offers a significant performance boost. Delivering up to 3,000 lumens, it provides double the brightness of its predecessor during a 3-hour runtime. Even when operating at full power, it achieves 20% greater output over the same runtime and an average 60% improvement in primary and mixed colors, thanks to its enhanced light source. Its advanced color-mixing capabilities ensure deeper, richer tones and precision white light with high color rendering (CRI up to 90), making it a versatile and reliable choice for lighting professionals.

With a smaller footprint and available in both the classic chrome and a sleek black finish, the Neo adapts effortlessly to various event designs while maintaining its hallmark reliability and adaptability.

Its advanced Battery Management System (BMS) ensures safer recharging, selectable runtime, optimized performance and robust handling.

The Smart BatPlus Neo supports a comprehensive range of accessories and optical modifiers, offering unparalleled flexibility for diverse applications. Its intuitive magnetic mounting system allows users to attach and adjust accessories easily for precise light focusing.

The pack includes:

  • 6 x SMARTBATPLUSNEO
  • 1 FLIGHT CASE with integrated battery charger kit (FCLSMARTBATPNEO)
  • 1 IR controller (PRL-IRC)
  • 1 PowerCON power cable
Read less
The Smart BatPlus Neo builds on the groundbreaking legacy of the iconic SmartBat Plus series, a product line that transformed the battery uplighter market over a decade blending the original SmartBat ...

Versions

Code Finishing
SMARTBATPNEOPACK
SMARTBATPNEOPACK NEW
Chrome
SMARTBATPNEOPACKB
SMARTBATPNEOPACKB NEW
Black

Photo Gallery

Specifications

LIGHT SOURCE
  • Source: 7x10W RGB + Warm White LED
  • Luminous flux: 2'927 lm @Full
  • Lux: 1'493lx @5 m full
  • CRI: Up to 90
  • R9: Up to 80
  • TLCI: Up to 80
  • TM30 Rf: > 90
  • TM30 Rg: < 107
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 11°
  • Field angle: 21°
  • Additional optics: see available accessories
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • White presets: 3.200 K -9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Tilt range: 20° adjustable foot support for tilt regulation (up to 20°)
  • Body: sturdy die-cast aluminium body
  • Body colour: black, mirror finishing available
CONTROL
  • Protocols: CRMX
  • DMX channels: 1 / 3 / 4 / 5 / 10 / 11 / 17channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • IR: infrared sensor controlled by remote
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: 0° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz (SBPLUSNEOPOWER charger not included)
  • Max power consumption: 66W
BATTERY
  • Battery: 16,8V lithium
  • Estimated battery life: Selectable 3h / 6h / 8h / 12h / 18h
  • Re-charge connection: magnetic fast-charge in case
  • Re-charge time: 4h/max
  • Battery status: shown on display
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: M12 threaded insert for easy clamp installation
  • Data connection: CRMX transreceiver
  • Dimensions (WxHxD): 138x180x147mm / 5.43''x7.09''x5.79''
  • Weight: 3,4kg / 7.5lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus

Accessories & Related Products

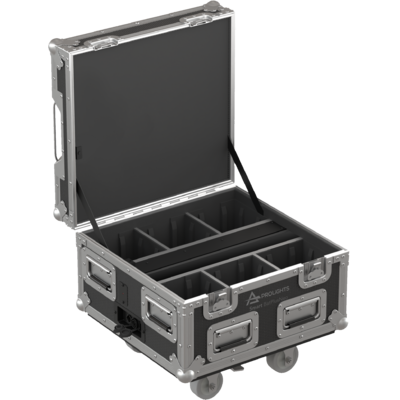

Included FCLSMARTBATPNEO

Flight case for 6 SMARTBATPLUSNEO, battery charger included

Order Code: FCLSMARTBATPNEO

Included <b>IR</b> Controller

RGBWA IR controller, 29 buttons, manual/static colours, auto programs, fade

Order Code: PRL-IRC

Included SBPNEOL10

Lens for SMARTBATPLUSNEO series, 10°

Order Code: SBPNEOL10

Optional SBPNEOL20

Lens for SMARTBATPLUSNEO series, 20°

Order Code: SBPNEOL20

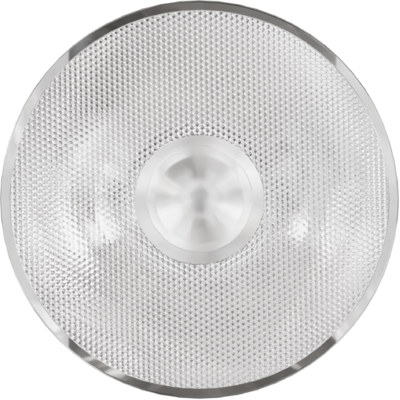

Optional SBPNEOL35

Lens for SMARTBATPLUSNEO series, 35°

Order Code: SBPNEOL35

Optional SBPNEOL60

Lens for SMARTBATPLUSNEO series, 60°

Order Code: SBPNEOL60

Optional SBPNEOFILT20

Light diffusion filter for SMARTBATPLUSNEO series, 20°

Order Code: SBPNEOFILT20

Optional SBPNEOFILT40

Light diffusion filter for SMARTBATPLUSNEO series, 40°

Order Code: SBPNEOFILT40

Optional SBPNEOFILT60

Light diffusion filter for SMARTBATPLUSNEO series, 60°

Order Code: SBPNEOFILT60

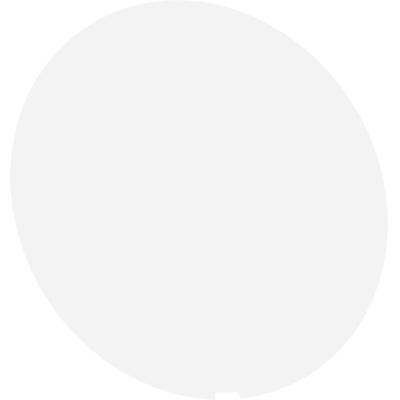

Optional SBPNEOFILT1060

Light diffusion filter for SMARTBATPLUSNEO series, 10°x60°

Order Code: SBPNEOFILT1060

Optional SBPNEOFILT3060

Light diffusion filter for SMARTBATPLUSNEO series, 30°x60°

Order Code: SBPNEOFILT3060

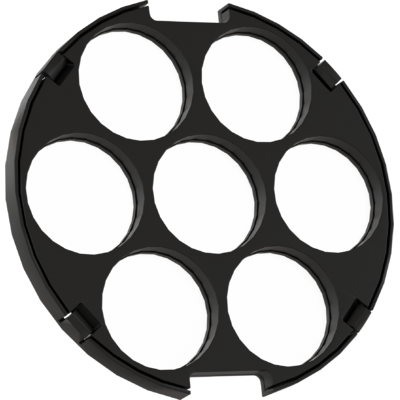

Optional SBPNEOFF

Filter frame for SMARTBATPLUSNEO series

Order Code: SBPNEOFF

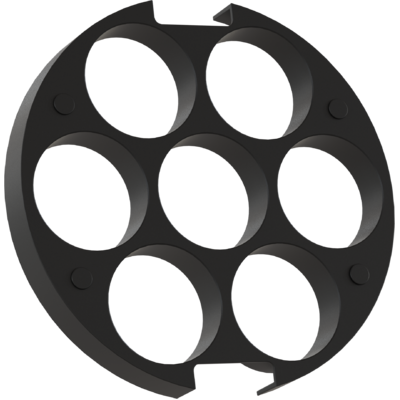

Optional SBPNEOSNOOT

Snoot for SMARTBATPLUSNEO series

Order Code: SBPNEOSNOOT

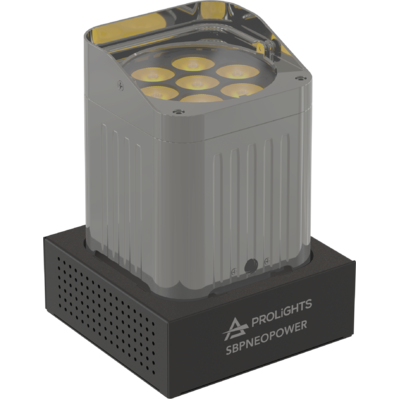

Optional SBPNEOPOWER

SMARTBATPLUSNEO recharging base

Order Code: SBPNEOPOWER

Optional SBPUPBOXI

Interface between UPBOX1 and SMARTBATPLUS and SMARTBATPLUSNEO for make firmware upgrade

Order Code: SBPUPBOXI

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Optional <b>ÆtherBox</b>

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetSmartbatpneopack_A4_DATASHEET_(ITA).pdf(23/06/2025)1MB
Letter datasheetSmartbatpneopack_A4_DATASHEET_(EN).pdf(23/06/2025)1MB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DSmartbatpneopac_CAD_2D.dwg(01/07/2024)8MB
Technical drawingSmartbatpneopac_TECHNICAL_DRAWING.pdf(01/07/2024)474KB
