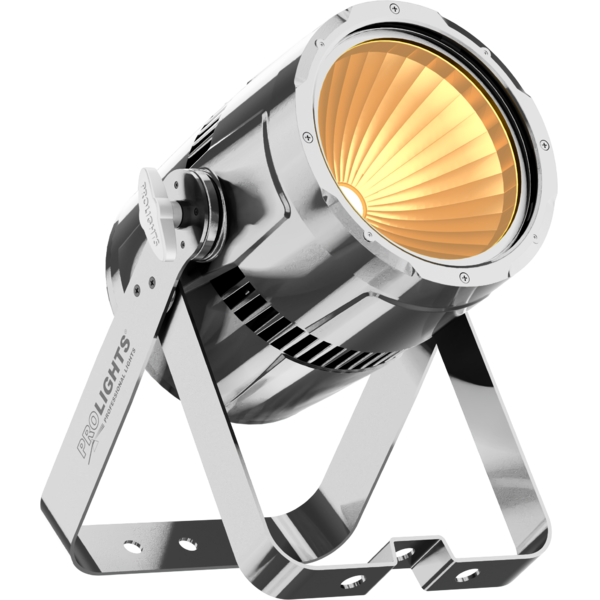

STUDIOCOBTU

StudioCob TU

Source
100W high-power white LED
IP rating
 IP20
Weight
4,5kg / 9.92lbs

Key Features

  • 100W 3.100 K COB LED source with HD dimming and a high CRI
  • Flexible lens options of 15° - 30° - 60°
  • Functional barn doors for beam control

StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow and flexible lens options.

Read less
StudioCob TU is a powerful and incredibly versatile LED PAR. Fusing the old and the new, it pairs a 3.100 K COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement wi...

Versions

Code Housing
STUDIOCOBTUCR
STUDIOCOBTUCR EOL
Chrome
STUDIOCOBTUWH
STUDIOCOBTUWH DISCONTINUO
White

Product Video

Discover the StudioCob TU in action

Photo Gallery

STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR
STUDIOCOBTUCR

Specifications

LIGHT SOURCE
  • Source: 100W high-power white LED
  • Source CCT: 3.100K
  • Luminous flux: 6'697
  • Lux: (60°) 666lx @3 m
  • Lux: (30°) 1'540lx @3 m
  • CRI: 92
  • R9: 57
  • TLCI: 88
  • TM30 Rf: 90
  • TM30 Rg: 101
  • Other:
  • Source life expectancy: > 30.000 hrs (L80B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 65°
  • Field angle: 96°
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: 30° (inc) - 15° (opt)
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
CONTROL
  • Supported Protocols: DMX512
  • DMX channels: 1 / 2 / 5ch
  • Display: Graphic User Interface
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Selectable PWM: 600 to 25000 Hz (selectable steps)
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Signal connection: XLR 3p + 5p IN/OUT connectors
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 107W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: see available finishing
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 262x190x371mm / 10.31''x7.48''x14.61''
  • Weight: 4,5kg / 9.92lbs
INSTALLATION
  • Suspension and fixing: double bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM
BOX CONTENT
  • 1 x STUDIOCOBTU
  • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)

Accessories & Related Products

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

(Optional) TOUR53413L03

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

Order Code: TOUR53413L03

(Optional) 958025L03

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

Order Code: 958025L03

(Optional) 9513FCAL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

Order Code: 9513FCAL03

(Optional) 9533FCAL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

Order Code: 9533FCAL03

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

(Optional) STUDIOCOBBD

Barn door 4 directional flaps to adjust the light beam, f. frame included

Order Code: STUDIOCOBBD

(Optional) STUDIOCOBL15

Optics for STUDIOCOB projectors series, 15°

Order Code: STUDIOCOBL15

(Included) STUDIOCOBL30

Optics for STUDIOCOB projectors series, 30°

Order Code: STUDIOCOBL30

(Optional) FCLPAR4190

Flight case for 8 STUDIOCOB, VERSAPAR

Order Code: FCLPAR4190

(Optional) STUDIOCOBTPG

Filter frame for STUDIOCOB projectors

Order Code: STUDIOCOBTPG

(Optional) UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetStudiocobtu_A4_DATASHEET_(EN).pdf(01/09/2021)439KB

User manual User manual

File name File size Download
User manualStudiocobtubk_USER_MANUAL_ITEN.pdf(10/07/2018)2MB
User manualStudiocobtucr_USER_MANUAL_ITEN.pdf(10/07/2018)2MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartStudiocobtu_DMX_CHARTS.pdf(07/11/2017)45KB

STUDIOCOBTU Firmware rev. 3.2

manufacturer fixture library (Link) Link
prolights_studiocobtu.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobtu_1ch.hedDownload
prolights_studiocobtu_2ch.hedDownload
prolights_studiocobtu_5ch.hedDownload

STUDIOCOBTU Firmware rev. 2.2

manufacturer fixture library (Link) Link
prolights_studiocobtu.d4Download
manufacturer fixture library (Link) Link
prolights_studiocobtu_1ch.hedDownload
prolights_studiocobtu_2ch.hedDownload
prolights_studiocobtu_5ch.hedDownload

Photometrics Photometrics

File name File size Download
IESprolights_studiocobtu_ies files.zip(05/05/2021)3KB
LDTprolights_studiocobtu_ldt files.zip(05/05/2021)2KB
PhotometricsStudiocobtubk_PHOTOMETRICS_REPORT.pdf(06/05/2021)2MB
PhotometricsStudiocobtuwh_PHOTOMETRICS_REPORT.pdf(06/05/2021)2MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D RFAStudiocobtu_3D.rfa(23/04/2021)1MB
3D SKPStudiocobtu_3D.skp(24/03/2020)2MB
2DStudiocobtu_CAD_2D.dwg(11/05/2021)3MB
3DStudiocobtu_CAD_3D.dwg(30/06/2021)540KB
2D cad symbolsStudiocobtu_CAD_2DSYMBOLS.dwg(09/03/2020)80KB
Technical drawingSTUDIOCOBTU_TECHNICAL DRAWINGS.zip844KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(20/05/2026)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB
VectorWorksSTUDIOCOBTU_SYMBOLS.zip3MB

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
3.3 STABLE 16/11/2020 Firmware for RUNDA fan. Improved Stand Alone Functionality.
2.3 STABLE 16/11/2020 Firmware for SUNON fan. Improved Stand Alone Functionality.
3.2 STABLE 26/06/2019 Firmware for RUNDA fan. Improved Standalone mode operation (Auto/Static). Rev. 1.0
2.2 STABLE 26/06/2019 Firmware for SUNON fan. Improved Standalone mode operation (Auto/Static). Rev. 2
