TRUSSPOD3T
TRIBEby TRIBE


TrussPod 3T

ORDER CODE: TRUSSPOD3T

3x3,5W RGB/FC LED source

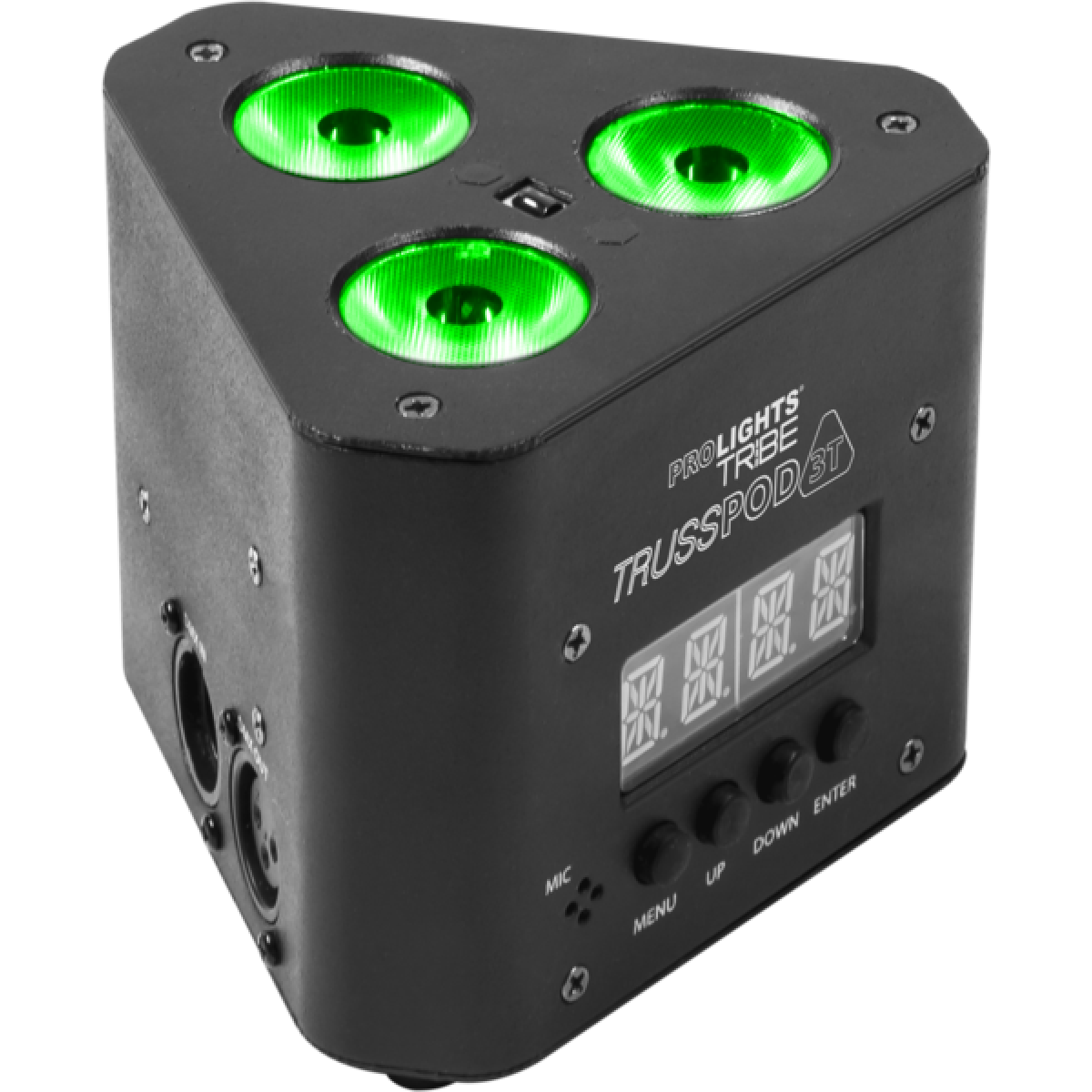

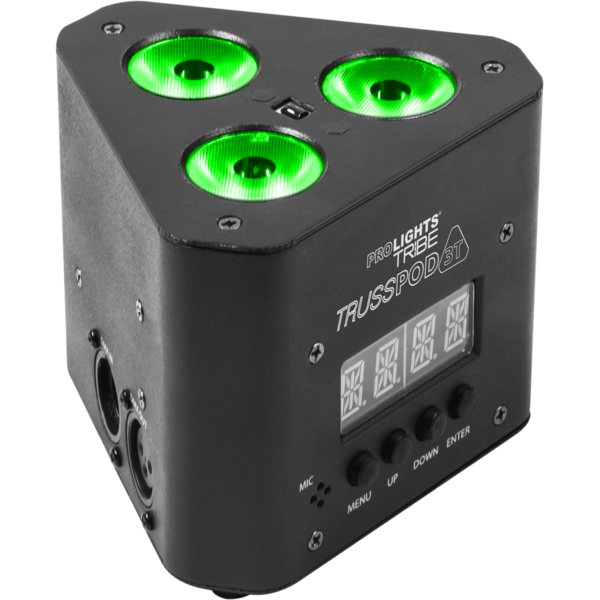

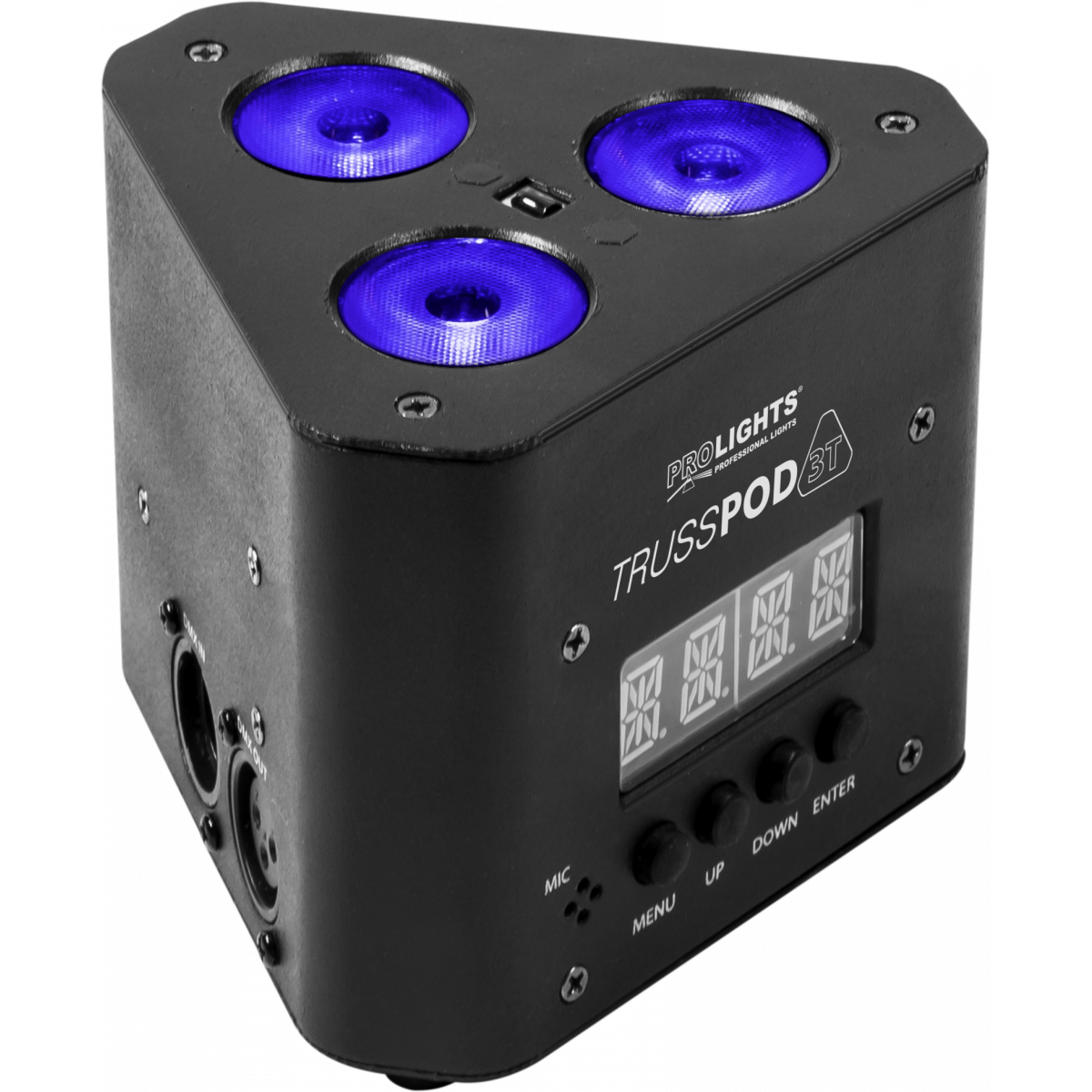

TrussPod 3T is a truss warmer with a triangular shape, its compact sizes allow to fit in standard trusses of every shape and dimension. The design concept makes it suitable for both ground stacking and hanging on truss thanks to the screw omega support. TrussPod 3T is a multi-purpose and user-friendly fixture, thanks also to the wide range of control flexibility through DMX, auto show, reproduction of static colours through the LED display or the included IR remote controller. The light source is composed by 3x3,5W RGB/FC LED achieving a brighter beam when compared with the traditional truss warmed based on dichroic lamps and colour-filters.

Main features:

  • 3x3,5W RGB/FC LED
  • Compact sizes, multi-purpose and user-friendly fixture
  • Control through IR remote controller
  • Flicker-free operations

PHOTO GALLERY

Technical specifications

LIGHT SOURCE

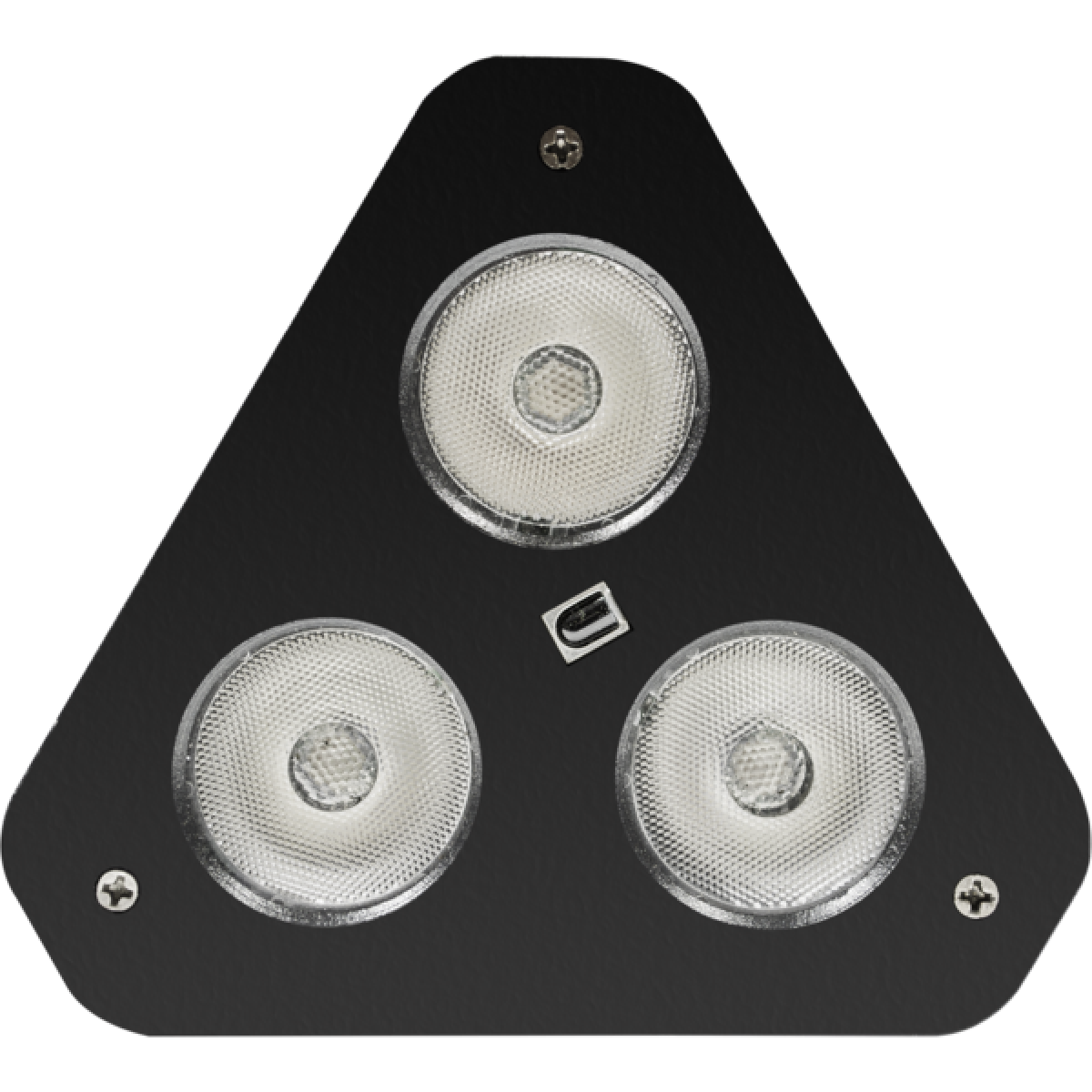

  • Source: 3x3,5W RGB LEDs
  • Luminous flux: 321
  • Lux: 295lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS

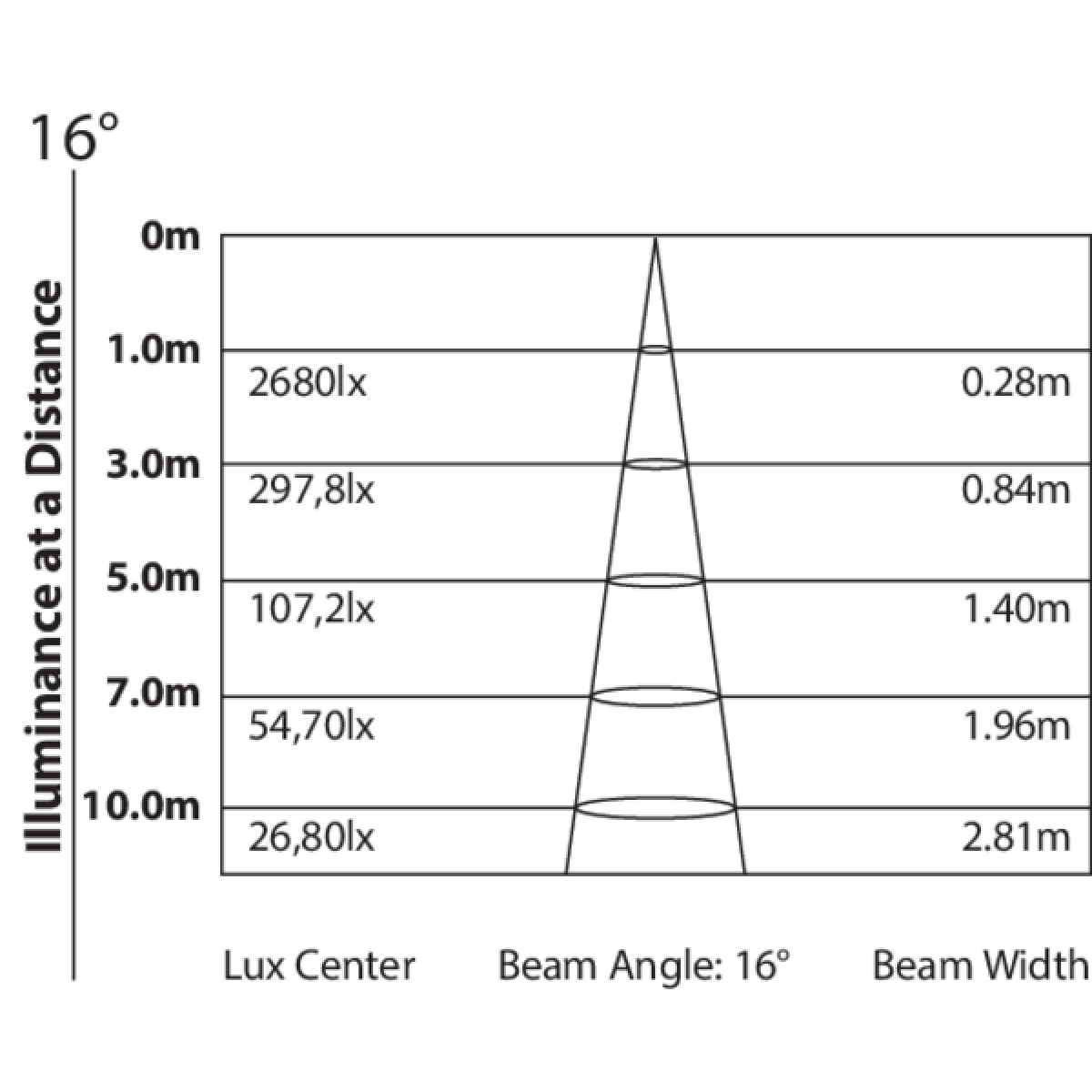

  • Beam angle: 16°
  • Field angle: 32°
COLOUR SYSTEM
  • Colour mixing: RGB / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 3 / 8channel

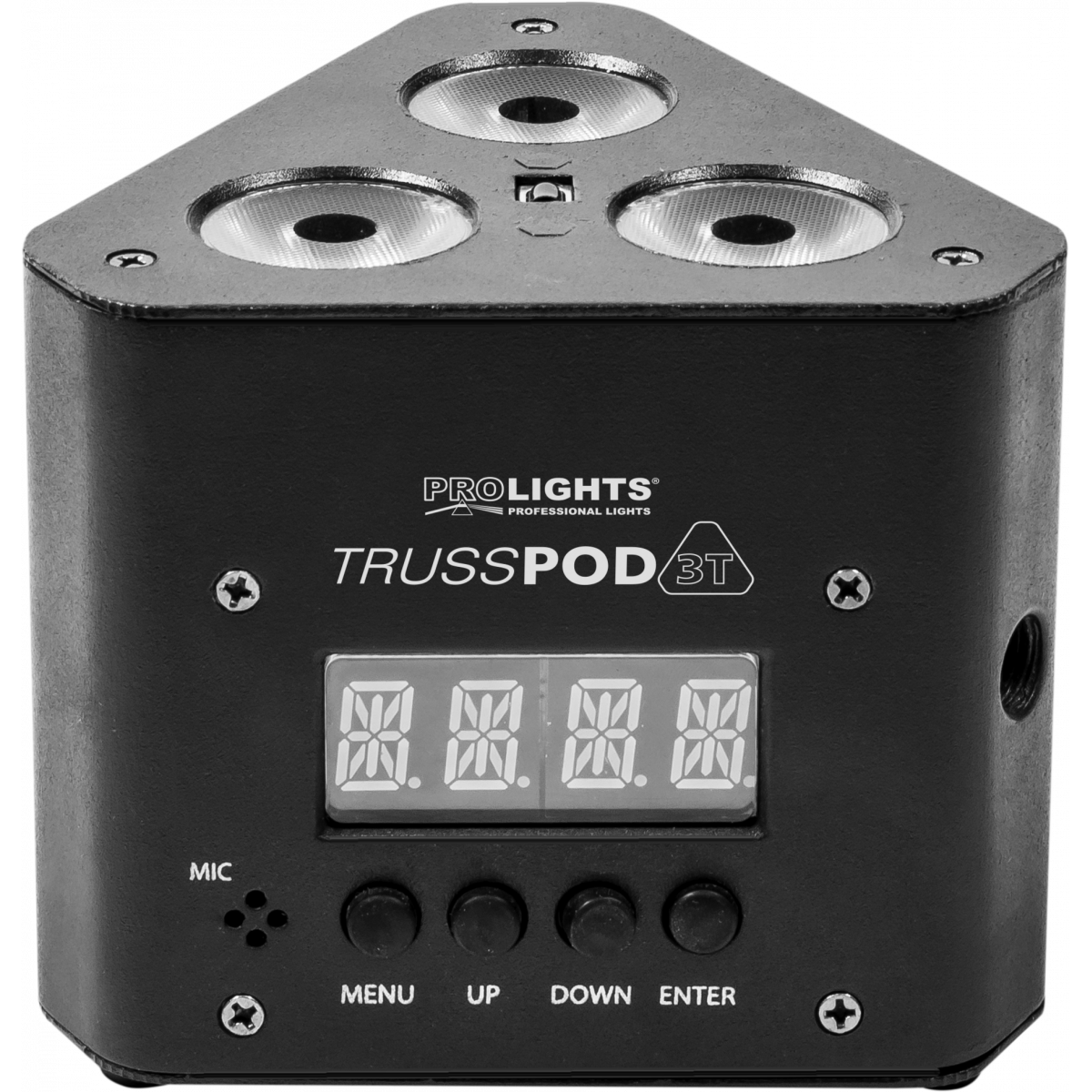

  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 11,4W
  • Max power consumption (at 120V): 11,6W
  • Output (at 230V): 97 units on a single power line
  • Output (at 120V): 46 units on a single power line
PHYSICAL
  • IP rating: 30
  • Cooling: passive cooling and fan-free

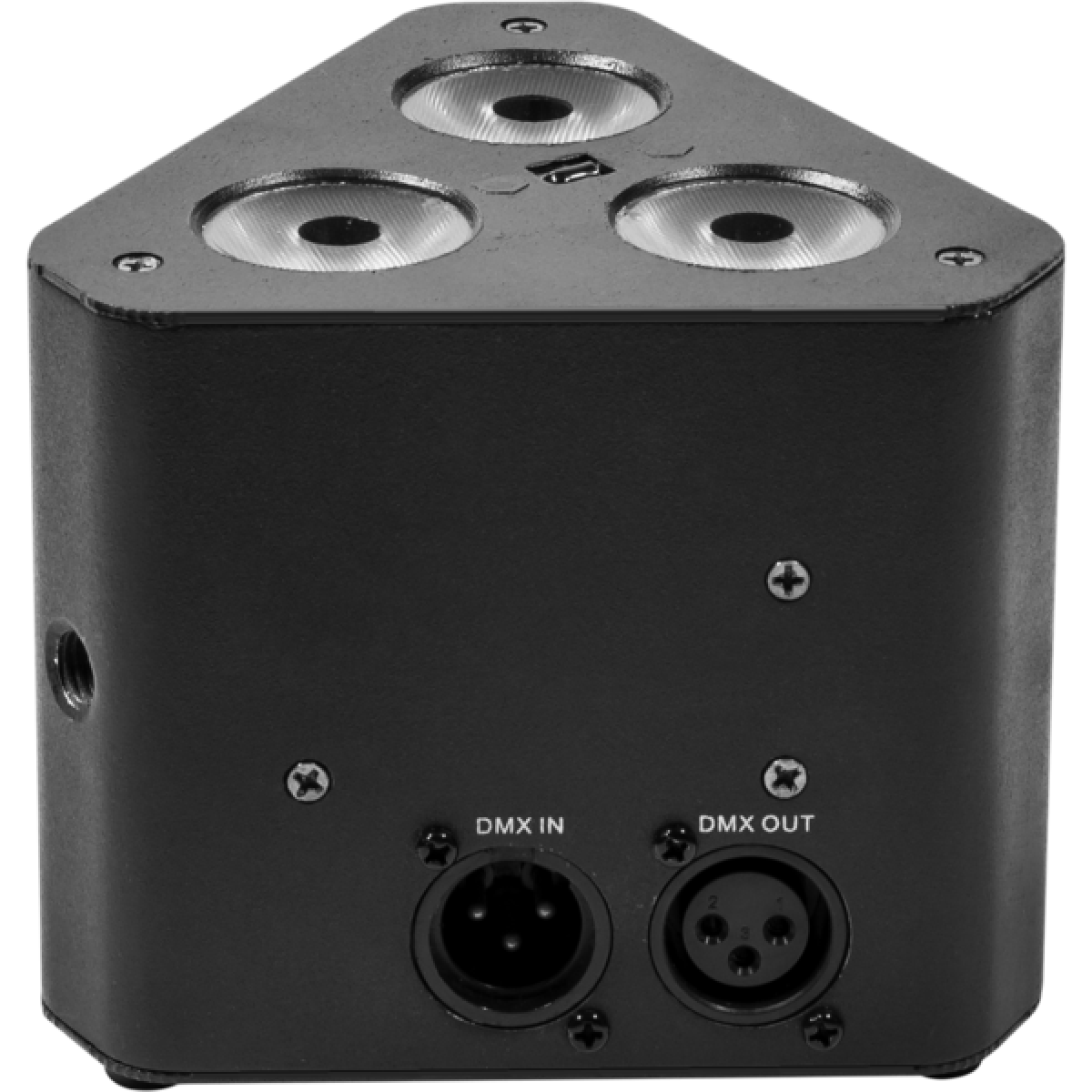

  • Signal connection: XLR 3p IN/OUT connectors

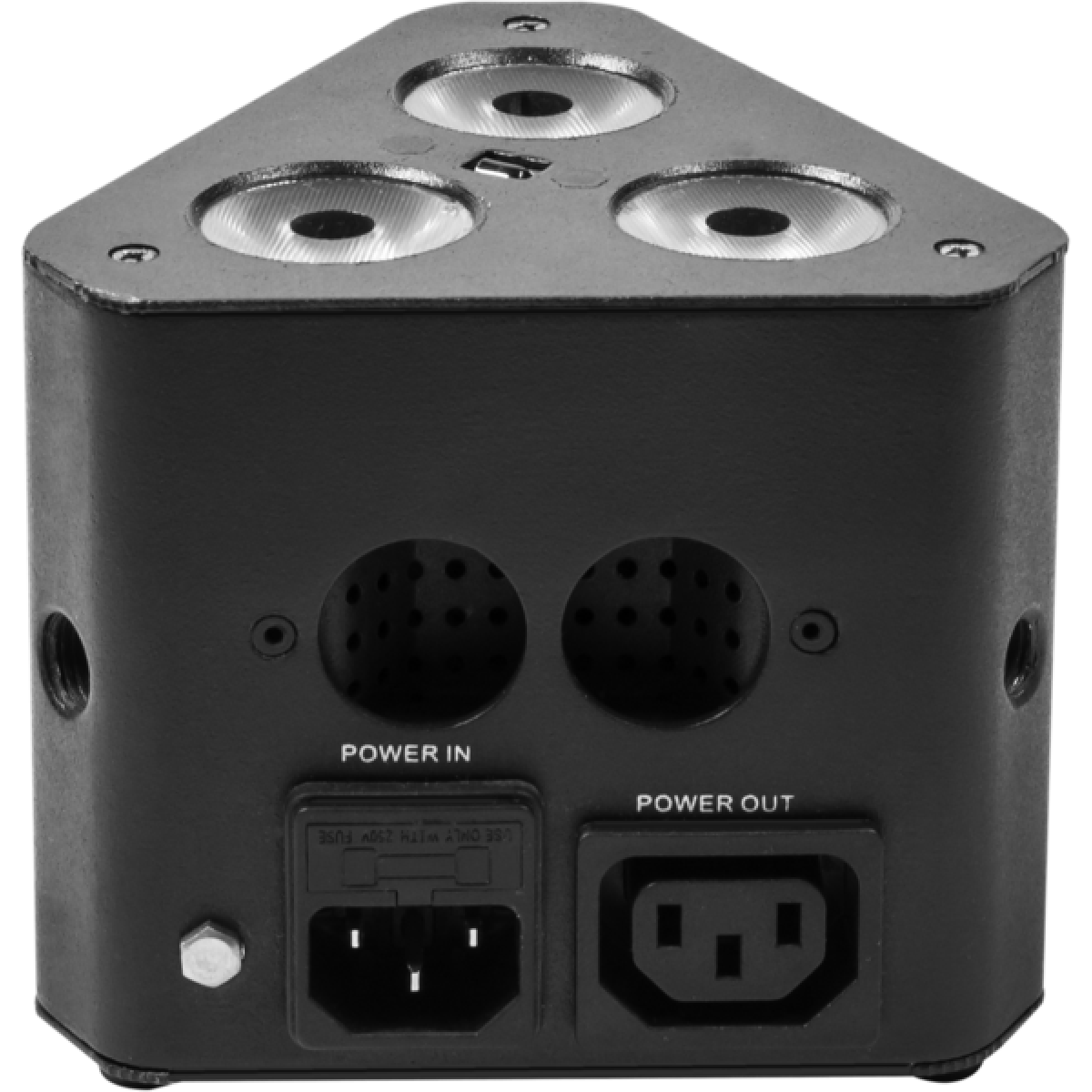

  • Power connection: IEC IN/OUT connectors
  • Dimensions (WxHxD): 121x104x108mm / 4.76''x4.09''x4.25''
  • Weight: 0,65kg / 1.43lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
LUMIPARIRCH
LUMIPARIRCH
(included)
RGBWA IR remote controller, manual / auto modes, for LUMIPAR IR series
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Trusspod3t_A4_DATASHEET.pdf 234KB

User manual

File name File size Download
User manual Trusspod3t_USER_MANUAL_ITEN.pdf 1MB

DMX chart & personalities

File name File size Download
TRUSSPOD3T Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_trusspod3t.d4Download
manufacturer fixture library (Link) Link
prolights_trusspod3bat_3ch.hedDownload
prolights_trusspod3bat_8ch.hedDownload
manufacturer fixture library (Link) Link
trusspod3t_3ch.fdfDownload
trusspod3t_8ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@trusspod_3t@3_channel@ma_library_update_v13.5.xmlpDownload
prolights@trusspod_3t@8_channel@ma_library_update_v13.5.xmlpDownload
manufacturer fixture library (Link) Link
trusspod 3t 3 channel.fix2Download
trusspod 3t 8 channel.fix2Download

CAD symbols & drawings

File name File size Download
2D Trusspod3t_2D.dwg 466KB
3D Trusspod3t_3D.dwg 1MB
Technical drawing Trusspod3t_TECHNICAL_DRAWING.pdf 115KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 04/12/2015 Improved Mastr/Slave functionality. Rev. 1
