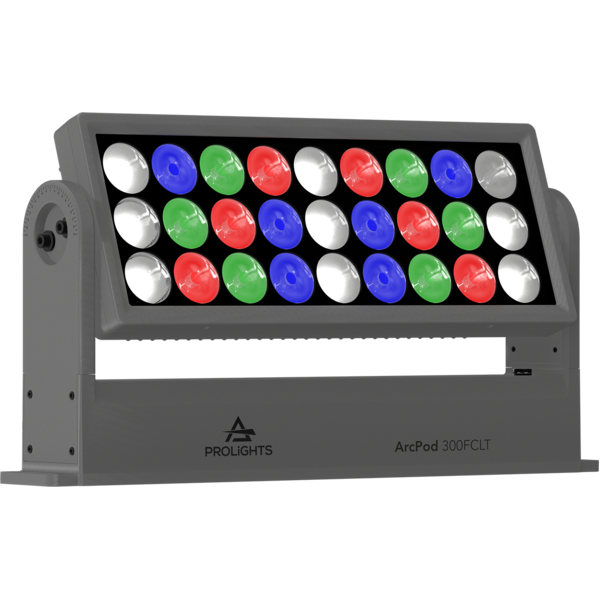

ARCPOD300FCLT

ArcPod 300FCLT

NEW
5 YEARS WARRANTY

Order Code: ARCPOD300FCLT

Source
(6 x red, 6 x green, 6 x blue, 9 x white) 27x10W RGBW LED
IP rating
 IP66 for outdoor installations
Weight
12,2kg / 26.9lbs

Key Features

  • Exterior narrow-beam Full Color wash light featuring 700 lux at 40mt
  • Native 2.5° beam angle lens for long-throw projection
  • IP66 with C5M for permanent exterior installation also in marine environment
  • Comprehensive selection of optics, holographic filters and light modifiers

Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.

The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.

Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.

Read less
Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for ...

Product Video

Discover the ArcPod 300FCLT in action

Photo Gallery

ARCPOD300FCLT
ARCPOD300FCLT
ARCPOD300FCLT
ARCPOD300FCLT

Specifications

LIGHT SOURCE
  • Source: (6 x red, 6 x green, 6 x blue, 9 x white) 27x10W RGBW LED
  • CCT: W: 6300K
  • Luminous flux: (with 3° filter on-board) 10'573 lm @Full
  • Lux: (with 3° filter on-board) 676lx @40 m full
  • Lux: (with 3° filter on-board) 43'251lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: 3° holographic filter fitted on board
  • Beam angle: (with 3° filter on-board) 4° - (only native lens) 2,5°
  • Field angle: (with 3° filter on-board) 7,5 - (only native lens) 5,3°
  • Lens type: TIR lenses
  • Additional optics: different holografic filters available as options to put behind the glass - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
BODY
  • Tilt range: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body, scratch resistant paint C5M (as standard)
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 5 / 7 / 10channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Standby power: 3,5 W
  • Output (at 230V): 10 units on a single power line
  • Output (at 120V): 5 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • IK rating: 08
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 584x304x114mm / 22.99''x11.97''x4.49''
  • Weight: 12,2kg / 26.9lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM
BOX CONTENT
  • 1 x ARCPOD300FCLT
  • 1 x 0,28 meters 3G1mmq power cable (BARE END - IP connection adapter)
  • 1 x 5p XLR - IP connection female adapter
  • 1 x 5p XLR - IP connection male adapter
  • User Manual

Accessories & Related Products

Included A300FCLTFILT3

3° symmetric light diffusion filter for ARCPOD300FCLT

Order Code: A300FCLTFILT3

Optional A300FCLTFILT5

5° symmetric light diffusion filter for ARCPOD300FCLT

Order Code: A300FCLTFILT5

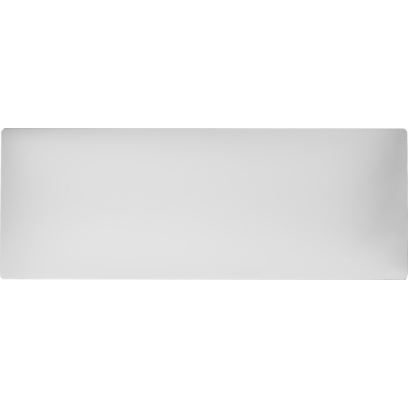

Optional A300FCLTFILT8

8° symmetric light diffusion filter for ARCPOD300FCLT

Order Code: A300FCLTFILT8

Optional S48QBD

Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q

Order Code: S48QBD

Optional <b>DataMaster</b>

RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters

Order Code: DATAMASTER

Optional <b>Æther</b> Link

IP66 rated 1 Universe CRMX wireless transceiver for permanent outdoor installation

Order Code: AETHERLINK

Optional AWEXAC1L03

IP67 power extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXAC1L03

Optional AWEXAC1L05

IP67 power extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXAC1L05

Optional AWEXAC1L10

IP67 power extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXAC1L10

Optional AWEXAC1L20

IP67 power extension cable for outdoor architectural projectors, L.2 0m

Order Code: AWEXAC1L20

Optional AWEXAC12ADP

Power adapter from AWEXAC1 cable series to AWEXAC2 cable series

Order Code: AWEXAC12ADP

Optional AWEXDC1L03

IP67 DMX extension cable for outdoor architectural projectors, L.03 m

Order Code: AWEXDC1L03

Optional AWEXDC1L05

IP67 DMX extension cable for outdoor architectural projectors, L.05 m

Order Code: AWEXDC1L05

Optional AWEXDC1L10

IP67 DMX extension cable for outdoor architectural projectors, L.10 m

Order Code: AWEXDC1L10

Optional AWEXDC1L20

IP67 DMX extension cable for outdoor architectural projectors, L.20 m

Order Code: AWEXDC1L20

Optional AWEXDC1221ADP

Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa

Order Code: AWEXDC1221ADP

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetArcpod300fclt_A4_DATASHEET_(ITA).pdf(08/10/2025)470KB
Letter datasheetArcpod300fclt_A4_DATASHEET_(EN).pdf(08/10/2025)466KB
Tender SpecificationArcpod300fclt_TENDER_SPECIFICATION.pdf(07/10/2025)258KB

User manual User manual

File name File size Download
User manualArcpod300fclt_USER_MANUAL_EN.pdf(10/10/2025)4MB
User manualArcpod300fclt_General_Safety_Information.pdf(05/11/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartArcpod300fclt_DMX_CHARTS.pdf(10/10/2025)115KB

ARCPOD300FCLT Firmware rev. 1.1.00.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_arcpod300fclt_ies_files.zip(07/10/2025)38KB
LDTprolights_arcpod300fclt_ldt_files.zip(07/10/2025)36KB
PhotometricsArcpod300fclt_PHOTOMETRICS_REPORT.pdf(07/10/2025)3MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPArcpod300fclt_3D.skp(20/03/2025)6MB
2DArcpod300fclt_CAD_2D.dwg(12/02/2025)647KB
3DArcpod300fclt_CAD_3D.dwg(20/03/2025)502KB
2D cad symbolsArcpod300fclt_ARCPOD300FCLT_2DSYMBOLS.dwg(29/05/2025)26KB
Technical drawingArcpod300fclt_TECHNICAL_DRAWING.pdf(12/02/2025)139KB
VectorWorksARCPOD300FCLT_SYMBOLS.vwx(29/05/2025)569KB

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.00.0 STABLE 30/10/2025 First stable release Rev. 1.0
