ECLPANELTWCJR4X1

EclPanel TWCJR4x1

SPEKTRA

Order Code: ECLPANELTWCJR4X1

Source
230W RGB + Warm White LED
IP rating
 IP20
Weight
10kg / 22.05lbs

Key Features

  • 230W RGB + Warm White LED source
  • CRI >94; R9 >95; TLCI >92
  • 2 section pixel control and built-in lighting effects for cinema applications, colour gel matching
  • Silent operation with multiple fan modes
  • Wireless DMX (CRMX+W-DMX), Ethernet connectivity, low voltage inputs (24-36V, 48Vdc)

The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCJR4x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.
The EclPanel TWCJR4x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
The 2 sections are controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCJR4x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48VDC)

Read less
The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the EclPanel TWCJR4x1 comes with a full range of white...

Product Video

Discover the EclPanel TWCJR4x1 in action

Photo Gallery

ECLPANELTWCJR4X1
ECLPANELTWCJR4X1
ECLPANELTWCJR4X1
ECLPANELTWCJR4X1
ECLPANELTWCJR4X1

Specifications

LIGHT SOURCE
  • Source: 230W RGB + Warm White LED
  • Luminous flux: 16'260 @3.200 K with LD filter
  • Lux: 257lx @5 m full
  • CRI: 93 @3.200 K; 94 @5.600 K
  • R9: 96 @3.200 K; 94 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 92 @3.200 K; 90 @5.600 K
  • TM30 Rg: 104 @3.200 K; 104 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 102°
  • Field angle: 154°
  • Lens type: medium density diffusion panel (interchangeable)
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
  • CCT: Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer and color control
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
CONTROL
  • Supported Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Pixel control: 2 linear section control
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Stand Alone: selectable mode through 3 rotatory knobs
ELECTRONICS
  • Dimmer: linear 0 - 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Selectable PWM: 600 to 40000 Hz (selectable steps)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48Vdc and 24-36V
  • Max power consumption (230V): 240W
  • Output (at 230V): 9 units on a single power line
  • Standby power: 110VAC/8.5W, 230VAC/8.8W
  • Power factor: >0,93
PHYSICAL
  • IP rating: IP20
  • Cooling: forced-air with low-noise fan
  • Housing: Sturdy die-cast aluminium body
  • Finish: black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 819x276x144mm / 32.24''x10.87''x5.67''
  • Dimensions with PO system (WxHxD): 836x396x144mm / 32.91''x15.59''x5.67''
  • Weight: 10kg / 22.05lbs
  • Weight with PO system: 12.3kg / 27.12lbs
INSTALLATION
  • Suspension and fixing: bracket for hanging and floor positioning
CERTIFICATIONS / REPORTS
  • Compliance: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLPANELTWCJR4X1
  • 1 x ECLFRSPG
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)

Accessories & Related Products

(Optional) TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

(Optional) 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

(Optional) 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

(Optional) 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

(Optional) RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

(Optional) AETHERBOXONE

IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE

Order Code: AETHERBOXONE

(Optional) AETHERBOX

IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

Order Code: AETHERBOX

(Optional) C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

(Optional) C6040B

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

Order Code: C6040B

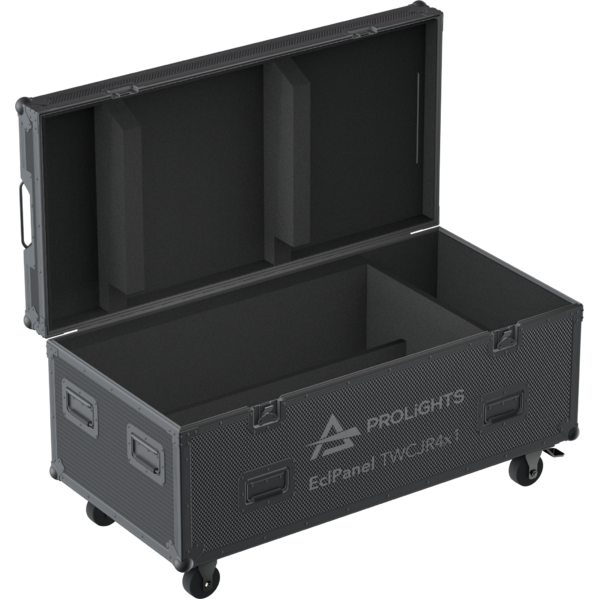

(Optional) FCLPANELJR4X13U

Flight case for 3 pcs of ECLPANELTWCJR4X1

Order Code: FCLPANELJR4X13U

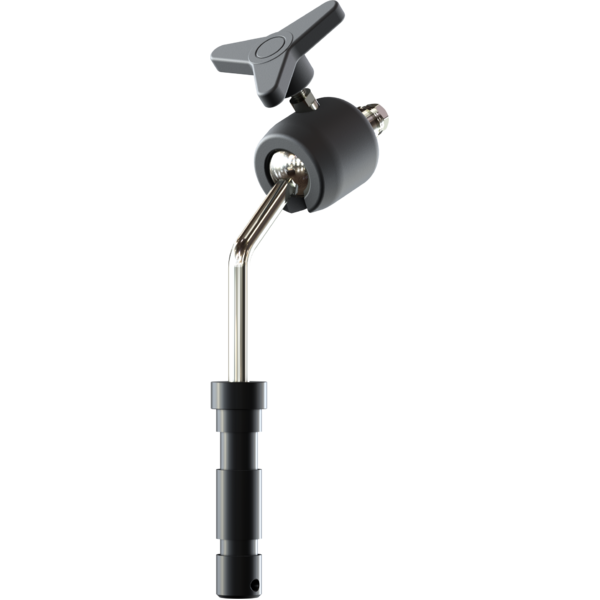

(Optional) EPTWCBHEAD

Ball head joint for center mount bracket EPTWCBRK series

Order Code: EPTWCBHEAD

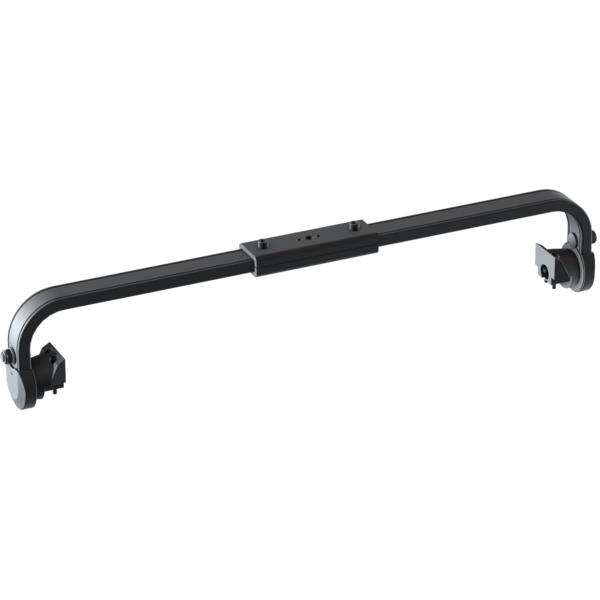

(Optional) EPTWCBRKL

Center mount bracket for ECLPANELTWC and ECLPANELTWCJR4X1

Order Code: EPTWCBRKL

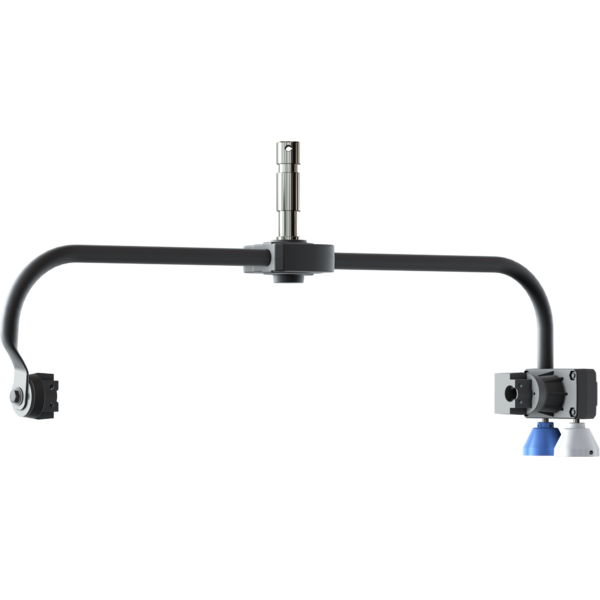

(Optional) ECLPANELJR4X1POYO

Pole operated aluminium yoke bracket for ECLPANELTWCJR4X1

Order Code: ECLPANELJR4X1POYO

(Optional) EPTWCJR4X1FILTINT

Front intensified diffusion filter for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1FILTINT

(Optional) EPTWCJR4X1FILTHD

Front high diffusion filter (less output) for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1FILTHD

(Included) EPTWCJR4X1FILTMD

Front medium diffusion filter for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1FILTMD

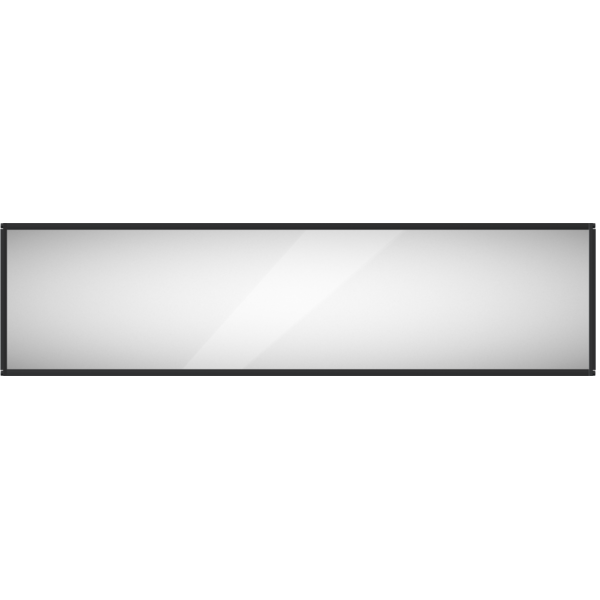

(Optional) EPTWCJR4X1FILTLD

Front low diffusion filter (more output) for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1FILTLD

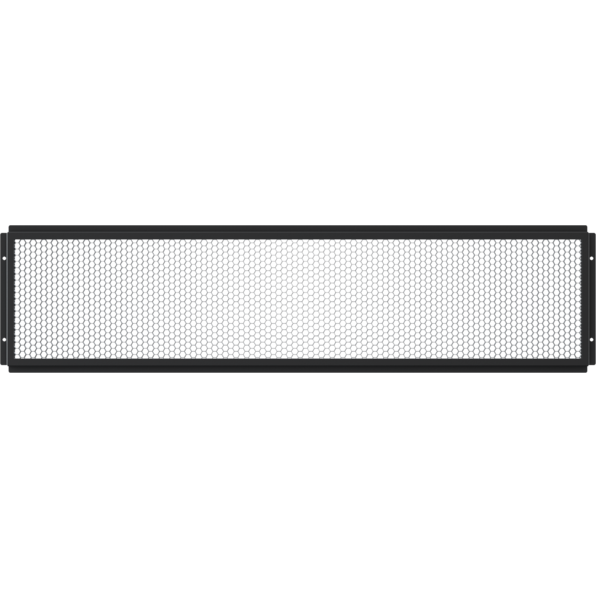

(Optional) EPTWCJR4X1EC30

30 degree egg crate for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1EC30

(Optional) EPTWCJR4X1EC60

60 degree egg crate for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1EC60

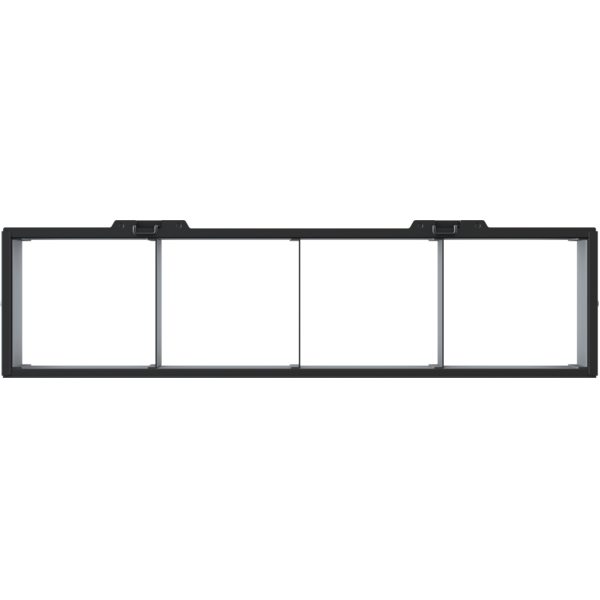

(Optional) EPTWCJR4X1EC4C

4 chamber egg crate for ECLPANELTWCJR4X1

Order Code: EPTWCJR4X1EC4C

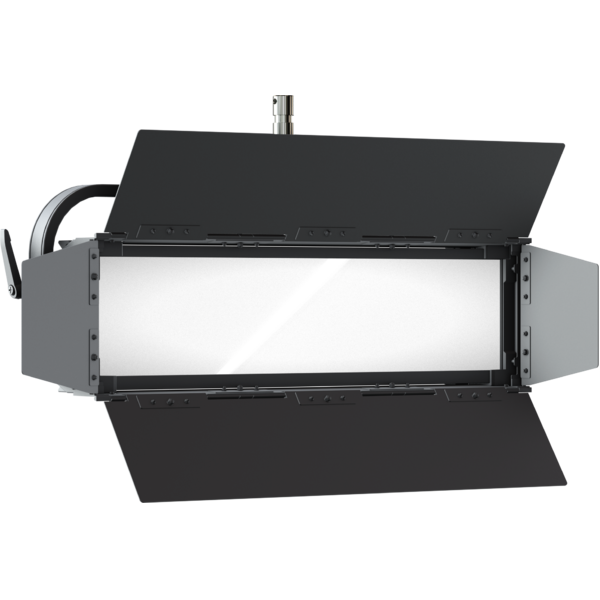

(Optional) EPTWCJR4X1BD

Barndoor for ECLPANELTWCJR4X1 with 4 directional flaps to adjust the light beam

Order Code: EPTWCJR4X1BD

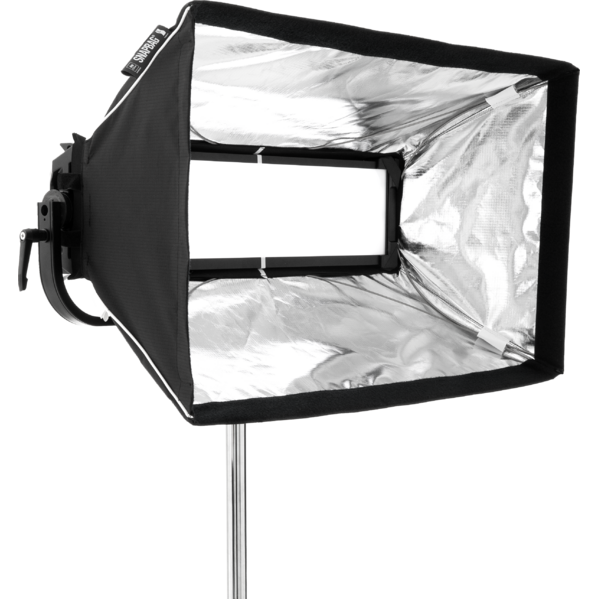

(Optional) EPTWCSBJR41

SnapBag 4x1 for ECLPANELTWCJR4x1 by DoP choice

Order Code: EPTWCSBJR41

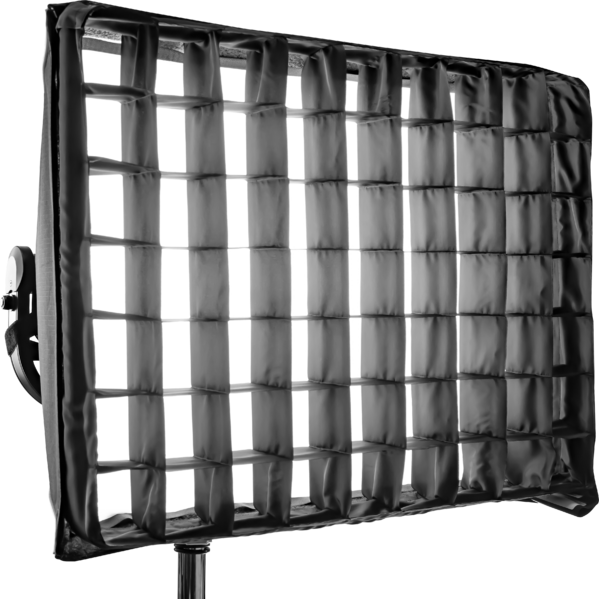

(Optional) EPTWCSG4SBJR4140

40° SnapGrid for SnapBag, 4x1 for ECLPANELTWCJR4x1 by DoP choice

Order Code: EPTWCSG4SBJR4140

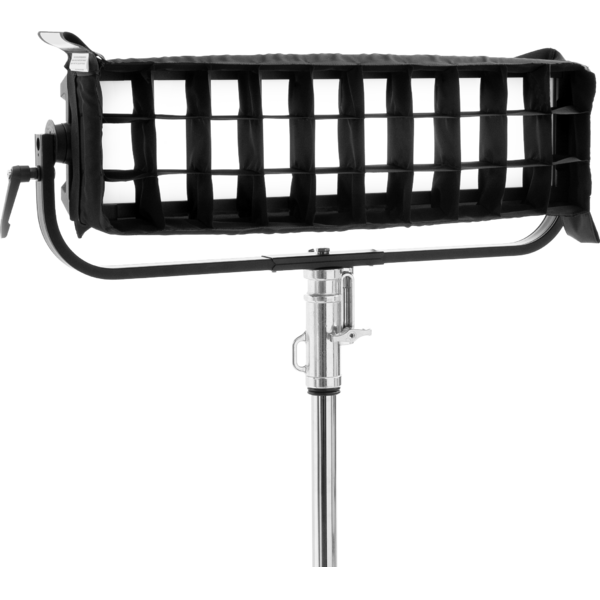

(Optional) EPTWCSGJR4140

40° SnapGrid, 4x1 for ECLPANELTWCJR4x1 by DoP choice

Order Code: EPTWCSGJR4140

(Optional) SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

(Included) ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

(Optional) SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

(Optional) UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

(Optional) UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO
