ECLPARIPSFC

EclPar IPSFC

NEW
SPEKTRA

Order Code: ECLPARIPSFCBK

Source
60W RGB+WW LED array
IP rating
 IP65 for temporary outdoor application, not for fixed installations
Weight
2,8kg / 6.17lbs

Key Features

  • 60W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
  • Flex lens system: 15° on-board - 30° , 60° and asymmetric optional
  • IP65 & fan-free for exterior application

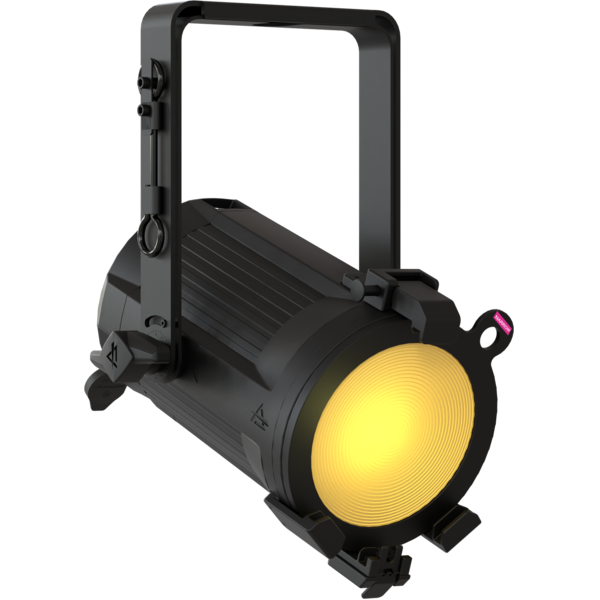

The EclPar IPSFC is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere.

This fixture is powered by a 60W RGB+WarmWhite light source, capable of producing up to 2,500 fixture lumens with high efficiency and advanced color control.

Integrated with the PROLIGHTS Spektra OS, the EclPar IPSFC excels in delivering superior white light reproduction, boasting high CRI and TM30 values. This system ensures advanced color control, maintaining consistency across all fixtures.

Its compact and fan-free design renders the EclPar IPSFC an indispensable tool for both indoor and outdoor venues, blending seamlessly into various environments. The fixture's versatility is further enhanced by its flexible optical system, accommodating a broad range of lenses. These include a narrow 15° lens (onboard), medium 30°, and a wide 60° flood option. Additionally, it supports asymmetric filters and optical modifiers, all swiftly attachable via dedicated accessory holders, allowing for swift adaptation to diverse lighting requirements.

Read less
The EclPar IPSFC is an ultra compact and fan free IP-rated single source LED spotlight, tailored for accent lighting and nearfield projection which seamlessly integrates anywhere.This fixture is power...

Product Video

Discover the EclPar IPSFC in action

Photo Gallery

ECLPARIPSFCBK
ECLPARIPSFCBK
ECLPARIPSFCBK
ECLPARIPSFCBK
ECLPARIPSFCBK

Specifications

LIGHT SOURCE
  • Source: 60W RGB+WW LED array
  • Luminous flux: (15°) 2'938, (30°) 2'238, (60°) 2'373 @Full
  • Lux: (15°) 1'350, (30°) 318, (60°) 130lx @5 m full
  • CRI: 93,3 @3'200K; 92,2 @5'600K
  • R9: 90,7 @3'200; 92,9 @5'600K
  • TLCI: 87 @3'200K; 89 @5'600K
  • TM30 Rf: 93 @3'200K; 89,6 @5'600K
  • TM30 Rg: 106,5 @3'200K; 105,8 @5'600K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (on-board) 15° - (opt) 30°, 60°
  • Field angle: (on-board) 21°
  • Lens diameter: 100mm / 3.94''
  • Lens type: parabolic reflector in combination with HD fresnel lens
  • Additional optics: (opt) 30°, 60°
  • Other: possible to mount lens both on the internal side and on the external side
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Macros: Gels library on-board
DYNAMIC EFFECTS
  • Static mode: selection of static dimmer, colors and color temperature
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: Sturdy die-cast aluminium body
  • Body colour: black
  • Other: Front mount holder for accessories as barn door, filter frame
CONTROL
  • Supported Protocols: DMX512, RDM, CRMX (optional)
  • DMX channels: 1 / 2 / 5 / 9 / 10 / 12 / 18channel
  • Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 65W
  • Standby power: 1,7 W
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP65 for temporary outdoor application, not for fixed installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 211x284x248mm / 8.31''x11.18''x9.76''
  • Weight: 2,8kg / 6.17lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, FCC, cTUVus
BOX CONTENT
  • 1 x ECLPARIPSFC
  • 1 x EPIPSLENS15
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

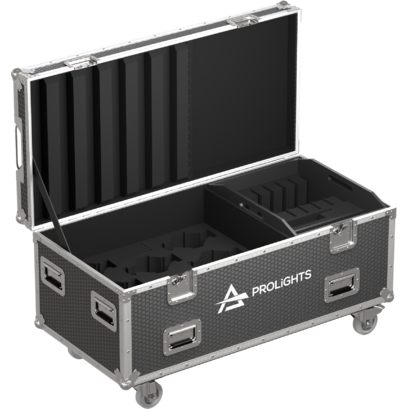

Optional FCLECLPARIPS

Flight case for 8 pcs of ECLPARIPS series

Order Code: FCLECLPARIPS

Included EPIPSLENS15

ECLPARIPS series 15° lens

Order Code: EPIPSLENS15

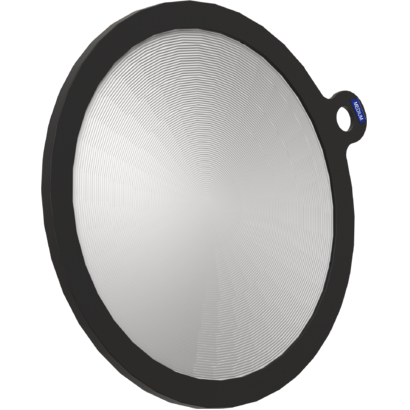

Optional EPIPSLENS30

ECLPARIPS series 30° lens

Order Code: EPIPSLENS30

Optional EPIPSLENS60

ECLPARIPS series 60° lens

Order Code: EPIPSLENS60

Optional EPIPSFILT1020

Light diffusion filter for ECLPARIPS series, asymmetric 10°x20°

Order Code: EPIPSFILT1020

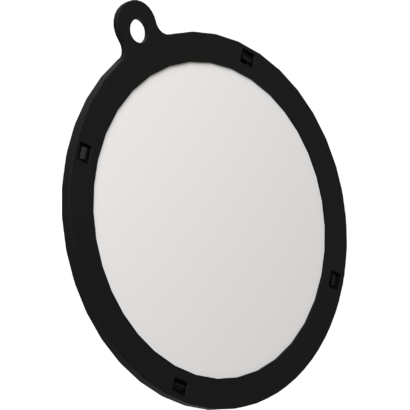

Optional EPIPSFILT1040

Light diffusion filter for ECLPARIPS series, asymmetric 10°x40°

Order Code: EPIPSFILT1040

Optional EPIPSFILT1060

Light diffusion filter for ECLPARIPS series, asymmetric 10°x60°

Order Code: EPIPSFILT1060

Optional EPIPSFILT3060

Light diffusion filter for ECLPARIPS series, asymmetric 30°x60°

Order Code: EPIPSFILT3060

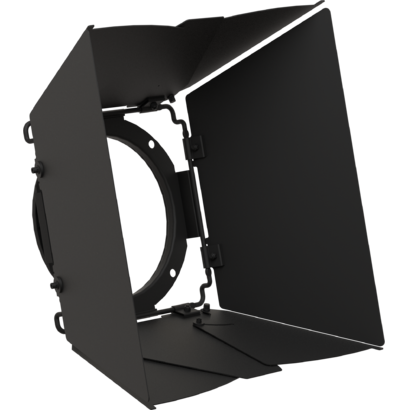

Optional ECLPARIPSBDBK

Barn door with 8 directional flaps to adjust the light beam, ECLPARIPS, black

Order Code: ECLPARIPSBDBK

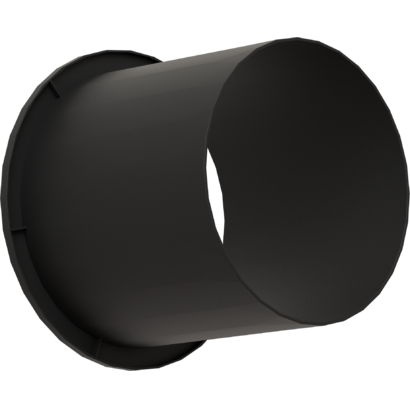

Optional EPIPSFSNOOTBK

Full snoot for ECLPARIPS series, black

Order Code: EPIPSFSNOOTBK

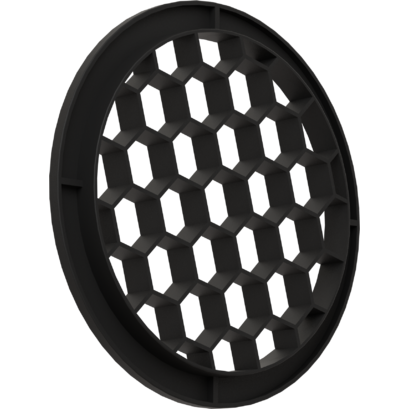

Optional EPIPSHLOUVREBK

Honeycomb louvre for ECLPARIPS series, black

Order Code: EPIPSHLOUVREBK

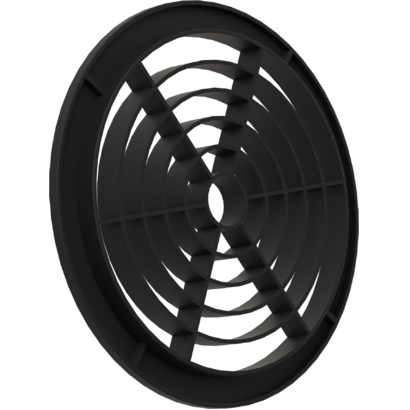

Optional EPIPSCLOUVREBK

Concentric louvre for ECLPARIPS series, black

Order Code: EPIPSCLOUVREBK

Optional ECLPARIPMWKBK

CRMX Timo Fx kit for ECLPARIP serie, black

Order Code: ECLPARIPMWKBK

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional 958215L03

3x1.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958215L03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEclparipsfc_LETTER_DATASHEET_(EN).pdf(08/01/2026)443KB
Letter datasheetEclparipsfcbk_A4_DATASHEET_(ITA).pdf(08/01/2026)445KB
Letter datasheetEclparipsfcbk_A4_DATASHEET_(EN).pdf(08/01/2026)442KB
Tender SpecificationEclparipsfc_TENDER_SPECIFICATION.pdf(05/08/2025)280KB

User manual User manual

File name File size Download
User manualEclparipsfc_USER_MANUAL_EN.pdf(27/01/2026)6MB
User manualEclparipsfc_General_Safety_Information.pdf(18/11/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEclparipsfc_DMX_CHARTS.pdf(27/01/2026)247KB

ECLPARIPSFC Firmware rev. 1.1.04.0

manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclpar_ipsfc.hog5libDownload
manufacturer fixture library (Link) Link

Photometrics Photometrics

File name File size Download
IESprolights_eclparipsfc_ies_files.zip(10/07/2025)244KB
LDTprolights_eclparipsfc_ldt_files.zip(10/07/2025)237KB
PhotometricsEclparipsfc_HB_Mode_Photometric_Report_REPORT.pdf(10/07/2025)8MB
PhotometricsEclparipsfc_HQ_Mode_Photometric_Report_REPORT.pdf(10/07/2025)8MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPEclparipsfc_3D.skp(13/06/2025)475KB
2DECLPARIPSFC_2D.zip7MB
3DEclparipsfc_CAD_3D.dwg(13/06/2025)275KB
2D cad symbolsEclparipsfc_ECLPARIPSFC_2DSYMBOLS.dwg(30/06/2025)20KB
Technical drawingECLPARIPSFC_TECHNICAL DRAWINGS.zip646KB
VectorWorksECLPARIPSFC_SYMBOLS.vwx(30/06/2025)722KB

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check the product accessories page.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.04.0 STABLE 27/01/2026

New Functions:

  • Added "Preset 1" / "Preset 2" / "Preset 3" / "Preset 4" in Colour Macro channel in the following DMX ranges:
    • Preset 1 = 136-137 dmx value
    • Preset 2 = 138-139 dmx value
    • Preset 3 = 140-141 dmx value
    • Preset 4 = 142-143 dmx value
  • Added "Preset 1" / ... / "Preset 4" to the Stand Alone Color Macro section. These can also be recalled via RDM via the Manufacturer PID "Color Macro" (pid values ​​from 67-70).
  • Added the "Delete All Preset Color Macro" Manufacturer PID in Stand Alone to delete all previously saved presets.
  • Added "Stand Alone Color Macro Preset 1" / ... / "Stand Alone Color Macro Preset 4" in Control Ch in the following dmx ranges:
    • Stand Alone Color Macro PRESET 1 = 124-125 dmx value
    • Stand Alone Color Macro PRESET 2 = 126-127 dmx value
    • Stand Alone Color Macro PRESET 3 = 128-129 dmx value
    • Stand Alone Color Macro PRESET 4 = 130-131 dmx value
  • Added "View/Modify Color Macro Preset 1" / ... / "View/Modify Color Macro Preset 4" in Control Ch in the following DMX ranges:
    • View/Modify Color Macro Preset 1 = 132-133 dmx value
    • View/Modify Color Macro Preset 2 = 134-135 dmx value
    • View/Modify Color Macro Preset 3 = 136-137 dmx value
    • View/Modify Color Macro Preset 4 = 138-139 dmx value
  • Added "Save/Overwrite Color Macro Preset 1" / ... / "Save/Overwrite Color Macro Preset 4"  in Control Ch in the following DMX ranges:
    • Save/Overwrite Color Macro Preset 1 = 140-141 dmx value
    • Save/Overwrite Color Macro Preset 1 = 142-143 dmx value
    • Save/Overwrite Color Macro Preset 1 = 144-145 dmx value
    • Save/Overwrite Color Macro Preset 1 = 146-147 dmx value

Operation:
The user can save the light output to one of the Presets available via the Control Channel in the DMX ranges 140-147. The Preset will be saved as a "custom" Color Macro and can therefore be displayed in the Color Macro Channel (range 136-143) and recalled in the Stand Alone Color Macro (manually or via RDM using Manufacturer PIDs). If the Preset has already been saved, it will be overwritten. The source will flash red twice when saving Preset 1, green twice when saving Preset 2, blue twice when saving Preset 3, and white twice when saving Preset 4 to notify the user that the preset has been saved successfully. The user can modify previously saved presets via the Control Ch channel (DMX range: 132-139): when a preset is selected in "View/Modify" mode, the fixture outputs the color stored in that preset. To edit it, move the required RGBW channels: a channel becomes editable only after its DMX value goes above the value saved in the preset. So ,to avoid unintended changes as soon as you enter View/Modify, it is recommended to set RGBW = 0 DMX before recalling the preset. After editing, save the updated preset again using the Control Channel (DMX 140–147).

Fixed Bug:

  • Color Macro does not work correctly in UNO/DUO Mode (previously saved color macro is lost after a reboot and Color Macro@Red appears in output).
