AIR5FAN
PROLIGHTS

Air 5Fan

ORDER CODE: AIR5FAN

5x40W moving head linear, pivot, mirror and pixel effect

Air 5Fan is a pixel-FX moving head, able to control the spread of its pixels through the motorised lens system, passing from a sharp linear beam effect to a multi-ray effect. Powered by 5x40W RGBW/FC LEDs, with a 2° beam each, delivering stunning brightness for large setups and featuring infinite rotation over pan and tilt. Last but not least, Air 5Fan allows for the mounting of a mirror on its housing allowing for an added effect as moving projecting surface bouncing beams from other light sources.

Main features:

  • 5x40W RGBW Osram LED with 2° beam angle
  • Motorised pivot lenses from linear beam to multi-ray effect
  • Mountable mirror on the housing featuring as a moving mirror
  • Infinite pan and tilt rotation
See variants

PHOTO GALLERY

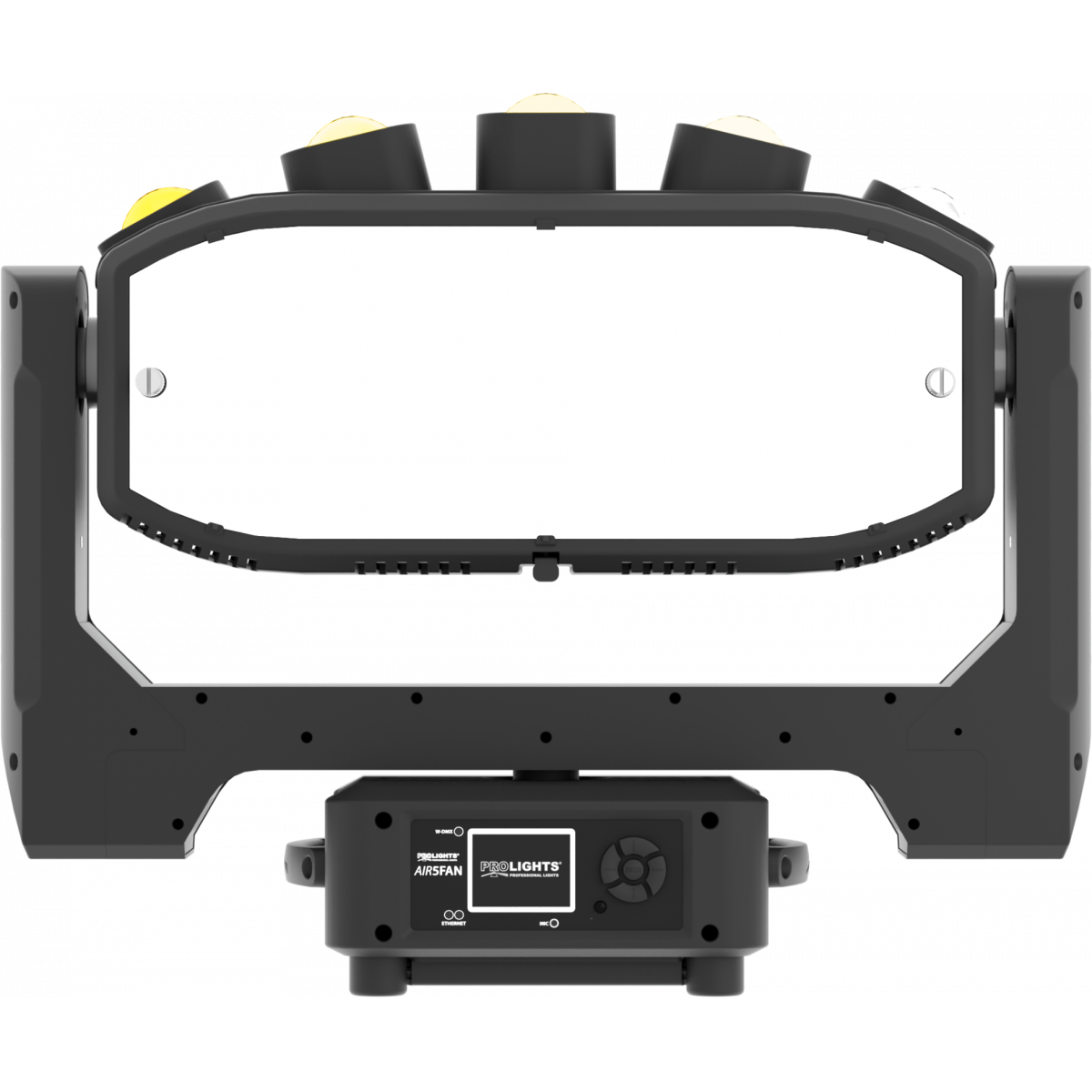

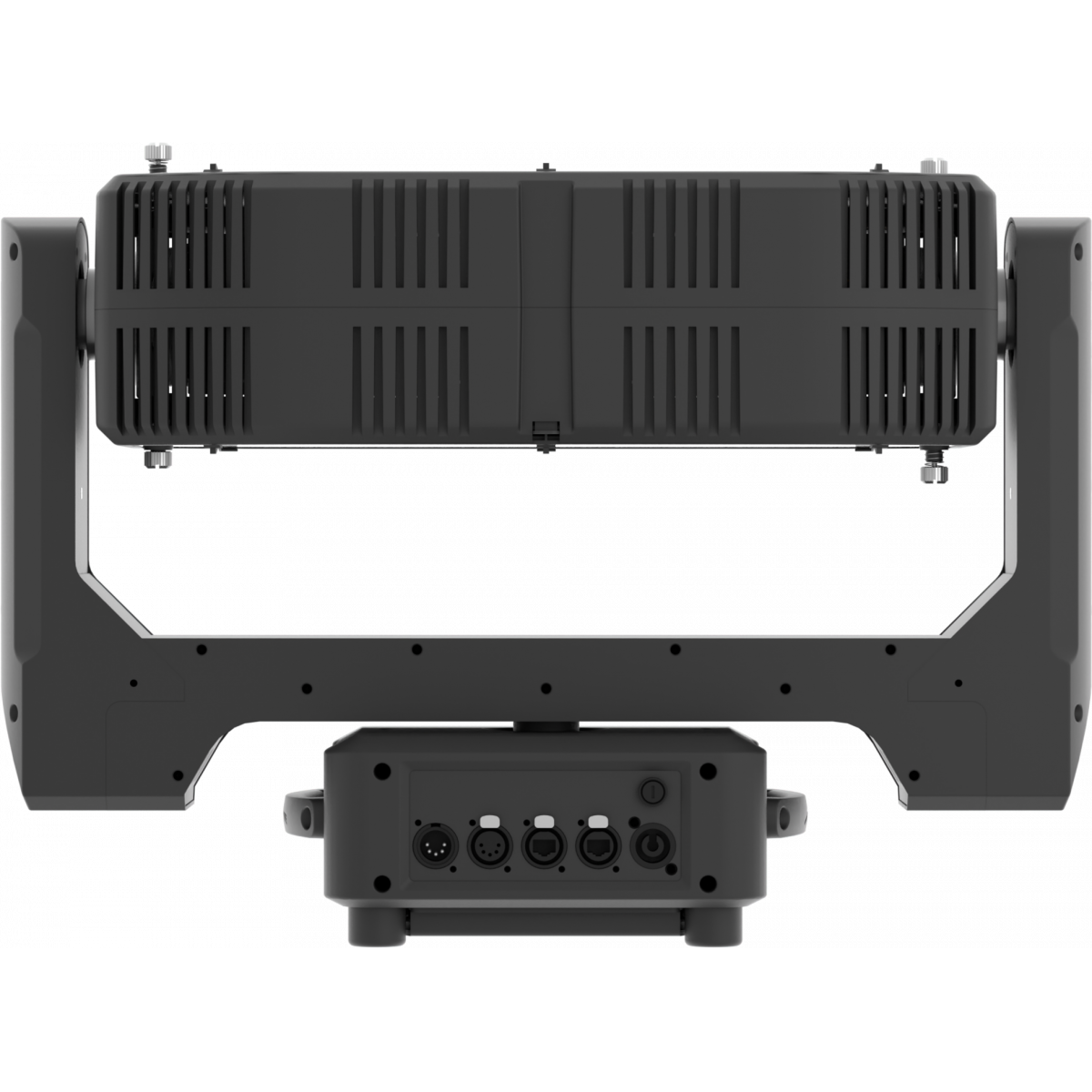

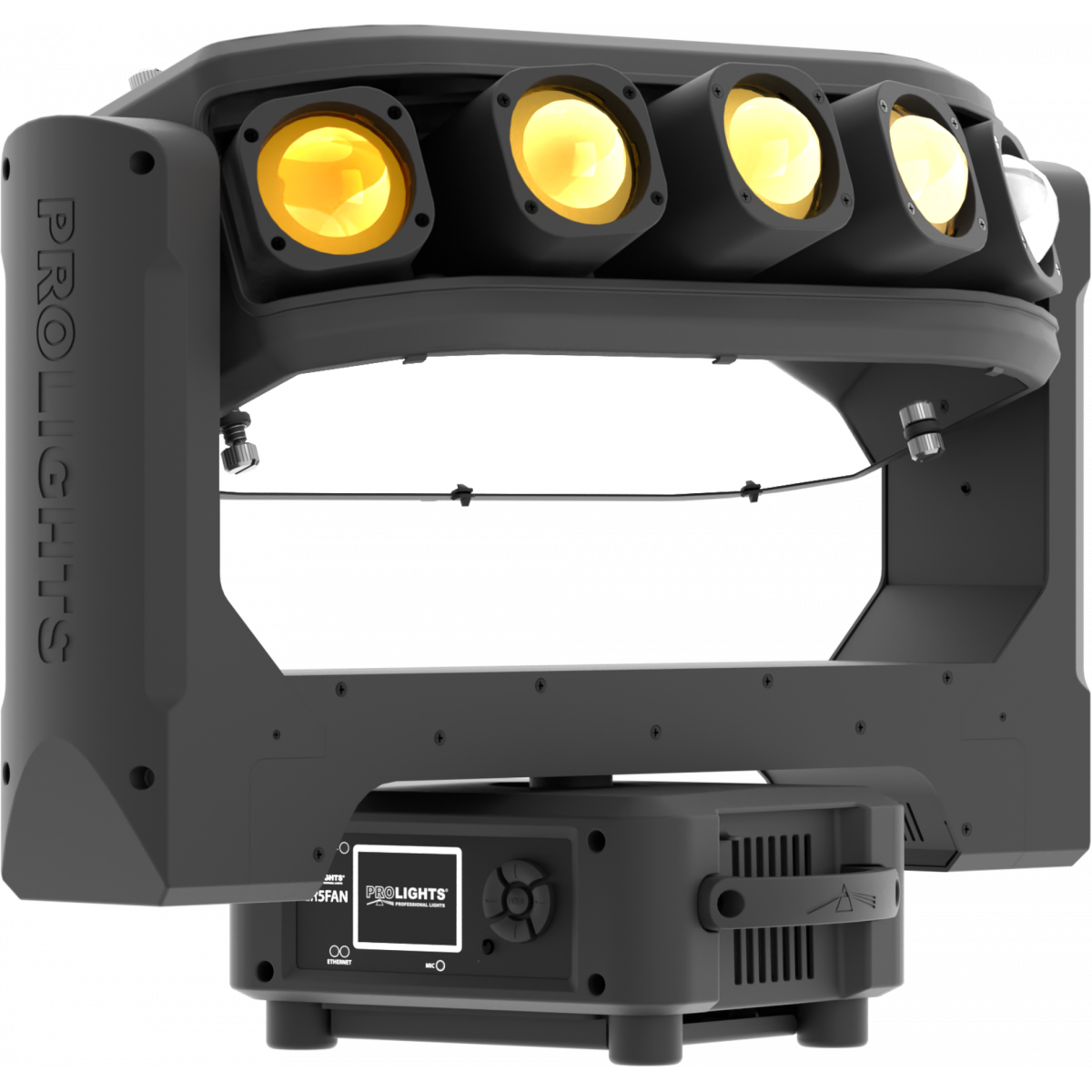

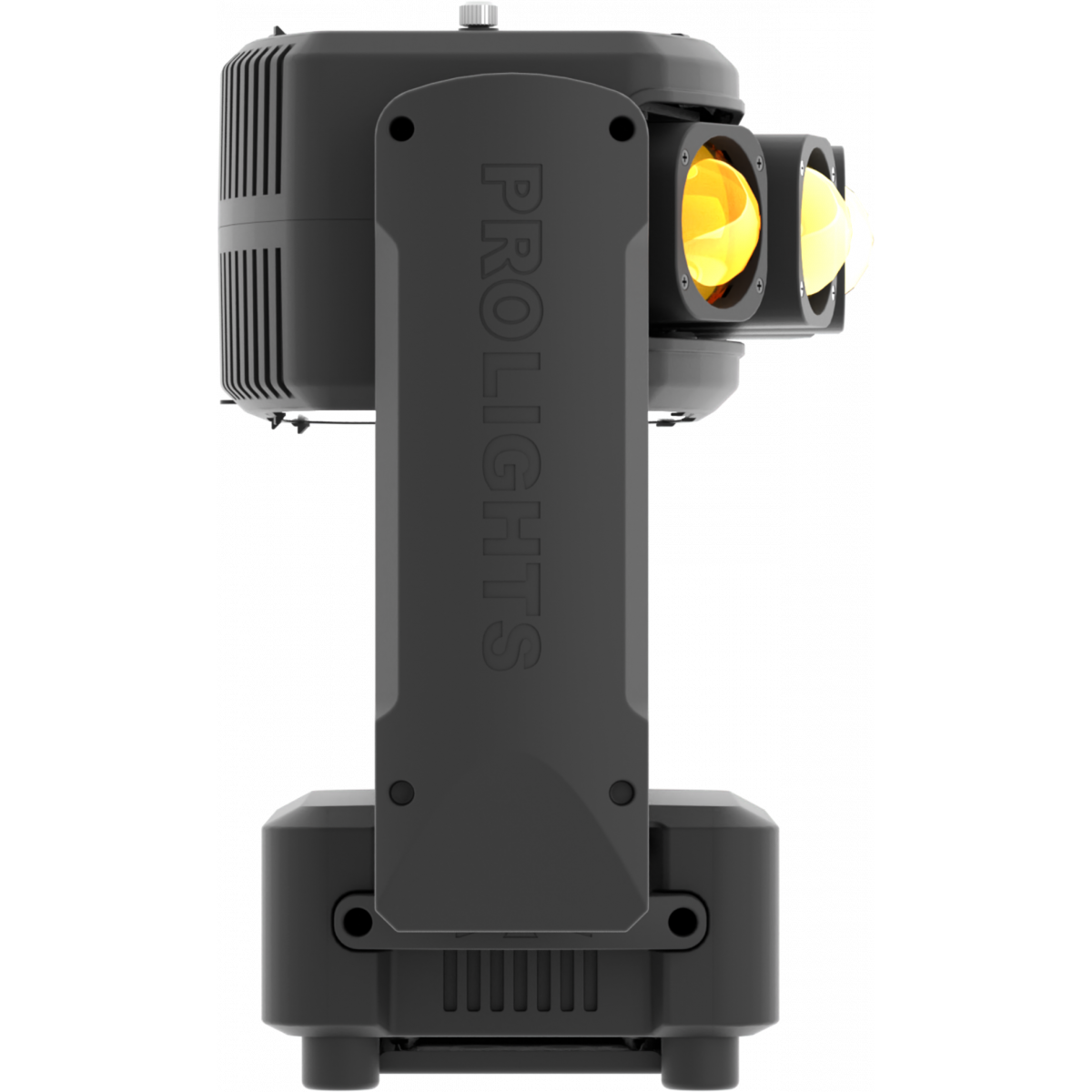

Air 5Fan
Air 5Fan
Air 5Fan
Air 5Fan
Air 5Fan

Technical specifications

LIGHT SOURCE
  • Source: 5x40W RGBW Osram Ostar LEDs
  • Lux: 27'211lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 2°
  • Lens diameter: 68mm / 2.68''
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: head pivot control, mirror reflecting beams
BODY
  • Hardware on-board: mountable mirror through quick-lock screws
  • Pan range: 540° / 630° with 360° continuous rotation
  • Tilt range: 360° with 360° continuous rotation
  • Pan/Tilt resolution: 16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
  • Other: pivot angle: 0° - 28°
CONTROL
  • Protocols: DMX512, RDM, Art-Net
  • DMX channels: 17 / 27 / 43channel
  • Pixel control: pixel2pixel control
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 208W
  • Max power consumption (at 120V): 218W
  • Standby power: 50W
PHYSICAL
  • IP rating: 20
  • Cooling: aluminium heat sink cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: pivot lock for trasportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Dimensions (WxHxD): 577x413x242mm / 22.72''x16.26''x9.53''
  • Weight: 16kg / 35.27lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
FCLAIR5FAN
FCLAIR5FAN
(Optional)

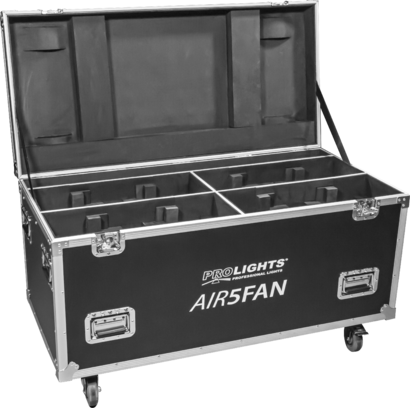

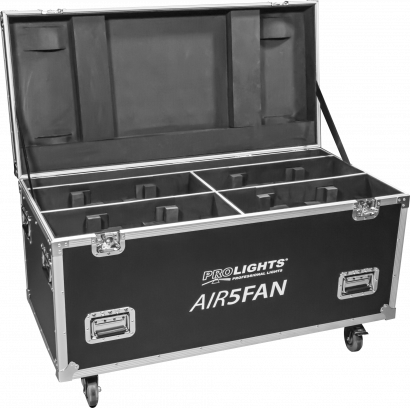

Flight case for 4 pcs of AIR5FAN
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAir5fan_A4_DATASHEET_(IT).pdf199KB
Letter datasheetAir5fan_A4_DATASHEET_(EN).pdf193KB

User manual

File name File size Download
User manualAir5fan_USER_MANUAL.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartAir5fan_DMX_CHARTS.pdf55KB
AIR5FAN Firmware rev. 2.0.05
manufacturer fixture library (Link) Link
prolights_air5fan.d4Download
manufacturer fixture library (Link) Link
prolights_air5fan_fx.hedDownload
prolights_air5fan_wash.hedDownload
prolights_air5fan_pixfx.hedDownload
manufacturer fixture library (Link) Link
air5fan_27.fdfDownload
air5fan_17ch_wash.fdfDownload
prolights@air5fan_fx@.xmlDownload
prolights@air5fan_wash@.xmlDownload
prolights@air5fan_pixfx@.xmlDownload
air5fan wash_bck.hog4showDownload
air5fan fx_bck.hog4showDownload
air5fan pix-fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
air 5 fan fx.fix2Download
air 5 fan pix fx.fix2Download
air 5 fan wash.fix2Download
manufacturer fixture library (Link) Link
AIR5FAN Firmware rev. 1.1.02
manufacturer fixture library (Link) Link
prolights_air5fan.d4Download
manufacturer fixture library (Link) Link
prolights_air5fan_fx.hedDownload
prolights_air5fan_wash.hedDownload
prolights_air5fan_pixfx.hedDownload
manufacturer fixture library (Link) Link
air5fan_27.fdfDownload
air5fan_17ch_wash.fdfDownload
prolights@air5fan_fx@.xmlDownload
prolights@air5fan_wash@.xmlDownload
prolights@air5fan_pixfx@.xmlDownload
air5fan wash_bck.hog4showDownload
air5fan fx_bck.hog4showDownload
air5fan pix-fx_bck.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
air 5 fan fx.fix2Download
air 5 fan pix fx.fix2Download
air 5 fan wash.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAAir5fan_3D.rfa1MB
3D SKPAir5fan_3D.skp292KB
2DAir5fan_CAD_2D.dwg5MB
3DAir5fan_CAD_3D.dwg857KB
2D cad symbolsAir5fan_CAD_2DSYMBOLS.dwg72KB
Technical drawingAir5fan_TECHNICAL_DRAWING.pdf697KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksVECTORWORKS_SYMBOLS.vwx497KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
2.0.05 STABLE 07/03/2024 Improvement:
  • Improved Fan mode management.
Note: This firmware version is only compatible with Hardware 2.		 Rev. 2.0
1.1.02 STABLE 02/04/2021 Fixed bug for Random Pixel Strobing when passing from shutter random strobe to open. Rev. 1.0
