APIX3

Apix 3

DISCONTINUED

Order Code: APIX3

IP rating
 IP40

Key Features

  • Rental-friendly die-cast aluminium housing
  • Black-face LEDs for high-contrast and superb colour consistency
  • Magnetic front access LED display modules for fast and easy maintenance
  • Flicker-free on camera
  • High-performance video reproduction at every level of brightness
  • 160° viewing angle
  • CE and EMC certified by TUV

In this fast-paced market, the Alphapix family keep ahead of the game by consistently delivering top quality images with the latest high-resolution indoor LED displays. The Alphapix family use black-face SMD LEDs for high-contrast and superb colour consistency in a robust and lightweight die-cast aluminium housing. The frame and fast interlocking system create a seamless image with minimal setup time. To deliver the perfect image the Alphapix series features a high-refresh rate, advanced greyscale properties and automatic image-correction along with a >140° viewing angle.

Read less
In this fast-paced market, the Alphapix family keep ahead of the game by consistently delivering top quality images with the latest high-resolution indoor LED displays. The Alphapix family use black-f...

Photo Gallery

APIX3
APIX3
APIX3
APIX3
APIX3

Specifications

VIDEO
  • LED source: SMD 2020 high-power FC black face
  • Pixel pitch: 3.9mm / 0.15''
  • Panel resolution: 128x128pixels
  • Module resolution: 64x64pixels
  • Luminous flux: 1.200nit
  • Grayscale: 16 bit
  • Refresh rate ≥: 1.920Hz
  • Drive Mode: 1/16 scan, constan current
  • Vertical viewing angle: 160°
  • Horizontal viewing angle: 160°
  • LED density: 65.746LED/sqm
  • Dead Pixel Ratio: <0,002
  • LED avg life span: 100.000
ELECTRICAL
  • Power input/output: powerCON
  • Power supply: AC 110/230 V 50/60 Hz
  • Max power consumption (panel): 180W
  • Avg power consumption (panel): 60W
  • Max power consumption (sqm): 720W
  • Avg power consumption (sqm): 240W
  • Standby power consumption (pannello): 10,2W
  • Max rated current/panel:: AC 220 V / 0,8 A
  • Max power output: 8modules
  • Working temperature: -10 ~ +40°C
  • Working humidity: 10 - 90%
CONTROL
  • Control protocol: Novastar
  • Signal input: RJ45
  • Signal output: RJ45
MECHANICS
  • Module size (WxH): 250x250mm / 9.84''x9.84''
  • Panel size(WxHxD): 500x500x90mm / 19.69''x19.69''x3.54''
  • Vertical hanging system: built-in aliscaf clamp support
  • Connection: seamless locking system
  • Panel weight: 8kg / 17.64lbs
  • Weight per square meter: 32kg / 70.55lbs
  • Hanging Panel Quantity ≤: 20
BODY
  • Body: die-cast aluminium housing
  • Body colour: black
PHYSICAL
  • IP rating: IP40
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE

Accessories & Related Products

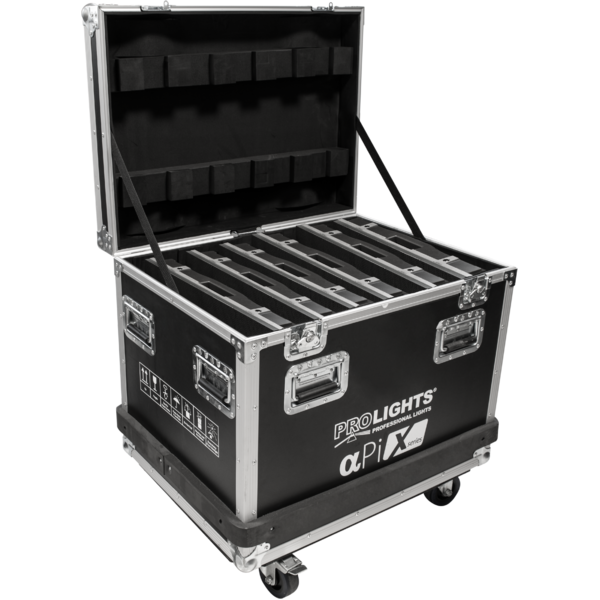

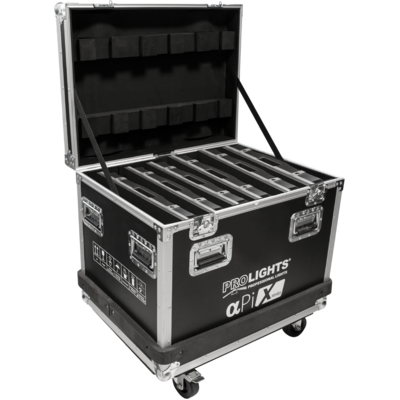

Optional AP2366CASE

Flight case for 6pcs APIX series LED display, 600x755x795 mm

Order Code: AP2366CASE

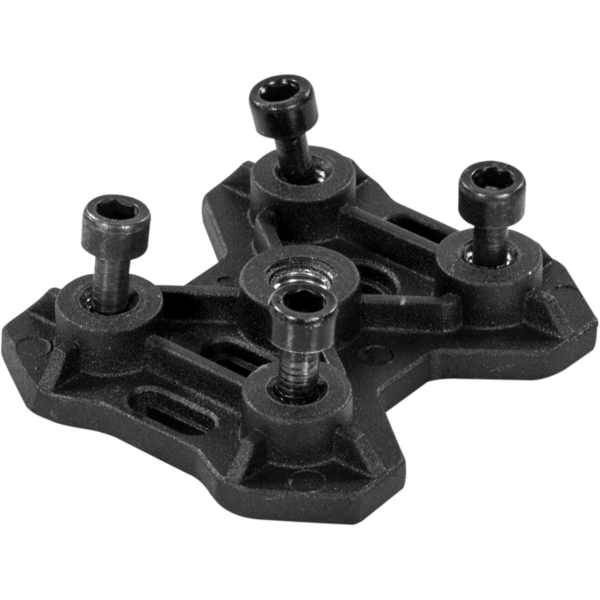

Optional AP236XJ

Metal joint used to connect 4 APIX2, 3, 6, 4T, modules, M10 hole for clamp

Order Code: AP236XJ

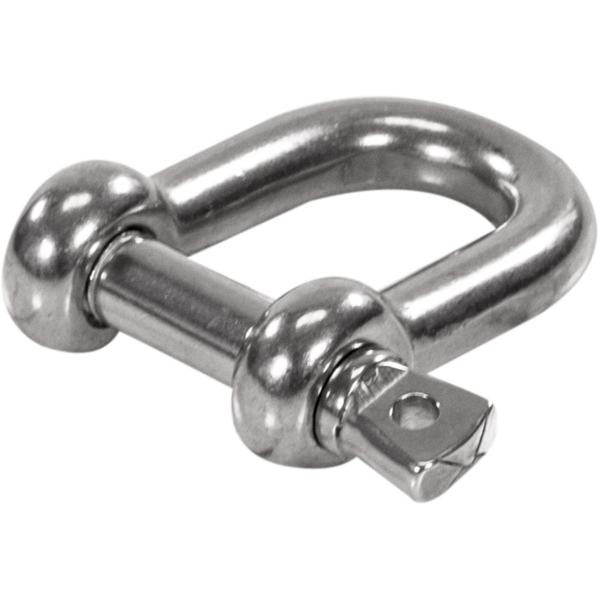

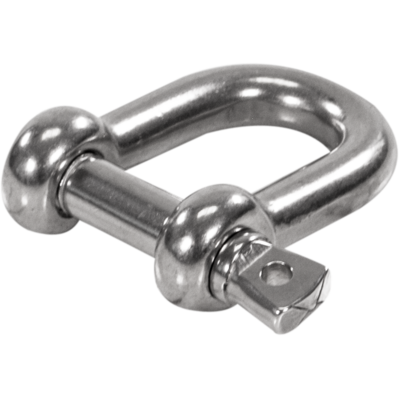

Optional APOS

Shackle for APIX hanging systems, max load 200 kg

Order Code: APOS

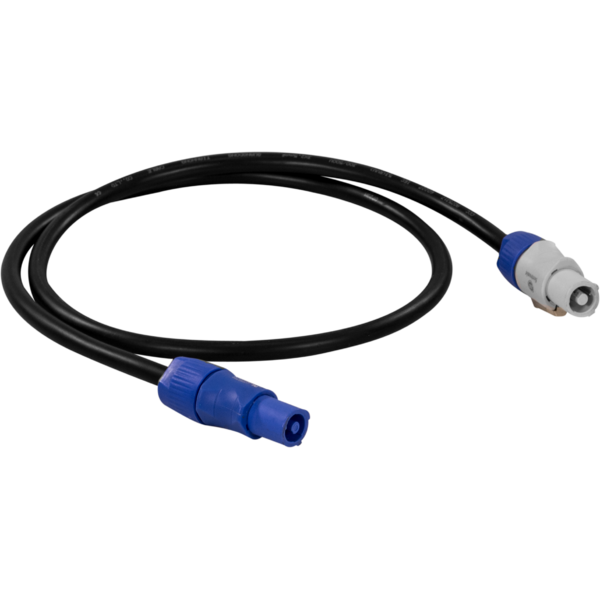

Optional AP236ACL01

Power cable for APIX2, APIX3, APIX6, L.110 cm

Order Code: AP236ACL01

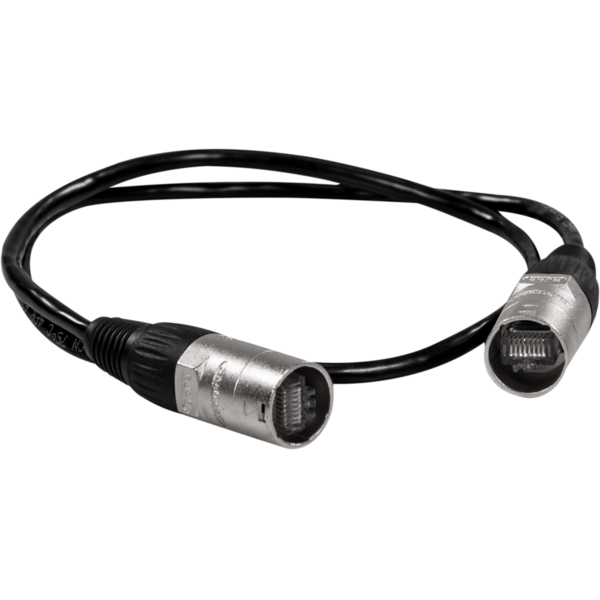

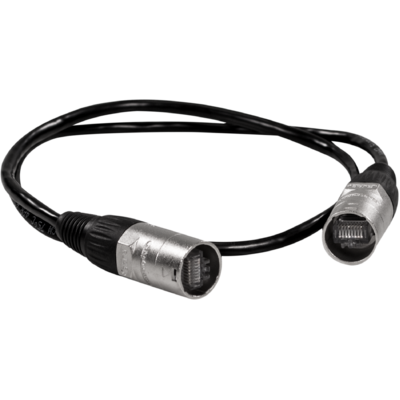

Optional AP236DCL01

Data cable for APIX2, APIX3, APIX6, assembled with RJ45, L.110 cm

Order Code: AP236DCL01

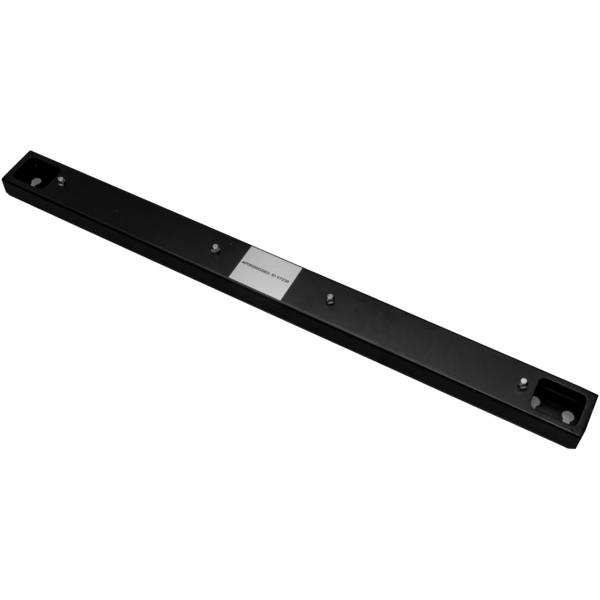

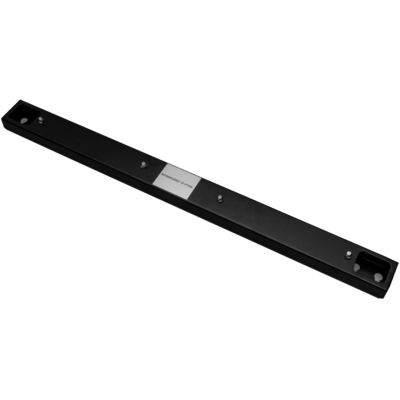

Optional APIX600GSB2

APIX ground stacking system, PRO version (up to 6 m), double base

Order Code: APIX600GSB2

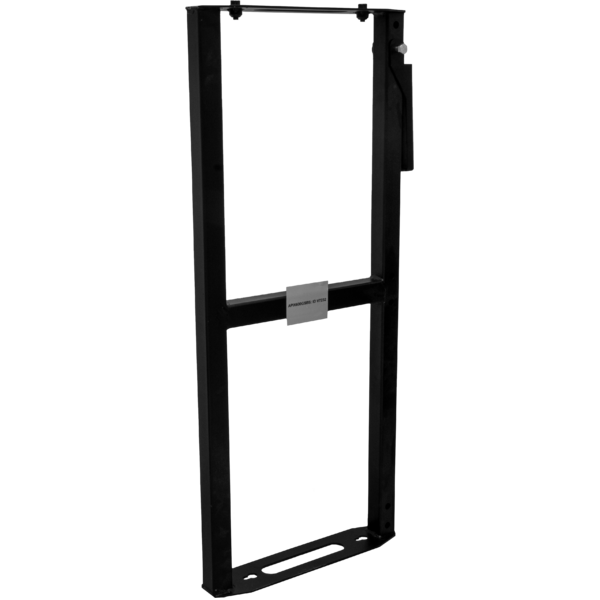

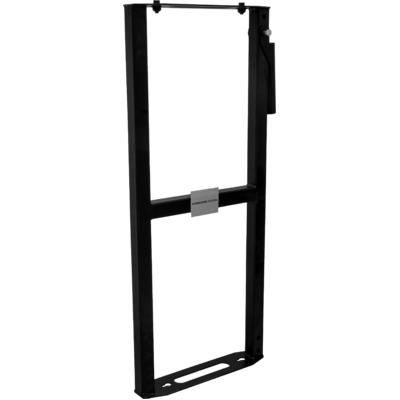

Optional APIX600GSBS

APIX ground stacking system, PRO version (up to 6 m), queer back support

Order Code: APIX600GSBS

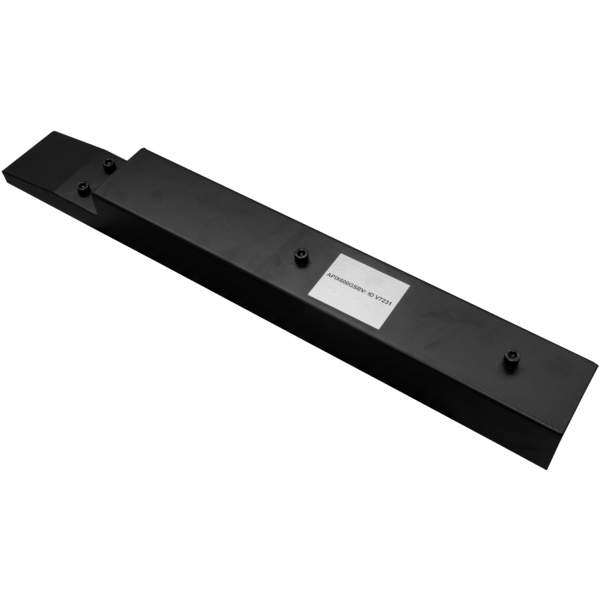

Optional APIX600GSBV

APIX ground stacking system, PRO version (up to 6 m), base unit vertical

Order Code: APIX600GSBV

Downloads

Technical documentation and support files

User manual User manual

File name File size Download
User manualApix3_USER_MANUAL_unde.pdf(24/09/2024)6MB
User manualApix3_Led_screen_connector_compatibi.pdf(14/10/2025)879KB
User manualApix3_Led_Screen_User_Manual_EN.pdf(21/10/2022)3MB

CAD symbols & drawings CAD symbols & drawings

File name File size Download
2DApix3_CAD_2D.dwg(17/05/2021)2MB
Technical drawingApix3_TECHNICAL_DRAWING.pdf(17/05/2021)427KB

Software Software

File name File size Download
Software2018-GY525-2 - 1920 Hz.zip(13/11/2025)9KB
Software2015-0730-1 - 1920 Hz.zip(11/03/2017)7KB
Software2016-0306-1 - 1920 Hz.zip(11/03/2017)7KB
Software2016-0645-1 - 1920 Hz.zip(11/03/2017)7KB
Software2016-0828-1 - 1920 Hz.zip(11/03/2017)7KB
Software2016-0943-1 - 1920 Hz.zip(11/03/2017)7KB
Software2017-Y455-1 - 1920Hz.zip(05/03/2018)7KB

Firmware

Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 18/06/2018
