ArcPod 48VW

ORDER CODE: ARCPOD48VW

48x10W VW outdoor IP66 LED wash light for exterior installations

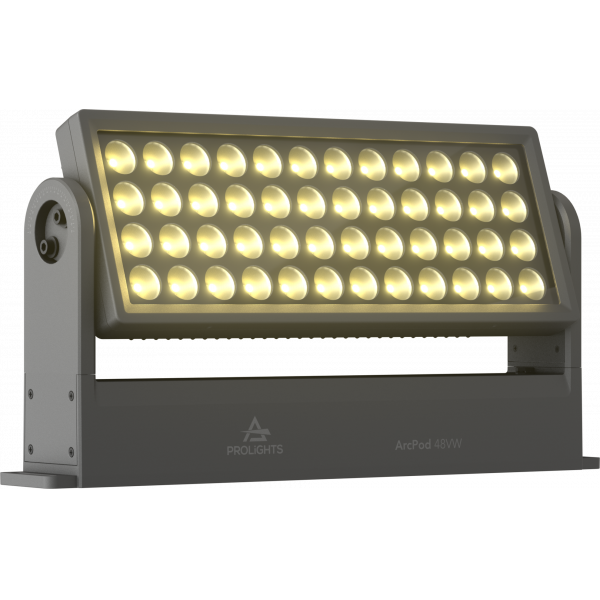

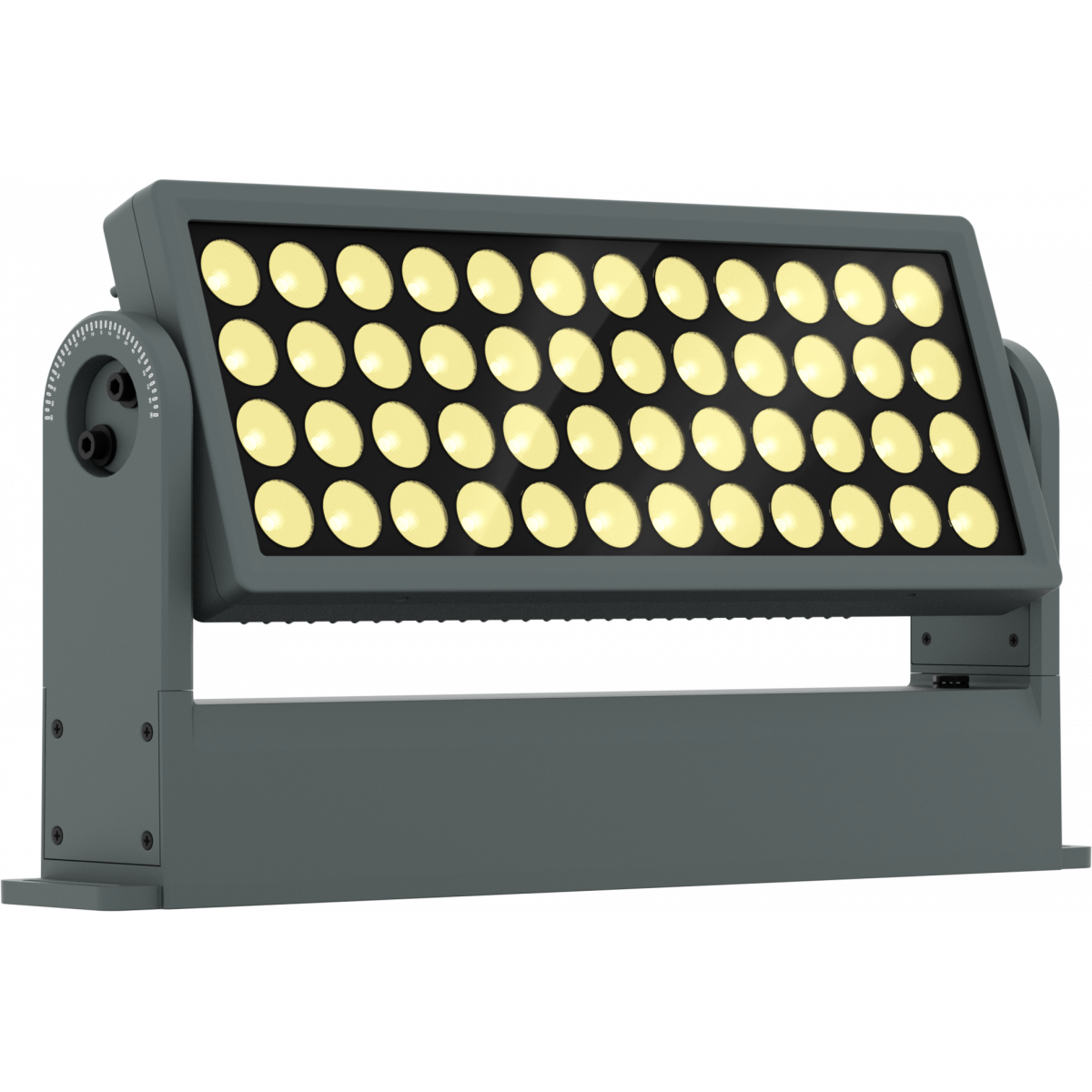

ArcPod 48VW is a compact high-power exterior wash light featuring an outstanding brightness of 46'000 lumens and a high quality white reproduction across CCT. It is equipped with 48x10W VW LEDs, delivering a limitless reproduction of whites. ArcPod 48VW is designed slim and fanless, and it's completed by a wide selection of available optics, making the ArcPod 48VW an incredibly flexible and versatile device for any outdoor install.

Main features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 48x10W VW LEDs
  • LED emitters controllable in 4 sections
  • Compact form factor and fanless

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 48x10W Warm White + Cold White LEDs
  • Luminous flux: (15°) 25'309 lm; (15°+20°) 24'786 lm; (15°+30°) 24'628 lm; (15°+40°) 24'658 lm; (15°+60°) 24'204 lm; (15°+80°) 23'372 lm; (15°+10°x60°) 46'553 lm; (15°+30°x60°) 27'287lm @full
  • Lux: (15°) 19'746 lx; (15°+20°) 3'992 lx; (15°+30°) 2'485 lx: (15°+40°) 1'310 lx; (15°+60°) 906 lx; (15°+80°) 585 lx; (15°+10°x60°) 3'470 lx; (15°+30°x60°) 1'578lx @5 m full
  • CRI: 81,3 @ WW; 83.5 @ CW; 86,2 @ full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Additional optics: see available accessories
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K ~ 6.500K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 4 linear controllable sections
  • Static mode: selection of static colour
BODY

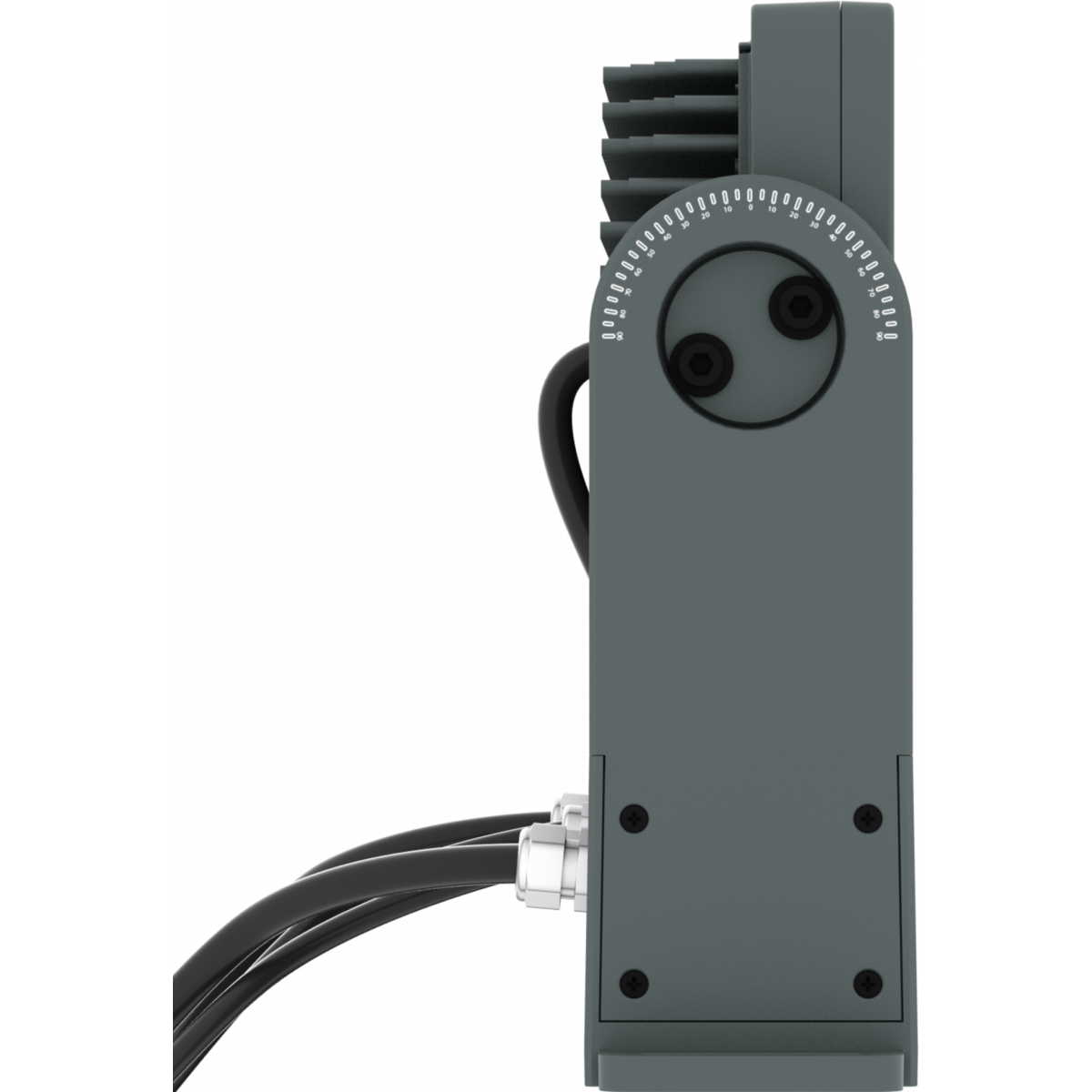

  • Tilt angle: 0 ~ 130° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11 / 14channel
  • Pixel control: up to 4 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F)
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Max power consumption:
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 520W
  • Max power consumption (at 120V): 552W
  • Output (at 230V): 4 units on a single power line
  • Output (at 120V): 2 units on a single power line
  • Power factor: 0,96
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08

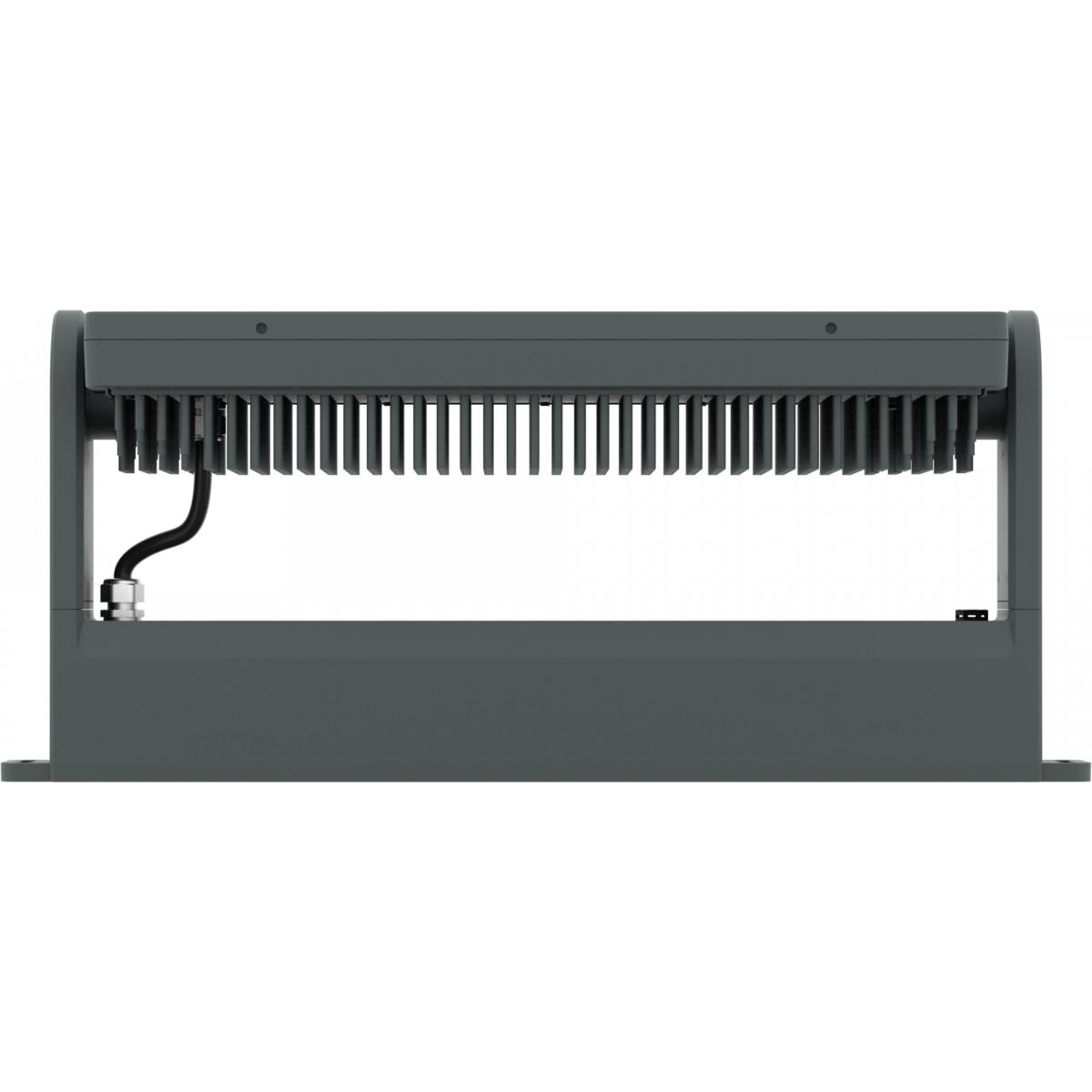

  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included

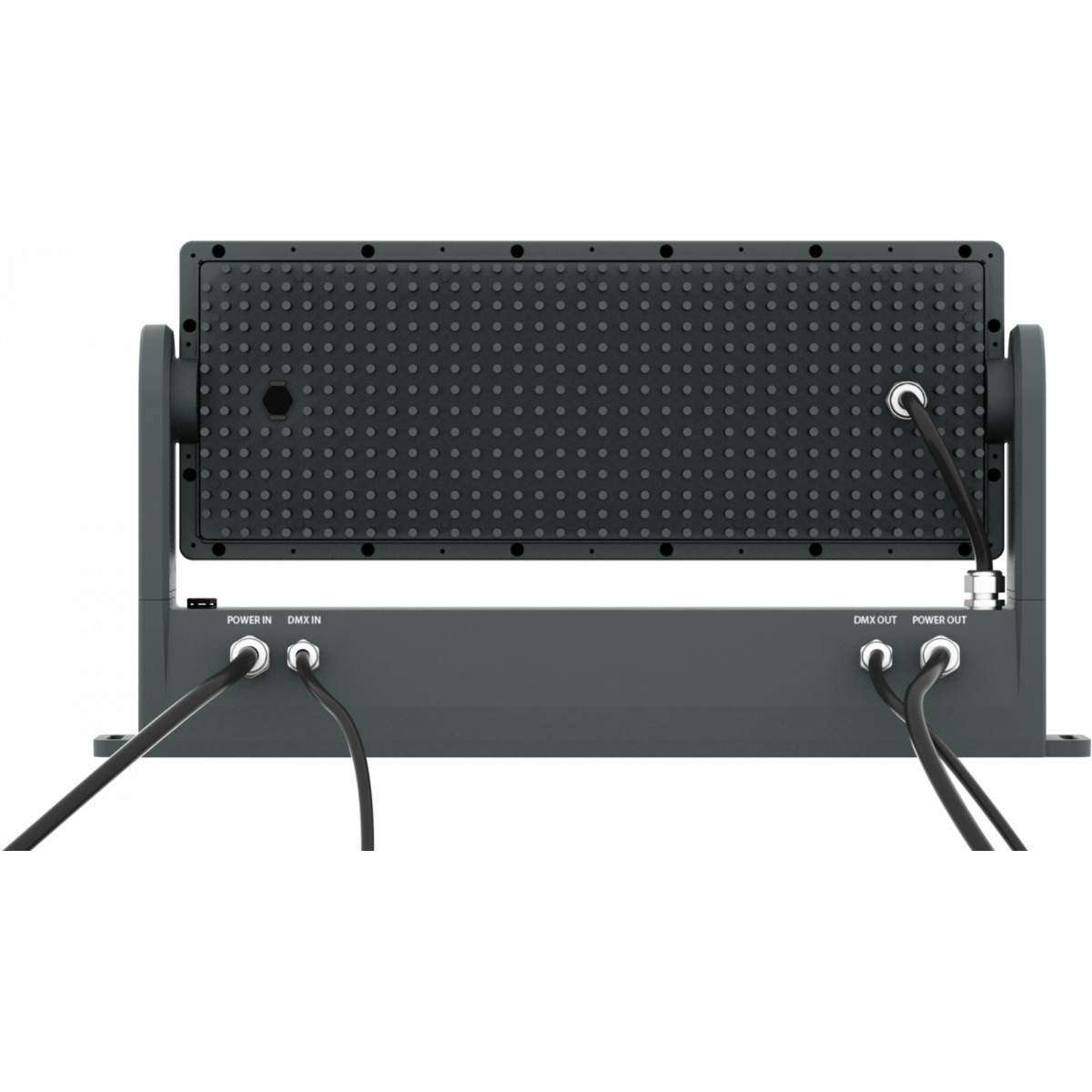

  • Signal connection: 1,8 m moulded IP signal IN connectors
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 584x304x93mm / 22.99''x11.97''x3.66''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
AWEXDC1221ADP
AWEXDC1221ADP
(optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
A48QFILTER20
A48QFILTER20
(optional)
20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER30
A48QFILTER30
(optional)
30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER40
A48QFILTER40
(optional)
40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER60
A48QFILTER60
(optional)
60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER80
A48QFILTER80
(optional)
80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1060
A48QFILTER1060
(optional)

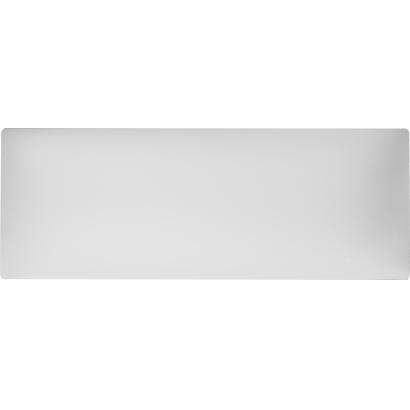

10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER3060
A48QFILTER3060
(optional)
30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
S27QLENS10
S27QLENS10
(optional)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QBD
S48QBD
(optional)

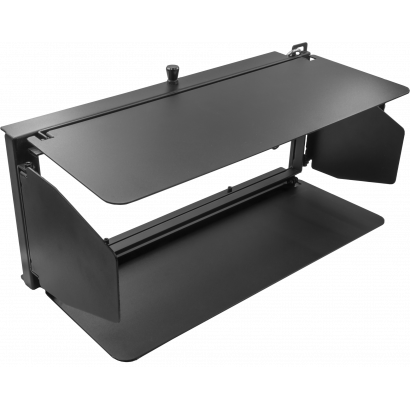

Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q
<b>DataMaster</b>
DataMaster
(optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L05
AWEXDC1L05
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L03
AWEXDC1L03
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L20
AWEXDC1L20
(optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Arcpod48vw_A4_DATASHEET_(EN).pdf 446KB
Letter datasheet Arcpod48vw_LETTER_DATASHEET_(EN).pdf 247KB
Tender Specification Arcpod48vw_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Arcpod48vw_USER_MANUAL_EN.pdf 8MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
DMX chart Arcpod48vw_DMX_CHARTS.pdf 137KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 950KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
ARCPOD48VW Firmware rev. 1.0
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_arcpod48vw_ies files.zip 55KB
LDT prolights_arcpod48vw_ldt files.zip 49KB
PDF Photometrics Arcpod48vw_PHOTOMETRICS_REPORT.pdf 5MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Arcpod48vw_3D_SKETCHUP.skp 1MB
3D Arcpod48vw_3D.dwg 609KB
2D cad symbols Arcpod48vw_2DSYMBOLS.dwg 55KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware
