ArcPod 96Q

High power 96x10W (two-headed) RGBW/FC outdoor IP66 LED wash light for exterior installations

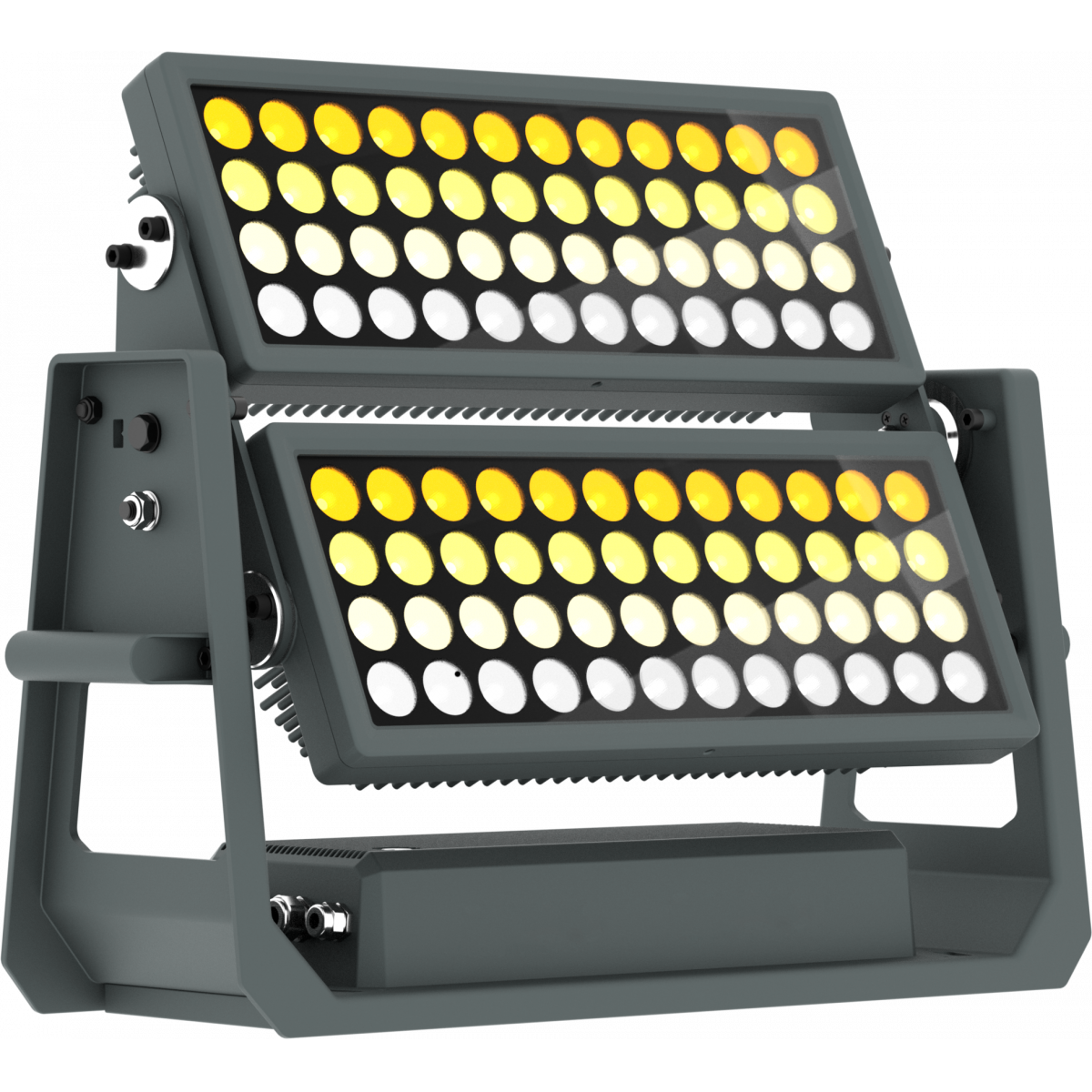

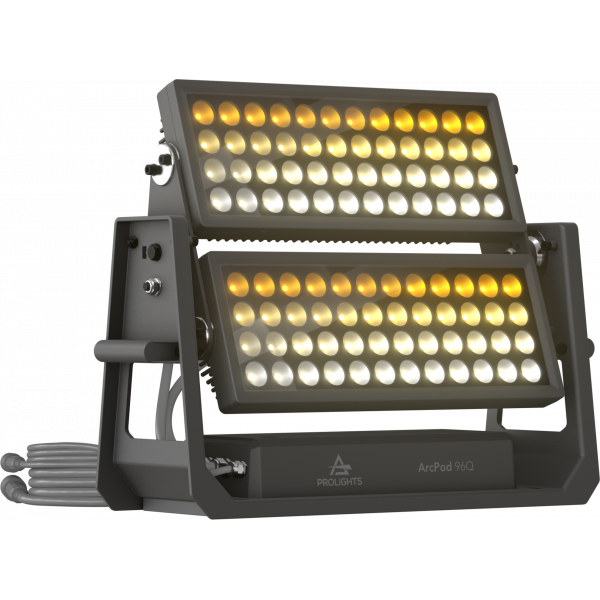

ArcPod 96Q is a two-headed bright outdoor wash light, designed for large scale outdoor installations and long throw projection. Equipped with 96x10W RGBW/FC LEDs, delivering a superior colour mixing and extreme brightness with two different optics on each head (10° top and 15° bottom). Despite its bright output, it was designed with a slim size, and offers a wide range of optics selection that can be customised or change to different options on each single head. This makes the ArcPod 96Q an indispensable architectural lighting fixtures for larger setups.

5 YEARS WARRANTY

Main features:

  • Two head with individual tilt adjustment and multiple lens options for fine focusing
  • 96x10W RGBW/FC LEDs
  • Compact form factor and fan-free design
See variants

PHOTO GALLERY

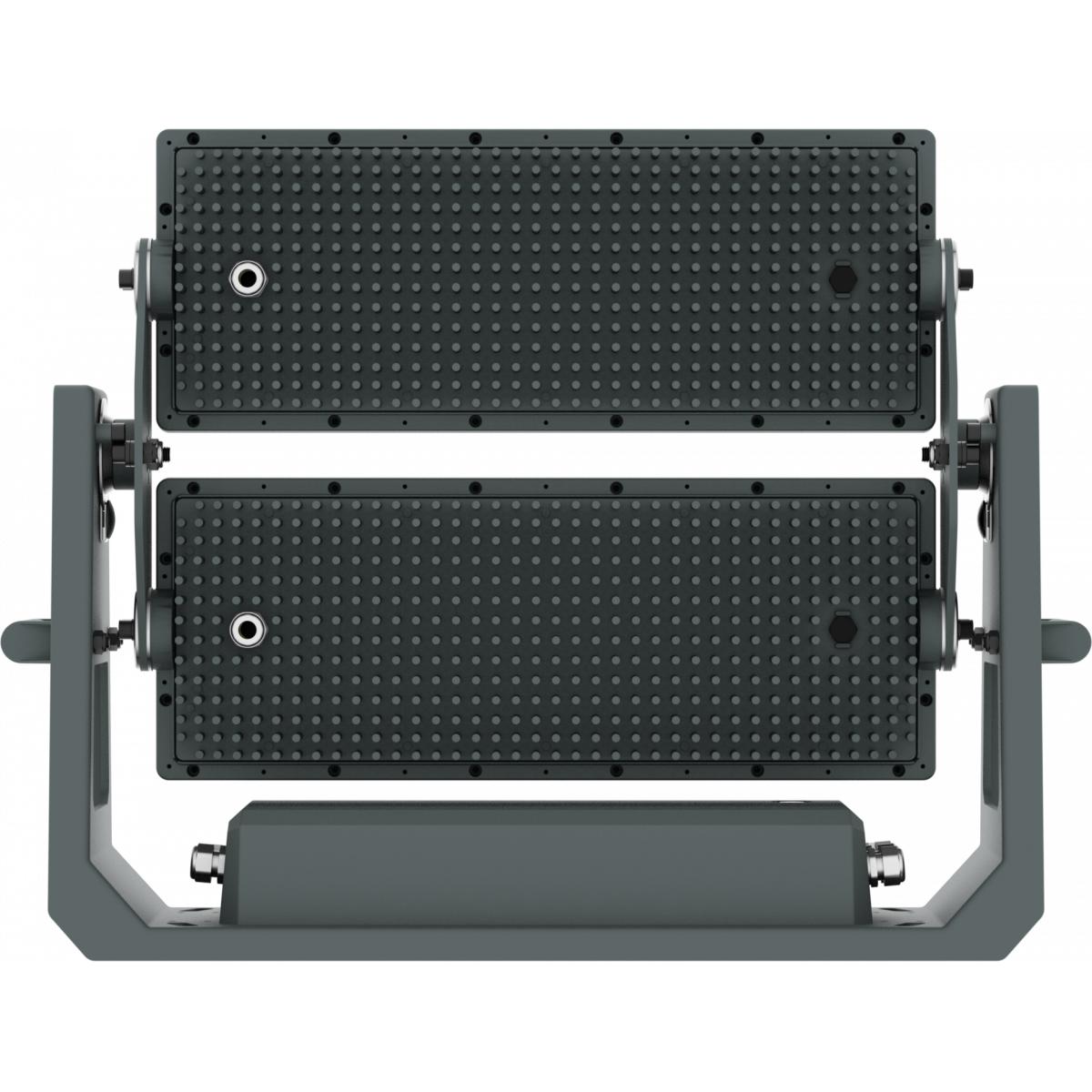

ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q
ArcPod 96Q

Technical specifications

LIGHT SOURCE
  • Source: 96x10W RGBW / FC LEDs
  • Luminous flux: (15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410 @Full
  • Lux: (15°) 61'963 lx - (25°) 25'823 lx - (45°) 5'575lx @3 m full
  • Lux: (15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: (bottom head) 15° - (top head) 10°
  • Additional optics: 25° - 45° (optional) - see available accessories
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • FX generator: up to 8 linear controllable sections
  • Static mode: selection of static colour
BODY
  • Tilt range: 180° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 7012
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 8 / 10 / 14 / 20 / 34 / 44channel
  • Pixel control: up to 8 linear controllable sections
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 1020W
  • Output (at 230V): 4 units on a single power line
  • Power factor: > 0,96
PHYSICAL
  • IP rating: 66 for outdoor installations
  • IK rating: 08
  • Cooling: passive cooling and fan-free
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: 1,8 m moulded IP signal IN connector
  • Power connection: 1,8 m moulded IP power IN/OUT connectors
  • Dimensions (WxHxD): 670x513x220mm / 26.38''x20.2''x8.66''
  • Weight: 27kg / 59.52lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Painting
ARCPOD96Q
ARCPOD96Q
Standard

Accessories & Related Products

<b>CrmxBox</b> IP
CrmxBox IP
(Optional)
IP67 1 Universe CRMX Wireless Transceiver for exterior installation
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
RSR1235B
RSR1235B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
A48QFILTER20
A48QFILTER20
(Optional)

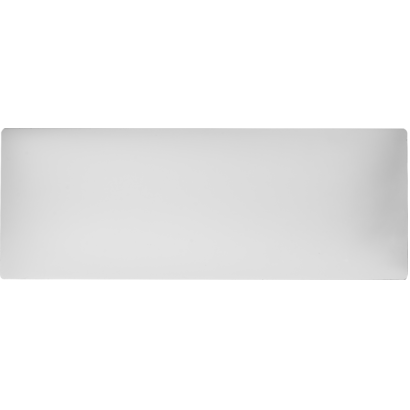

20° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER30
A48QFILTER30
(Optional)
30° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER40
A48QFILTER40
(Optional)
40° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER60
A48QFILTER60
(Optional)
60° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER80
A48QFILTER80
(Optional)
80° symmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1090
A48QFILTER1090
(Optional)

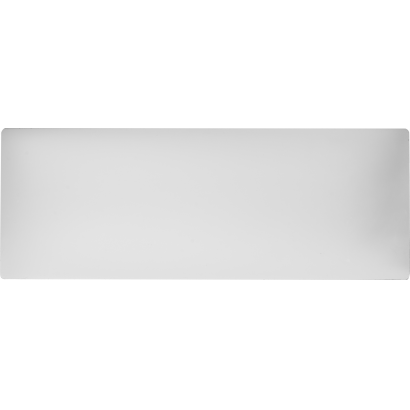

10°x90° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER1060
A48QFILTER1060
(Optional)
10°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
A48QFILTER3060
A48QFILTER3060
(Optional)
30°x60° asymmetric light diffusion filter for ARCPOD48Q and ARCPOD96Q 15x44,7 cm
S27QLENS10
S27QLENS10
(Included)
10° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS15
S27QLENS15
(Included)
15° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS25
S27QLENS25
(Optional)
25° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S27QLENS45
S27QLENS45
(Optional)
45° lens for SOLAR27, ARCPOD27, SOLAR48, ARCPOD48, ARCPOD15 and ARCPOD96 series
S48QBD
S48QBD
(Optional)

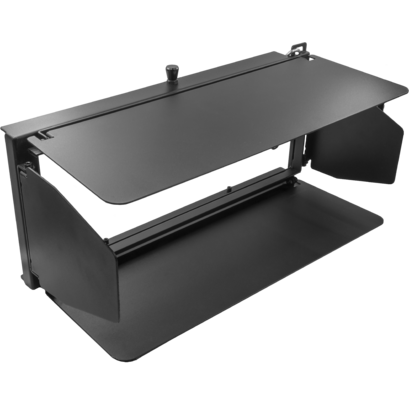

Black barn door 4 directional flaps to adjust the light beam, SOLAR4Q,ARCPOD48Q
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpod96q_LETTER_DATASHEET_(EN).pdf495KB
Letter datasheetArcpod96q_A4_DATASHEET_(IT).pdf445KB
Letter datasheetArcpod96q_A4_DATASHEET_(EN).pdf487KB
Tender SpecificationArcpod96q_ARCPOD96Q_Tender_Specification.pdf3MB

User manual

File name File size Download
User manualArcpod96q_USER_MANUAL_EN.pdf11MB
User manualGENERAL_SAFETY_INFORMATION.pdf12MB

DMX chart & personalities

File name File size Download
DMX chartArcpod96q_DMX_CHARTS.pdf155KB
ARCPOD96Q Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@arcpod96q@rev_1.31.gdtfDownload
manufacturer fixture library (Link) Link
prolights@arcpod96q@8ch@rev_1.31.xmlDownload
prolights@arcpod96q@44ch@rev_1.31.xmlDownload
prolights@arcpod96q@34ch@rev_1.31.xmlDownload
prolights@arcpod96q@20ch@rev_1.31.xmlDownload
prolights@arcpod96q@14ch@rev_1.31.xmlDownload
prolights@arcpod96q@10ch@rev_1.31.xmlDownload
manufacturer fixture library (Link) Link
ARCPOD96Q Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@arcpod96q@rev_1.31.gdtfDownload
manufacturer fixture library (Link) Link
prolights@arcpod96q@8ch@rev_1.31.xmlDownload
prolights@arcpod96q@44ch@rev_1.31.xmlDownload
prolights@arcpod96q@34ch@rev_1.31.xmlDownload
prolights@arcpod96q@20ch@rev_1.31.xmlDownload
prolights@arcpod96q@14ch@rev_1.31.xmlDownload
prolights@arcpod96q@10ch@rev_1.31.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPArcpod96q_3D.skp3MB
3D RFAArcpod96q_3D.rfa504KB
2DArcpod96q_CAD_2D.dwg21MB
3DArcpod96q_CAD_3D.dwg622KB
2D cad symbolsArcpod96q_CAD_2DSYMBOLS.dwg700KB
Technical drawingArcpod96q_TECHNICAL_DRAWING.pdf563KB
VectorWorksVECTORWORKS_SYMBOLS.vwx438KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 01/06/2023 Fixed bug:
  • Error reading the address of the new MCU.
1.3 STABLE 08/09/2021
  • Fixed bug on RDM UID.

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
