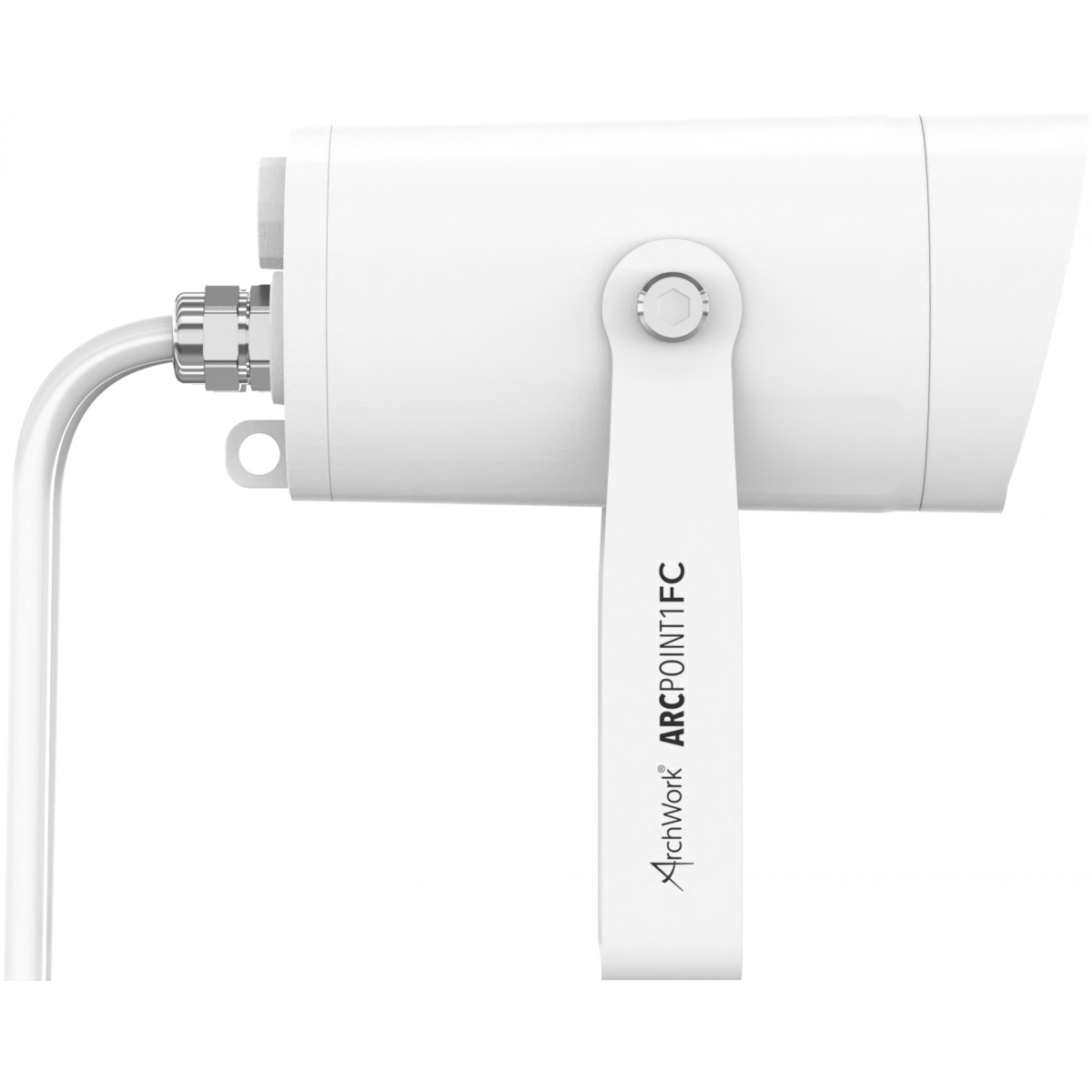

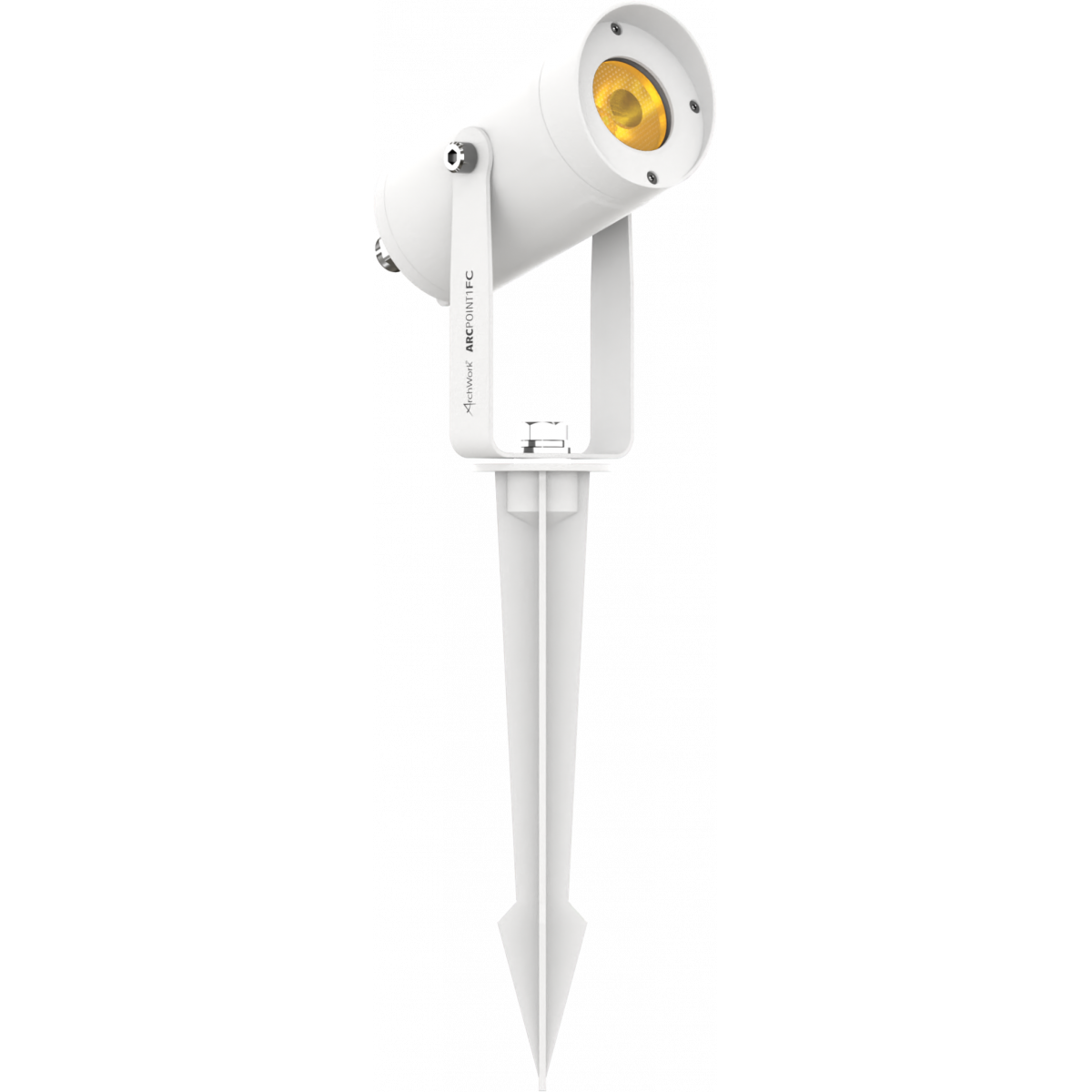

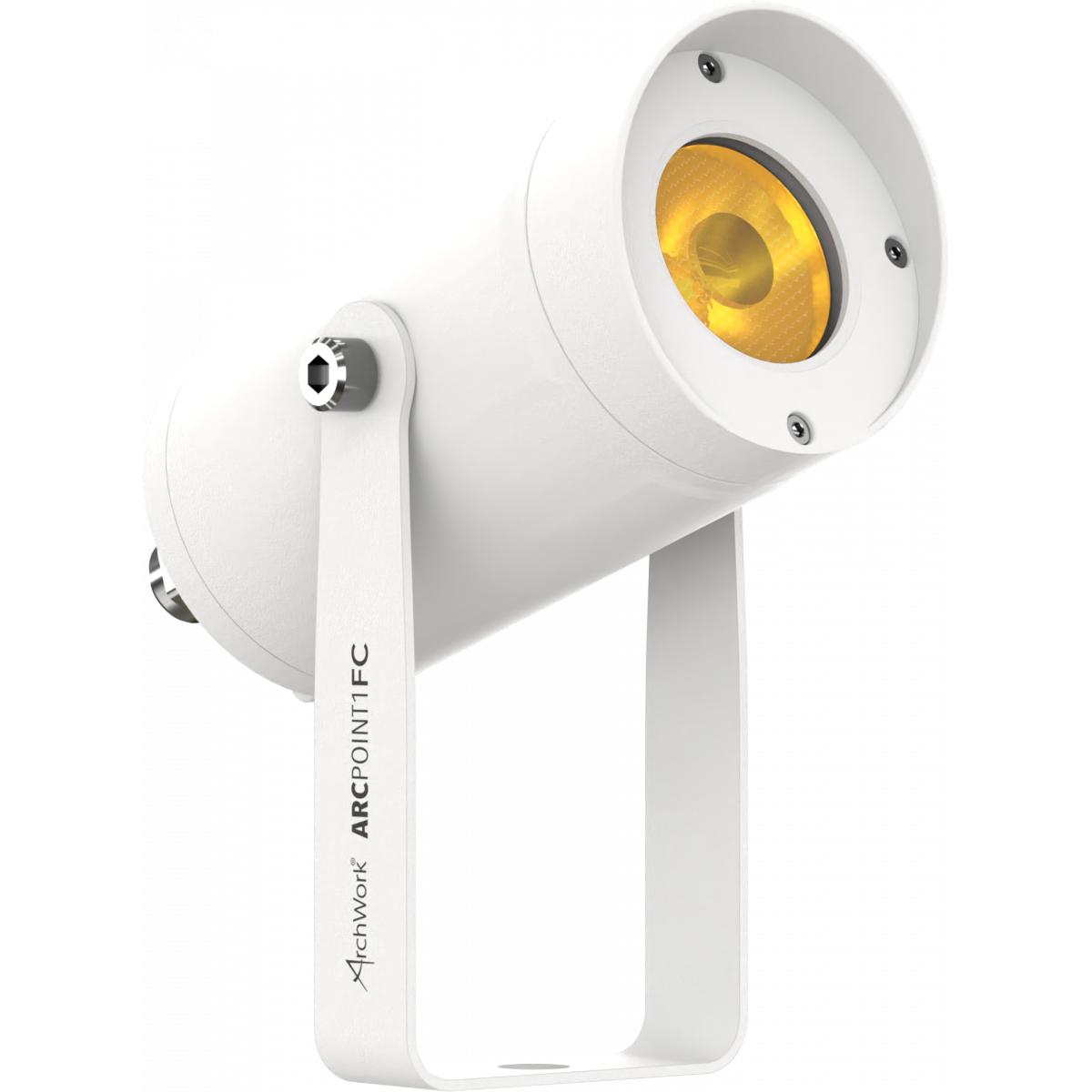

ArcPoint 1

10W RGBW/FC outdoor IP66 accent light with ground spike (included)

ArcPoint 1 is a compact exterior accent LED fixture designed for outdoor. The luminaire is equipped with a single Full Colour LED emitter delivering a wide spectrum of colours and whites all in a very compact housing. The fixture is supplied with a ground spike in the box, for easy implementation as garden light, and with the on board bracket it can be also implemented in larger foorprint installations as decor or accent light. The special design (IP66) and the innovative RDM control technology, makes ArcPoint 1 suitable for all weather conditions.

Main features:

  • 10W CREE RGBW/FC LED
  • IP66 rating
  • Ground spike (supplied in the box) for fixing in the ground
See variants

PHOTO GALLERY

ArcPoint 1
ArcPoint 1
ArcPoint 1
ArcPoint 1
ArcPoint 1

Technical specifications

LIGHT SOURCE
  • Source: 10W CREE RGBW / FC LED
  • Luminous flux: 353
  • Lux: (10°) 924lx @3 m full
  • Lux: (10°) 333lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Beam angle: 10°
  • Field angle: 19°
COLOUR SYSTEM
  • Colour mixing: CREE RGBW / FC
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9003
  • Other: ground spike (included)
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 4 / 6 / 10channel
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 ~ 30 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 13W
  • Output (at 230V): 40 units on a single power line
PHYSICAL
  • IP rating: 66 for outdoor installations
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: ground spike for fixing in the ground
  • Adaptors: XLR and BARE END 16A adaptors included
  • Signal connection: moulded IP signal IN connector
  • Power connection: moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 104x163x174mm / 4.09''x6.42''x6.85''
  • Weight: 1,2kg / 2.65lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Color Synthesis
Lens
ARCPOINT1FC
ARCPOINT1FC
Full Color
15°
ARCPOINT1TU
ARCPOINT1TU (DISCONTINUED)
Tungsten
15°
ARCPOINT1DY
ARCPOINT1DY (DISCONTINUED)
Daylight
15°

Accessories & Related Products

C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
AWEXAC1

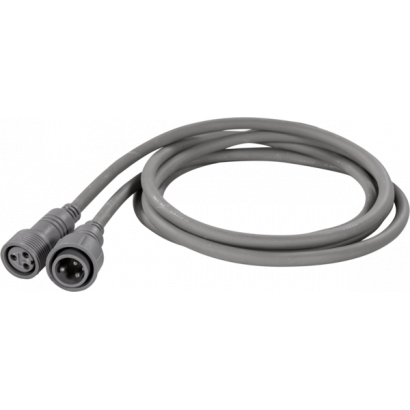

AWEXAC1
(Optional)

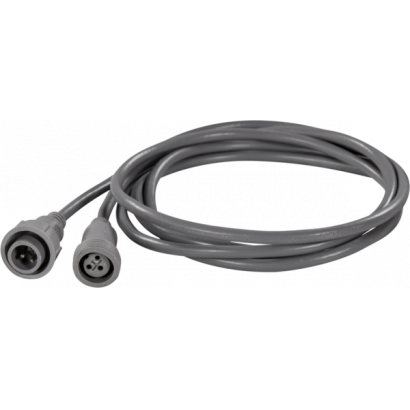

AWEXDC1
AWEXDC1
(Optional)
<b>DataMaster</b>
DataMaster
(Optional)
RDM/DMX tool,cable tester, 5p XLR connectors,pouch, charging cable, XLR adapters
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
ARCLUMIL25D45
ARCLUMIL25D45
(Optional)

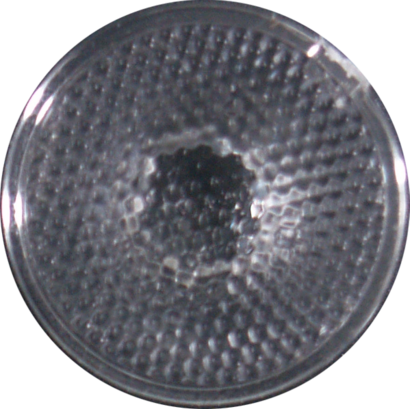

Optic lens 25°, D.45mm
ARCLUMIL45D45
ARCLUMIL45D45
(Optional)
Optic lens 45°, D.45mm

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetArcpoint1_A4_DATASHEET_(IT).pdf251KB
Letter datasheetArcpoint1_A4_DATASHEET_(EN).pdf252KB

User manual

File name File size Download
User manualArcpoint1fc_USER_MANUAL_ITEN.pdf759KB

DMX chart & personalities

File name File size Download
DMX chartArcpoint1_DMX_CHARTS.pdf44KB

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAArcpoint1_3D.rfa1MB
3D SKPArcpoint1_3D.skp267KB
2DArcpoint1_CAD_2D.dwg515KB
3DArcpoint1_CAD_3D.dwg504KB
Technical drawingArcpoint1fc_TECHNICAL_DRAWING.pdf98KB
VectorWorksARCPOINT1_SYMBOLS.zip633KB

Tech docs

File name File size Download

Software

File name File size Download
SoftwareProlights Dialux Plug-In192MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.3 STABLE 27/03/2021 Added Stand Alone Mode control via RDM.
