Aria 700Profile

ORDER CODE: ARIA700PROFILE

400W RGBW theatrical LED profile light

Aria 700Profile is a 400W theatrical LED light designed to bring refinement and silence to the stage. Featuring a custom RGBW engine which delivers an extensive colour palette and an optical system designed to allow the layering of effects. The Aria 700Profile puts the theatre into LED.

Main features:

  • Full spectrum RGBW LED engine for extensive pastel colour palette and HD dimming
  • A near-silent operation for use even in front of house
  • Animation wheel and full-framing shutters with individual depth and angle control of each blade as well as module index
See variants

PHOTO GALLERY

Aria 700Profile
Aria 700Profile
Aria 700Profile
Aria 700Profile

Technical specifications

LIGHT SOURCE
  • Source: 400W custom RGBW LED
  • CCT: Tunable 2.000 K ~ 10.000
  • Luminous flux: (10,8°) 5'363 lm - (45,7°) 5'468lm @full
  • Lux: (10,8°) 8'460 lx - (45,7°) 688lx @5 m full
  • Source life expectancy: 50.000 h
OPTICS
  • Zoom: 10,8° - 45,7° motorised linear zoom
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: motorised with auto-focus
  • Other: high-quality flat-field projection
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2000 K ~ 8000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel: animation wheel with CW and CCW rotation
  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 26,7 mm - image: 22 mm - thickness: 0,3 mm
  • FX generator: shutter macros with adjustable speed
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
BODY
  • Pan angle: 540°
  • Tilt angle: 250°
  • Pan/Tilt resolution: bit 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 33 / 38 / 39channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 390W
  • Output (at 230V): 8 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 408x676x257mm / 16.06''x26.61''x10.12''
  • Weight: 26kg / 57.32lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
LRLUNA
LRLUNA
(optional)
Single Universe DMX transceiver with Bluetooth
RSR1235B
RSR1235B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=120 cm, black
C6016B
C6016B
(optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black

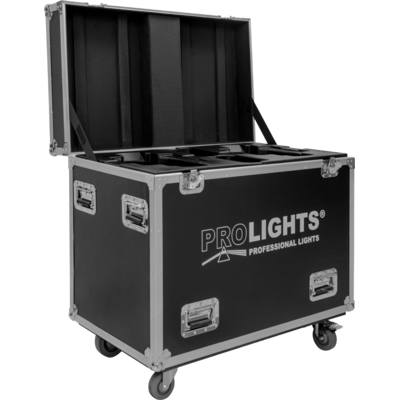

FCLARIA700
FCLARIA700
(optional)
Flight case for 2x ARIA700, foam shells included

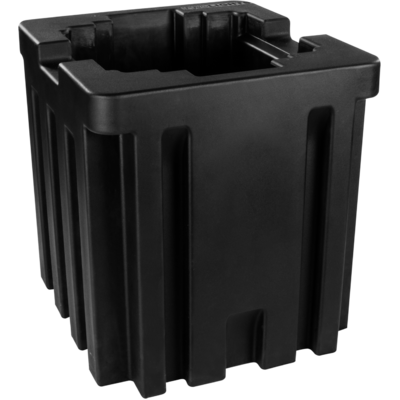

FSHARIA700
FSHARIA700
(optional)
1U Foam shell compatible with ARIA700
OS25
OS25
(included)
Quick-Lock omega bracket, M10 hole
OS25D13
OS25D13
(optional)
Quick-Lock omega bracket, M12 hole
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Aria700profile_A4_DATASHEET_(EN).pdf 528KB
Letter datasheet Aria700profile_A4_DATASHEET_(IT).pdf 511KB
Letter datasheet Aria700profile_LETTER_DATASHEET_(EN).pdf 530KB

User manual

File name File size Download
User manual Aria700profile_USER_MANUAL_ITEN.pdf 2MB
User manual Aria700profile_Wireless_Protocol_Compatibilit_EN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Aria700profile_DMX_CHARTS.pdf 58KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 413KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ARIA700PROFILE Firmware rev. 1.4
manufacturer fixture library (Link) Link
prolights_aria700profile.d4Download
manufacturer fixture library (Link) Link
prolights_aria700profile_33ch.hedDownload
prolights_aria700profile_38ch.hedDownload
manufacturer fixture library (Link) Link
aria700_prof_ext38chch_f2_0.fdfDownload
aria700_prof_std33ch_f2_0.fdfDownload
manufacturer fixture library (Link) Link
prolights@aria700_prof_33ch_sv1.1@std.xmlDownload
prolights@aria700_prof_38ch_fv1.1@ext.xmlDownload
manufacturer fixture library (Link) Link
aria700ext.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
aria 700 profile extended.fix2Download
aria 700 profile standard.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
VectorWorks prolights_aria700profile_ ies files.zip 10KB
LDT prolights_aria700profile_ldt files.zip 9KB
PDF Photometrics Aria700profile_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D RFA Aria700profile_3D_REVIT.rfa 844KB
3D SKP Aria700profile_3D_SKETCHUP.skp 3MB
2D Aria700profile_2D.dwg 13MB
3D Aria700profile_3D.dwg 1MB
2D cad symbols Aria700profile_2DSYMBOLS.dwg 313KB
Technical drawing Aria700profile_TECHNICAL_DRAWING.pdf 567KB

Tech docs

File name File size Download
Gobos Document Aria700profile_GOBOS.pdf 492KB

Software

File name File size Download
Software Professional Uploader 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 01/04/2019 NEW MODULE PROFILE Improved Firmware Functionality for better Focus and Zoom operation. Rev. 2
1.4 STABLE 31/03/2019 OLD MODULE PROFILE Improved Firmware Functionality for better Focus and Zoom operation.
