ASTRAWASH7PIXIP
PROLIGHTS

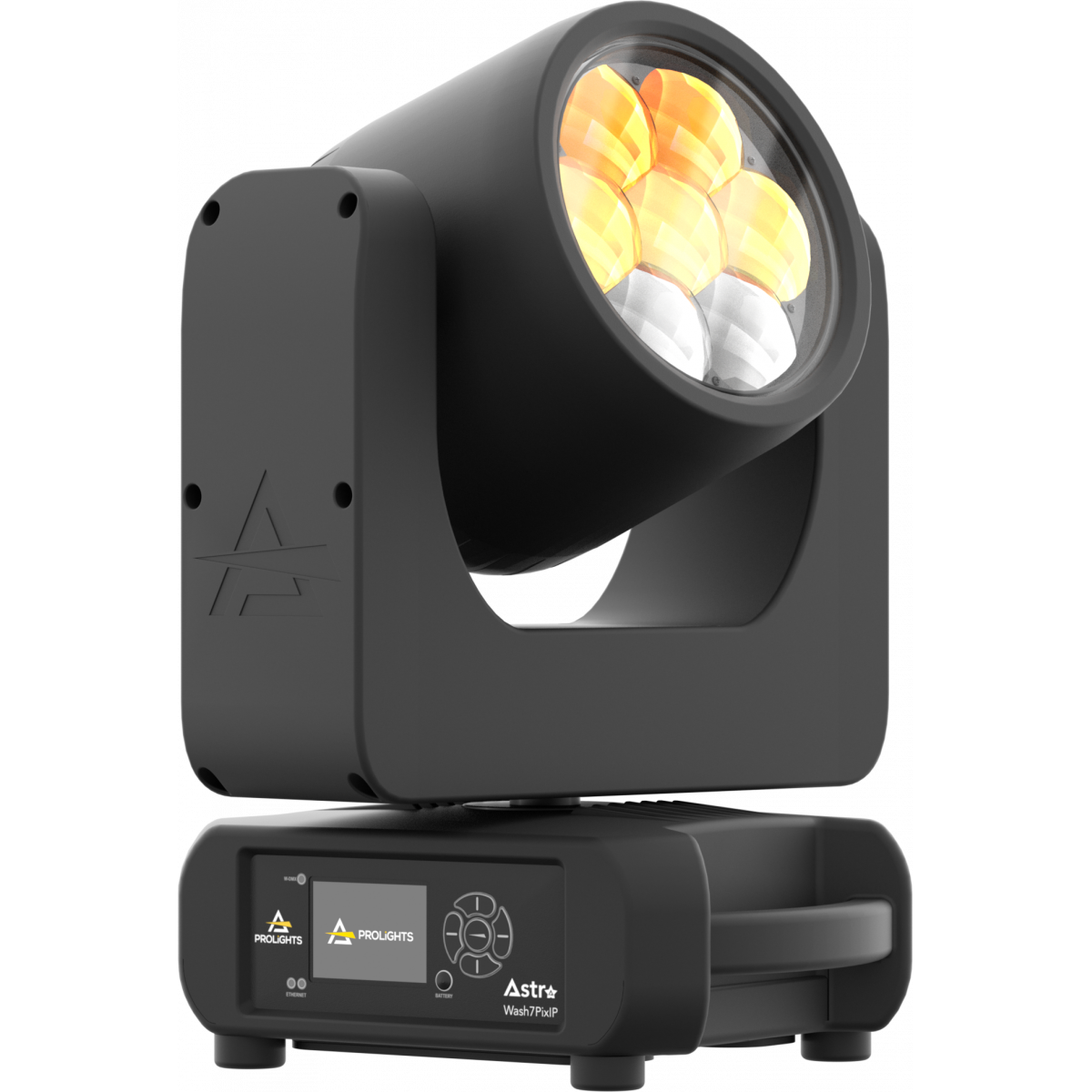

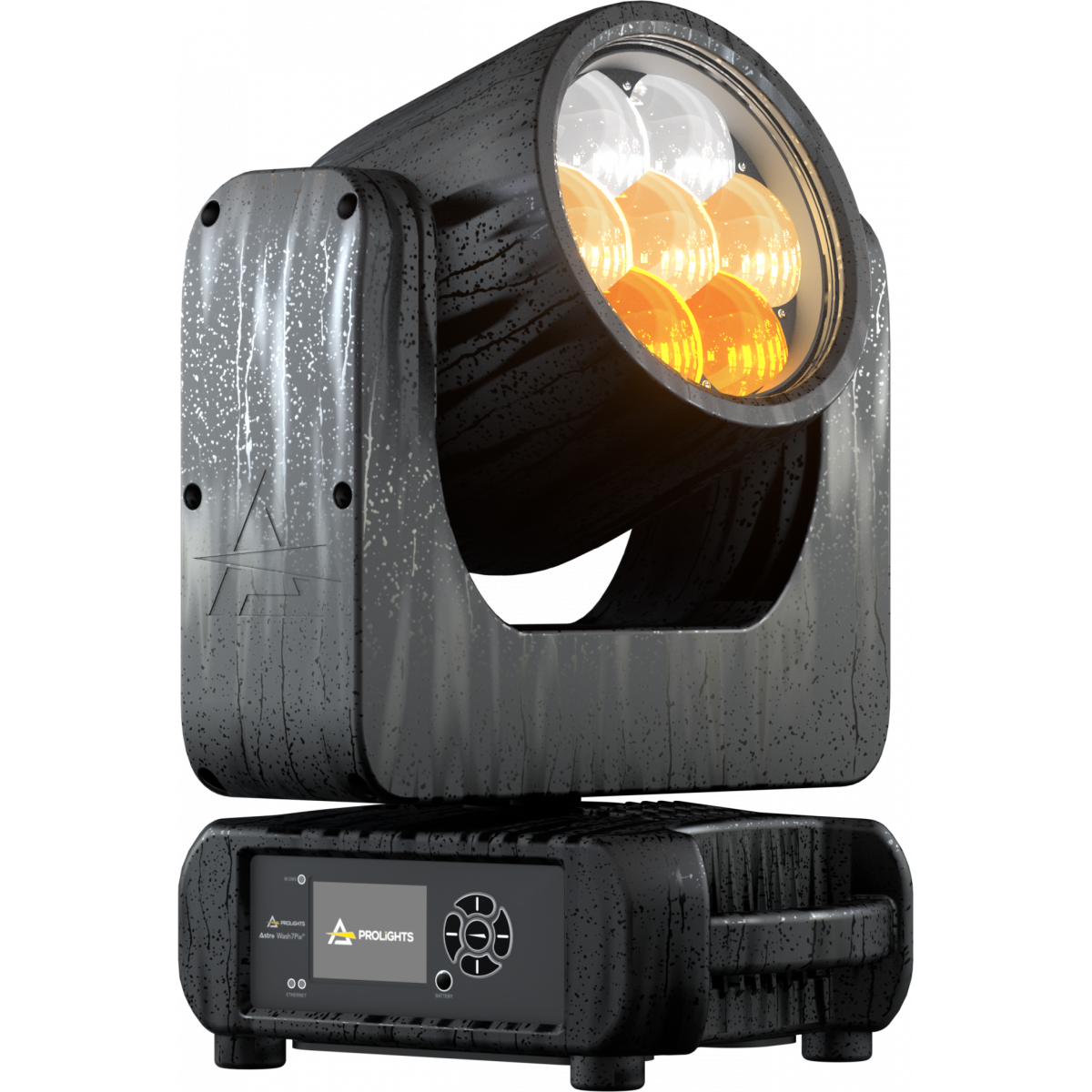

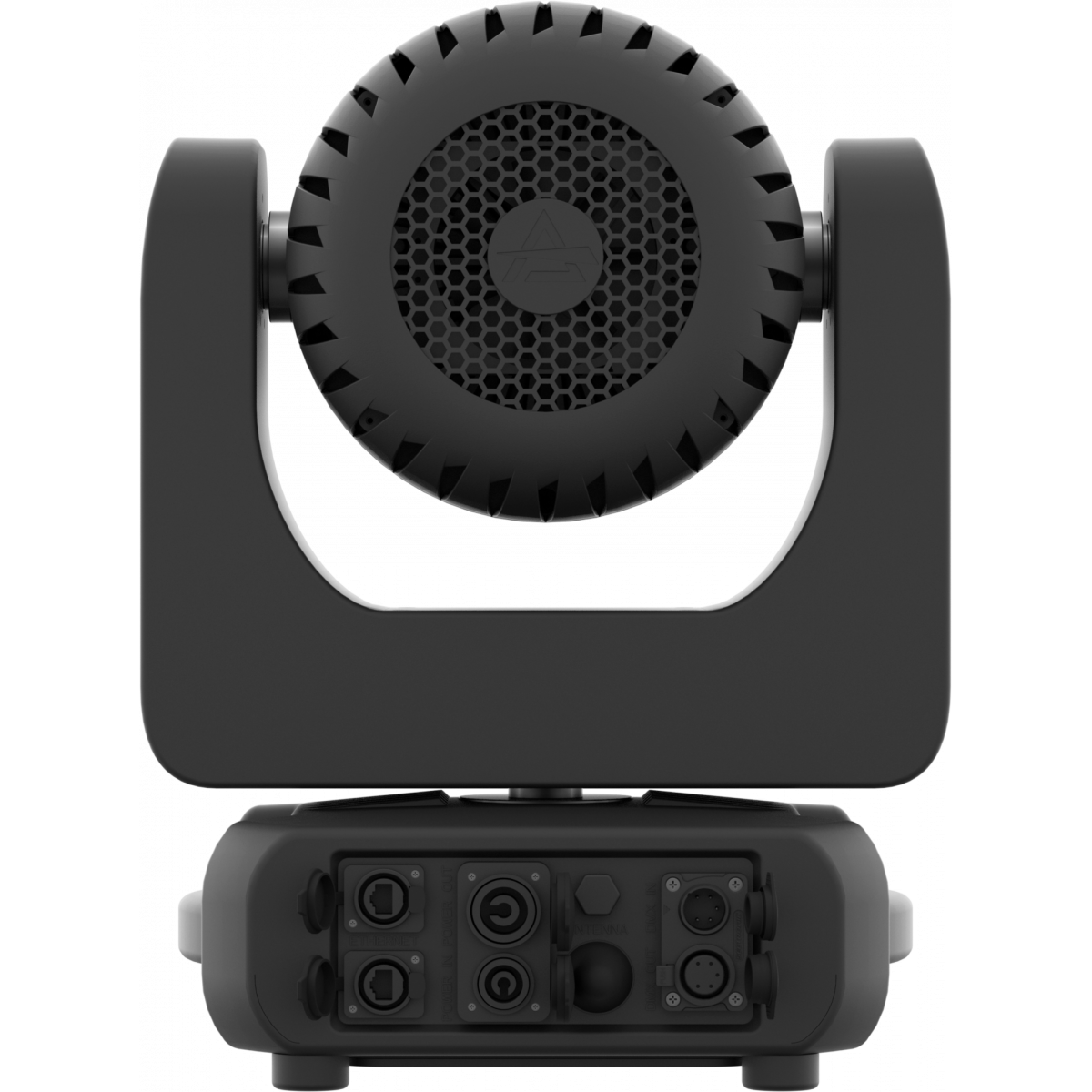

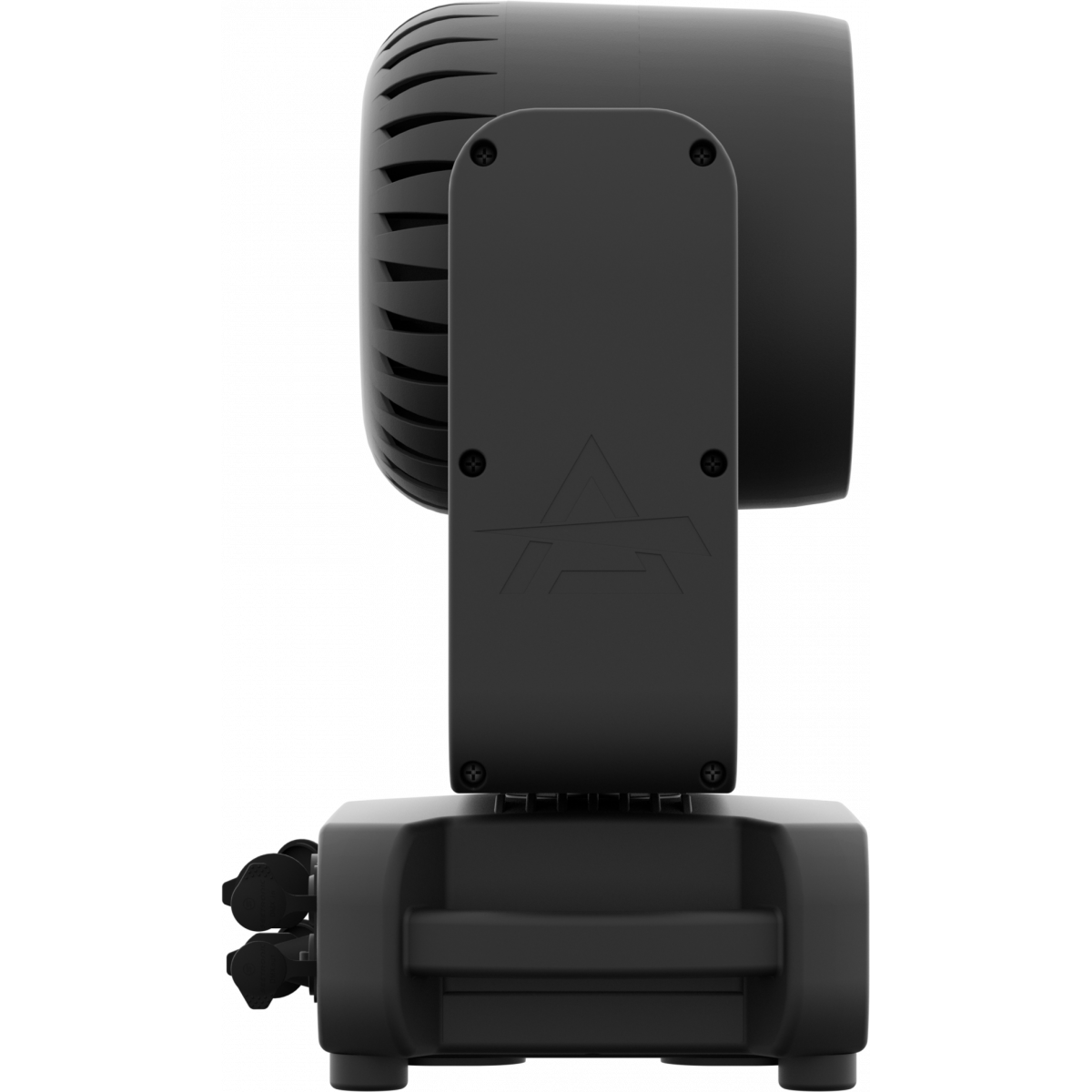

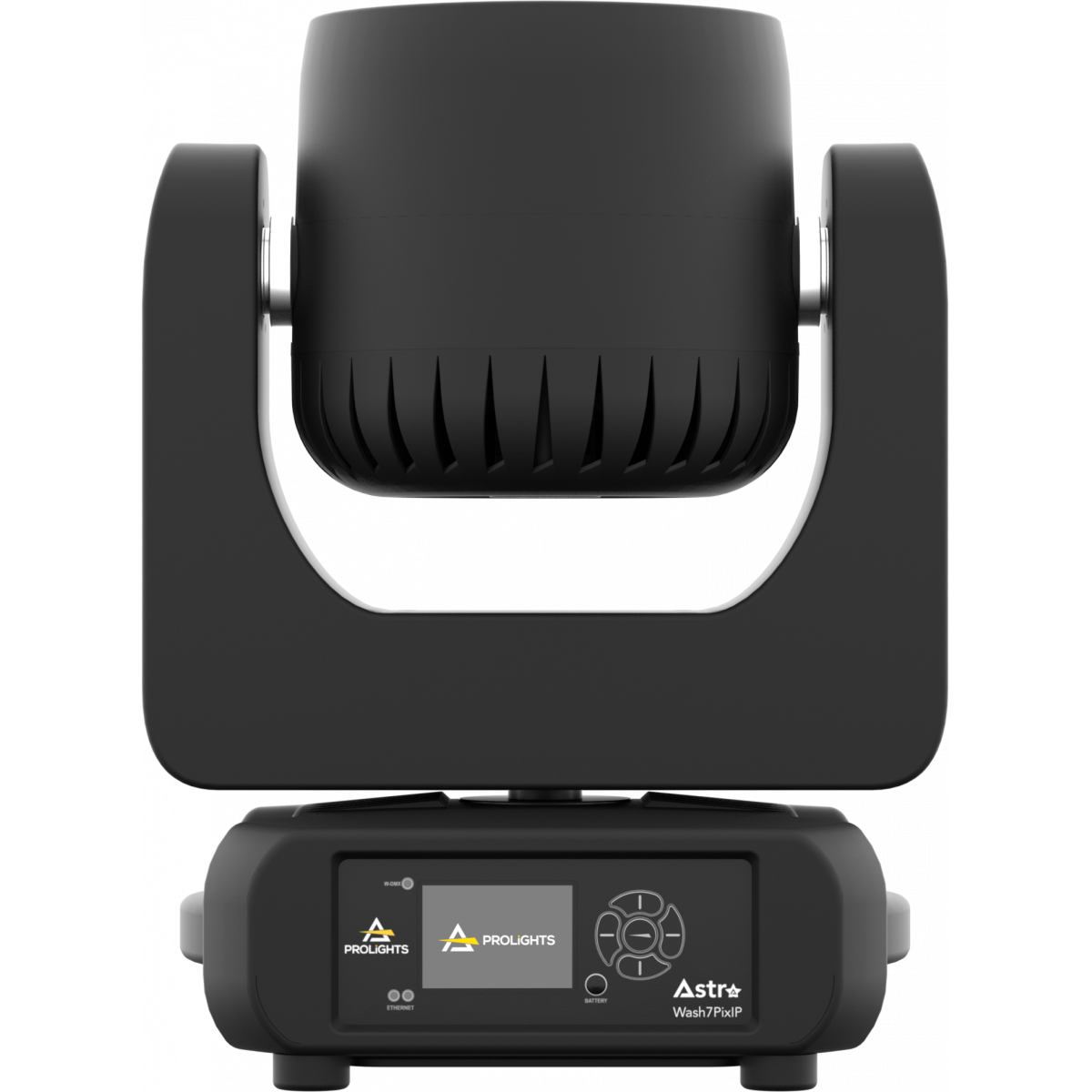

Astra Wash7PixIP

ORDER CODE: ASTRAWASH7PIXIP

IP65 moving wash light with 7x40W RGBW LED and 4°-56° zoom

The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances than its indoor version.
This fixture has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.
The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

Main features:

  • IP65 with a compact form factor and fast movements
  • Zoom from 4° to 56° with a high-optical efficiency
  • Pixel control, precise white CCT, multiple FXs and colour features
See variants

PHOTO GALLERY

Astra Wash7PixIP
Astra Wash7PixIP
Astra Wash7PixIP
Astra Wash7PixIP
Astra Wash7PixIP
Astra Wash7PixIP

Technical specifications

LIGHT SOURCE
  • Source: 7x40W RGBW Osram Ostar LEDs
  • Luminous flux: (4°) 2'013 lm - (56°) 3'543 @Full
  • Lux: (4°) 18'360 lx - (56°) 364lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 4° - 56° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range: 540°
  • Tilt range: 233°
  • Pan/Tilt resolution: 16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: weatherproof IP65 construction
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX
  • DMX channels: main personality 24 / 27 / 39channel
  • Pixel control: OFF, ring and pixel2pixel selectable options
  • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Standby power: 36W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0,93
PHYSICAL
  • IP rating: 65 (*)
  • Cooling: forced air with fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Data connection: Seetronic Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 300x424x213mm / 11.81''x16.69''x8.39''
  • Weight: 11,3kg / 24.91lbs
(*)
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

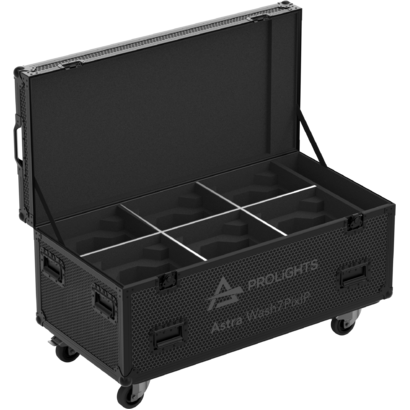

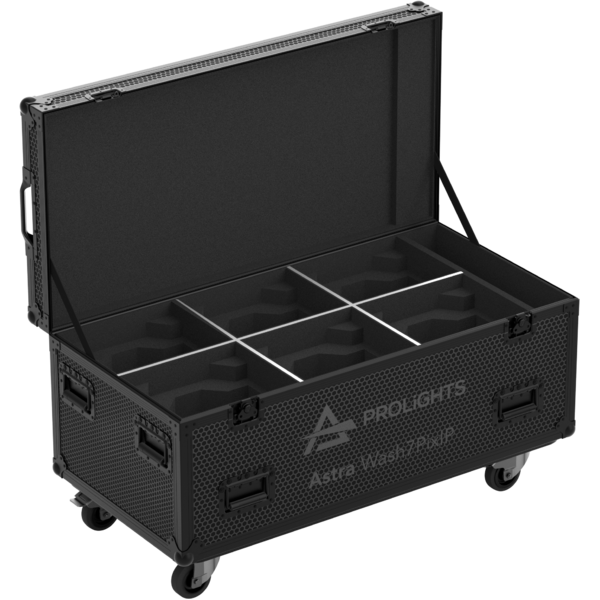

FCLASTRAW7PIXIP
FCLASTRAW7PIXIP
(Optional)
Flight case for 6 pcs of ASTRAWASH7PIXIP
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

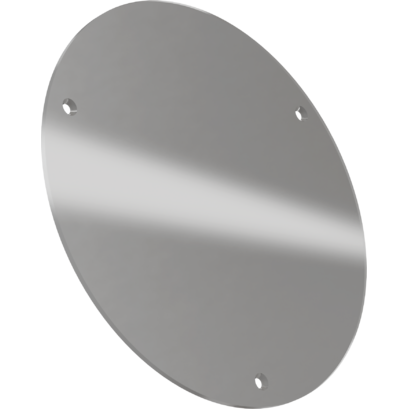

ASTRAW7PSF
ASTRAW7PSF
(Optional)
Smooth filter for ASTRAWASH7PIX and ASTRAWASH7PIXIP

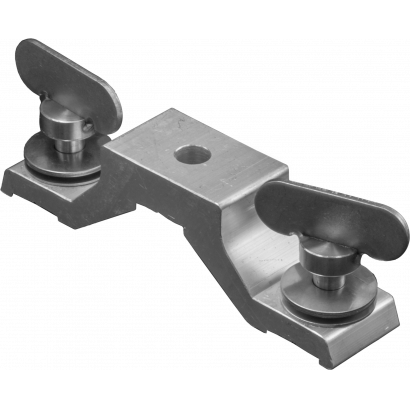

OSIPD13
OSIPD13
(Included)
IP65 quick-lock omega bracket compatible with IP65 moving heads, M12 hole
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAstrawash7pixip_A4_DATASHEET_(EN).pdf5MB
Letter datasheetAstrawash7pixip_LETTER_DATASHEET_(EN).pdf5MB
Tender SpecificationAstrawash7pixip_TENDER_SPECIFICATION.pdf316KB

User manual

DMX chart & personalities

File name File size Download
DMX chartAstrawash7pixip_DMX_CHARTS.pdf120KB
ASTRAWASH7PIXIP Firmware rev. 1.0.25
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPAstrawash7pixip_3D.skp343KB
3D RFAAstrawash7pixip_3D.rfa444KB
2DAstrawash7pixip_CAD_2D.dwg4MB
3DAstrawash7pixip_CAD_3D.dwg542KB
2D cad symbolsAstrawash7pixip_CAD_2DSYMBOLS.dwg55KB
Technical drawingAstrawash7pixip_TECHNICAL_DRAWING.pdf284KB
VectorWorksVECTORWORKS_SYMBOLS.vwx741KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
General safety infoAstrawash7pixip_PIXEL_NUMBERING.pdf190KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0.25 STABLE 20/03/2025 Improvement:
  • Improved zoom reset procedure.
