Diamond 19

19x15W moving LED wash with pixel effects

Diamond 19 is the 'everyday' fixture from the stunning Diamond LED pixel wash family. As a wash light, the 6,7° - 41° zoom, even beam and truly fantastic colour range create an ideal workhorse fixture. For the next level, individual control of each LED pixel with switch system in order to offer extensive FX with a budget price, tied with the Diamond's clever optical design along with its onboard effects provide 'eye-candy' effects both to look at and in the air. Powerful, consistent and clever, the Diamond 19 makes a statement on every stage.

Main features:

  • 19x15W Osram Ostar RGBW LEDs provide an extensive and consistent colour range
  • Individual control of pixels (on/off switch) with on-board FX generator for fast, precise effects
  • Liquid cooling system for efficient cooling with virtually no noise
See variants

PHOTO GALLERY

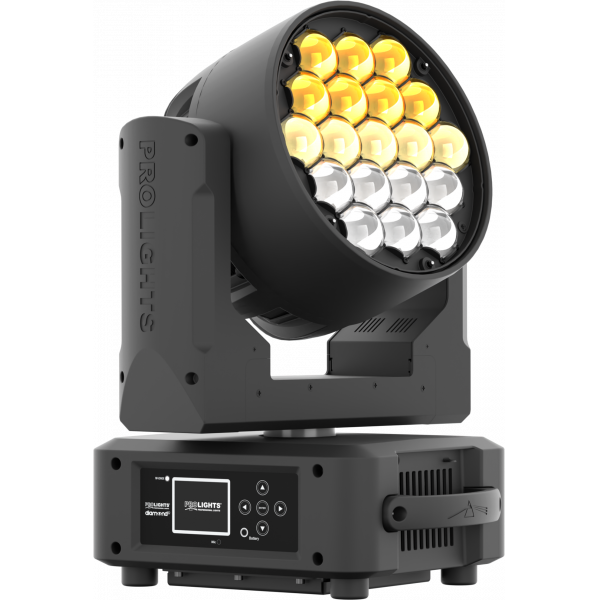

<b>Diamond</b> 19

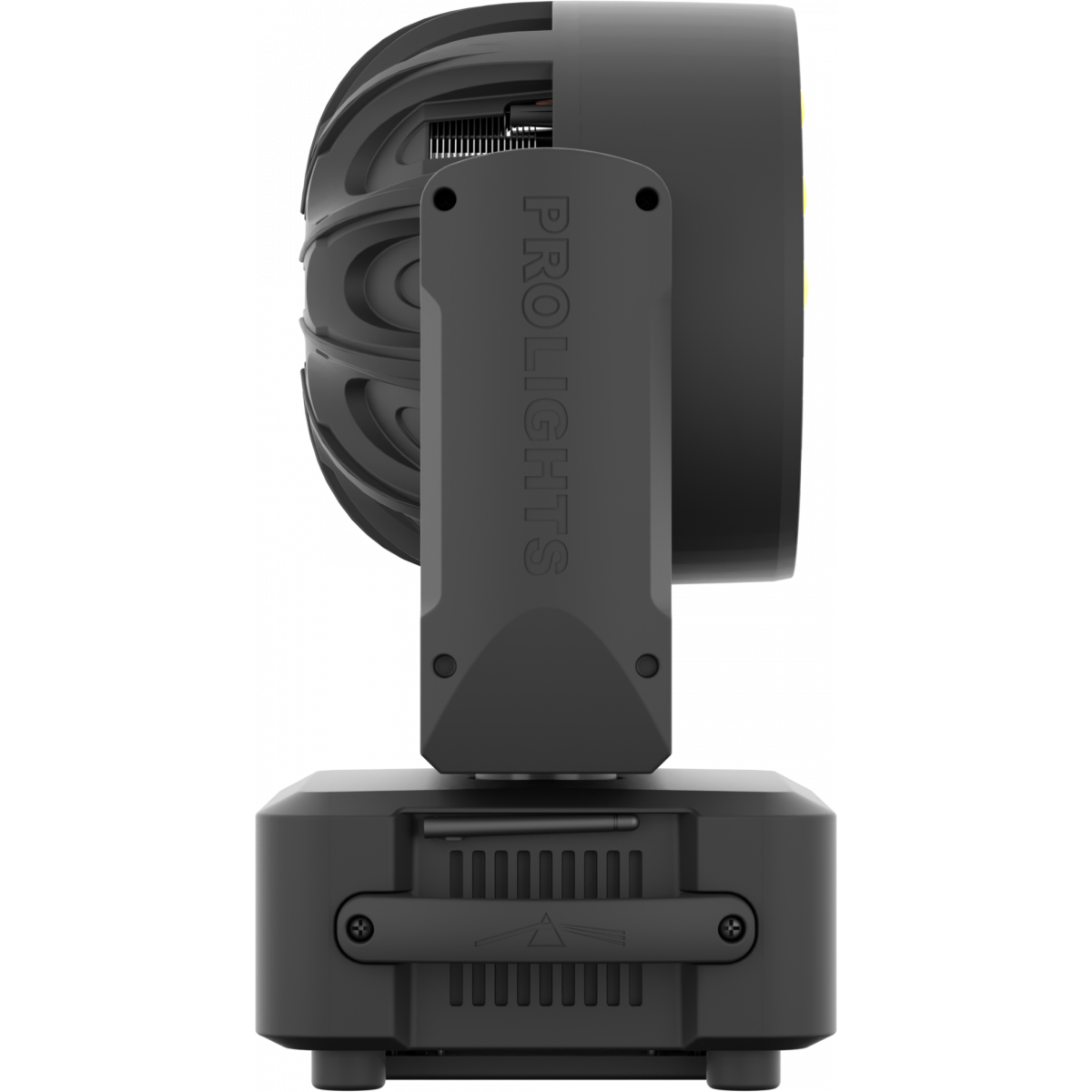

<b>Diamond</b> 19

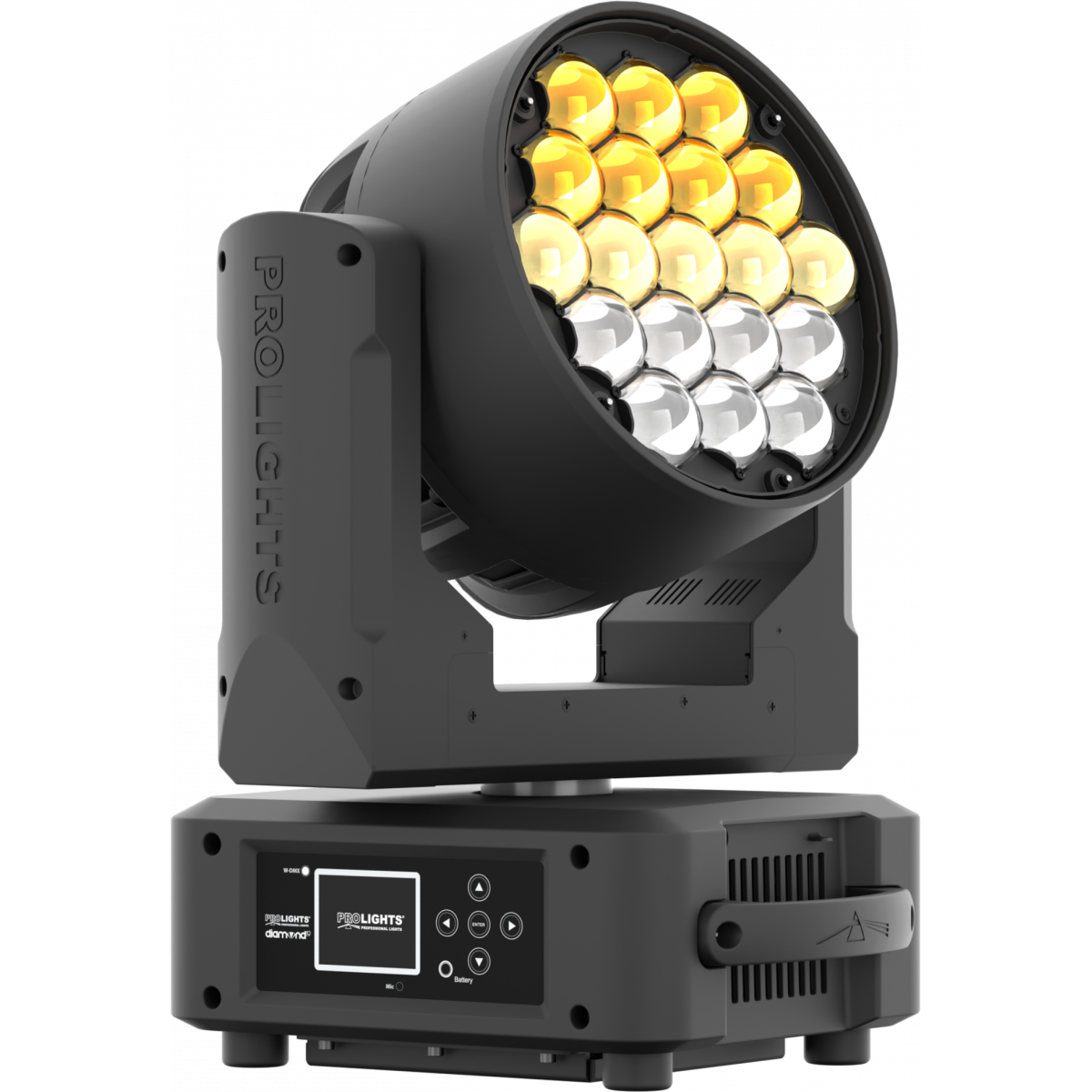

<b>Diamond</b> 19

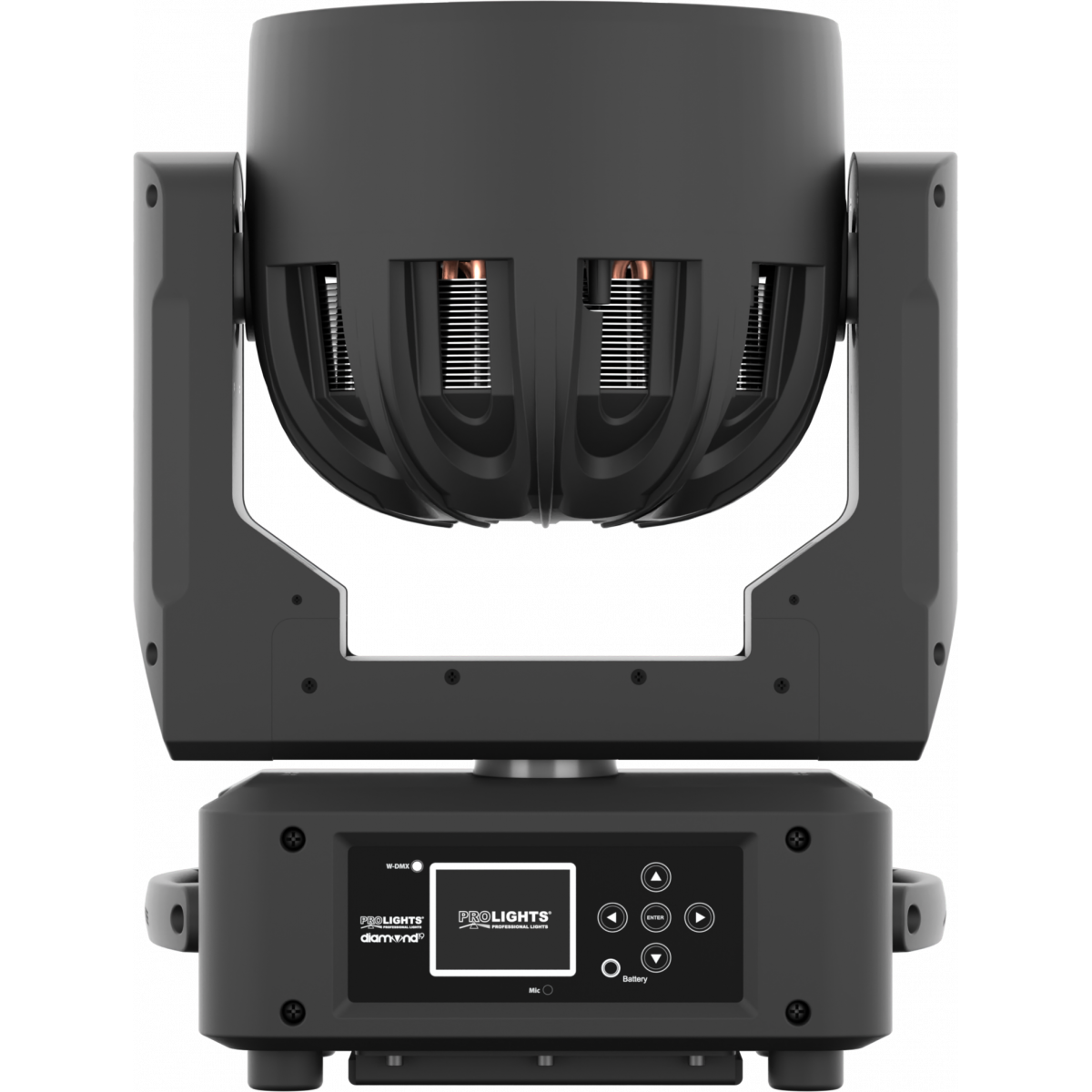

<b>Diamond</b> 19

Technical specifications

LIGHT SOURCE
  • Source: 19x15W RGBW Osram Ostar LEDs
  • Luminous flux: (6,7°) 2'339 lm - (41°) 3'811lm @full
  • Lux: (6,7°) 5'575 lx - (41°) 840lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 6,7° - 41° motorised linear zoom
  • Lens diameter: 212mm / 8.35''
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 8.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: Pixels controlled through On/Off switch for simplified control and budget friendly
BODY
  • Pan angle: 630°
  • Tilt angle: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, W-DMX
  • DMX channels: 18 / 19 / 20 / 32 / 98channel
  • Pixel control: pixel2pixel control through on/off switch
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: THEATRE mode for silent operation and fan control throught DMX
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 280W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets

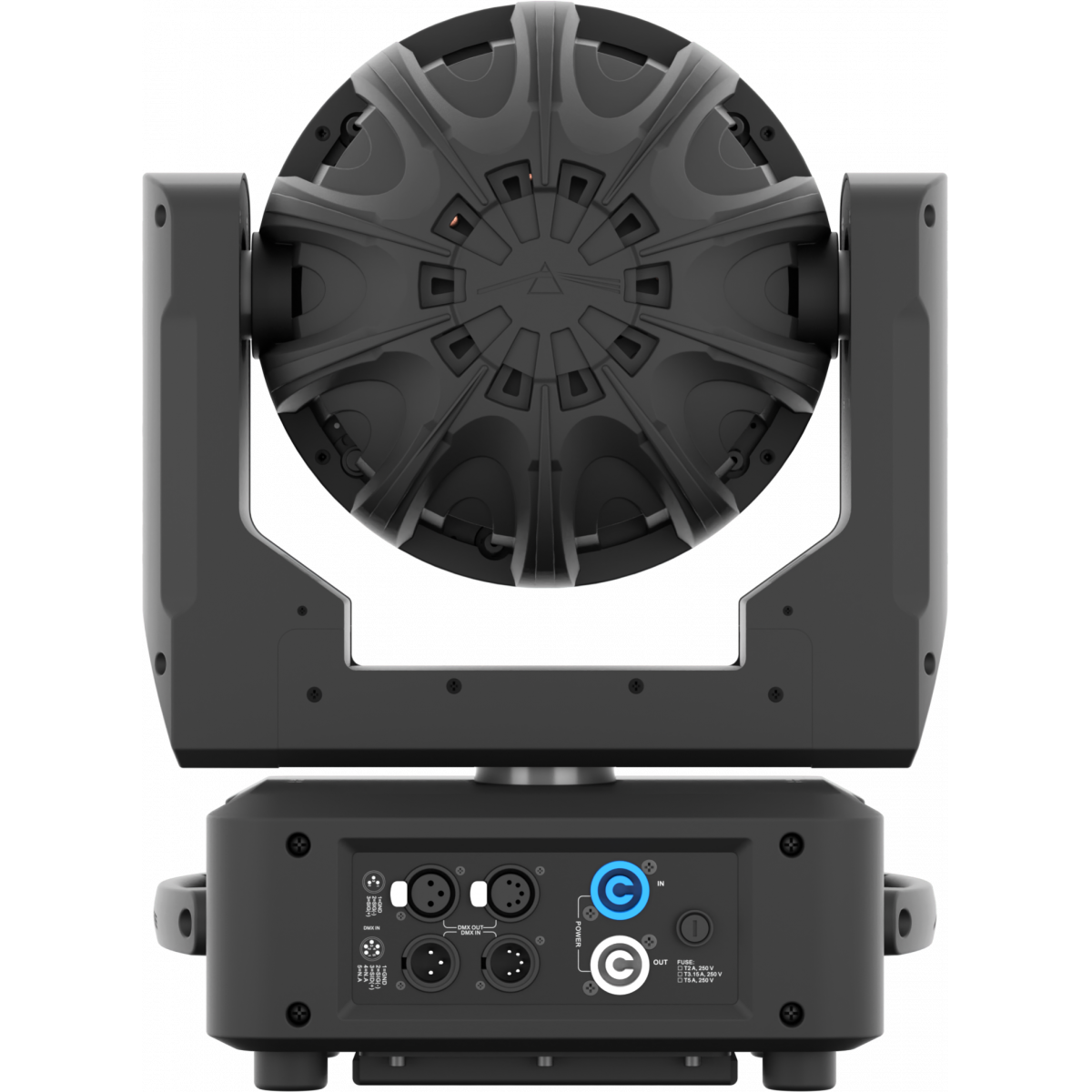

  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 338x449x235mm / 13.31''x17.68''x9.25''
  • Weight: 11kg / 24.25lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
DIAMOND19BK
DIAMOND19BK (END OF LIFE)
Black
DIAMOND19WH
DIAMOND19WH (DISCONTINUED)
White
DIAMOND19CR
DIAMOND19CR (DISCONTINUED)
Chrome

Accessories & Related Products

WSBBR512G6
WSBBR512G6
(optional)
BlackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX
WSBBF1G6
WSBBF1G6
(optional)
BlackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX
WSBBF1G5
WSBBF1G5
(optional)
BlackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FCA socket, L.3m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6016B
C6016B
(optional)

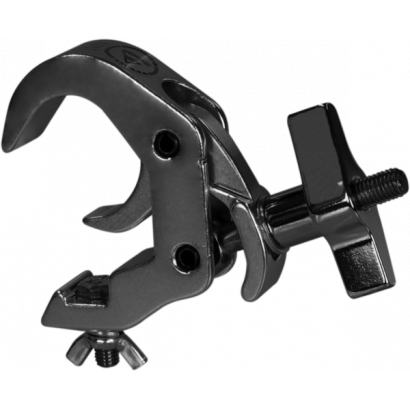

Quick-trigger slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black
