EclProfile CT+IP

Waterproofed high quality six colours LED ellipsoidal, Tunable White and colour mixing

The EclProfile CT+IP is a tunable white and full colour IP LED ellipsoidal designed for exterior applications such as touring, theme parks, cruise ships, and any outdoor events.
It uses the same 6-colour LED source than its indoor version, and IP body of the fixtures takes any of the standard lenses and accessories of the EclProfile range.
Its custom LED array and the powerful on-board colour control allows reaching bright and high-quality whites, up to 97 CRI, keeping a consistent colour output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming and colours, LEE colour presets, virtual CTO and studio functions, such as green and magenta tuning on white presets.

SPEKTRA

Main features:

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • Linear white CCT from 2,800K to 10,000K, CRI up to 96
  • Industry-standard colour gel matching, tungsten emulation on dimming, tint control (+/- green).
See variants

PHOTO GALLERY

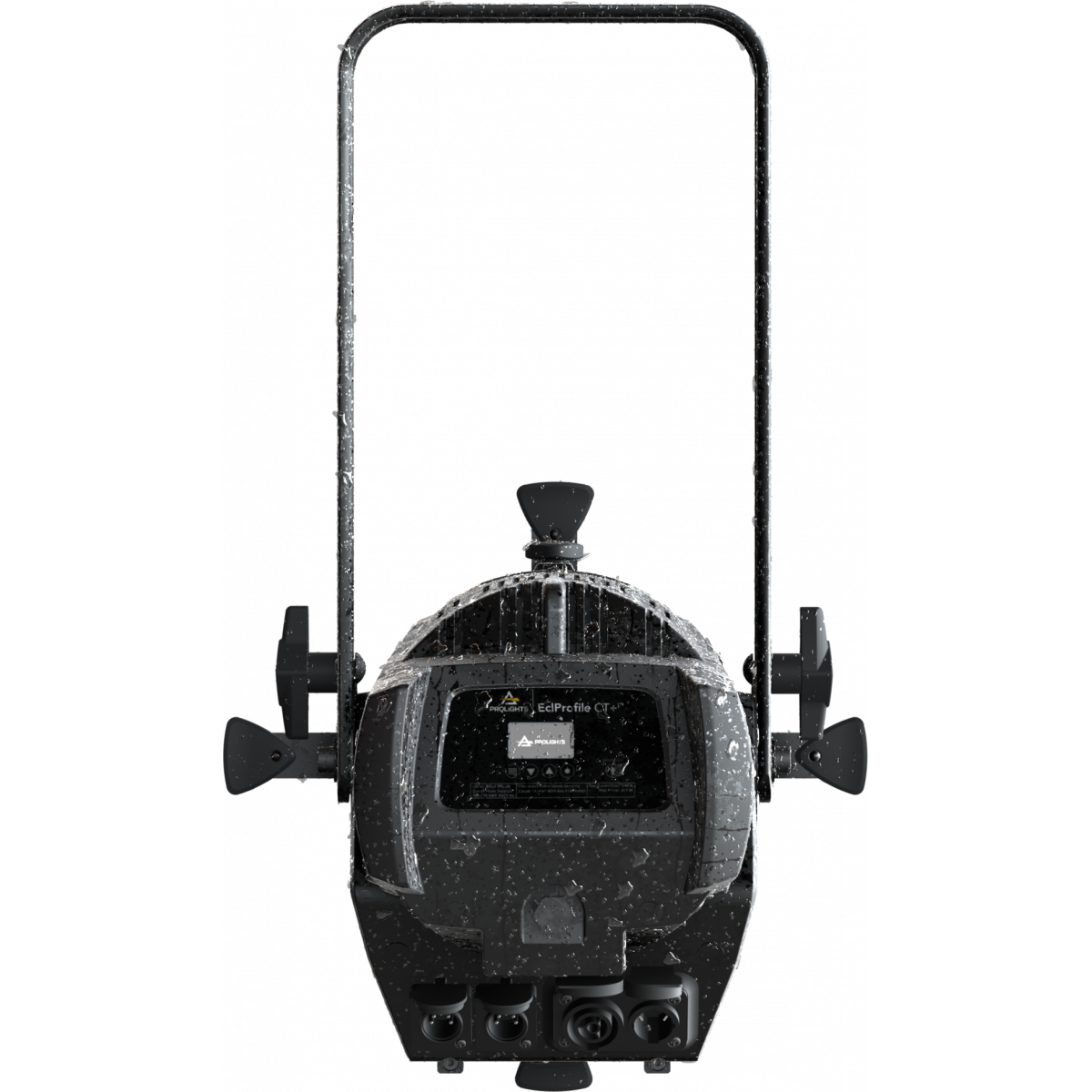

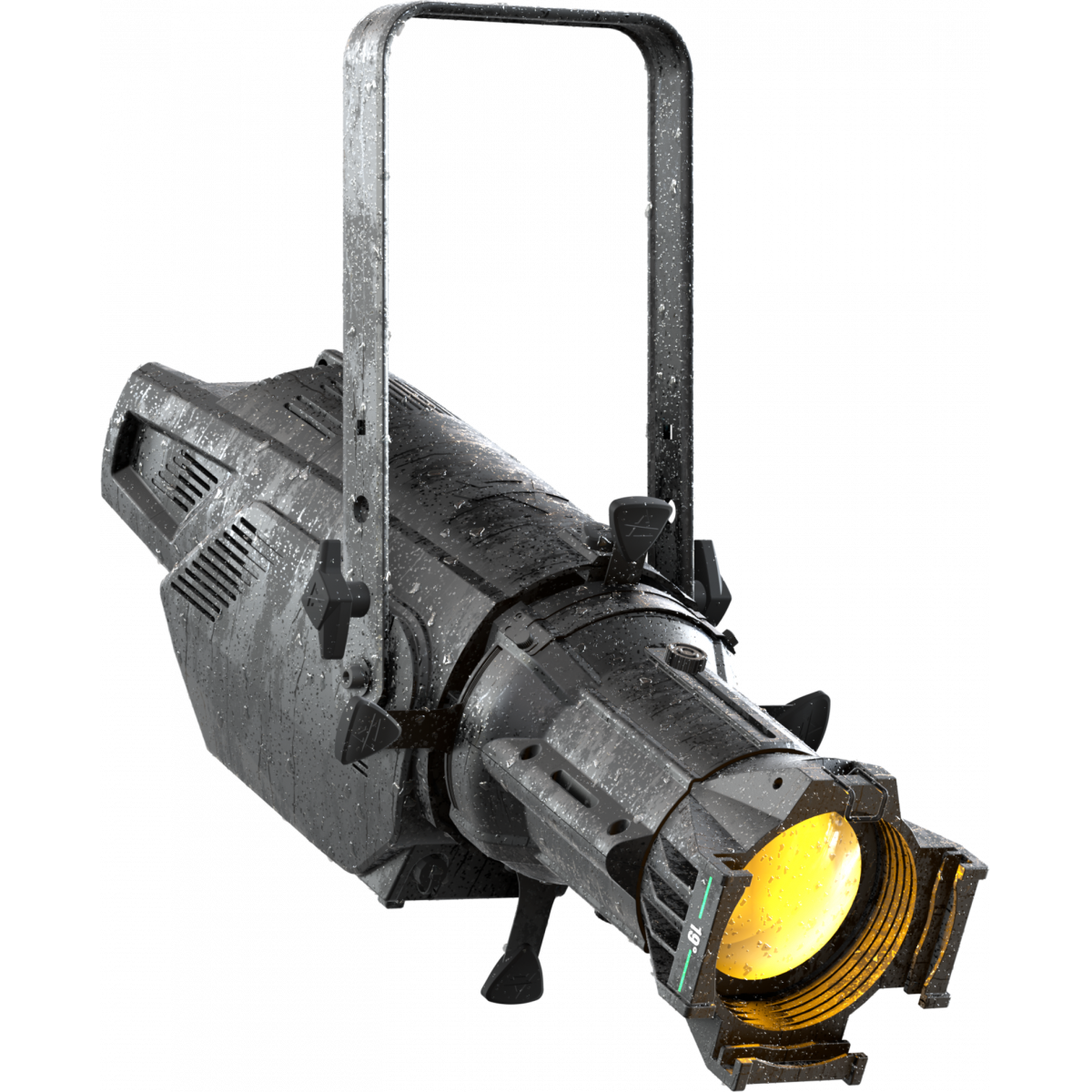

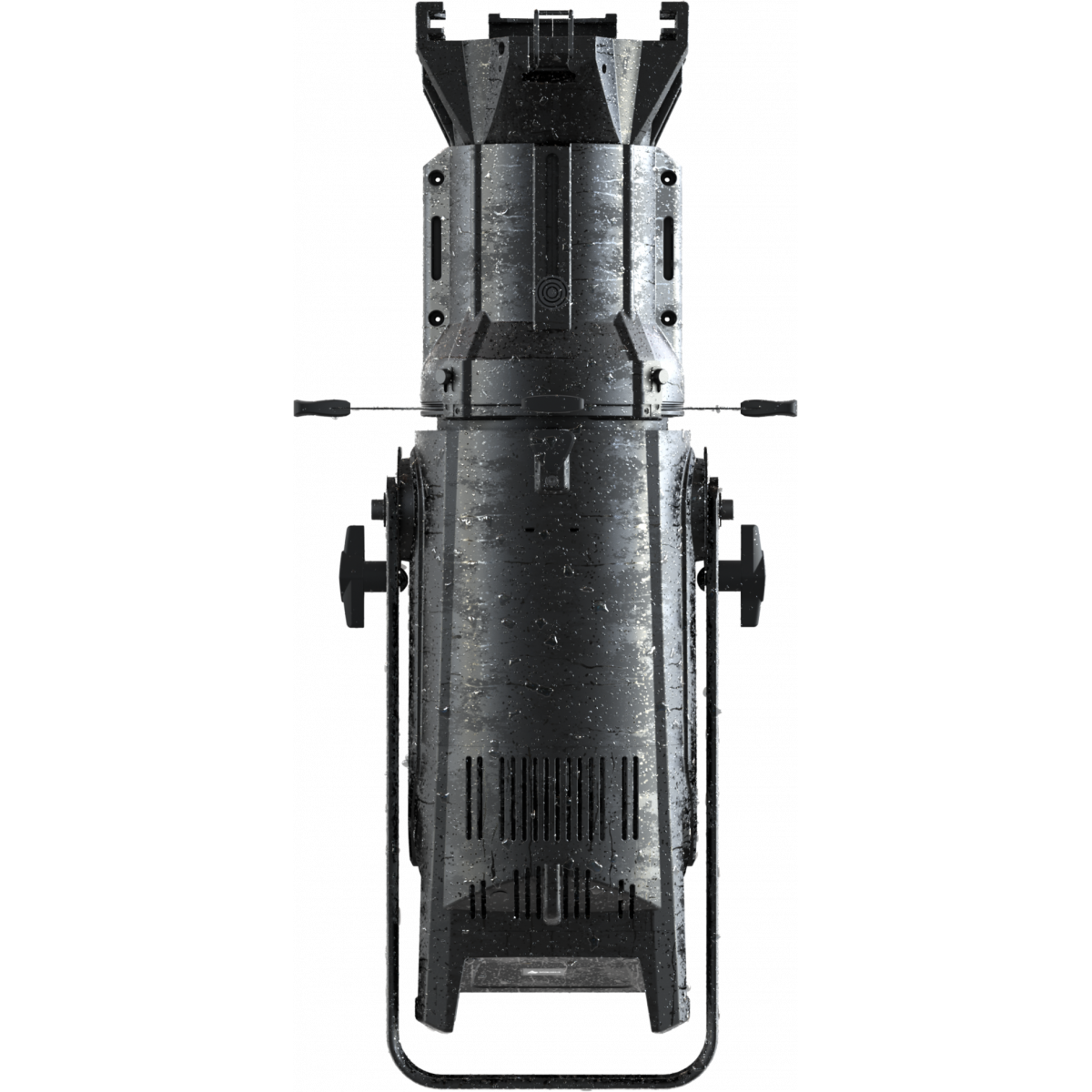

EclProfile CT+IP
EclProfile CT+IP
EclProfile CT+IP
EclProfile CT+IP

Technical specifications

LIGHT SOURCE
  • Source: 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5.000
  • Luminous flux: (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430 @Full
  • Luminous flux: (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @full
  • Lux: (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3.200 K; 97,6 @5.600 K
  • R9: 98,6 @3.200 K; 98,2 @5.600 K
  • TLCI: 95 @5.600 K
  • TM30 Rf: 92 @5.600 K
  • TM30 Rg: 100,1 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Lens type: high-quality glass lens optics
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K ~ 10.000K
  • Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable
DYNAMIC EFFECTS
  • Rotating gobos: optional, see available accessories
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYchannel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 264W
  • Standby power: 7,5W
  • Output (at 230V): 9 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 324x540x660mm / 12.76''x21.26''x25.98''
  • Weight: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
ECLCTPLUSIPBK
ECLCTPLUSIPBK
Black

Accessories & Related Products

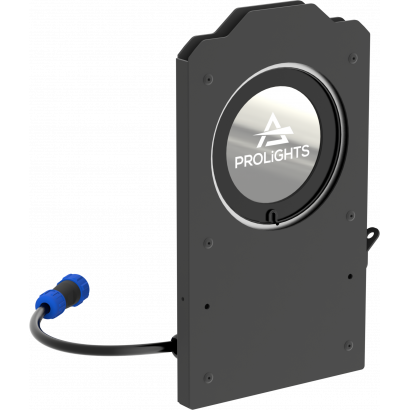

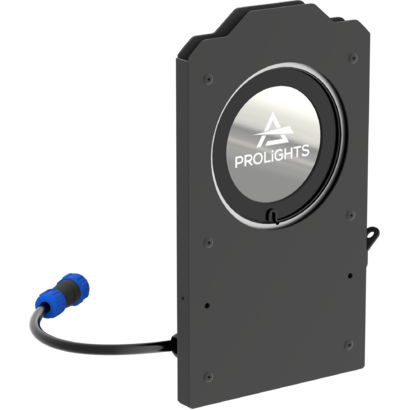

<b>EclProfile </b> Rotating Gobo
EclProfile Rotating Gobo
(Optional)
Rotating gobo assembly for ECL Profile fixtures, black

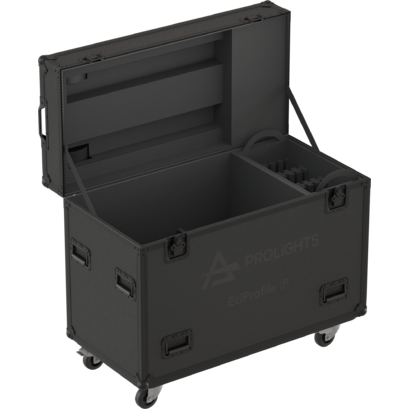

FCLECLPRIP
FCLECLPRIP
(Optional)
Flightcase to contain 6 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°
FCLECLPRLZ
FCLECLPRLZ
(Optional)
Flightcase to contain 8 ECLPRLZ zoom lenses

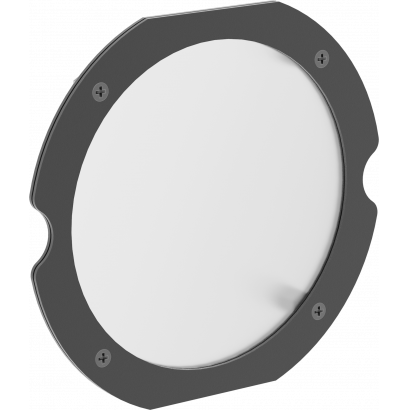

<b>EclPrl</b> Smooth filter
EclPrl Smooth filter
(Optional)
Smooth/homogenizer filter with aluminium frame and magnets for Ecl Profile fixtu
<b>EclPrl</b> Smooth filter2
EclPrl Smooth filter2
(Optional)
Magnetic smooth/homogenizer filter for Ecl Profile fixtures

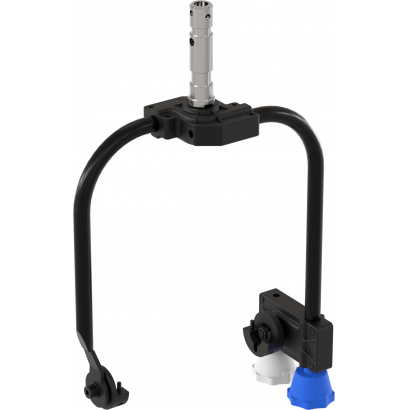

<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(Optional)
Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL05BK
ECLPRL05BK
(Optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(Optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(Optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(Optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(Optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(Optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(Optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(Optional)
70° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(Optional)
90° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(Optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLPRGH
ECLPRGH
(Optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(Optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(Optional)
Iris accessory for ECL Profile fixtures
ECLPRSEF1
ECLPRSEF1
(Optional)
Soft edge filter and holder kit for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(Optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
IPTESTBOX
IPTESTBOX
(Optional)
Portable vacuum and pressure tester for ProLights IP fixtures
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclctplusip_LETTER_DATASHEET_(EN).pdf645KB
Letter datasheetEclctplusip_A4_DATASHEET_(EN).pdf690KB
Tender SpecificationEclctplusip_TENDER_SPECIFICATION.pdf5MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclctplusip_DMX_CHARTS.pdf82KB
ECLCTPLUSIPBK Firmware rev. 1.30.5
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLCTPLUSIPBK Firmware rev. 1.30
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLCTPLUSIP_3D_SKETCHUP.zip13MB
2DECLCTPLUSIP_2D.zip155MB
3DECLCTPLUSIP_3D.zip9MB
2D cad symbolsECLCTPLUSIP_2DSYMBOLS.zip863KB
Technical drawingECLCTPLUSIP_TECHNICAL DRAWINGS.zip6MB
VectorWorksECLCTPLUSIP_SYMBOLS.zip7MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportEclctplusip_NOISE_REPORT.pdf1MB

Software

File name File size Download
SoftwareECLFWIP/CT+ Firmware Updater9MB

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.30.5 STABLE 12/02/2025 Improvement:
  • Removed minimum number of channels to work via DMX.
 Rev. 1.0
1.30 STABLE 04/03/2021 First stable release.

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
