ECLDISPLAYCC

EclDisplay CCWhite

5 YEARS WARRANTY

Source
25W White COB LED
Zoom range
(wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
IP rating
 IP20
Weight
1,15kg / 2.54lbs

Key Features

  • Constant Current version to be connected to external PSU and driver (max 700mA/36V)
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: profile (zoom and static) or wash optics

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 700mA/36V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. The EclDisplay CC includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional profile (zoom and static) or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Read less
EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control o...

Versions

Code CT Finishing Track adapter Optics
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
2700K Black Not included Not included
ECLDISPLAYCC30KB
ECLDISPLAYCC30KB
3000K Black Not included Not included
ECLDISPLAYCC40KB
ECLDISPLAYCC40KB
4000K Black Not included Not included
ECLDISPLAYCC56KB
ECLDISPLAYCC56KB
5600K Black Not included Not included
ECLDISPLAYCC27KW
ECLDISPLAYCC27KW
2700K White Not included Not included
ECLDISPLAYCC30KW
ECLDISPLAYCC30KW
3000K White Not included Not included
ECLDISPLAYCC40KW
ECLDISPLAYCC40KW
4000K White Not included Not included
ECLDISPLAYCC56KW
ECLDISPLAYCC56KW
5600K White Not included Not included

Product Video

Discover the EclDisplay CCWhite in action

Photo Gallery

ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB
ECLDISPLAYCC27KB

Specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676 @Full
  • Luminous flux: (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
  • Lux: (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241lx @5 m full
  • Lux: (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256lx @5 m full
  • CRI: 90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
  • TLCI: 87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
  • TM30 Rf: > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
  • TM30 Rg: < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
  • Constant Current mains: max 700mA/36V
  • Max power consumption: 25W
  • Output (at 230V): 40 units on a single power line
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: IP20
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Dimensions (WxHxD): 124X200x115.5mm / 4.88''x4.55''
  • Weight: 1,15kg / 2.54lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
  • 1 x ECLDISPLAYCC
  • User Manual

Accessories & Related Products

Optional <b>EclDisplay</b> Filter

Light 1° frost filters for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT01L

Optional <b>EclDisplay</b> Filter

Heavy 10° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT10H

Optional <b>EclDisplay</b> Filter

Medium 3° frost filter for ECLDISPLAY and ECLMINI series, 87 mm diameter

Order Code: ECLDISPFILT03M

Optional ECLDISPPHDZL2040W

20° - 40° Zoomable High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPHDZL2040W

Optional ECLDISPPHDZL2040B

20° - 40° Zoomable High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPHDZL2040B

Optional ECLDISPPRL08W

Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white

Order Code: ECLDISPPRL08W

Optional ECLDISPPRL08B

Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black

Order Code: ECLDISPPRL08B

Optional ECLDISPPRHDL50W

50° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL50W

Optional ECLDISPPRHDL50B

50° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL50B

Optional ECLDISPPRHDL36W

36° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL36W

Optional ECLDISPPRHDL36B

36° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL36B

Optional ECLDISPPRHDL18W

18° High definition profile lenses for Ecl Display series, white

Order Code: ECLDISPPRHDL18W

Optional ECLDISPPRHDL18B

18° High definition profile lenses for Ecl Display series, black

Order Code: ECLDISPPRHDL18B

Optional <b>EclDisplay</b> WashLens 15°- 30°

Zoomable Wash Lens 15-30° for EclDisplay, black housing

Order Code: ECLDISPWASHL1530B

Optional <b>EclDisplay</b> WashLens 15°- 30°

Zoomable Wash Lens 15-30° for EclDisplay, white housing

Order Code: ECLDISPWASHL1530W

Optional <b>EclDisplay</b> WashLens 25°- 50°

Zoomable Wash Lens 25-50° for EclDisplay, black housing

Order Code: ECLDISPWASHL2550B

Optional <b>EclDisplay</b> WashLens 25°- 50°

Zoomable Wash Lens 25-50° for EclDisplay, white housing

Order Code: ECLDISPWASHL2550W

Optional <b>EclDisplay</b> ProfileLens

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black housing

Order Code: ECLDISPPRZL2040B

Optional ECLDISPPRZL1020B

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black

Order Code: ECLDISPPRZL1020B

Optional ECLDISPPRZL1020W

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white

Order Code: ECLDISPPRZL1020W

Optional <b>EclDisplay</b> ProfileLens

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white housing

Order Code: ECLDISPPRZL2040W

Optional <b>EclDisplay</b> CeilingKit

Ceiling adapter kit for EclDisplay (without flange)

Order Code: ECLDISPCEILKIT

Optional <b>EclDisplay</b> Half Snoot

Half Snoot for EclDisplay, black housing

Order Code: ECLDISPHSNOOTB

Optional <b>EclDisplay</b> Full Snoot

Full Snoot for EclDisplay, black housing

Order Code: ECLDISPFSNOOTB

Optional <b>EclDisplay</b> Half Snoot

Half Snoot for EclDisplay, white housing

Order Code: ECLDISPHSNOOTW

Optional <b>EclDisplay</b> Full Snoot

Full Snoot for EclDisplay, white housing

Order Code: ECLDISPFSNOOTW

Optional <b>EclDisplay</b> Louvre

Anti-glare louvre for EclDisplay, black housing

Order Code: ECLDISPLOUVREB

Optional <b>EclDisplay</b> Louvre

Anti-glare louvre for EclDisplay, white housing

Order Code: ECLDISPLOUVREW

Optional <b>EclDisplay</b> Barndoor+Frame

Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black

Order Code: ECLDISPBDNFFB

Optional ECLDISPHNFFB

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black

Order Code: ECLDISPHNFFB

Optional <b>EclDisplay</b> Barndoor+Frame

Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white

Order Code: ECLDISPBDNFFW

Optional ECLDISPHNFFW

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white

Order Code: ECLDISPHNFFW

Optional <b>EclDisplay</b> Goboholder

Gobo holder for EclDisplay with manual index gear on board, black

Order Code: ECLDISPGOBOHINDB

Optional <b>EclDisplay</b> CeilingAdapterFlange

Black flange to complete the EclDisplay ceiling adapter kit, black

Order Code: ECLDISPCEILFLGB

Optional <b>EclDisplay</b> CeilingAdapterFlange

White flange to complete the EclDisplay ceiling adapter kit, white

Order Code: ECLDISPCEILFLGW

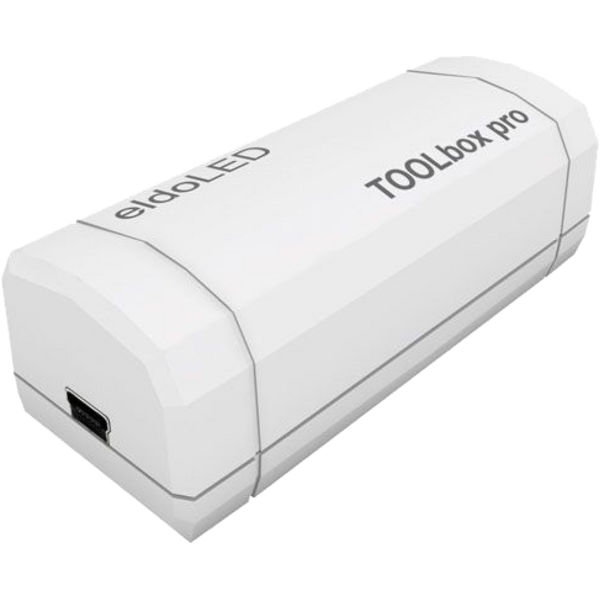

Optional <b>ToolBox </b> Pro

TOOLbox pro

Order Code: ELTOOLBOXPRO

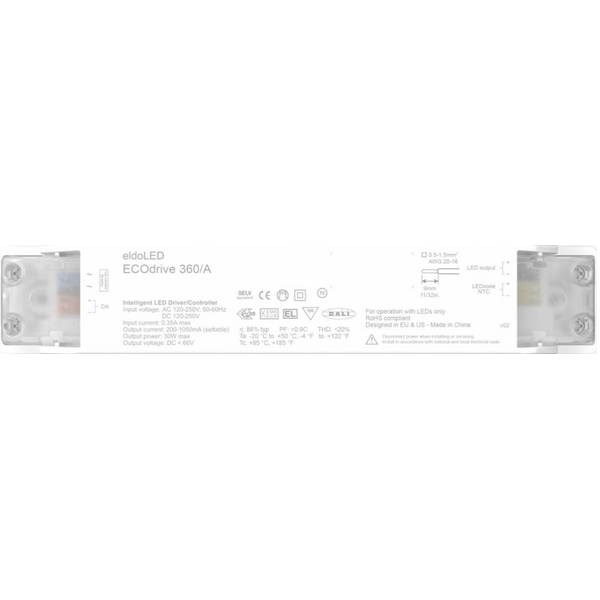

Optional <b>EcoDrive</b> 360/A

ECOdrive, 30W, DALI-2, Pulse dimming, 1 control channel, con. cur., 1x55V output

Order Code: ELECODRIVE360A

Optional NAXTSC61003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white

Order Code: NAXTSC61003

Optional NAXTSC62002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black

Order Code: NAXTSC62002

Optional NAXTSC62003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white

Order Code: NAXTSC62003

Optional NAXTSC63002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black

Order Code: NAXTSC63002

Optional NAXTSC63003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white

Order Code: NAXTSC63003

Optional NAXTSC64002

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black

Order Code: NAXTSC64002

Optional NAXTSC64003

Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white

Order Code: NAXTSC64003

Optional NAXTSC6112

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black

Order Code: NAXTSC6112

Optional NAXTSC6113

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white

Order Code: NAXTSC6113

Optional NAXTSC6122

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black

Order Code: NAXTSC6122

Optional NAXTSC6123

Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white

Order Code: NAXTSC6123

Optional NAXTSC6142

Global Pulse XTS Connector 3-CCT DALI middle feed, black

Order Code: NAXTSC6142

Optional NAXTSC6212

Global Pulse XTS Connector 3-CCT DALI straight connector, black

Order Code: NAXTSC6212

Optional NAXTSC6143

Global Pulse XTS Connector 3-CCT DALI middle feed, white

Order Code: NAXTSC6143

Optional NAXTSC6232

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black

Order Code: NAXTSC6232

Optional NAXTSC6213

Global Pulse XTS Connector 3-CCT DALI straight connector, white

Order Code: NAXTSC6213

Optional NAXTSC6233

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white

Order Code: NAXTSC6233

Optional NAXTSNC6342

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black

Order Code: NAXTSNC6342

Optional NAXTSNC6343

Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white

Order Code: NAXTSNC6343

Optional NAXTSNC6352

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black

Order Code: NAXTSNC6352

Optional NAXTSNC6353

Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white

Order Code: NAXTSNC6353

Optional NAXTSNC6362

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black

Order Code: NAXTSNC6362

Optional NAXTSNC6363

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white

Order Code: NAXTSNC6363

Optional NAXTSNC6372

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black

Order Code: NAXTSNC6372

Optional NAXTSNC6373

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white

Order Code: NAXTSNC6373

Optional NAXTSNC6382

Global Pulse XTSN Connector 3-CCT DALI X connector, black

Order Code: NAXTSNC6382

Optional NAXTSNC6383

Global Pulse XTSN Connector 3-CCT DALI X connector, white

Order Code: NAXTSNC6383

Optional NAXTSNC6392

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black

Order Code: NAXTSNC6392

Optional NAXTSNC6393

Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white

Order Code: NAXTSNC6393

Optional NAXTSNC6402

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black

Order Code: NAXTSNC6402

Optional NAXTSNC6403

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white

Order Code: NAXTSNC6403

Optional NAXTS412

Global Pulse XTS Connector 3-CCT DALI END cap, black

Order Code: NAXTS412

Optional NAXTS413

Global Pulse XTS Connector 3-CCT DALI END cap, white

Order Code: NAXTS413

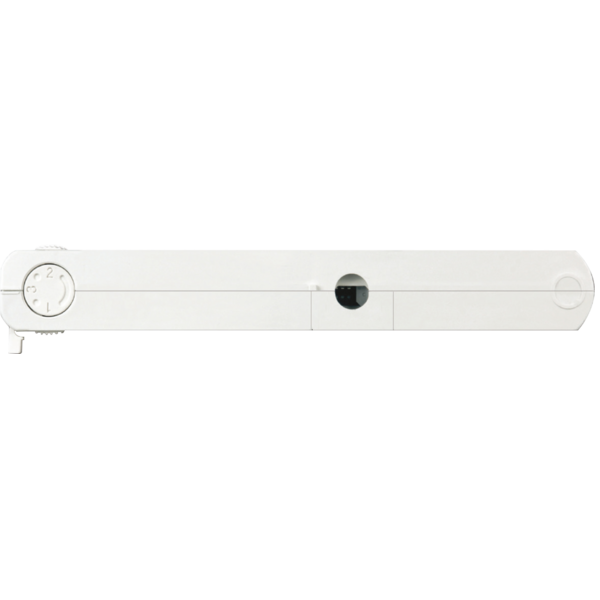

Optional NAGA0172

Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, black

Order Code: NAGA0172

Optional NAGA0173

Global Pulse 3-Circuit Adapter-Driver, 200-700mA, 8,8-31W, white

Order Code: NAGA0173

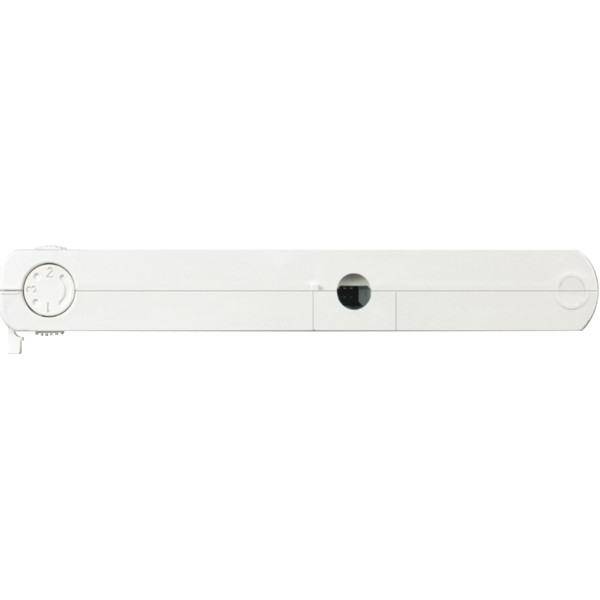

Optional NAGAC6162

Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, black

Order Code: NAGAC6162

Optional NAGAC6163

Global Pulse DALI 3-Circuit Adapter-Drivers, 300-1050mA, 12,6-40W, white

Order Code: NAGAC6163

Optional NAGAW0162

Global Pulse CASAMBI 3-Circuit Adapter-Drivers, black

Order Code: NAGAW0162

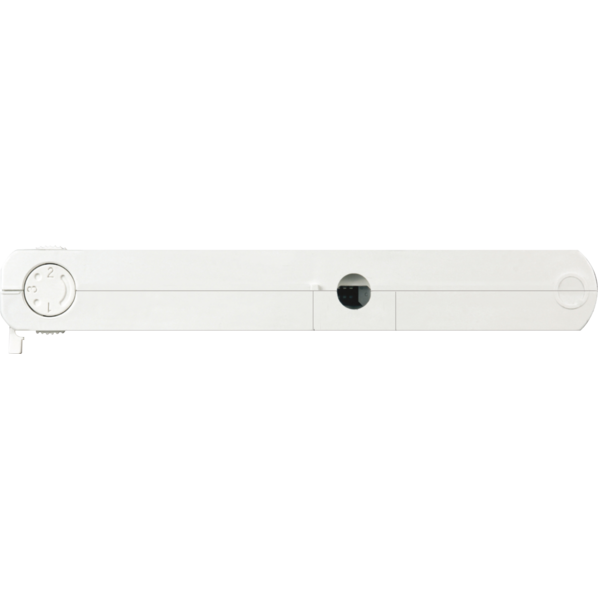

Optional NAGAW0163

Global Pulse CASAMBI 3-Circuit Adapter-Drivers, white

Order Code: NAGAW0163

Optional NASPW12SK215M

Global Pulse Track clip wire suspension set 1.5m, 150N, black

Order Code: NASPW12SK215M

Optional NASPW12SK25M

Global Pulse Track clip wire suspension set 5m, 150N, black

Order Code: NASPW12SK25M

Optional NASPW12SK315M

Global Pulse Track clip wire suspension set 1.5m, 150N, white

Order Code: NASPW12SK315M

Optional NASPW12SK35M

Global Pulse Track clip wire suspension set 5m, 150N, white

Order Code: NASPW12SK35M

Optional NASKB122

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black

Order Code: NASKB122

Optional NASKB123

Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white

Order Code: NASKB123

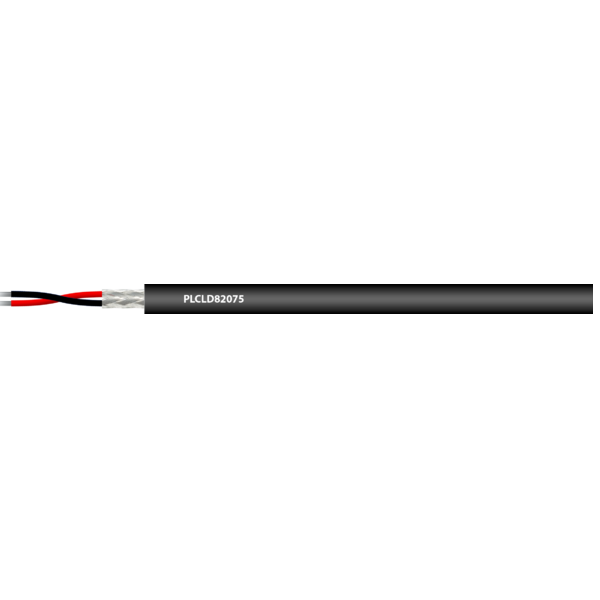

Included PLCLD82075

LED Driver PVC cable black 2x0,75 mmq D=6,5mm (BLACK-RED), 1 meter lenght

Order Code: PLCLD82075

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEcldisplaycc_A4_DATASHEET_(IT).pdf(06/05/2021)4MB
Letter datasheetEcldisplaycc_A4_DATASHEET_(EN).pdf(20/06/2024)3MB
Tender SpecificationEcldisplaycc_TENDER_SPECIFICATION.pdf(16/03/2023)3MB

User manual User manual

File name File size Download
User manualEcldisplaycc_USER_MANUAL_EN.pdf(26/01/2024)6MB
User manualGENERAL_SAFETY_INFORMATION.pdf(02/12/2022)12MB

Photometrics Photometrics

File name File size Download
IESprolights_ecldisplay(un-dat-cc)_profile1020_ies files.zip(26/09/2024)9KB
LDTprolights_ecldisplay(un-dat-cc)_profile1020_ldt files.zip(26/09/2024)8KB
IESprolights_ecldisplay(un-dat-cc)_profile18_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile18_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile2040_ies files.zip(08/04/2021)11KB
LDTprolights_ecldisplay(un-dat-cc)_profile2040_ldt files.zip(08/04/2021)8KB
IESprolights_ecldisplay(un-dat-cc)_profile36_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile36_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile50_ies files.zip(14/02/2024)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile50_ldt files.zip(14/02/2024)4KB
IESprolights_ecldisplay(un-dat-cc)_profile8_ies files.zip(27/02/2025)5KB
LDTprolights_ecldisplay(un-dat-cc)_profile8_ldt files.zip(27/02/2025)4KB
IESprolights_ecldisplay(un-dat-cc)_wash 1530_ies files.zip(08/04/2021)11KB
LDTprolights_ecldisplay(un-dat-cc)_wash 1530_ldt files.zip(08/04/2021)9KB
IESprolights_ecldisplay(un-dat-cc)_wash2550_ies files.zip(07/04/2021)9KB
LDTprolights_ecldisplay(un-dat-cc)_wash2550_ldt files.zip(07/04/2021)7KB
PhotometricsEcldisplaycc_PROFILE10-20_PHOTOMETRIC_REPORT.pdf(03/01/2023)3MB
PhotometricsEcldisplaycc_WASH25-50_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaycc_WASH15-30_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaycc_PROFILE20-40_PHOTOMETRIC_REPORT.pdf(20/01/2021)3MB
PhotometricsEcldisplaycc_PROFILE_50_PHOTOMETRIC_REPORT.pdf(15/02/2024)5MB
PhotometricsEcldisplaycc_PROFILE_36_PHOTOMETRIC_REPORT.pdf(15/02/2024)5MB
PhotometricsEcldisplaycc_PROFILE_18_PHOTOMETRIC_REPORT.pdf(15/02/2024)1MB
PhotometricsEcldisplaycc_PROFILE_8_PHOTOMETRIC_REPORT.pdf(27/02/2025)339KB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D sketchupECLDISPLAYCC_3D_SKETCHUP.zip5MB
3D revitECLDISPLAYCC_3D_REVIT.zip1MB
2DECLDISPLAYCC_2D.zip15MB
3DECLDISPLAYCC_3D.zip2MB
2D cad symbolsECLDISPLAYCC_2DSYMBOLS.zip819KB
Technical drawingECLDISPLAYCC_TECHNICAL DRAWINGS.zip766KB
VectorWorksECLDISPLAYCC_SYMBOLS.zip9MB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx(13/05/2025)321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx(13/05/2025)276MB

Software Software

File name File size Download
SoftwareProlights Dialux Plug-In(03/03/2025)192MB

Info Request

News

Prolights EclDisplay range transforms Belconnen Arts Centre Gallery

Prolights EclDisplay range transforms Belconnen Arts Centre Gallery

NEWSLETTER

Subscribe to our Newsletter

Loading...
