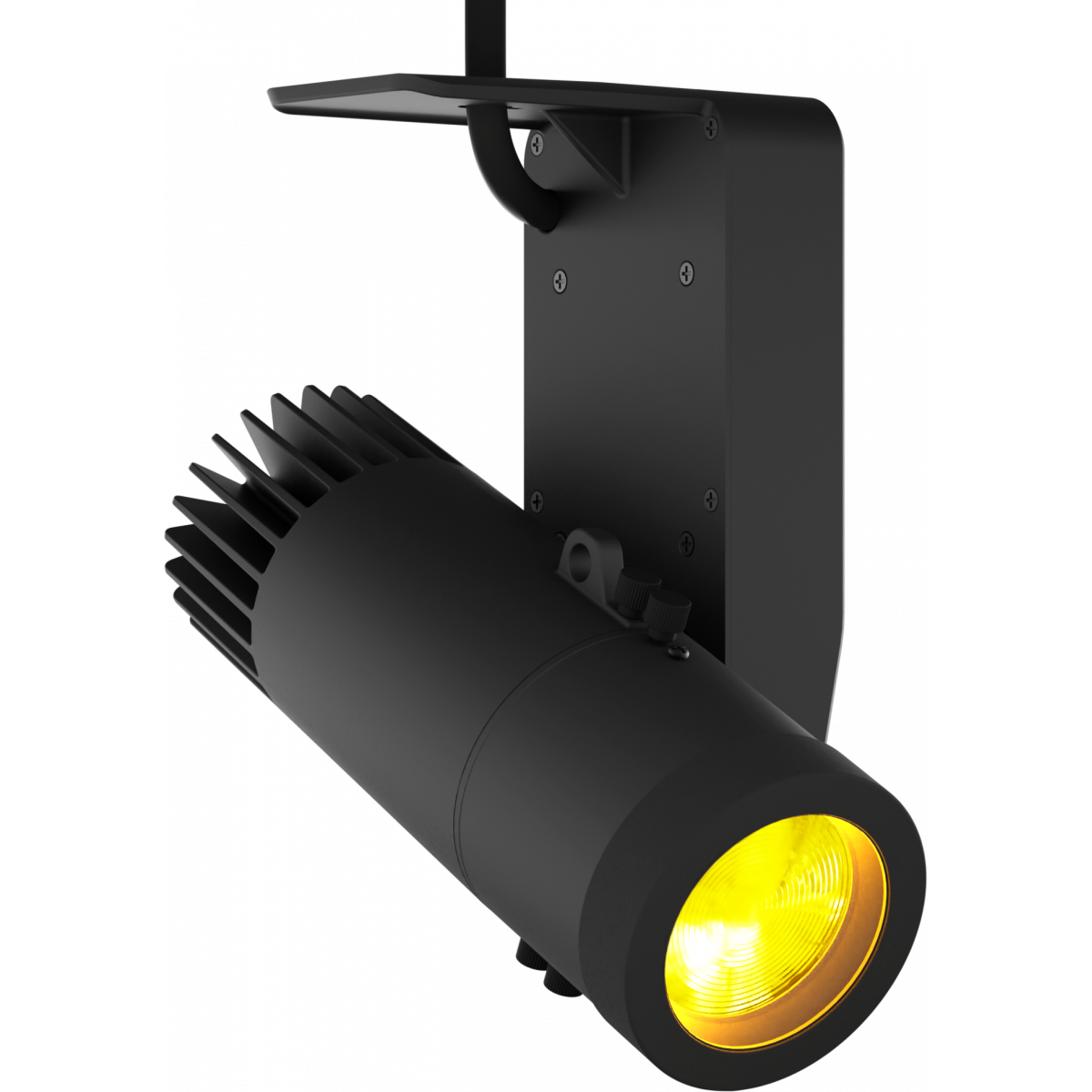

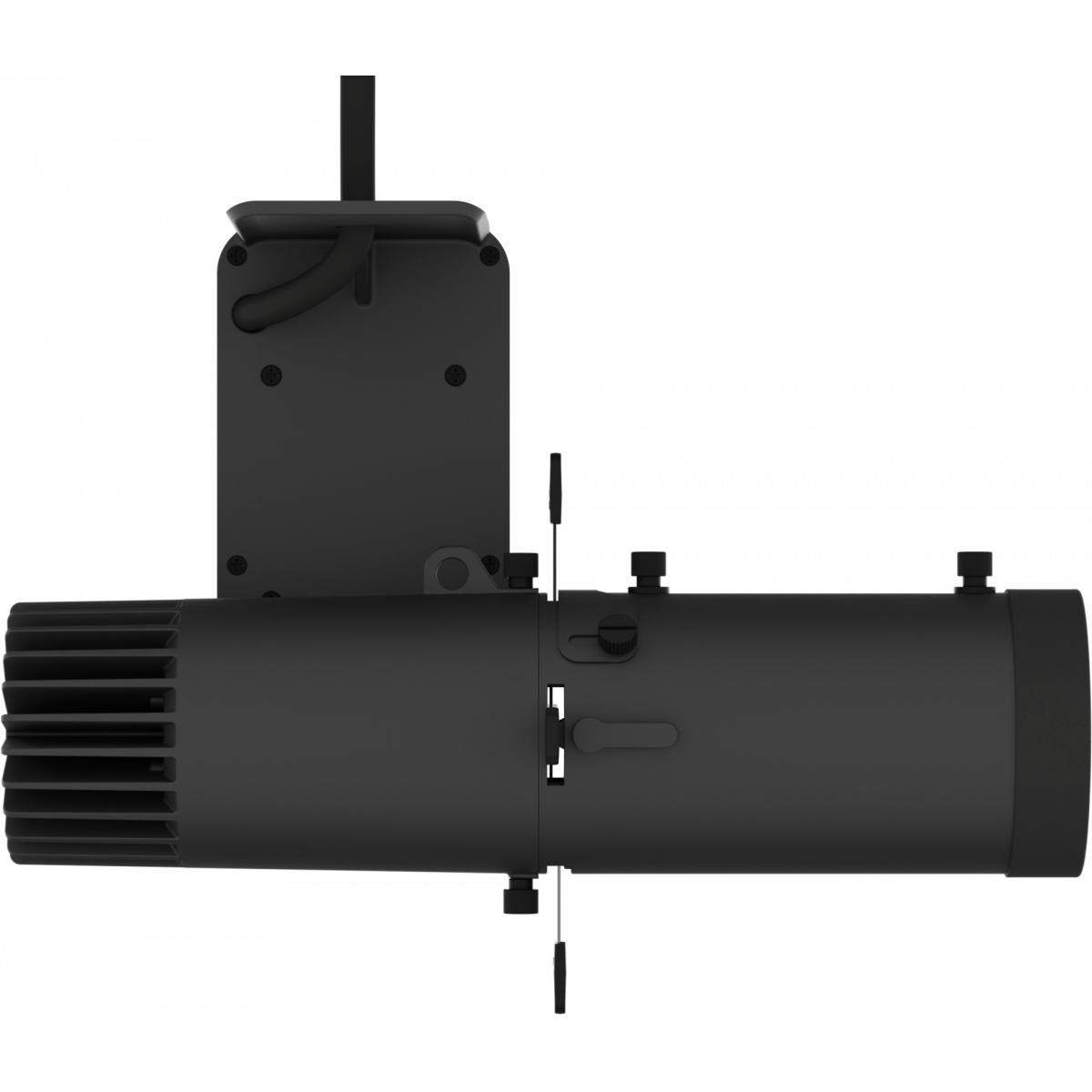

EclDisplay CCFC

40W RGB+WW LED gallery light, Tunable White and Full Colour, constant current to be connected to external PSU & Driver

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application. The EclDisplay CCFC is the version of the EclDisplay range made to be connected to an external Constant Current PSU and driver (max 4 x 1.4A/4.5V), selecting among the PROLIGHTS accessories or any third-party compatible component, leaving to System Integrators to install this luminaire in venues with their own wiring distribution and control. EclDisplay CCFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Main features:

  • Constant Current version to be connected to external PSU and driver (max 4 x 1.4A/4.5V)
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: zoomable profile or wash optics

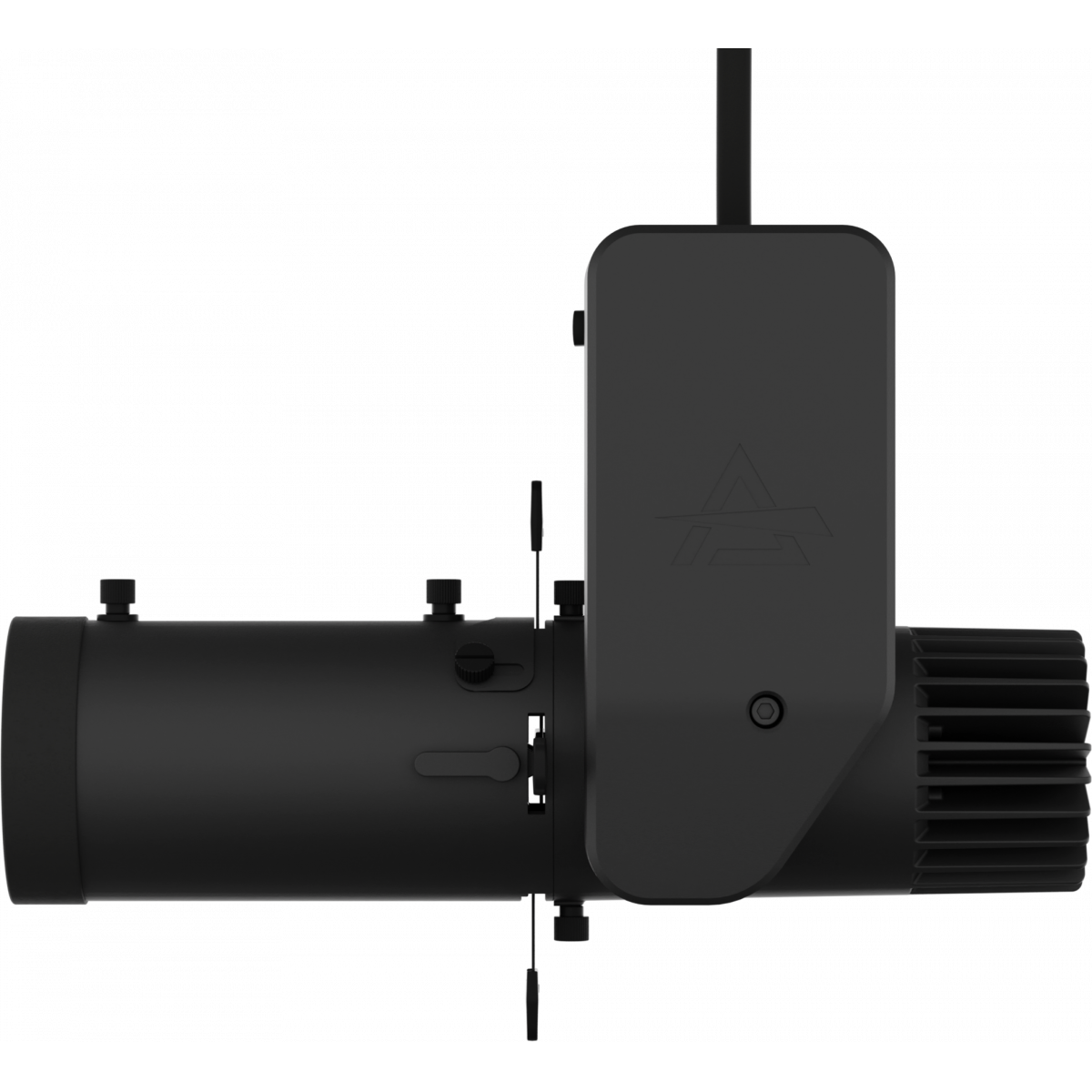

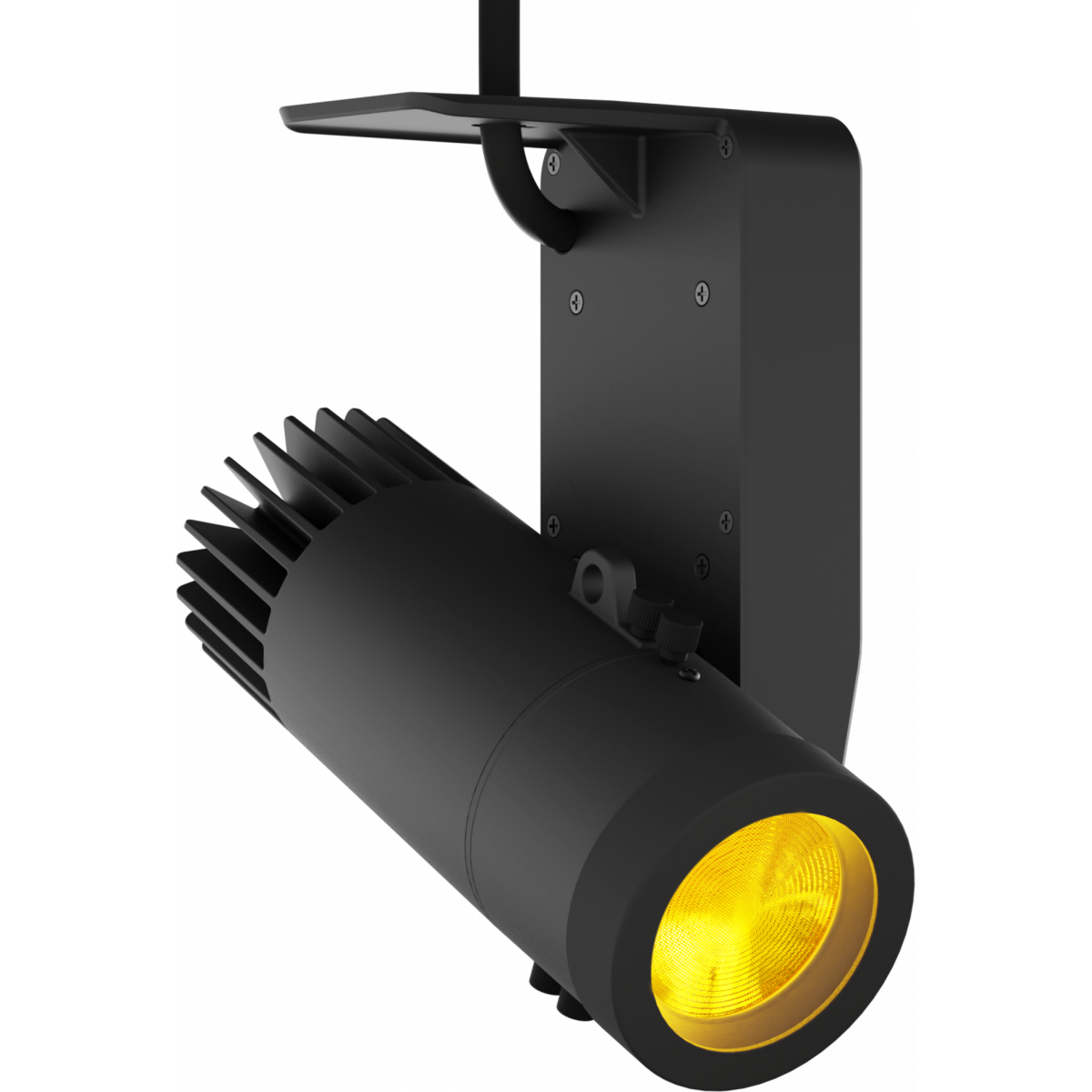

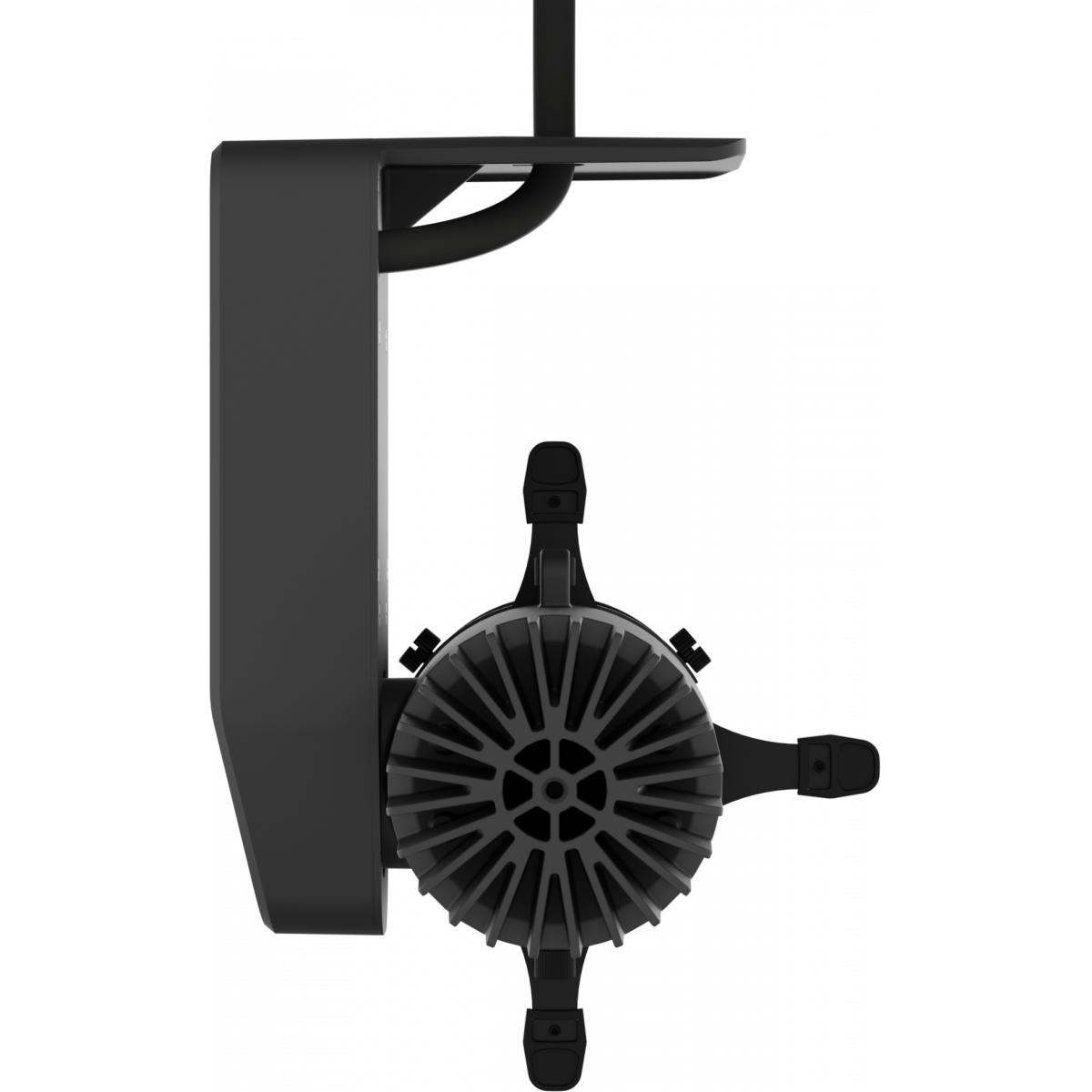

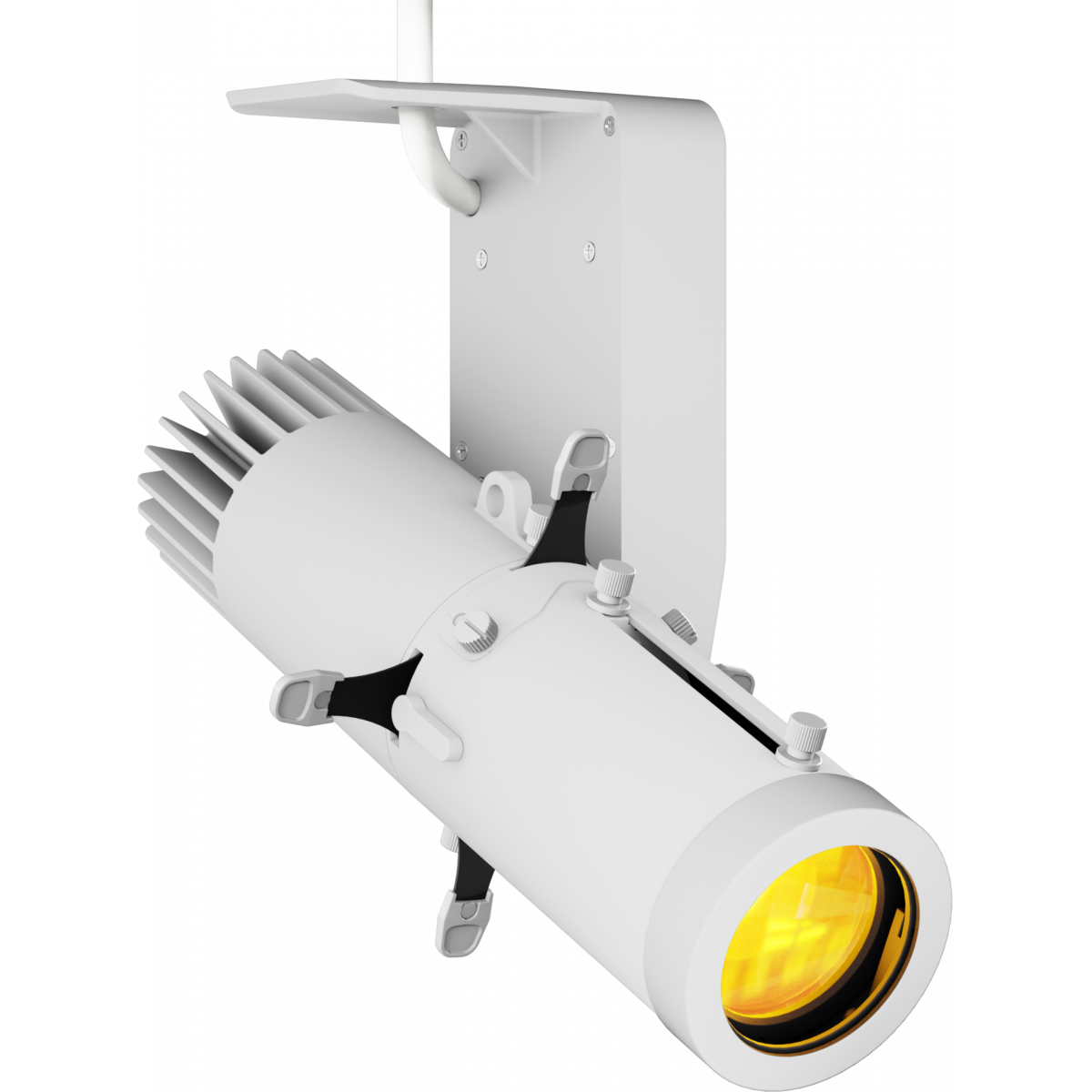

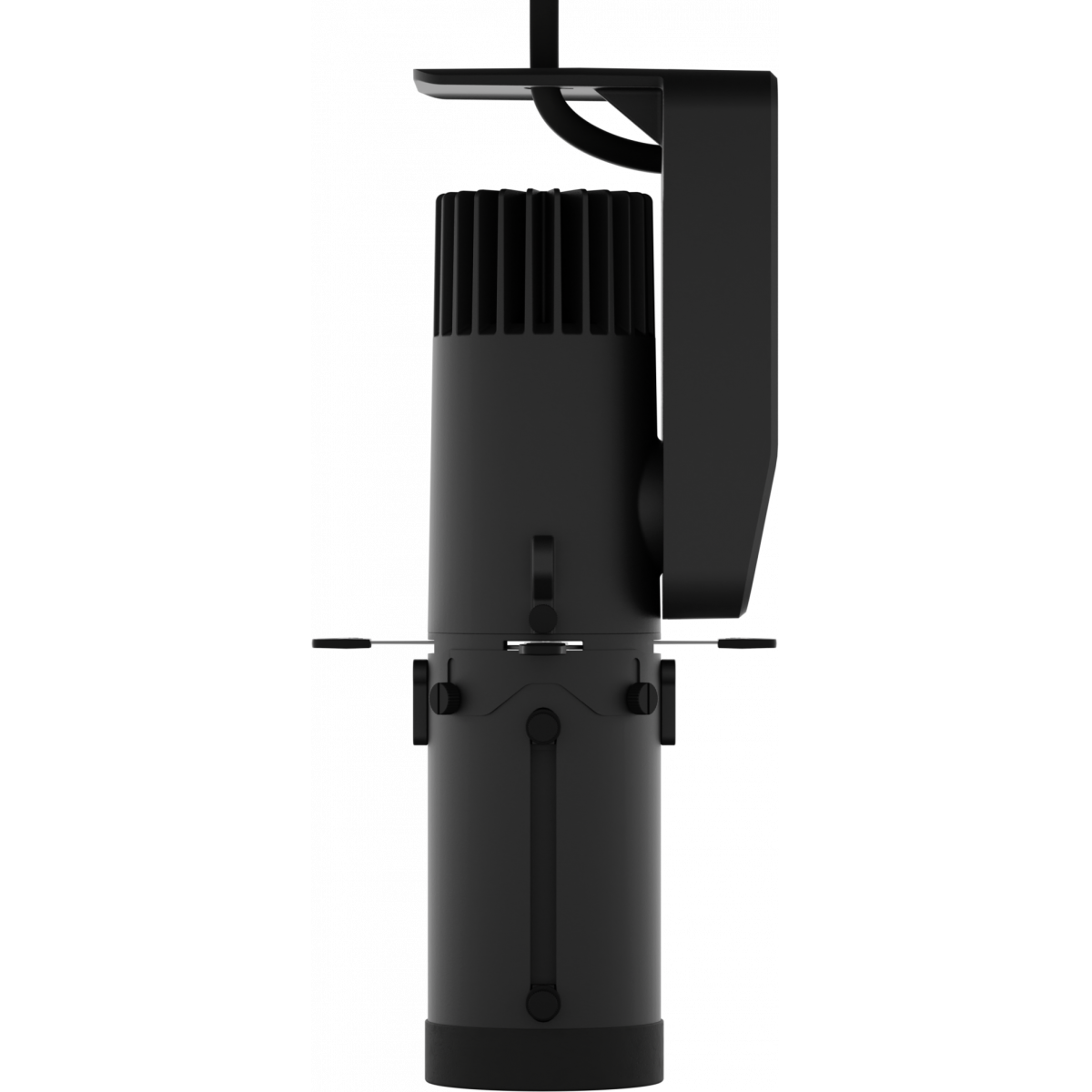

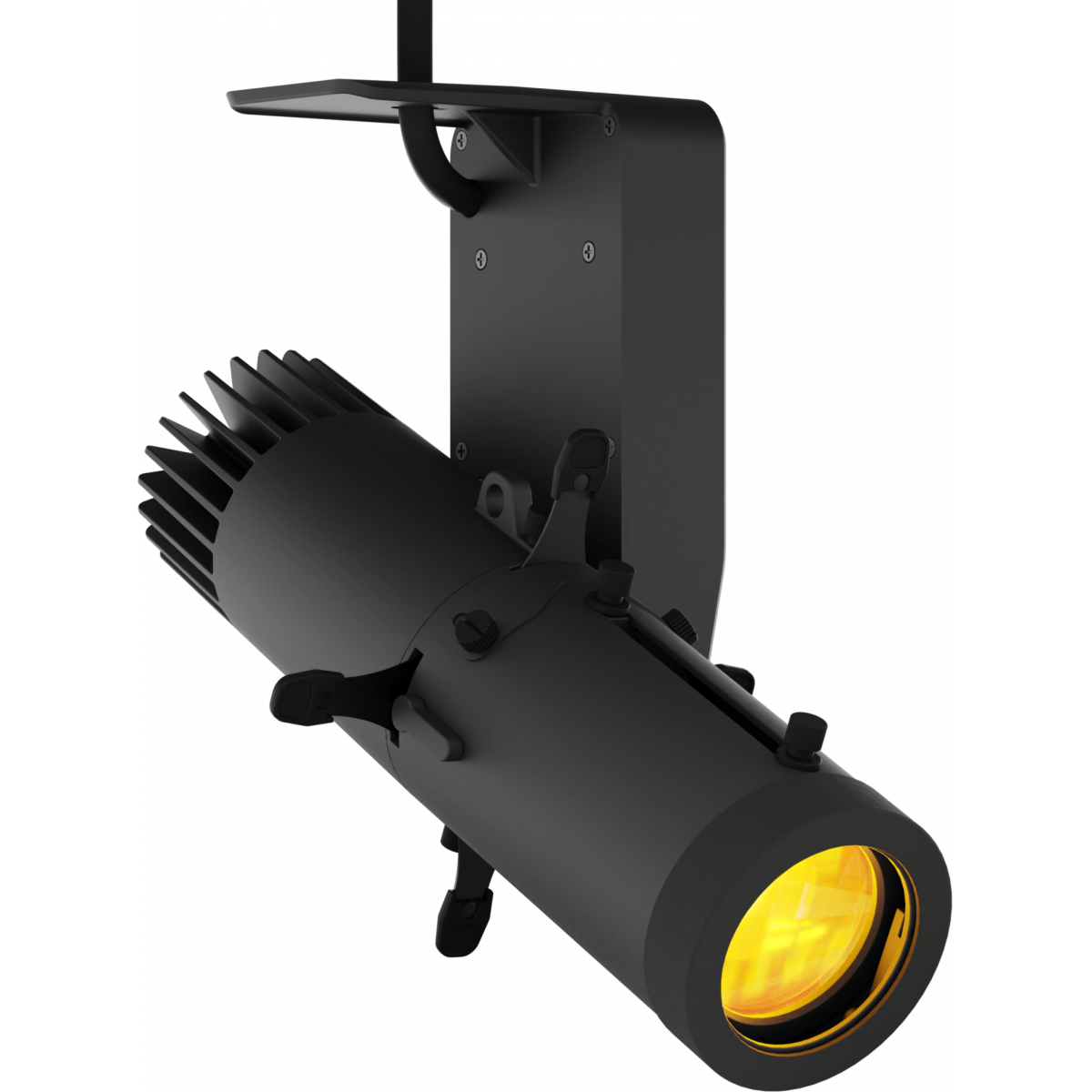

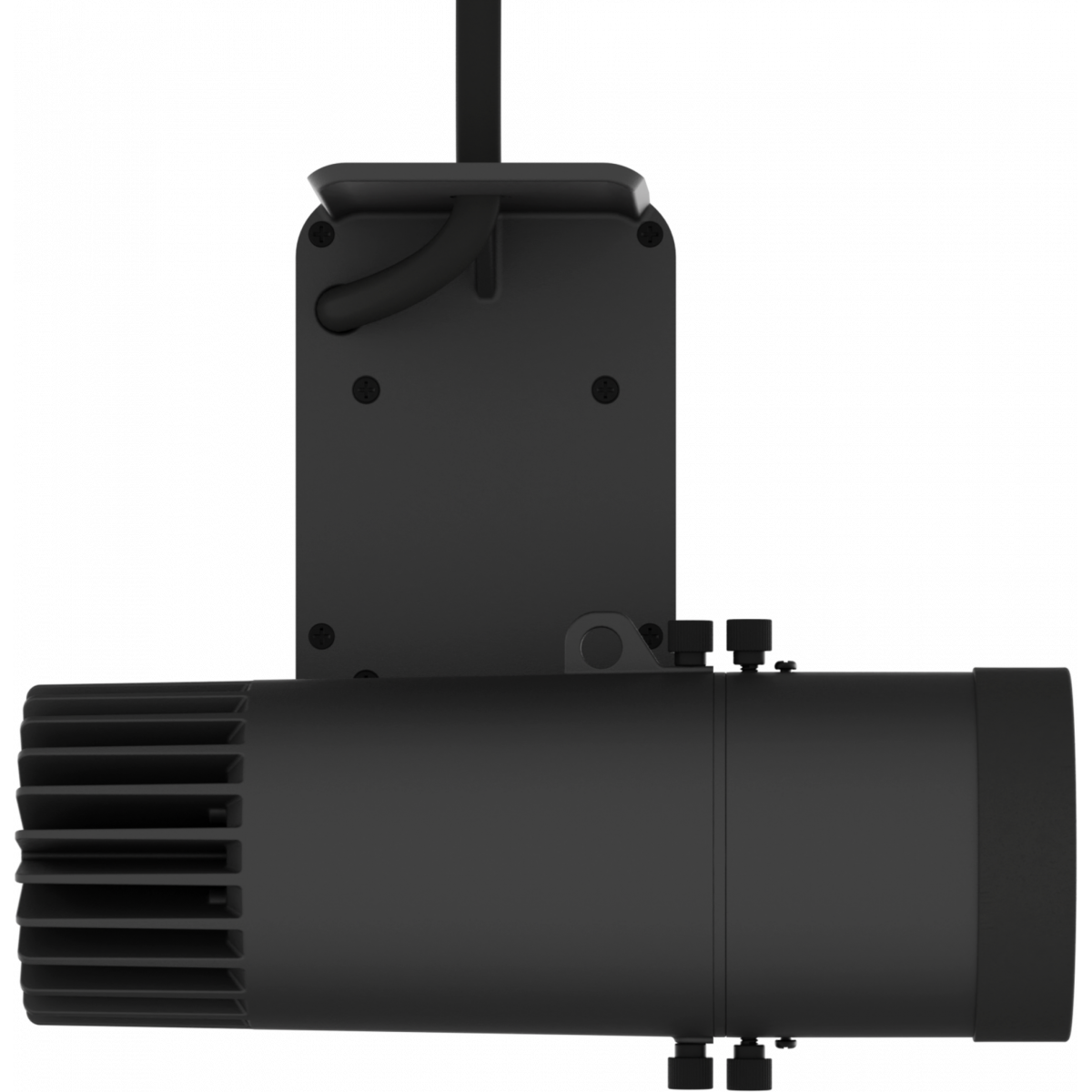

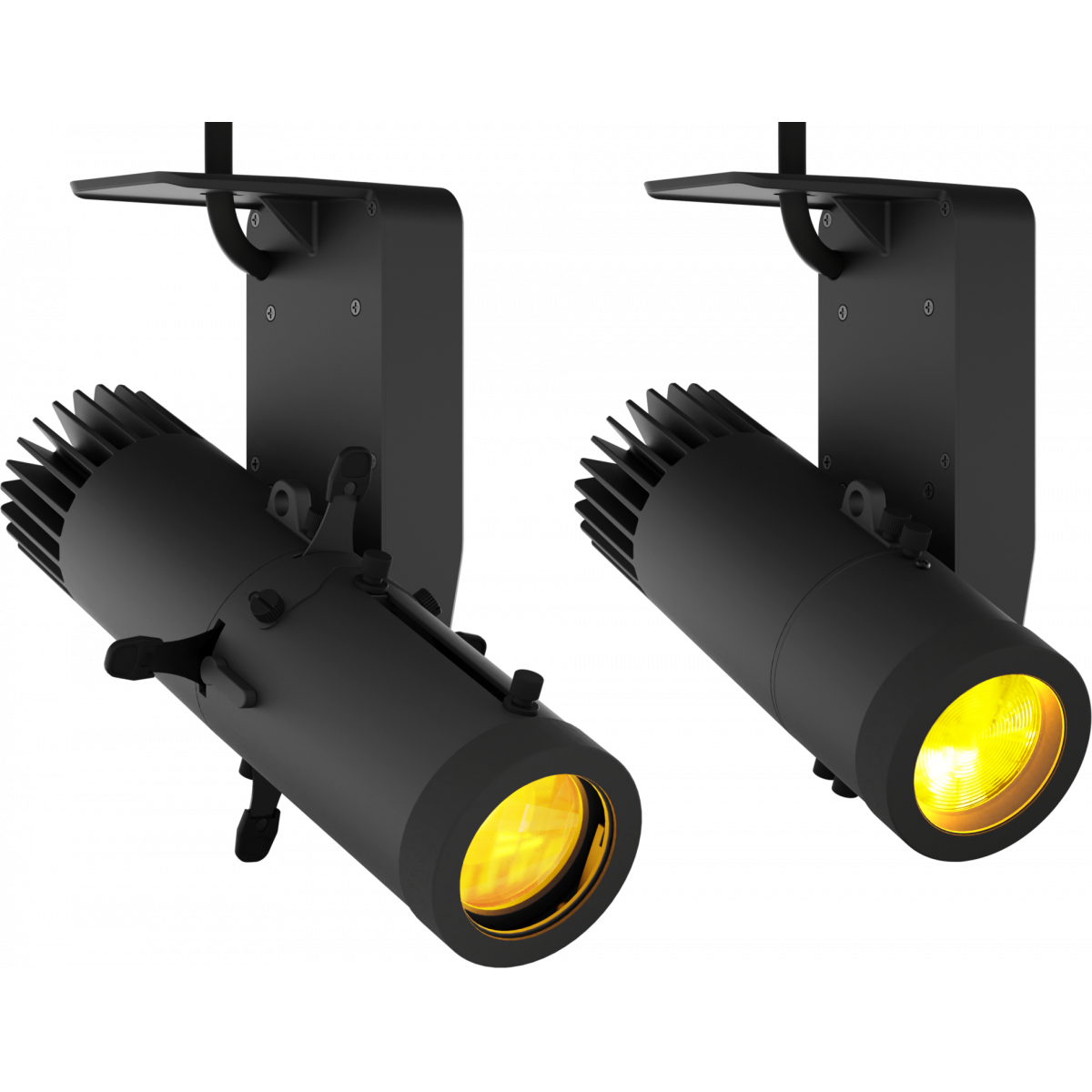

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile - 20°) 366 lm - (profile - 40°) 325 lm; (wash 2550 - min) 308 lm - (wash 2550 - max) 407 lm; (wash 1530 - min) 309 lm - (wash 1530 - max) 343lm @full
  • Lux: (profile - 20°) 194 lx - (profile - 40°) 42lx; (wash 2550 - min) 49 lx - (wash 2550 - max) 20 lx; (wash 1530 - min) 119 lx - (wash 1530 - max) 58lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or fix 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: 1m cable included - Cable diameter range: 6 - 10 mm
ELECTRICAL
  • Constant Current mains: max 4 x 1.4A/4.5V
  • Max power consumption: 30W
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: hanging / ceiling installation
  • Data: screw terminal blocks
  • Dimensions (WxHxD): 124X200x150mm / 4.88''x5.91''
  • Weight: 1,15kg / 2.54lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYCCFCB
ECLDISPLAYCCFCB
Black
Not Included
Not Included
ECLDISPLAYCCFCW
ECLDISPLAYCCFCW
White
Not Included
Not Included

Accessories & Related Products

ECLDISPPRL08B
ECLDISPPRL08B
(optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, black housing
ECLDISPPRL08W
ECLDISPPRL08W
(optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white
<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, white housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, white housing
ECLDISPPRZL1020B
ECLDISPPRZL1020B
(optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black hou
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white hou
ECLDISPPRZL1020W
ECLDISPPRZL1020W
(optional)
Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white
<b>EclDisplay</b> CeilingKit
EclDisplay CeilingKit
(optional)
Ceiling adapter kit for EclDisplay (without flange)
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)
Half Snoot for EclDisplay, black housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)
Full Snoot for EclDisplay, black housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)
Half Snoot for EclDisplay, white housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)
Full Snoot for EclDisplay, white housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)
Anti-glare louvre for EclDisplay, black housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)
Anti-glare louvre for EclDisplay, white housing
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
ECLDISPHNFFB
ECLDISPHNFFB
(optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black
ECLDISPHNFFW
ECLDISPHNFFW
(optional)
Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white
<b>EclDisplay</b> Goboholder
EclDisplay Goboholder
(optional)
Gobo holder for EclDisplay with manual index gear on board, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
Black flange to complete the EclDisplay ceiling adapter kit, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
White flange to complete the EclDisplay ceiling adapter kit, white
<b>ToolBox </b> Pro
ToolBox Pro
(optional)
TOOLbox pro

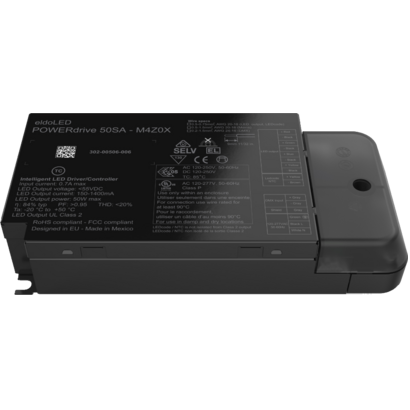

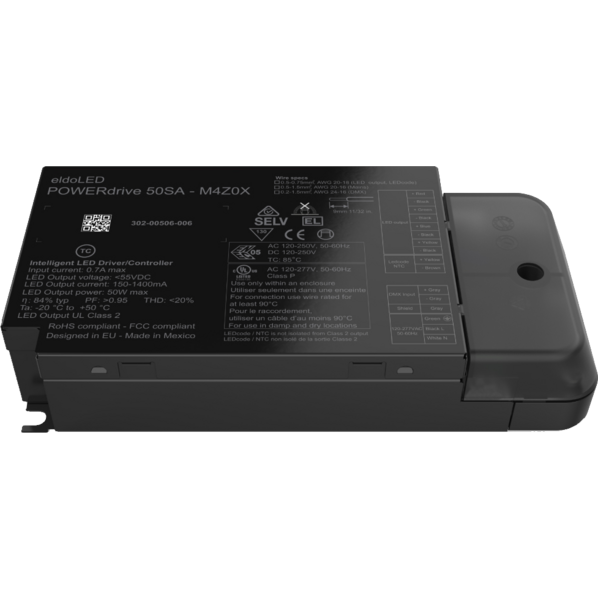

<b>PowerDrive</b> 50SA-M4Z0X
PowerDrive 50SA-M4Z0X
(optional)
POWERdrive AC, 50W, DMX/RDM, 4 control channels, constant current, 4x55V outputs

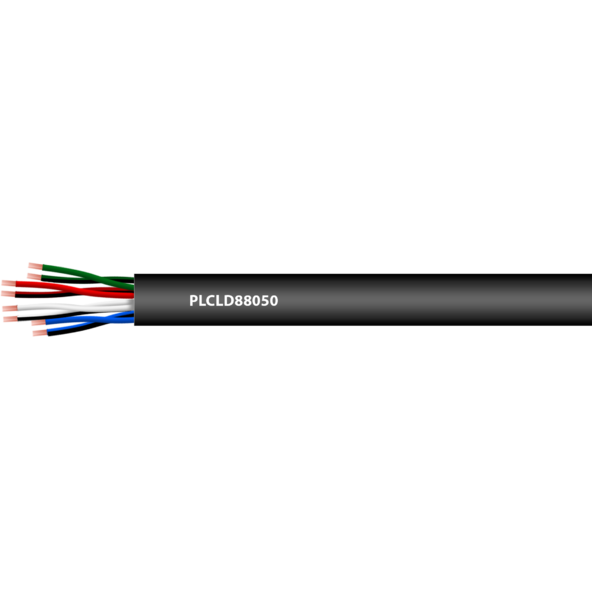

PLCLD88050
PLCLD88050
(included)
LED driver PVC cable black 8x0,5 mmq D=8 colours, 1 meter lenght
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Ecldisplayccfc_A4_DATASHEET_(EN).pdf 3MB
Letter datasheet Ecldisplayccfc_A4_DATASHEET_(IT).pdf 3MB
Tender Specification Ecldisplayccfc_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
User manual Ecldisplayccfc_USER_MANUAL_EN.pdf 6MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 493KB
VectorWorks +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 411KB
VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 415KB
VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 295KB
VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 351KB
VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 295KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB

Photometrics

File name File size Download
IES prolights_ecldisplay(un-dat-cc)fc_profile2040_ies files.zip 21KB
LDT prolights_ecldisplay(un-dat-cc)fc_profile2040_ldt files.zip 16KB
IES prolights_ecldisplay(un-dat-cc)fc_wash 2550_ies files.zip 20KB
LDT prolights_ecldisplay(un-dat-cc)fc_wash 2550_ldt files.zip 16KB
IES prolights_ecldisplay(un-dat-cc)fc_wash1530_ies files.zip 25KB
LDT prolights_ecldisplay(un-dat-cc)fc_wash1530_ldt files.zip 21KB
PDF Photometrics Ecldisplayccfc_WASH25-50_PHOTOMETRIC_REPORT.pdf 4MB
PDF Photometrics Ecldisplayccfc_WASH25-50_PHOTOMETRIC_REPORT.pdf 4MB
PDF Photometrics Ecldisplayccfc_PROFILE20-40_PHOTOMETRIC_REPORT.pdf 3MB
PDF Photometrics Ecldisplayccfc_WASH15-30_PHOTOMETRIC_REPORT.pdf 4MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D revit ECLDISPLAYCCFC_3D_REVIT.zip 1MB
3D sketchup ECLDISPLAYCCFC_3D_SKETCHUP.zip 2MB
2D ECLDISPLAYCCFC_2D.zip 24MB
3D ECLDISPLAYCCFC_3D.zip 2MB
2D cad symbols ECLDISPLAYCCFC_2DSYMBOLS.zip 207KB
Technical drawing ECLDISPLAYCCFC_TECHNICAL DRAWINGS.zip 789KB

Tech docs

File name File size Download

Software

File name File size Download
Software Prolights Dialux Plug-In 0KB

Firmware
