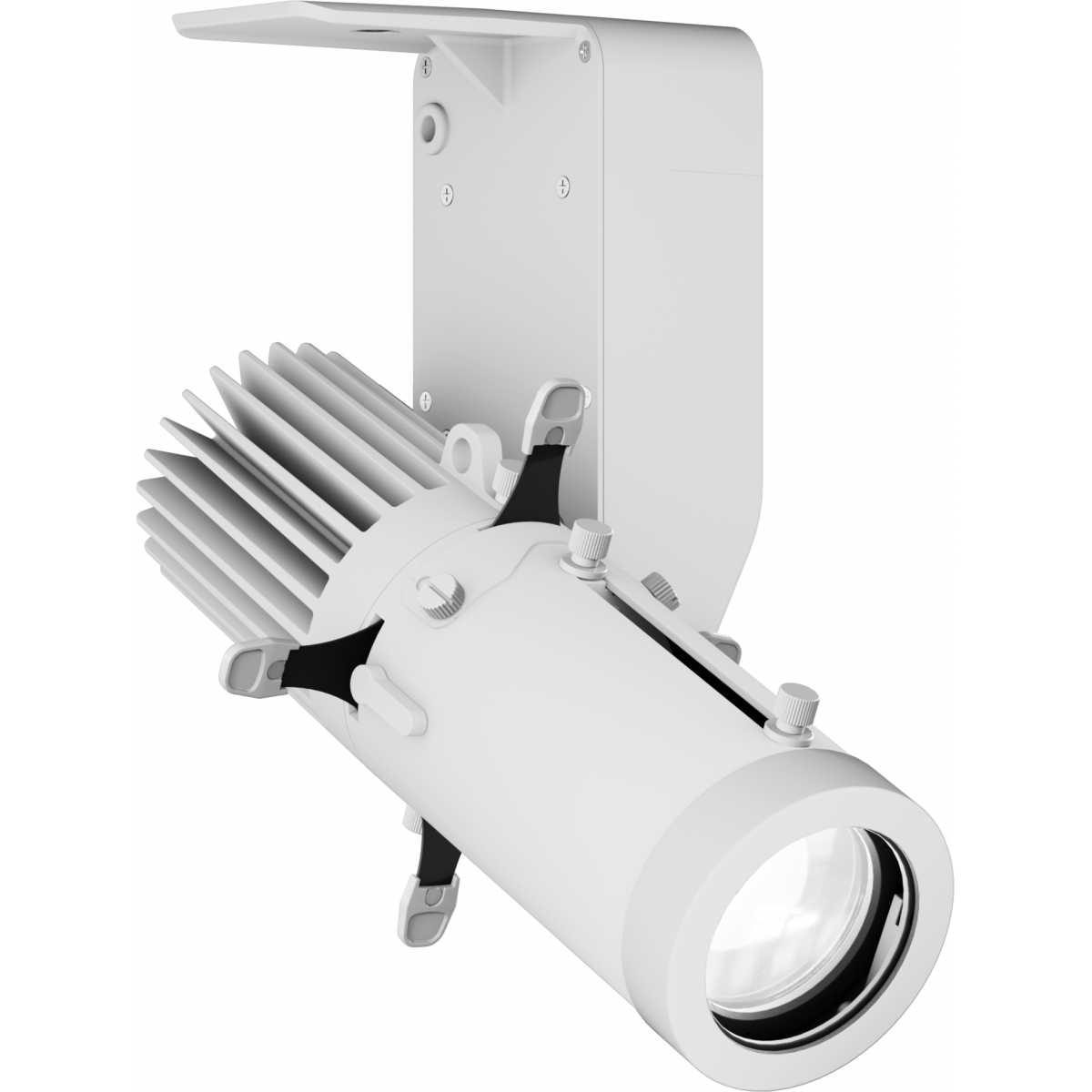

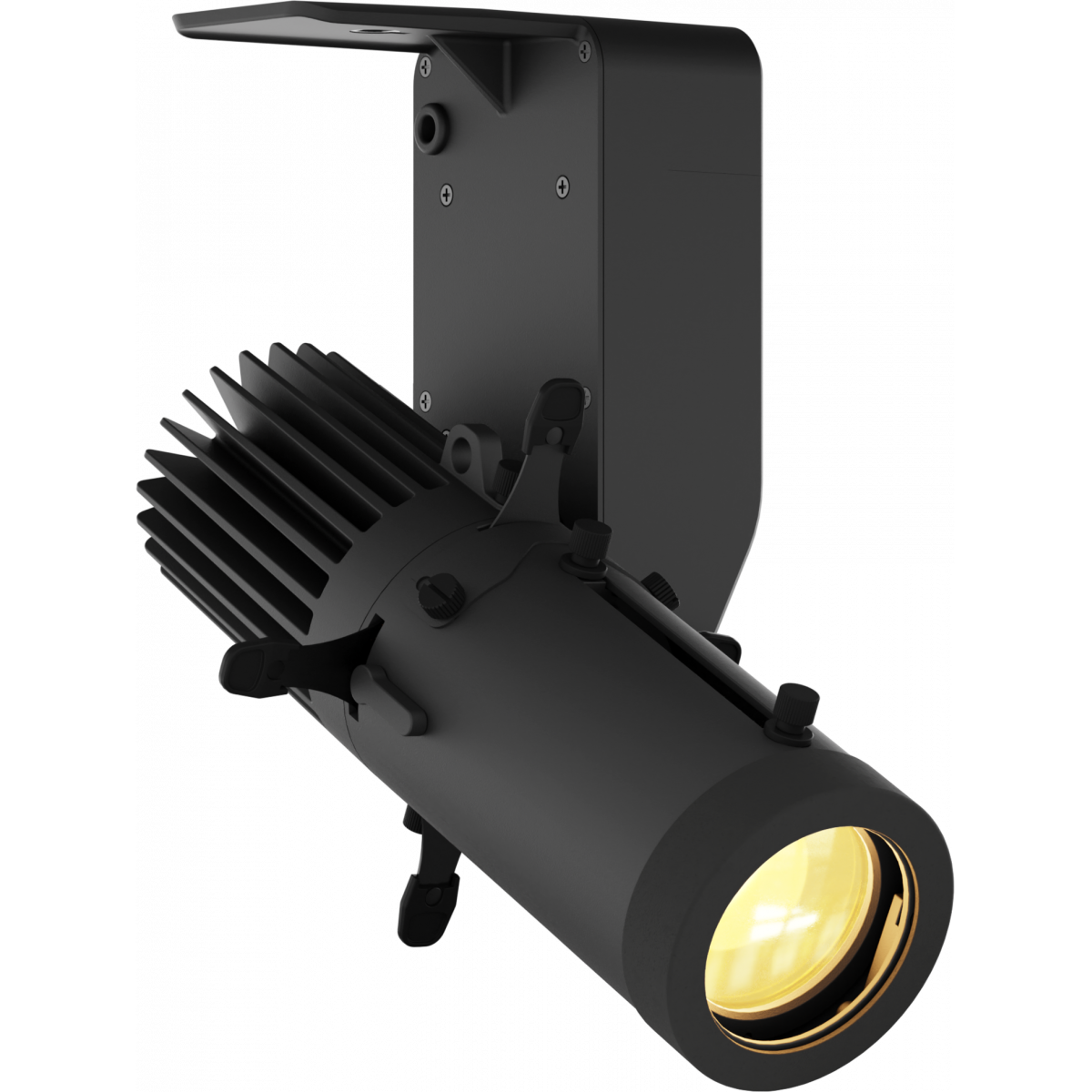

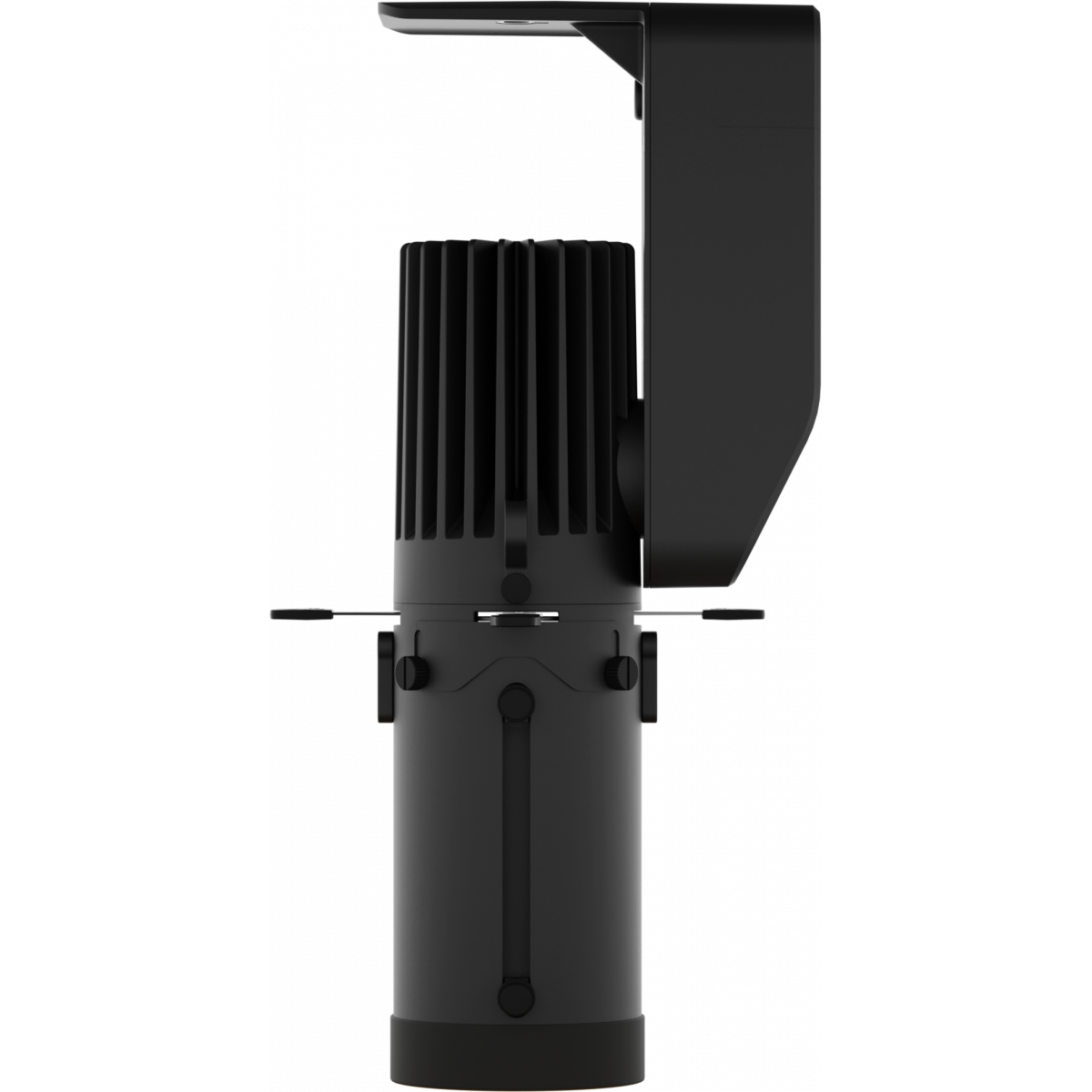

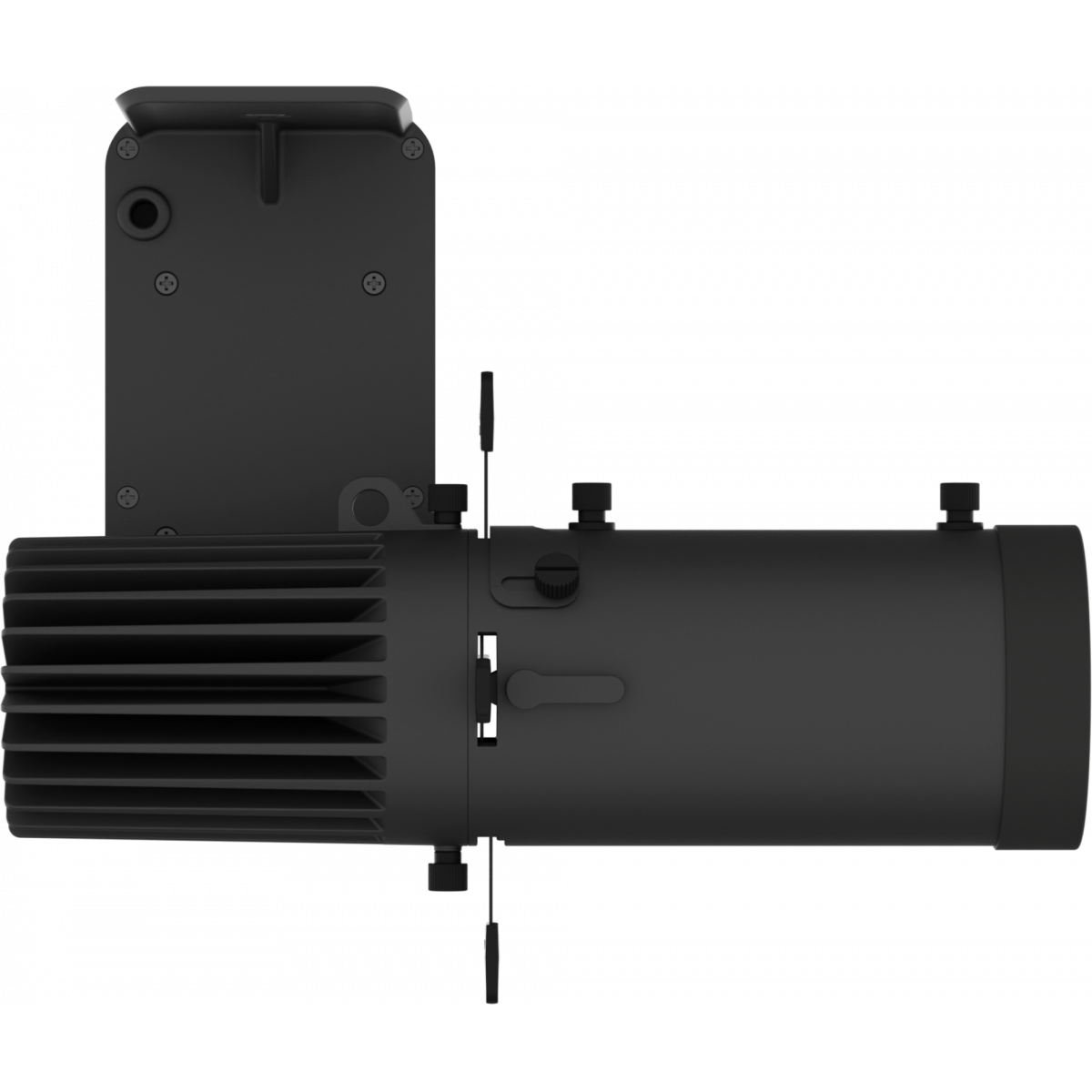

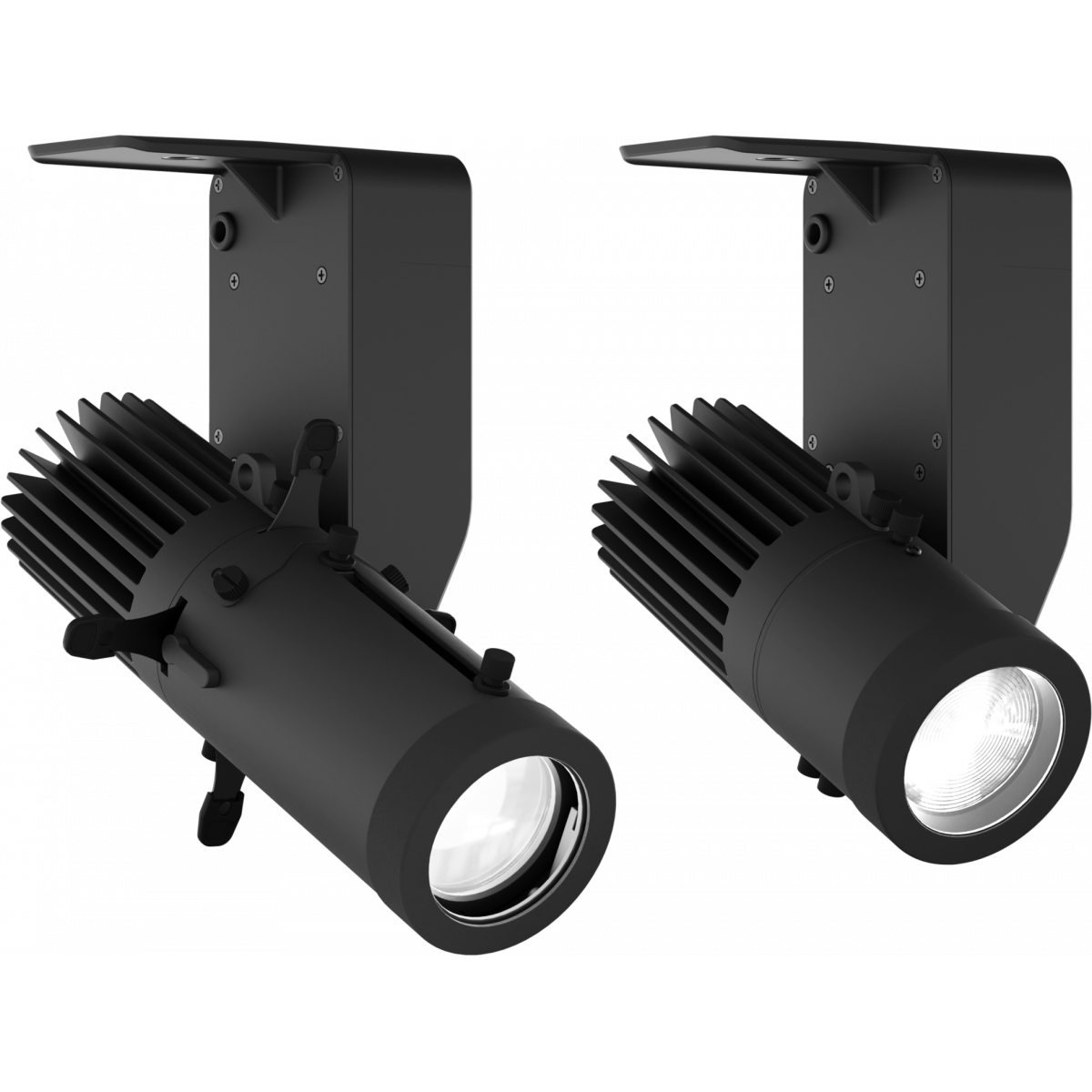

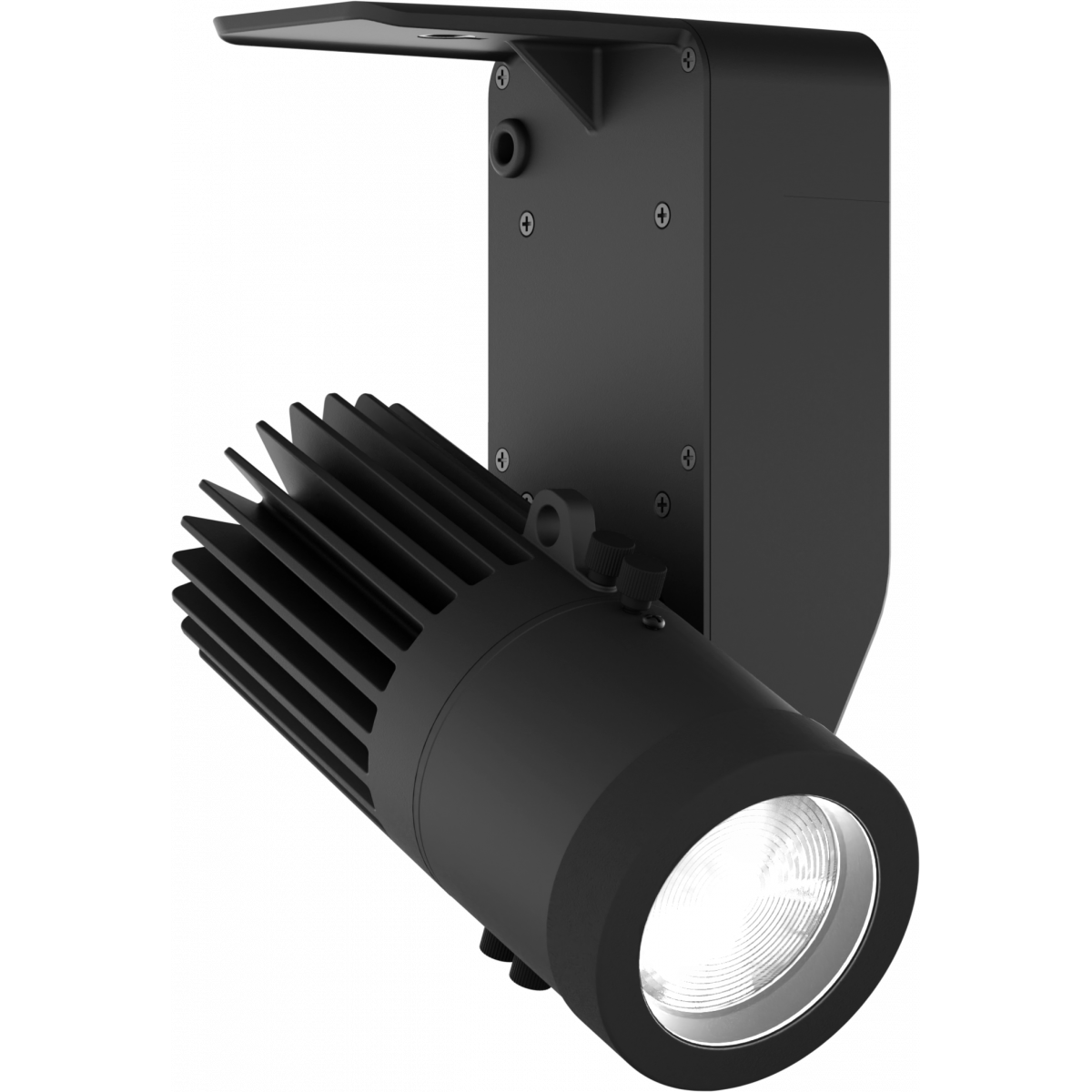

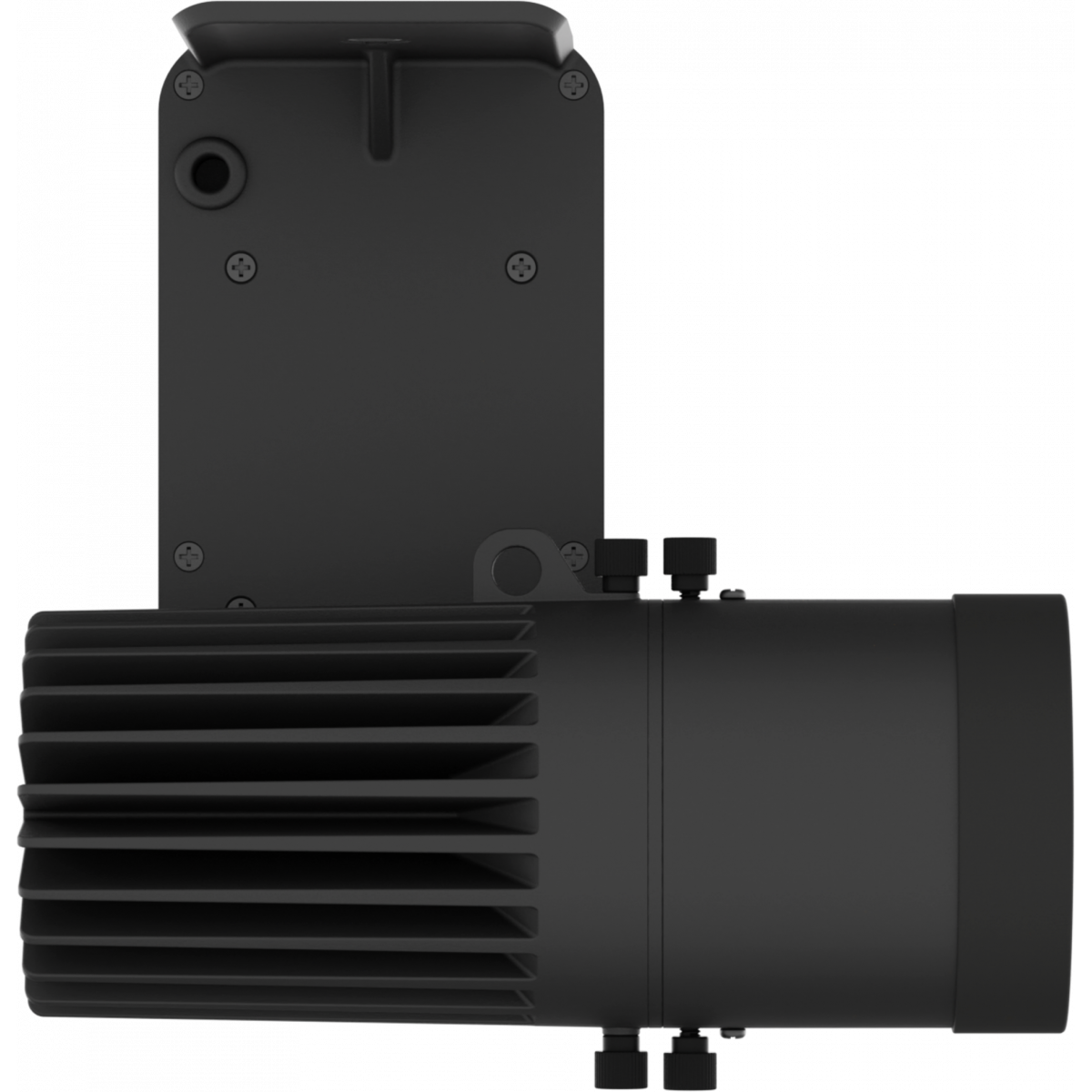

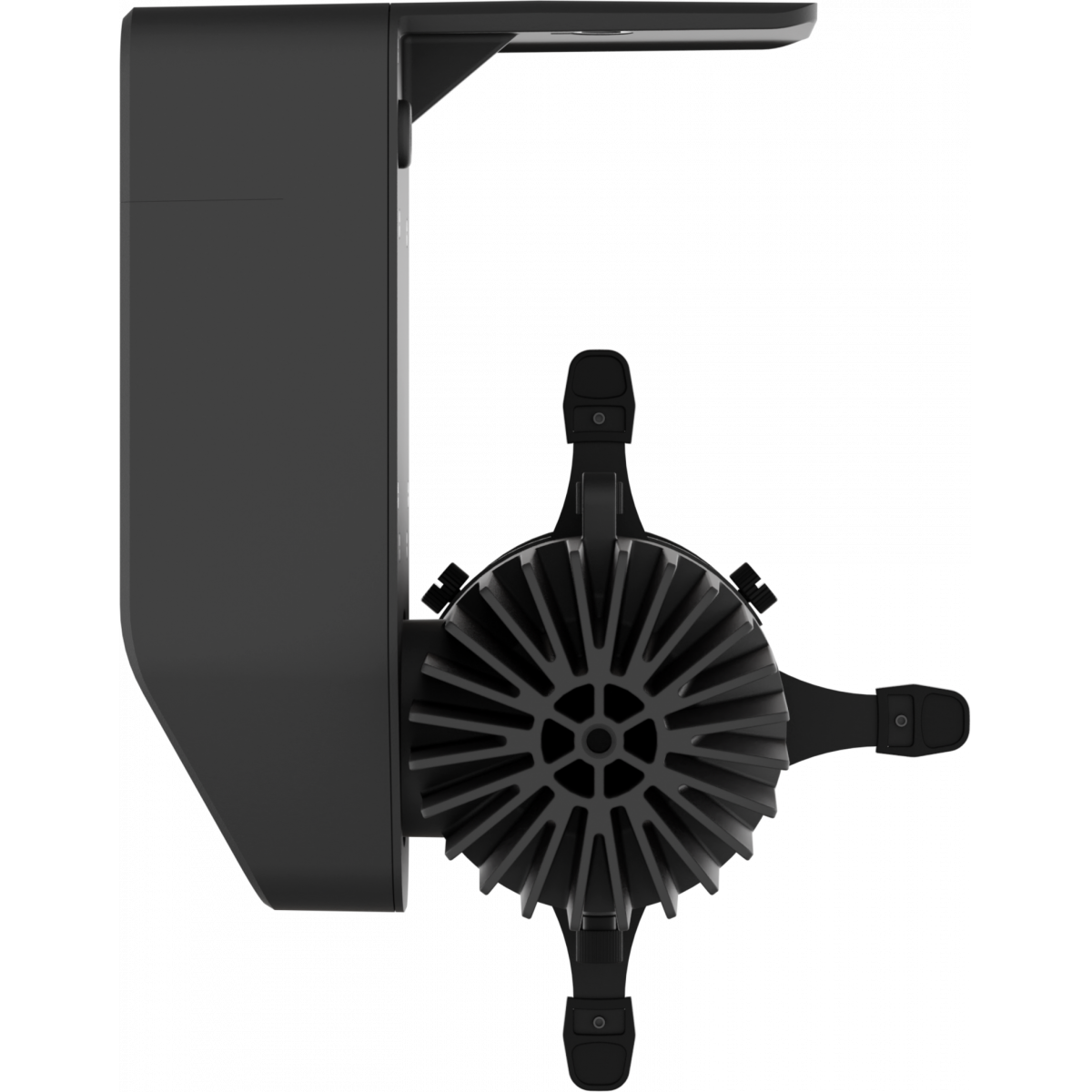

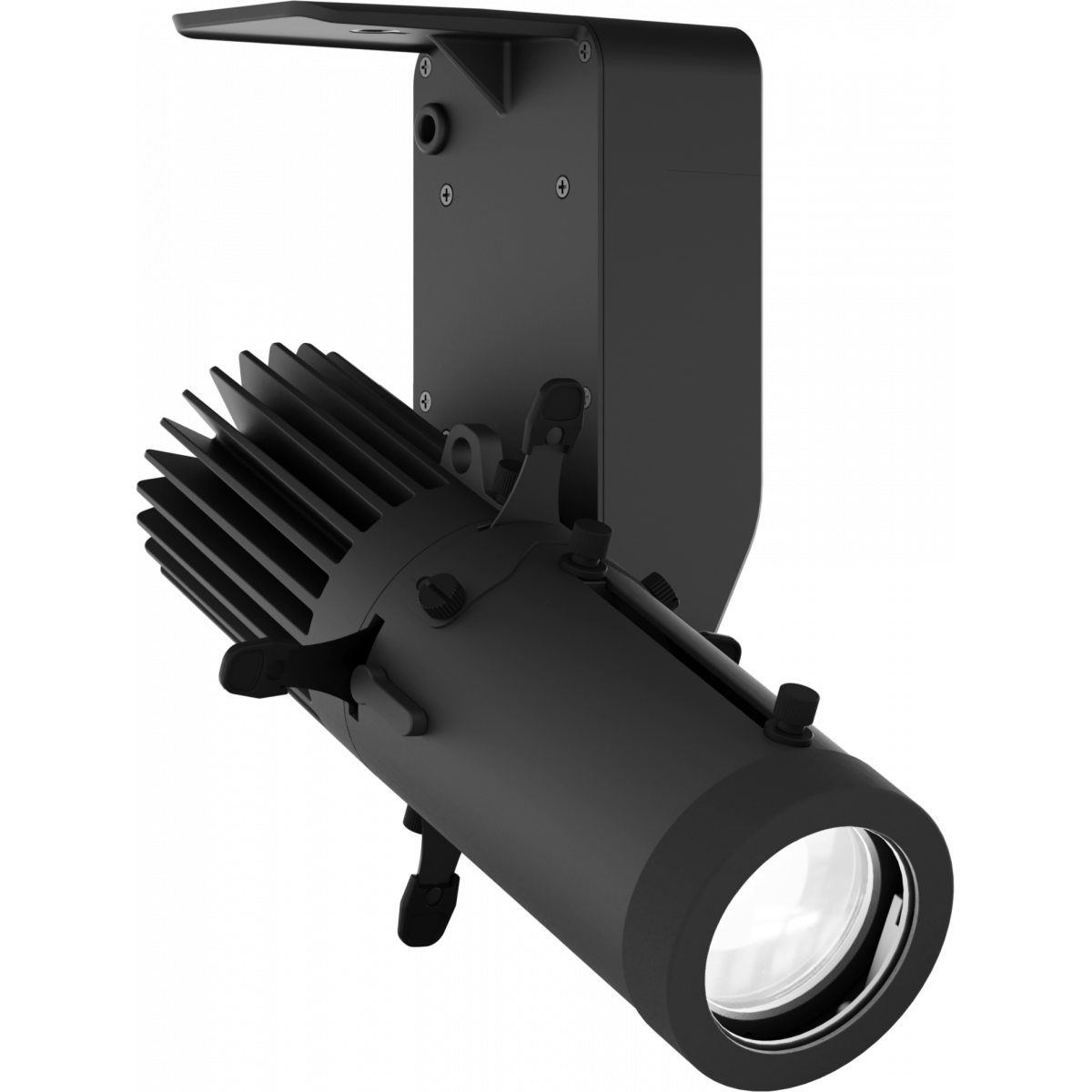

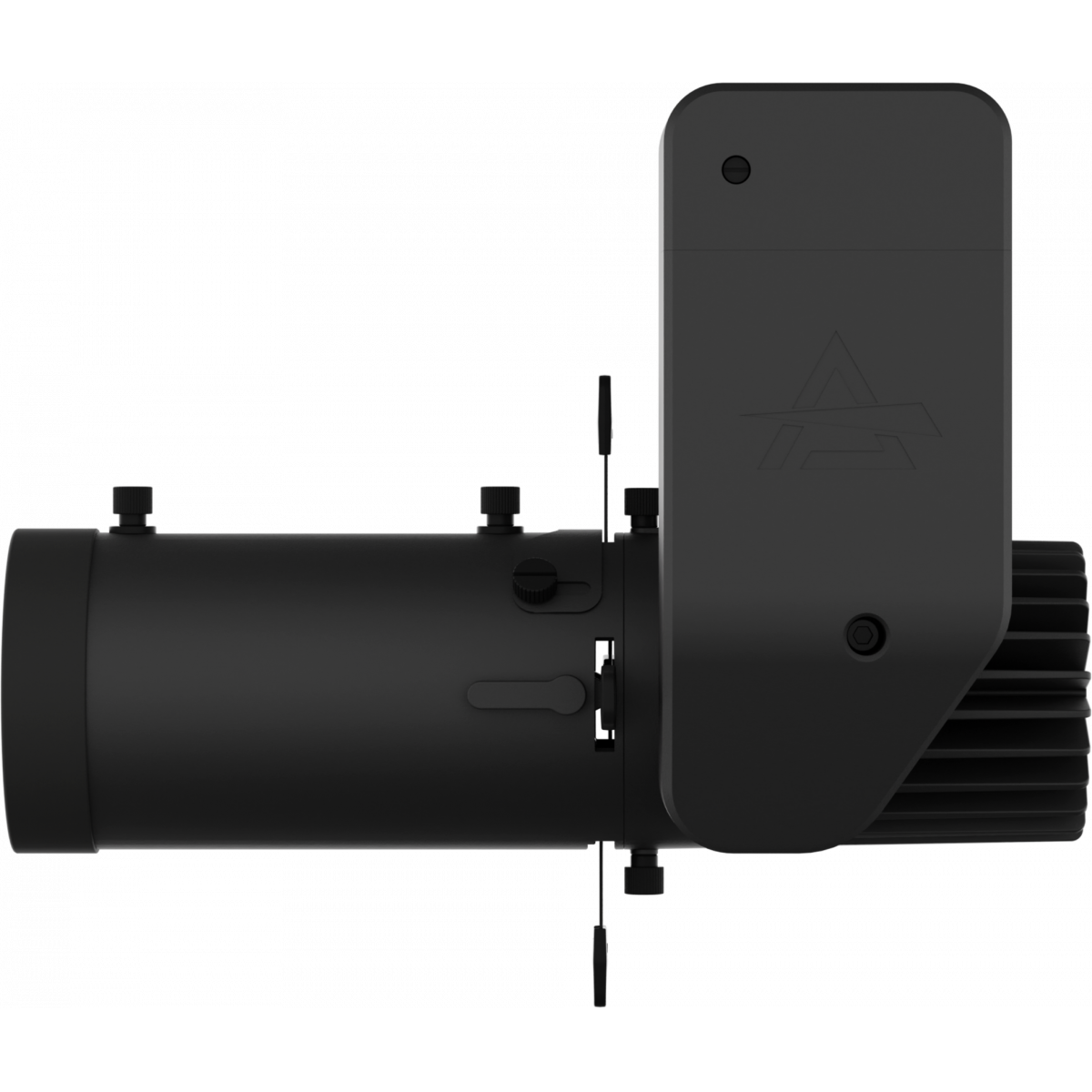

EclDisplay DATWhite

25W White LED Gallery light, with data control (DMX, Dali T6, knob-dimming)

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay DAT can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control. The EclDisplay DAT includes a high-efficiency 25 W White, high CRI LED source, available in 2.700 K, 3.000 K, 4.000 K, 5.600 K variants, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Main features:

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 25W high CRI White LED available in 2.700 K, 3.000 K, 4.000 K, 5.600 K versions, both black and white housing
  • Multiple lens options: zoomable profile or wash optics

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (2.800 K - 17°) 1'498 lm - (2.800 K - 36°) 1'586 lm - (3.000 K - 17°) 1'556 lm - (3.000 K - 36°) 1'676lm @full
  • Luminous flux: (4.000 K - 17°) 1'576 lm - (4.000 K - 36°) 1'810 lm - (5.600 K - 17°) 1'631 lm - (5.600 K - 36°) 1'869 lm @ full
  • Lux: (2.800 K - 17°) 825 lx - (2.800 K - 36°) 221 lx - (3.000 K - 17°) 1'556 lx - (3.000 K - 17°) 887 lx - (3.000 K - 36°) 241 LX - (4.000 K - 17°) 923 lx - (4.000 K - 36°) 245 lx - (5.600 K - 17°) 964 lx - (5.600 K - 36°) 256lx @5 m full
  • CRI: 90.5 @2.800 K; 90 @3.000 K; 92.9 @4.000 K; 90.5 @5.600 K
  • TLCI: 87 @2.800 K; 88 @3.000 K; 94 @4.000 K; 93 @5.600 K
  • TM30 Rf: > 89 @2.800 K and 3.000 K; > 91 @4.000 K; > 88 @5.600 K
  • TM30 Rg: < 101 @2.800 K and 3.000 K; > 99 @4.000 K; < 101 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 20° ~ 40°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 33W
  • Power factor: > 0,95
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x115.5mm / 5.55''x4.55''
  • Weight: 1,4kg / 3.09lbs

Versions

Code
CT
Finishing
Track adapter
ECLDISPLAYDAT27KB
ECLDISPLAYDAT27KB
2700K
Black
Not included
ECLDISPLAYDAT30KB
ECLDISPLAYDAT30KB
3000K
Black
Not included
ECLDISPLAYDAT40KB
ECLDISPLAYDAT40KB
4000K
Black
Not included
ECLDISPLAYDAT56KB
ECLDISPLAYDAT56KB
5600K
Black
Not included
ECLDISPLAYDAT27KW
ECLDISPLAYDAT27KW
2700K
White
Not included
ECLDISPLAYDAT30KW
ECLDISPLAYDAT30KW
3000K
White
Not included
ECLDISPLAYDAT40KW
ECLDISPLAYDAT40KW
4000K
White
Not included
ECLDISPLAYDAT56KW
ECLDISPLAYDAT56KW
5600K
White
Not included

Accessories & Related Products

RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black

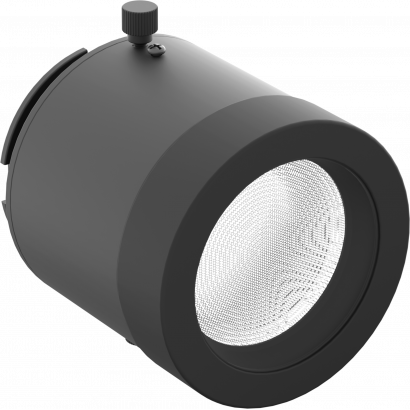

<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, black housing

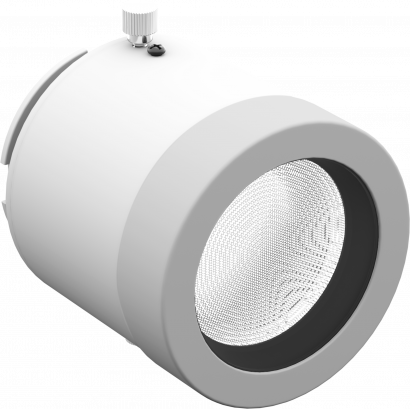

<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, white housing

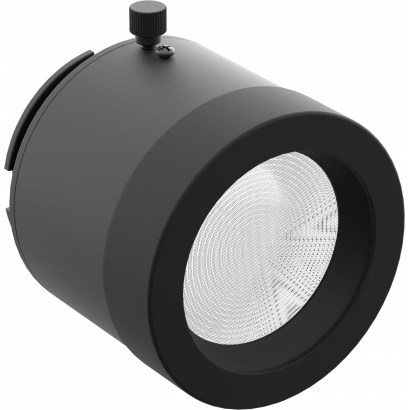

<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, white housing

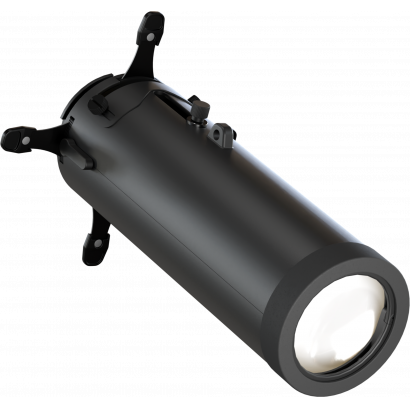

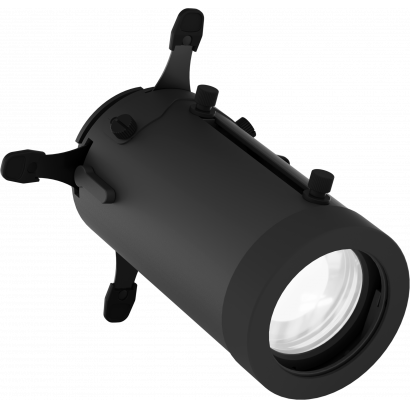

<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black hou

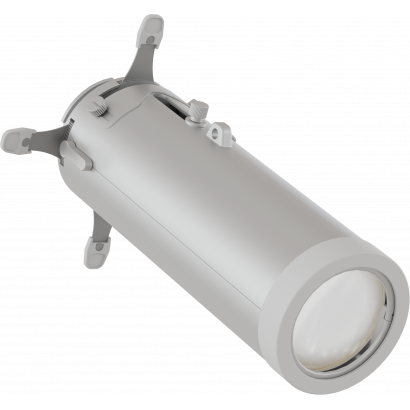

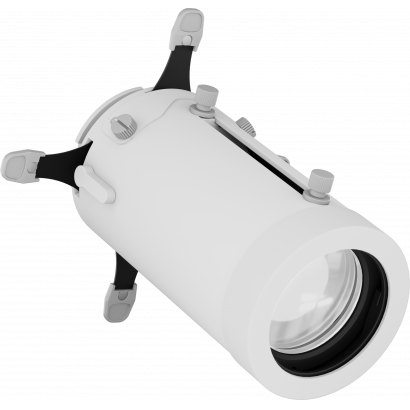

<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)
Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white hou

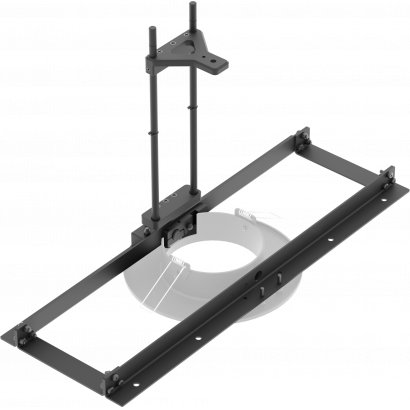

<b>EclDisplay</b> CeilingKit
EclDisplay CeilingKit
(optional)
Ceiling adapter kit for EclDisplay (without flange)

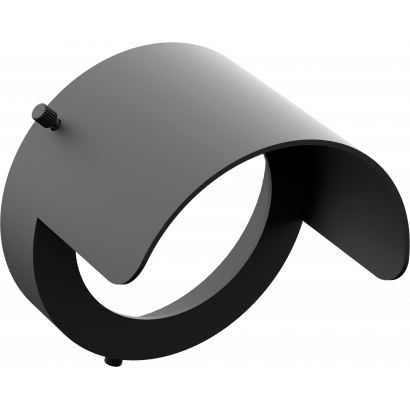

<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)
Half Snoot for EclDisplay, black housing

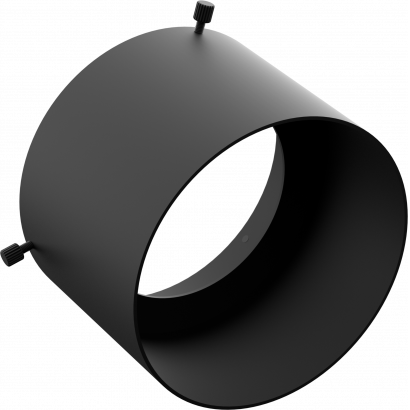

<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)
Full Snoot for EclDisplay, black housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)
Half Snoot for EclDisplay, white housing

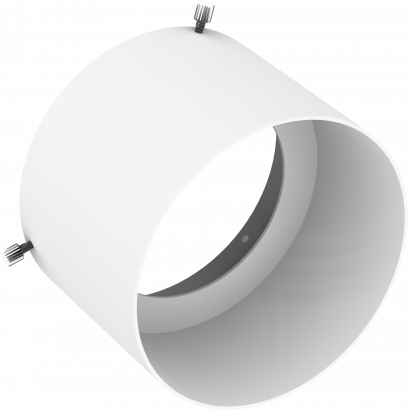

<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)
Full Snoot for EclDisplay, white housing

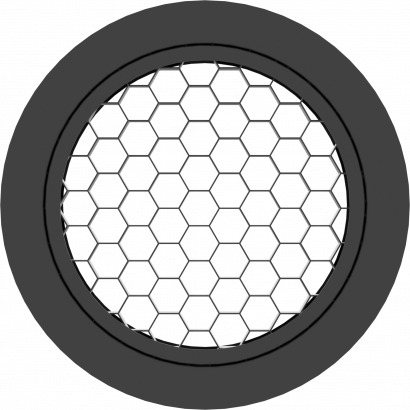

<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)
Anti-glare louvre for EclDisplay, black housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)
Anti-glare louvre for EclDisplay, white housing

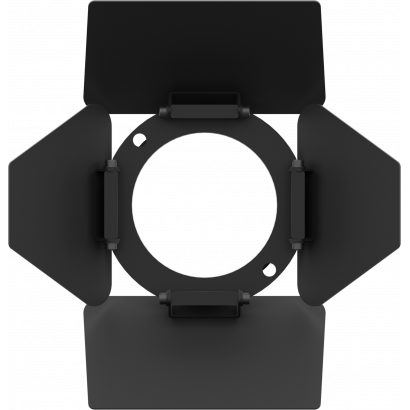

<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black

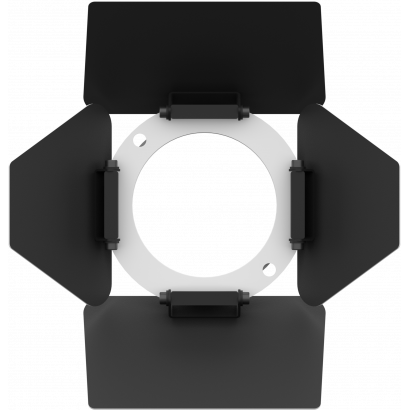

<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white

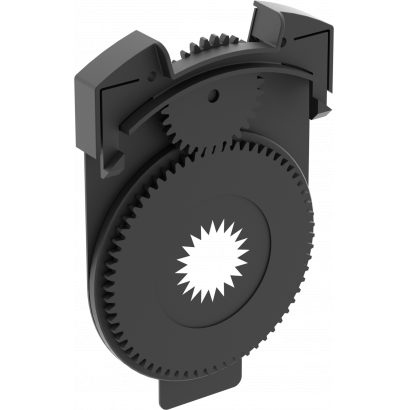

<b>EclDisplay</b> Goboholder
EclDisplay Goboholder
(optional)
Gobo holder for EclDisplay with manual index gear on board, black

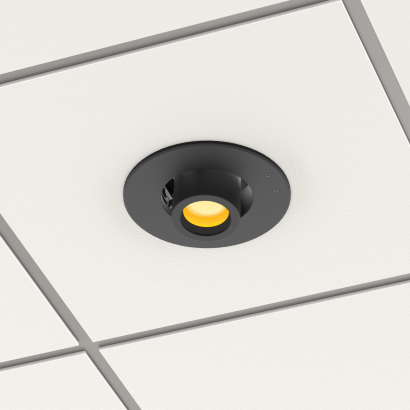

<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
Black flange to complete the EclDisplay ceiling adapter kit, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
White flange to complete the EclDisplay ceiling adapter kit, white

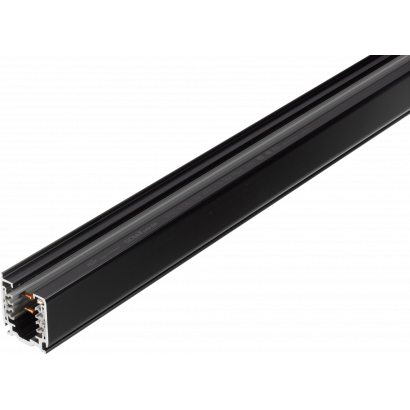

NAXTSC61002
NAXTSC61002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, black
NAXTSC61003
NAXTSC61003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, white
NAXTSC62002
NAXTSC62002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, black

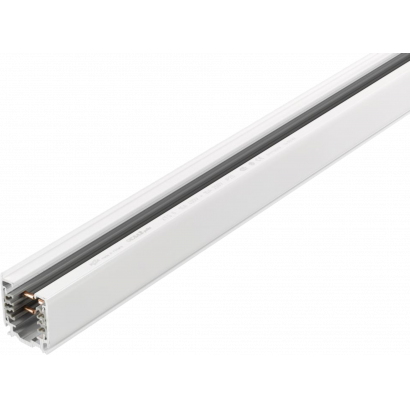

NAXTSC62003
NAXTSC62003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, white
NAXTSC63002
NAXTSC63002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, black
NAXTSC63003
NAXTSC63003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, white
NAXTSC64002
NAXTSC64002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, black
NAXTSC64003
NAXTSC64003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, white
NAXTSC6112
NAXTSC6112
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black

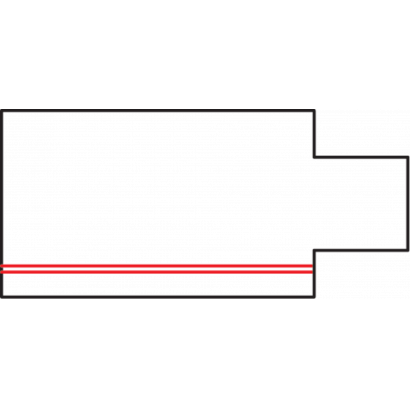

NAXTSC6113
NAXTSC6113
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black

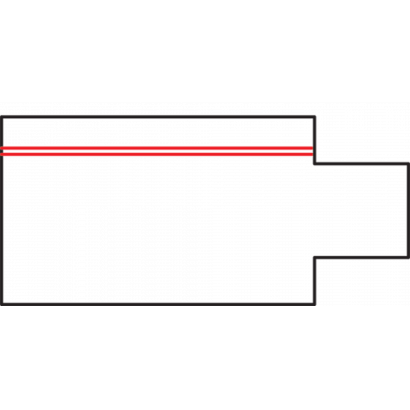

NAXTSC6123
NAXTSC6123
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white

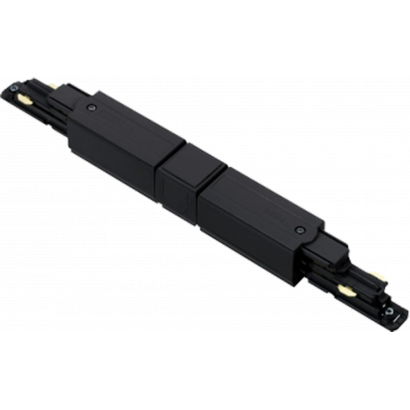

NAXTSC6142
NAXTSC6142
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black

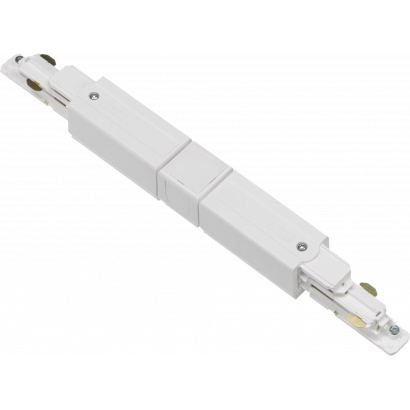

NAXTSC6143
NAXTSC6143
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white

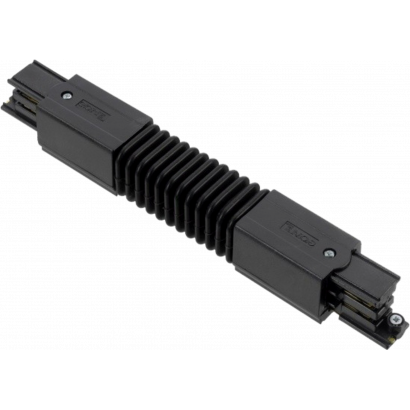

NAXTSC6232
NAXTSC6232
(optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black

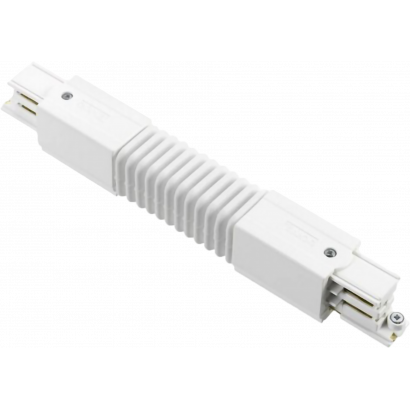

NAXTSC6233
NAXTSC6233
(optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black

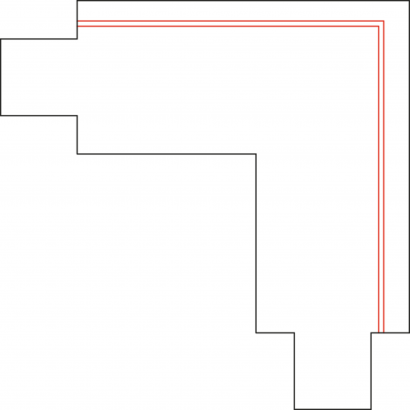

NAXTSNC6353
NAXTSNC6353
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white

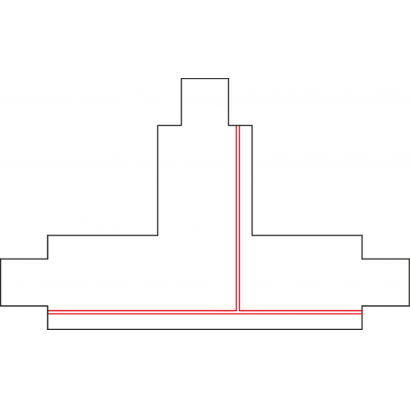

NAXTSNC6362
NAXTSNC6362
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(optional)

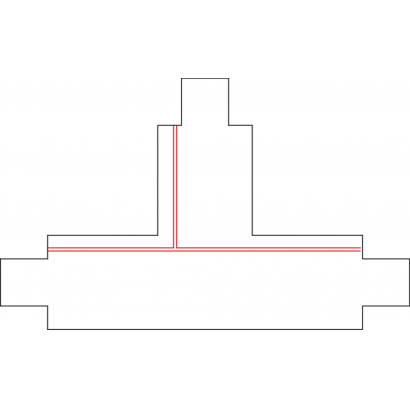

Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white

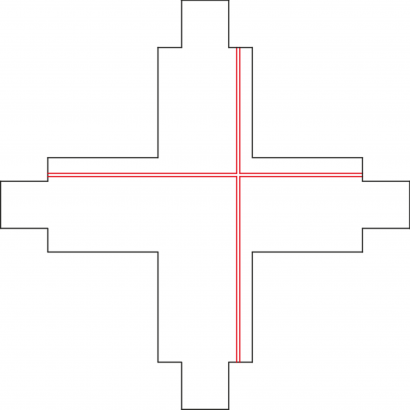

NAXTSNC6382
NAXTSNC6382
(optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black

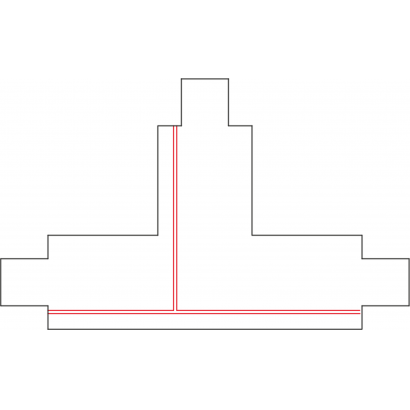

NAXTSNC6393
NAXTSNC6393
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black

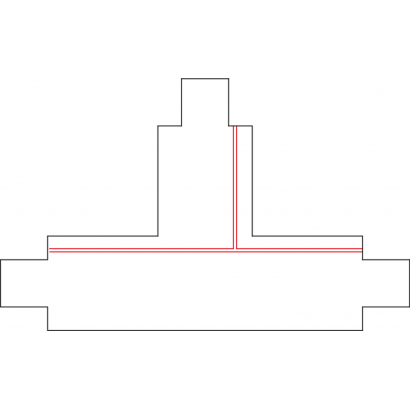

NAXTSNC6403
NAXTSNC6403
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white

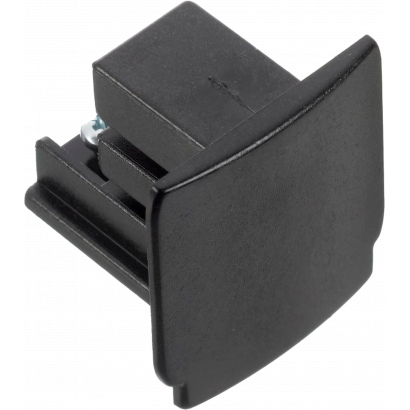

NAXTS412
NAXTS412
(optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black

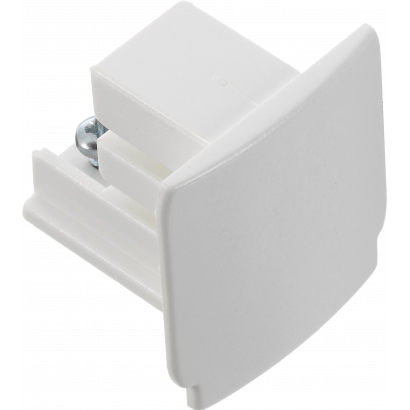

NAXTS413
NAXTS413
(optional)
Global Pulse XTS Connector 3-CCT DALI END cap, white
NAXTSA682
NAXTSA682
(optional)
Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, black
NAXTSA683
NAXTSA683
(optional)
Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, white
NAGAC6002
NAGAC6002
(optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, black
NAGAC6003
NAGAC6003
(optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, wihte
NASPW12SK215M
NASPW12SK215M
(optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black

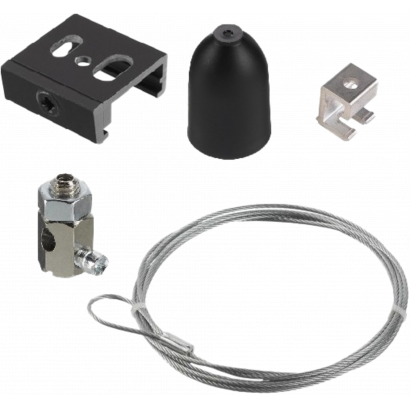

NASPW12SK25M
NASPW12SK25M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, black

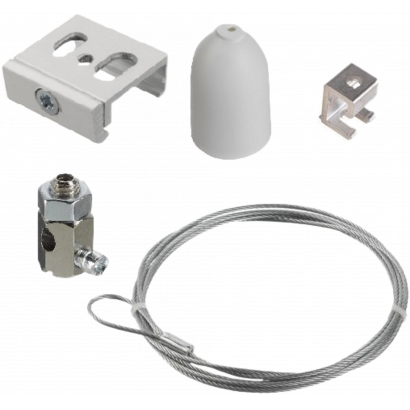

NASPW12SK315M
NASPW12SK315M
(optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NAXTSA57129
NAXTSA57129
(optional)

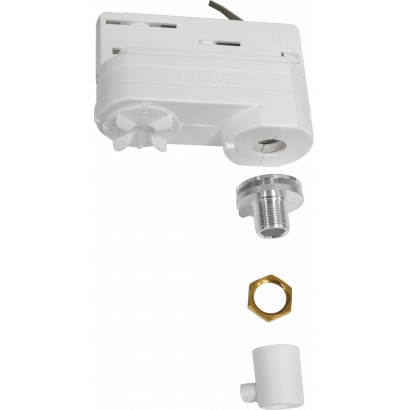

Global Pulse Rotating Nipples 3-Circuit Adapters, M10, H 12mm, D 7,4mm

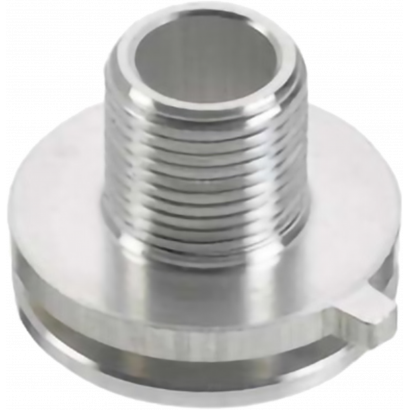

NAXTSA55129
NAXTSA55129
(optional)
Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
NAGAM109
NAGAM109
(optional)
Global Pulse Nut M10 for NAXTSA57129
NAGAM139
NAGAM139
(optional)
Global Pulse Nut M13 for NAXTSA55129

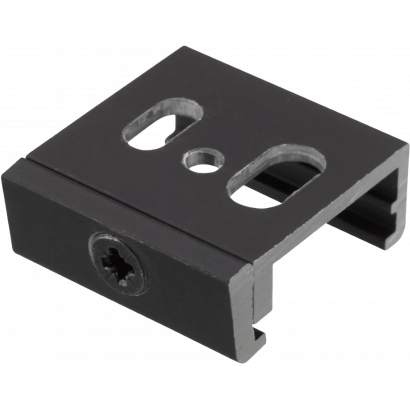

NASKB122
NASKB122
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black

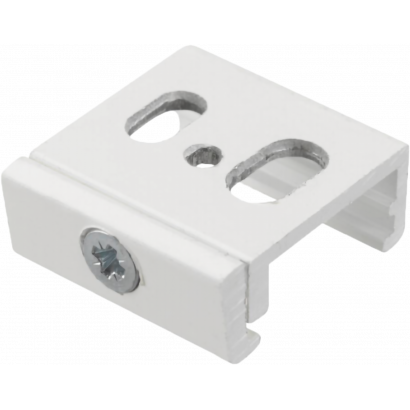

NASKB123
NASKB123
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white

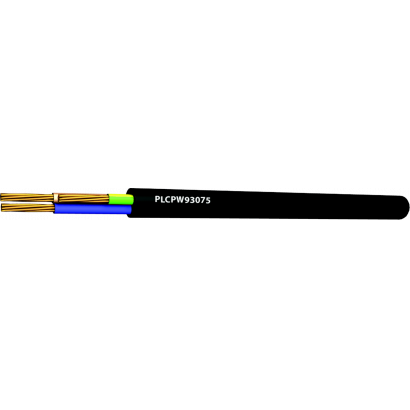

PLCPW93075
PLCPW93075
(optional)
Power PVC cable H05VV-F 3G0,75

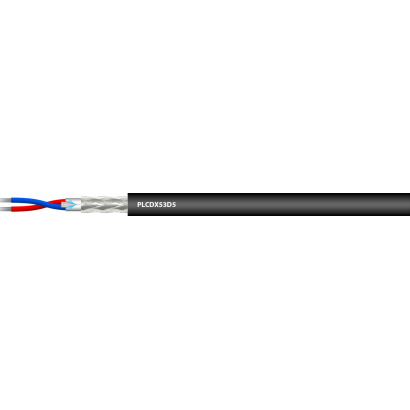

PLCDX53D5
PLCDX53D5
(optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter

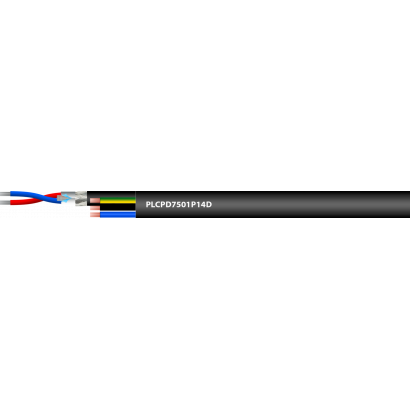

PLCPD7501P14D
PLCPD7501P14D
(optional)
Power & DMX 120 Ohm

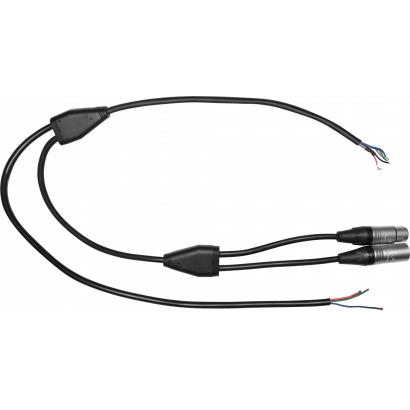

PLCYA7501P14D
PLCYA7501P14D
(optional)
YY splitter cable Power 3x1 mm2 + DMX 120 Ohm, 1 meter lenght
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 3pin XLR DMX OUT, USB OUT

DOWNLOAD

Fixture Libraries / DMX Charts / VectorWorks
VECTORWORKS
LIBRARY
VECTORWORKS_LIBRARY.vwxDownload
SYMBOLS
Ecldisplaydat27kb_+ECLDISPWASHL1530_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat56kb_+ECLDISPPRZL2040_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat56kb_+ECLDISPWASHL2550_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat30kb_+ECLDISPWASHL2550_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat27kb_+ECLDISPPRZL2040_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat40kb_+ECLDISPPRZL2040_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat40kb_+ECLDISPWASHL1530_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat27kb_+ECLDISPWASHL2550_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat40kb_+ECLDISPWASHL2550_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat30kb_+ECLDISPWASHL1530_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat30kb_+ECLDISPPRZL2040_VECTORWORKS_SYMBOLS.vwxDownload
Ecldisplaydat56kb_+ECLDISPWASHL1530_VECTORWORKS_SYMBOLS.vwxDownload
Drawings
Software Upgrades
Gobos & Filter

Info Request

This field is required.
This field is required.
This field is required.
This field is required.
This field is required.
This field is required.

News

13 April 2021
Prolights launches the Astra Beam260IP
Prolights launches the Astra Beam260IP
Prolights have just launched its new flagship Astra Beam260IP , an IP-rated moving beam light, designed to set a new standard. Its...
06 April 2021
Chameleon takes on even more PROLIGHTS PanoramaIP AirBeam
Chameleon takes on even more PROLIGHTS PanoramaIP AirBeam
Australian weather can be unpredictable, from searing temperatures to dust storms and intense rain events. With so many outdoor events...
29 March 2021
PROLIGHTS to go online with free webinars
PROLIGHTS to go online with free webinars
PROLIGHTS will run a series of online webinars on the 13th and 14th of April 2021. The manufacturer will be engaging with its worldwide...
12 March 2021
RAW and xy control for Prolights EclProfile CT+
RAW and xy control for Prolights EclProfile CT+
Prolights EclProfile CT+ is now capable of being controlled in RAW mode and xy coordinates control. This update comes after the release...
08 March 2021
PROLIGHTS appoints DLHG as distributor in Taiwan
PROLIGHTS appoints DLHG as distributor in Taiwan
PROLIGHTS is excited to announce that it has appointed DLHG as the new distributor in Taiwan. DLHG Co. Ltd is an established company...
05 March 2021
Gahrens + Battermann adds EclPanel TWC to their inventory
Gahrens + Battermann adds EclPanel TWC to their inventory
German rental company Gahrens + Battermann GmbH & Co. KG has been active in events and entertainment since 1983 by offering innovative...
02 March 2021
PROLIGHTS EclCyclorama performs at The Voice
PROLIGHTS EclCyclorama performs at The Voice
PROLIGHTS' new EclCyclorama 100 were used for The Voice of Poland. The 330W linear soft CYC and flood light with RGB+WW LED engine...
26 February 2021
Channel 9 Sydney choose a complete Prolights studio package
Channel 9 Sydney choose a complete Prolights studio package
During the height of the Covid-19 pandemic last year, Channel 9 staff in Sydney were kept busy moving from their historic Willoughby...
23 February 2021
Prolights EclDisplay - Where LED Lighting meets Art
Prolights EclDisplay - Where LED Lighting meets Art
Prolights have just released its latest EclDisplay series, an LED spotlight that sets new standards in lighting technology for galleries,...
18 February 2021
Stockholm's City Theatre takes PROLIGHTS RA 3000Profile
Stockholm's City Theatre takes PROLIGHTS RA 3000Profile
Stadsteatern, Stockholm's City Theatre is eagerly waiting to open back its doors to audiences nationwide to debut their new PROLIGHTS...
15 February 2021
Prolights EclProfile CT+ delivered in Norway
Prolights EclProfile CT+ delivered in Norway
Stavanger Konserthus, one of the most prestigious venues in Norway, and home of the Stavanger Symphony Orcestra as well as an important...
12 February 2021
Music & Lights wins Best Performance Award 2020
Music & Lights wins Best Performance Award 2020
Music & Lights, a leading Italian company manufacturing professional audio, video and lighting equipment for any professional in the...

Subscribe to our Newsletter
This field is required.
Follow us, stay connected

Loading...
