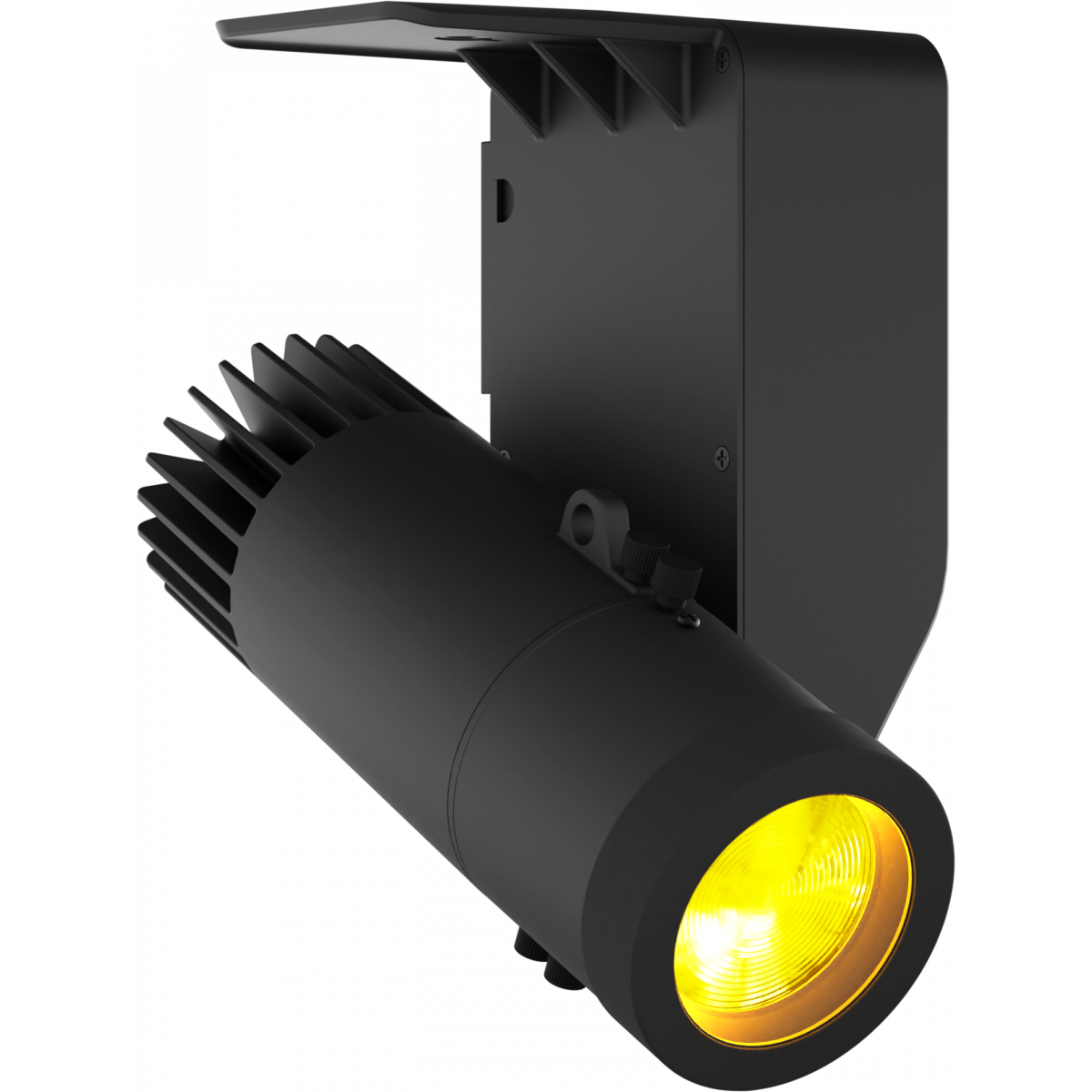

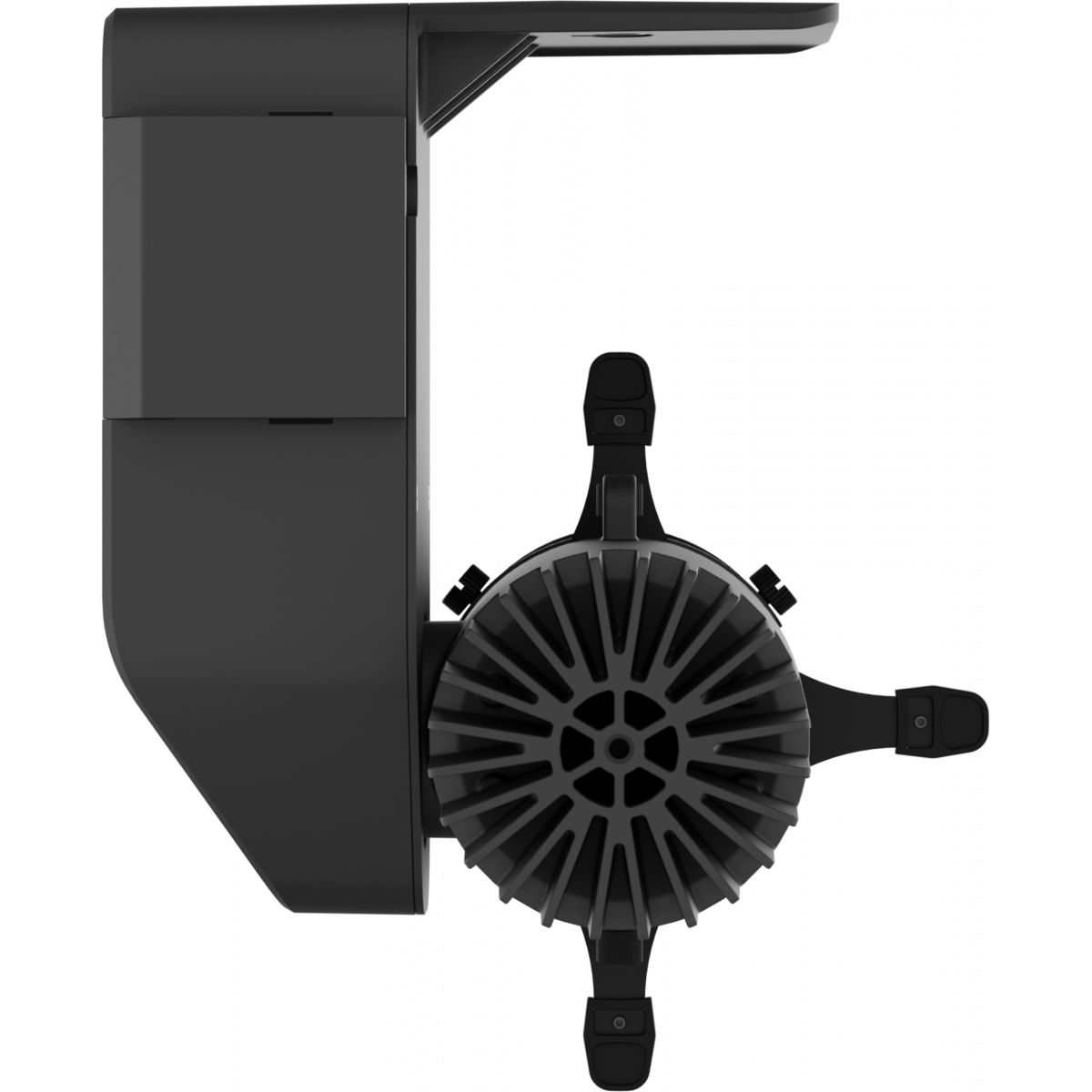

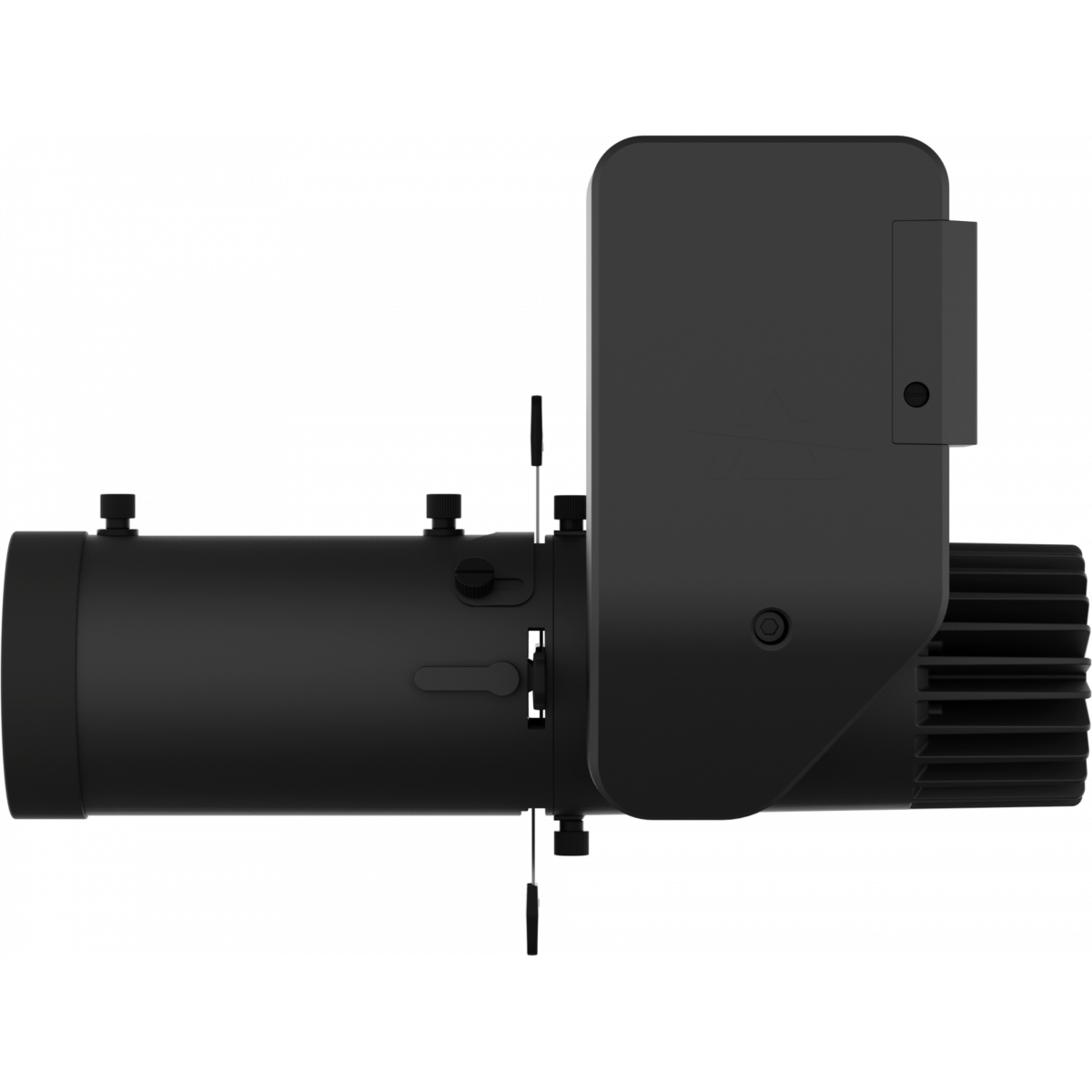

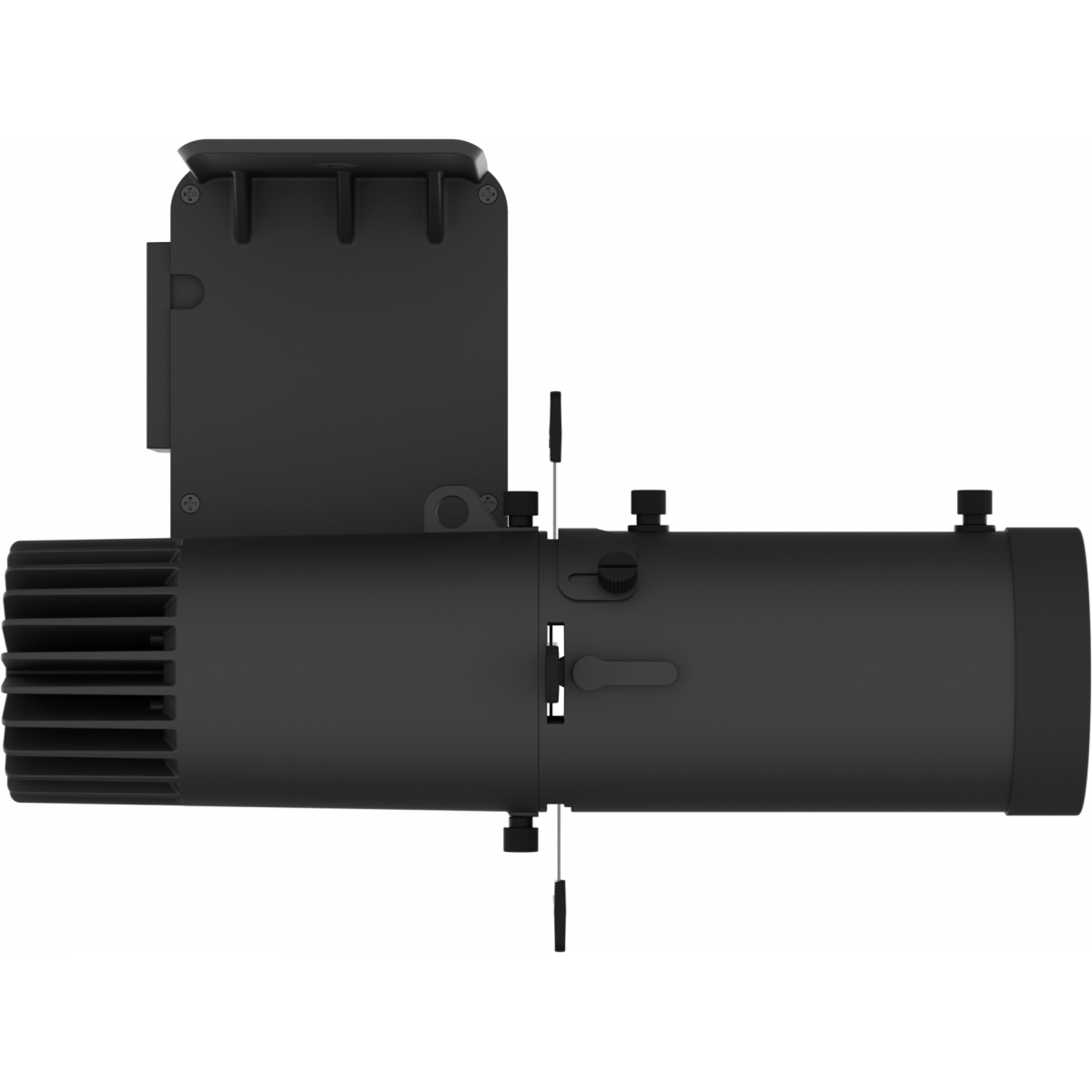

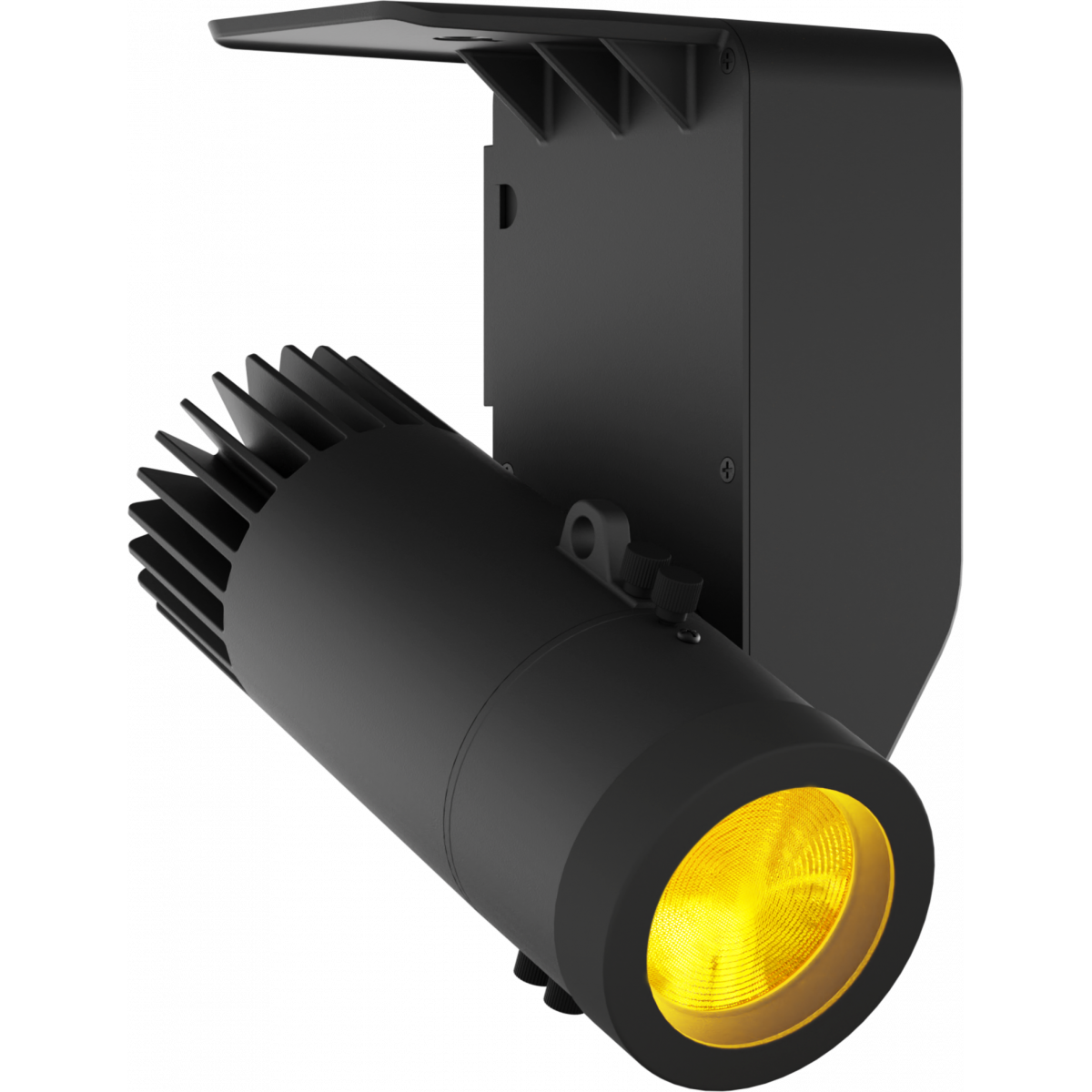

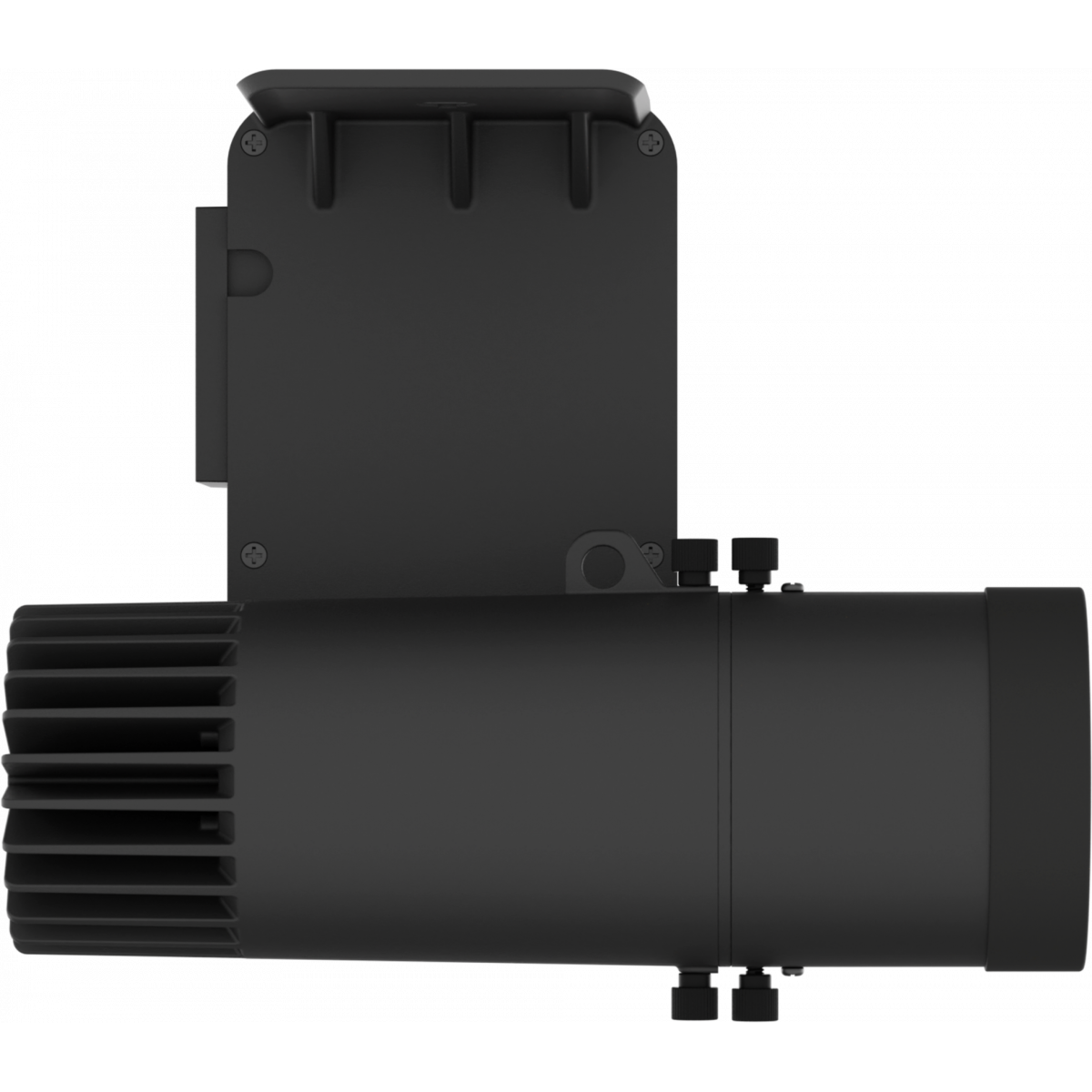

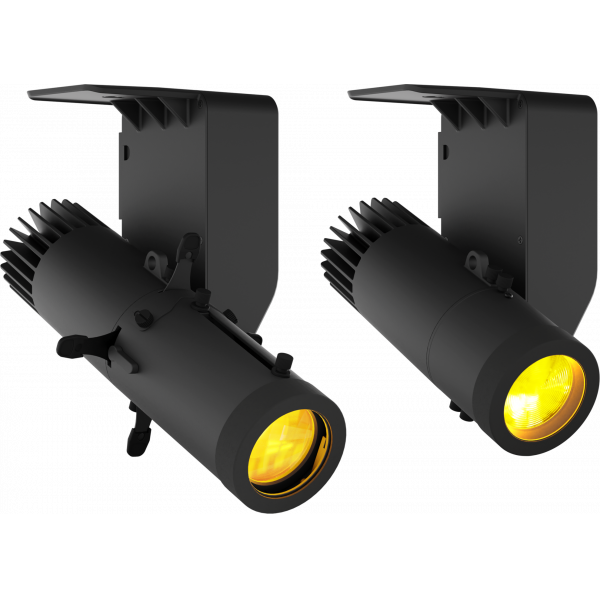

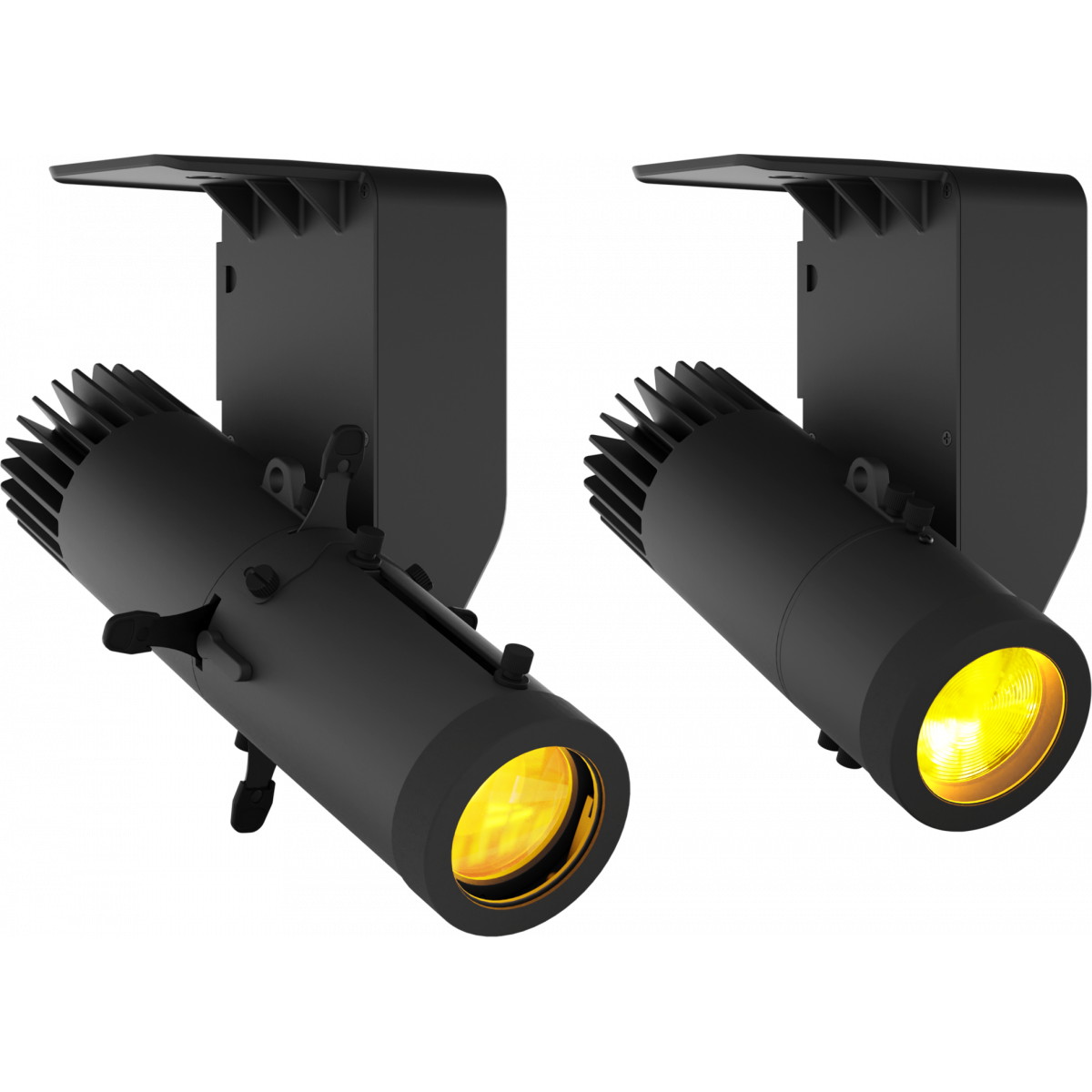

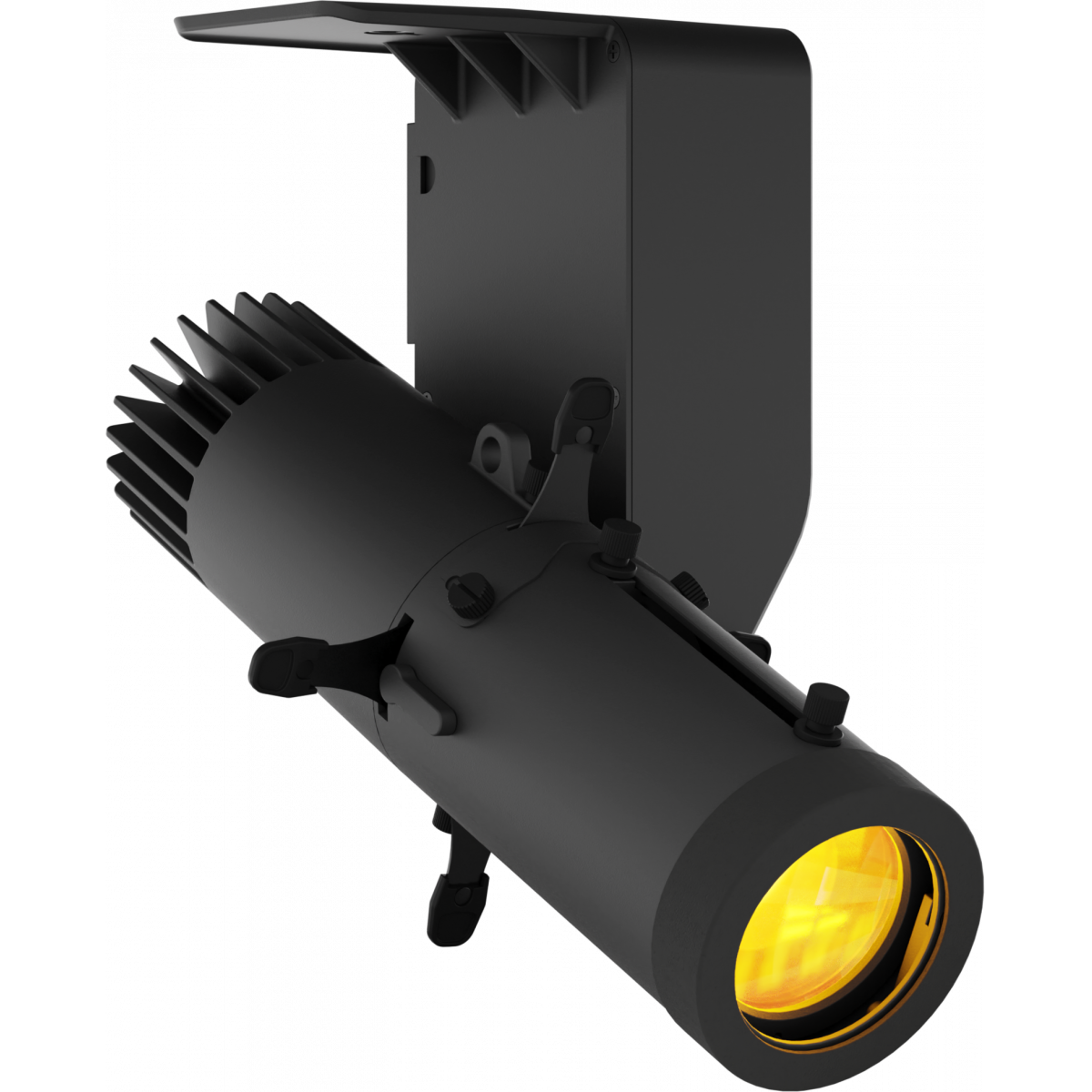

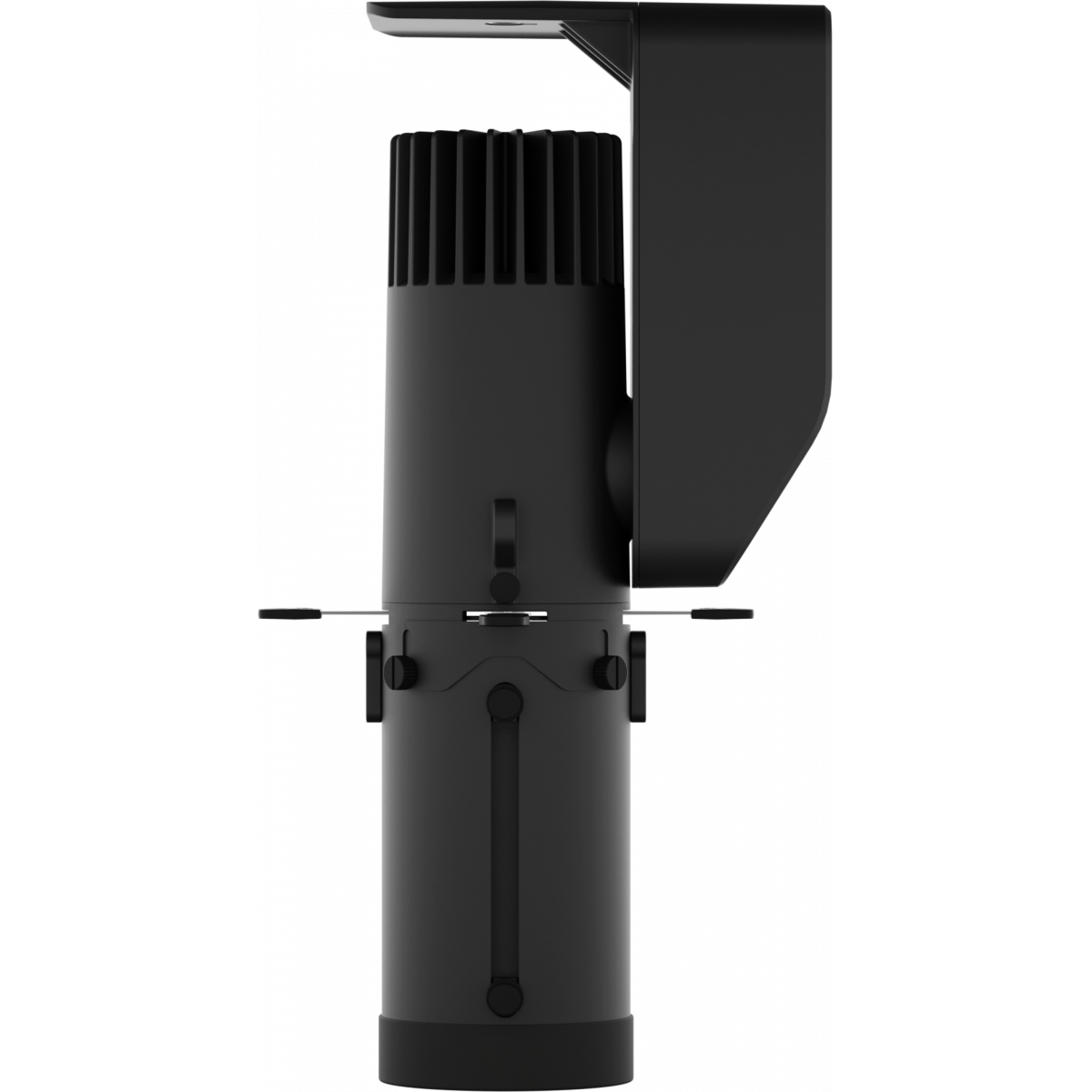

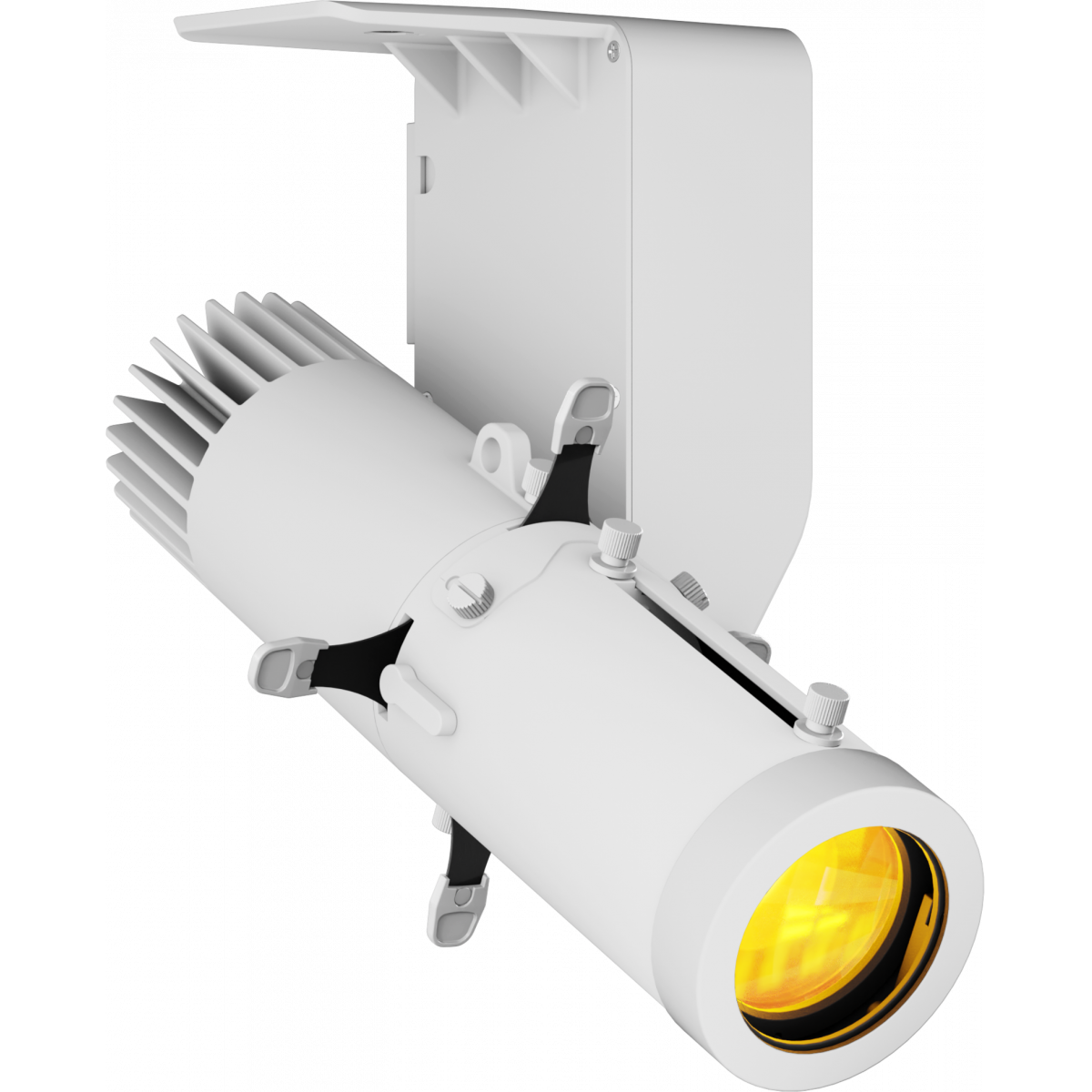

EclDisplay UNFC

40W RGB+WW LED gallery light, Tunable White and Full Colour with universal control (DMX, Dali T8, knob-dimming, phase-cut dimming)

EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.
The EclDisplay UNFC can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 8, phase-cut dimming or local knob dimming control.
The EclDisplay UNFC includes a high-efficiency 40W RGB + Warm White LED capable of delivering both a Full Colour spectrum and also tuneable White, and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it a truly a multi-purpose fixture.

Main features:

  • Universal control through RDM, DMX, DALI Type 8, phase-cut dimming and local knob dimming
  • 40W RGB + Warm White LED capable to deliver both a Full Colour generation and also Tunable White
  • Multiple lens options: zoomable profile or wash optics

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 40W RGB + Warm White LED
  • Luminous flux: (profile - 20°) 366 lm - (profile - 40°) 325 lm; (wash 2550 - min) 308 lm - (wash 2550 - max) 407 lm; (wash 1530 - min) 309 lm - (wash 1530 - max) 343lm @full
  • Lux: (profile - 20°) 194 lx - (profile - 40°) 42lx; (wash 2550 - min) 49 lx - (wash 2550 - max) 20 lx; (wash 1530 - min) 119 lx - (wash 1530 - max) 58lx @5 m full
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom: (wash lens - optional) 15° ~ 30° or 25° ~ 50° - (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°
  • Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37 mm - image: 23 mm - thickness: max 3 mm
COLOUR SYSTEM
  • Colour mixing: RGB + Warm White
  • CCT: CCT control through dedicated DMX channel
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer, colours
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type8, RDM, cut phase dimming
  • DMX channels: 5 / 6 / 15channel
  • RDM: RDM for remote monitoring and settings
  • Display: user interface through DATAMASTER external coder (not included)
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 35W
  • Power factor: > 0,94
  • Inrush current: 230VAC/5.7A, 110VAC/6.3A
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 148X200x150mm / 5.83''x5.91''
  • Weight: 1,63kg / 3.59lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
Finishing
Track adapter
Optics
ECLDISPLAYUNFCB
ECLDISPLAYUNFCB
Black
Not Included
Not Included
ECLDISPLAYUNFCW
ECLDISPLAYUNFCW
White
Not included
Not Included

Accessories & Related Products

ECLDISPPRL08B
ECLDISPPRL08B
(optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, black

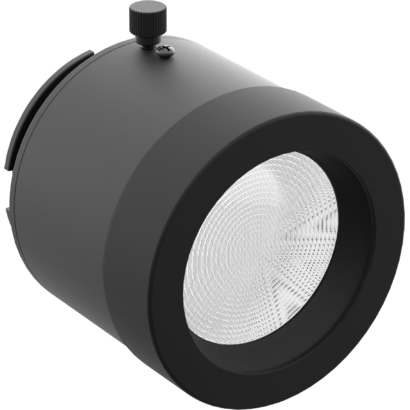

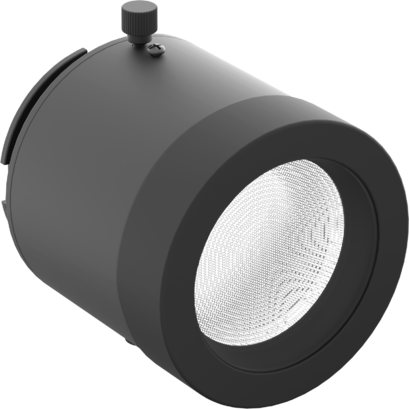

<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, black housing
ECLDISPPRL08W
ECLDISPPRL08W
(optional)
Fix Profile 8° Lens, with 4 framing shutters, for EclDisplay, white

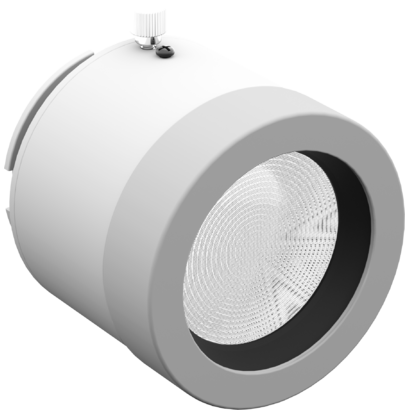

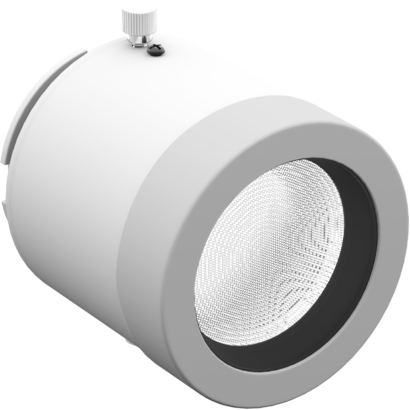

<b>EclDisplay</b> WashLens 15°- 30°
EclDisplay WashLens 15°- 30°
(optional)
Zoomable Wash Lens 15-30° for EclDisplay, white housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, black housing
<b>EclDisplay</b> WashLens 25°- 50°
EclDisplay WashLens 25°- 50°
(optional)
Zoomable Wash Lens 25-50° for EclDisplay, white housing

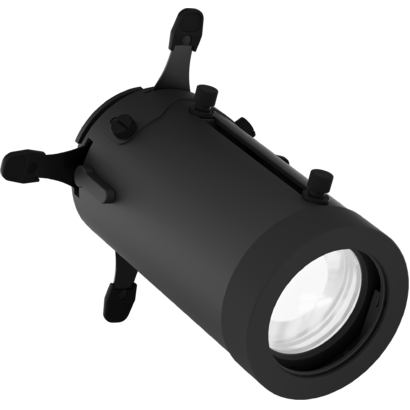

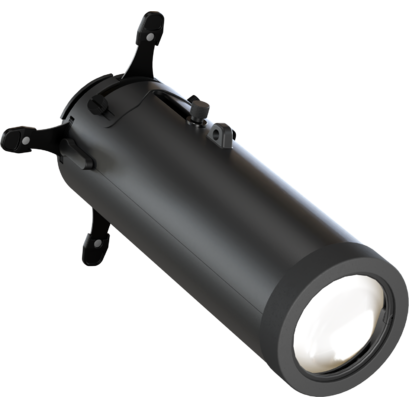

ECLDISPPRZL1020B
ECLDISPPRZL1020B
(optional)

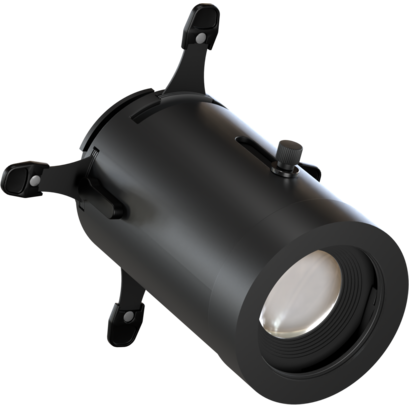

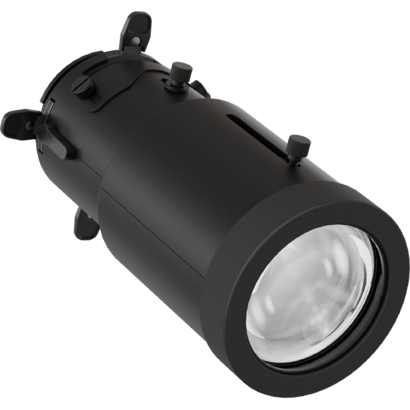

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, black

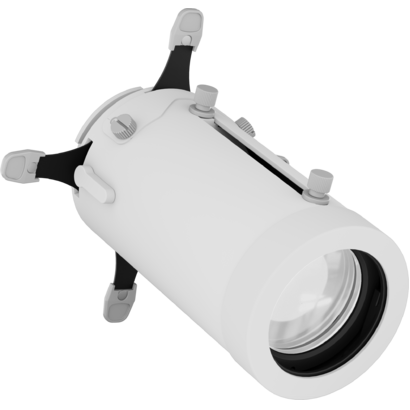

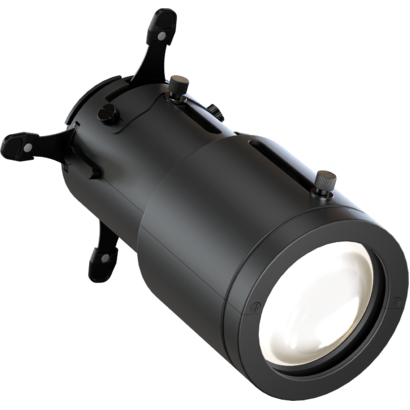

<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)

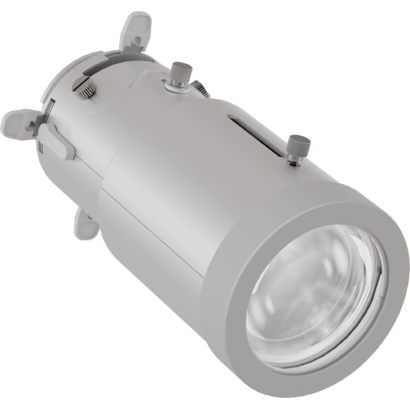

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, black hou
<b>EclDisplay</b> ProfileLens
EclDisplay ProfileLens
(optional)

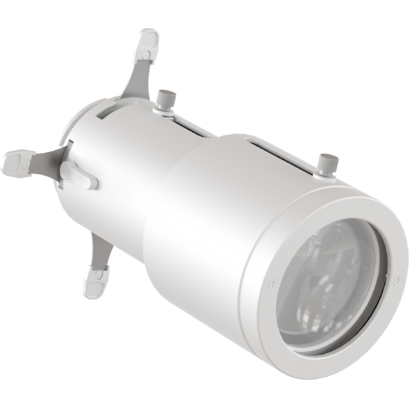

Zoomable Profile Lens 20-40°, with 4 framing shutters, for EclDisplay, white hou

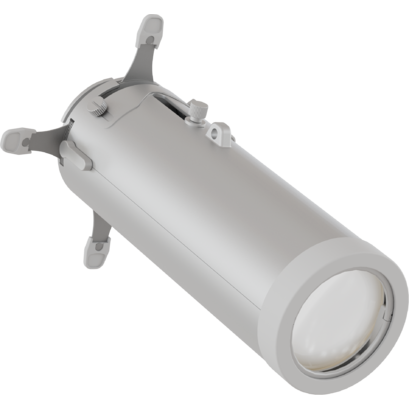

ECLDISPPRZL1020W
ECLDISPPRZL1020W
(optional)

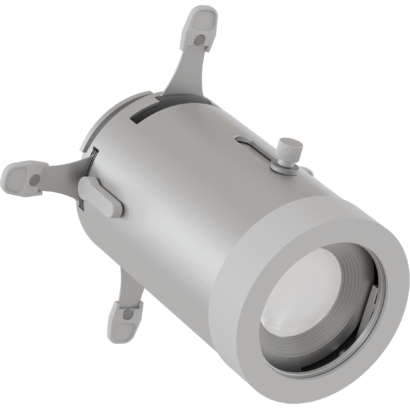

Zoomable Profile Lens 10-20°, with 4 framing shutters, for EclDisplay, white
<b>EclDisplay</b> CeilingKit
EclDisplay CeilingKit
(optional)

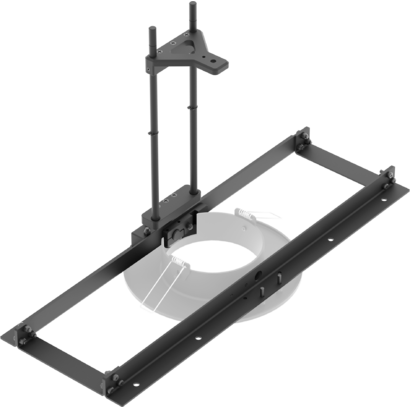

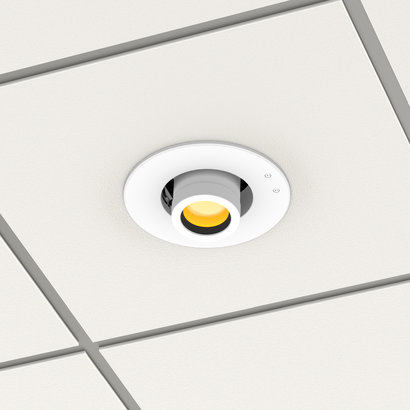

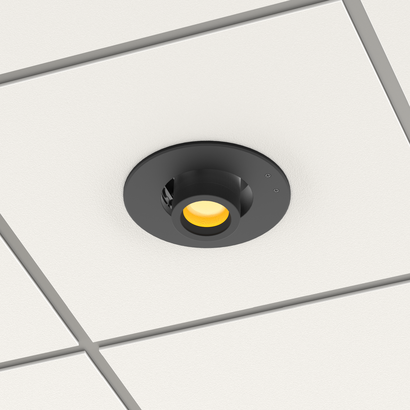

Ceiling adapter kit for EclDisplay (without flange)
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)

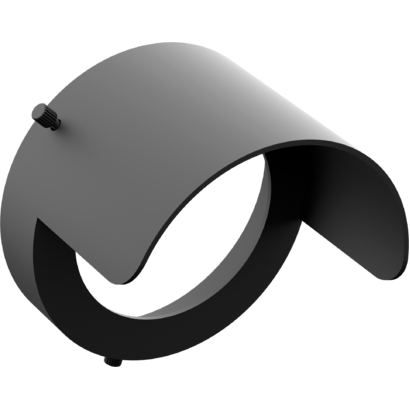

Half Snoot for EclDisplay, black housing
<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)

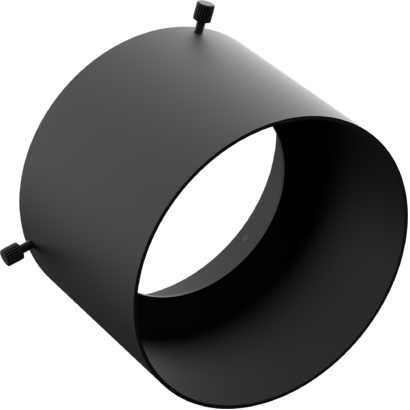

Full Snoot for EclDisplay, black housing
<b>EclDisplay</b> Half Snoot
EclDisplay Half Snoot
(optional)

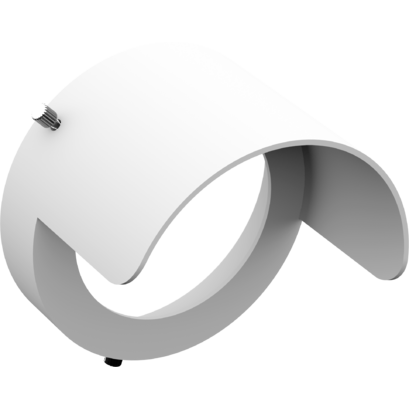

Half Snoot for EclDisplay, white housing

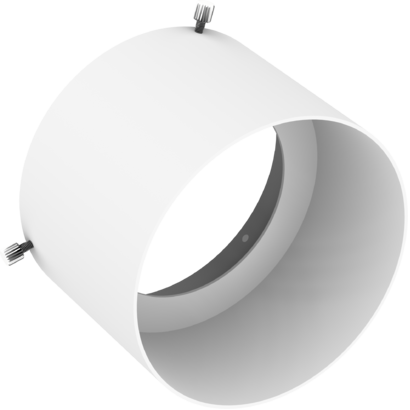

<b>EclDisplay</b> Full Snoot
EclDisplay Full Snoot
(optional)
Full Snoot for EclDisplay, white housing
<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)

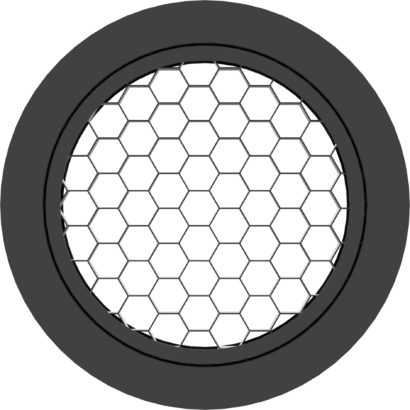

Anti-glare louvre for EclDisplay, black housing

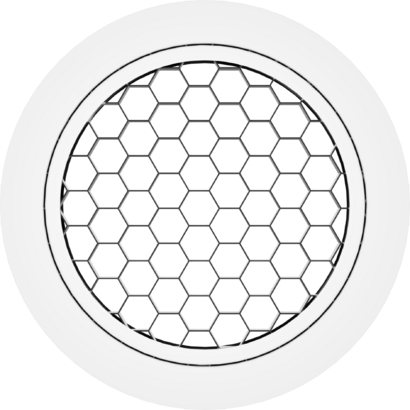

<b>EclDisplay</b> Louvre
EclDisplay Louvre
(optional)
Anti-glare louvre for EclDisplay, white housing
ECLDISPHNFFB
ECLDISPHNFFB
(optional)

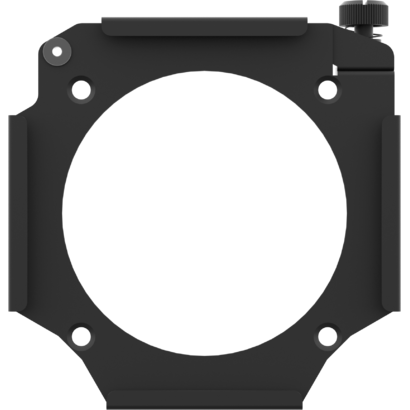

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, black

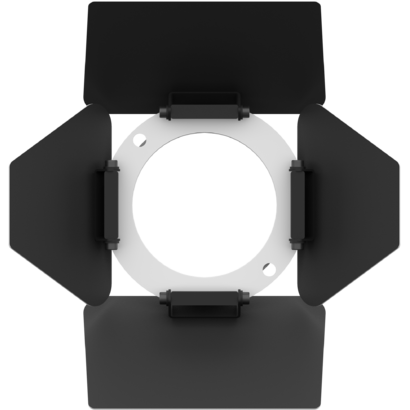

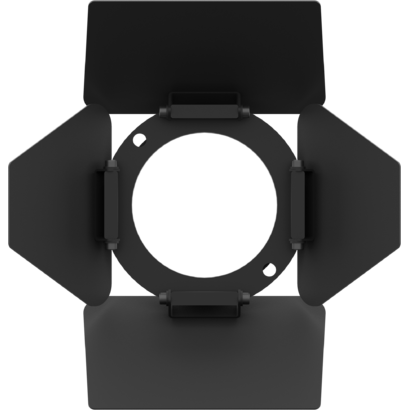

<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, black
ECLDISPHNFFW
ECLDISPHNFFW
(optional)

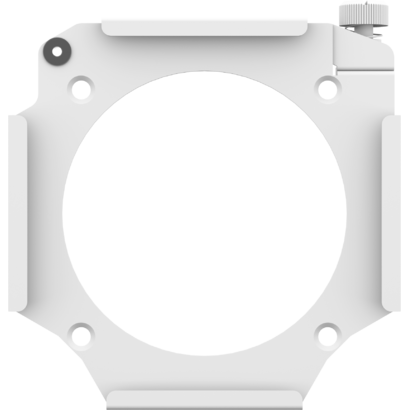

Holder and filter frame (for Wash and Profile Lenses) for EclDisplay, white
<b>EclDisplay</b> Barndoor+Frame
EclDisplay Barndoor+Frame
(optional)
Barndoor and filter frame (compatible with Wash Lenses) for EclDisplay, white

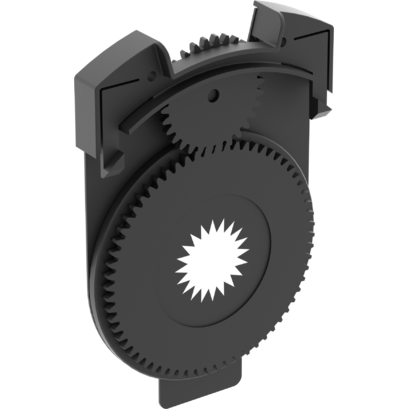

<b>EclDisplay</b> Goboholder
EclDisplay Goboholder
(optional)
Gobo holder for EclDisplay with manual index gear on board, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
Black flange to complete the EclDisplay ceiling adapter kit, black
<b>EclDisplay</b> CeilingAdapterFlange
EclDisplay CeilingAdapterFlange
(optional)
White flange to complete the EclDisplay ceiling adapter kit, white
NAXTSC61002
NAXTSC61002
(optional)

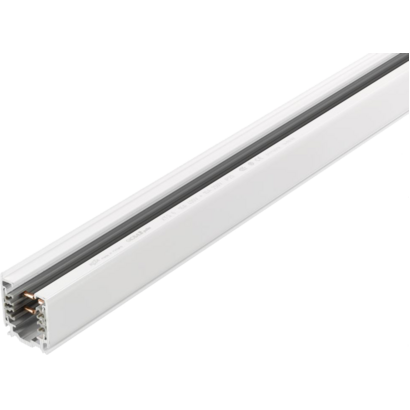

Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, black
NAXTSC61003
NAXTSC61003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000mm, white
NAXTSC62002
NAXTSC62002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, black
NAXTSC62003
NAXTSC62003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000mm, white
NAXTSC63002
NAXTSC63002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, black
NAXTSC63003
NAXTSC63003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000mm, white
NAXTSC64002
NAXTSC64002
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, black
NAXTSC64003
NAXTSC64003
(optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000mm, white
NAXTSC6112
NAXTSC6112
(optional)

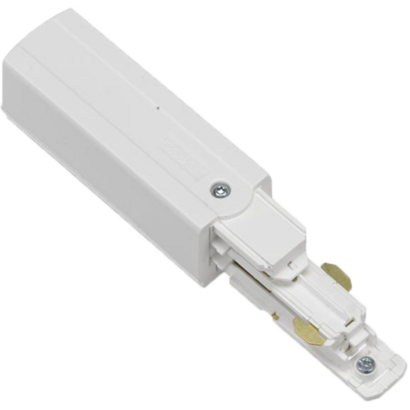

Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
NAXTSC6113
NAXTSC6113
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
NAXTSC6123
NAXTSC6123
(optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142
NAXTSC6142
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black
NAXTSC6143
NAXTSC6143
(optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white
NAXTSC6212
NAXTSC6212
(optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, black
NAXTSC6213
NAXTSC6213
(optional)

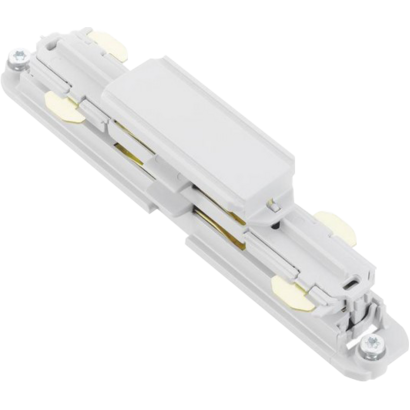

Global Pulse XTS Connector 3-CCT DALI straight connector, white

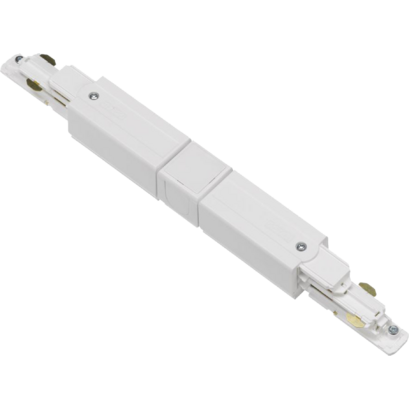

NAXTSC6232
NAXTSC6232
(optional)

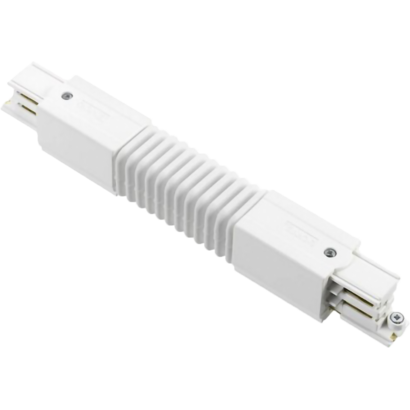

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
NAXTSC6233
NAXTSC6233
(optional)

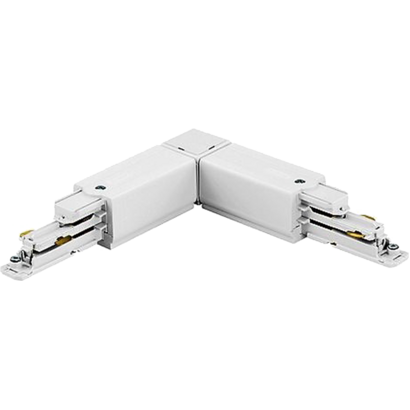

Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
NAXTSNC6353
NAXTSNC6353
(optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white

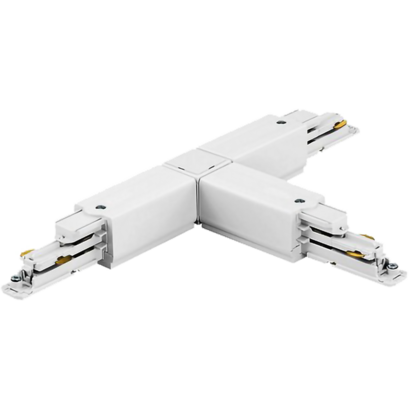

NAXTSNC6362
NAXTSNC6362
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6382
(optional)

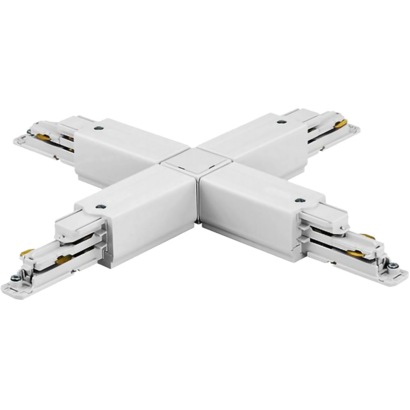

Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
NAXTSNC6393
NAXTSNC6393
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
NAXTSNC6403
NAXTSNC6403
(optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS412
(optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black
NAXTS413
NAXTS413
(optional)

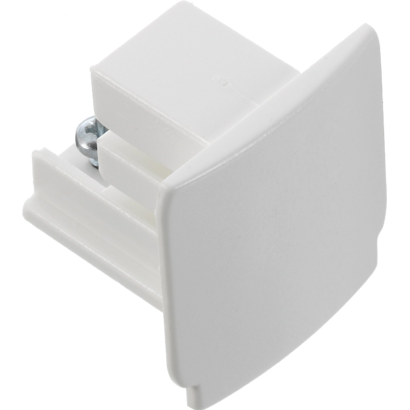

Global Pulse XTS Connector 3-CCT DALI END cap, white
NAKKT3013184
NAKKT3013184
(optional)
Kit for NAXTSA682 adapter, black
NAKKT3013185
NAKKT3013185
(optional)
Kit for NAXTSA683 adapter, white

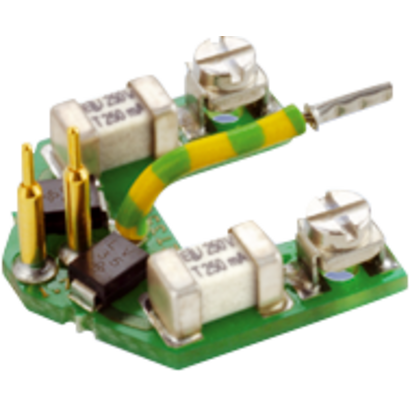

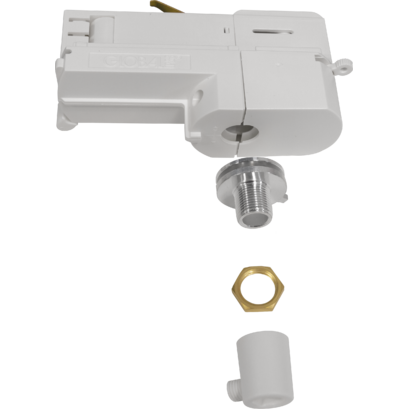

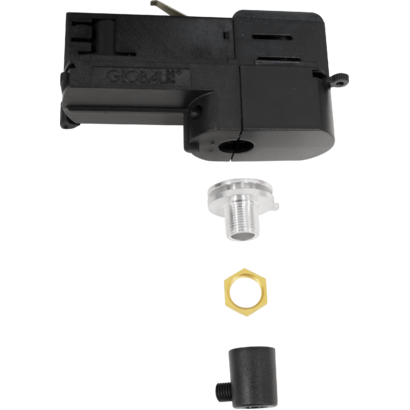

NAKKT306007
NAKKT306007
(optional)

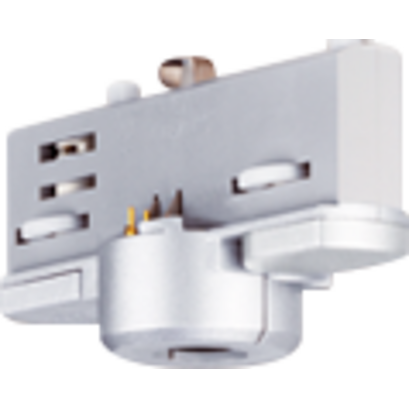

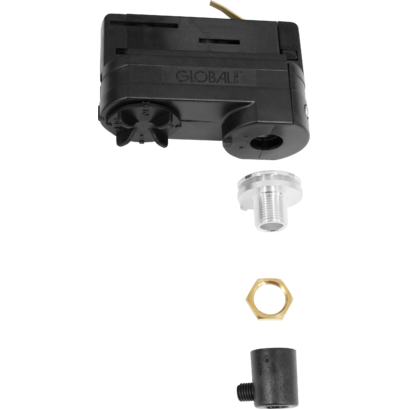

Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black
NAKKT306008
NAKKT306008
(optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white
NASPW12SK215M
NASPW12SK215M
(optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25M
NASPW12SK25M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, black
NASPW12SK315M
NASPW12SK315M
(optional)

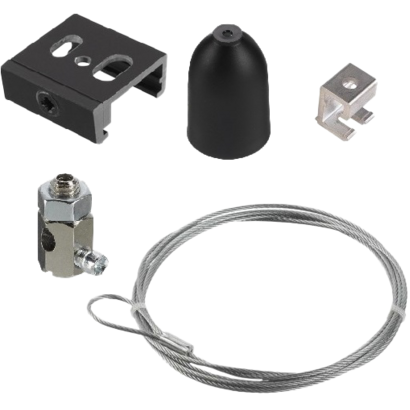

Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NAXTSA55129
NAXTSA55129
(optional)

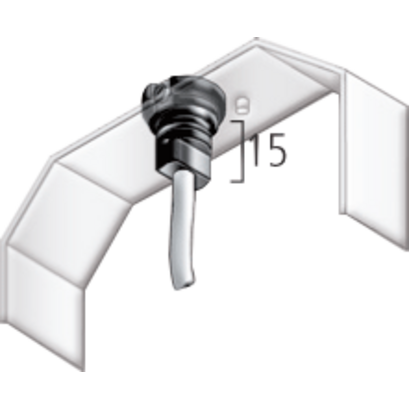

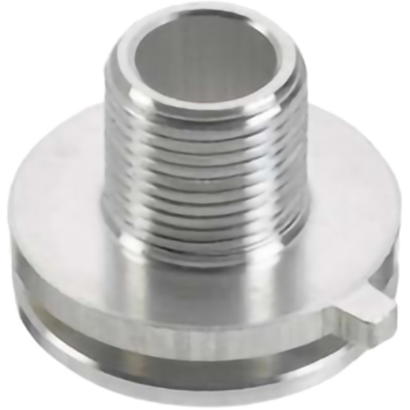

Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm
NASKB122
NASKB122
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black

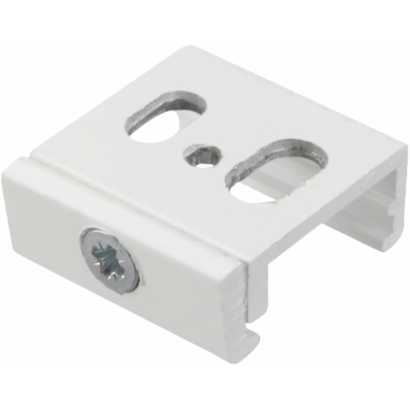

NASKB123
NASKB123
(optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white
PLCPW93075
PLCPW93075
(optional)

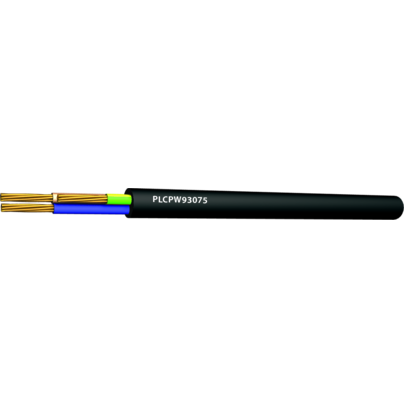

Power PVC cable H05VV-F 3G0,75, 1 meter lenght

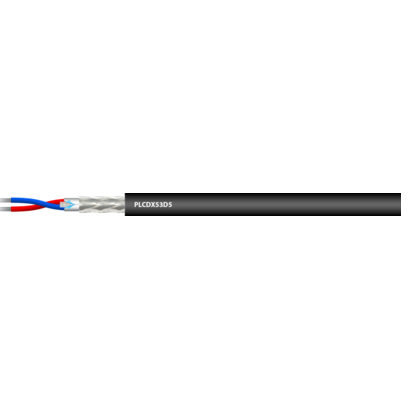

PLCDX53D5
PLCDX53D5
(optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(optional)
Power & DMX 120 Ohm, 1 meter length

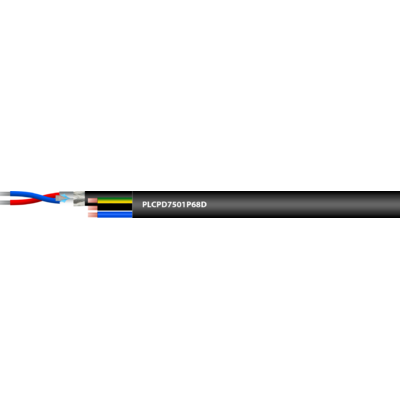

PLCPD7501P68D
PLCPD7501P68D
(optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(optional)

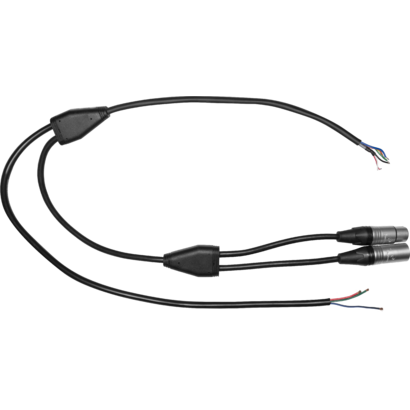

YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
EUT997592
EUT997592
(optional)
EUTRAC multiAdapter with data bus option, black
EUT997596
EUT997596
(optional)
EUTRAC multiAdapter with data bus option, white
EUT990662
EUT990662
(optional)
Mounting nut66 for EUT99759, black
EUT990666
EUT990666
(optional)
Mounting nut66 for EUT99759, white
EUT996980
EUT996980
(optional)
Data bus tap EUT99759
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Ecldisplayunfc_A4_DATASHEET_(EN).pdf 3MB
Letter datasheet Ecldisplayunfc_A4_DATASHEET_(IT).pdf 4MB
Tender Specification Ecldisplayunfc_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Ecldisplayunfc_USER_MANUAL_EN.pdf 7MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB

DMX chart & personalities

File name File size Download
DMX chart Ecldisplayunfc_DMX_CHARTS.pdf 87KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks +ECLDISPWASHL2550W_VECTORWORKS_SYMBOLS.vwx 547KB
VectorWorks +ECLDISPWASHL1530W_VECTORWORKS_SYMBOLS.vwx 541KB
VectorWorks +ECLDISPPRZL2040W_VECTORWORKS_SYMBOLS.vwx 637KB
VectorWorks +ECLDISPPRZL2040B_VECTORWORKS_SYMBOLS.vwx 497KB
VectorWorks +ECLDISPWASHL1530B_VECTORWORKS_SYMBOLS.vwx 438KB
VectorWorks +ECLDISPWASHL2550B_VECTORWORKS_SYMBOLS.vwx 439KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ECLDISPLAYUNFC Firmware rev. 1.7
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLDISPLAYUNFC Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_ecldisplay(un-dat-cc)fc_profile2040_ies files.zip 21KB
LDT prolights_ecldisplay(un-dat-cc)fc_profile2040_ldt files.zip 16KB
IES prolights_ecldisplay(un-dat-cc)fc_wash 2550_ies files.zip 20KB
LDT prolights_ecldisplay(un-dat-cc)fc_wash 2550_ldt files.zip 16KB
IES prolights_ecldisplay(un-dat-cc)fc_wash1530_ies files.zip 25KB
LDT prolights_ecldisplay(un-dat-cc)fc_wash1530_ldt files.zip 21KB
PDF Photometrics Ecldisplayunfc_WASH1530_PHOTOMETRIC_REPORT.pdf 3MB
PDF Photometrics Ecldisplayunfc_PROFILE20-40_PHOTOMETRIC_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D revit ECLDISPLAYUNFC_3D_REVIT.zip 1MB
3D sketchup ECLDISPLAYUNFC_3D_SKETCHUP.zip 2MB
2D ECLDISPLAYUNFC_2D.zip 15MB
3D ECLDISPLAYUNFC_3D.zip 2MB
2D cad symbols ECLDISPLAYUNFC_2DSYMBOLS.zip 199KB
Technical drawing ECLDISPLAYUNFC_TECHNICAL DRAWINGS.zip 784KB

Tech docs

File name File size Download

Software

File name File size Download
Software Prolights Dialux Plug-In 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 29/08/2023 New function:
  • Added BASIC 16BIT DMX mode.
Improvement:
  • Improved stability of DALI protocol.
1.4 STABLE 16/07/2022 Fixed bugs:
  • Fixed potential issue with Extended Fade time value going out of expected range.
1.3 STABLE 26/05/2022 Fixed bugs:
  • Fixed bug on DALI protocol: unable to be used with CASAMBI CBU - ASD device.
  • Fixed bug on DALI protocol: added compliance to DALI IEC62386-102-9.72.
  • Fixed bug on DALI protocol: added Extended Fade time, added compliance to DALI IEC62386-102-9.54
0.91 STABLE 26/01/2021 Definitive Stable Version. Rev. 1.0

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates  the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin

Loading...
