EclProfile FC

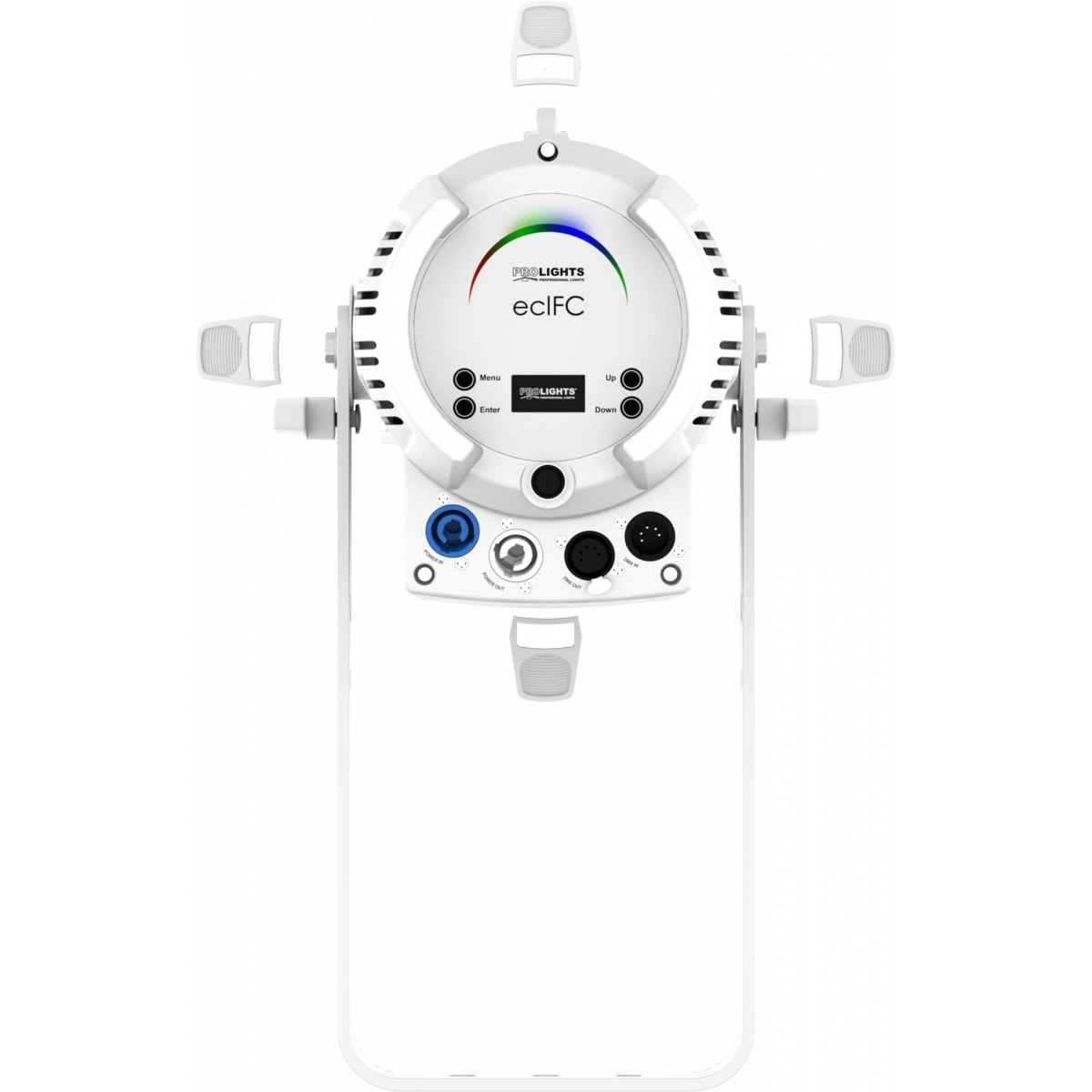

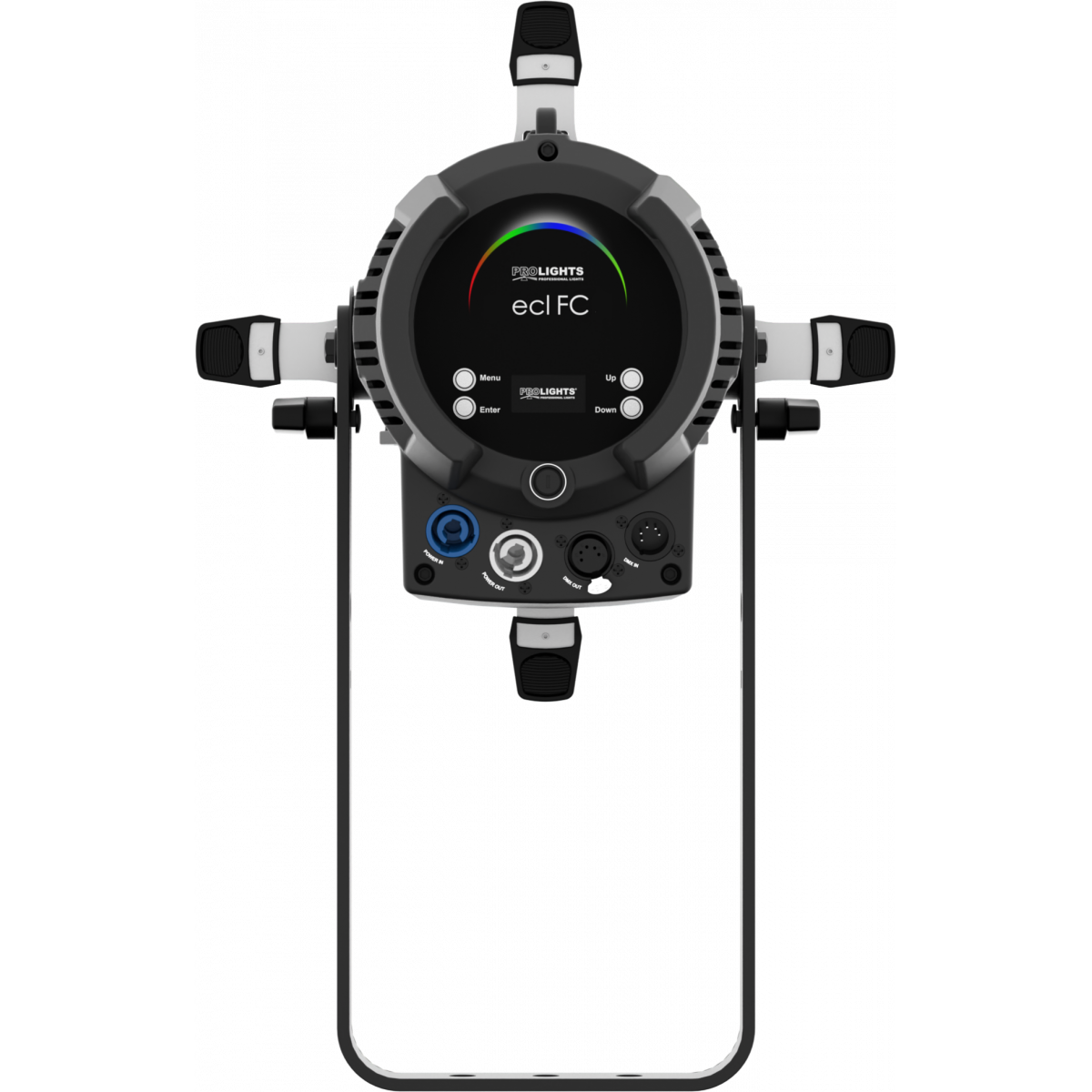

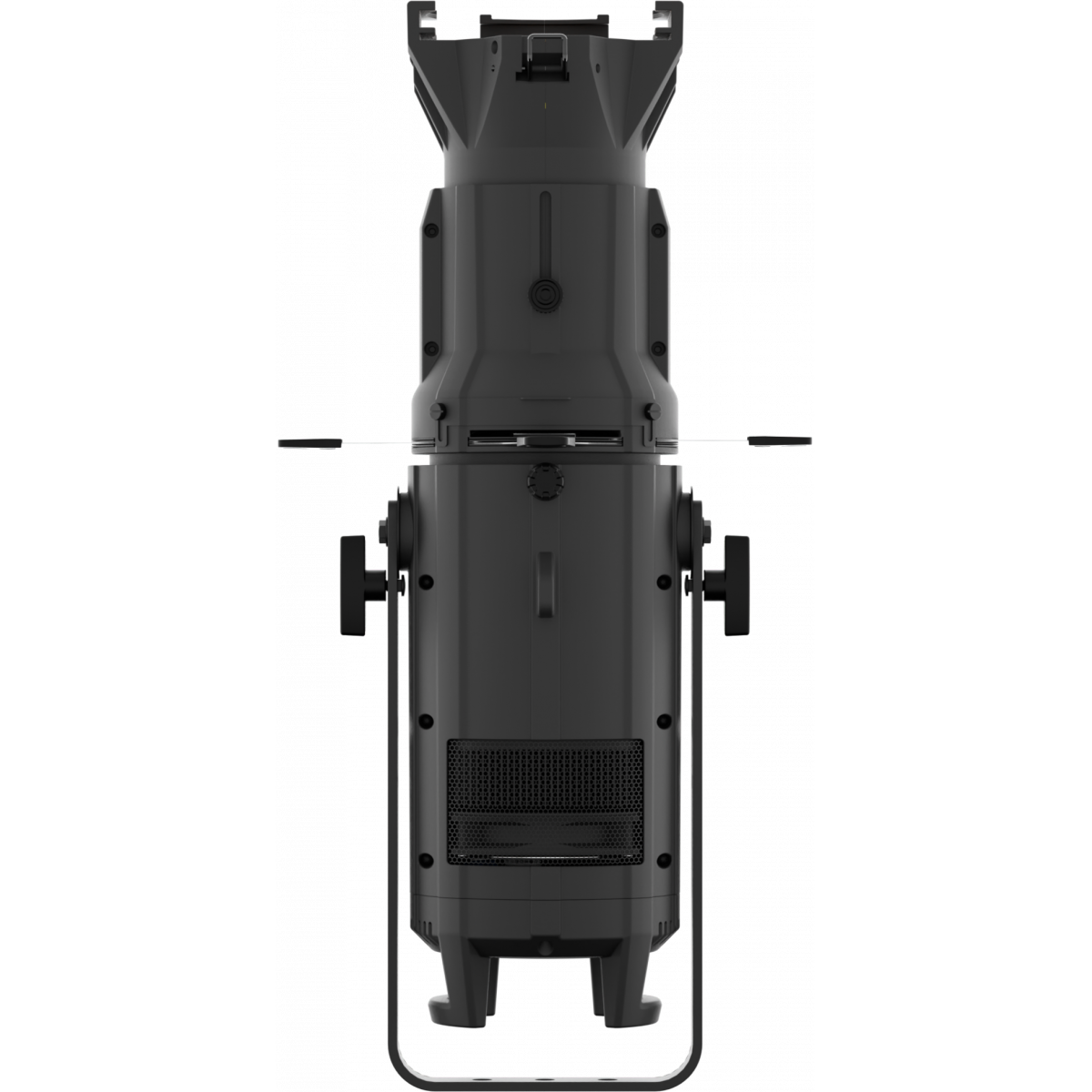

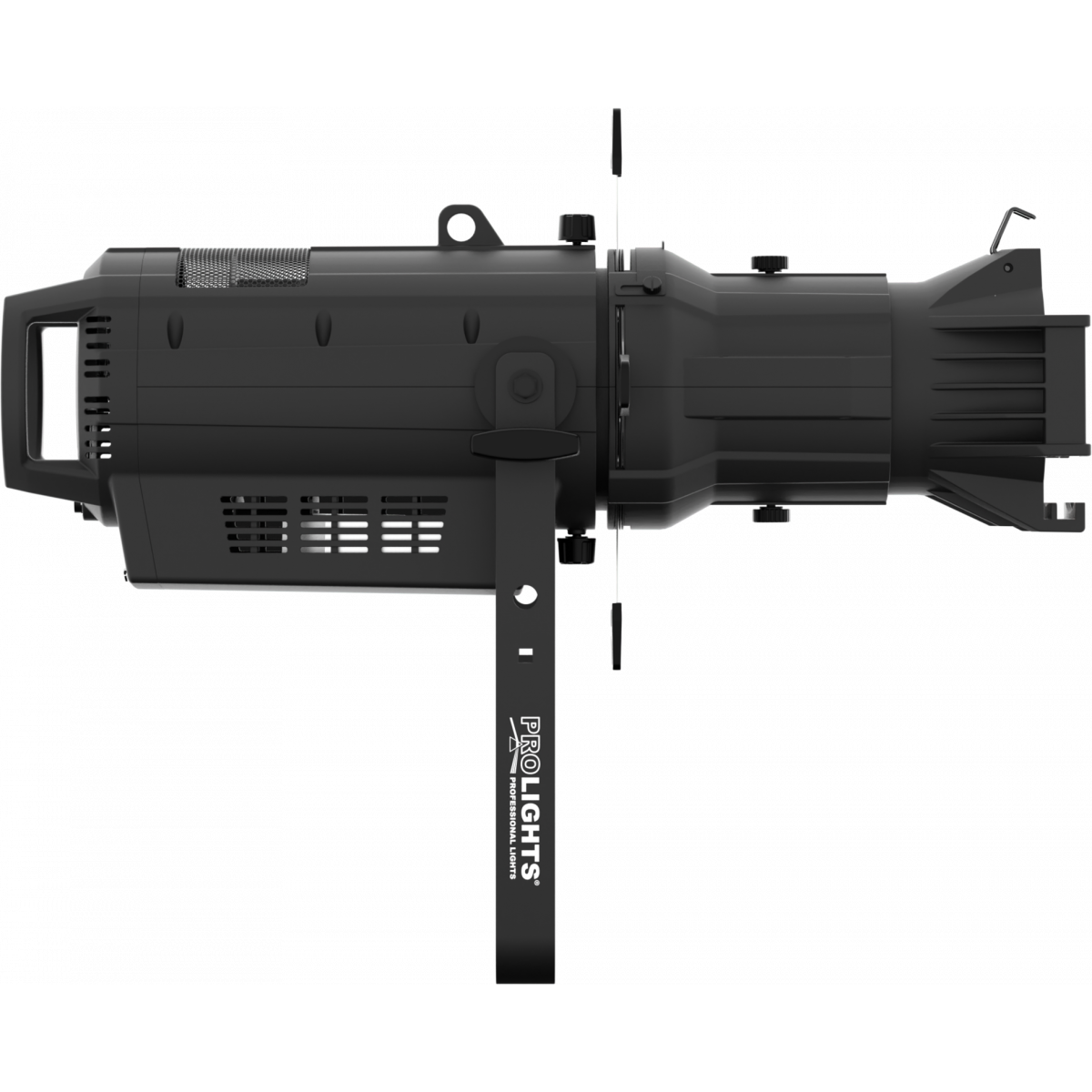

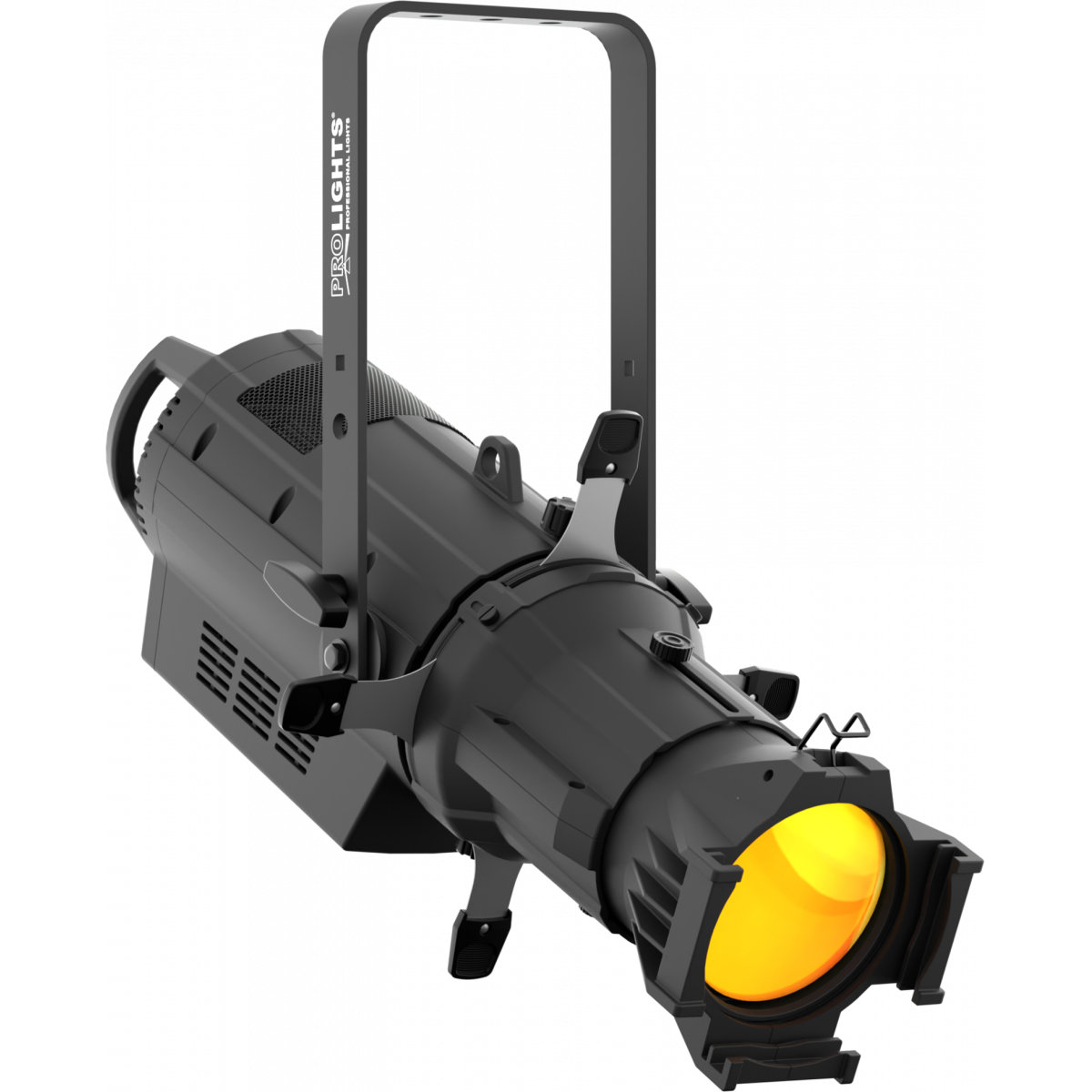

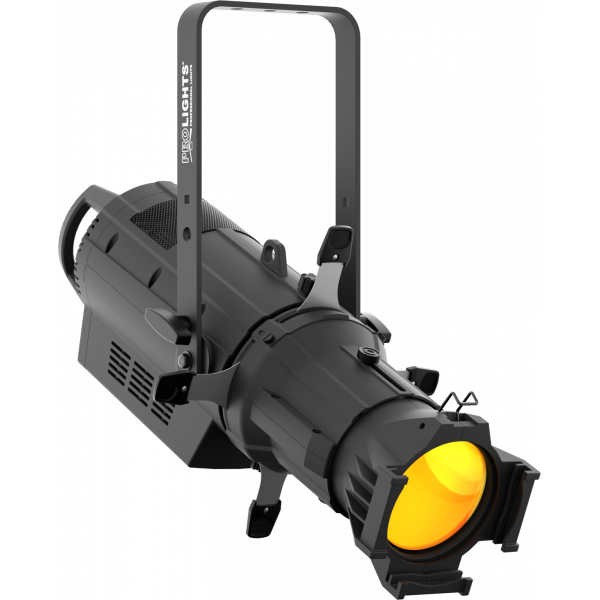

91x3W RGB + lime high power Full Colour LED ellipsoidal

EclProfile FC is a full colour LED ellipsoidal designed to deliver a full range of pastels, whites or saturates smoothly, consistently and both with or without gobos. The EclProfile FC 's RGB + Lime LED engine has been specially engineered to provide a full spectrum and full output in the most discerning environments, regardless of which role the EclProfile FC is playing.

Main features:

  • RGB + Lime LED Ellipsoidal with HD dimming and extensive colour palette
  • High Definition optics for sharp gobo projection
  • Accepts industry standard accessories

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 91x3W RGB + lime LEDs
  • Luminous flux: (5°) 3'538 lm - (10°) 4'088 lm - (14°) 3'811 lm - (19°) 4'273 lm - (26°) 4'210 lm - (36°) 5'321 lm - (50°) 4'287lm
  • Lux: (5°) 36'042 lx - (10°) 17'857 lx - (14°) 10'578 lx - (19°) 6'189 lx - (26°) 4'042 lx - (36°) 2'016 lx, (50°) 991lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / Z15 - 30° / Z25 - 50°
  • Lens type: high-quality glass lens optics
COLOUR SYSTEM
  • Colour mixing: RGB + lime / full colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.700 K ~10.000K
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Special features: automatic software colour balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: Theater 1 / 3 / 5 / 17 channel - Tour 4 / 8 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 220W
  • Output (at 230V): 6 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 342x506x530mm / 13.46''x19.92''x20.87''
  • Weight: 9kg / 19.84lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
ECLFCBK
ECLFCBK (DISCONTINUED)
Black

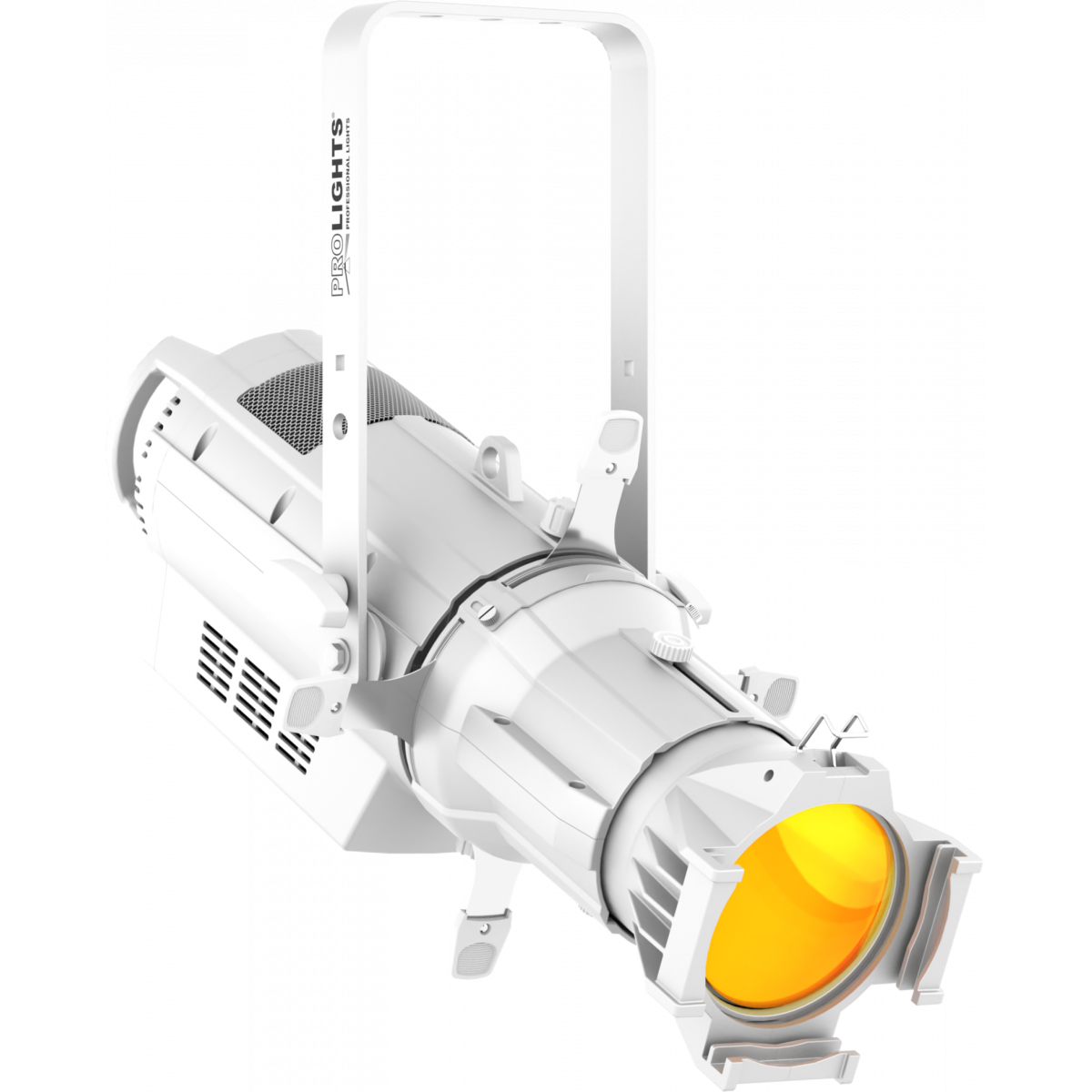

ECLFCWH
ECLFCWH (END OF LIFE)
White

Accessories & Related Products

FCLECL
FCLECL
(optional)

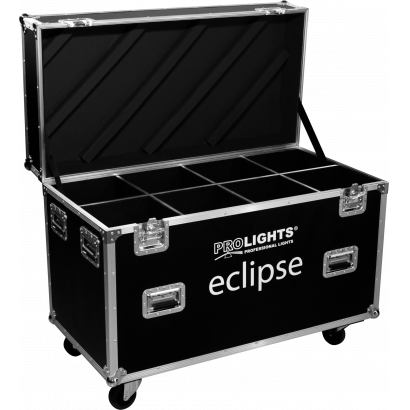

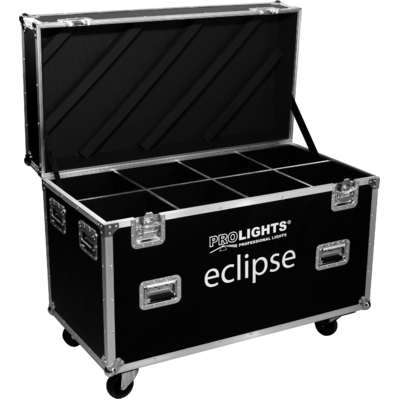

Flight case for 8 pcs of ECLFC or ECLHD series
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)

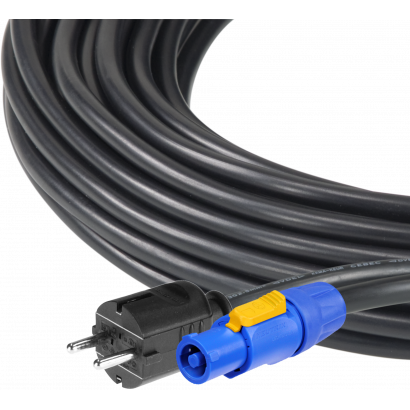

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(optional)

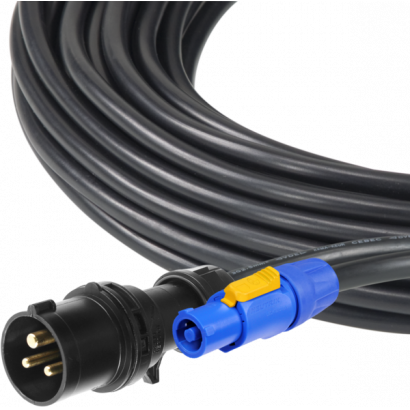

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)

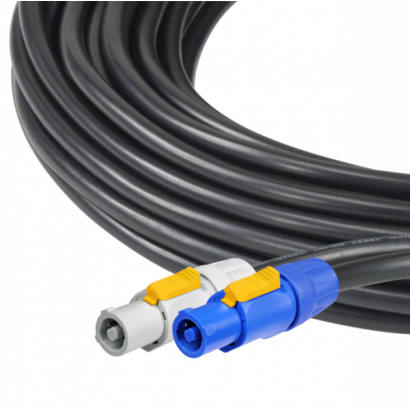

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

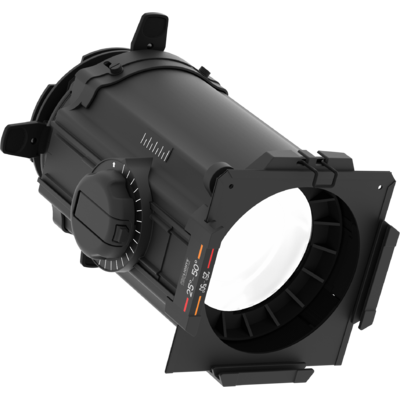

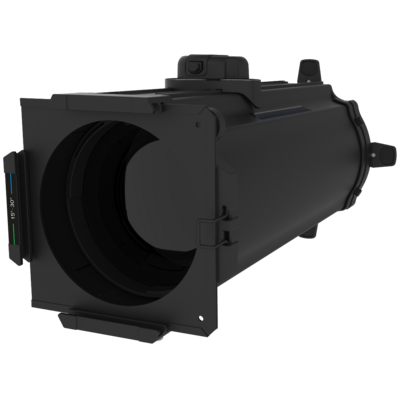

ECL LZ
ECL LZ
(optional)

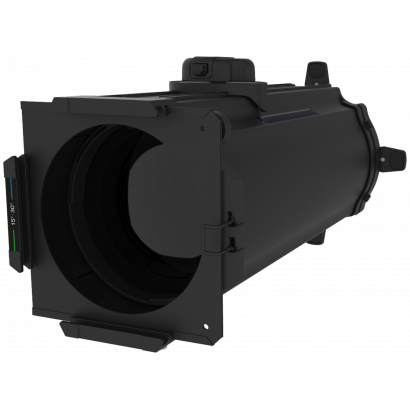

Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
ECL LZ
ECL LZ
(optional)

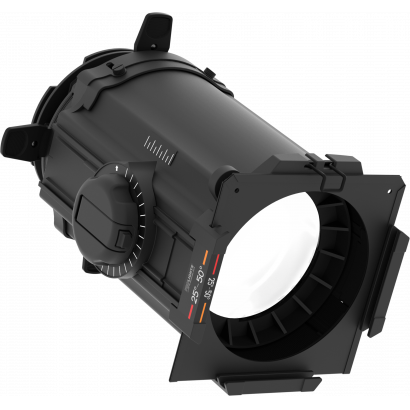

Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°

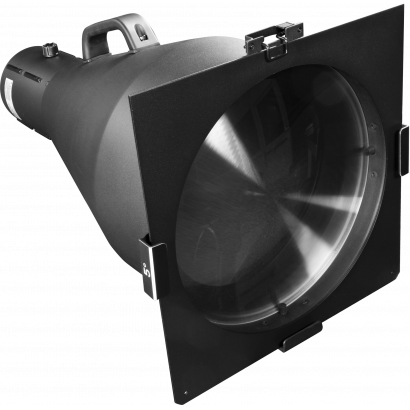

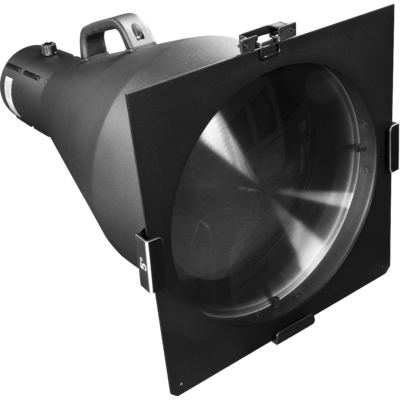

ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB14BK
ECLLB14BK
(optional)
14° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19WH
ECLLB19WH
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB19BK
ECLLB19BK
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26BK
ECLLB26BK
(optional)

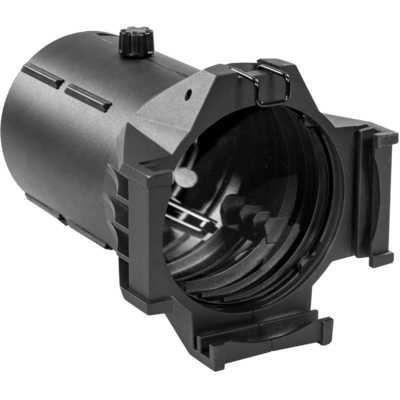

26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36WH
ECLLB36WH
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing

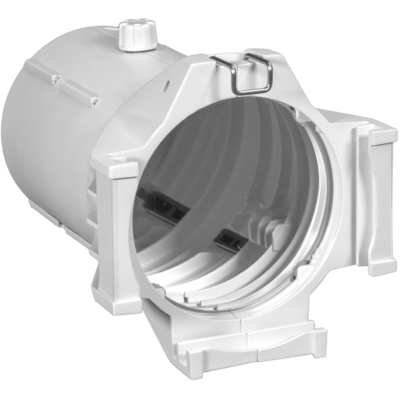

ECLLB50WH
ECLLB50WH
(optional)

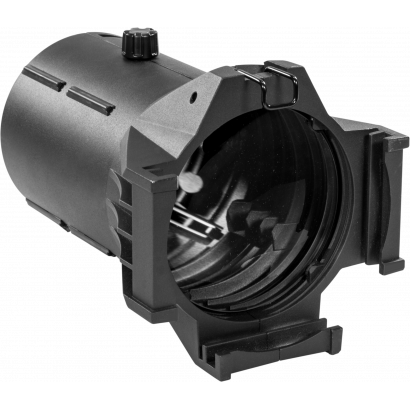

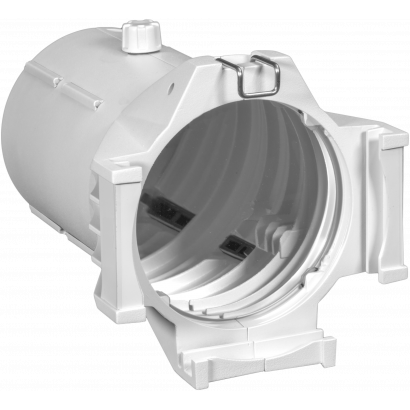

50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing

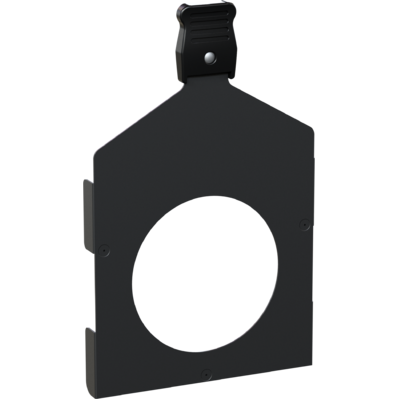

ECLPRGHA
ECLPRGHA
(optional)

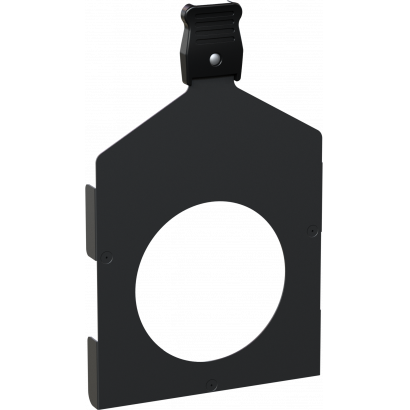

Gobo holder for ECL Profile fixtures, A size

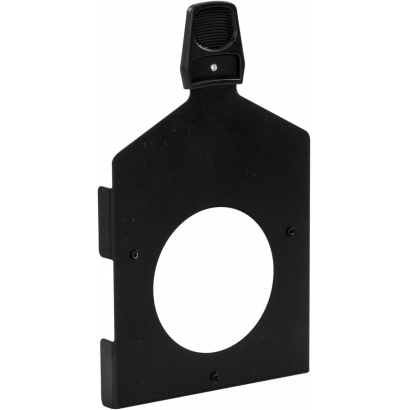

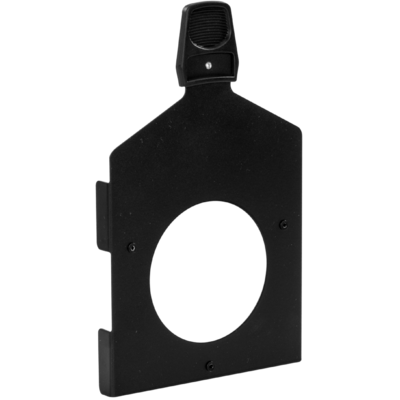

ECLGH
ECLGH
(optional)
Gobo holder for ECL/ECLFC/ECLHD profiler

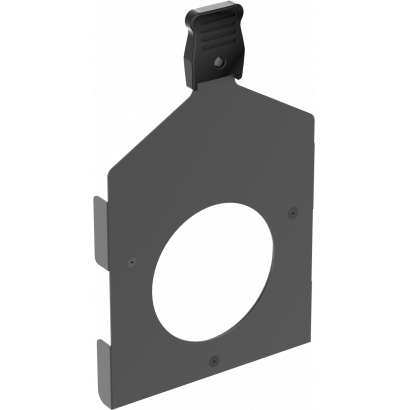

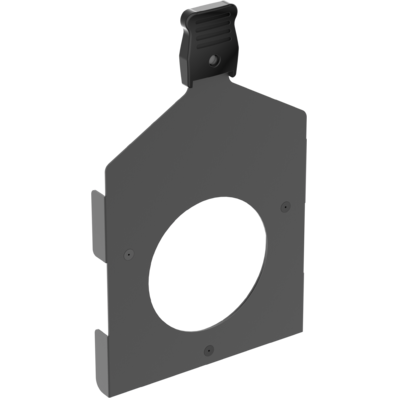

ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRIRIS
ECLPRIRIS
(optional)

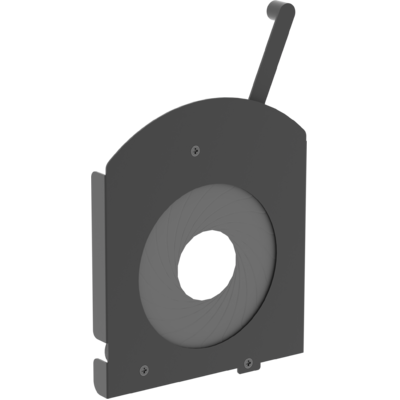

Iris accessory for ECL Profile fixtures
ECLIRIS2
ECLIRIS2
(optional)

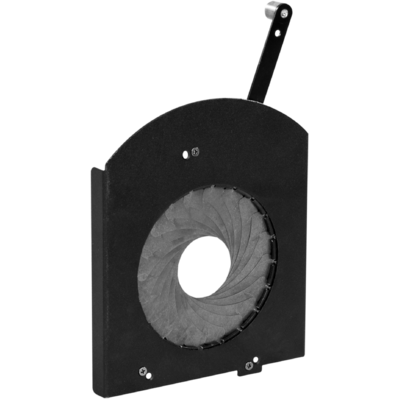

Steel iris diaphragm for ECLFC/ECLHD profiler
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt

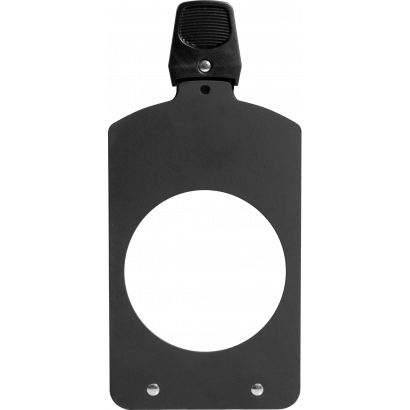

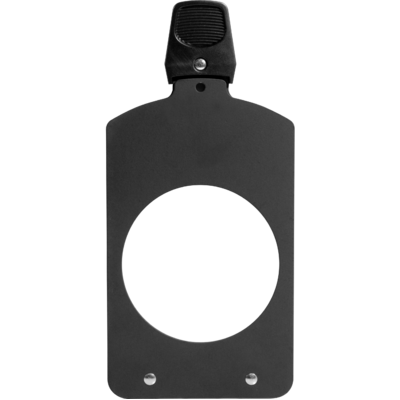

ECLPROFILESEF1
ECLPROFILESEF1
(optional)
Soft edge filter and holder kit for ECL profile projectors series
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfc_A4_DATASHEET_(EN).pdf 539KB
Letter datasheet Eclfc_A4_DATASHEET_(IT).pdf 525KB
Tender Specification Eclfc_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclfc_USER_MANUAL_ITEN.pdf 5MB

DMX chart & personalities

File name File size Download
DMX chart Eclfc_DMX_CHARTS.pdf 66KB
VectorWorks VECTORWORKS.vwx 3MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 3MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ECLFC Firmware rev. 1.6
manufacturer fixture library (Link) Link
prolights_eclipsefc.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipsefc_1ch.fdfDownload
eclipsefc_3ch.fdfDownload
eclipsefc_4ch.fdfDownload
eclipsefc_5ch.fdfDownload
eclipsefc_6ch.fdfDownload
eclipsefc_7ch.fdfDownload
eclipsefc_8ch.fdfDownload
eclipsefc_10ch.fdfDownload
eclipsefc_11ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@eclipse_fc@1_channel@initial.xmlpDownload
prolights@eclipse_fc@3_channel@initial.xmlpDownload
prolights@eclipse_fc@4_channel@initial.xmlpDownload
prolights@eclipse_fc@5_channel@initial.xmlpDownload
prolights@eclipse_fc@8_channel@initial.xmlpDownload
prolights@eclipse_fc@11_channel@initial.xmlpDownload
prolights@eclipse_fc@extended@tested_on_the_actual_fixture..xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fc theatre 1 channel.fix2Download
eclipse fc theatre 3 channel.fix2Download
eclipse fc theatre 5 channel.fix2Download
eclipse fc tour 4 channel .fix2Download
eclipse fc tour 8 channel.fix2Download
eclipse fc tour 11 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclfcprl14_ies files.zip 16KB
LDT prolights_eclfcprl14_ldt files.zip 12KB
IES prolights_eclfcprl19_ies files.zip 13KB
LDT prolights_eclfcprl19_ldt files.zip 9KB
IES prolights_eclfcprl26_ies files.zip 12KB
LDT prolights_eclfcprl26_ldt files.zip 9KB
IES prolights_eclfcprl36_ies files.zip 13KB
LDT prolights_eclfcprl36_ldt files.zip 10KB
IES prolights_eclfcprl50_ies files.zip 12KB
LDT prolights_eclfcprl50_ldt files.zip 9KB
PDF Photometrics Eclfc_PRL50_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfc_PRL26_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclfc_PRL19_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfc_PRL14_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfc_PRL36_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLFC_3D_SKETCHUP.zip 7MB
3D revit ECLFC_3D_REVIT.zip 7MB
2D Eclfc_2D.dwg 6MB
3D ECLFC_3D.zip 8MB
Technical drawing Eclfc_TECHNICAL_DRAWING.pdf 705KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.6 STABLE 07/03/2020 Firmware improving: Decreased the dimmer delay at dimmer begin for istant flash operation with very sharp bumps in intensity. Rev. 1

Info Request

News

30 November 2023
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
Rock me Amadeus: PROLIGHTS Astra Wash illuminate the Falco Musical in Vienna
For its global premiere on the stage of Vienna's Ronacher Theater, the musical " Rock me Amadeus - The Falco Musical " was brilliantly...
24 November 2023
NicLen expands its inventory with Astra Hybrid330
NicLen expands its inventory with Astra Hybrid330
NicLen has expanded its rental park by acquiring the Astra Hybrid330 . Provided by Lightpower, PROLIGHTS distributor in Germany, this...
21 November 2023
Prolights products on the top of Europe
Prolights products on the top of Europe
PROLIGHTS products took part in the new interactive installation “Top of Europe” at the Jungfraujoch railway station, the highest...
16 November 2023
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023 Illuminated by Prolights fixtures
The FIBA 3x3 World Tour 2023, hosted at the Constanța Masters in the City Park Mall, was illuminated by a lighting setup composed...
14 November 2023
Jet Wash7 illuminates the Vibes' Urban Garden room
Jet Wash7 illuminates the Vibes' Urban Garden room
PROLIGHTS' Jet Wash7 illuminated the Urban Garden room of the Vibes complex in Eindhoven. From a sports center to a location for corporate...
10 November 2023
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products Illuminates Marragheddon Festival
PROLIGHTS products illuminated the Marrageddon festival, an unprecedented celebration of Italian hip-hop, conceived and hosted by hip-hop...
07 November 2023
EclFresnel CT+ Series - Revolutionizing LED Fresnels
EclFresnel CT+ Series - Revolutionizing LED Fresnels
PROLIGHTS proudly introduces the EclFresnel CT+ series , an innovative range of LED Fresnel fixtures designed to redefine the standard...
03 November 2023
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
Prolights' EclPanel Shines in TV Commercial with MS Dhoni
The PROLIGHTS EclPanel TWC series shone in a recent television commercial featuring the iconic Indian cricket player, Mr. MS Dhoni,...
30 October 2023
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College Auditorium shines with Prolights Fresnels
Cannon Hill Anglican College in Brisbane, Australia, has upgraded its auditorium with an all-LED lighting rig  including the Prolights...
26 October 2023
Prolights illuminates the new location of Science Park Towers
Prolights illuminates the new location of Science Park Towers
The grand unveiling of the new Science Park Towers headquarters within the Jonkoping Science Park showcased a state-of-the-art, innovative...
24 October 2023
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Prolights EclDisplay range transforms Belconnen Arts Centre Gallery
Belconnen Art Center has chosen Prolights' EclDisplay range as the main lighting system for its innovative and modern Window Gallery,...
19 October 2023
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family shines bright at Hamburger Börs
PROLIGHTS Astra Family brilliantly illuminated the unforgettable "A Show Larger than Life" performance at the iconic Hamburger Börs...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter tiktok linkedin

Loading...
