ECLFR2KT
PROLIGHTS

EclFresnel 2KTW

LED Fresnel FC and Tunable White with colour correction, to replace 2.000W lamp

EclFresnel 2KTW is an advanced LED replacement of traditional 2.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction. The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources. Featuring HDL dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KTW delivers both on performance and quality of output that is demanded from this level of light.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Truly silent operation making it perfect for studio and stage use
See variants

PHOTO GALLERY

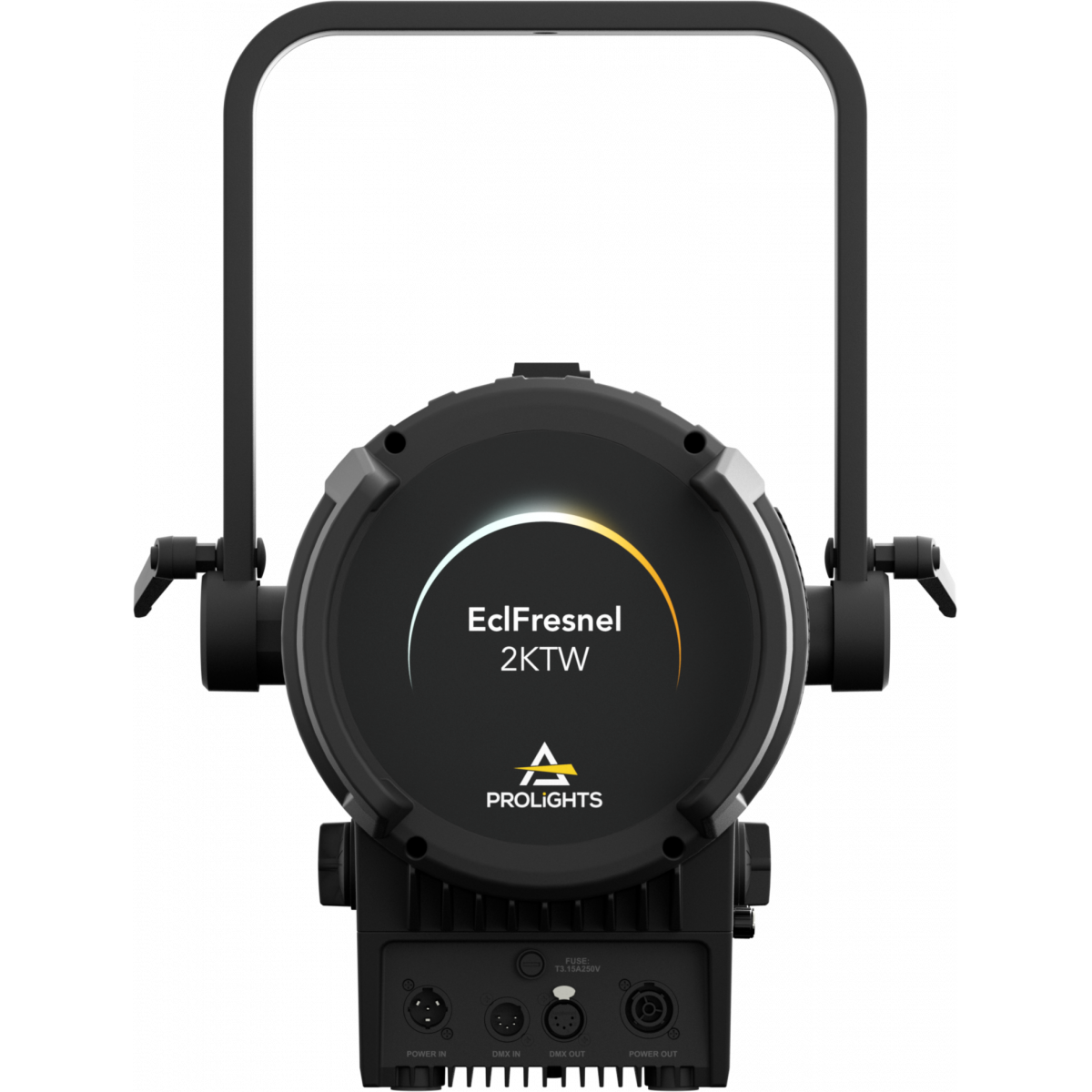

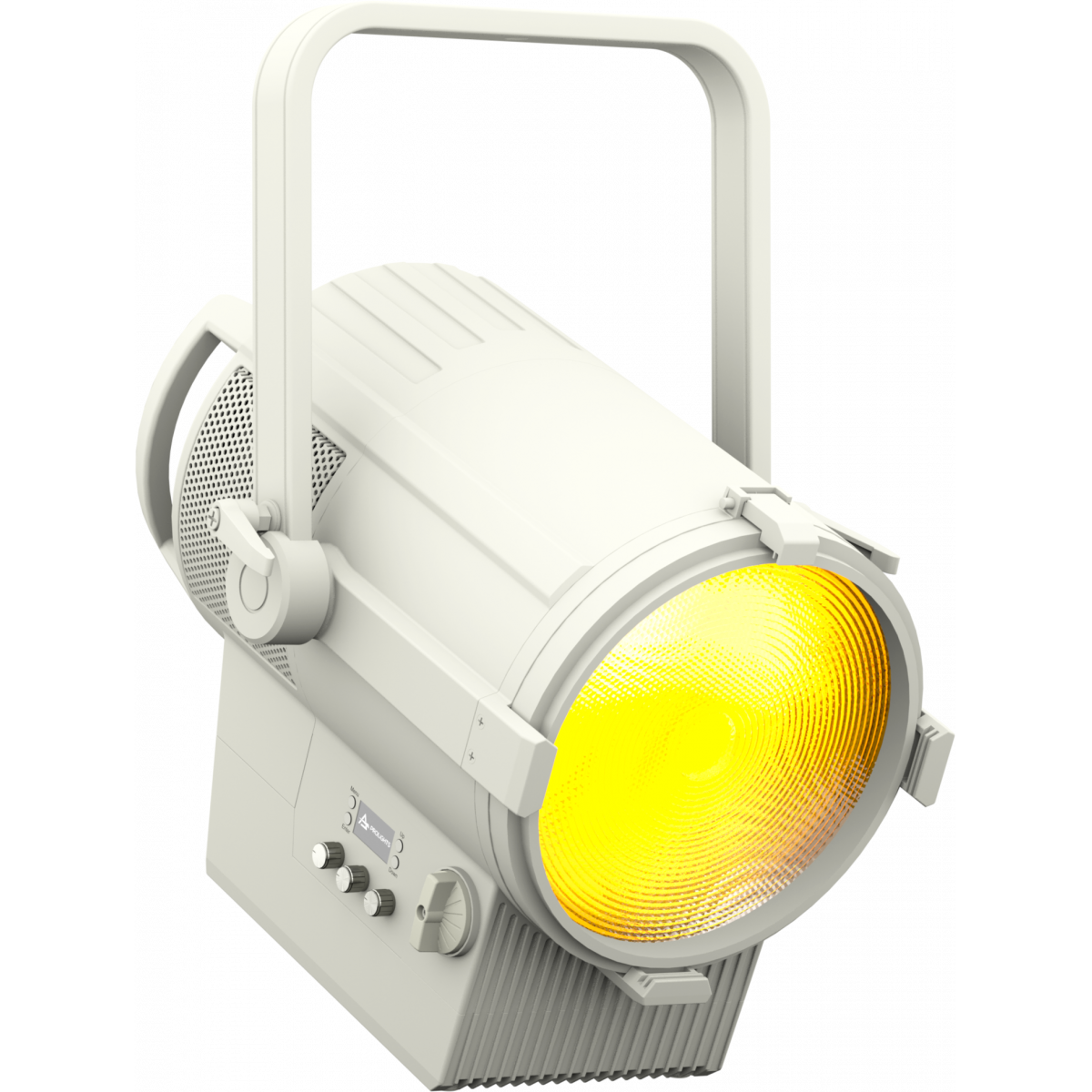

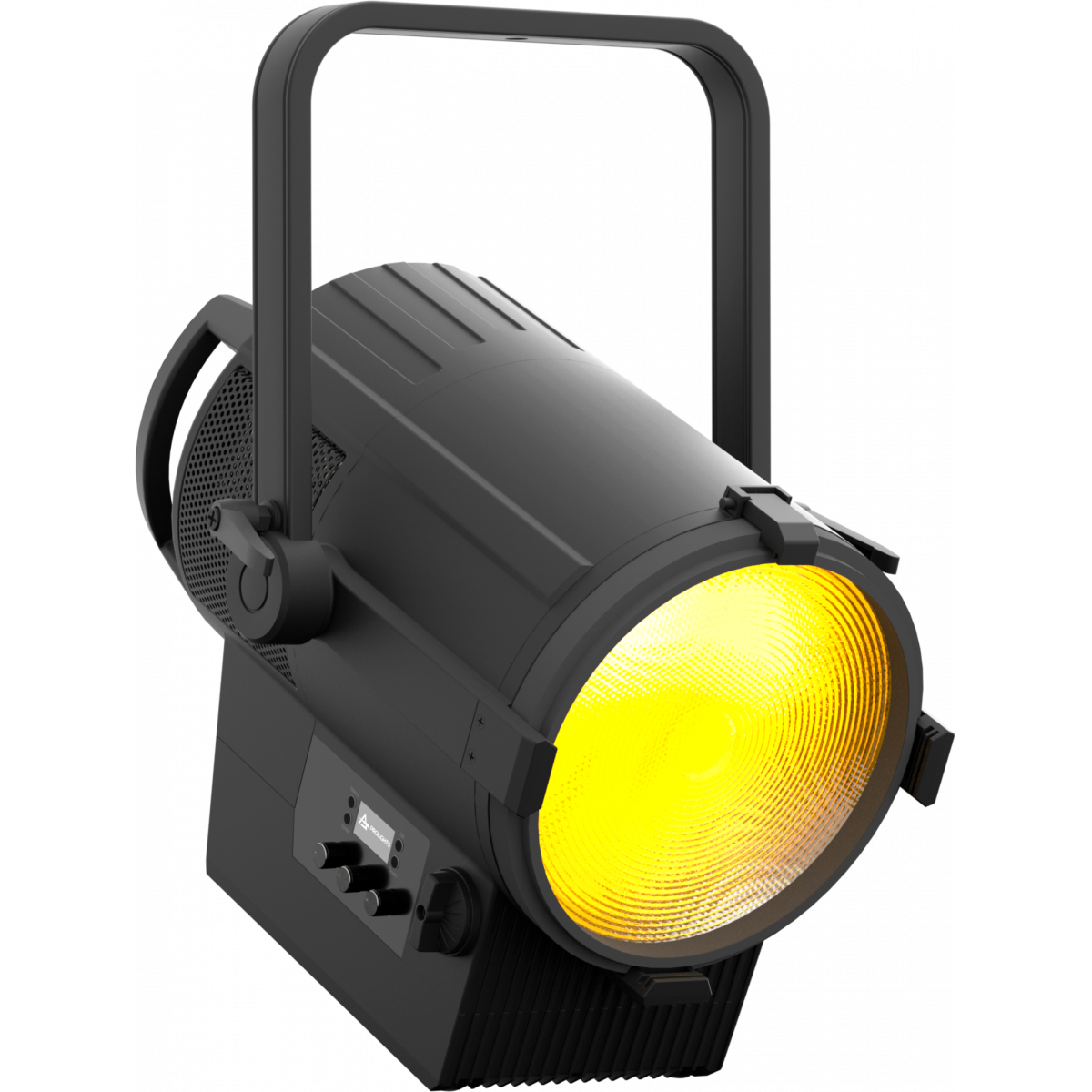

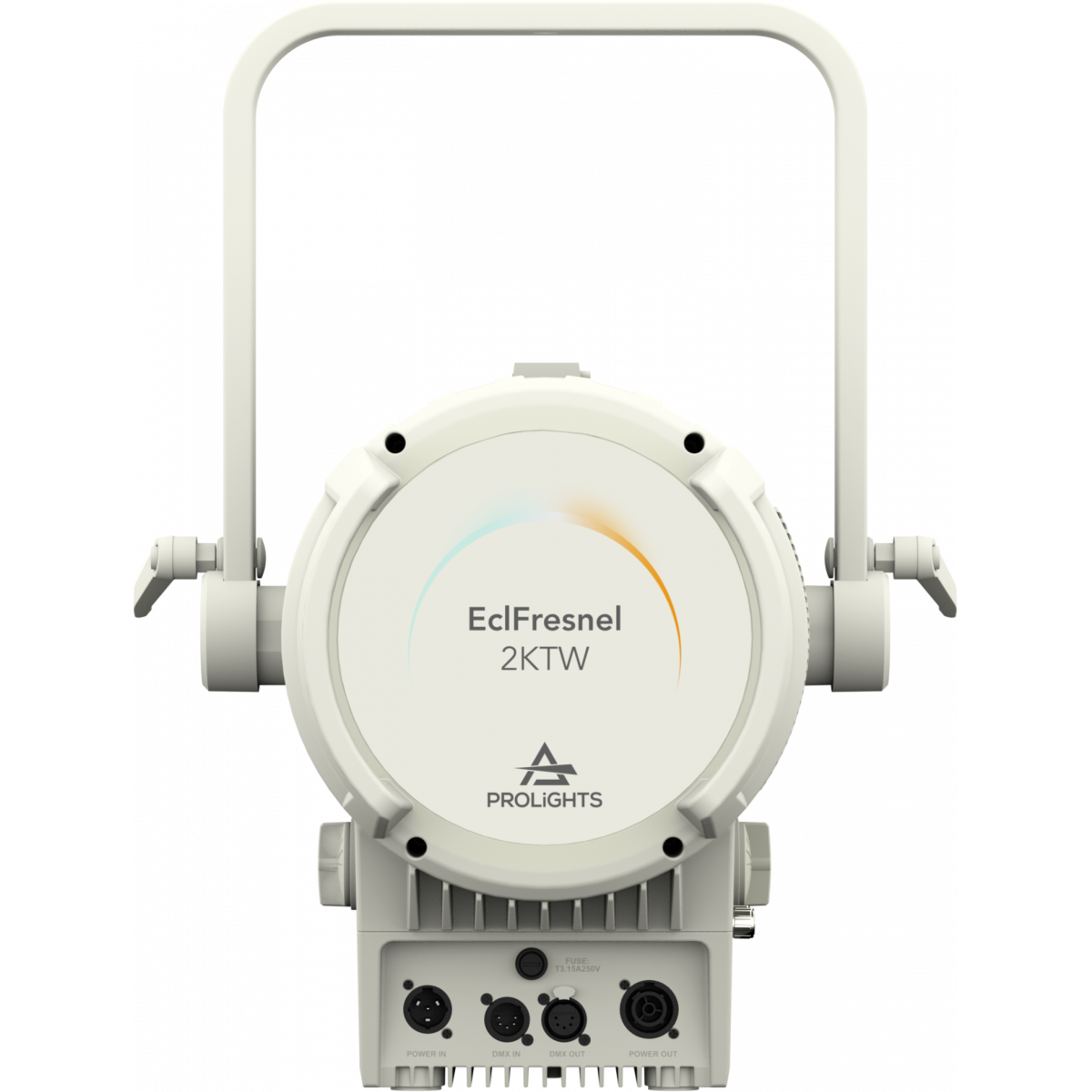

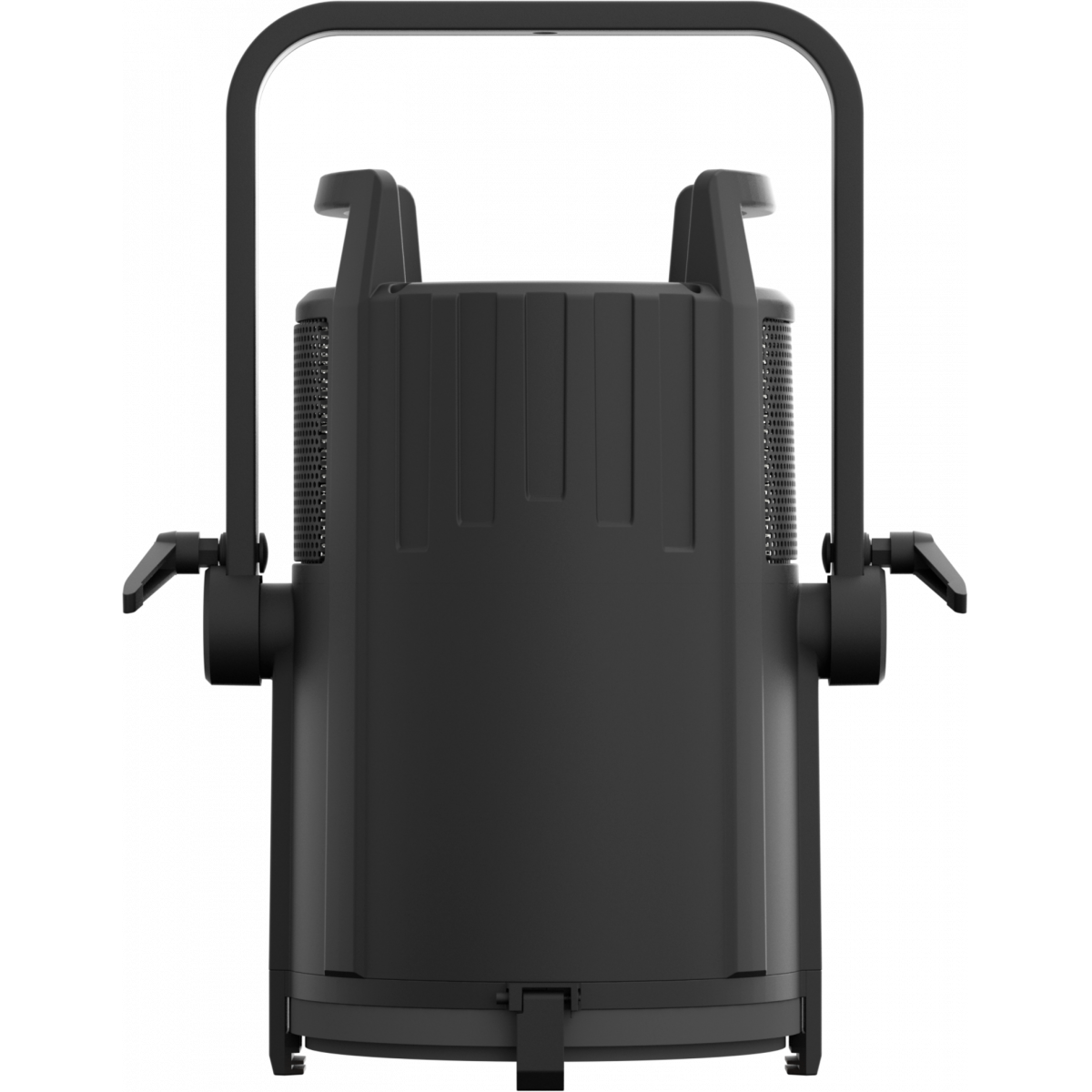

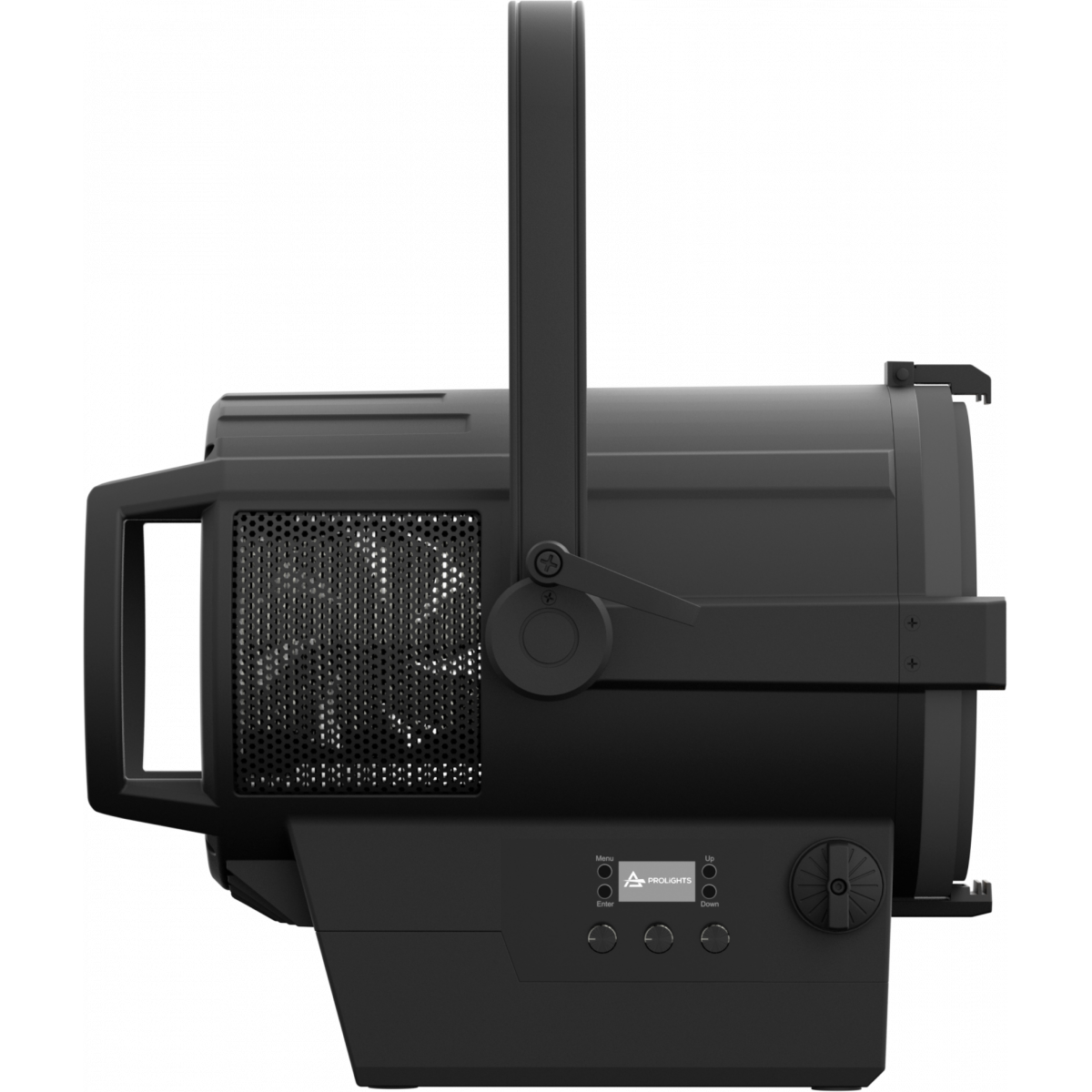

EclFresnel 2KTW
EclFresnel 2KTW
EclFresnel 2KTW
EclFresnel 2KTW
EclFresnel 2KTW
EclFresnel 2KTW

Technical specifications

LIGHT SOURCE
  • Source: 500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (17°) 10'100 lm - (76°) 13'400 @Full
  • Lux: (17°) 3'864 lx - (76°) 710lx @5 m full
  • CRI: 89 @3.200 K; 90,7 @5.600 K
  • R9: 80 @3.200 K; 85,4 @5.600 K
  • TLCI: 87 @5.600 K
  • TM30 Rf: 89,4 @3.200 K; 86,2 @5.600 K
  • TM30 Rg: 101,6 @3.200 K; 102,1 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 76° manual
  • Lens diameter: 9.84" - 250mm / 0.39''
  • Lens type: fresnel zoom lens
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 - 1 / 7 - 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Output (at 230V): 5 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 421x537x456mm / 16.57''x21.14''x17.95''
  • Dimensions with PO system (WxHxD): 401x691x456mm / 15.79''x27.2''x17.95''
  • Weight: 17,2kg / 37.92lbs
  • Weight with PO system: 18kg / 39.68lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
ECLFR2KTW
ECLFR2KTW
Black
ECLFR2KTWWH
ECLFR2KTWWH
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
FCLECLFR2K
FCLECLFR2K
(Optional)
Flight case for 3 pcs of ECLFR2K
ECLFR2KBD
ECLFR2KBD
(Included)
Barn door with directional flaps to adjust the light beam
ECLFR2KTPG
ECLFR2KTPG
(Included)
Gel filter frame for ECLFR2K projectors
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfr2ktw_A4_DATASHEET_(IT).pdf605KB
Letter datasheetEclfr2kt_A4_DATASHEET_(EN).pdf650KB
Tender SpecificationEclfr2kt_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfr2ktw_DMX_CHARTS.pdf147KB
ECLFR2KTW Firmware rev. 1.3
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclfresneltw_1ch.fdfDownload
eclfresneltw_2ch.fdfDownload
eclfresneltw_5ch1.fdfDownload
eclfresneltw_5ch2.fdfDownload
eclfresneltw_7ch1.fdfDownload
eclfresneltw_7ch2.fdfDownload
eclfresneltw_8ch.fdfDownload
eclfresneltw_9ch.fdfDownload
eclfresneltw_12ch.fdfDownload
eclfresneltw_13ch.fdfDownload
eclfresneltw_16ch.fdfDownload
eclfresneltw_19ch.fdfDownload
eclfresneltw_21ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@eclfresnel2ktw@rev 1.8.gdtfDownload
manufacturer fixture library (Link) Link
prolights@eclfresnel2ktw@1ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@2ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@5ch1@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@5ch2@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@7ch1@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@7ch2@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@8ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@9ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@12ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@13ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@16ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@19ch@rev._1.8_converted_from_gdtf.xmlDownload
prolights@eclfresnel2ktw@21ch@rev._1.8_converted_from_gdtf.xmlDownload
eclfr2ktw_12ch.zipDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAEclfr2kt_3D.rfa592KB
3D sketchupECLFR2KT_3D_SKETCHUP.zip873KB
2DEclfr2kt_CAD_2D.dwg13MB
3DECLFR2KT_3D.zip1MB
2D cad symbolsEclfr2kt_CAD_2DSYMBOLS.dwg168KB
Technical drawingEclfr2kt_TECHNICAL_DRAWING.pdf712KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLFR2KT_SYMBOLS.zip1MB

Tech docs

File name File size Download
Noise ReportEclfr2ktw_NOISE_REPORT.pdf332KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 28/03/2023 New function:
  • Added 11CH DMX mode.
1.3 STABLE 07/10/2020 Changed default setting on White Balance function from OFF to ADJUST. Rev. 1
Rev. 1.0
