ECLFR2KVW
PROLIGHTS

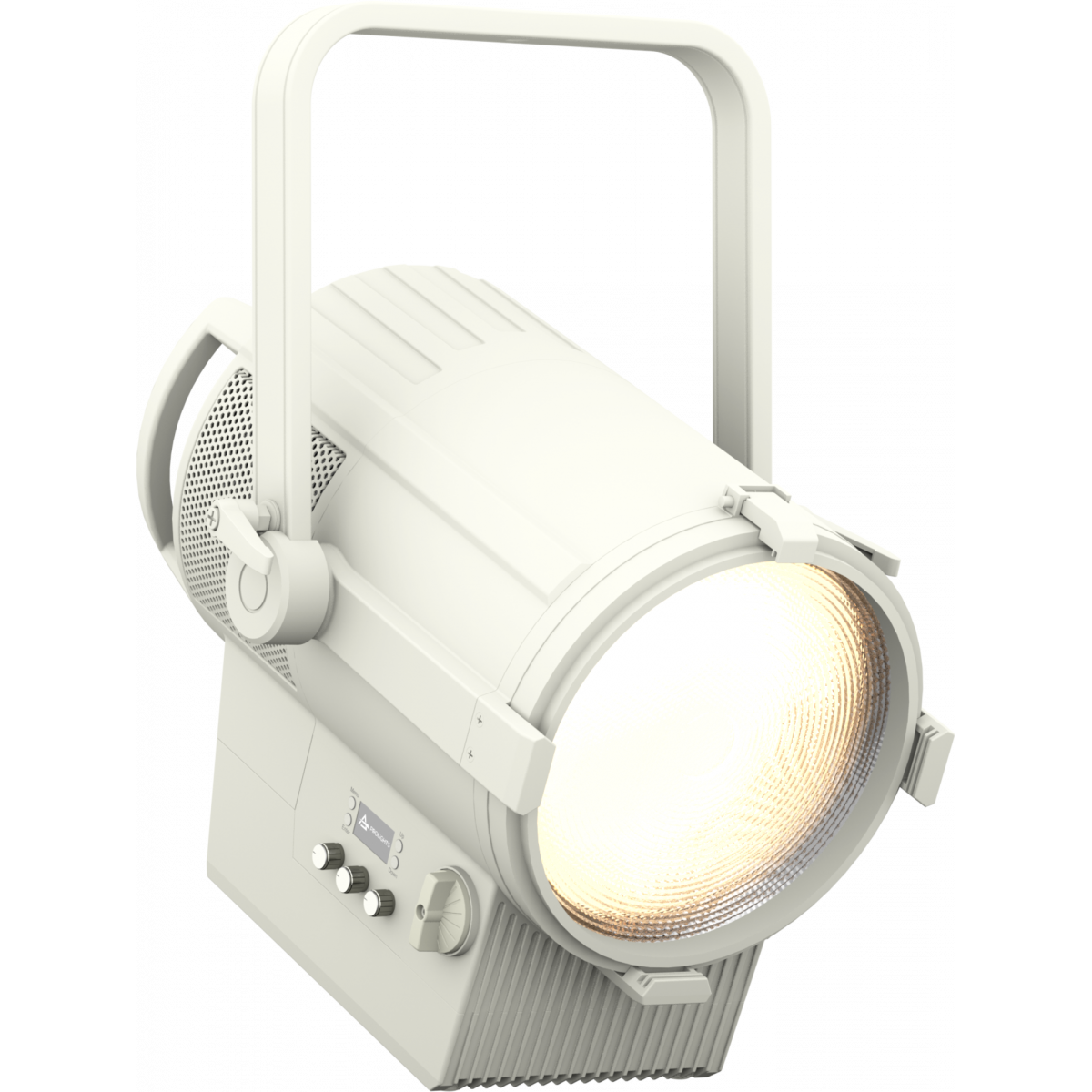

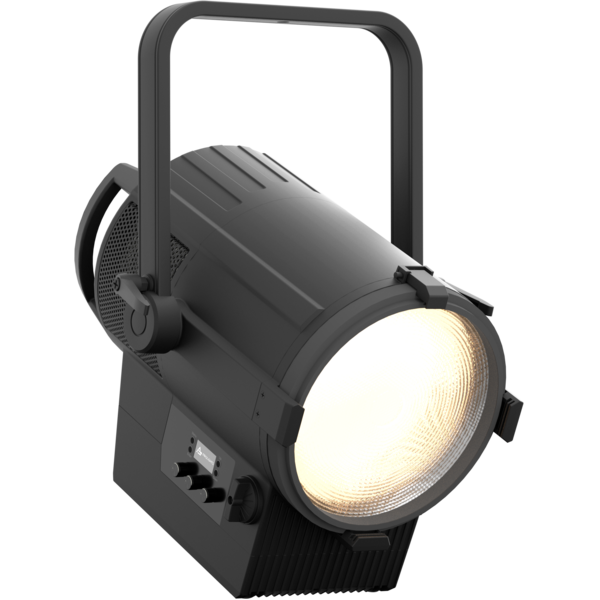

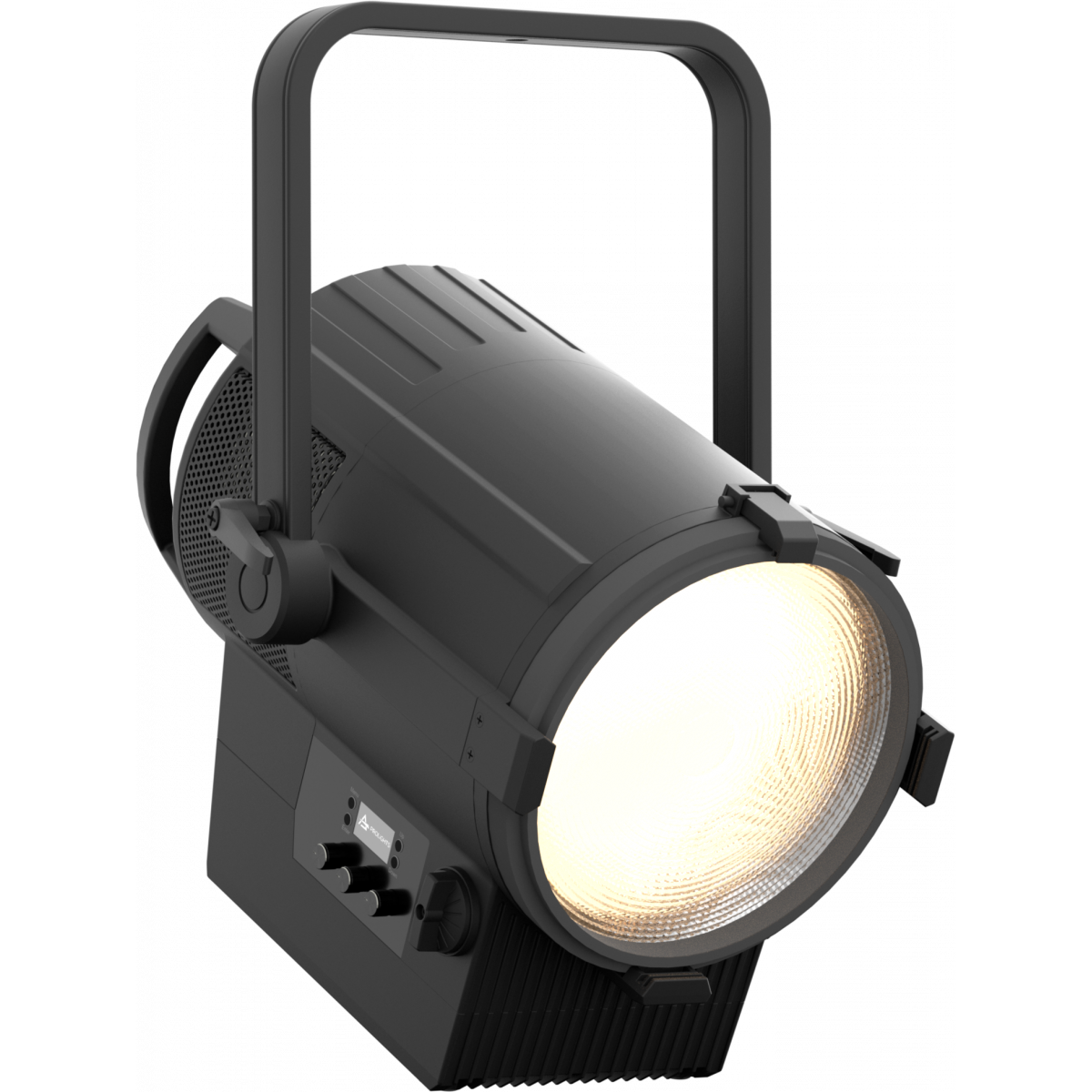

EclFresnel 2KVW

500W Variable White LED Fresnel (2,700K - 5,600K), with manual zoom 15° - 79,5°

The EclFresnel 2KVW is a powerful LED Fresnel lamp, designed as a replacement for a 2,000W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 500W LED source.
This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.
The EclFresnel 2KVW has a manual zoom range from 15° to 79,5°, with precise focusing, and an 8-leaf barndoor (included).
This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Main features:

  • Linear white CCT, from 2,700K to 5,600K
  • 500W Variable White LED with CRI >96; TLCI >96; high TM-30 and R9
  • Barndoor, 28 mm spigot and filter frame included
See variants

PHOTO GALLERY

EclFresnel 2KVW
EclFresnel 2KVW
EclFresnel 2KVW
EclFresnel 2KVW
EclFresnel 2KVW
EclFresnel 2KVW
EclFresnel 2KVW

Technical specifications

LIGHT SOURCE
  • Source: 500W Variable White LED
  • CCT: 2.700 K - 5.600
  • Luminous flux: (15°) 12'196 lm - (79,5°) 19'711 @Full
  • Lux: (15°) 6'782 lx - (79,5°) 1'118lx @5 m full
  • CRI: 94 @WW; 96 @CW; 92 @full
  • R9: 90 @WW; 88 @CW; 73 @full
  • TLCI: 97 @WW; 99 @CW; 98 @full
  • TM30 Rf: >94 @WW; >94 @CW; >93 @full
  • TM30 Rg: <103 @WW; <103 @CW; <104 @full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 15° - 79,5° manual
  • Lens diameter: 9.84" - 250mm / 0.39''
  • Lens type: fresnel zoom lens
COLOUR SYSTEM
  • Colour mixing: tunable white
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.700 K - 5.600K
  • Colour wheel: built-in white presets
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer and color temperature
  • Manual mode: manual adjustment of intensity and CT from knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan range: (for pole operated version) 360° with manual regulation
  • Tilt range: (for pole operated version) 180° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • Stand Alone: 3 rotatory knobs
  • DMX channels: 1 / 2 / 4 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 450W
  • Output (at 230V): 5 units on a single power line
  • Power factor: > 0,95
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning

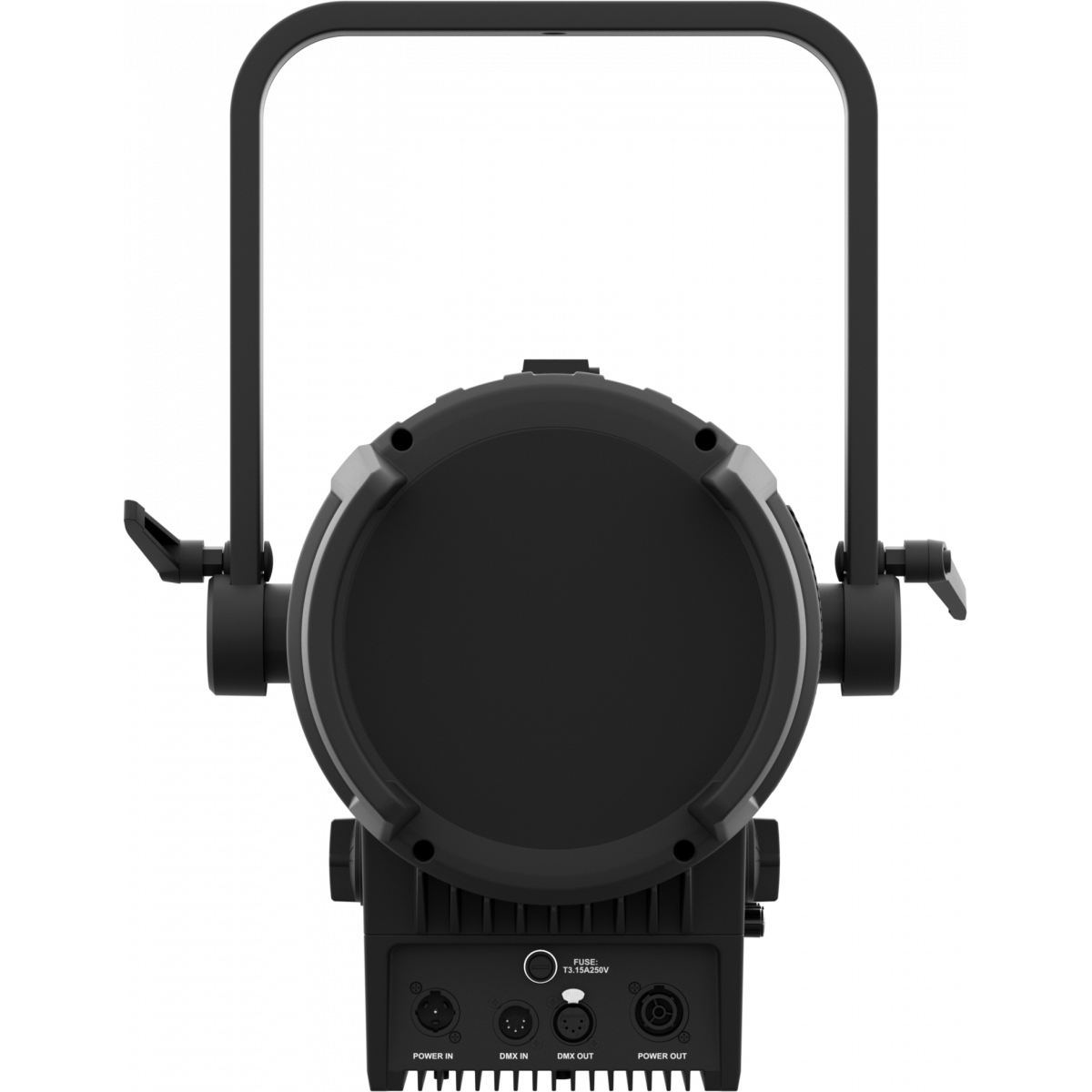

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 421x537x456mm / 16.57''x21.14''x17.95''
  • Dimensions with PO system (WxHxD): 401x576x456mm / 15.79''x22.68''x17.95''
  • Weight: 17,2kg / 37.92lbs
  • Weight with PO system: 18kg / 39.68lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
Yoke
Input
ECLFR2KVWBK
ECLFR2KVWBK
Black
M.O.
DMX

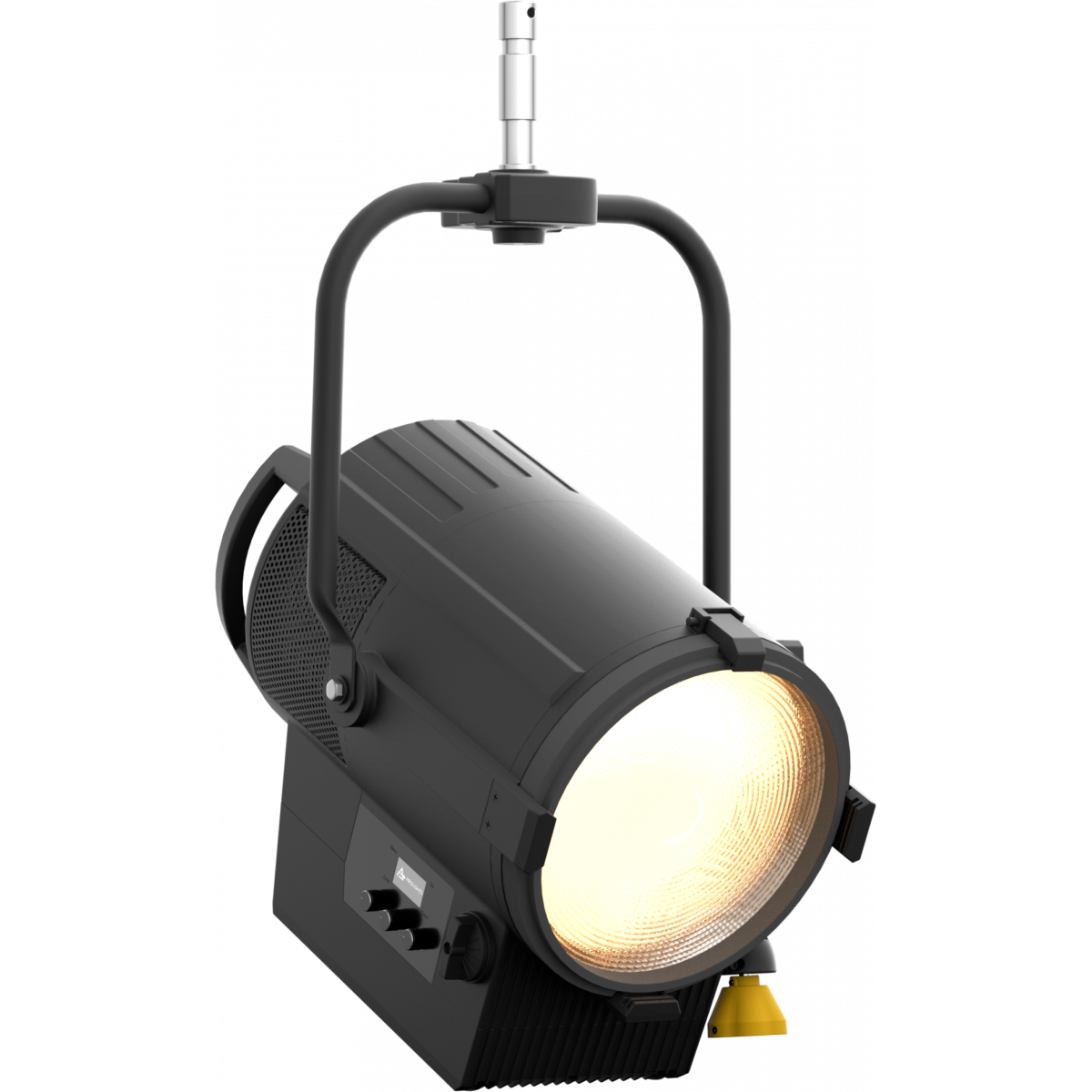

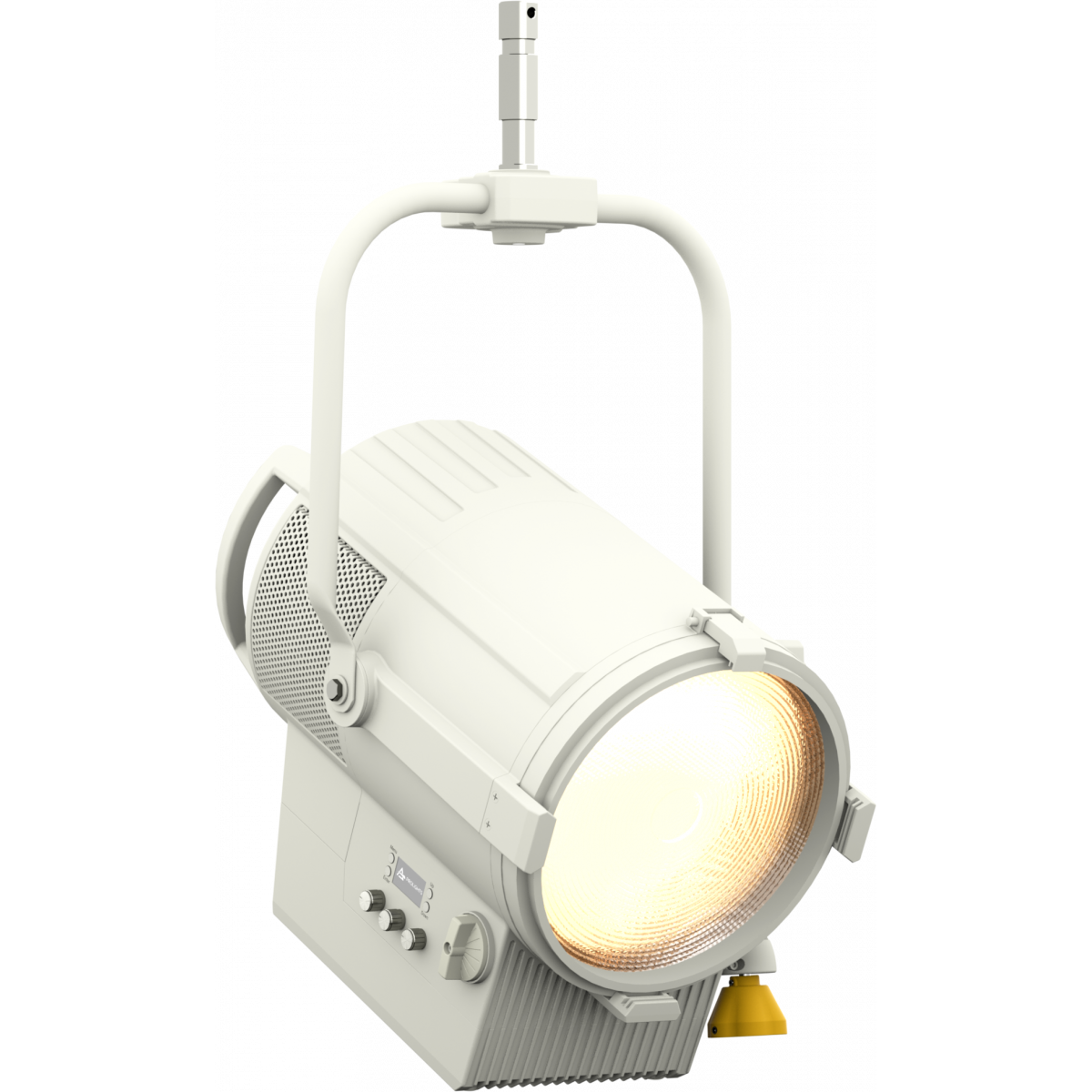

ECLFR2KVWPOBK
ECLFR2KVWPOBK
Black
P.O.
DMX
ECLFR2KVWWH
ECLFR2KVWWH
White
M.O.
DMX

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

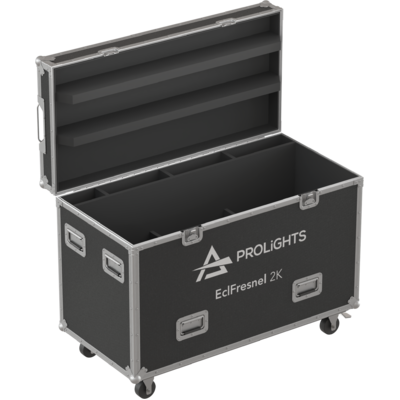

FCLECLFR2K
FCLECLFR2K
(Optional)
Flight case for 3 pcs of ECLFR2K
ECLFR2KBD
ECLFR2KBD
(Included)
Barn door with directional flaps to adjust the light beam
ECLFR2KTPG
ECLFR2KTPG
(Included)
Gel filter frame for ECLFR2K projectors
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
EFSBUFDS
EFSBUFDS
(Optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfr2kvw_A4_DATASHEET_(EN).pdf642KB
Tender SpecificationEclfr2kvw_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfr2kvw_DMX_CHARTS.pdf82KB
ECLFR2KVW Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLFR2KVW_3D_SKETCHUP.zip5MB
3DECLFR2KVW_3D.zip3MB
2D cad symbolsECLFR2KVW_2DSYMBOLS.zip397KB
Technical drawingEclfr2kvw_TECHNICAL_DRAWING.pdf1MB
VectorWorksECLFR2KVW_SYMBOLS.zip4MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download
Noise ReportEclfr2kvw_NOISE_REPORT.pdf611KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 10/04/2024 Improvement:
  • Improved CCT management.
 Rev. 1.0
Rev. 1
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 11/04/2024 Improvement:
  • Improved CCT management.
 Rev. 1.0
