EclFresnel CT+M new

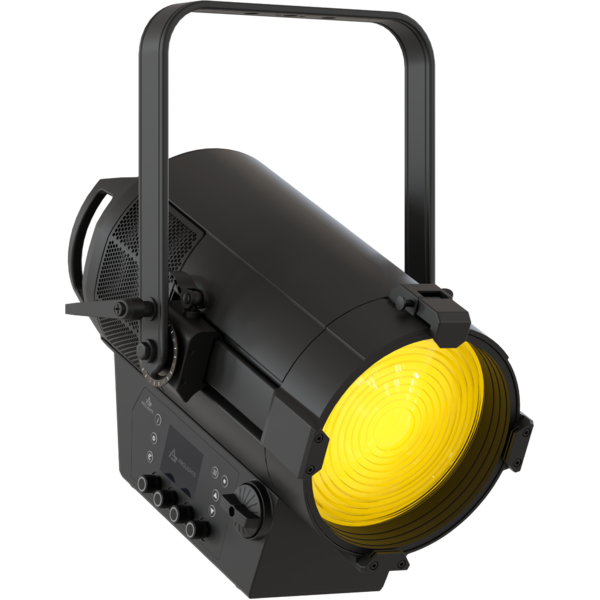

350 W indoor Led Fresnel with 6 color source, 200mm-8'' lens

EclFresnel CT+M is a 350W LED Fresnel, engineered with a new 6 colours light source and  a 200mm / 8'' glass Fresnel lens.
The newly designed optical system allows a greater zoom range from 9° to 80°, keeping and high efficiency also at a narrow beam angle.
The Spektra calibrated light source delivers consistency in operations, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.
Fixtures of the EclFresnel CT+ range brings more power in their processing unit, offering an ultimate user experience in terms of  control of the light and colours and as well more intuitive stand alone operations through a larger display, backlight encoders,  and advanced connectivity both wired and wireless.
Completed by a wide range of accessories including 8 leaf barndoors and P.O. bracket, the EclFresnel CT+ also performs silent, allowing to be the indispensable workhorse for Broadcast, Film and Theatre applications.

Main features:

  • 350W 6 colour LED Fresnel with 200mm/8'' glass lens
  • 9-80° Manual zoom system
  • High quality CCT reproduction and advanced color control
  • New UI with 2.8'' display and 4 backlit pushable encoder

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Light source: Proprietary source manufactured in Europe by PROLIGHTS
  • Source: 350W 6 colour LEDs source
  • Luminous flux: (9,4°) 3'867 lm - (80,8°) 9'827lm @4.000 K
  • Lux: (9,4°) 5'706 lx - (80,8°) 451lx @5m @4.000 K
  • CRI: 97 @3.200K; 96,8 @5.600 K
  • R9: 91,7 @3200K; 96,9 @5.600 K
  • TLCI: 88 @3200K; 94 @5.600 K
  • TM30 Rf: > 94 @3.200K; > 94 @5.600 K
  • TM30 Rg: < 102 @3.200K; < 103 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 9,4° - 80,8° manual
  • Lens diameter: 8'' / 200mm / 0.31''
  • Lens type: Fresnel glass lens with AR coating
  • Lens effect: Glass Fresnel lens providing a classic light fall-off
  • Additional optics: PC lens available as accessory
  • Other: spigot, barndoor and gel frame included
COLOUR SYSTEM
  • Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: Linear CCT adjustment from 1.800 K-20.000K
BODY
  • Bracket system: Sliding bracket for adjustable weight balance
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: Die-cast magnesium alloy
  • Body colour: RAL 9004
  • Other: Strengthened zoom movement system for enhanced durability and stability
CONTROL
  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 4 pushable RGB backlit encoder
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 2.8'' Color display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption: 350W
  • Output (at 230V): 8 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: WEIPU SF12 4P-F
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Low Voltage DC connector: XLR 3p for 48V
  • Dimensions (WxHxD): 338x573x428mm / 13.31''x22.56''x16.85''
  • Weight: 9,9kg / 21.83lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, RCM, cTUVus
BOX CONTENT

Versions

Code
Finishing
ECLFRCTPMBK
ECLFRCTPMBK (NEW)
Black

Accessories & Related Products

FCLECLFRCTPM
FCLECLFRCTPM
(optional)

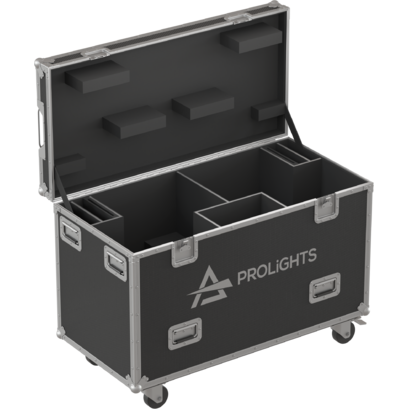

Flight case for 4 pcs of ECLFRCTPM / MIP series
ECLFRCTPMBAG1U
ECLFRCTPMBAG1U
(optional)

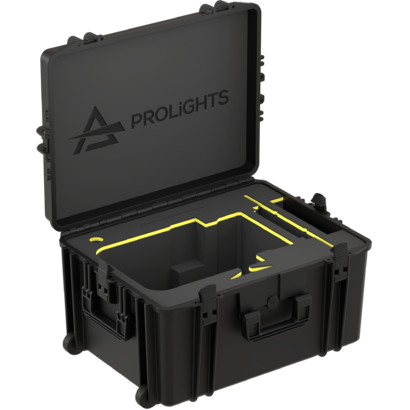

Empty ABS case for 1 pc of ECLFRCTPM / MIP series
ECLFRCTPMKPOYO
ECLFRCTPMKPOYO
(optional)

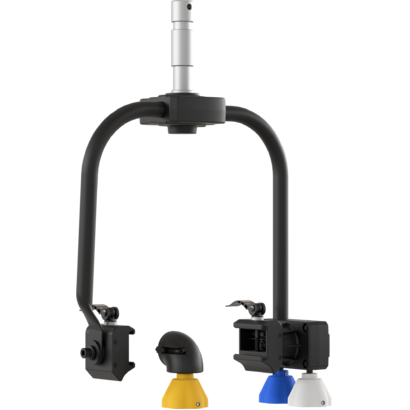

Pole operated aluminium yoke bracket and zoom kit for ECLFRCTPM series
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
ECLFRCTPMFFBK
ECLFRCTPMFFBK
(included)

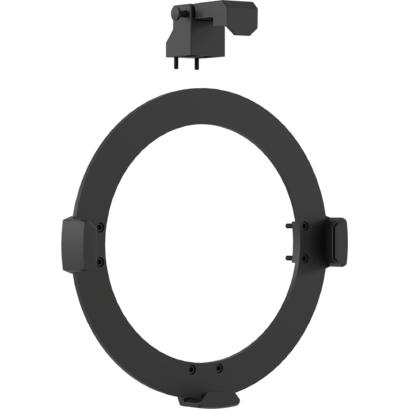

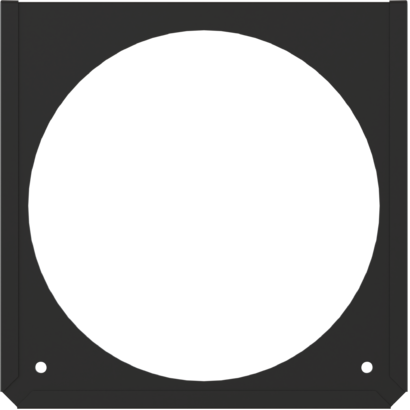

Filter frame for ECLFRCTPSM series, black
ECLFRCTPMBDBK
ECLFRCTPMBDBK
(included)

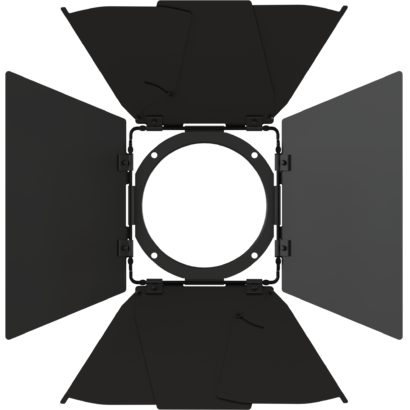

Barn door 8 directional flaps to adjust the light beam for ECLFRCTPM, black
LRTM2SPIBK
LRTM2SPIBK
(optional)
CRMX Timo Two SPI kit, black
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfrctpm_A4_DATASHEET_(EN).pdf 714KB
Tender Specification Eclfrctpm_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclfrctpm_General_Safety_Information_EN.pdf 3MB
User manual Eclfrctpm_USER_MANUAL_EN.pdf 10MB

DMX chart & personalities

File name File size Download
DMX chart Eclfrctpm_DMX_CHARTS.pdf 1MB
VectorWorks ECLFRCTPMBK_SYMBOLS.vwx 817KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 306MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 448MB
ECLFRCTPM Firmware rev. 0.0.01.0020
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclfrctpm_hb mode_ldt_ies files.zip 82KB
IES prolights_eclfrctpm_hq mode_ldt_ies files.zip 81KB
PDF Photometrics Eclfrctpm_(High_Brightness_Mode)_REPORT.pdf 6MB
PDF Photometrics Eclfrctpm_(High_Quality_Mode)_REPORT.pdf 4MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D SKP Eclfrctpm_3D_SKETCHUP.skp 2MB
2D Eclfrctpm_2D.dwg 12MB
3D Eclfrctpm_3D.dwg 551KB
2D cad symbols Eclfrctpm_2DSYMBOLS.dwg 719KB
Technical drawing Eclfrctpm_TECHNICAL_DRAWING.pdf 3MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOXPRO UPBOXPRO UPBOX2P5 UPBOX2P5
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.0.01.0020 ALPHA 14/11/2023 New function:
  • Added Backlight Encoder in Menu/Setup/UI settings/Backlight settings.
Improvements:
  • Improved Quick Information menu.
  • Set Led Frequency@25kHz as default.
  • Changed the CCT Range selector channel as follows:
    • 0 dmx value to 9 dmx value = 1850K - 20000K
    • 10 dmx value to 19 dmx value = 2200K - 15000K
    • 20 dmx value to 29 dmx value = 2800K - 10000K
  • Changed the GPM channel as follows:
    • 0 dmx value to 1 dmx value = Neutral / No Effect
    • 2 dmx value to 3 dmx value = Full Minus Green
    • 4 dmx value to 126 dmx value = -99% to -1%
    • 127 dmx value to 128 dmx value = Neutral / No Effect
    • 129 dmx value to 253 dmx value = 1% to 99%
    • 254 dmx value to 255 dmx value = Full Plus Green
  • Improved DMX Fault Behavior.
  • Led Frequency@600Hz removed from menu and Control Channel (now dmx values 134 - 135 on Control Channel are "Reserved for future use" ).
Fixed Bugs:
  • Gel names for Cinelux are wrong.
  • Power Limit set by control channel does not work properly.
  • Keylock sometimes doesn't work.
  • Error message appears when the fixture is turned off.
  • When you set Fan Mode@Turbo the fans suddenly stop for a few moments.
  • The word "Emergency" in DMX Fault Behavior is incorrectly shown on the display in Home Screen.
  • Presence of jumps in intensity during Color Mix.
  • Flip Display produces graphic errors on the display.
  • The "Color Space" switch in Menu/Setup/Light Control does not work on Stand Alone mode.
