ECLFRCTPXS

EclFresnel CT+XS

NEW
SPEKTRA

Order Code: ECLFRCTPXSBK

Source
120W 6 colour LEDs source
Zoom range
10°-75° manual
IP rating
 IP20
Weight
3,8kg / 8.38lbs

Key Features

  • 120W 6 color LED Fresnel, provides 3,700 lm
  • 10-75° Internal zoom system, 130mm/5'' Fresnel lens, and Optional PC kit
  • SpektraOs allow high value in CRI up to 98, and consistent color reproduction across the range
  • CRI: 97,7 @3.200K; 95,9 @5.600 K - R9: 96,5 @3200K; 96,2 @5.600 K

EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and  a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 75°, maintaining high efficiency at any beam angle without any change to the luminaire's physical size throughout the zoom range. An optional PC lens kit is also available to achieve its specific light distribution.

The SpektraOs algorithm delivers consistency in operations also with the other size of ECL Frensel, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

Read less
EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and  a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels. ...

Product Video

Discover the EclFresnel CT+XS in action

Photo Gallery

ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK
ECLFRCTPXSBK

Specifications

LIGHT SOURCE
  • Source: 120W 6 colour LEDs source
  • Luminous flux: (11,2°) 2.406 lm - (74,7°) 3.669 @Full
  • Lux: (11,2°) 2.560 lx - (74,7°) 225lx @5 m full
  • CRI: 97,7 @3.200K; 95,9 @5.600 K
  • R9: 96,5 @3200K; 96,2 @5.600 K
  • TLCI: 89 @3200K; 93 @5.600 K
  • TM30 Rf: > 94,8 @3.200K; > 94,3 @5.600 K
  • TM30 Rg: < 102,8 @3.200K; < 104,4 @5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range: 10°-75° manual
  • Lens diameter: 5'' / 130mm / 0.2''
  • Lens type: PMMA lens
  • Additional optics: PC lens available as accessory
  • Other: barndoor and gel frame included
COLOUR SYSTEM
  • Spektra OS: unmatched color precision and consistency
  • Colour control: XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • Colour mixing: 6 colour LEDs source
  • CCT: Linear CCT adjustment from 1.850 K-20.000K
BODY
  • Hardware on-board: included filter frame and 8 doors barndoor
  • Body: die-cast magnesium alloy
  • Body colour: RAL 9004
CONTROL
  • Protocols: DMX512, RDM, CRMX (optional)
  • Stand Alone: 1 push encoder
  • DMX channels: From 1 to 34channel
  • Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and W-DMX, Bluetooth capable
  • RDM: RDM for remote monitoring and settings
  • Display: 2.4'' Color display
  • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 1282 ~ 40.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 48V
  • Max power consumption: 130W
  • Standby power: 5,8 W
  • Output (at 230V): 20 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: IP20
  • Cooling: active, silent operation
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 227x289x294mm / 8.94''x11.38''x11.57''
  • Weight: 3,8kg / 8.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE
BOX CONTENT
  • 1 x ECLFRCTPXSBK
  • 1 x ECLFRCTPXSFFBK
  • 1 x ECLFRCTPXSBDBK
  • 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
  • User Manual

Accessories & Related Products

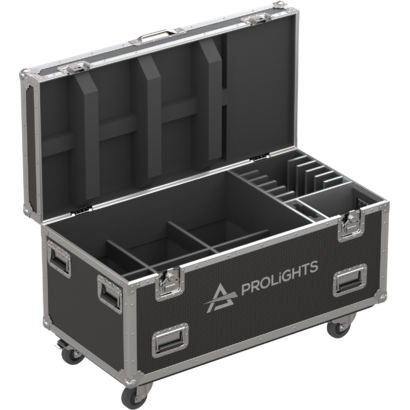

Optional FCLECLFRCTPXS

Flight case for 6 pcs of ECLFRCTPXS series

Order Code: FCLECLFRCTPXS

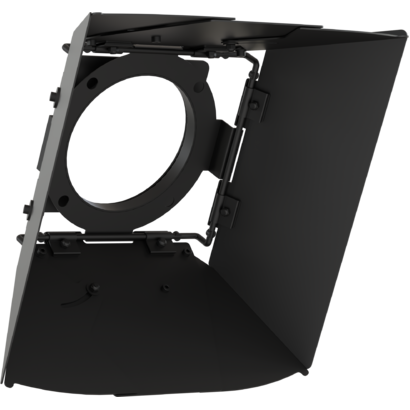

Included ECLFRCTPXSBDBK

Barn door 8 directional flaps to adjust the light beam for ECLFRCTPXS, black

Order Code: ECLFRCTPXSBDBK

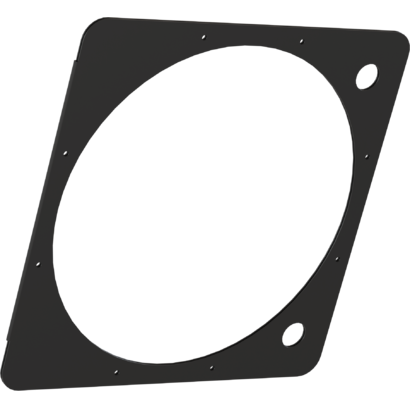

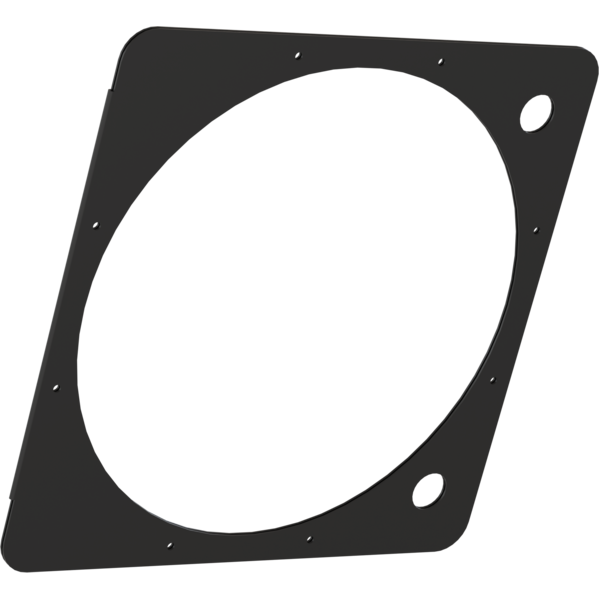

Included ECLFRCTPXSFFBK

Filter frame for ECLFRCTPXS series, black

Order Code: ECLFRCTPXSFFBK

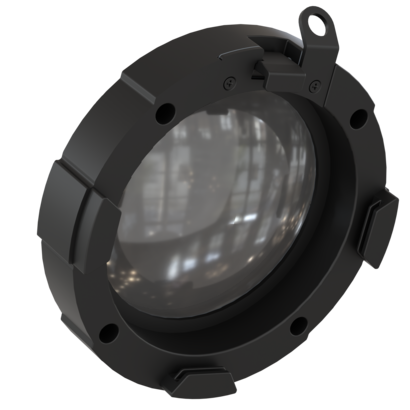

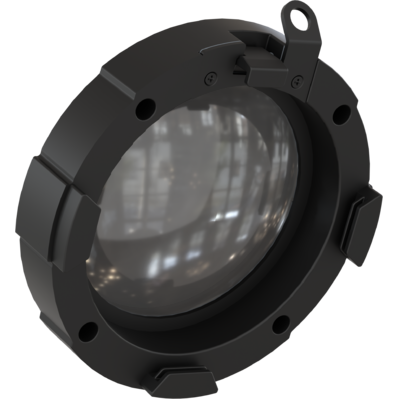

Optional ECLFRCTPXSPCLKBK

PC lens kit for ECLFRCTPXS, black

Order Code: ECLFRCTPXSPCLKBK

Optional EFSBUFDS

SNAPBAG - Universal SMALL DEEPER for BARNDOORS

Order Code: EFSBUFDS

Optional ECLFRSPG

Spigot for PROLIGHTS fixtures

Order Code: ECLFRSPG

Optional LRT2WK1

Wireless kit 1 with TimoTwo

Order Code: LRT2WK1

Optional SPGM12

28mm spigot for fixtures, M12 bolt

Order Code: SPGM12

Optional SPGM10

28mm spigot for fixtures, M10 bolt

Order Code: SPGM10

Optional C6040B

Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

Order Code: C6040B

Optional C6002B

Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

Order Code: C6002B

Optional RSR0630B

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

Order Code: RSR0630B

Optional 9533FXWL03

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m

Order Code: 9533FXWL03

Optional 9513FXWL03

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m

Order Code: 9513FXWL03

Optional 958225L03

3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m

Order Code: 958225L03

Optional TOUR53415L03

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

Order Code: TOUR53415L03

Optional UPBOXPRO

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

Order Code: UPBOXPRO

Downloads

Technical documentation and support files

Data sheet & specs Data sheet & specs

File name File size Download
Letter datasheetEclfrctpxs_A4_DATASHEET_(EN).pdf(15/12/2025)749KB
Tender SpecificationEclfrctpxs_TENDER_SPECIFICATION.pdf(15/12/2025)305KB

User manual User manual

File name File size Download
User manualEclfrctpxs_USER_MANUAL_EN.pdf(12/12/2025)4MB
User manualEclfrctpxs_General_Safety_Information.pdf(05/12/2025)3MB

DMX chart & personalities DMX chart & personalities

File name File size Download
DMX chartEclfrctpxs_DMX_CHARTS.pdf(12/12/2025)1MB

Photometrics Photometrics

File name File size Download
IESprolights_eclfrctpxs_ies_files.zip(11/12/2025)40KB
LDTprolights_eclfrctpxs_ldt_files.zip(11/12/2025)39KB
PhotometricsEclfrctpxs_PHOTOMETRICS_REPORT.pdf(11/12/2025)5MB
DialuxDownload DIALux product catalogue-

CAD symbols & drawings CAD symbols & drawings

File name File size Download
3D SKPEclfrctpxs_3D.skp(20/11/2025)359KB
2DEclfrctpxs_CAD_2D.dwg(17/11/2025)3MB
3DEclfrctpxs_CAD_3D.dwg(20/11/2025)190KB
2D cad symbolsEclfrctpxs_CAD_2DSYMBOLS.dwg(26/11/2025)33KB
Technical drawingEclfrctpxs_TECHNICAL_DRAWING.pdf(17/11/2025)398KB
VectorWorksVECTORWORKS_SYMBOLS.vwx(26/11/2025)718KB
