EclFresnel Jr

LED Fresnel with HB white source, to replace 650W lamp

EclFresnel Jr is the LED replacement for a standard tungsten 650 W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel Jr adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens options with 17° to 81° zoom range
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)
See variants

PHOTO GALLERY

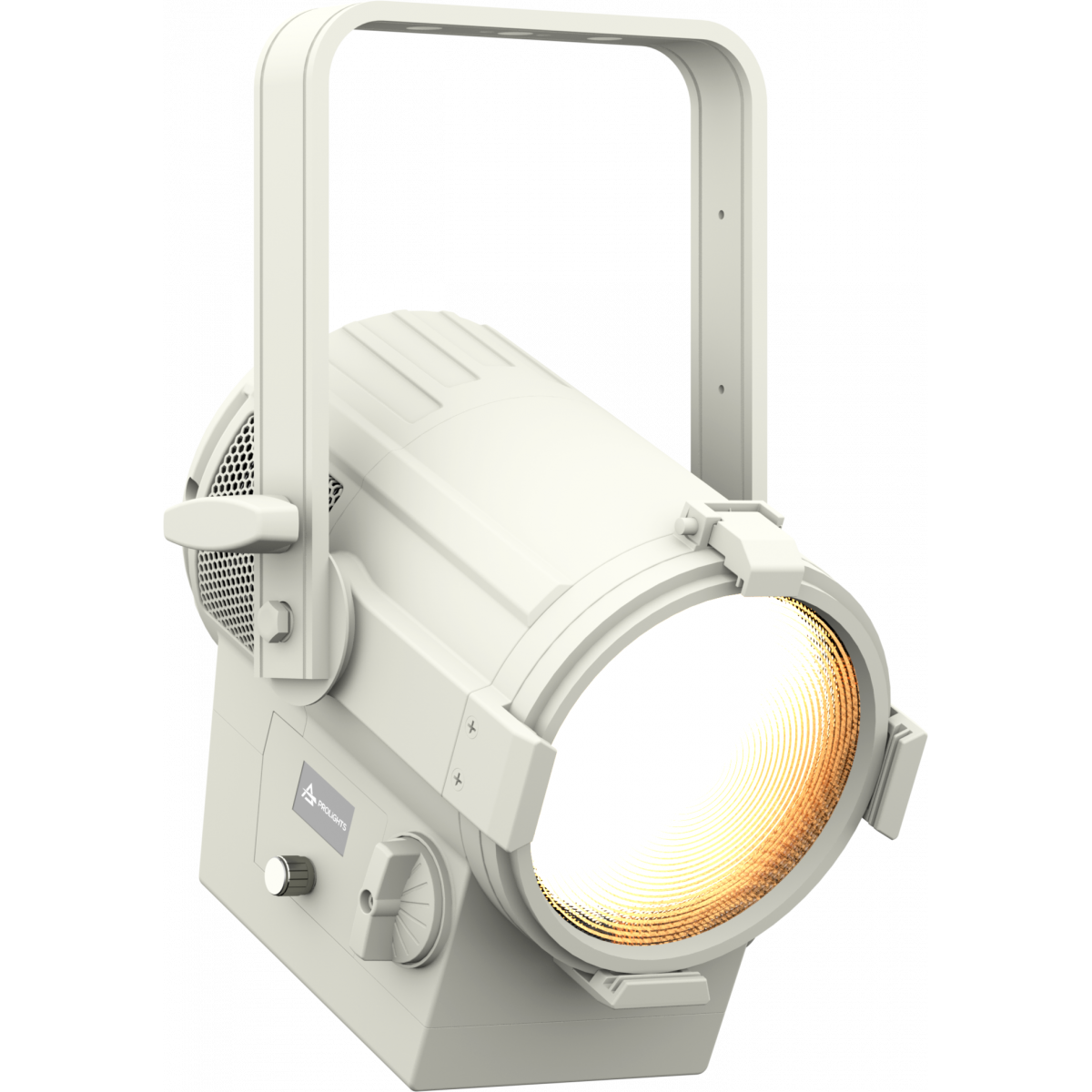

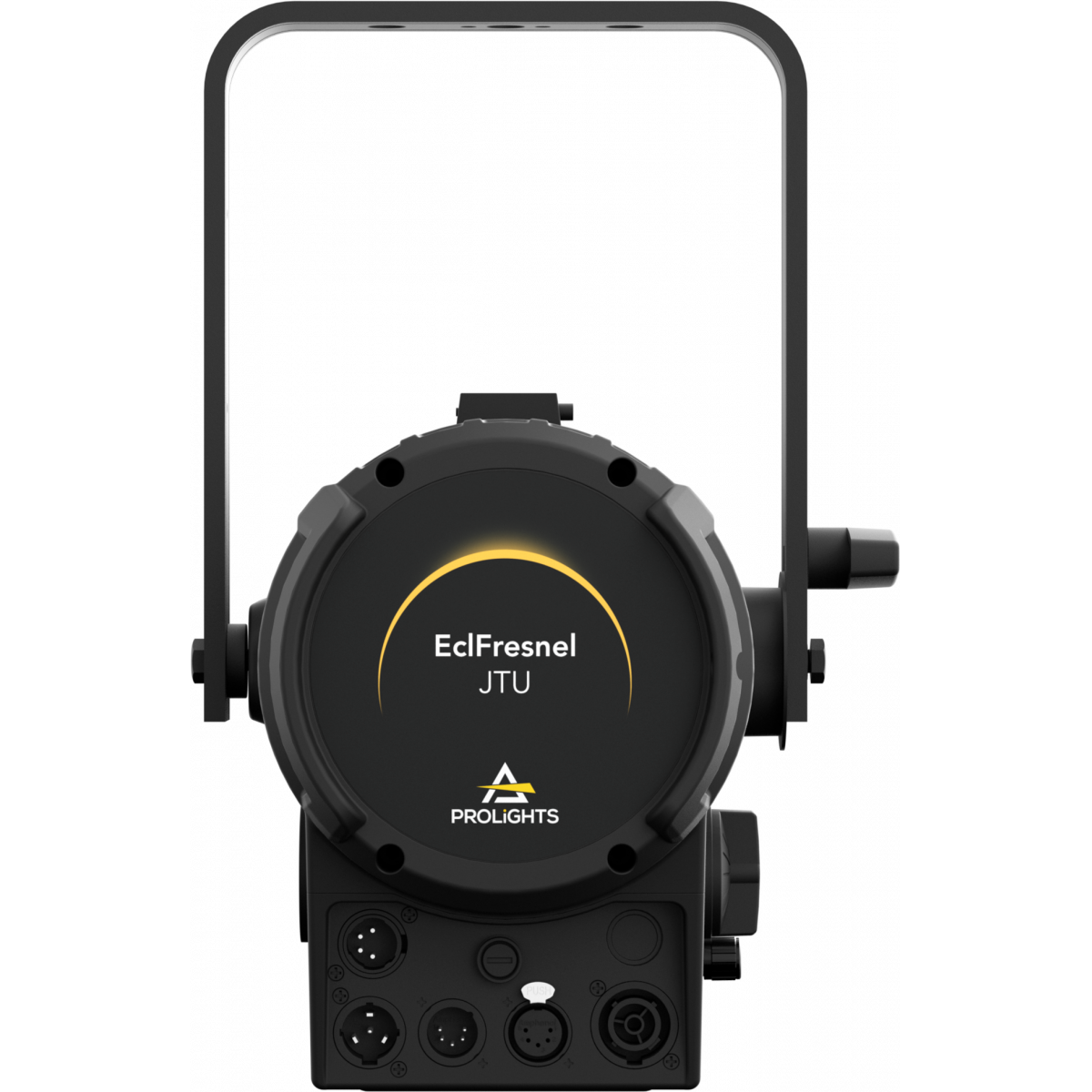

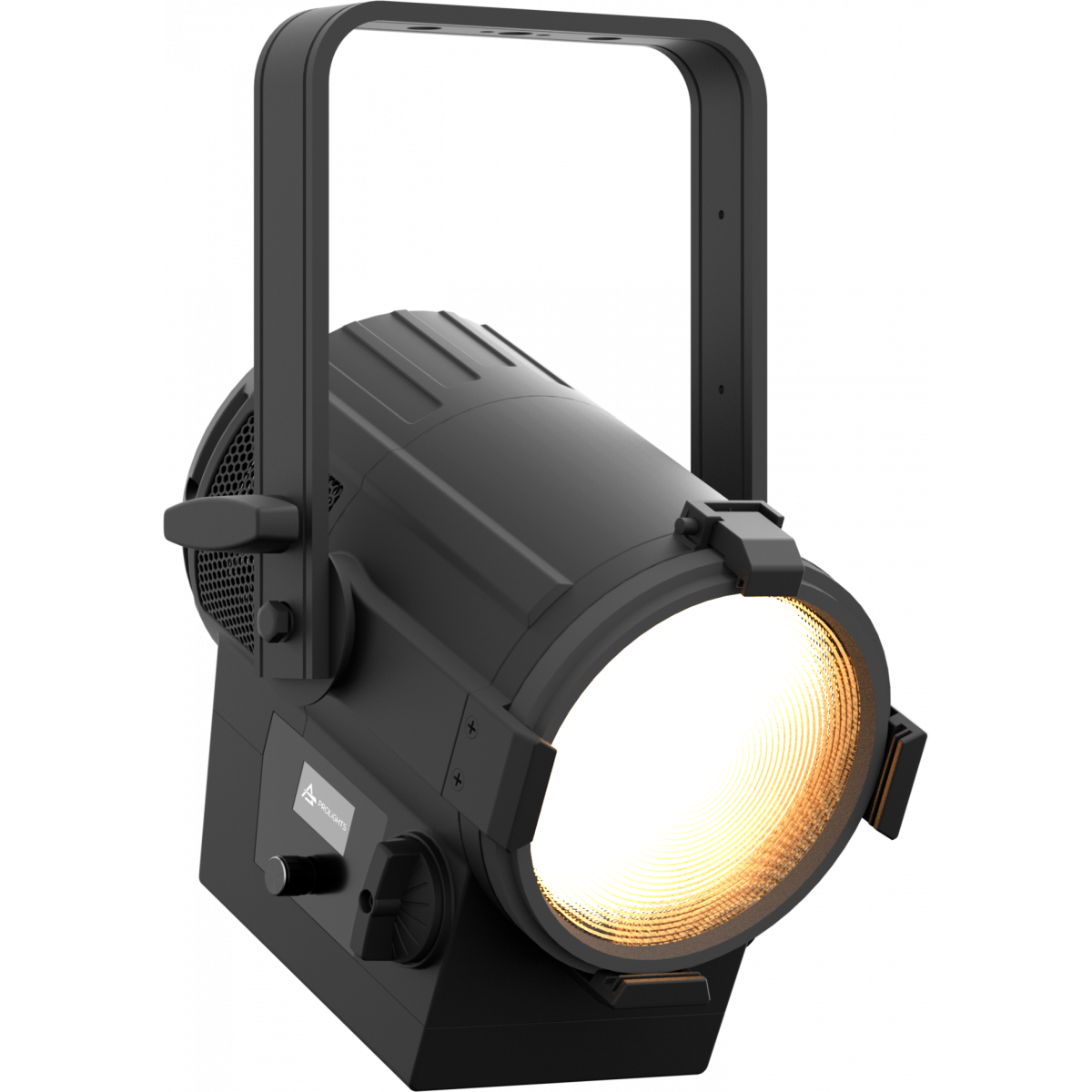

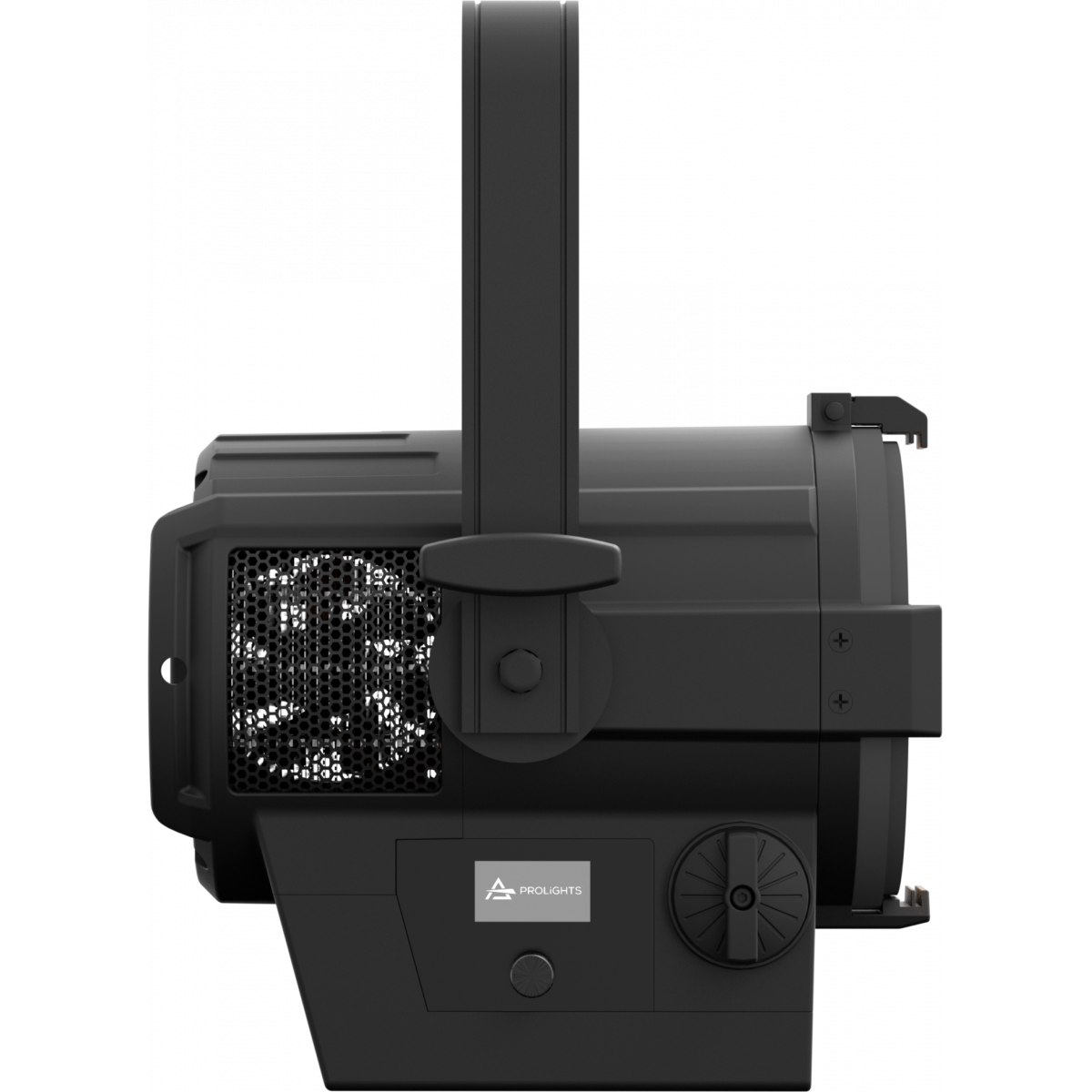

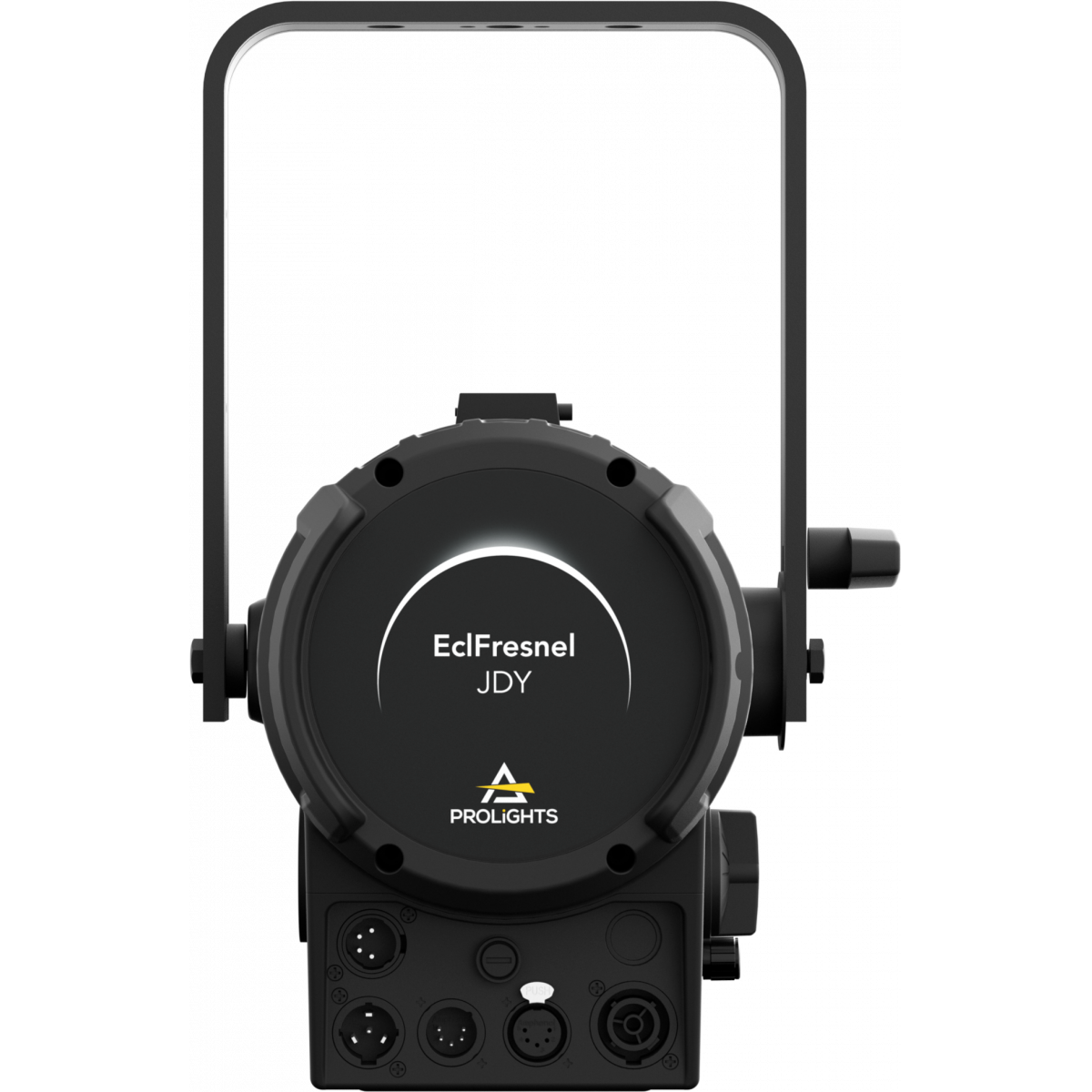

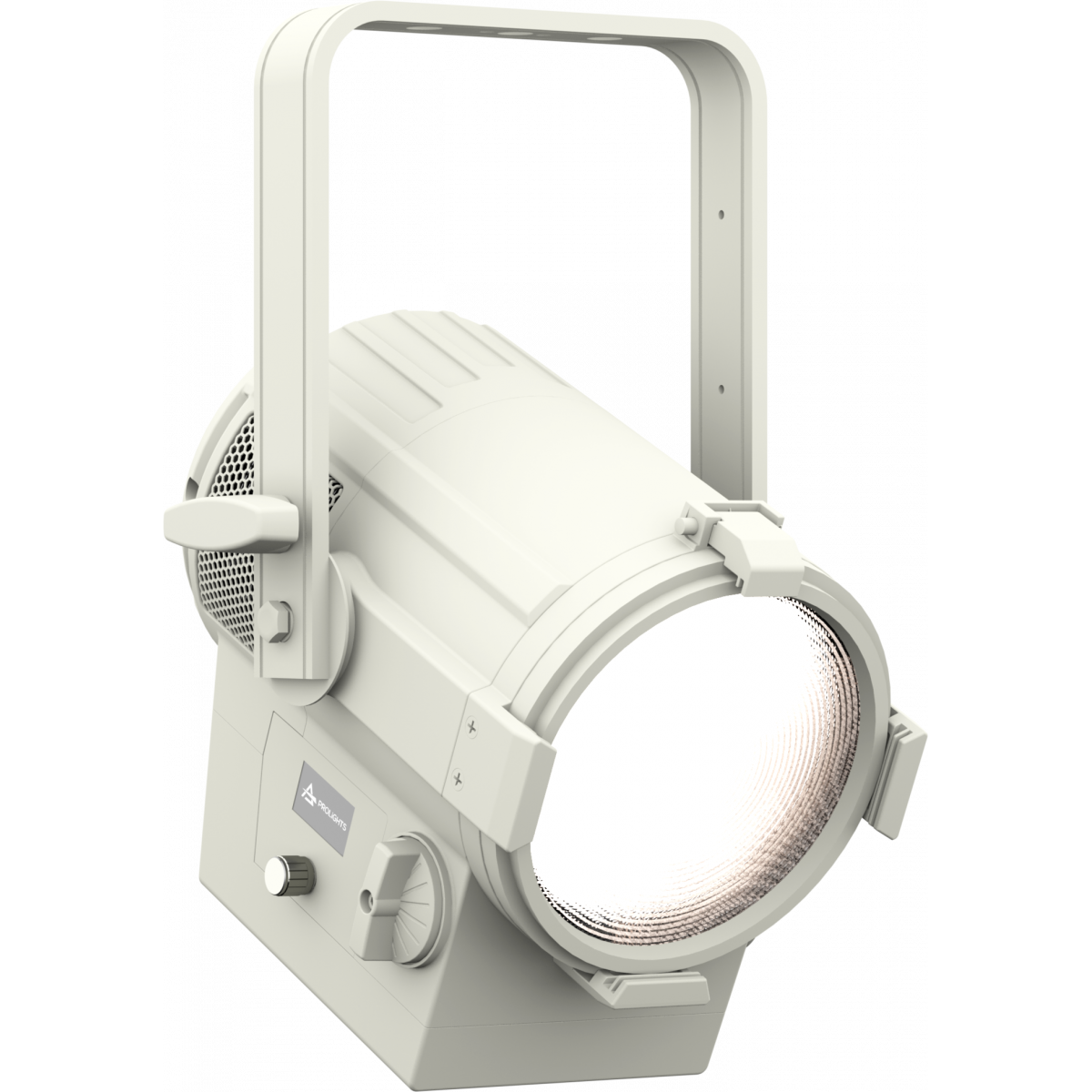

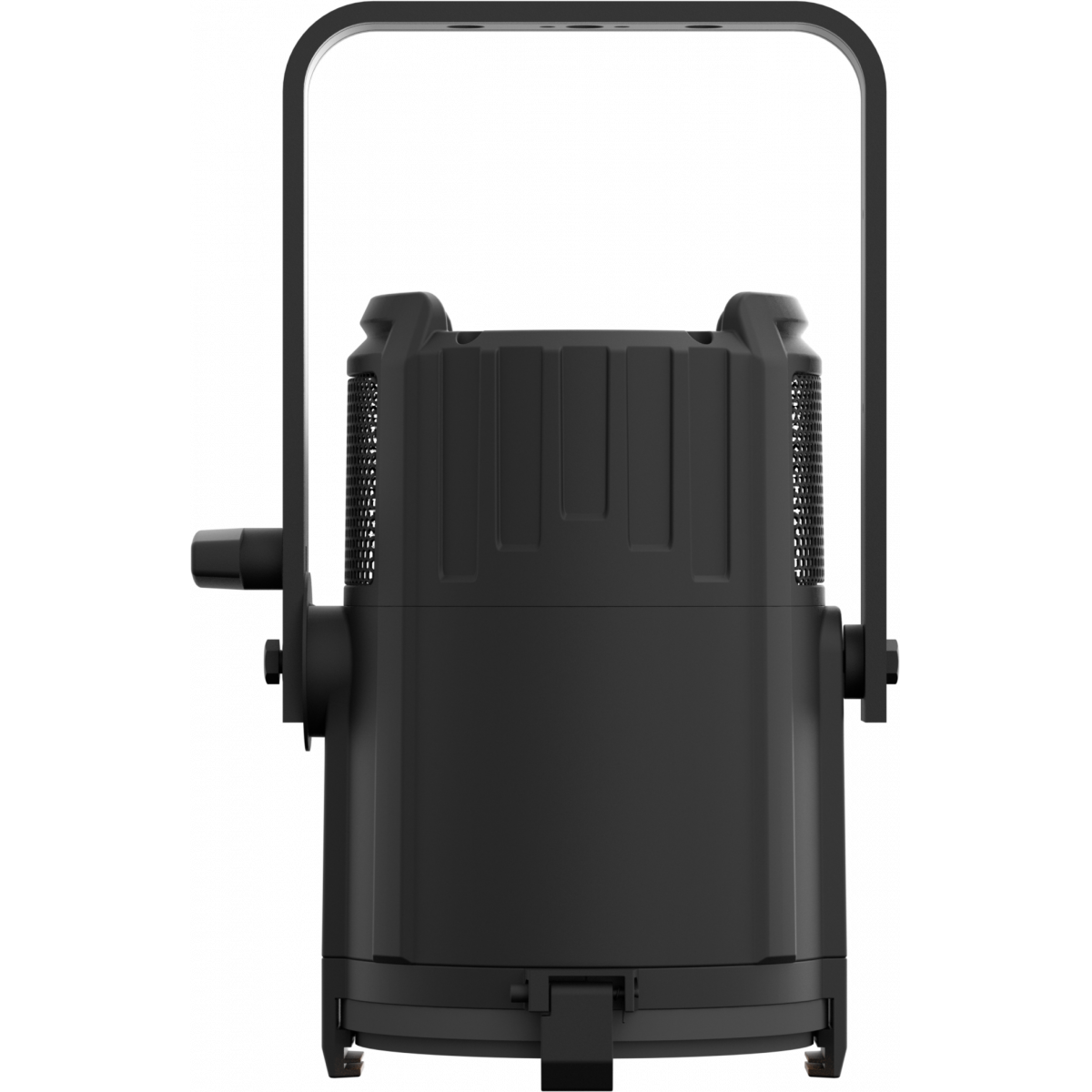

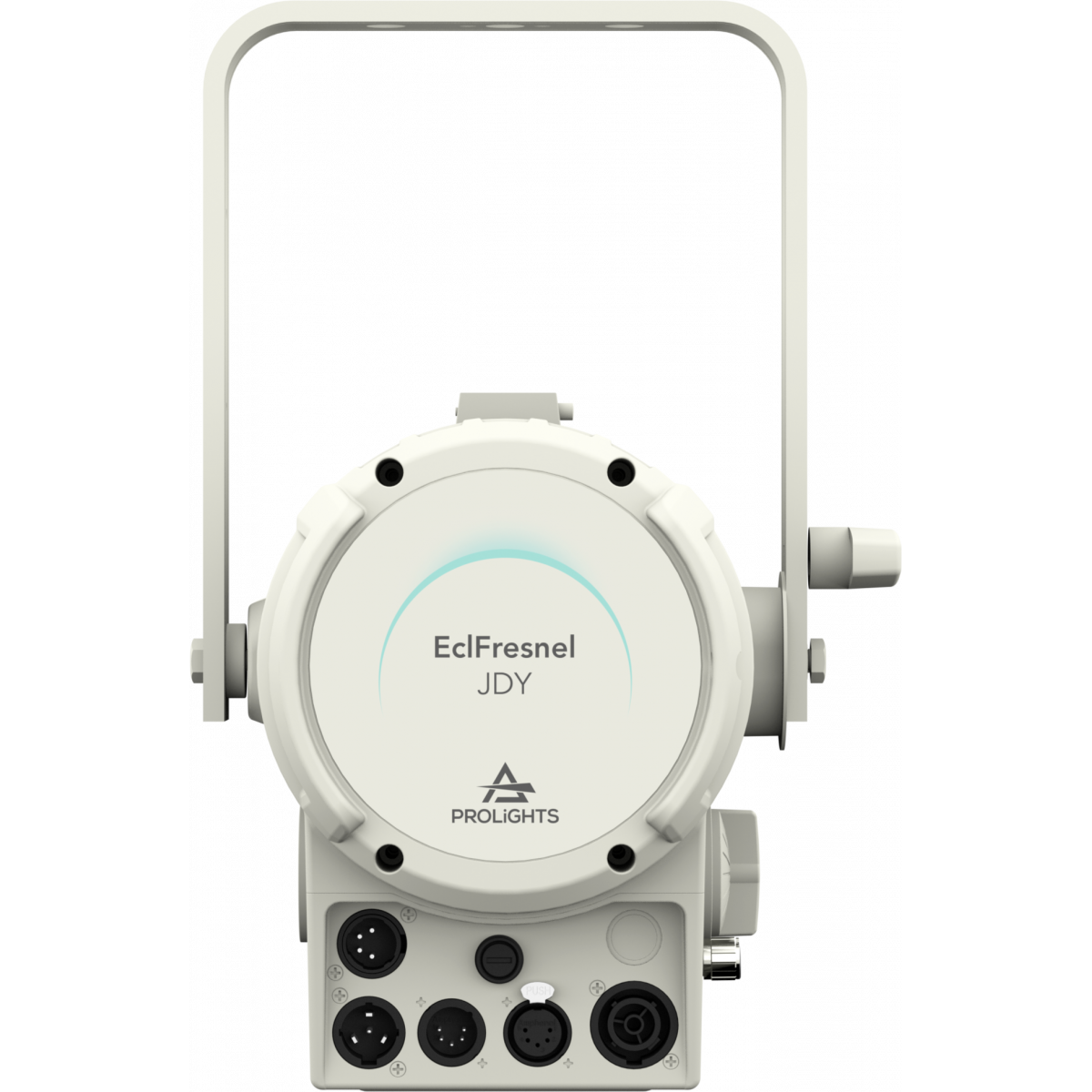

EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr
EclFresnel Jr

Technical specifications

LIGHT SOURCE
  • Source: 70W high-power white LED
  • CCT: (TU) 3.000 K - (DY) 5.600
  • Luminous flux: (TU) (17°) 2'859 lm; (81°) 4'631 @Full
  • Luminous flux: (DY) (17°) 3'656 lm ; (81°) 5'911 lm @ full
  • Lux: TU (17°) 1'293 lx - TU (81°) 205lx @5 m full
  • Lux: DY (17°) 1'624 lx - (81°) 254lx @5 m full
  • CRI: (TU) >97; (DY) >90
  • R9: (TU) >95; (DY) >53
  • TLCI: (TU) >97; (DY) >92
  • TM30 Rf: (TU) >94; (DY) >88
  • TM30 Rg: (TU) <103; (DY) >97
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 81° manual
  • Lens diameter: 6'' - 150mm / 0.24''
  • Lens type: fresnel zoom lens
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan range: (pole operated version) 360° with manual regulation
  • Tilt range: (pole operated version) 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 90W
  • Output (at 230V): 22 units on a single power line
  • Power factor: >0,95
BATTERY
  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Re-charge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 235x360x260mm / 9.25''x14.17''x10.24''
  • Dimensions with PO system (WxHxD): 298x496x260mm / 11.73''x19.53''x10.24''
  • Weight: 6kg / 13.23lbs
  • Weight with PO system: 7,5kg / 16.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
Finishing
ECLFRESNELJTU
ECLFRESNELJTU
3.000 K
97
95
4'631 lm
Black
ECLFRESNELJTUWH
ECLFRESNELJTUWH
3.000 K
97
95
4'631 lm
White
ECLFRESNELJDY
ECLFRESNELJDY
5.600 K
90
53
5'911lm
Black
ECLFRESNELJDYWH
ECLFRESNELJDYWH
5.600 K
90
53
5'911lm
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSJBP4
ECLFRSJBP4
(Optional)
Battery pack kit for EclFresnelJ serie
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSJBD
ECLFRSJBD
(Included)
Black&White& White barn door 8 directional flaps to adjust the light beam
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfresnelj_A4_DATASHEET_(IT).pdf366KB
Letter datasheetEclfresnelj_A4_DATASHEET_(EN).pdf481KB
Tender SpecificationEclfresneljtu_TENDER_SPECIFICATION.pdf3MB
Tender SpecificationEclfresneljdy_TENDER_SPECIFICATION.pdf3MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclfresnelj_DMX_CHARTS.pdf77KB
ECLFRESNELJTU Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_eclipsefresneljtu.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneljtu@1ch.xmlDownload
prolights@eclipsefresneljtu@3ch.xmlDownload
ECLFRESNELJDY Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLFRESNELJ_3D_REVIT.zip2MB
3D sketchupECLFRESNELJ_3D_SKETCHUP.zip792KB
2DEclfresnelj_CAD_2D.dwg7MB
2D cad symbolsECLFRESNELJ_2DSYMBOLS.zip133KB
3DECLFRESNELJ_3D.zip1MB
Technical drawingEclfresneljtu_TECHNICAL_DRAWING.pdf213KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLFRESNELJ_SYMBOLS.zip3MB

Tech docs

File name File size Download
Noise ReportEclfresneljtu_NOISE_REPORT.pdf635KB
Noise ReportEclfresneljdy_NOISE_REPORT.pdf635KB

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.0 STABLE 04/01/2018
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 Definitive stable version Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 10 second default display backlight Rev. 1.0
