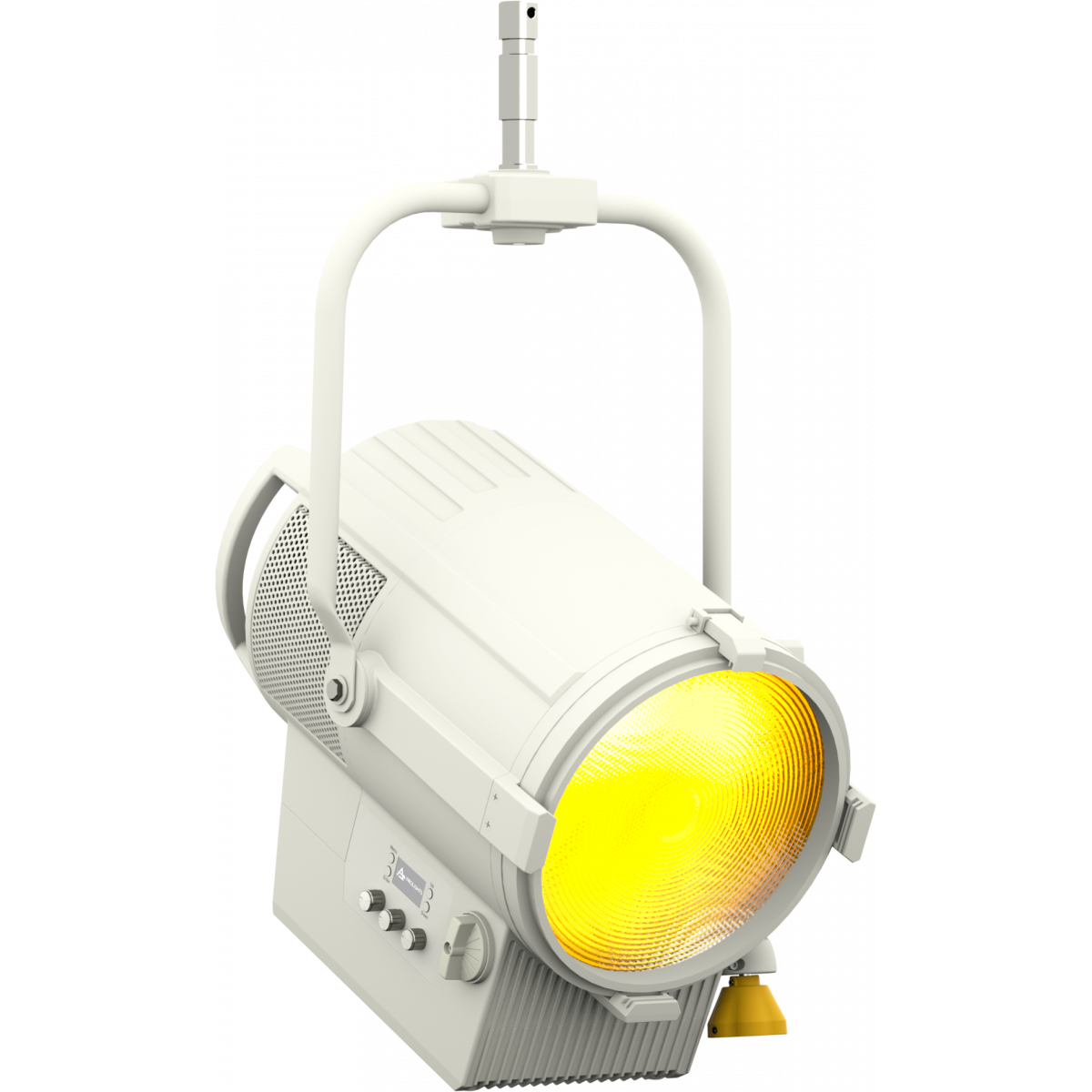

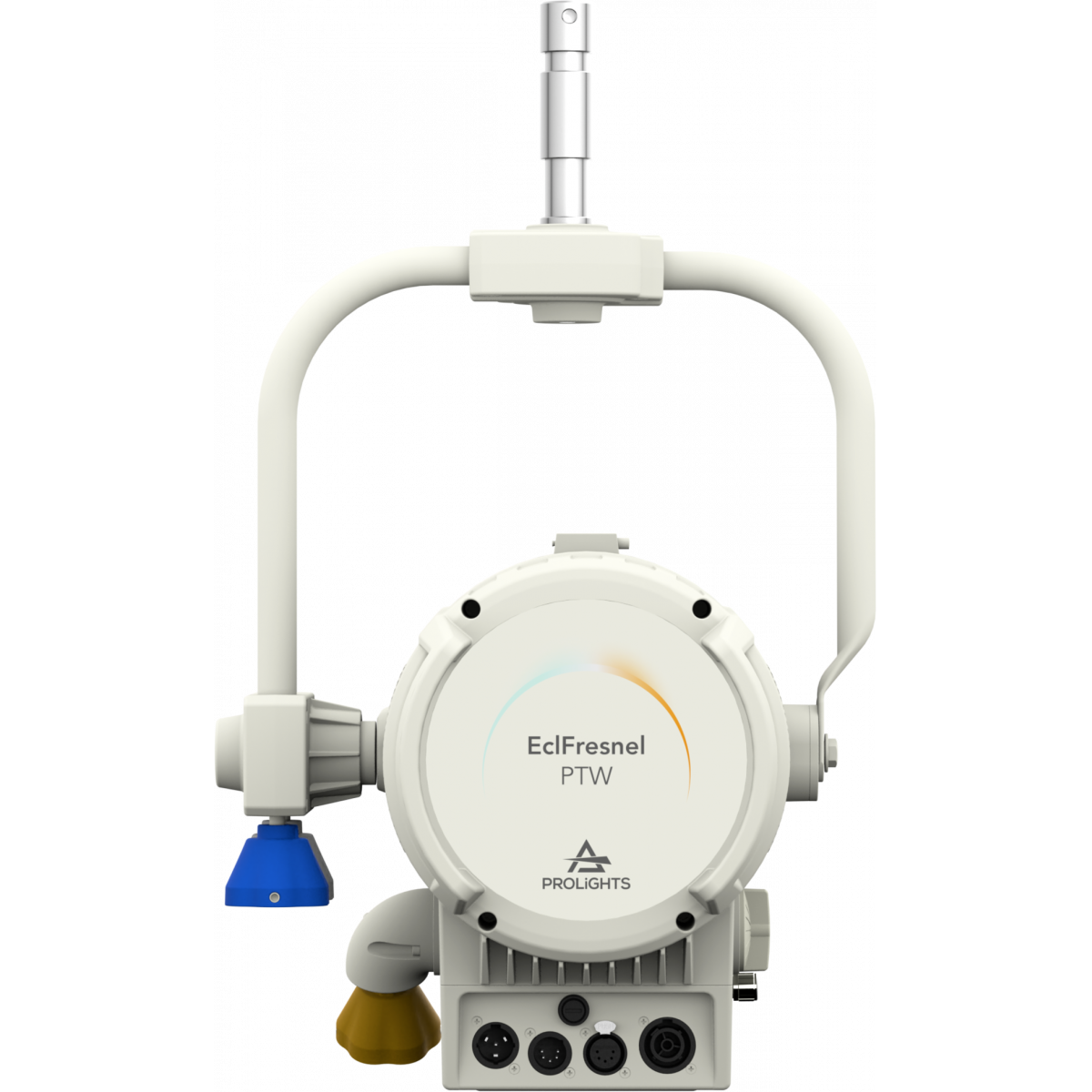

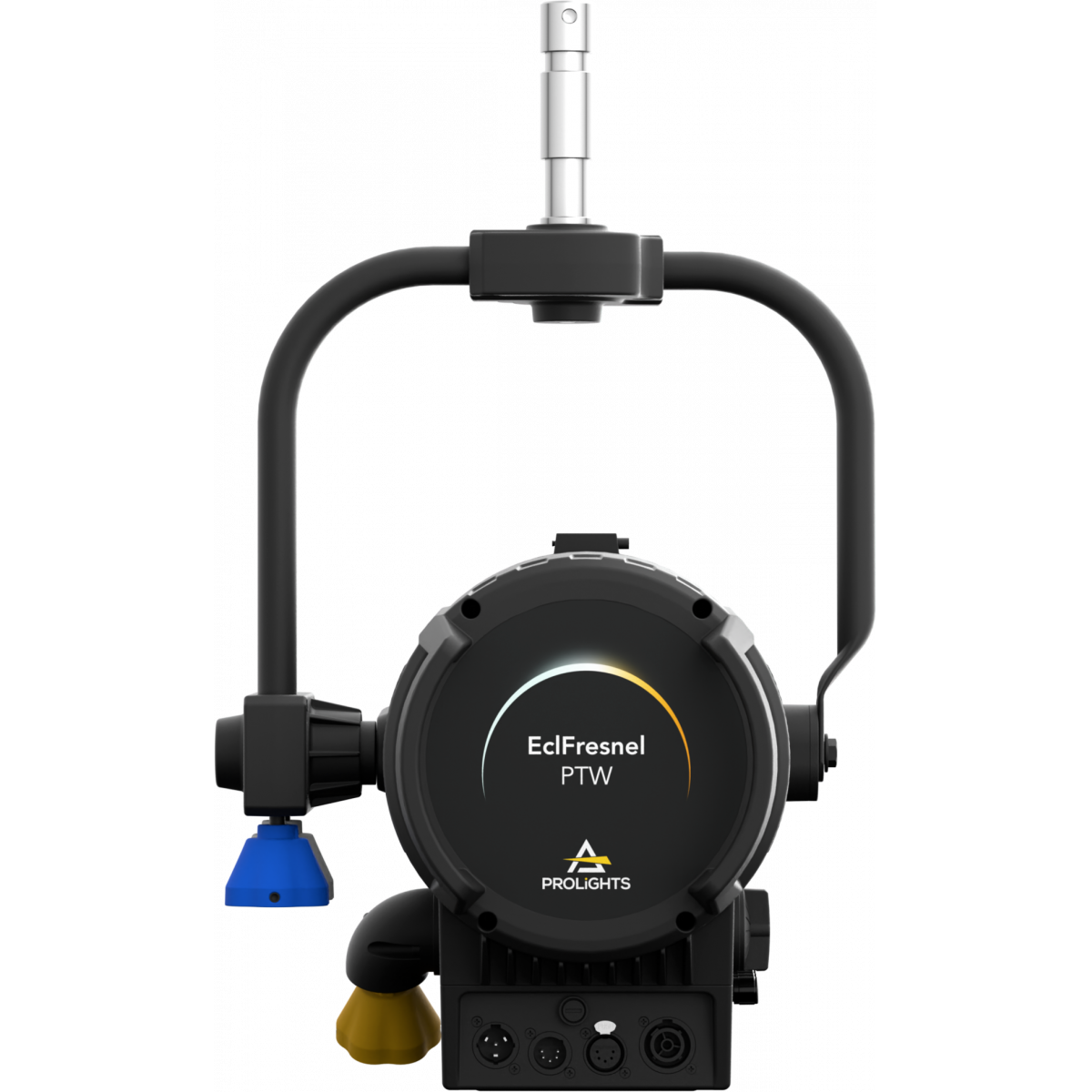

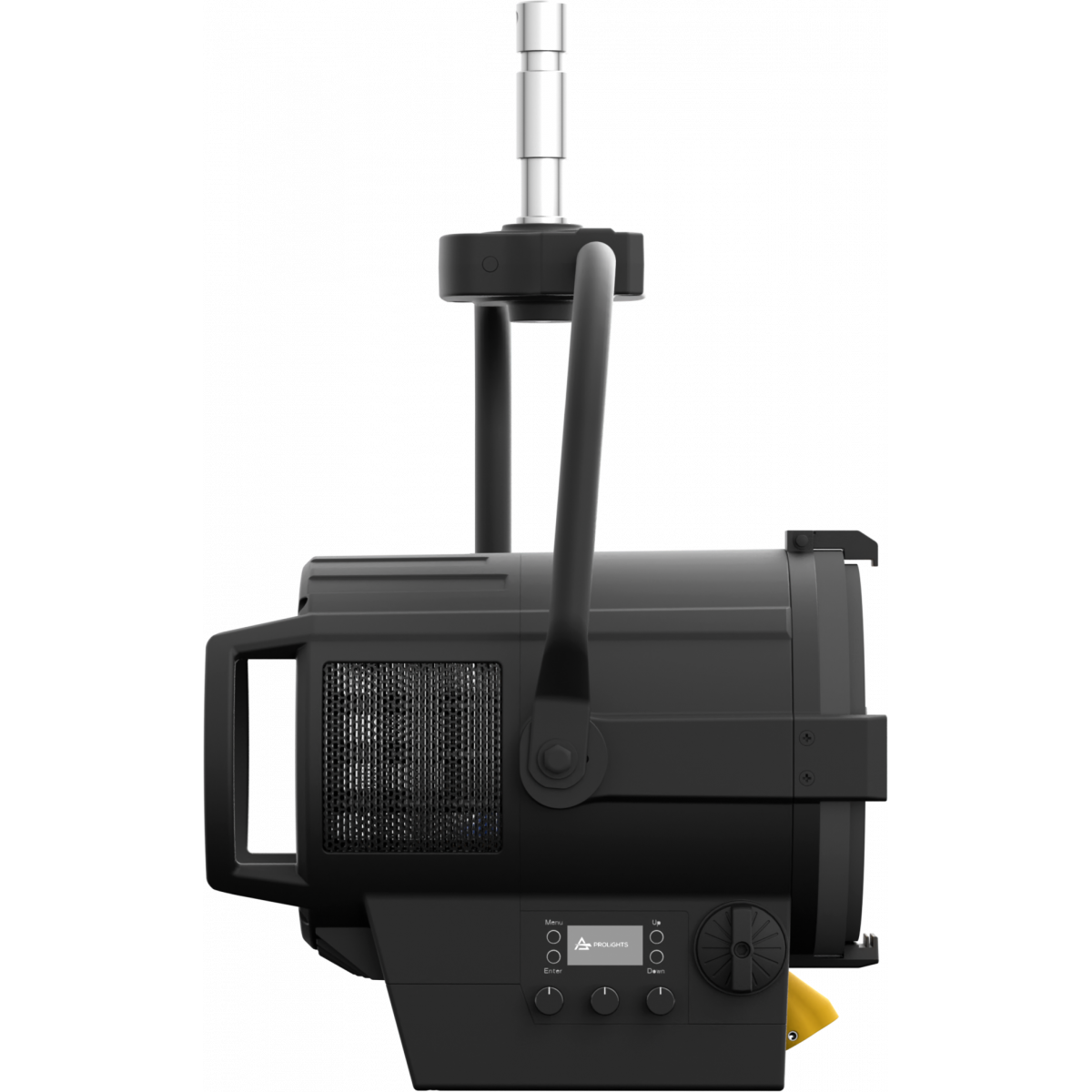

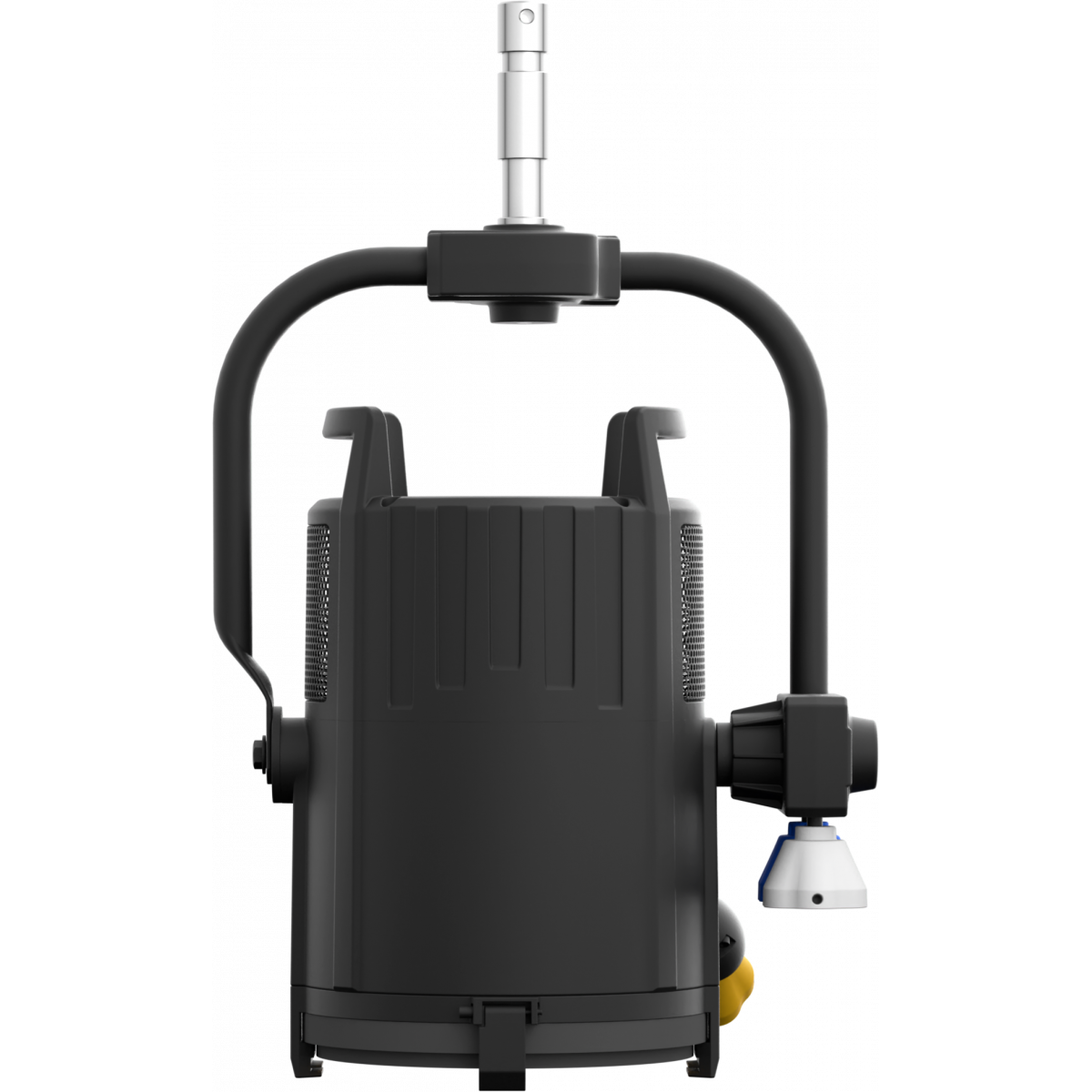

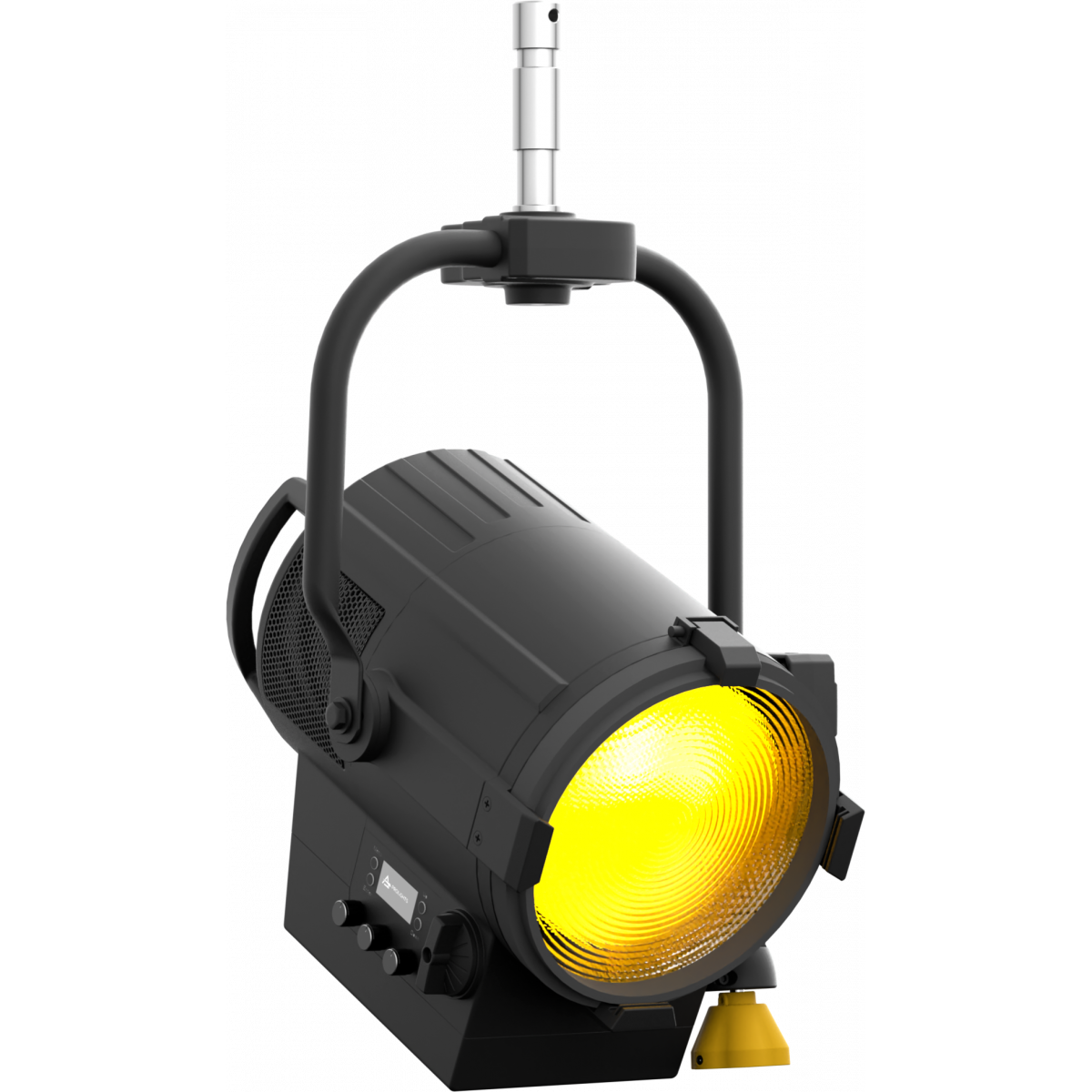

EclFresnel PTW

LED Fresnel pole operated FC and Tunable White with colour correction, to replace 1.000W lamp

EclFresnel PTW is an advanced LED replacement of traditional 1.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 260 W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light. Featuring HD dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel PTW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable white 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (17°) 4'653 lm - (91°) 7'896 @full
  • Lux: (17°) 1'678 lx - (91°) 344lx @5 m full
  • CRI: 90 @3.200 K; 89 @5.600 K
  • R9: 80 @3.200 K; 87 @5.600 K
  • TLCI: 77 @5.600 K
  • TM30 Rf: 87 @3.200 K; 81 @5.600 K
  • TM30 Rg: 106 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 17° - 91° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: Fresnel zoom lens
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing:
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan angle: 360° with manual regulation
  • Tilt angle: 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
  • Other: spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,93
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
RAL
ECLFRESNELPTW
ECLFRESNELPTW
Black
RAL 9004
ECLFRESNELPTWWH
ECLFRESNELPTWWH
White
RAL 9010

Accessories & Related Products

9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECLFRSPG
ECLFRSPG
(included)
Spigot for PROLIGHTS fixtures
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
ECLFRSBD
ECLFRSBD
(included)
Barn door with directional flaps to adjust the light beam
ECLFRSTPG
ECLFRSTPG
(included)
Filter frame for ECLFRESNEL series
EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

User manual

File name File size Download
User manual Eclfresnelptw_USER_MANUAL_EN.pdf 5MB

DMX chart & personalities

ECLFRESNELPTW Firmware rev. 1.9
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsefrestw_12ch.hedDownload
prolights_eclipsefrestw_13ch.hedDownload
prolights_eclipsefrestw_16ch.hedDownload
prolights_eclipsefrestw_19ch.hedDownload
manufacturer fixture library (Link) Link
eclipsefresneltw_1ch.fdfDownload
eclipsefresneltw_2ch.fdfDownload
eclipsefresneltw_5ch1.fdfDownload
eclipsefresneltw_5ch2.fdfDownload
eclipsefresneltw_7ch.fdfDownload
eclipsefresneltw_9ch.fdfDownload
eclipsefresneltw_12ch.fdfDownload
eclipsefresneltw_13ch.fdfDownload
eclipsefresneltw_16ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipse_fres_tw_12ch@.xmlDownload
prolights@eclipse_fresnel_tw@2_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@5_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@7_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@9_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@13_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@16_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@19_channel@ma_library_update_v14.2.xmlpDownload
hdtwc_12ch.hog4showDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fresnel tw 9 channel.fix2Download
eclipse fresnel tw 7 channel.fix2Download
eclipse fresnel tw 5 channel.fix2Download
eclipse fresnel tw 2 channel.fix2Download
eclipse fresnel tw 19 channel.fix2Download
eclipse fresnel tw 13 channel.fix2Download
eclipse fresnel tw 16 channel.fix2Download

Photometrics

CAD symbols & drawings

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 26/06/2023 New function:
  • Added 11CH DMX mode.
Rev. 1
Rev. 2
Rev. 1.2
Rev. 1.1
