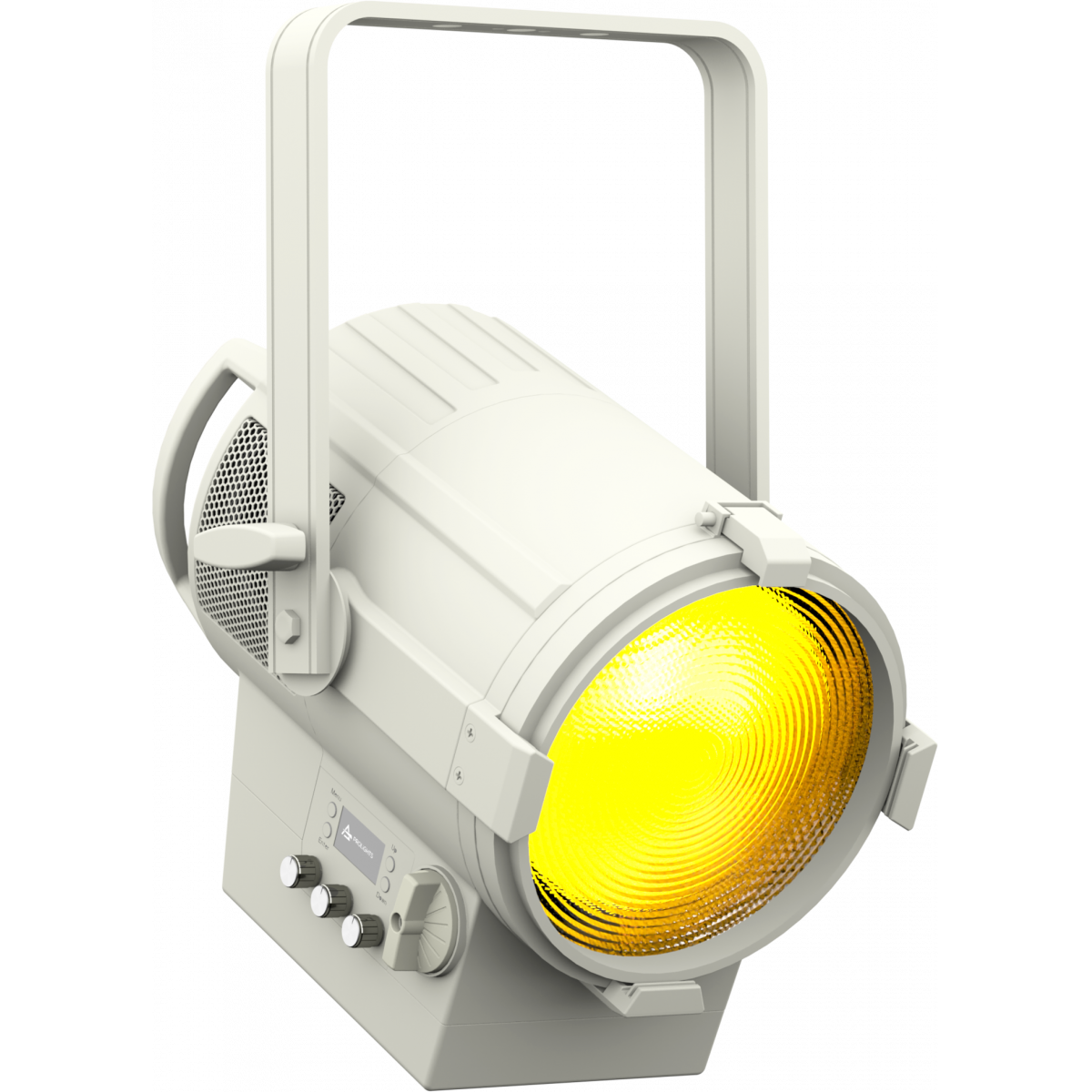

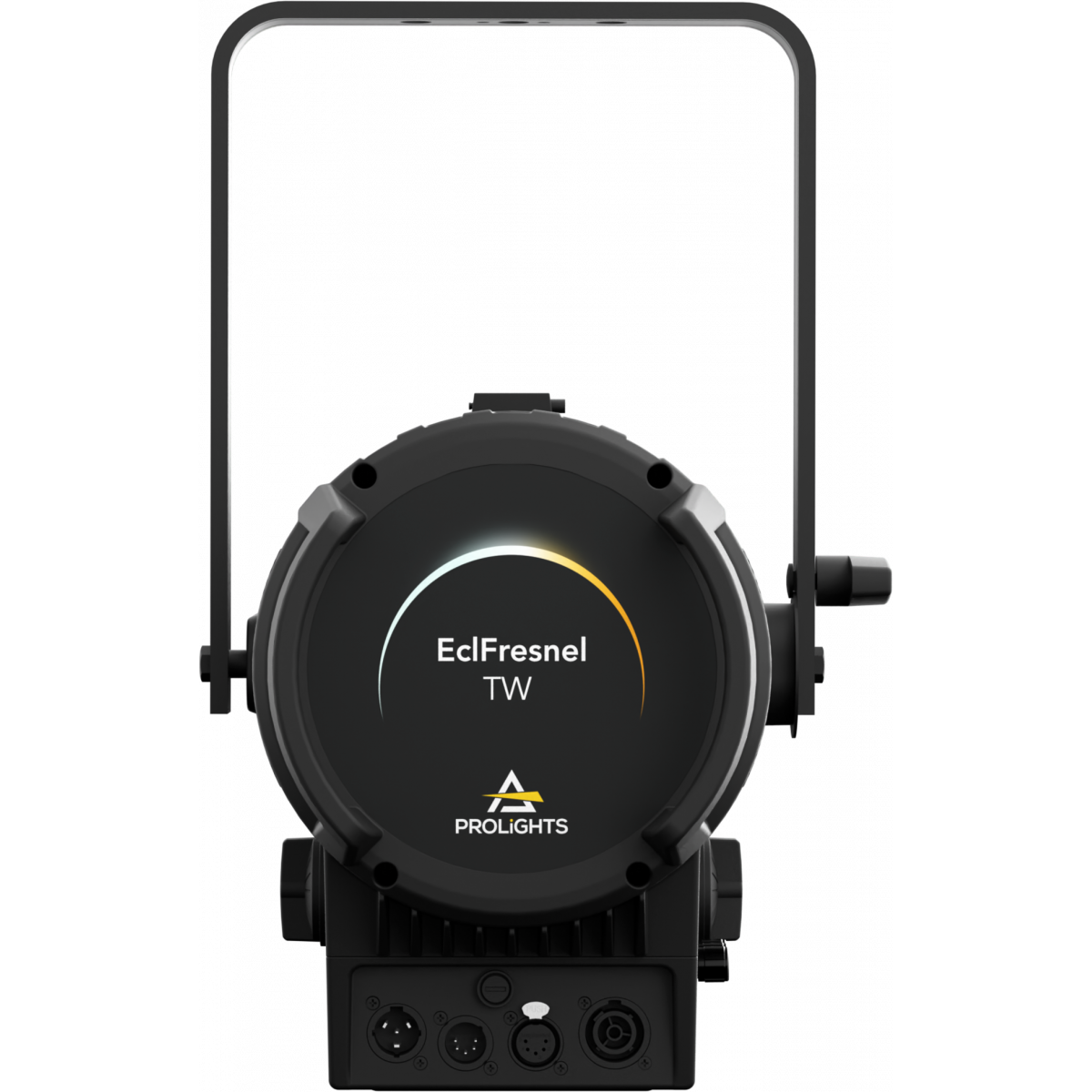

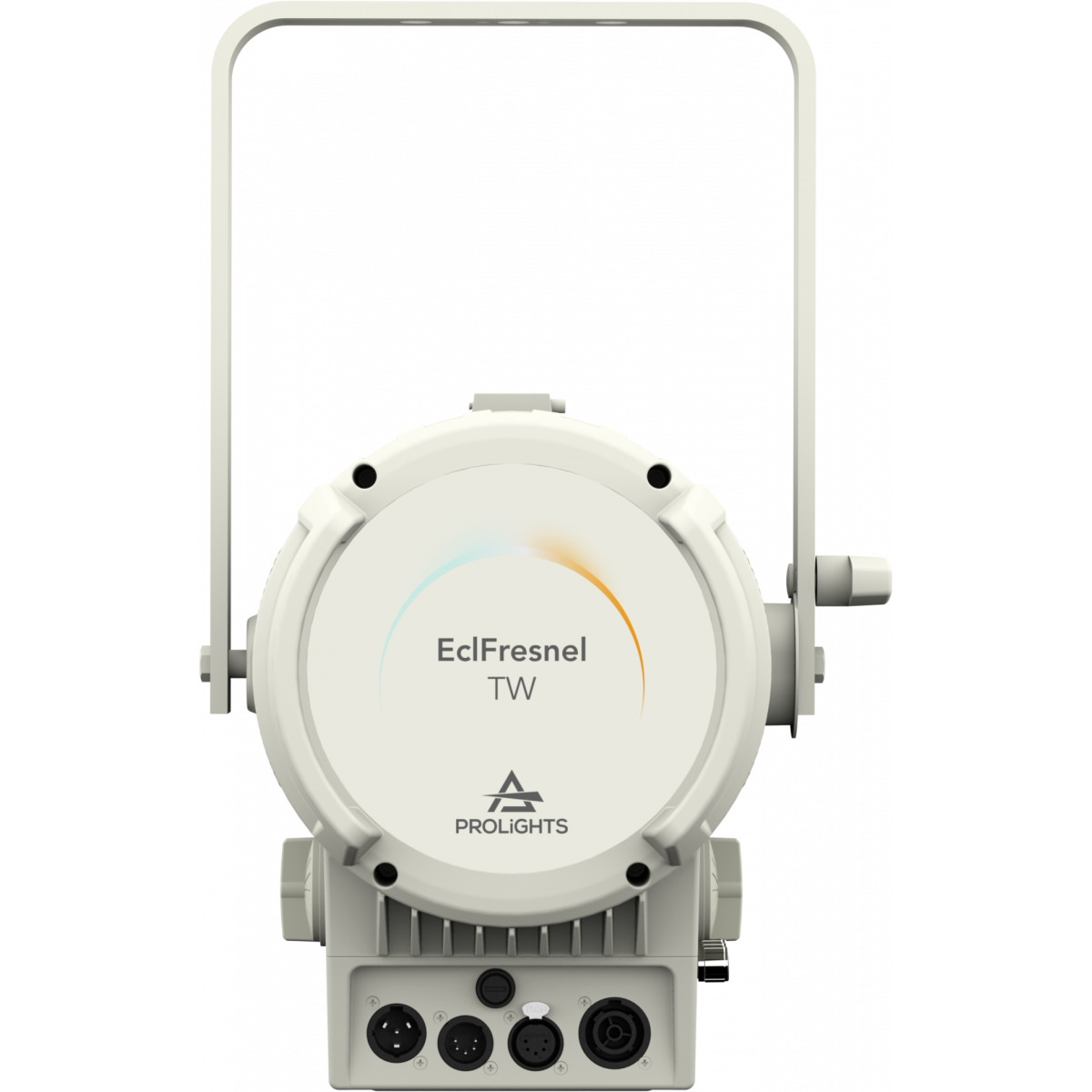

EclFresnel TW

LED Fresnel FC and Tunable White with colour correction, to replace 1.000W lamp

EclFresnel TW is an advanced LED replacement of traditional 1.000W Fresnel lamps.
Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HD dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel TW delivers the performance and quality of output demanded from this level of luminaire.

Main features:

  • Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Silent operation for studio and stage use
See variants

PHOTO GALLERY

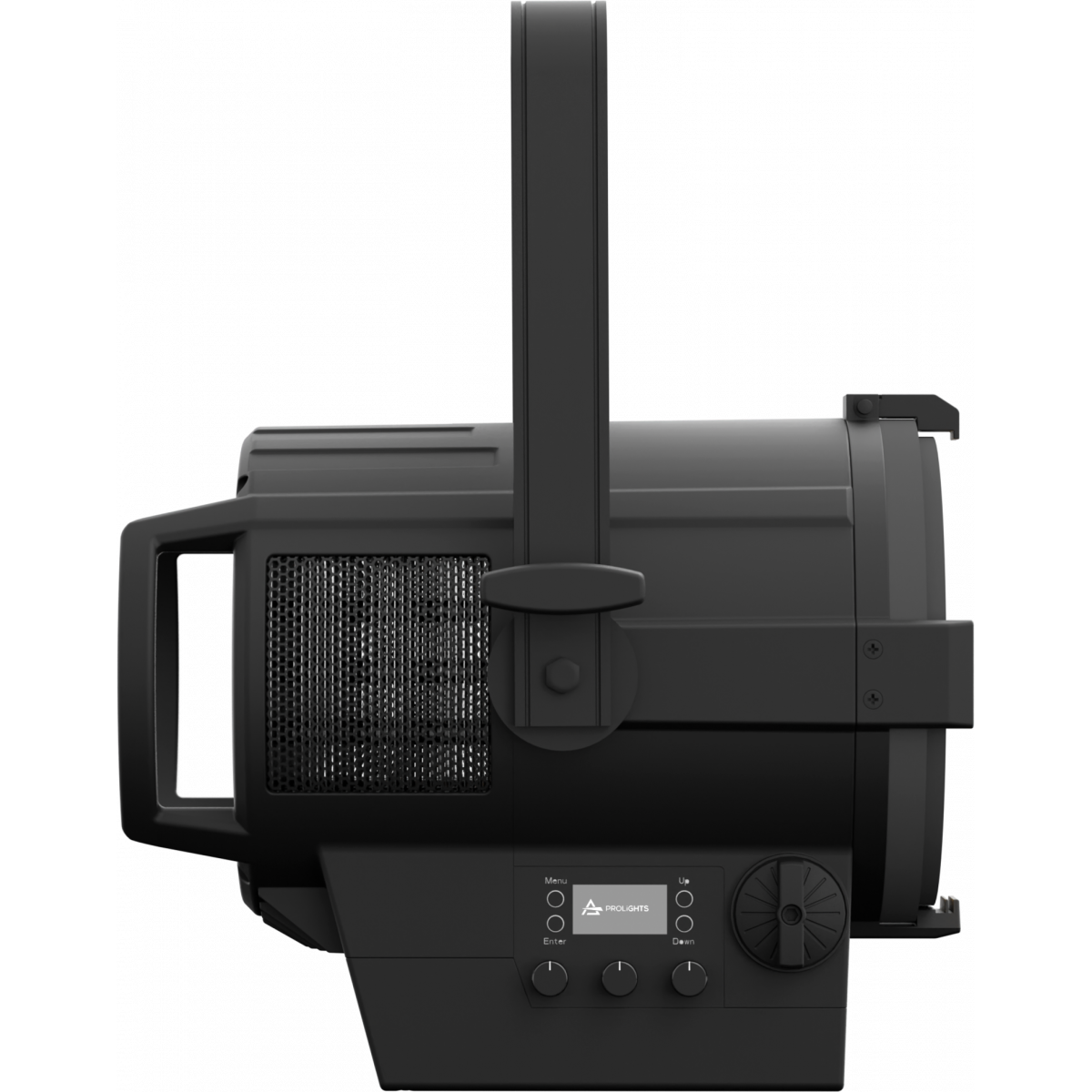

EclFresnel TW

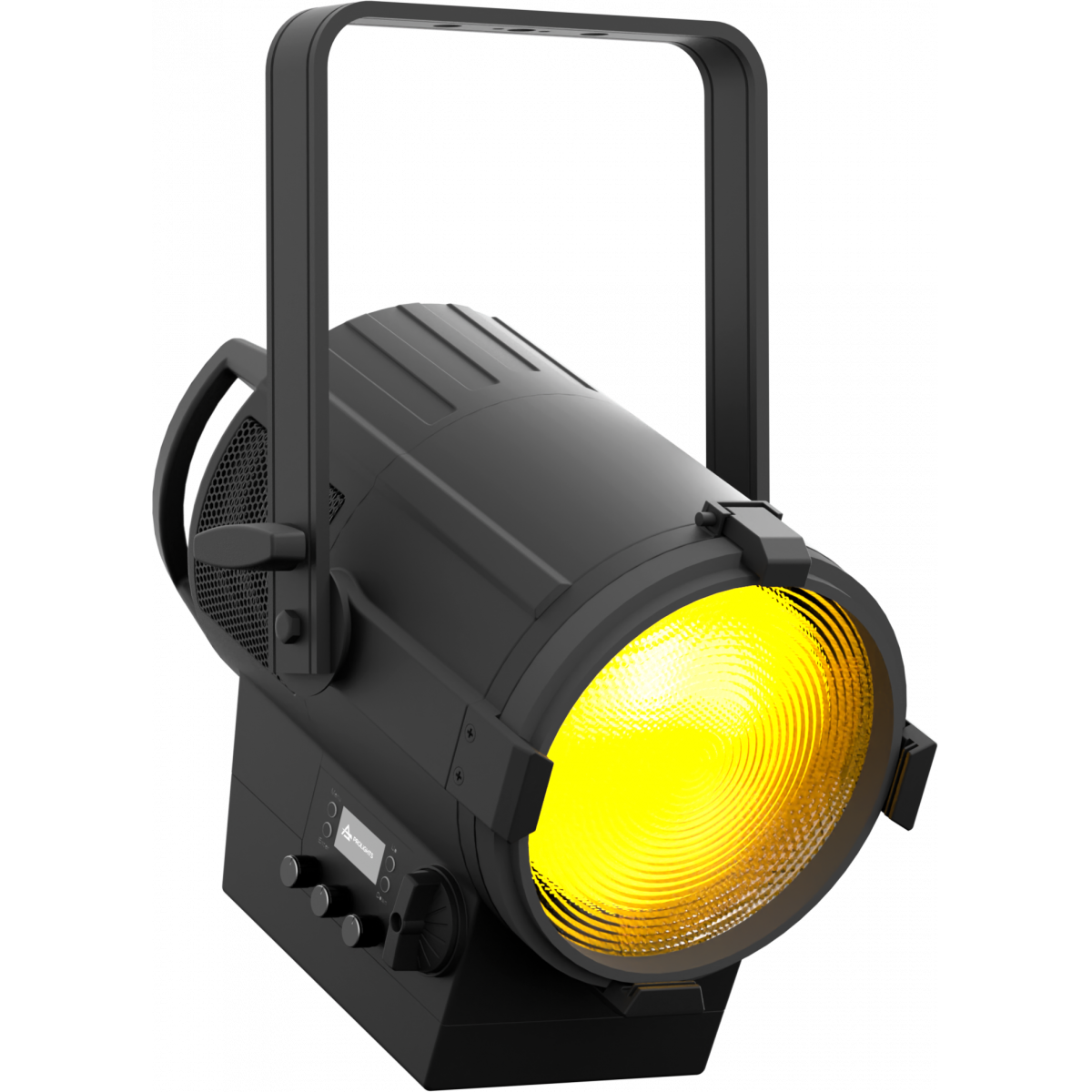

EclFresnel TW
EclFresnel TW
EclFresnel TW
EclFresnel TW
EclFresnel TW

Technical specifications

LIGHT SOURCE
  • Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K ~ 10.000
  • Luminous flux: (17°) 4'653 lm - (91°) 7'896lm @full
  • Lux: (17°) 1'678 lx - (91°) 344lx @5 m full
  • CRI: 90 @3.200 K; 89 @5.600 K
  • R9: 80 @3.200 K; 87 @5.600 K
  • TLCI: 77 @5.600 K
  • TM30 Rf: 87 @3.200 K; 81 @5.600 K
  • TM30 Rg: 106 @3.200 K; 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 17° - 91° manual
  • Lens diameter: 8'' - 200mm / 0.31''
  • Lens type: Fresnel zoom lens
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: tunable white + colour
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K -10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of intensity, CT, colour correction from knob
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Body: sturdy die-cast aluminium body
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 260W
  • Output (at 230V): 11 units on a single power line
  • Power factor: >0,93
  • Inrush current: 230VAC/14.8A, 100VAC/16A
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 283x440x343mm / 11.14''x17.32''x13.5''
  • Dimensions with PO system (WxHxD): 341x545x343mm / 13.43''x21.46''x13.5''
  • Weight: 7,5kg / 16.53lbs
  • Weight with PO system: 9,7kg / 21.38lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Finishing
ECLFRESNELTW
ECLFRESNELTW
Black
ECLFRESNELTWWH
ECLFRESNELTWWH
White

Accessories & Related Products

9533FXWL03
9533FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSPG
ECLFRSPG
(included)

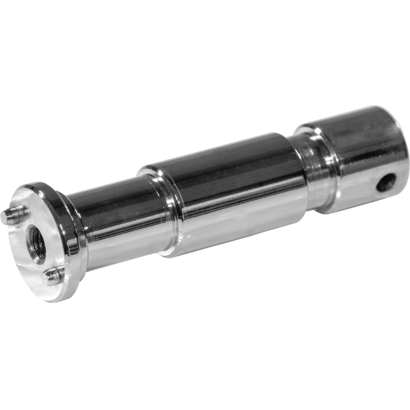

Spigot for PROLIGHTS fixtures
ECLFRSBD
ECLFRSBD
(included)

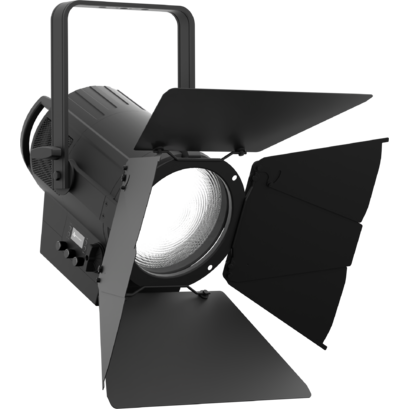

Barn door with directional flaps to adjust the light beam
FCLECLFRS
FCLECLFRS
(optional)

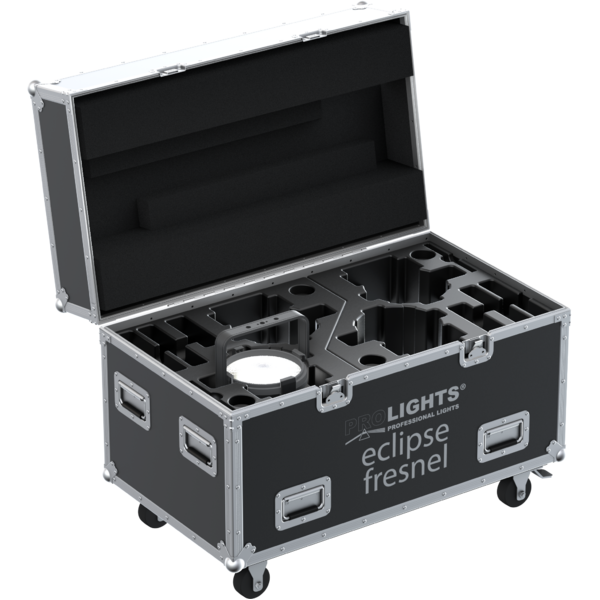

Flight case for 4x ECLFRESNEL
ECLFRSTPG
ECLFRSTPG
(included)

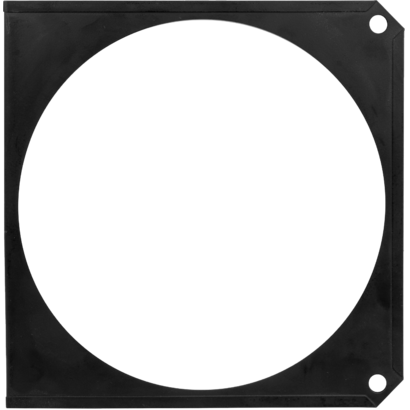

Filter frame for ECLFRESNEL series

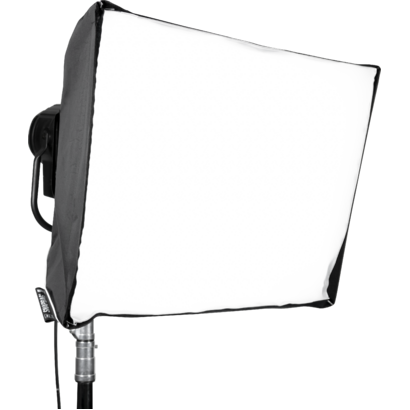

EFSBUFDS
EFSBUFDS
(optional)
SNAPBAG - Universal SMALL DEEPER for BARNDOORS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfresnelt_A4_DATASHEET_(EN).pdf 533KB
Letter datasheet Eclfresneltw_A4_DATASHEET_(IT).pdf 523KB
Tender Specification Eclfresnelt_TENDER_SPECIFICATION.pdf 3MB

User manual

File name File size Download
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclfresneltw_USER_MANUAL_EN.pdf 5MB

DMX chart & personalities

File name File size Download
DMX chart Eclfresneltw_DMX_CHARTS.pdf 130KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 697KB
VectorWorks VECTORWORKS_SYMBOLS.vwx 724KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ECLFRESNELTW Firmware rev. 1.8
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsefrestw_12ch.hedDownload
prolights_eclipsefrestw_13ch.hedDownload
prolights_eclipsefrestw_16ch.hedDownload
prolights_eclipsefrestw_19ch.hedDownload
eclfresneltw_1ch.fdfDownload
eclfresneltw_2ch.fdfDownload
eclfresneltw_5ch1.fdfDownload
eclfresneltw_5ch2.fdfDownload
eclfresneltw_7ch1.fdfDownload
eclfresneltw_7ch2.fdfDownload
eclfresneltw_8ch.fdfDownload
eclfresneltw_9ch.fdfDownload
eclfresneltw_12ch.fdfDownload
eclfresneltw_13ch.fdfDownload
eclfresneltw_16ch.fdfDownload
eclfresneltw_19ch.fdfDownload
eclfresneltw_21ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipse_fres_tw_12ch@.xmlDownload
prolights@eclipse_fresnel_tw@2_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@5_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@7_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@9_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@13_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@16_channel@ma_library_update_v14.2.xmlpDownload
prolights@eclipse_fresnel_tw@19_channel@ma_library_update_v14.2.xmlpDownload
eclfresneltw_12ch.zipDownload
eclfresneltw_5ch1.zipDownload
eclfresneltw_5ch2.zipDownload
eclfresneltw_19ch.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
eclipse fresnel tw 9 channel.fix2Download
eclipse fresnel tw 7 channel.fix2Download
eclipse fresnel tw 5 channel.fix2Download
eclipse fresnel tw 2 channel.fix2Download
eclipse fresnel tw 19 channel.fix2Download
eclipse fresnel tw 16 channel.fix2Download
eclipse fresnel tw 13 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES eclfresneltw_ies_files.zip 35KB
LDT eclfresneltw_ldt_files.zip 28KB
PDF Photometrics Eclfresnelt_PHOTOMETRICS_REPORT.pdf 6MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLFRESNELT_3D_SKETCHUP.zip 884KB
3D RFA Eclfresnelt_3D_REVIT.rfa 720KB
2D Eclfresnelt_2D.dwg 23MB
3D ECLFRESNELT_3D.zip 1MB
2D cad symbols Eclfresnelt_2DSYMBOLS.dwg 104KB
Technical drawing Eclfresnelt_TECHNICAL_DRAWING.pdf 823KB

Tech docs

File name File size Download
Noise Report Eclfresneltw_NOISE_REPORT.pdf 490KB

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.9 STABLE 28/03/2023 New function:
  • Added 11CH DMX mode.
1.8 STABLE 07/10/2020 Changed default setting on White Balance function from OFF to ADJUST. Rev. 1.0
Rev. 1
Rev. 1.1

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin
Loading...
