ECLFRJP
PROLIGHTS

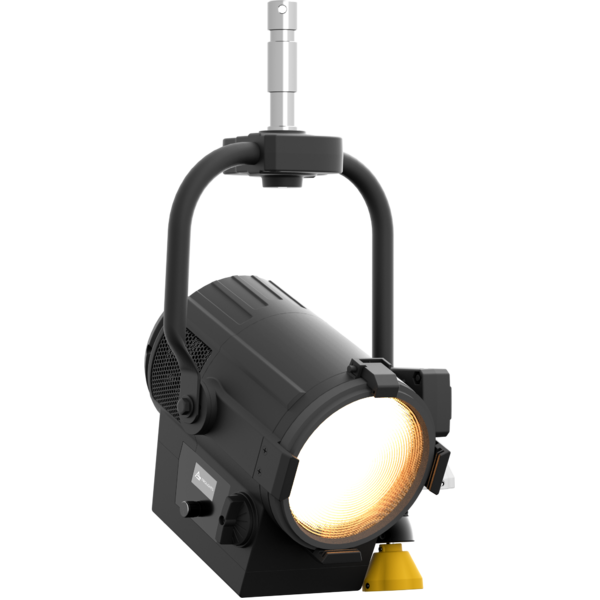

EclFresnel JrP

LED Fresnel pole operated with HB white source, to replace 650W lamp

EclFresnel JrP is the LED replacement for a standard tungsten 650W Fresnel. Featuring the output characteristics of the traditional Fresnel, with beam control from functional barn doors and a powerful source that focuses on outstanding colour rendering. The EclFresnel JrP adds all the advantages of LED to the Fresnel.

Main features:

  • TU (3.000 K) and DY (5.600 K) versions available both with HD dimming
  • Fresnel lens options with 17° to 81° zoom range
  • Silent operation for studio and stage use
  • Battery ready, compatible with industry standard external batteries (optional)
See variants

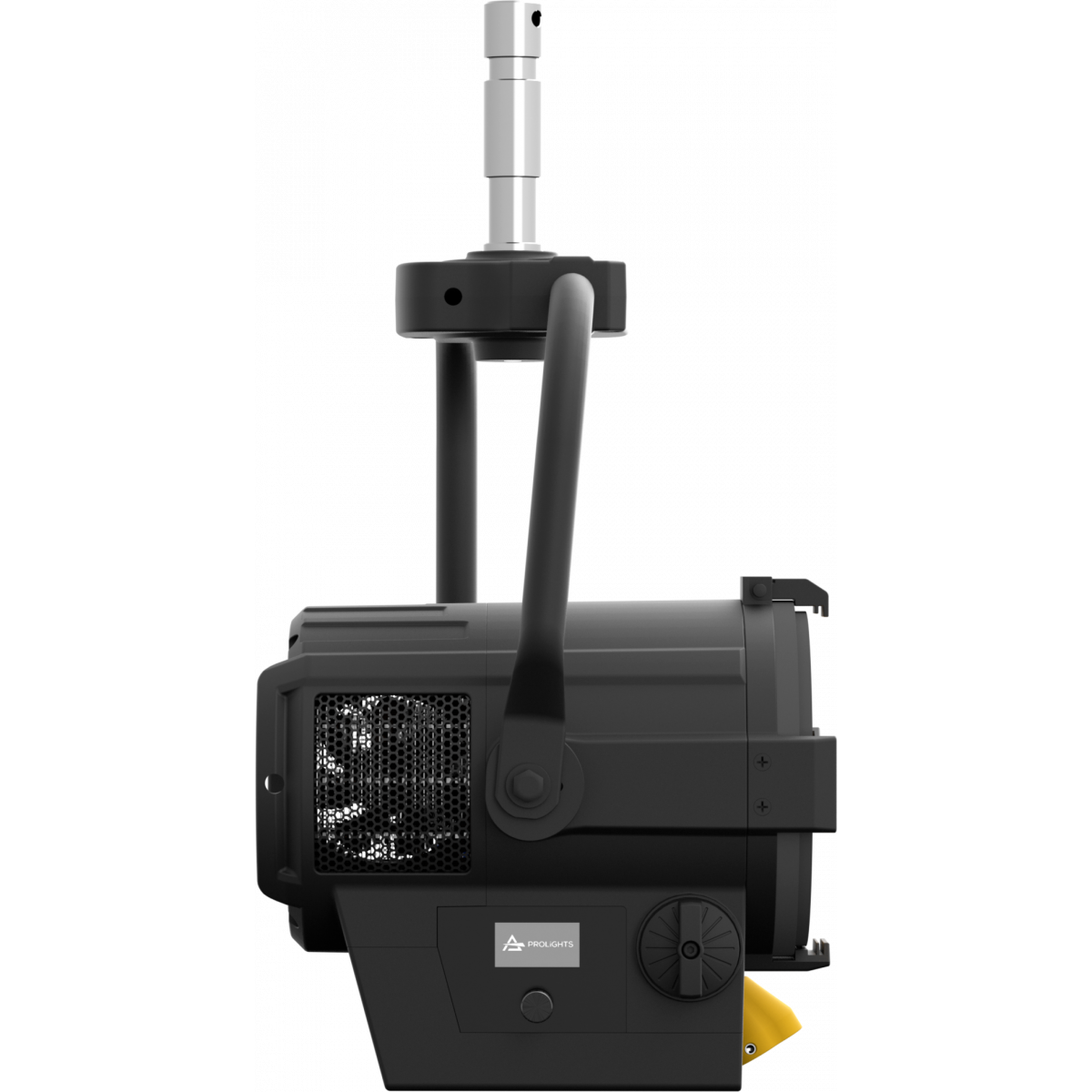

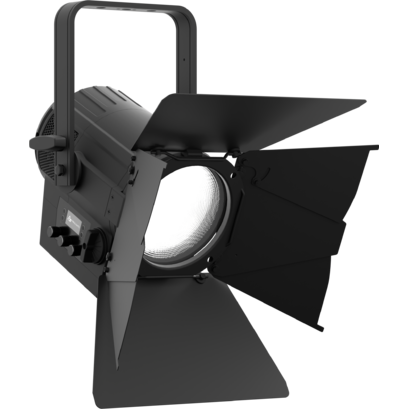

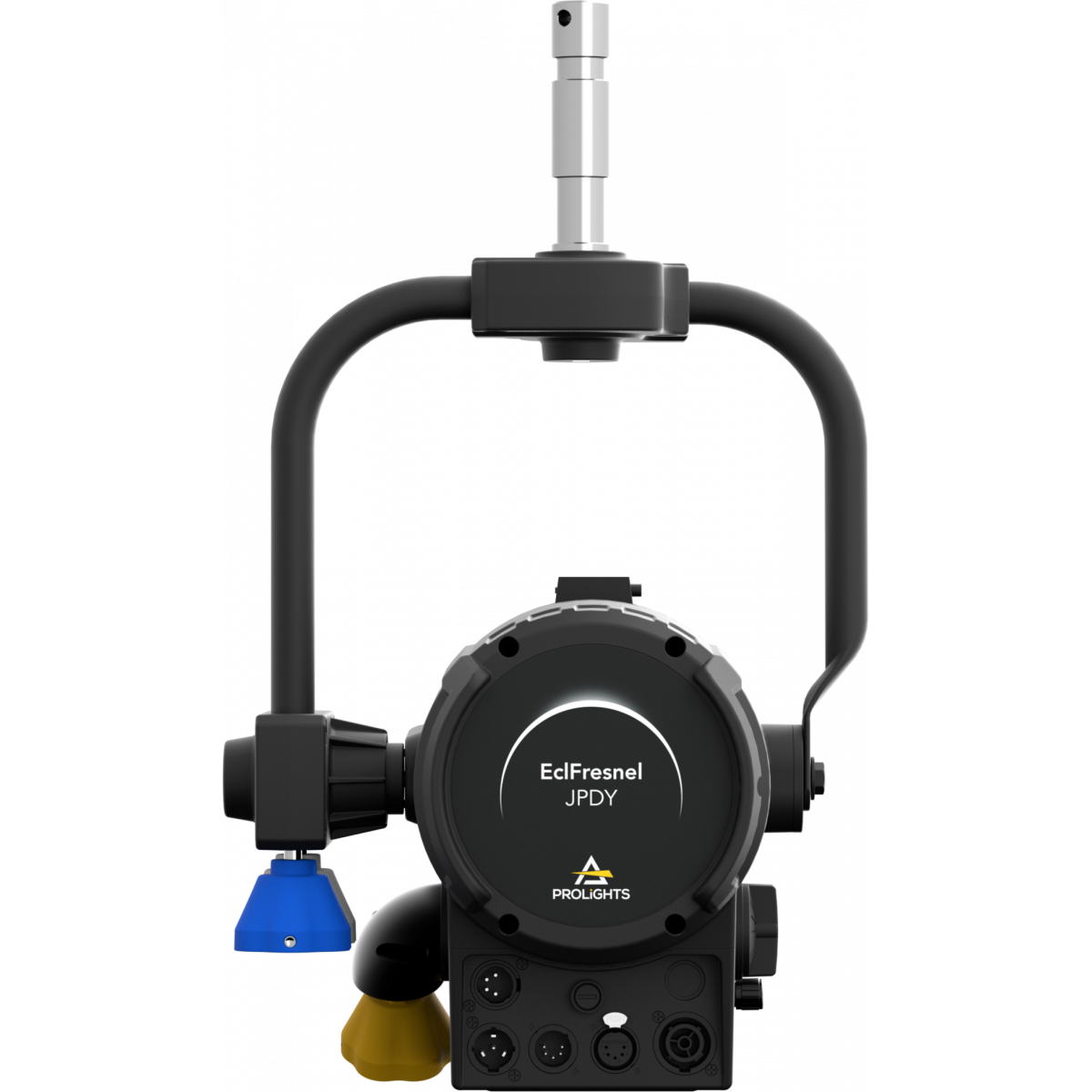

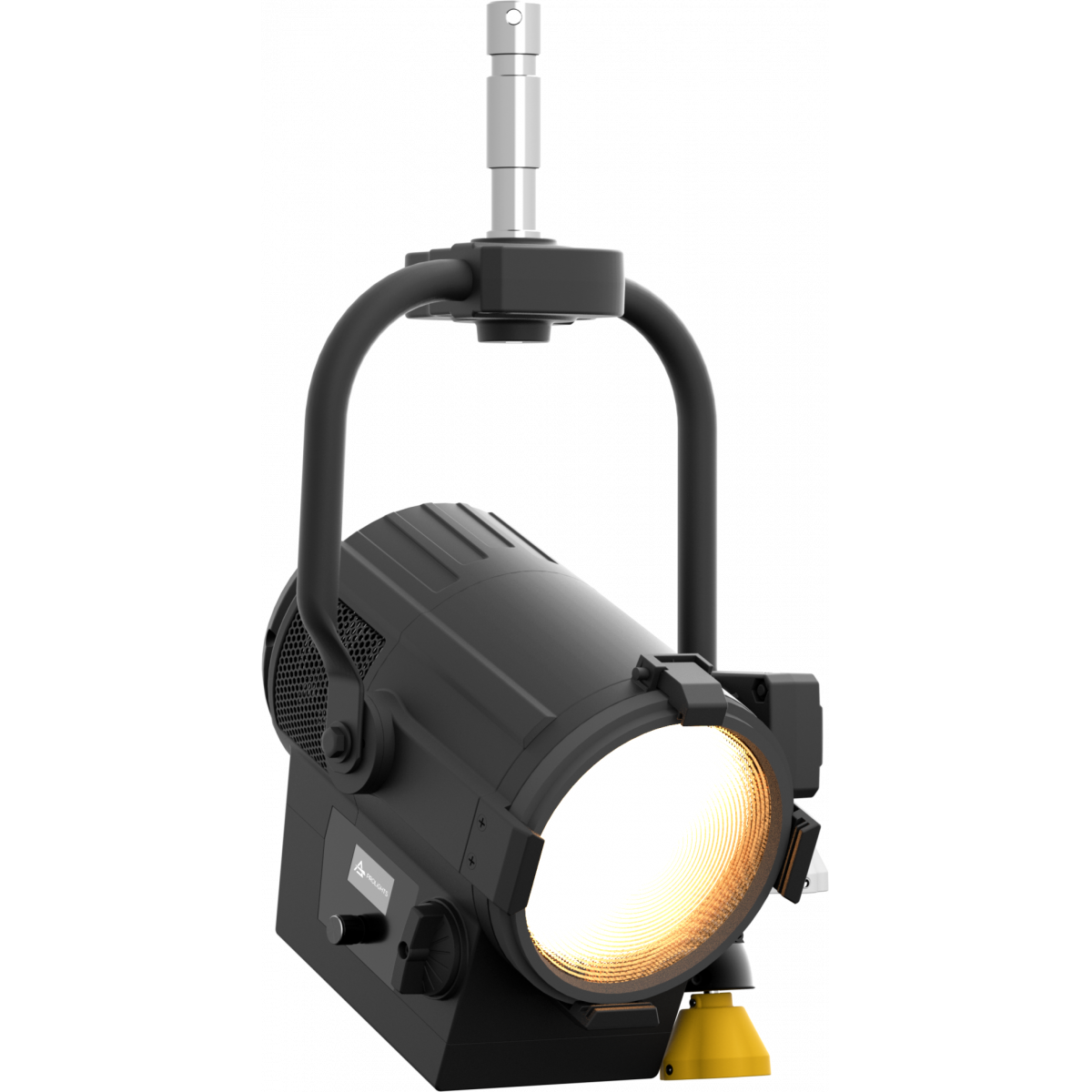

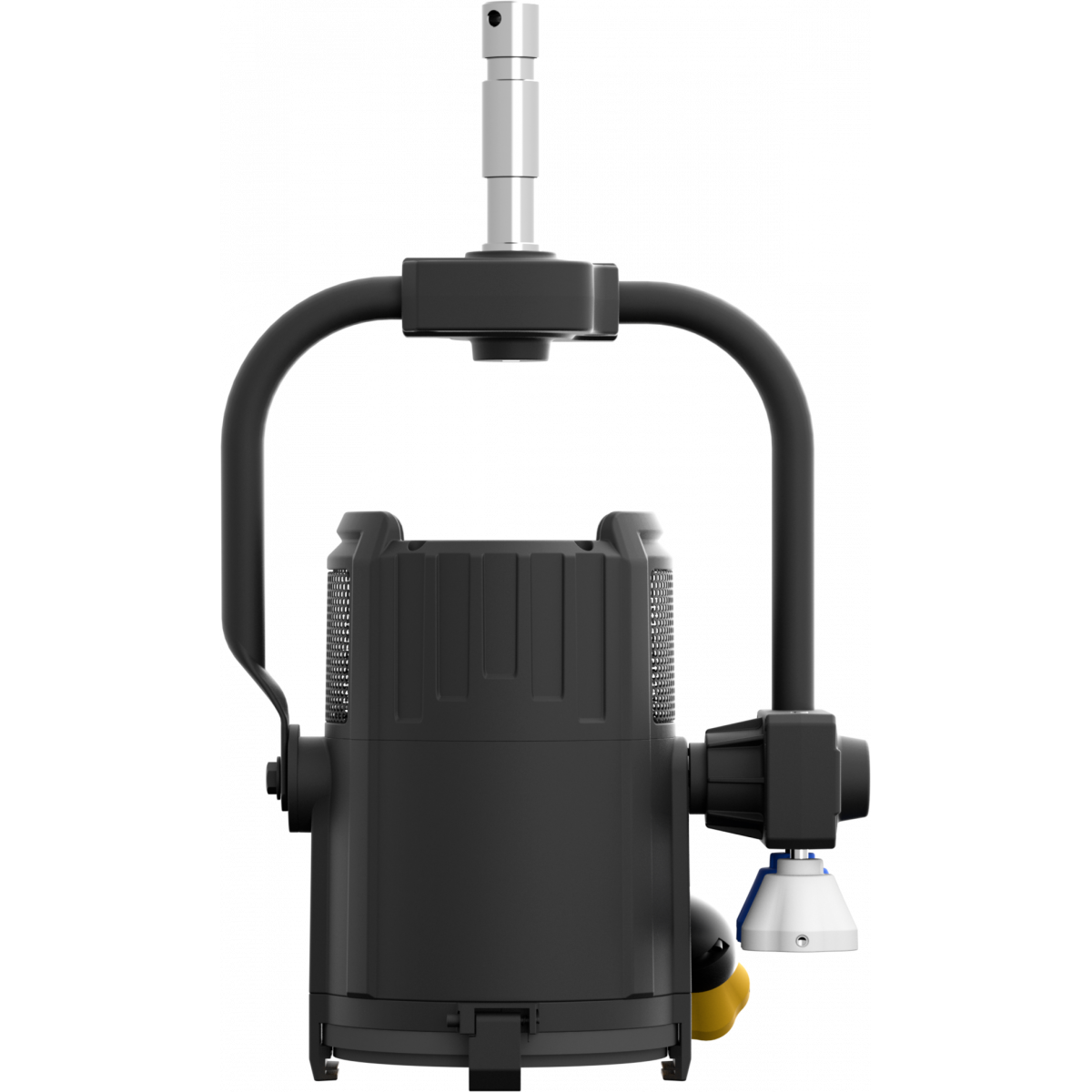

PHOTO GALLERY

EclFresnel JrP
EclFresnel JrP
EclFresnel JrP
EclFresnel JrP
EclFresnel JrP
EclFresnel JrP

Technical specifications

LIGHT SOURCE
  • Source: 70W high-power white LED
  • CCT: (TU) 3.000 K - (DY) 5.600
  • Luminous flux: (TU) (17°) 2'859 lm; (81°) 4'631 @Full
  • Luminous flux: (DY) (17°) 3'656 lm ; (81°) 5'911 lm @ full
  • Lux: TU (17°) 1'293 lx - TU (81°) 205lx @5 m full
  • Lux: DY (17°) 1'624 lx - (81°) 254lx @5 m full
  • CRI: (TU) >97; (DY) >90
  • R9: (TU) >95; (DY) >53
  • TLCI: (TU) >97; (DY) >92
  • TM30 Rf: (TU) >94; (DY) >88
  • TM30 Rg: (TU) <103; (DY) >97
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 17° - 81° manual
  • Lens diameter: 6'' - 150mm / 0.24''
  • Lens type: fresnel zoom lens
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjust of dimmer throught menu and knob
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: filter frame, 8 doors barndoor, spigot
  • Pan range: 360° with manual regulation
  • Tilt range: 340° with manual regulation
  • Body: sturdy die-cast aluminium body
  • Body colour: black
  • Other: Spigot 28 mm
CONTROL
  • Protocols: DMX512, RDM, rotatory knob
  • DMX channels: 1 / 2 - 1 / 2 - 2 / 3 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 0 ~ 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 90W
  • Output (at 230V): 23 units on a single power line
  • Power factor: >0,95
BATTERY

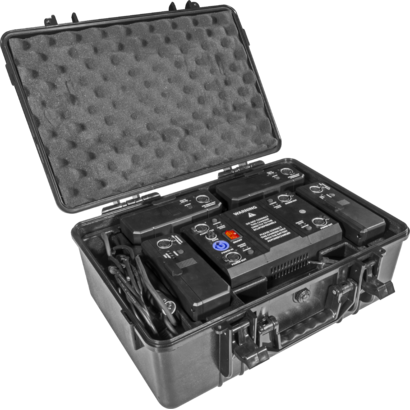

  • Battery: 29,6V 4400 mAh external battery (optional ECLFRSJBP4)
  • Re-charge connection: connection for external battery throught XLR 4p
  • Other: Voltage range: 22,4V-33,6V
PHYSICAL
  • IP rating: 20
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 298x496x260mm / 11.73''x19.53''x10.24''
  • Weight: 7,5kg / 16.53lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CT
CRI
R9
Lumen
ECLFRJPTU
ECLFRJPTU
3.000 K
97
95
4'631 lm
ECLFRJPDY
ECLFRJPDY
5.600 K
90
53
5'911 lm

Accessories & Related Products

9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
ECLFRSJBP4
ECLFRSJBP4
(Optional)
Battery pack kit for EclFresnelJ serie
ECLFRSPG
ECLFRSPG
(Included)
Spigot for PROLIGHTS fixtures
ECLFRSJBD
ECLFRSJBD
(Included)
Black&White& White barn door 8 directional flaps to adjust the light beam
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclfrjp_A4_DATASHEET_(IT).pdf450KB
Letter datasheetEclfrjp_A4_DATASHEET_(EN).pdf499KB

User manual

File name File size Download
User manualEclfrjp_USER_MANUAL_EN.pdf5MB
User manualGENERAL_SAFETY_INFORMATION.pdf12MB

DMX chart & personalities

File name File size Download
DMX chartEclfrjp_DMX_CHARTS.pdf77KB
ECLFRJPTU Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@eclipsefresneljtu@1ch.xmlDownload
prolights@eclipsefresneljtu@3ch.xmlDownload
ECLFRJPDY Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D SKPEclfrjptu_3D.skp2MB
2DEclfrjp_CAD_2D.dwg8MB
3DEclfrjptu_CAD_3D.dwg837KB
Technical drawingEclfrjptu_TECHNICAL_DRAWING.pdf522KB
VectorWorksECLFRJP_SYMBOLS.zip2MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 Definitive stable version Rev. 1.0
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 12/12/2018 10 second default display backlight Rev. 1.0
