ECLFWIP
PROLIGHTS


EclProfile FWIP

Waterproofed high quality Full White LED ellipsoidal available in Tungsten and Daylight versions

EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Main features:

  • IP rated for exterior applications
  • Rotating gobo IP65 (optional)
  • 3.200 K (TU) and 5.600 K (DY) versions available
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30)
  • Silent operation and compatible with industry standard accessories

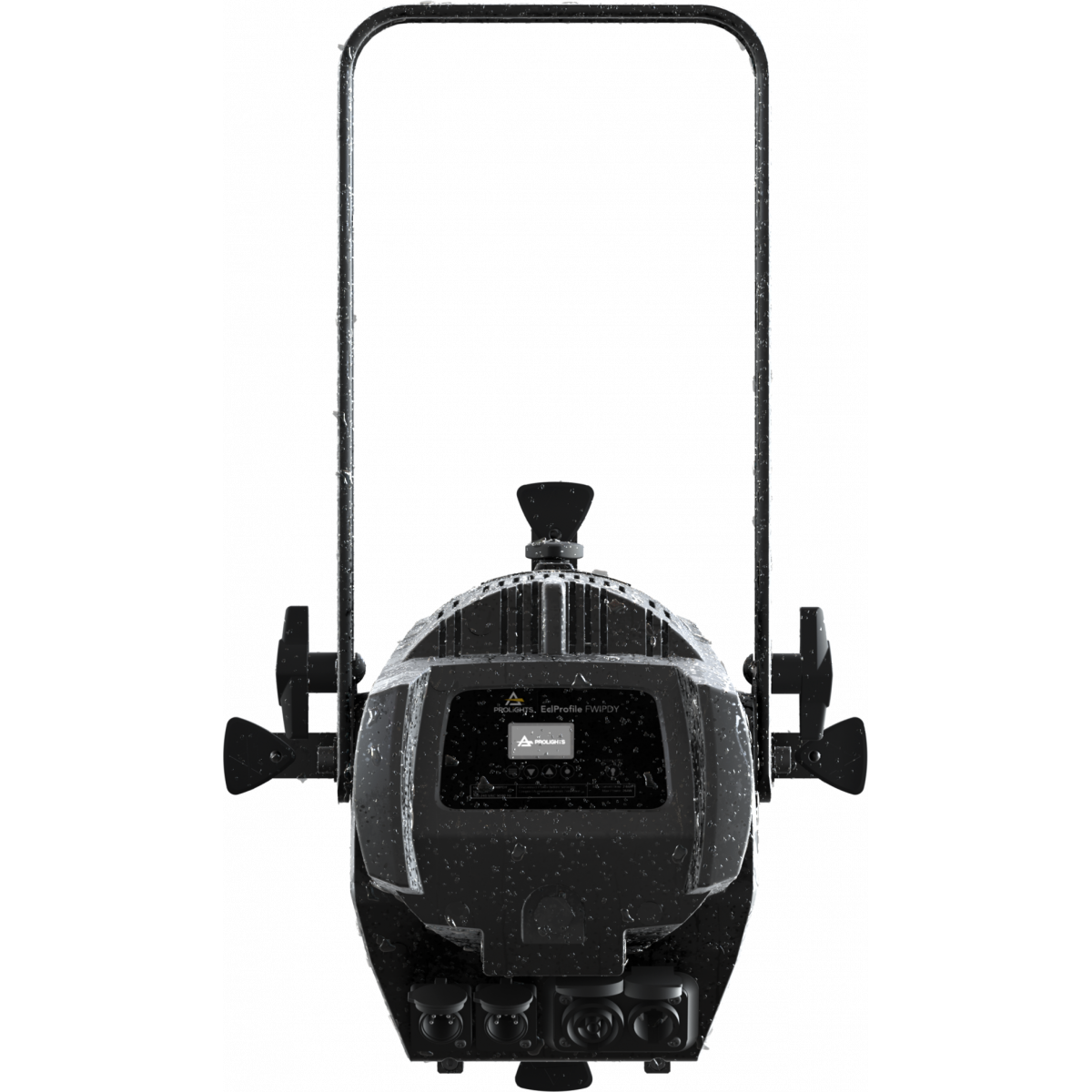

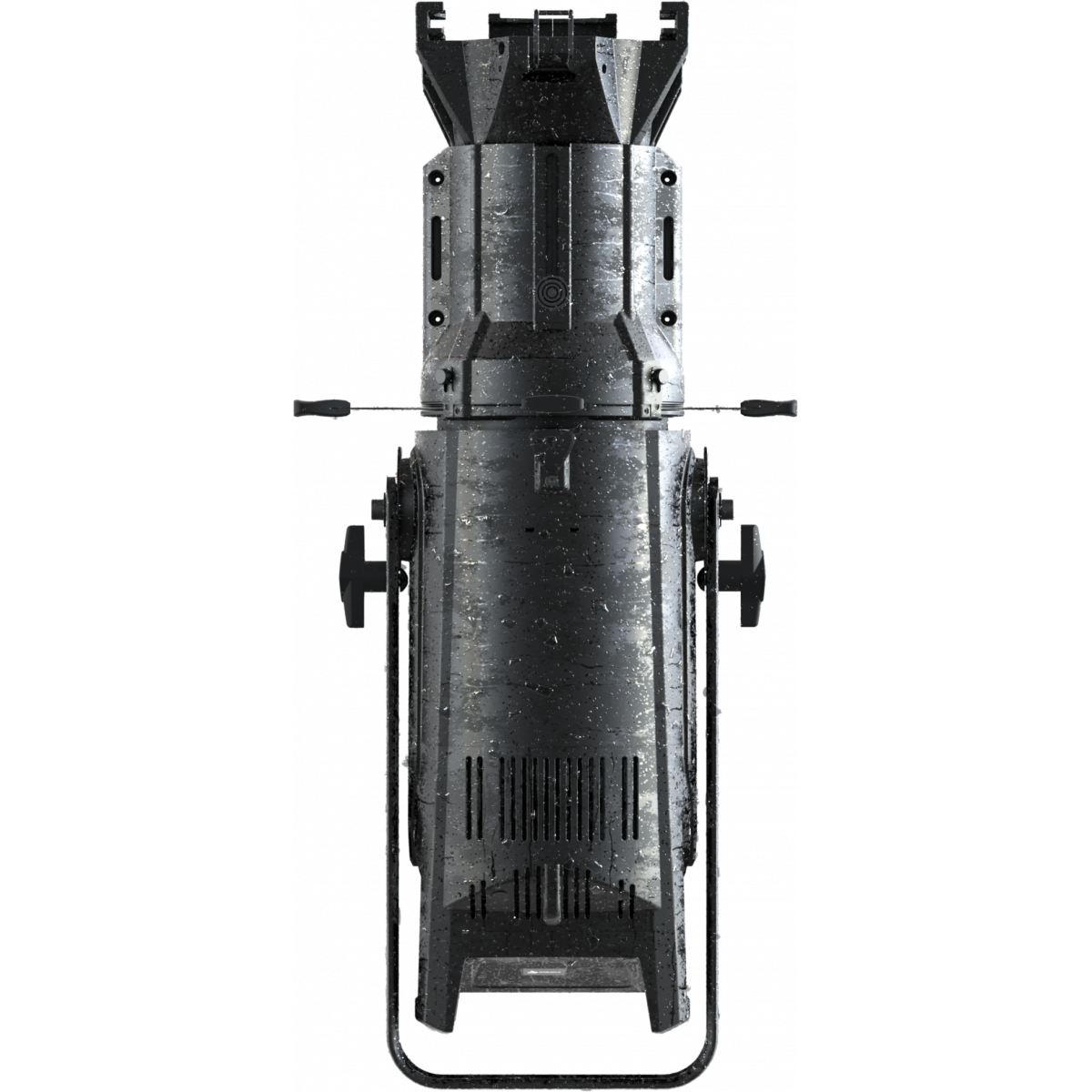

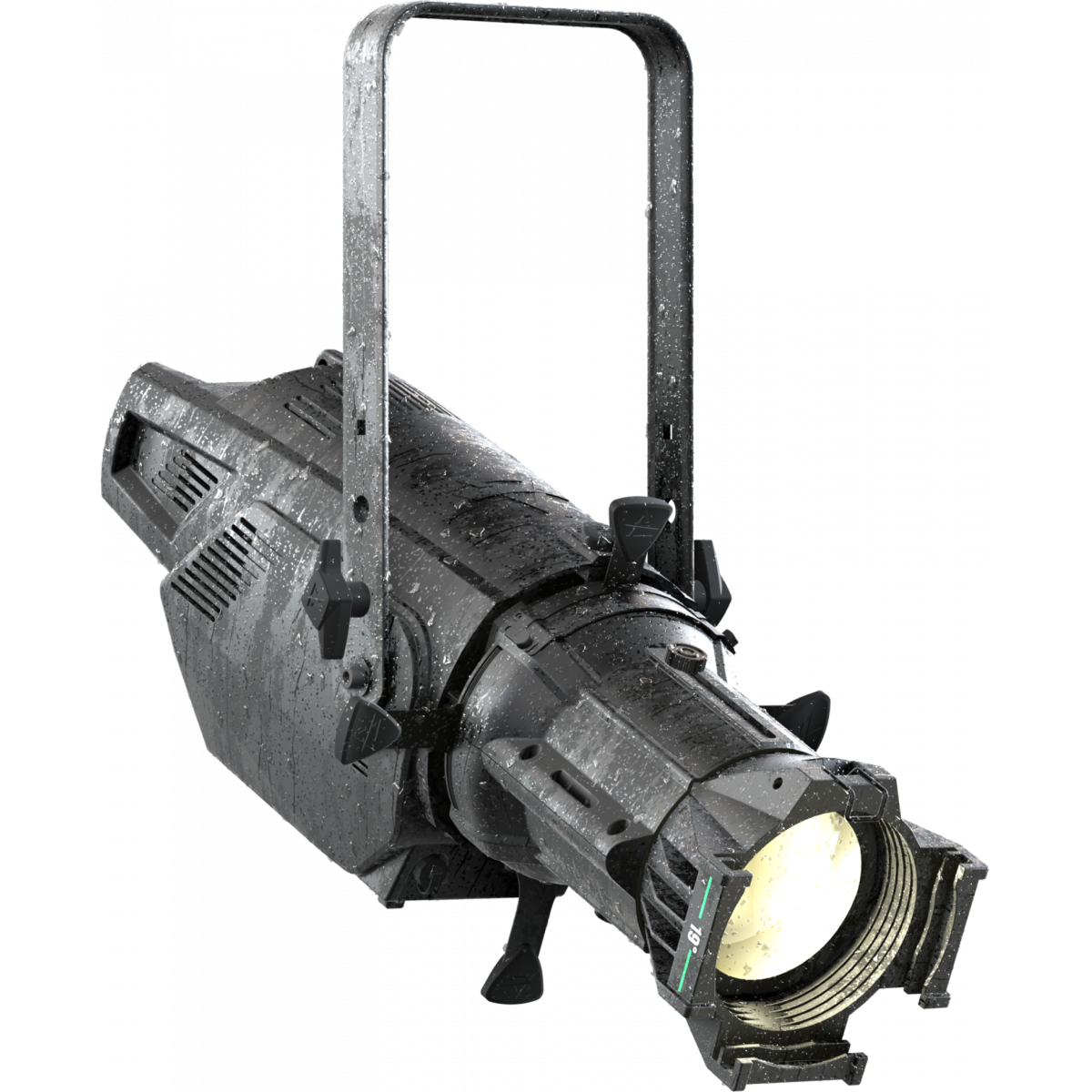

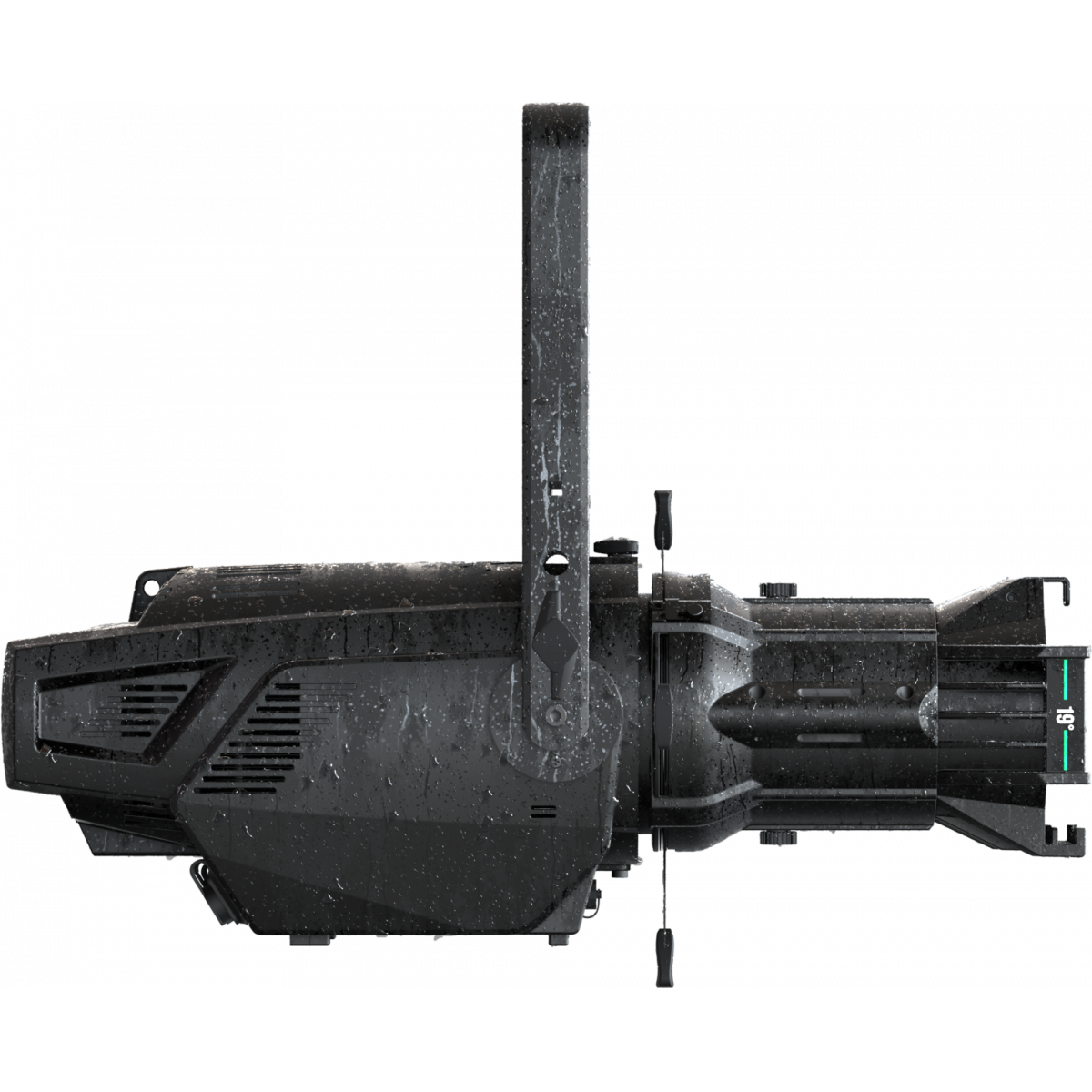

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 91x3W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600
  • Luminous flux: (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670lm @full
  • Luminous flux: (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
  • Lux: (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419lx @5 m full
  • Lux: (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494lx @5 m full
  • CRI: (TU) >98; (DY) >97
  • R9: (TU) >91; (DY) >97
  • TLCI: (TU) >98; (DY) >98
  • TM30 Rf: (TU) >94; (DY) >91
  • TM30 Rg: (TU) >99; (DY) >99
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories
COLOUR SYSTEM
  • Colour mixing: static white
DYNAMIC EFFECTS
  • Rotating gobos: optional, see available accessories
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 3 / 4 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 264W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 324x540x660mm / 12.76''x21.26''x25.98''
  • Weight: 10kg / 22.05lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
ECLFWIPTUBK
ECLFWIPTUBK
3.200 K
98
91
7'196 lm
ECLFWIPDYBK
ECLFWIPDYBK
5.600 K
97
97
8'176 lm

Accessories & Related Products

<b>EclProfile </b> Rotating Gobo
EclProfile Rotating Gobo
(optional)
Rotating gobo assembly for ECL Profile fixtures, black
FCLECLPRIP
FCLECLPRIP
(optional)
Flightcase to contain 6 pcs ECLFWIP / ECLCTPLUS with lenses 19°, 26°, 36°, 50°
FCLECLPRLZ
FCLECLPRLZ
(optional)
Flightcase to contain 8 ECLPRLZ zoom lenses
<b>EclPrl</b> Pole Operated Yoke
EclPrl Pole Operated Yoke
(optional)
Pole operated yoke for ECL Profile fixtures
ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLPRL05BK
ECLPRL05BK
(optional)
5° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL10BK
ECLPRL10BK
(optional)
10° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL14BK
ECLPRL14BK
(optional)
14° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL19BK
ECLPRL19BK
(optional)
19° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL26BK
ECLPRL26BK
(optional)
26° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL36BK
ECLPRL36BK
(optional)
36° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL50BK
ECLPRL50BK
(optional)
50° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL70BK
ECLPRL70BK
(optional)
70° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 15°-30° PRL lens barrel for EclProfile fixtures, black housing
ECLPRL90BK
ECLPRL90BK
(optional)
90° PRL lens barrel for EclProfile fixtures, black housing
<b>EclPrl</b> Zoom
EclPrl Zoom
(optional)
Zoom 25°-50° PRL lens barrel for EclProfile fixtures, black housing
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
ECLPRTPG
ECLPRTPG
(optional)
Gel filter frame for ECL Profile PRL lens barrel, comp. with 19°,26°,36° and 50°
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
ECLPRGH
ECLPRGH
(optional)
Gobo holder for ECL Profile fixtures, B size
ECLPRGHA
ECLPRGHA
(optional)
Gobo holder for ECL Profile fixtures, A size
ECLPRIRIS
ECLPRIRIS
(optional)
Iris accessory for ECL Profile fixtures
ECLLZLLKA
ECLLZLLKA
(optional)
Hexagonal head screw, to adapt ECLLZ lenses on ECLCTPLUS, ECLFW and ECLFS
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
IPTESTBOX
IPTESTBOX
(optional)
Portable vacuum and pressure tester for ProLights IP fixtures
UPBOX2P5
UPBOX2P5
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclfwip_A4_DATASHEET_(EN).pdf 646KB
Letter datasheet Eclfwip_LETTER_DATASHEET_(EN).pdf 648KB
Tender Specification Eclfwiptubk_TENDER_SPECIFICATION.pdf 4MB
Tender Specification Eclfwipdybk_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclfwip_USER_MANUAL_EN.pdf 11MB
General safety info GENERAL_SAFETY_INFORMATION.pdf 12MB
User manual Eclfwip_USER_MANUAL_FR.pdf 11MB

DMX chart & personalities

File name File size Download
DMX chart Eclfwip_DMX_CHARTS.pdf 60KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks +Eclprl05_VECTORWORKS_SYMBOLS.vwx 716KB
VectorWorks +Eclprl10_VECTORWORKS_SYMBOLS.vwx 691KB
VectorWorks +Eclprl14_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl19_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl26_VECTORWORKS_SYMBOLS.vwx 656KB
VectorWorks +Eclprl36_VECTORWORKS_SYMBOLS.vwx 628KB
VectorWorks +Eclprl50_VECTORWORKS_SYMBOLS.vwx 643KB
VectorWorks +Eclprl70_VECTORWORKS_SYMBOLS.vwx 695KB
VectorWorks +Eclprlz1530_VECTORWORKS_SYMBOLS.vwx 726KB
VectorWorks +Eclprlz2550_VECTORWORKS_SYMBOLS.vwx 759KB
VectorWorks +Eclprl05_VECTORWORKS_SYMBOLS.vwx 716KB
VectorWorks +Eclprl10_VECTORWORKS_SYMBOLS.vwx 691KB
VectorWorks +Eclprl14_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl19_VECTORWORKS_SYMBOLS.vwx 645KB
VectorWorks +Eclprl26_VECTORWORKS_SYMBOLS.vwx 656KB
VectorWorks +Eclprl36_VECTORWORKS_SYMBOLS.vwx 628KB
VectorWorks +Eclprl50_VECTORWORKS_SYMBOLS.vwx 639KB
VectorWorks +Eclprl70_VECTORWORKS_SYMBOLS.vwx 696KB
VectorWorks +Eclprlz1530_VECTORWORKS_SYMBOLS.vwx 726KB
VectorWorks +Eclprlz2550_VECTORWORKS_SYMBOLS.vwx 759KB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ECLFWIPTUBK Firmware rev. 1.41.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
ECLFWIPDYBK Firmware rev. 1.41.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

File name File size Download
IES prolights_eclfwipdy_ies files.zip 17KB
LDT prolights_eclfwipdy_ldt files.zip 11KB
IES prolights_eclfwtu_ies files.zip 15KB
LDT prolights_eclfwtu_ldt files.zip 11KB
PDF Photometrics Eclfwiptubk_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfwiptuwh_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfwipdywh_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclfwipdybk_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLFWIP_3D_SKETCHUP.zip 12MB
2D ECLFWIP_2D.zip 141MB
3D ECLFWIP_3D.zip 9MB
2D cad symbols ECLFWIP_2DSYMBOLS.zip 2MB
Technical drawing ECLFWIP_TECHNICAL DRAWINGS.zip 6MB

Tech docs

File name File size Download
Noise Report Eclfwip_NOISE_REPORT.pdf 1MB

Software

File name File size Download
Software ECLFWIP/CT+ Firmware Updater 0KB

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.44.1 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
Rev. 1.0
1.41.1 STABLE 23/06/2022 Fixed bugs:
  • Fixture not entering bootloader for firmware update.
  • Wrong RDM Personality CH Count of Standard mode.
Improvements:
  • Improved Display management.
Update Tool: UPBOX2P5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.44.1 STABLE 27/03/2023 Improvements:
  • Minor improvements to display management.
Rev. 1.0
1.41.1 STABLE 23/06/2022 Fixed bugs:
  • Fixture not entering bootloader for firmware update.
  • Wrong RDM Personality CH Count of Standard mode.
Improvements:
  • Improved Display management.

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates  the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...

Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin

Loading...
