ECLHD2
PROLIGHTS
discontinued

EclProfile HD2

230W high power LED ellipsoidal profile with white source

EclProfile HDL2 updates EclProfile HDL ranges with extra brightness and higher CRI / R9 / TLCI. The fixture is a proper LED replacement for the traditional 750W Tungsten ellipsoidal luminaire. The optical system harnesses the power of a 230W COB LED to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing. Featuring HDL dimming and available in a 3.200 K or 5.700 K, the EclProfile HDL2 delivers the performance and quality of output demanded from this level of the luminaire.

Main features:

  • Outstanding brightness over 10K lm for DY and 9K lm for TU versions
  • CRI > 97 (TU) and CRI > 96 (DY), High R9 and TLCI values
See variants

PHOTO GALLERY

EclProfile HD2
EclProfile HD2
EclProfile HD2
EclProfile HD2
EclProfile HD2
EclProfile HD2

Technical specifications

LIGHT SOURCE
  • Source: 230W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.700
  • Luminous flux: (TU) 5°: TBD - 10°: TBD - 14°: 8'562 lm -19°: 8'345 lm - 26°: 9'261 lm - 36°: 8'964 lm - 50°: 7'683 @Full
  • Luminous flux: (DY) 5°: TBD - 10°: TBD - 14°: 9'649 lm -19°: 9'822 lm - 26°: 10'974 lm - 36°: 10'781 lm - 50°: 9'053 lm @full
  • Lux: (TU) 5°: TBD - 10°: TBD - 14°: 11'055 lx - 19°: 6'495 lx - 26°: 4'954 lx - 36°: 2'728 lx - 50°: 1'381lx @5 m full
  • Lux: (DY) 5°: TBD - 10°: TBD - 14°: 12'000 lx - 19°: 7'118 lx - 26°: 5'571 lx - 36°: 3'105 lx - 50°: 1'569lx @5 m full
  • CRI: (TU) >97; (DY) >96
  • R9: (TU) >87; (DY) >96
  • TLCI: (TU) >97; (DY) >96
  • TM30 Rf: (TU) >92; (DY) >89
  • TM30 Rg: (TU) 100; (DY) 100
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / zoom 15°-30° / zoom 25°-50°
  • Lens type: high-quality glass lens optics
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: static white
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 5channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 210W
  • Output (at 230V): 15 units on a single power line
  • Power factor: TU: >0.90 - DY: >0,94
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 342x506x530mm / 13.46''x19.92''x20.87''
  • Weight: 7,11kg / 15.67lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
R9
Lumen
ECLHD2TUBK
ECLHD2TUBK (DISCONTINUED)
3.200 K
97
87
9'261 lm
ECLHD2DYBK
ECLHD2DYBK (DISCONTINUED)
5.700 K
96
96
10'974 lm

Accessories & Related Products

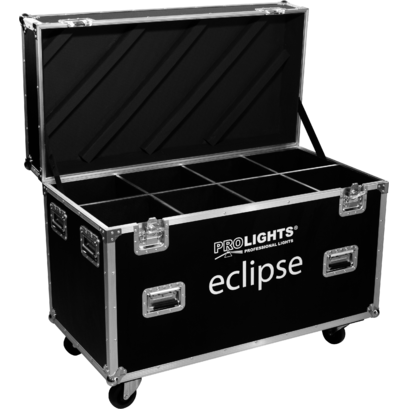

FCLECL
FCLECL
(Optional)
Flight case for 8 pcs of ECLFC or ECLHDL series
C6040B
C6040B
(Optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 15°-30°
ECL LZ
ECL LZ
(Optional)
Optics for ECLFC/HDL profiler, gel frame holder included, zoom 25°-50°
ECLLB05BK
ECLLB05BK
(Optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing

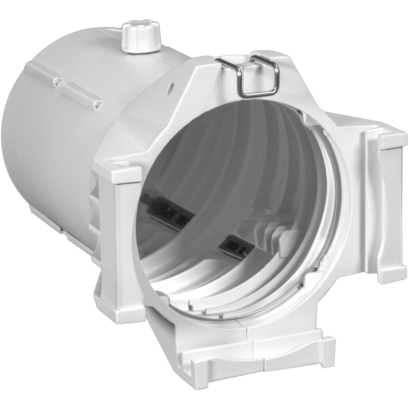

ECLLB19WH
ECLLB19WH
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing

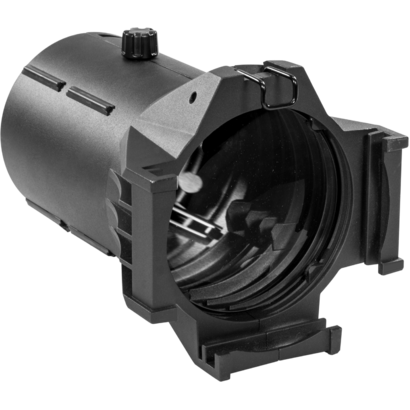

ECLLB19BK
ECLLB19BK
(Optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26BK
ECLLB26BK
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(Optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36WH
ECLLB36WH
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(Optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB50WH
ECLLB50WH
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(Optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing

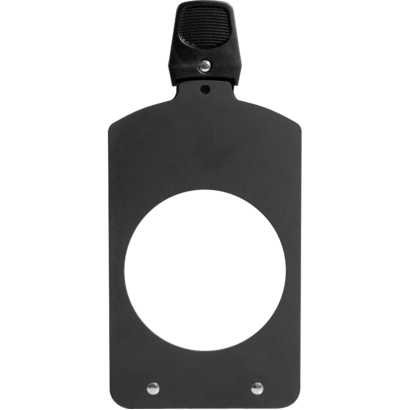

ECLPRGHA
ECLPRGHA
(Optional)
Gobo holder for ECL Profile fixtures, A size
ECLGH
ECLGH
(Optional)
Gobo holder for ECL/ECLFC/ECLHDL profiler

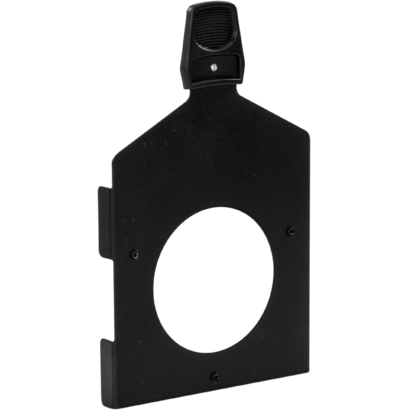

ECLPRGH
ECLPRGH
(Optional)
Gobo holder for ECL Profile fixtures, B size

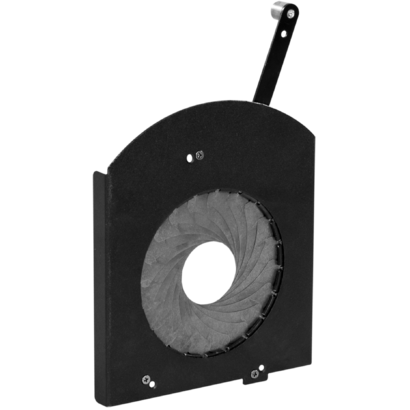

ECLPRIRIS
ECLPRIRIS
(Optional)
Iris accessory for ECL Profile fixtures
ECLIRIS2
ECLIRIS2
(Optional)
Steel iris diaphragm for ECLFC/ECLHDL profiler
SPGM10
SPGM10
(Optional)
28mm spigot for fixtures, M10 bolt
SPGM12
SPGM12
(Optional)
28mm spigot for fixtures, M12 bolt
ECLPROFILESEF1
ECLPROFILESEF1
(Optional)
Soft edge filter and holder kit for ECL profile projectors series
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclhd2_A4_DATASHEET_(IT).pdf572KB
Letter datasheetEclhd2_A4_DATASHEET_(EN).pdf601KB
Tender SpecificationEclhd2tuwh_ECLHD2TU_Tender_Specification.pdf4MB
Tender SpecificationEclhd2tubk_ECLHD2TU_Tender_Specification.pdf4MB
Tender SpecificationEclhd2dybk_ECLHD2DY_Tender_Specification.pdf4MB
Tender SpecificationEclhd2dywh_ECLHD2DY_Tender_Specification.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclhd2_DMX_CHARTS.pdf51KB
ECLHD2TUBK Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_eclipsehd2tu.d4Download
manufacturer fixture library (Link) Link
prolights_eclipsehd2tu_1ch.hedDownload
prolights_eclipsehd2tu_2ch.hedDownload
prolights_eclipsehd2tu_5ch.hedDownload
prolights@eclipsehd2tu@1ch.xmlDownload
prolights@eclipsehd2tu@2ch.xmlDownload
prolights@eclipsehd2tu@5ch.xmlDownload
ECLHD2DYBK Firmware rev. 1.1
manufacturer fixture library (Link) Link
prolights_eclipsehd2dy.d4Download
manufacturer fixture library (Link) Link
prolights@eclipsehd2dy@2ch.xmlDownload
prolights@eclipsehd2dy@5ch.xmlDownload
prolights@eclipsehd2dy@1ch.xmlDownload
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLHD2_3D_SKETCHUP.zip11MB
3D revitECLHD2_3D_REVIT.zip22MB
2DEclhd2_CAD_2D.dwg13MB
2D cad symbolsECLHD2_2DSYMBOLS.zip111KB
3DECLHD2_3D.zip8MB
Technical drawingEclhd2_TECHNICAL_DRAWING.pdf663KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLHD2_SYMBOLS.zip5MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 15/12/2018 10 second default display backlight: perform the Factory Reset after the update. Rev. 1
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1 STABLE 15/12/2018 10 second default display backlight: perform the Factory Reset after the update.

Info Request

News

PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
Introducing PROLIGHTS Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
April 08, 2025
PROLIGHTS unveils the EclProfile CT+HP: Enhanced Performance with the Iconic CT+ DNA
PROLIGHTS is proud to announce the release of the EclProfile CT+HP , the higher class in LED ellipsoidal that raises the standard for power, control, and versatility. Designed for large venues, this fixture delivers an exceptional 450W of LED power, doubling
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
April 07, 2025
PROLIGHTS introduces Astra Blade100IP: IP65 motorized batten with max pixels and max power
PROLIGHTS is proud to announce the launch of the Astra Blade100IP , a high-performance, IP65-rated motorized linear batten designed to transform stages with stunning visual dynamics, superior color accuracy, and unmatched strobe versatility. At the heart
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
April 07, 2025
PROLIGHTS is Rocking PL+S with 3 Bold Launches & More
PROLIGHTS is gearing up for a dynamic presence at Prolight + Sound 2025 , taking place from April 8-11 in Frankfurt. The booth—located in Hall 12.0, D61—will feature a dedicated exhibition space showcasing flagship products from its portfolio for
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
March 28, 2025
Light Craft & Sound chooses PROLIGHTS for Let's Vibe cinematic commercial
Light Craft & Sound Pvt. Ltd. , a leading film equipment rental company in India, recently selected PROLIGHTS Astra Wash37Pix fixtures for the commercial directed by Paper Planes Pictures . The Director of Photography, Jay Charola , envisioned an arena-style
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
March 20, 2025
SoMMedia Studio Enhances Production Quality with PROLIGHTS studio fixtures
SoMMedia Studio elevates its production capabilities with an updated PROLIGHTS lighting rig, ensuring an enhanced  visual quality for project. The SoMMedia video production studio offers a perfect balance between functionality and aesthetics, tailored
CPC Production Services relies on PROLIGHTS for professional lighting
March 14, 2025
CPC Production Services relies on PROLIGHTS for professional lighting
Ipswich, Queensland - With a legacy of excellence dating back to 1984, CPC Production Services is a leading live event and broadcast production company in Australia. It has recently chosen to invest in PROLIGHTS solutions, supplied by Show Technology
PROLIGHTS Lights Up the Stage at Vibe Budapest
March 12, 2025
PROLIGHTS Lights Up the Stage at Vibe Budapest
The newly opened Vibe Budapest , the latest gem of the Costes Group , has chosen PROLIGHTS solutions to create spectacular lighting effects and an engaging atmosphere. The lighting system design and installation were managed by LISYS-Project Kft ., which
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
March 11, 2025
PROLIGHTS presents ÆtherBox: the single-universe CRMX transceiver with IP65 rating and multi-protocol support
PROLIGHTS is proud to announce the launch of ÆtherBox , a single-universe CRMX transceiver with an IP65 protection rating, designed to offer versatility and robustness in any environment, from indoor venues to outdoor stages. With a wide range of connectivity
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
March 07, 2025
PROLIGHTS Illuminates the 4th Global Ministerial Conference on Road Safety in Morocco
The 4th Global Ministerial Conference on Road Safety , held in Morocco, was a landmark event in the global effort to improve road safety. The conference brought together ministers, experts, and stakeholders globally to discuss innovative strategies and
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
March 04, 2025
Baycourt Community & Arts Centre Upgrades Stage Lighting with PROLIGHTS Solutions
Baycourt Community & Arts Centre , situated in the heart of downtown Tauranga, is the Bay of Plenty's premier performing arts facility. Designed to serve both the local community and international touring productions, the venue provides cutting-edge spaces
Subscribe to our Newsletter
Loading...
