ECLHDTWC
PROLIGHTS


EclProfile HDTWC

91x3,5W Tunable White and colour LED profile with 6 colour LED source

EclProfile HDTWC is an advanced LED ellipsoidal featuring 6 colour mixing to deliver high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction. The optical system harnesses the power of a 91x3,5W custom LED with 6 colours to create an even beam with clean shutter cuts and beautiful sharp or soft edge gobo focusing. Featuring HD dimming and tuning from 2.800 K to 10.000 K version, the EclProfile HDTWC delivers the performance and quality of output demanded from this level of light.

Main features:

  • Tunable White 2.800 K - 10.000 K with high CRI and extensive colour mixing
  • +/- green and magenta white tuning
  • Advanced focusing
See variants

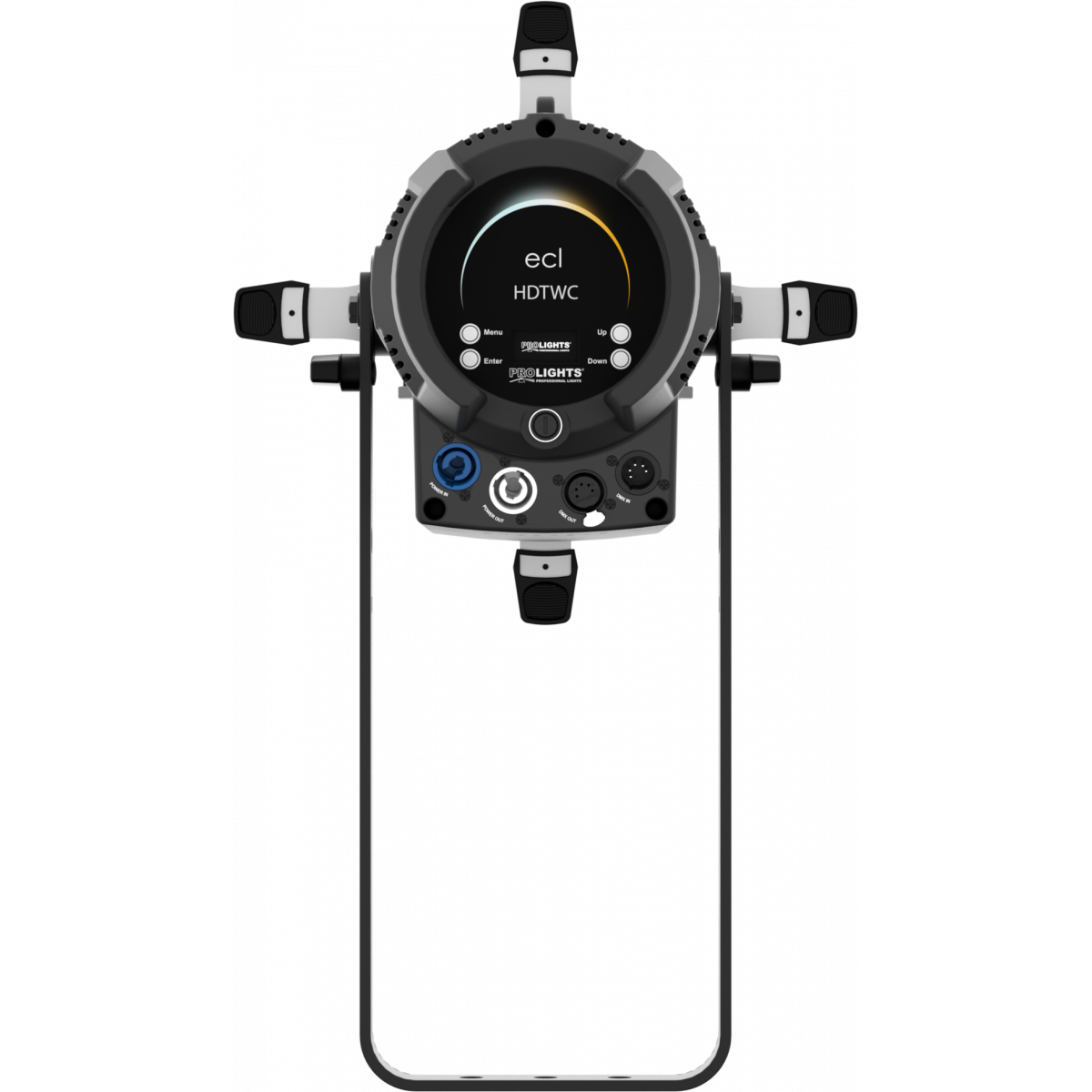

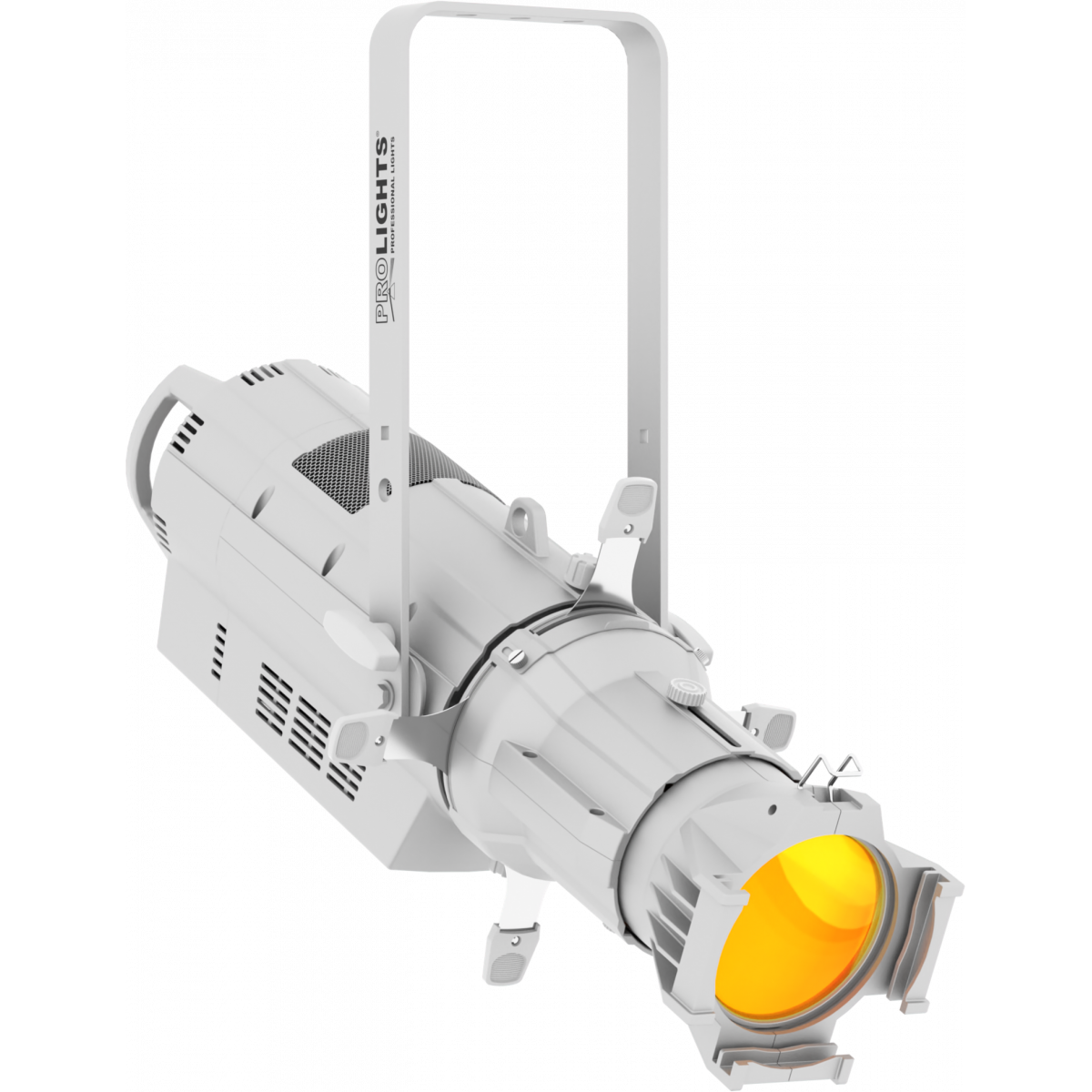

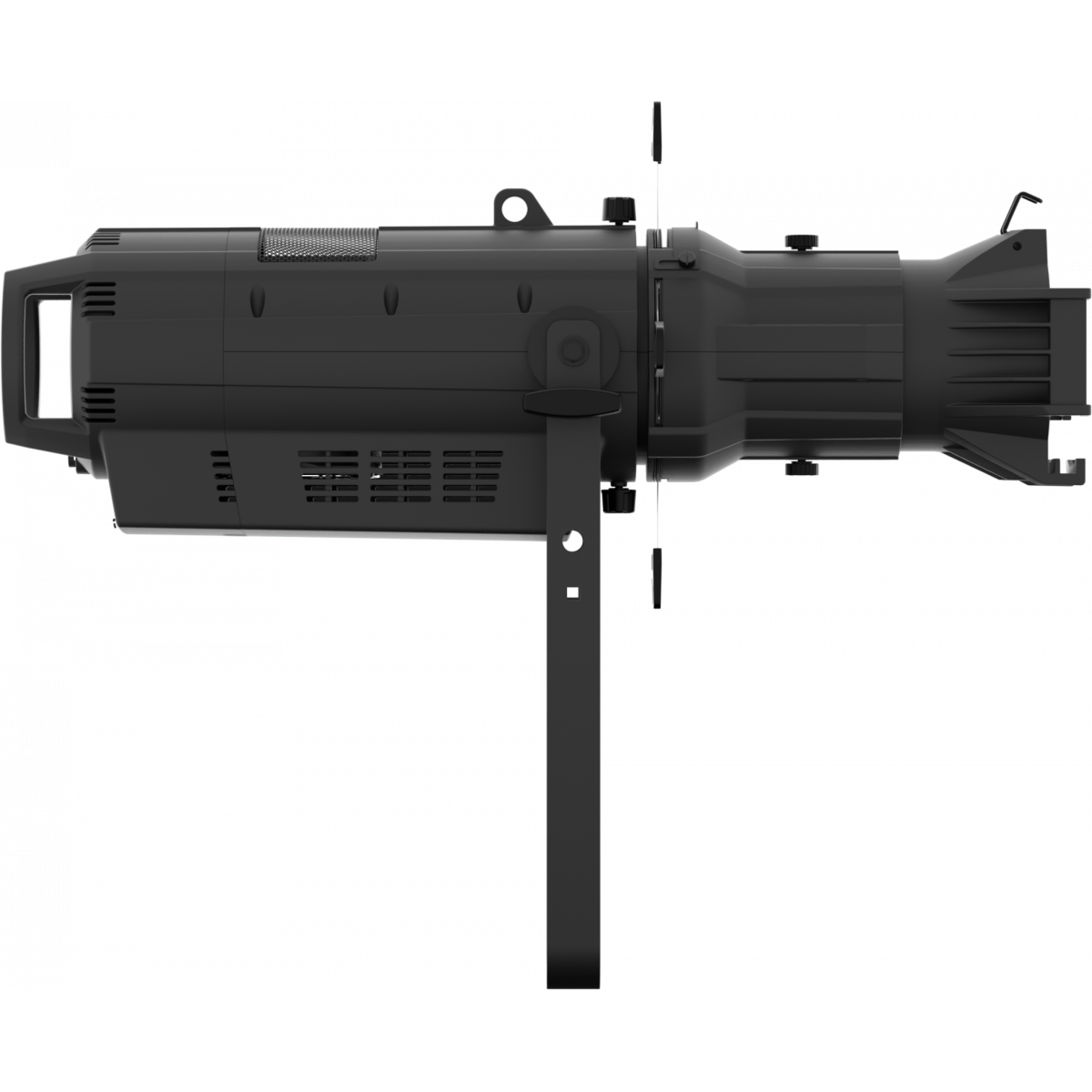

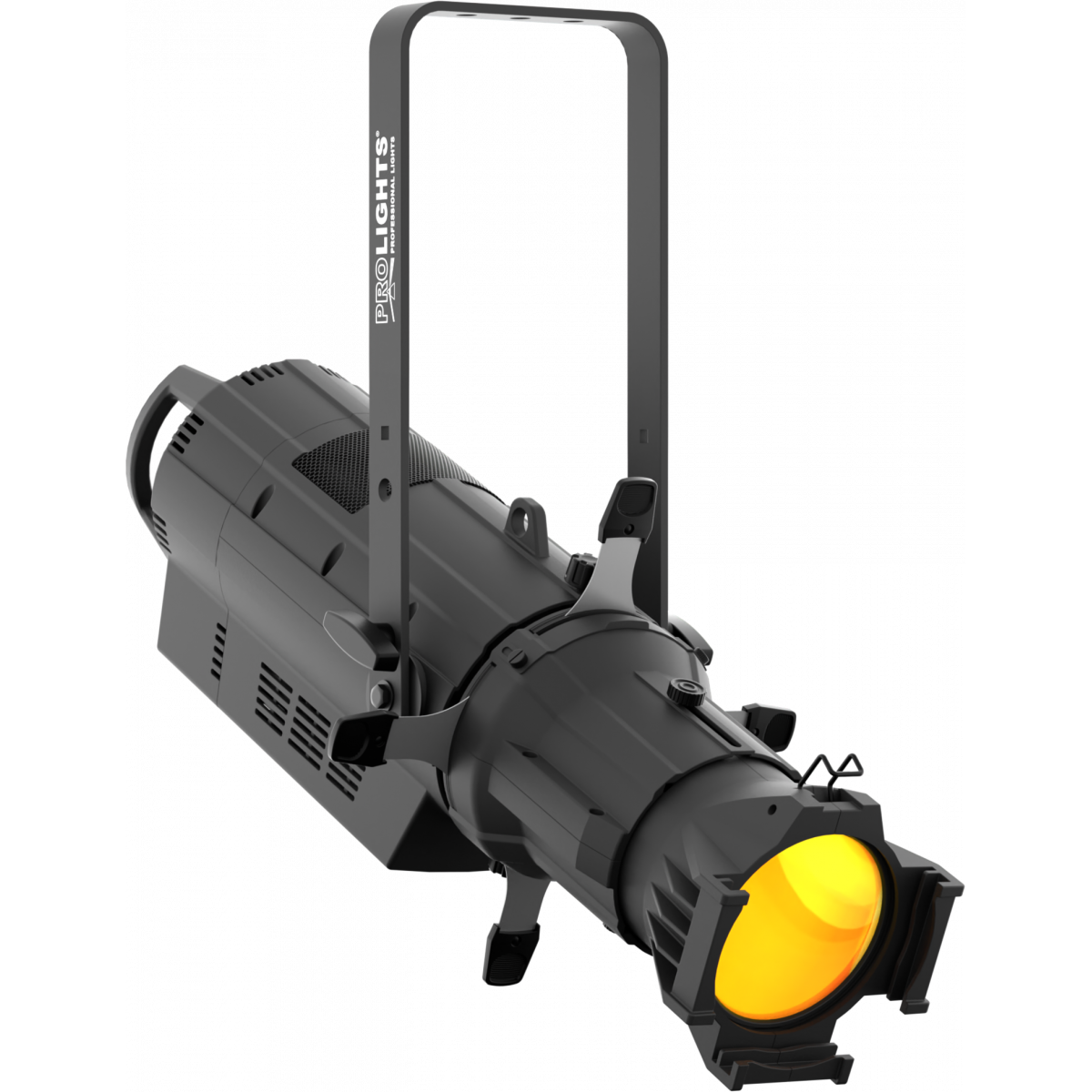

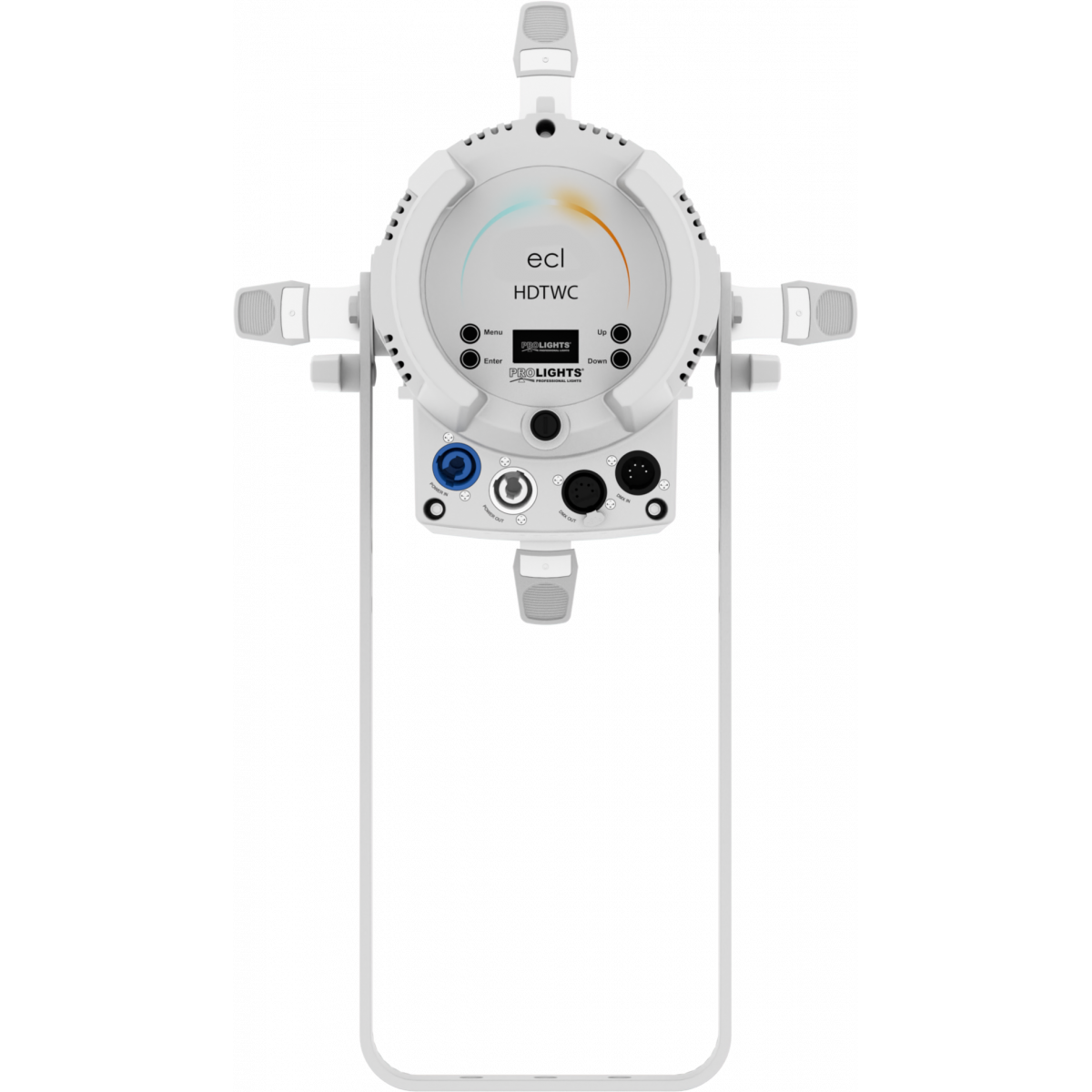

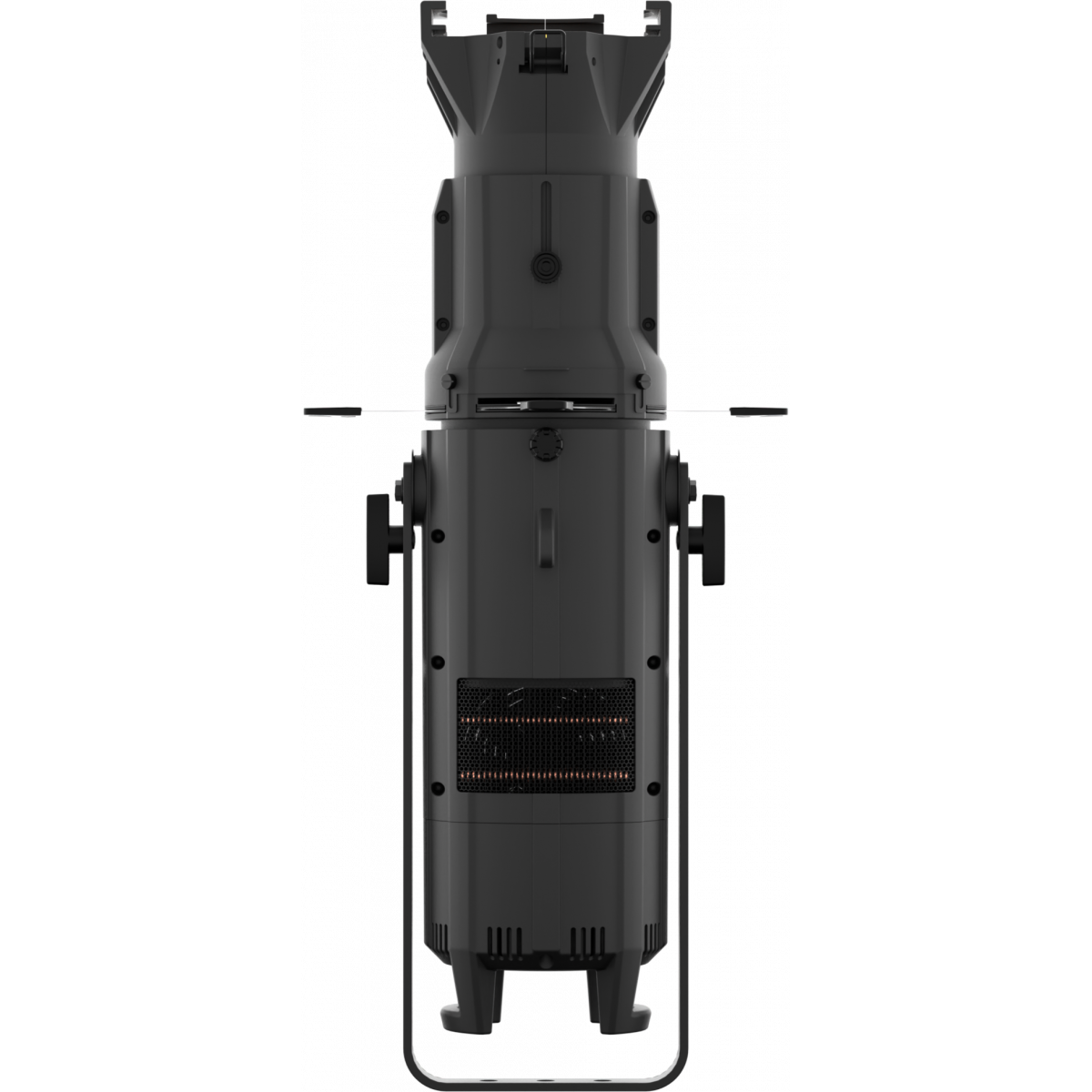

PHOTO GALLERY

EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC
EclProfile HDTWC

Technical specifications

LIGHT SOURCE
  • Source: 91x3,5W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
  • CCT: 2.800 K - 10.000
  • Luminous flux: (5°) TBD; (10°) TBD; (14°) 4'212 lm; (19°) 5'235 lm; (26°) 5'669 lm; (36°) 6'415 lm; (50°) 5'856lm @full
  • Lux: (5°) TBD; (10°) TBD; (14°) 4'965 lx; (19°) 3'084 lx - (26°) 2'018 lx - (36°) 958 lx - (50°) 503lx @5 m full
  • CRI: 89 @3.200 K; 93,6 @5.600 K
  • R9: 90 @3.200 K; 95,4 @5.600 K
  • TLCI: 89 @5.600 K
  • TM30 Rf: 90 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / zoom 15°-30° / zoom 25°-50°
  • Lens type: high-quality glass lens optics
  • Focus: manual
COLOUR SYSTEM
  • Colour mixing: RGBL, orange, royal blue
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 2 / 5 CH1 / 5 CH2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer and colour
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 250W
  • Output (at 230V): 14 units on a single power line
  • Power factor: >0,94
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x551x595mm / 10.31''x21.69''x23.43''
  • Weight: 7,8kg / 17.2lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
ECLHDTWCBK
ECLHDTWCBK (END OF LIFE)
Black
ECLHDTWCWH
ECLHDTWCWH
White

Accessories & Related Products

C6040B
C6040B
(optional)
Aluminum clamp for 28mm spigot, 200kg load, 48-51mm tubes, black
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 15°-30°
ECL LZ
ECL LZ
(optional)
Optics for ECLFC/HD profiler, TPG incl., zoom 25°-50°
ECLLB05BK
ECLLB05BK
(optional)
5° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB14BK
ECLLB14BK
(optional)
14° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19BK
ECLLB19BK
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB19WH
ECLLB19WH
(optional)
19° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB26BK
ECLLB26BK
(optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB26WH
ECLLB26WH
(optional)
26° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB36BK
ECLLB36BK
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLLB36WH
ECLLB36WH
(optional)
36° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50WH
ECLLB50WH
(optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, white housing
ECLLB50BK
ECLLB50BK
(optional)
50° lens barrel for Ecl Profile fixtures, filterframe included, black housing
ECLGH
ECLGH
(optional)
Gobo holder for ECL/ECLFC/ECLHD profiler
ECLIRIS2
ECLIRIS2
(optional)
Steel iris diaphragm for ECLFC/ECLHD profiler
SPGM12
SPGM12
(optional)
28mm spigot for fixtures, M12 bolt
ECLPROFILESEF1
ECLPROFILESEF1
(optional)
Soft edge filter and holder kit for ECL profile projectors series
SPGM10
SPGM10
(optional)
28mm spigot for fixtures, M10 bolt
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheet Eclhdtwc_A4_DATASHEET_(EN).pdf 426KB
Letter datasheet Eclhdtwc_A4_DATASHEET_(IT).pdf 387KB
Tender Specification Eclhdtwc_TENDER_SPECIFICATION.pdf 4MB

User manual

File name File size Download
User manual Eclhdtwc_USER_MANUAL_ITEN.pdf 4MB

DMX chart & personalities

File name File size Download
DMX chart Eclhdtwc_DMX_CHARTS.pdf 94KB
VectorWorks PROLIGHTS_VECTORWORKS_v23_LIBRARY.vwx 304MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 2MB
VectorWorks VECTORWORKS_SYMBOLS.vwx 2MB
VectorWorks PROLIGHTS_VECTORWORKS_v18_LIBRARY.vwx 444MB
ECLHDTWC Firmware rev. 1.8
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsehdtwc_1ch.hedDownload
prolights_eclipsehdtwc_2ch.hedDownload
prolights_eclipsehdtwc_5ch1.hedDownload
prolights_eclipsehdtwc_5ch2.hedDownload
prolights_eclipsehdtwc_7ch.hedDownload
prolights_eclipsehdtwc_9ch.hedDownload
prolights_eclipsehdtwc_12ch.hedDownload
prolights_eclipsehdtwc_13ch.hedDownload
prolights_eclipsehdtwc_16ch.hedDownload
prolights_eclipsehdtwc_19ch.hedDownload
eclipsehdtwc_1ch.fdfDownload
eclipsehdtwc_2ch.fdfDownload
eclipsehdtwc_5ch1.fdfDownload
eclipsehdtwc_5ch2.fdfDownload
eclipsehdtwc_7ch.fdfDownload
eclipsehdtwc_9ch.fdfDownload
eclipsehdtwc_12ch.fdfDownload
eclipsehdtwc_13ch.fdfDownload
eclipsehdtwc_16ch.fdfDownload
eclipsehdtwc_19ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@eclipsehdtwc@2_channel.xmlDownload
prolights@eclipsehdtwc@5_channel.xmlDownload
prolights@eclipsehdtwc@7_channel.xmlDownload
prolights@eclipsehdtwc@9_channel.xmlDownload
prolights@eclipsehdtwc@13_channel.xmlDownload
prolights@eclipsehdtwc@16_channel.xmlDownload
prolights@eclipsehdtwc@19_channel.xmlDownload
hdtwc_12ch_3_8.hog4showDownload
eclipsehdtwc.zipDownload

Photometrics

File name File size Download
VectorWorks eclhdtwc 4KB
IES prolights_echdtwcprl14_ies files.zip 17KB
LDT prolights_eclhdtwcprl14_ldt files.zip 12KB
IES prolights_eclhdtwcprl19_ies files.zip 16KB
LDT prolights_eclhdtwcprl19_ldt files.zip 12KB
IES prolights_eclhdtwcprl26_ies files.zip 14KB
LDT prolights_eclhdtwcprl26_ldt files.zip 10KB
IES prolights_eclhdtwcprl36_ies files.zip 17KB
LDT prolights_eclhdtwcprl36_ldt files.zip 12KB
IES prolights_eclhdtwcprl50_ies files.zip 19KB
LDT prolights_eclhdtwcprl50_ldt files.zip 14KB
PDF Photometrics Eclhdtwc_PRL26_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclhdtwc_PRL50_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclhdtwc_PRL36_PHOTOMETRICS_REPORT.pdf 3MB
PDF Photometrics Eclhdtwc_PRL19_PHOTOMETRICS_REPORT.pdf 2MB
PDF Photometrics Eclhdtwc_PRL14_PHOTOMETRICS_REPORT.pdf 3MB
Dialux Download DIALux product catalogue -

CAD symbols & drawings

File name File size Download
3D sketchup ECLHDTWC_3D_SKETCHUP.zip 8MB
3D revit ECLHDTWC_3D_REVIT.zip 3MB
2D Eclhdtwc_2D.dwg 3MB
2D cad symbols Eclhdtwcbk_2DSYMBOLS.dwg 84KB
3D ECLHDTWC_3D.zip 8MB
Technical drawing Eclhdtwc_TECHNICAL_DRAWING.pdf 332KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware

Only the latest firmware versions for each hardware revision are available for download.
To download previous firmware versions, log in to the customer care section.
Update Tool: UPBOX1UP5 {CodiceUpBox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.8 STABLE 07/10/2020 Changed default setting on White Balance function from OFF to ADJUST. Rev. 1

Info Request

News

22 September 2023
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
PROLIGHTS fixtures on stage for Noizy's Alpha Show 2
Alpha Show 2, the concert of the hip-hop singer Noizy, was illuminated by PROLIGHTS fixtures. The event, hosted in the Mother Teresa...
19 September 2023
PROLIGHTS fixtures light up the second edition of
PROLIGHTS fixtures light up the second edition of "I Venerdì di Ercolano"
PROLIGHTS products illuminated the second edition of "I Venerdì di Ercolano," a culturally enriching initiative proudly promoted and...
14 September 2023
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
PROLIGHTS fixtures illuminated the 63rd Edition of TV Week Logie Annual Awards
The exceptional sparkle and enchanting ambiance that characterised the 63rd annual TV Week Logie Awards has been further enhanced by...
12 September 2023
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS Illuminates the Ricky Martin Symphonic concert
PROLIGHTS fixtures lit up Skënderbej Square in Tirana, setting the stage for the Ricky Martin Symphonic concert. This performance...
05 September 2023
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
Prolights EclExpo Flood150: Compact, bright and versatile floodlight
PROLIGHTS introduces the EclExpo Flood150, a compact and bright floodlight designed to substitute traditional CDM, HMI, and tungsten...
04 September 2023
Ultimo chooses Prolights for his summer stadium tour
Ultimo chooses Prolights for his summer stadium tour
Prolights solutions lit up the stadium tour of Ultimo, a young Roman singer-songwriter and leading artist on the Italian music scene....
30 August 2023
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
PROLIGHTS light up the British Drivers Club at Silverstone Circuit
The British Drivers Club has chosen PROLIGHTS solutions to illuminate the VIP locations during the prestigious British Grand Prix at...
25 August 2023
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS on stage with Blanco's Innamorato Tour
PROLIGHTS products illuminated the Innamorato Tour of Blanco, the young artist reigning over the Italian music scene. Following the...
21 August 2023
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights illuminated Elvana Gjata's Dekada concert in Tirana
Prolights fixtures played a pivotal role in the concert titled "Dekada" by the Albanian singer Elvana Gjata. This event marked a significant...
11 August 2023
DRTCC choose Prolights fixtures for a major upgrade
DRTCC choose Prolights fixtures for a major upgrade
Dubbo Regional Theatre and Convention Centre features the Joyce Schneider Auditorium, a 500-seat theatre with state-of-the-art facilities...
08 August 2023
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS Expands LED Screen Lineup with Three New Series and 13 Models, Catering to Touring to Film Sets
PROLIGHTS unveils its new series of LED screens - KappaPix, SigmaPix, and GammaPix. These meticulously engineered products are designed...
04 August 2023
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
PROLIGHTS illuminates the arcades of the Sanctuary of San Luca in Bologna
Prolights Sunblast 3000FC transformed the arcades of Bologna, a worldwide symbol of the city and UNESCO heritage site, into a magnificent...
Subscribe to our Newsletter
Follow us, stay connected facebook instagram youtube twitter linkedin
Loading...
