ECLJZIP
PROLIGHTS

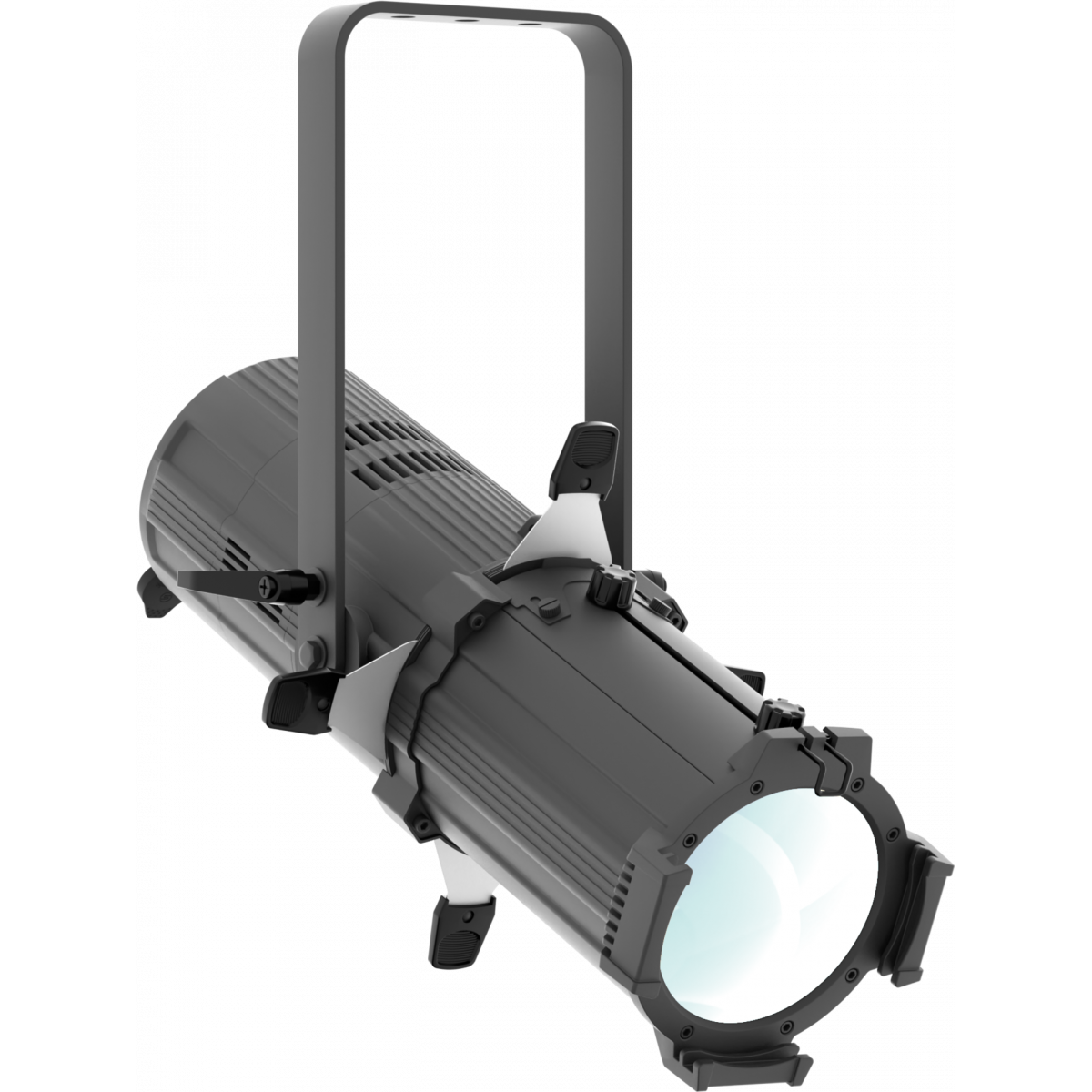

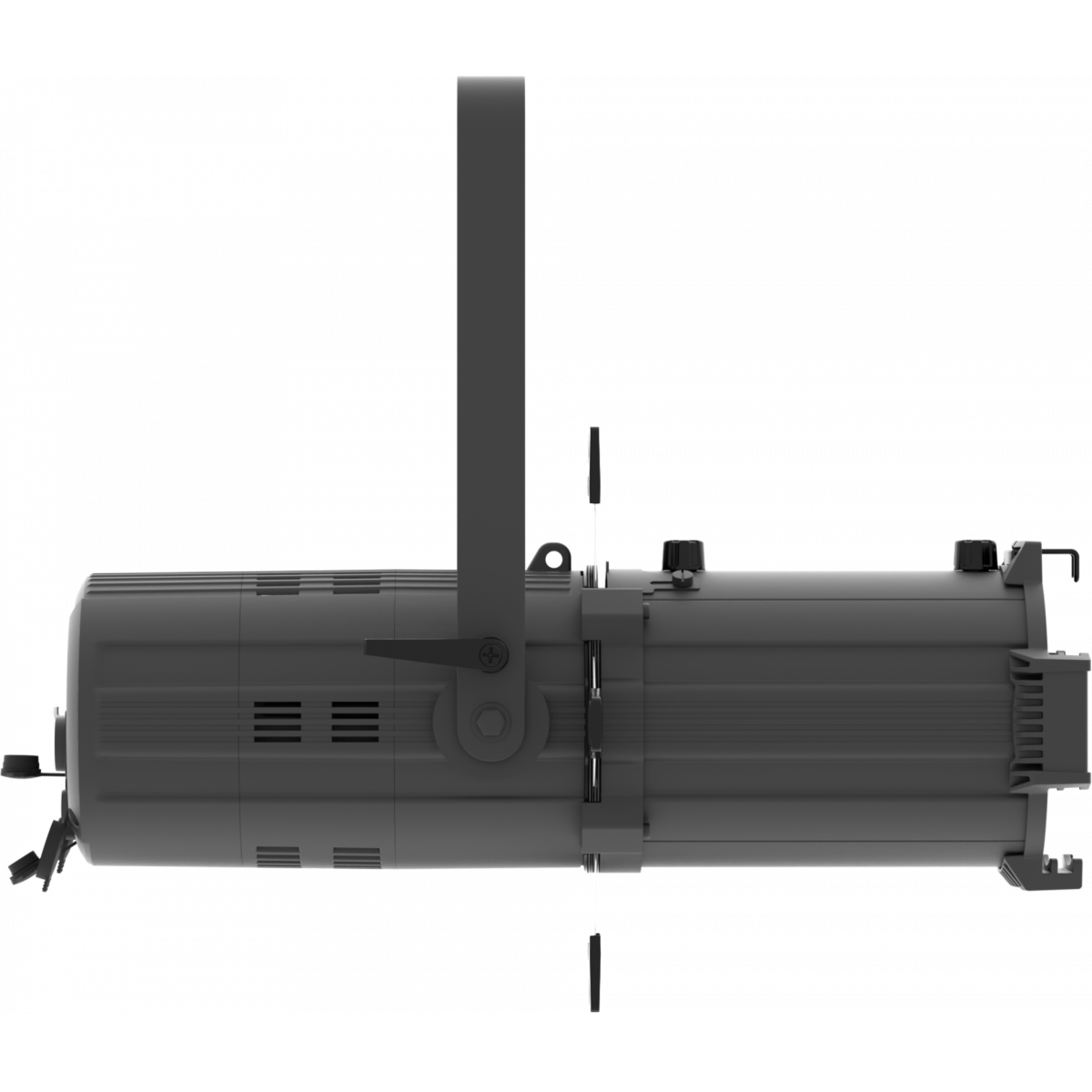

EclProfile JrZIP

IP65 160W zoomable LED ellipsoidal

EclProfile JrZIP is an IP rated zoomable ellipsoidal designed for exterior application. EclProfile JrZIP reaches an exceedingly high lumen output of nearly 6'000 lumens, and all in a compact size allowing for use on any outdoor show or for logo and texture projection over buildings. EclProfile JrZIP can use two different manual zoom lenses (optional) being 15° - 30° or 25° - 50° and it can be mounted at any distance from the projection surface.

Main features:

  • 160W white LED engine with 3.000 K CT, delivering nearly 6'000 lumens
  • IP65 allowing for temporary outdoor installations and events
  • Optional optics available: 15° - 30° and 25° - 50°
See variants

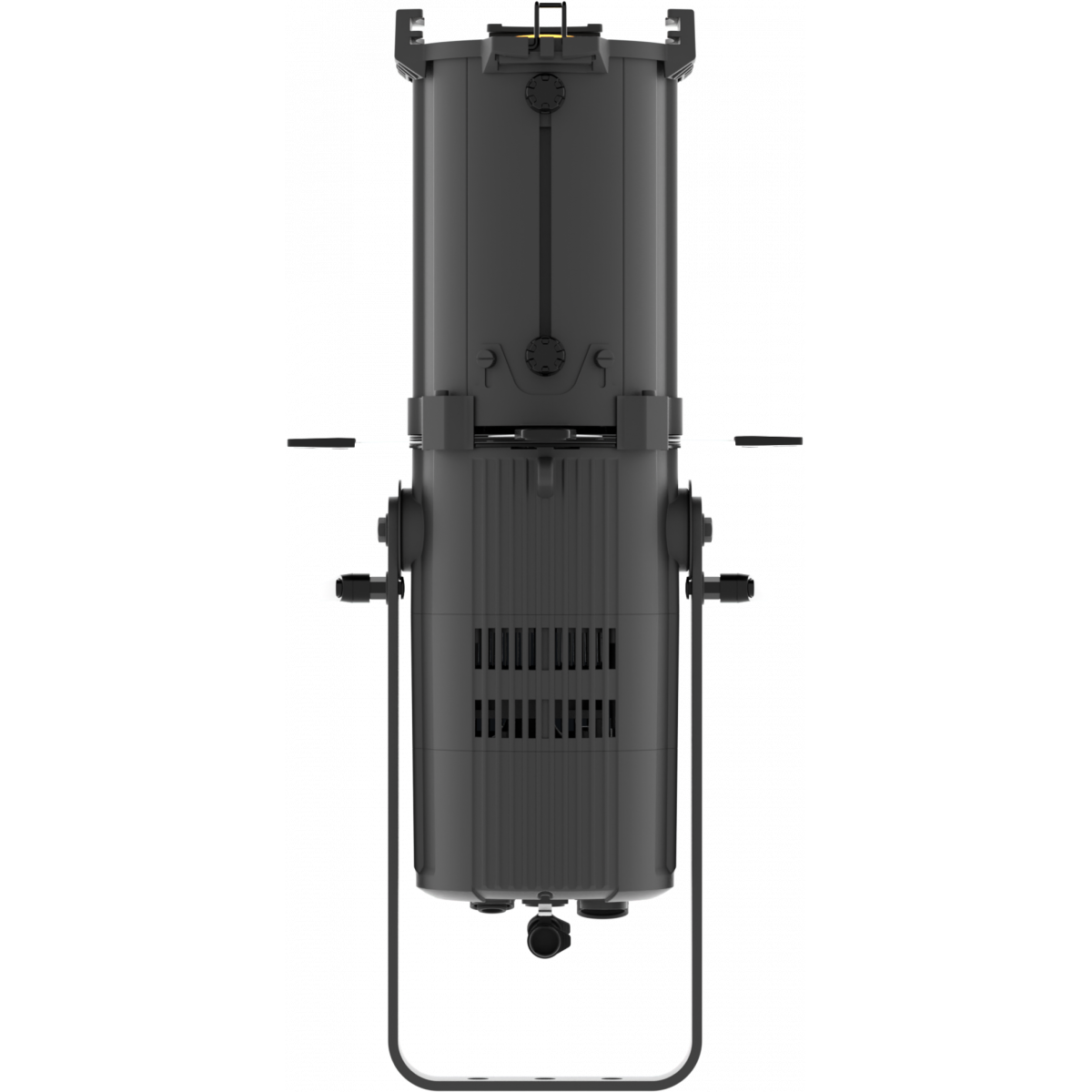

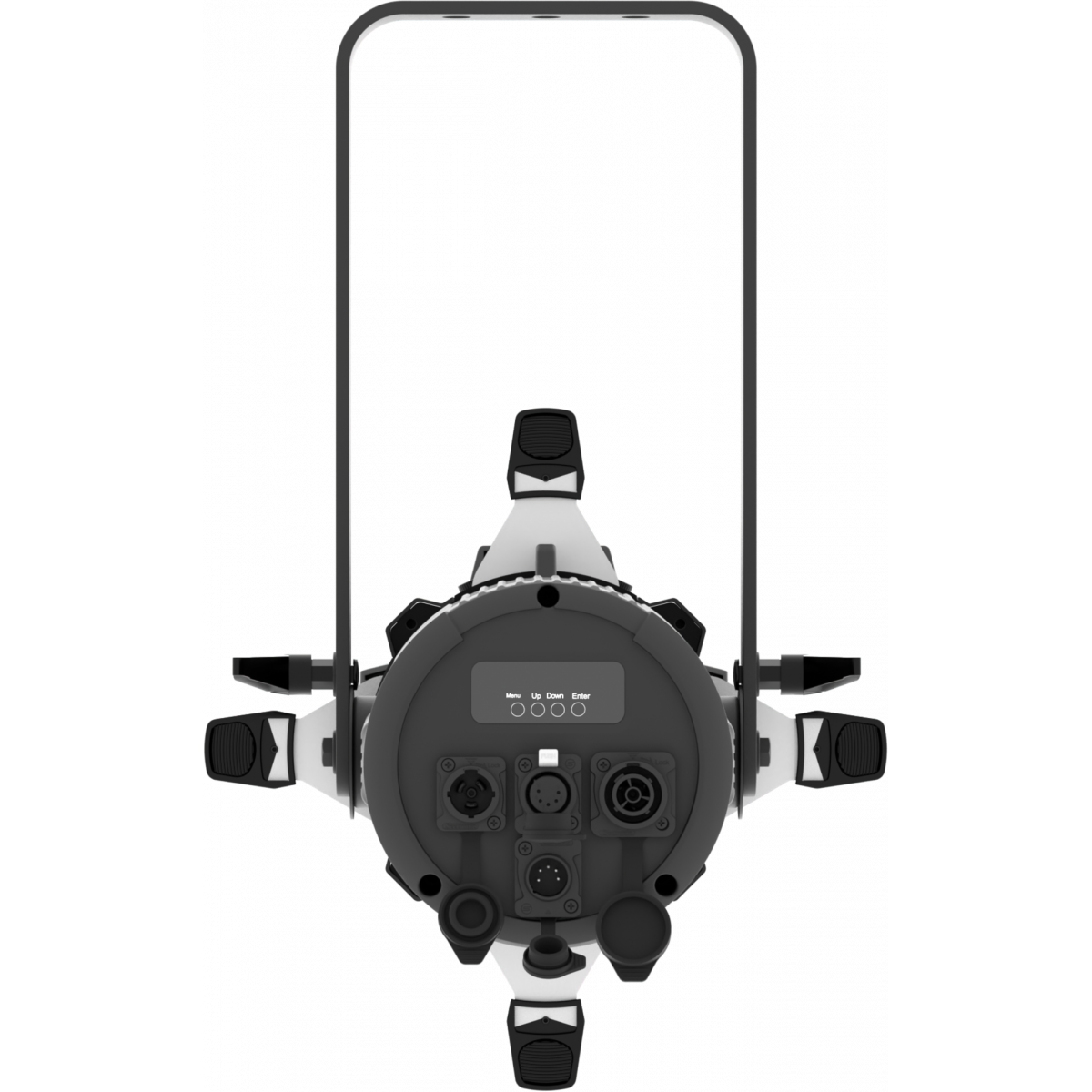

PHOTO GALLERY

EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP
EclProfile JrZIP

Technical specifications

LIGHT SOURCE
  • Source: 160W Warm White LED
  • CCT: (TU) 3.100 K - (DY) 5.500
  • Luminous flux: (TU - 50°) 5'274 lm - (TU - 25°) 5'770 lm; (TU - 30°) 4'200 lm - (TU - 15°) 5'012 lm - (DY - 50°) 5'390 lm - (DY - 25°) 4'911 lm; (DY - 30°) 3'844 lm - (DY - 15°) 4'450
  • Lux: (TU - 50°) 2'040 lx - (TU - 25°) 5'160 lx; (TU - 30°) 3'710 lx - (TU - 15°) 12'900 lx - (DY - 50°) 1'750 lx - (DY - 25°) 4'530 lx; (DY - 30°) 3'000 lx - (DY - 15°) 11'200lx @3 m
  • Lux: (TU - 50°) 734 lx - (TU - 25°) 1'857 lx; (TU - 30°) 1'336 lx - (TU - 15°) 4'644 - (DY - 50°) 630 lx - (DY - 25°) 1'630 lx; (DY - 30°) 1'080 lx - (DY - 15°) 4'032lx @5 m
  • CRI: >90
  • Other: TLCI: >91 - TM30-15 RE/RF: 97/88
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: (not included) manual zoom lens 15°-30° or (not included) manual zoom lens 25°-50°
  • Lens diameter: 87mm / 3.43''
  • Lens type: high-quality glass lens optics
  • Focus: manual
COLOUR SYSTEM
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Gobo size: M, outer: 66 mm - image: 45 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Hardware on-board: on board mechanics for rigging to the ceiling
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512, W-DMX
  • DMX channels: 1 / 3channel
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
  • Other: 16bit control of dimmer
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Operating temperature: -20° ~ +45° Ta
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Max power consumption: 136 W
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 136W
  • Max power consumption (at 120V): 138,6W
  • Power factor: pF 0,98 @120 V - pF 0,97 @230 V
PHYSICAL
  • IP rating: 65 for temporary outdoor application, not for fixed installations
  • Cooling: active, silent operation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 275x440x275mm / 10.83''x17.32''x10.83''
  • Weight: 7,9kg / 17.42lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
CCT
CRI
Housing
ECLJZIPTUBK
ECLJZIPTUBK
3.100 K
> 90
Black
ECLJZIPDYBK
ECLJZIPDYBK
5.500 K
> 90
Black

Accessories & Related Products

<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready
<b>ÆtherBox</b> LITE
ÆtherBox LITE
(Optional)
1 Universe CRMX Wireless Transceiver
LRLUNA
LRLUNA
(Optional)
Single Universe DMX transceiver with Bluetooth
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White

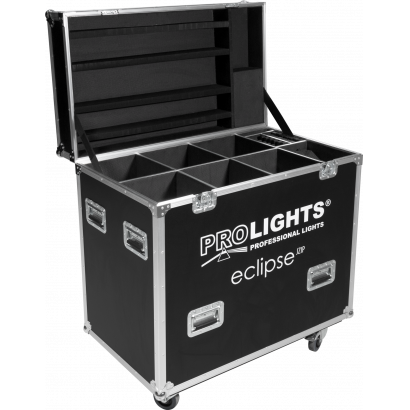

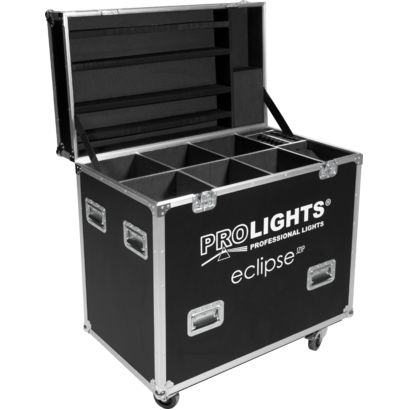

FCLECLJZIP
FCLECLJZIP
(Optional)
Flightcase for 6 pcs of ECLJZIP

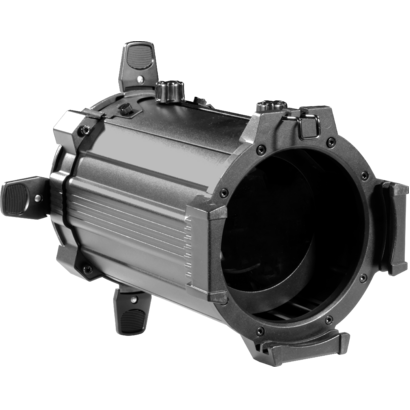

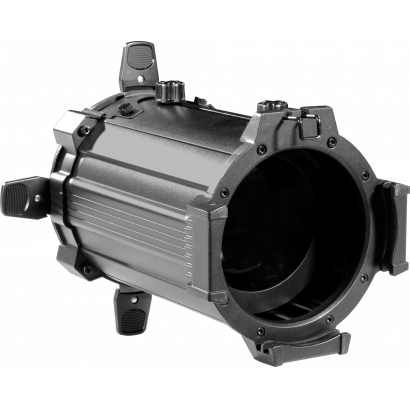

ECLJZIPLZ1530
ECLJZIPLZ1530
(Optional)
Optional 15°-30° zoom optic for ECLJZIP profiler

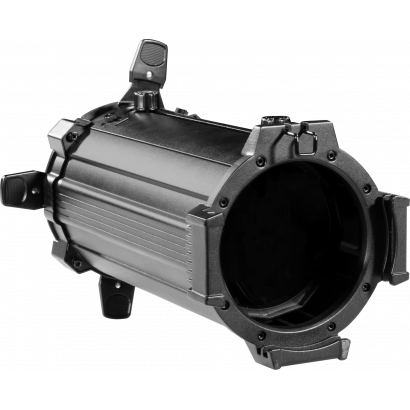

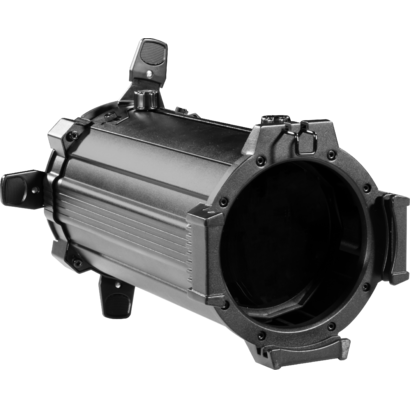

ECLJZIPLZ2550
ECLJZIPLZ2550
(Optional)
Optional 25°-50° zoom optic for ECLJZIP profiler
ECLJRGH
ECLJRGH
(Optional)
Gobo holder for ECLJR profilers
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEcljzip_A4_DATASHEET_(IT).pdf174KB
Letter datasheetEcljzip_A4_DATASHEET_(EN).pdf194KB

User manual

File name File size Download
User manualEcljzip_USER_MANUAL.pdf8MB

DMX chart & personalities

File name File size Download
DMX chartEcljzip_DMX_CHARTS.pdf53KB
ECLJZIP Firmware rev. 1.1
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsejzip_1ch.hedDownload
prolights_eclipsejzip_3ch.hedDownload
prolights@eclipsejzip@1ch.xmlDownload
prolights@eclipsejzip@3ch.xmlDownload
ECLJZIP Firmware rev. 1.0
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights_eclipsejzip_1ch.hedDownload
prolights_eclipsejzip_3ch.hedDownload
prolights@eclipsejzip@1ch.xmlDownload
prolights@eclipsejzip@3ch.xmlDownload

Photometrics

CAD symbols & drawings

File name File size Download
3D revitECLJZIP_3D_REVIT.zip26MB
2DEcljzip_CAD_2D.dwg7MB
3DEcljzip_CAD_3D.dwg25MB
2D cad symbolsECLJZIP_2DSYMBOLS.zip137KB
Technical drawingEcljzip_TECHNICAL_DRAWING.pdf480KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB
VectorWorksECLJZIP_SYMBOLS.zip1MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 25/01/2021 Added Installation Function.
1.1 STABLE 08/10/2019 Improved firmware functionality. Rev. 1
1.0 STABLE 20/03/2019
