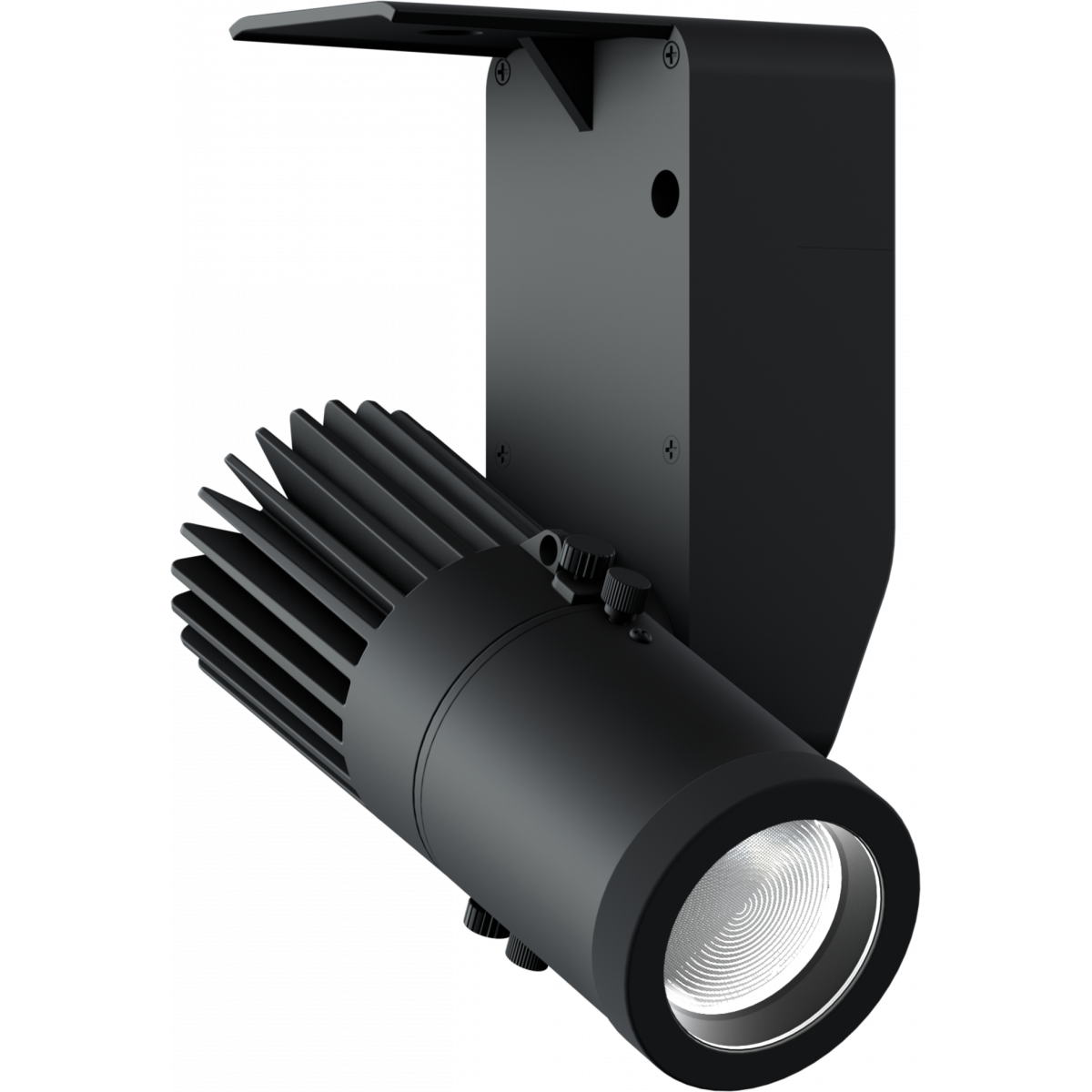

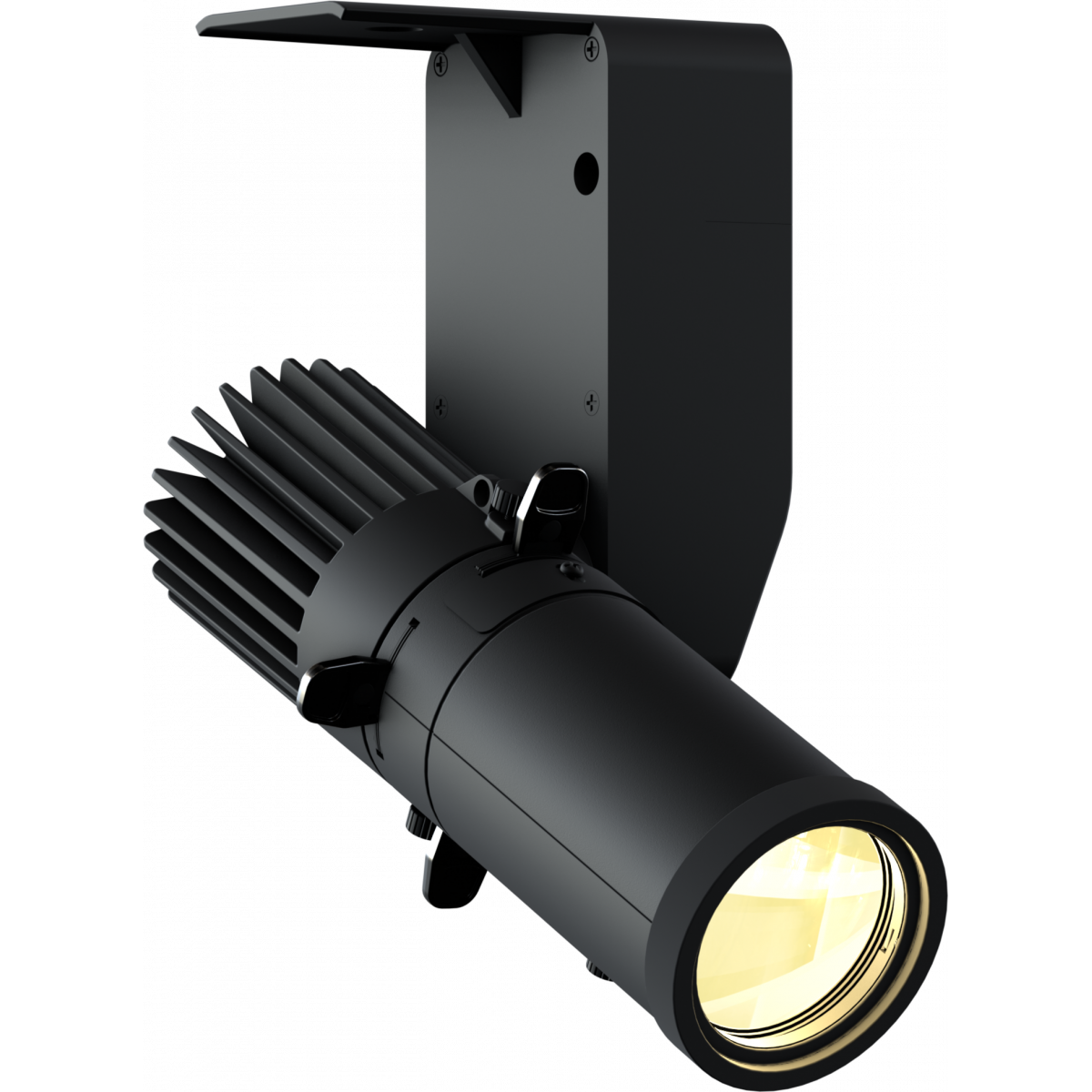

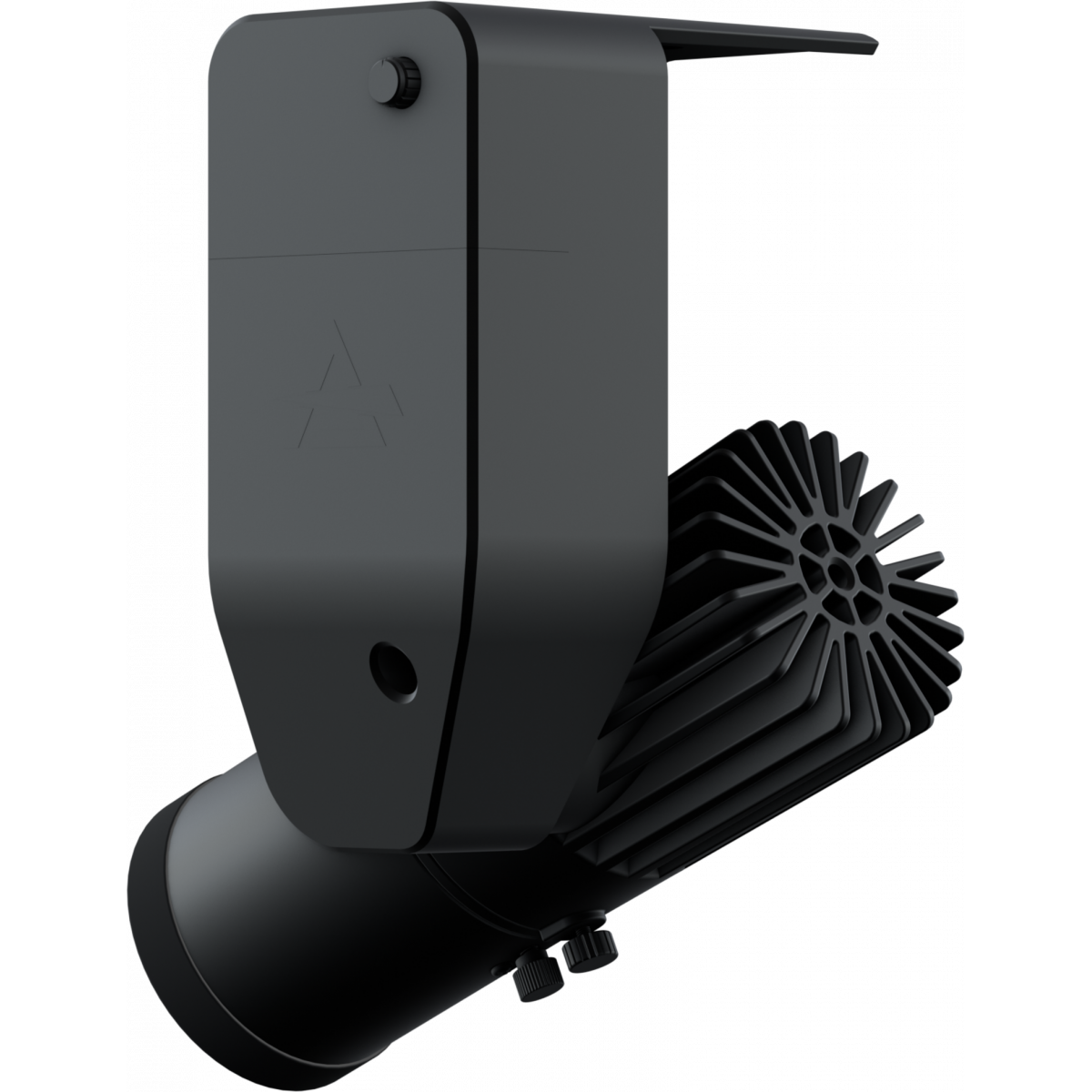

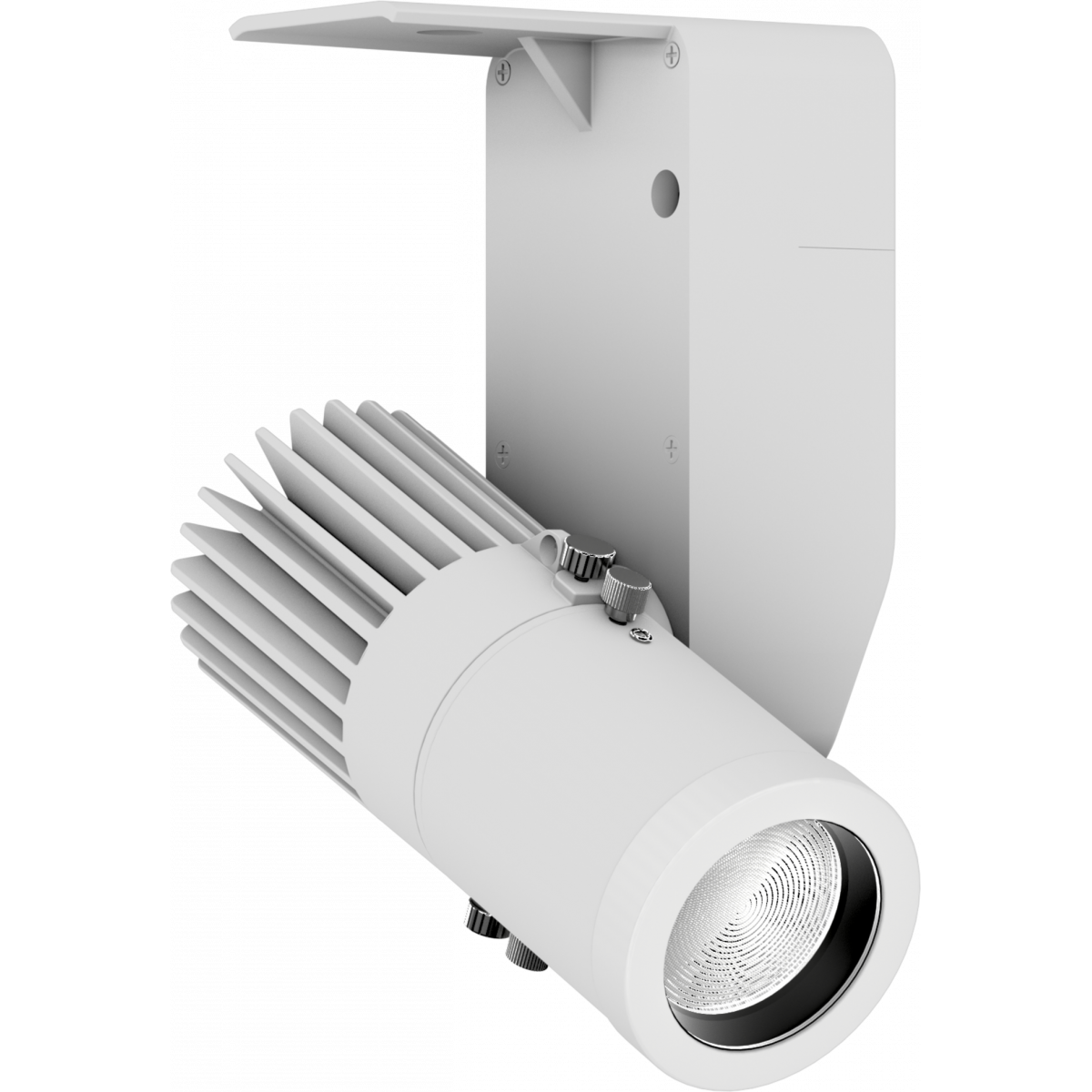

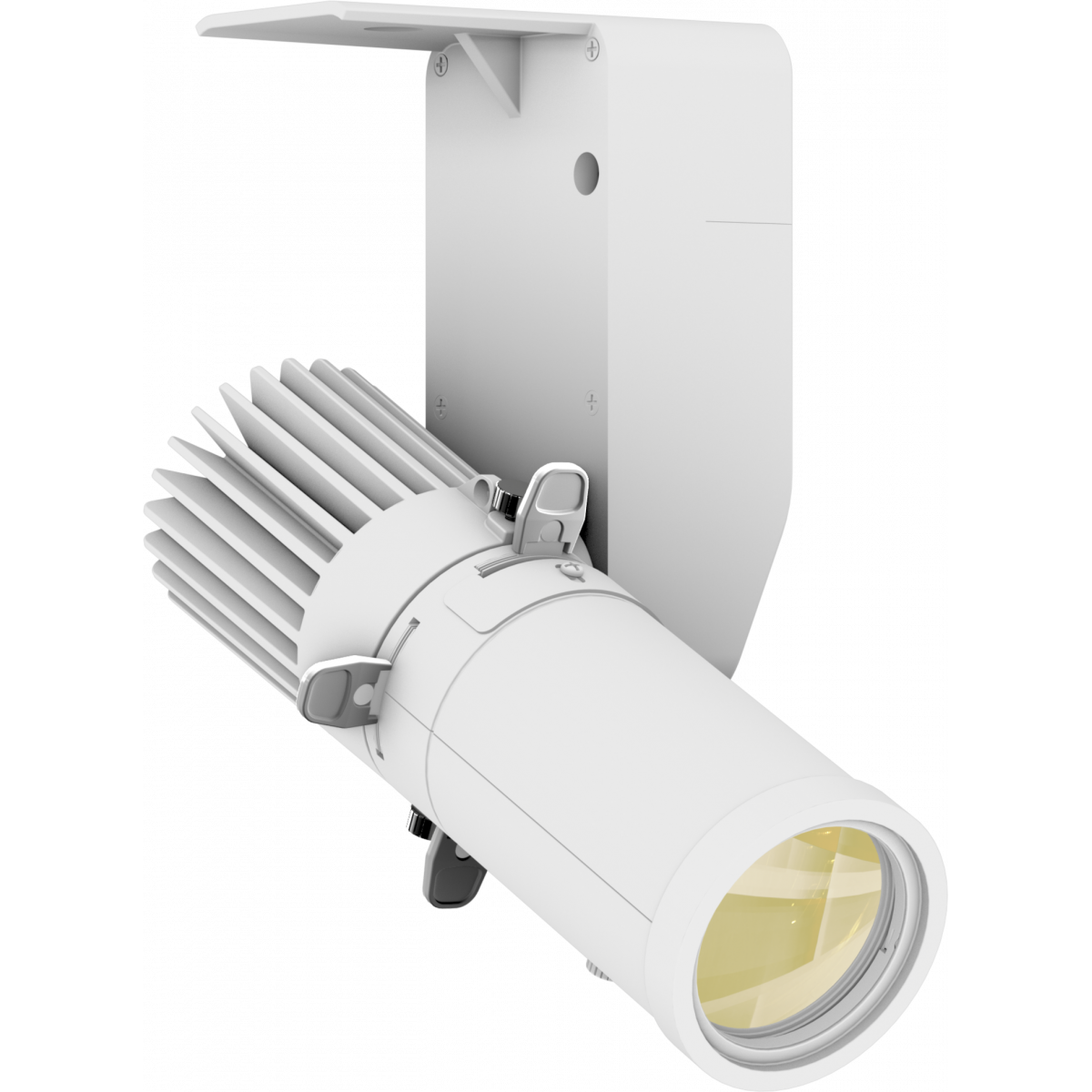

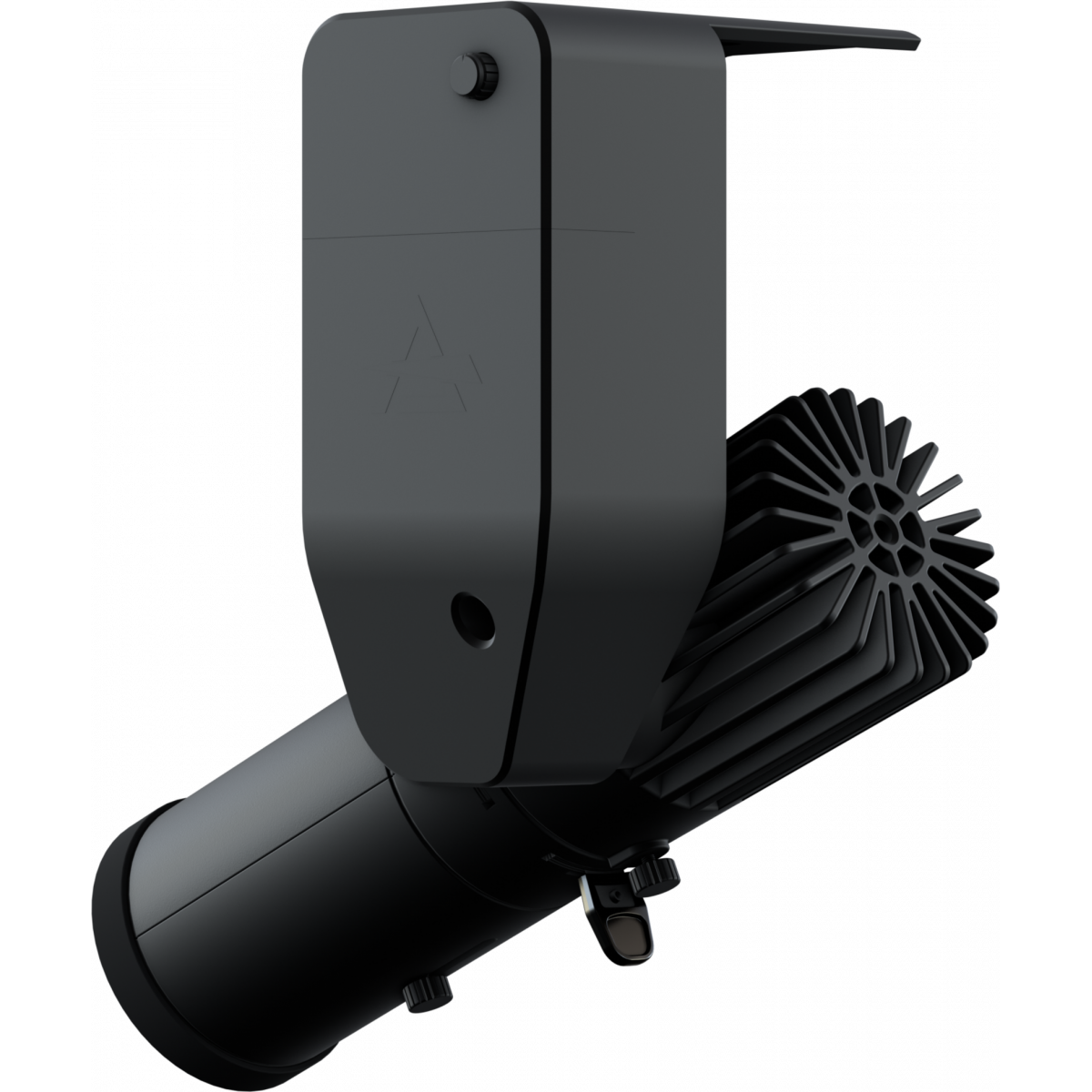

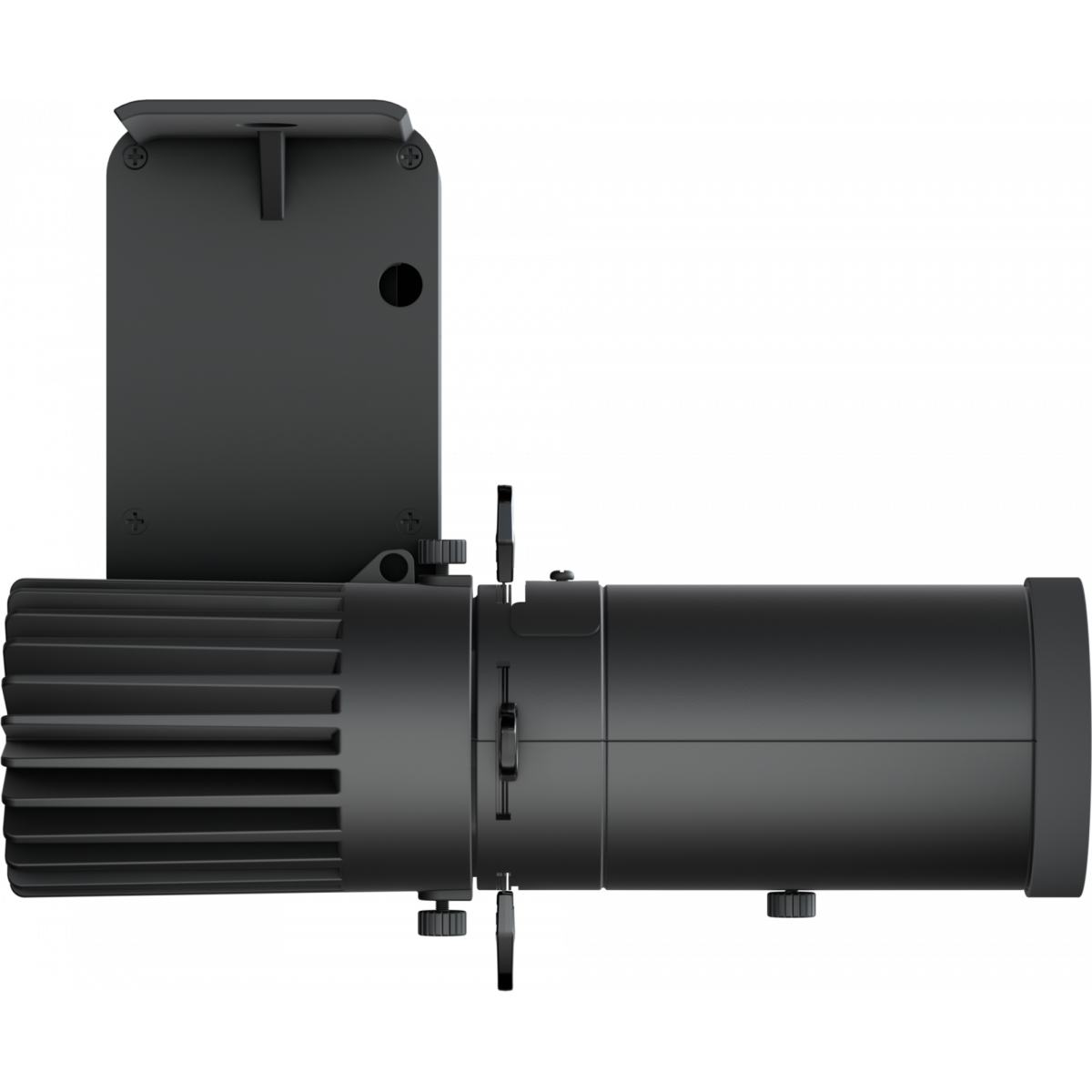

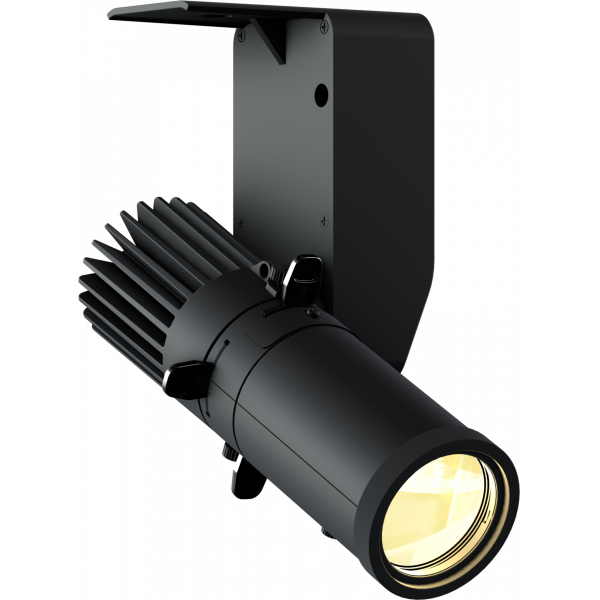

EclMini DAT

18W White LED Gallery light, with data control (DMX, DALI T6, knob-dimming)

The EclMini is a range of ultra-compact, low-profile LED spotlights, designed for galleries, retail or any hospitality venue.
There are several control options, sources, and optics available to fit any application.
The EclMini DAT is configurable and addressed through RDM and includes a broad set of on-board control options: DMX, DALI Type 6 or local knob dimming control.
The EclMini DAT includes a high-efficiency 18W white, high CRI LED source, available in 2,700K, 3,000K, 4,000K, 5,600K variants, with a wide choice of optics and accessories available, making it truly a multi-purpose fixture.

5 YEARS WARRANTY

Main features:

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 18W High-CRI White LED available in 2,700K, 3,000K, 4,000K, 5,600K versions, black and white housing
  • Multiple lens options: 19° / 26° / 36° / 50° profile or zoomable 15°-30° or 25°-50° wash optics
See variants CONFIGURATOR

PHOTO GALLERY

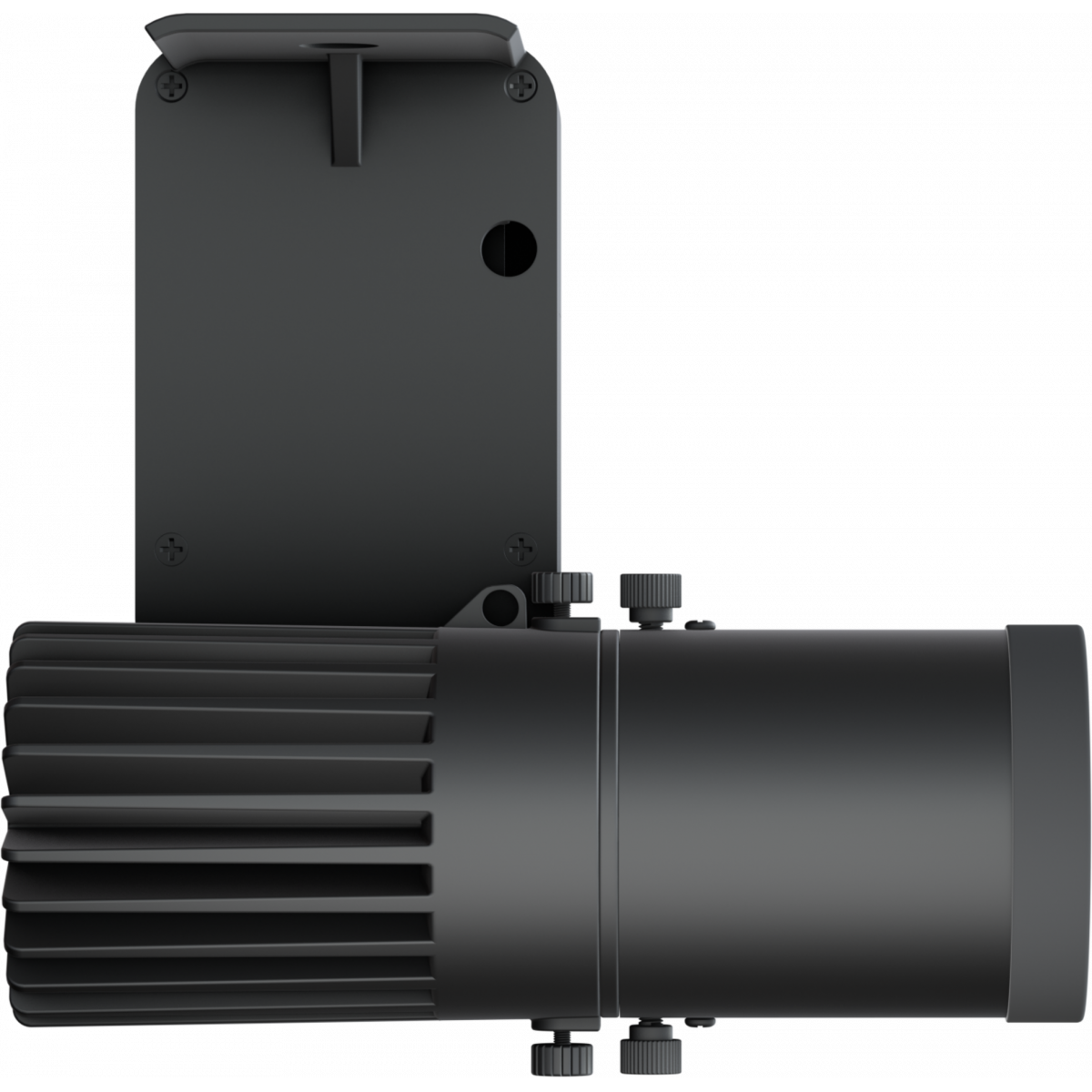

EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT
EclMini DAT

Technical specifications

LIGHT SOURCE
  • Source: 18W White COB LED
  • CCT: 2.700K - 3.000K - 4.000K - 5.600
  • Luminous flux: (3.000K) (19°) 1.134 lm - (26°) 1.130 lm - (36°) 1.144 lm - (50°) 1.105 @Full
  • Luminous flux: (5.600K) (19°) 1.230 lm - (26°) 1.250 lm - (36°) 1.251 lm - (50°) 1.212 lm @full
  • Lux: (3.000K) (19°) 588 lx - (26°) 334 lx - (36°) 184 lx - (50°) 98lx @5 m full
  • Lux: (5.600K) (19°) 632 lx - (26°) 363 lx - (36°) 193 lx - (50°) 105lx @5 m full
  • CRI: 93 @2.700 K; 92 @3.000 K; 89@4.000 K; 93 @5.600 K
  • TLCI: 84 @2.700 K; 87 @3.000 K; 89 @4.000 K; 95 @5.600 K
  • TM30 Rf: > 89 @2.700 K; 3.000 K; 4.000 K; > 93 @5.600 K
  • TM30 Rg: > 102 @2.700 K; 3.000 K; 4.000 K; 5.600 K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Optics: (profile lens - optional) 19°, 26°, 36°, 50° - gobo holder included
  • Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50°
  • Other: 360° lens rotation - optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens - optional) gobo holder size E, outer: 37,3 mm - image: 24 mm - thickness: 1,1 mm
DYNAMIC EFFECTS
  • Control Resolution: 16-bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
BODY
  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9003
  • Other: cable not included - Cable diameter range: 6 - 10 mm
CONTROL
  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 25W
  • Output (at 230V): 68 units on a single power line
  • Power factor: > 0,90
PHYSICAL
  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 126x170x95mm / 4.96''x6.69''x3.74''
  • Weight: 1,15kg / 2.54lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT

Versions

Code
CT
Finishing
Track adapter
Optics
ECLMINIDAT27KB
ECLMINIDAT27KB
2700K
Black
Not included
Not included
ECLMINIDAT30KB
ECLMINIDAT30KB
3000K
Black
Not included
Not included
ECLMINIDAT40KB
ECLMINIDAT40KB
4000K
Black
Not included
Not included
ECLMINIDAT56KB
ECLMINIDAT56KB
5600K
Black
Not included
Not included
ECLMINIDAT27KW
ECLMINIDAT27KW
2700K
White
Not included
Not included
ECLMINIDAT30KW
ECLMINIDAT30KW
3000K
White
Not included
Not included
ECLMINIDAT40KW
ECLMINIDAT40KW
4000K
White
Not included
Not included
ECLMINIDAT56KW
ECLMINIDAT56KW
5600K
White
Not included
Not included

Accessories & Related Products

ECLMINIGOBOHINDB
ECLMINIGOBOHINDB
(Optional)
Gobo holder for EclMini with manual adjustable index position system, black
<b>EclMini</b> PHDZL1020
EclMini PHDZL1020
(Optional)
10° - 20° Zoomable High definition profile lenses for Ecl Mini series, white
<b>EclMini</b> PHDZL1020
EclMini PHDZL1020
(Optional)
10° - 20° Zoomable High definition profile lenses for Ecl Mini series, black

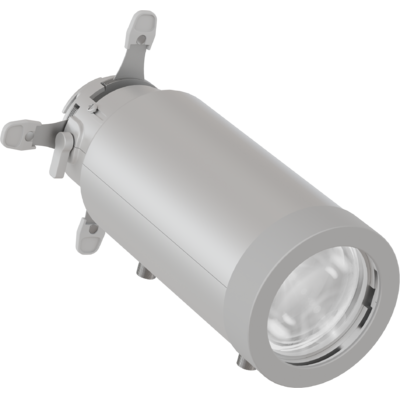

<b>EclMini</b> PHDZL1540
EclMini PHDZL1540
(Optional)
15° - 40° Zoomable High definition profile lenses for Ecl Mini series, white
<b>EclMini</b> PHDZL1540
EclMini PHDZL1540
(Optional)
15° - 40° Zoomable High definition profile lenses for Ecl Mini series, black

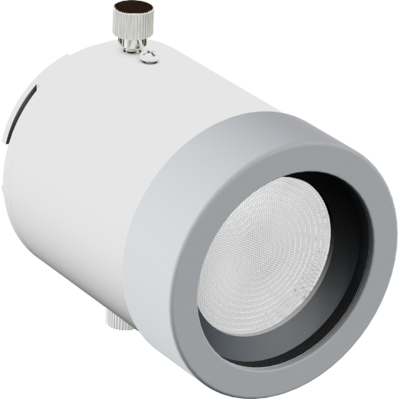

<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclMini, black
<b>EclMini</b> WashLens 15°- 30°
EclMini WashLens 15°- 30°
(Optional)
Zoomable Wash Lens 15-30° for EclMini, white
<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclMini, black

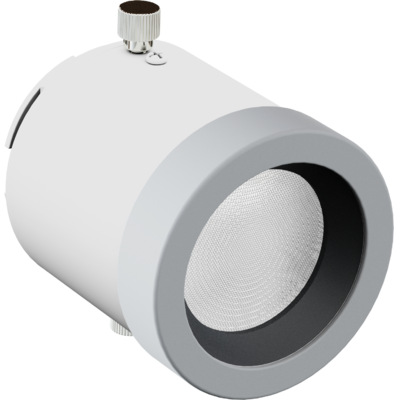

<b>EclMini</b> WashLens 25°- 50°
EclMini WashLens 25°- 50°
(Optional)
Zoomable Wash Lens 25-50° for EclMini, white
MINIECLL19
MINIECLL19
(Optional)
Optics for MINIECL profiler, gobo holder included, 19° beam
MINIECLL26
MINIECLL26
(Optional)
Optics for MINIECL profiler, gobo holder included, 26° beam
MINIECLL36
MINIECLL36
(Optional)
Optics for MINIECL profiler, gobo holder included, 36° beam
MINIECLL50
MINIECLL50
(Optional)
Optics for MINIECL profiler, gobo holder included, 50° beam
MINIECLTRL19
MINIECLTRL19
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 19° beam
MINIECLTRL26
MINIECLTRL26
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 26° beam
MINIECLTRL36
MINIECLTRL36
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 36° beam

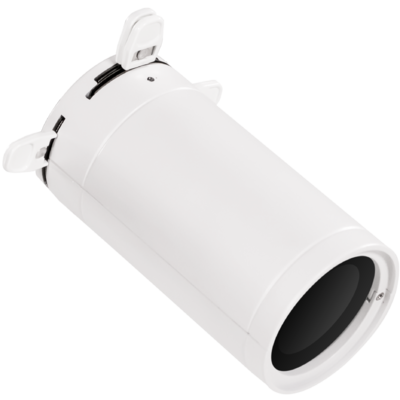

MINIECLTRL50
MINIECLTRL50
(Optional)
Optics for MINIECLTR profiler, gobo holder included, 50° beam

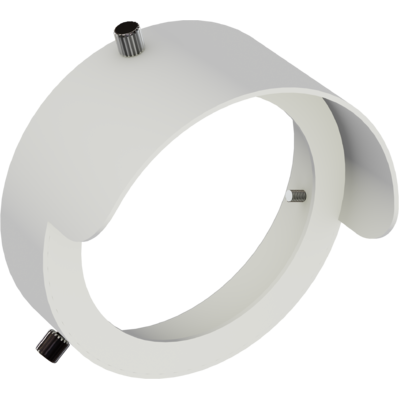

<b>EclMini</b> Half Snoot
EclMini Half Snoot
(Optional)
Half Snoot for EclMini, black
<b>EclMini</b> Half Snoot
EclMini Half Snoot
(Optional)
Half Snoot for EclMinix, white
<b>EclMini</b> Full Snoot
EclMini Full Snoot
(Optional)
Full Snoot for EclMini, black

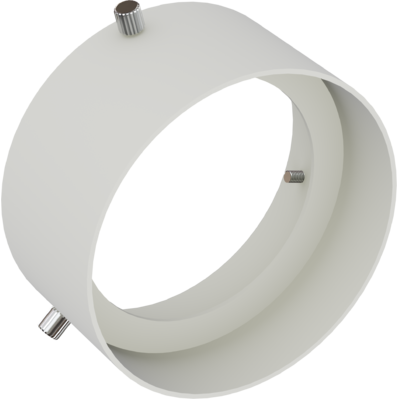

<b>EclMini</b> Full Snoot
EclMini Full Snoot
(Optional)
Full Snoot for EclMini, white
<b>EclMini</b> Louvre
EclMini Louvre
(Optional)
Anti-glare louvre for EclMini, black

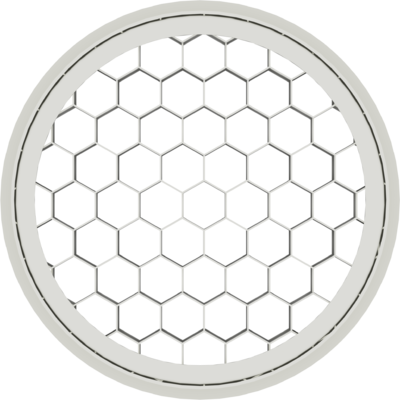

<b>EclMini</b> Louvre
EclMini Louvre
(Optional)
Anti-glare louvre for EclMini, white

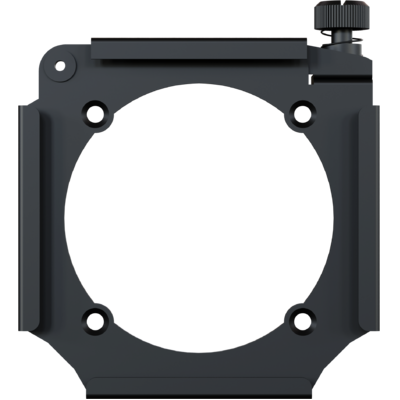

ECLMINIHNFFB
ECLMINIHNFFB
(Optional)
Holder and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini
<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini

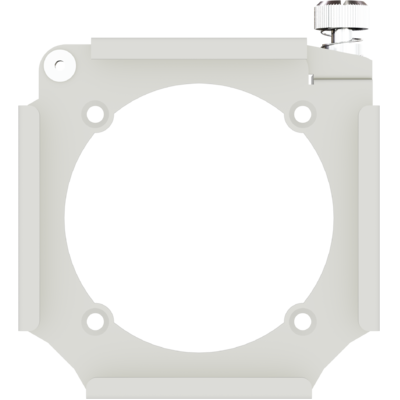

ECLMINIHNFFW
ECLMINIHNFFW
(Optional)
Holder and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini

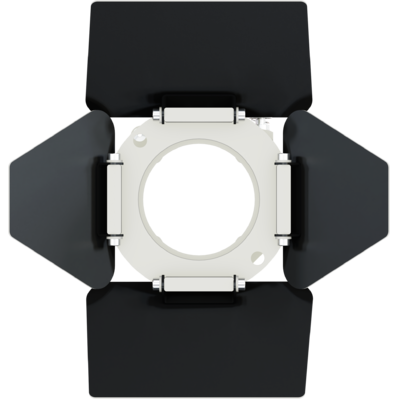

<b>EclMini</b> Barndoor+Frame
EclMini Barndoor+Frame
(Optional)
Barndoor and filter frame (compatible with Wash Lenses - not compatible with Profile lenses) EclMini
NAXTSC61002
NAXTSC61002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, black
NAXTSC61003
NAXTSC61003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 1000 mm / 3,28 feet, white
NAXTSC62002
NAXTSC62002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, black
NAXTSC62003
NAXTSC62003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 2000 mm / 6,56 feet, white
NAXTSC63002
NAXTSC63002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, black
NAXTSC63003
NAXTSC63003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 3000 mm / 9,84 feet, white
NAXTSC64002
NAXTSC64002
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, black
NAXTSC64003
NAXTSC64003
(Optional)
Global Pulse XTSC Lighting Track, 3 circuit DALI, 4000 mm / 13,12 feet, white
NAXTSC6112
NAXTSC6112
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, black
NAXTSC6113
NAXTSC6113
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth right, white
NAXTSC6122
NAXTSC6122
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, black
NAXTSC6123
NAXTSC6123
(Optional)
Global Pulse XTS Connector 3-CCT DALI end feed, earth left, white
NAXTSC6142
NAXTSC6142
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, black
NAXTSC6143
NAXTSC6143
(Optional)
Global Pulse XTS Connector 3-CCT DALI middle feed, white
NAXTSC6212
NAXTSC6212
(Optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, black
NAXTSC6232
NAXTSC6232
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, black
NAXTSC6213
NAXTSC6213
(Optional)
Global Pulse XTS Connector 3-CCT DALI straight connector, white
NAXTSC6233
NAXTSC6233
(Optional)
Global Pulse XTS Connector 3-CCT DALI flexible corner connector, white
NAXTSNC6342
NAXTSNC6342
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, black
NAXTSNC6343
NAXTSNC6343
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth right, white
NAXTSNC6352
NAXTSNC6352
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, black
NAXTSNC6353
NAXTSNC6353
(Optional)
Global Pulse XTSN Connector 3-CCT DALI L connector, earth left, white
NAXTSNC6362
NAXTSNC6362
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, black
NAXTSNC6363
NAXTSNC6363
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/right, white
NAXTSNC6372
NAXTSNC6372
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, black
NAXTSNC6373
NAXTSNC6373
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/left, white
NAXTSNC6382
NAXTSNC6382
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, black
NAXTSNC6383
NAXTSNC6383
(Optional)
Global Pulse XTSN Connector 3-CCT DALI X connector, white
NAXTSNC6392
NAXTSNC6392
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, black
NAXTSNC6393
NAXTSNC6393
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth right/left, white
NAXTSNC6402
NAXTSNC6402
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, black
NAXTSNC6403
NAXTSNC6403
(Optional)
Global Pulse XTSN Connector 3-CCT DALI T connector, earth left/right, white
NAXTS412
NAXTS412
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, black
NAXTS413
NAXTS413
(Optional)
Global Pulse XTS Connector 3-CCT DALI END cap, white

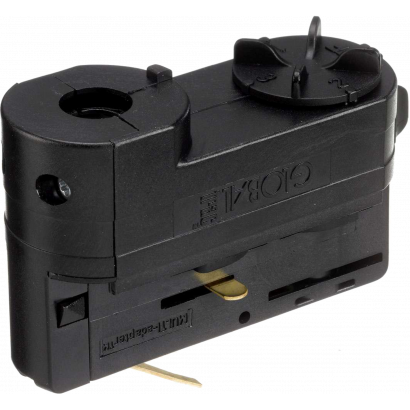

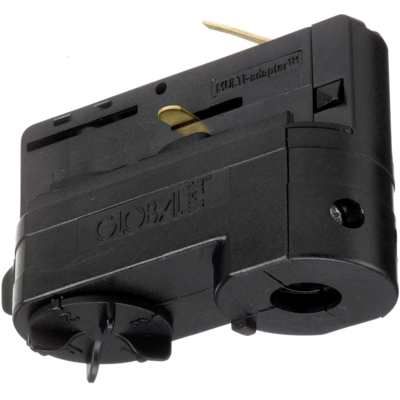

NAXTSA682
NAXTSA682
(Optional)

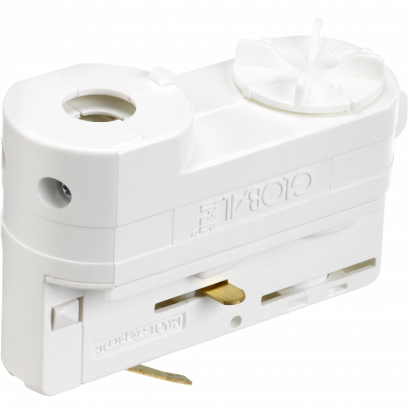

Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, black

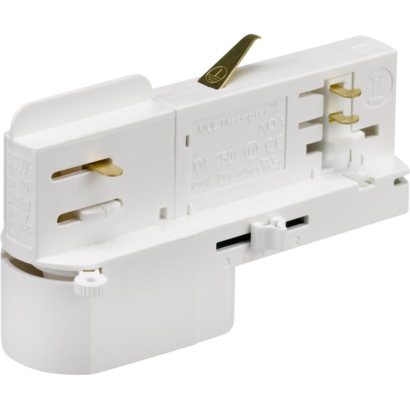

NAXTSA683
NAXTSA683
(Optional)
Global Pulse 3-Circuit MULTI Adapter, 10A 100N Slot connection, white

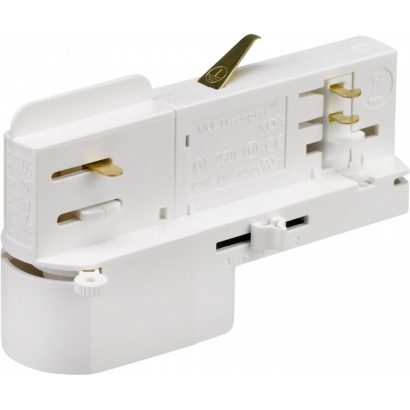

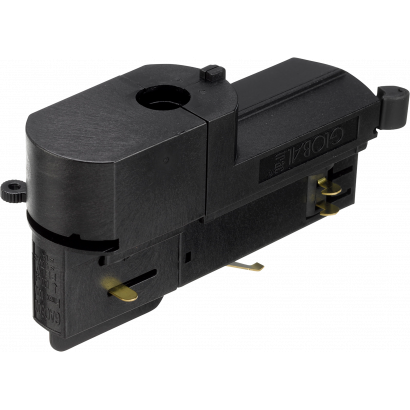

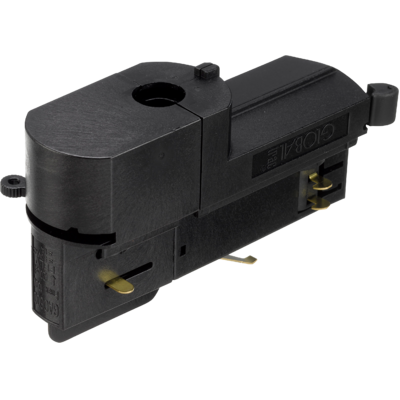

NAGAC6002
NAGAC6002
(Optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, black

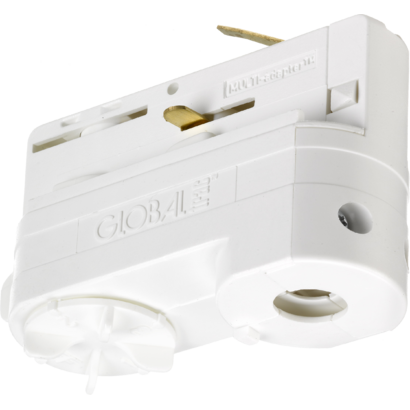

NAGAC6003
NAGAC6003
(Optional)
Global Pulse DMX/DALI 3-Circuit Adapters, 10A 100N Slot connection, wihte
NAKKT3013184
NAKKT3013184
(Optional)
Kit for NAXTSA682 adapter, black
NAKKT3013185
NAKKT3013185
(Optional)
Kit for NAXTSA683 adapter, white
NAKKT306007
NAKKT306007
(Optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6002, black
NAKKT306008
NAKKT306008
(Optional)
Kit for Global Pulse DMX/DALI 3-Circuit Adapters NAGAC6003, white
NASPW12SK215M
NASPW12SK215M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, black
NASPW12SK25M
NASPW12SK25M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, black
NASPW12SK315M
NASPW12SK315M
(Optional)
Global Pulse Track clip wire suspension set 1.5m, 150N, white
NASPW12SK35M
NASPW12SK35M
(Optional)
Global Pulse Track clip wire suspension set 5m, 150N, white
NAXTSA55129
NAXTSA55129
(Optional)
Global Pulse Rotating Nipples 3-Circuit Adapters, M13, H 12mm, D 9mm

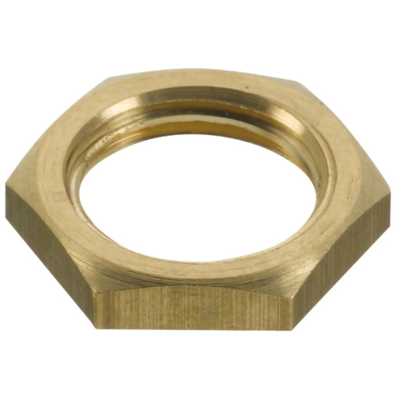

NAGAM139
NAGAM139
(Optional)

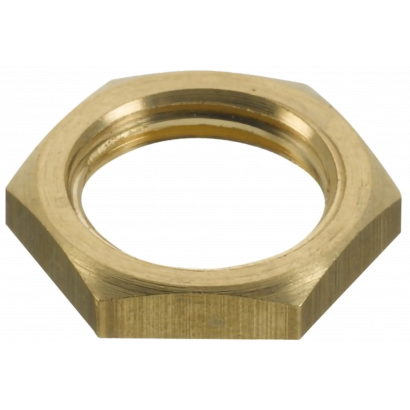

Global Pulse Nut M13 for NAXTSA55129
NASKB122
NASKB122
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, black
NASKB123
NASKB123
(Optional)
Global Pulse Track Mounting Clamp for Rod and Wire, 200N, white
PLCPW93075
PLCPW93075
(Optional)
Power PVC cable H05VV-F 3G0,75, 1 meter lenght
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
C6002B
C6002B
(Optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
PLCDX53D5
PLCDX53D5
(Optional)
120 Ohm DMX cable, 2 twisted poles, external sheath with reduced diameter, 1 m
PLCPD7501P14D
PLCPD7501P14D
(Optional)
Power & DMX 120 Ohm, 1 meter length, not suitable for track adapter connection
PLCPD7501P68D
PLCPD7501P68D
(Optional)
Power & DMX 120 Ohm
PLCYA7501P14D
PLCYA7501P14D
(Optional)
YY splitter cable Power 3x0.75 mm2 + 5p IN/OUT DMX 120 Ohm, bare end, 1 meter
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetEclminidat_LETTER_DATASHEET_(EN).pdf442KB
Letter datasheetEclminidat_A4_DATASHEET_(EN).pdf443KB
Tender SpecificationEclminidat_TENDER_SPECIFICATION.pdf4MB

User manual

DMX chart & personalities

File name File size Download
DMX chartEclminidat_DMX_CHARTS.pdf77KB
ECLMINIDAT Firmware rev. 1.4
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D sketchupECLMINIDAT_3D_SKETCHUP.zip11MB
2DECLMINIDAT_2D.zip13MB
3DECLMINIDAT_3D.zip17MB
Technical drawingECLMINIDAT_TECHNICAL DRAWINGS.zip999KB
VectorWorksPROLIGHTS_VECTORWORKS_v2025_LIBRARY.vwx321MB
VectorWorksPROLIGHTS_VECTORWORKS_v2020_LIBRARY.vwx276MB
VectorWorksECLMINIDAT_SYMBOLS.zip28MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.4 STABLE 27/02/2025 Improvement:
  • Improved Encoder management as follows:
    • scroll = change the Dimmer value (the "Static Dimmer" PID value in RDM will change accordingly).
    • 1 push = lock the encoder
    • 2 push = enter/exit HIGHLIGHT mode
  • Improved DALI management: It is now possible to use the DALI-Cockpit software in addition to the Master Configurator software.
 Rev. 1.0

Info Request

News

Australia lights up its pavilion at Expo 2025 Osaka with PROLIGHTS
May 23, 2025
Australia lights up its pavilion at Expo 2025 Osaka with PROLIGHTS
“ Chasing the Sun " is the central theme of the Australia Pavilion at Expo Osaka , showcasing Australia's unique energy, cultural diversity, creativity, and stunning natural landscapes. Designed by the Australian firm Buchan , the pavilion guides visitors
PROLIGHTS HaluPix Duo Illuminates the Scene at Must Be the Music
May 20, 2025
PROLIGHTS HaluPix Duo Illuminates the Scene at Must Be the Music
The Polish edition of ' Must Be the Music ', recently captivated audiences with a stunning performance by the young Gracjana Górka during the semi-finals, where the powerful voice of the singer was perfectly matched by a dynamic lighting design. For
PROLIGHTS expands its partnership with Gobo in Finland
May 16, 2025
PROLIGHTS expands its partnership with Gobo in Finland
After many years of successful collaboration with Gobo in Denmark and Sweden, PROLIGHTS is pleased to announce the expansion of this partnership as Gobo Oy becomes the sole distributor for PROLIGHTS products in Finland, starting August 1, 2025. With their
PROLIGHTS HaluPix DUO joins Guus Meeuwis on tour
May 14, 2025
PROLIGHTS HaluPix DUO joins Guus Meeuwis on tour
The Dutch festival season got off to a thrilling start as Guus Meeuwis took the stage at Paaspop 2025 with an explosive performance and a striking new floor set, made possible by the PROLIGHTS HaluPix Duo . For this special event, light designer Marco
A new professional lighting setup for Hart van Hapert with PROLIGHTS
May 08, 2025
A new professional lighting setup for Hart van Hapert with PROLIGHTS
Hart van Hapert , the multifunctional cultural centre located in the Dutch town of Hapert, has recently enhanced its spaces with a professional-grade lighting system. The venue, which includes a Foyer, Church Hall, and Auditorium, now benefits from a
PROLIGHTS shapes the atmosphere for Esmeralda at the Latvian National Opera
May 06, 2025
PROLIGHTS shapes the atmosphere for Esmeralda at the Latvian National Opera
At the heart of Riga's cultural scene, the Latvian National Opera has just premiered the ballet Esmeralda , with PROLIGHTS fixtures playing a key role in the show's visual storytelling. A total of 26 ArcSpot DOTFC units, supplied by Rock Distribution
The Justice Tour's Brilliant Comeback with EclPanel TWCXL
May 02, 2025
The Justice Tour's Brilliant Comeback with EclPanel TWCXL
After seven years of great anticipation, French electronic band Justice has announced a massive tour to celebrate the release of their new album Hyperdrama . At the helm of the project is lighting designer Vincent Lerisson , who selected two kits of 12
PROLIGHTS at the heart of PULSE, a permanent installation at INGV Rome
April 29, 2025
PROLIGHTS at the heart of PULSE, a permanent installation at INGV Rome
PROLIGHTS technology is at the heart of PULSE - Power Under Land, Source of Energy , a new permanent installation located in the courtyard of the Italian National Institute of Geophysics and Volcanology (INGV) in Rome. The work was created by Liminal
PROLIGHTS illuminate Amber & John's performance at Lotus Club Marrakech
April 24, 2025
PROLIGHTS illuminate Amber & John's performance at Lotus Club Marrakech
Lotus Club Marrakech , the iconic venue in Marrakech's Hivernage district, continues to set the standard for luxury entertainment. Since 2009, this refined villa has been home to the city's first “Revue”-style dining experience, inspired by Parisian
EclProfile CT+HP debuts at Bærum Kulturhus
April 22, 2025
EclProfile CT+HP debuts at Bærum Kulturhus
Bærum Kulturhus , a prestigious cultural venue in Norway, recently upgraded its lighting system, replacing its 22-year-old 2.5kW profiles with the advanced PROLIGHTS EclProfile CT+HP fixtures. PROSTAGE , PROLIGHTS Sales partner in Norway, managed this
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
April 18, 2025
PROLIGHTS beams into the sky from the rooftop of Atlantis The Palm
One of the world's most iconic architectural landmarks, Atlantis The Palm , recently underwent a breathtaking lighting transformation that has redefined its nighttime presence on the Dubai skyline. The spectacular illumination project was carried out
PROLIGHTS introduces Jet Spot120: Compact, Powerful, and Versatile
April 09, 2025
PROLIGHTS introduces Jet Spot120: Compact, Powerful, and Versatile
PROLIGHTS is proud to announce the launch of Jet Spot120 , the most compact moving head spotlight in its lineup. Designed for versatile applications from intimate venues to large corporate events, Jet Spot120 offers a unique blend of efficiency, powerful
Subscribe to our Newsletter
Loading...
